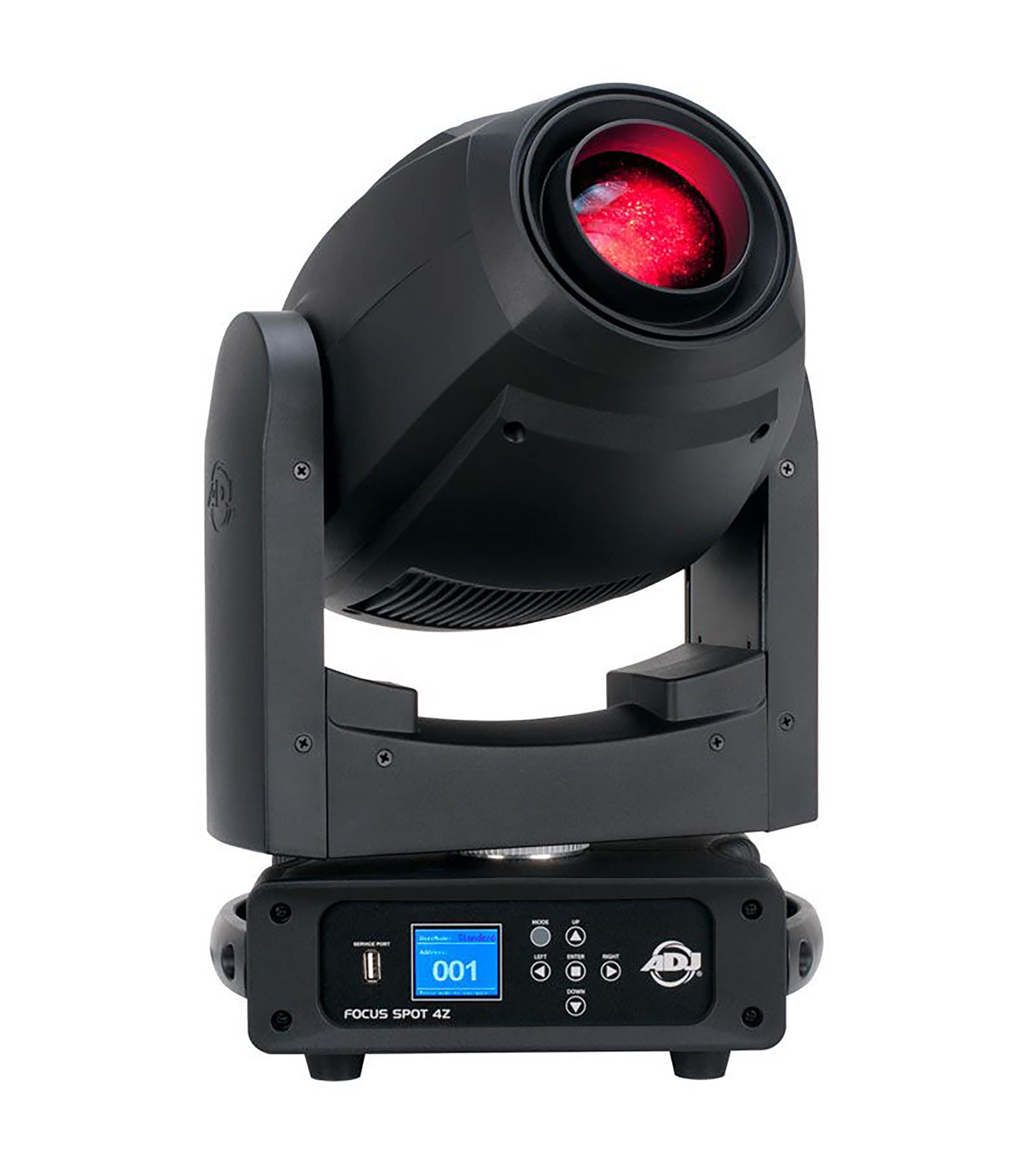

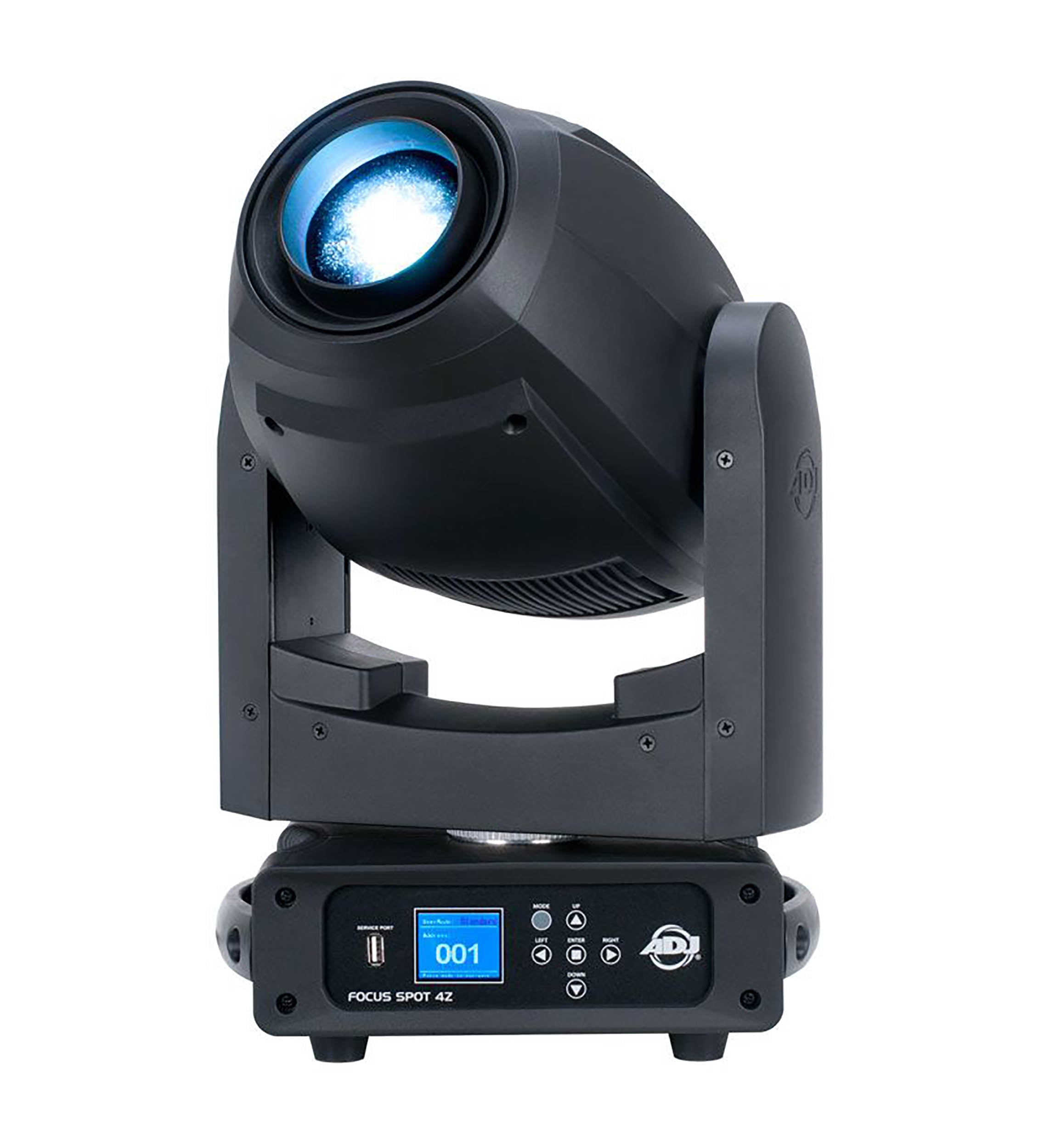

ADJ Focus Spot 4Z, Moving Head Spot Fixture with Motorized Focus & Motorized Zoom - 200W

Save 30%
UPC: 818651025811
Sale price$1,299.99 Regular price$1,849.95
In stock (28 units), ready to be shipped

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.

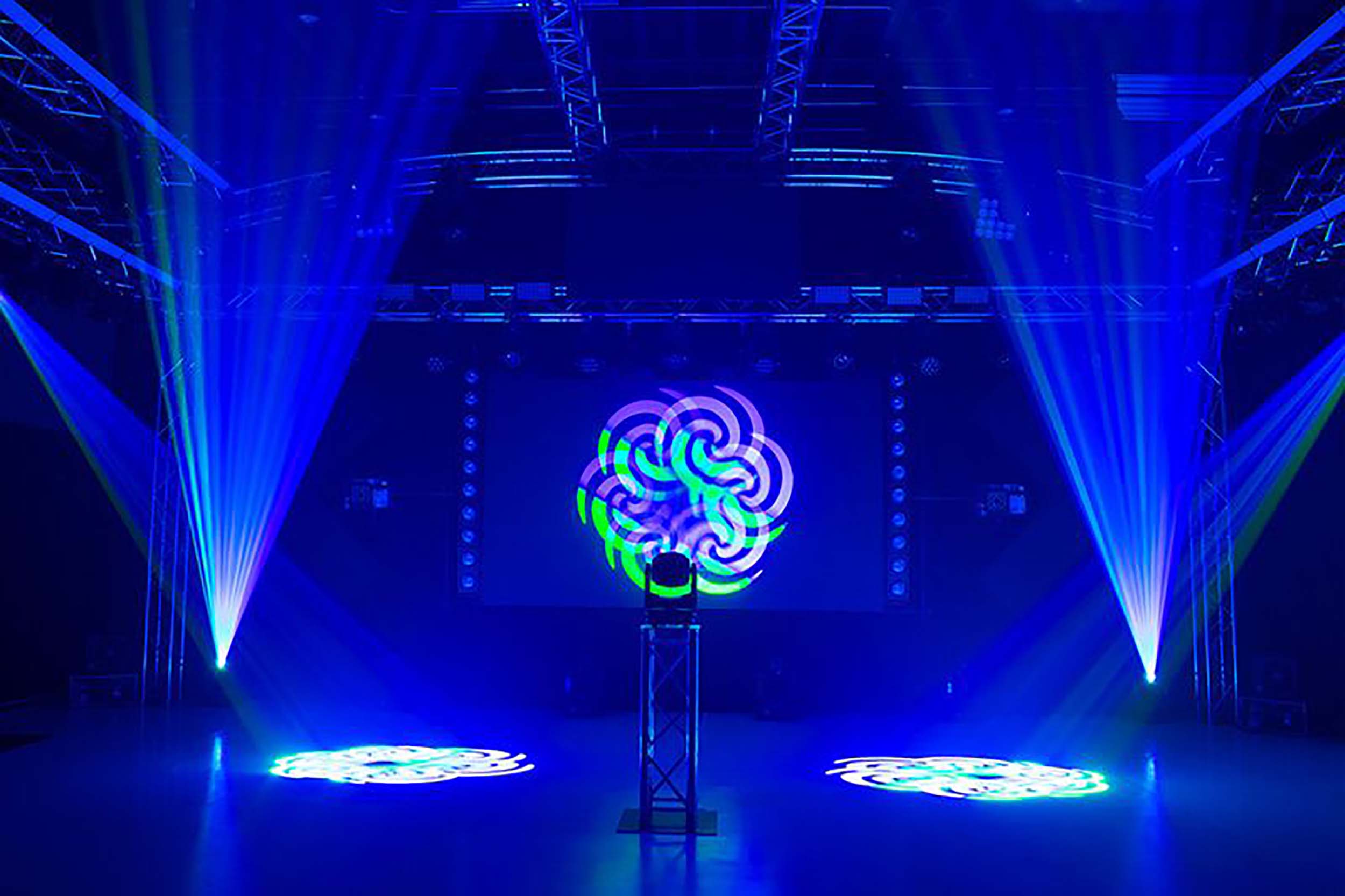

The ADJ Focus Spot 4Z, Moving head spot fixture with motorized focus and motorized zoom brings exceptional versatility to any lighting setup. Powered by a brilliant 200W cool white LED engine, this fixture is designed to deliver stunning visuals in temporary live events and fixed installations, such as nightclubs, stages, and churches. With motorized focus and zoom capabilities ranging from 11 to 22 degrees, the Focus Spot 4Z allows you to offer creative lighting effects for a wide variety of applications. Equipped with an array of impressive features, the Focus Spot 4Z is a professional-grade lighting solution. It boasts a GOBO wheel with 6 rotating and replaceable patterns, 8 vibrant colors plus white, and two prism wheels – a 5-facet linear prism and a 6-facet circular prism – for dazzling projections. The fixture also offers advanced control options, including 16-bit fine pan and tilt, multiple DMX control modes, and six different dimming options.

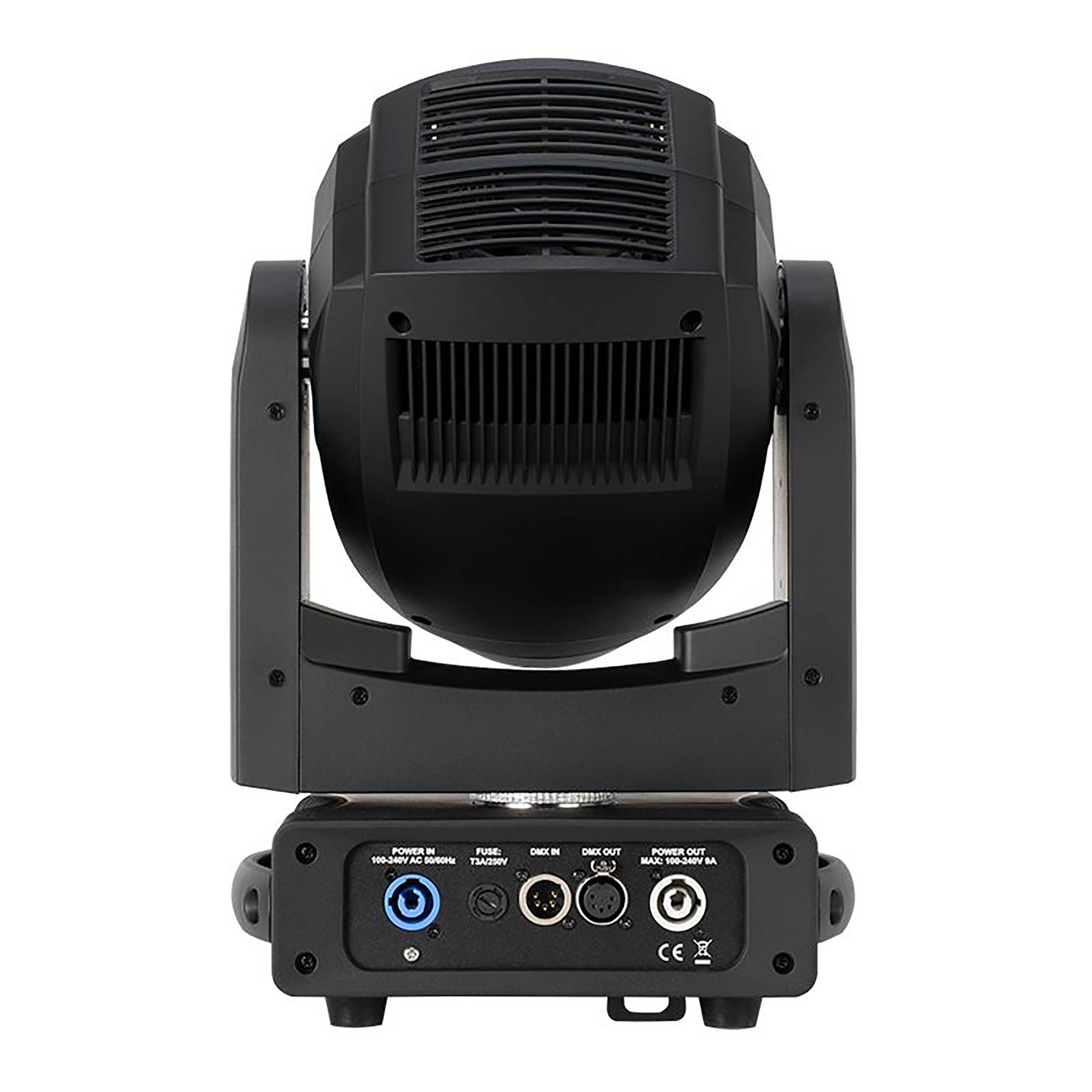

Despite its robust capabilities, the Focus Spot 4Z remains lightweight and compact. Weighing just 23 pounds and measuring 18 inches high, it's easy to handle and transport. The fixture features locking power In/Out connections for convenient daisy-chaining and 5-pin DMX In/Out ports for seamless signal transmission.

Designed for both ease of use and exceptional performance, the Focus Spot 4Z comes pre-programmed with an 'Auto' lightshow, making it suitable for plug-and-play operation. It can also be linked in a Master/Slave configuration for synchronized lightshows across multiple fixtures. With its impressive feature set, powerful output, and compact design, the ADJ Lighting Focus Spot 4Z is the ultimate choice for lighting professionals, production companies, and venues of all sizes. Elevate your lightshows and create stunning visual displays with this exceptional moving head fixture.

Two Focus Spot 4Z may be transported and protected by the ADJ DRC HM road case. This fixture is also available in a white housing called the Focus Spot 4Z Pearl.

Product Specifications:


cETLus approved (Control #4010765)

Light Source:

200W Cool White LED Engine (50,000 hr.)

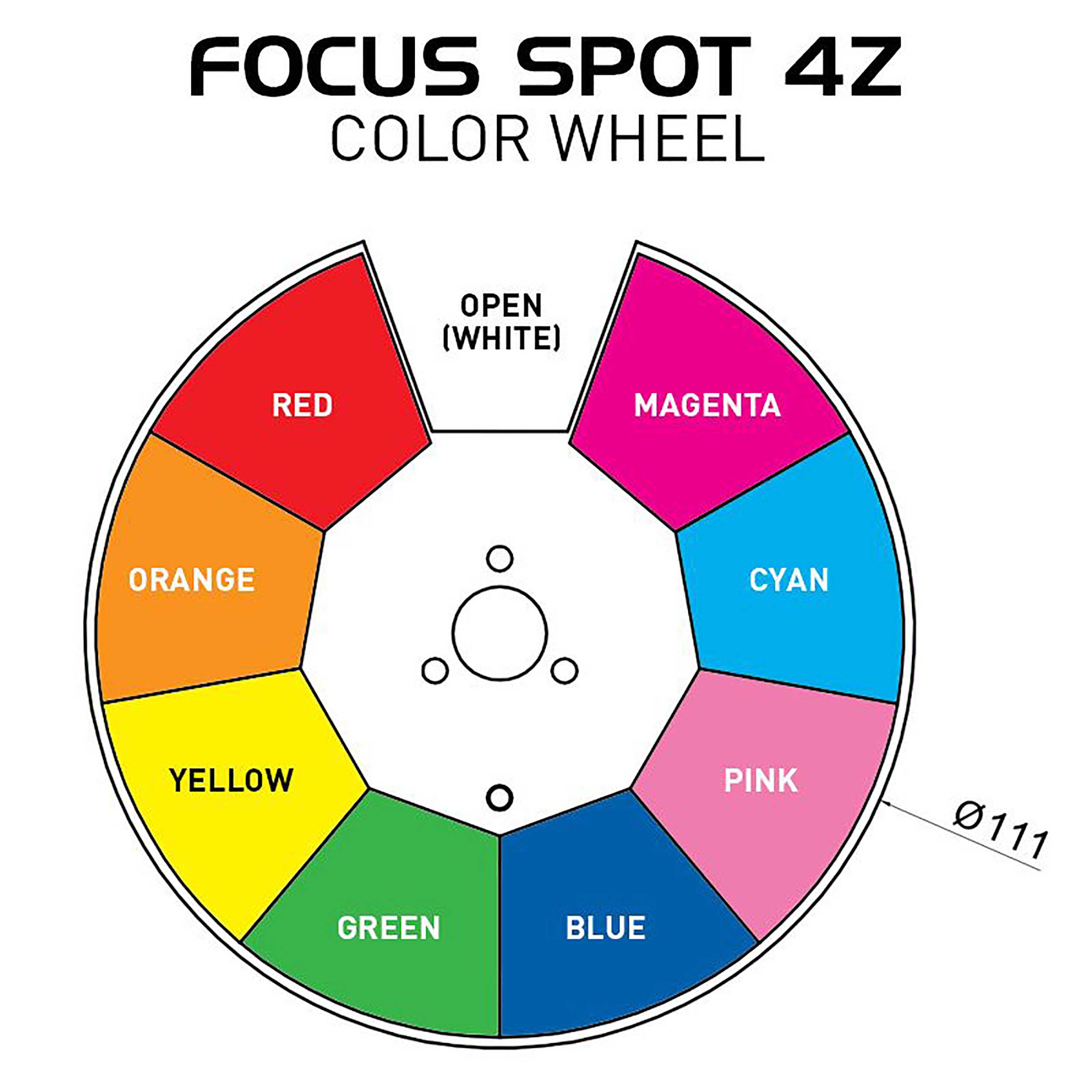

Color Wheel:

8 dichroic colors + white

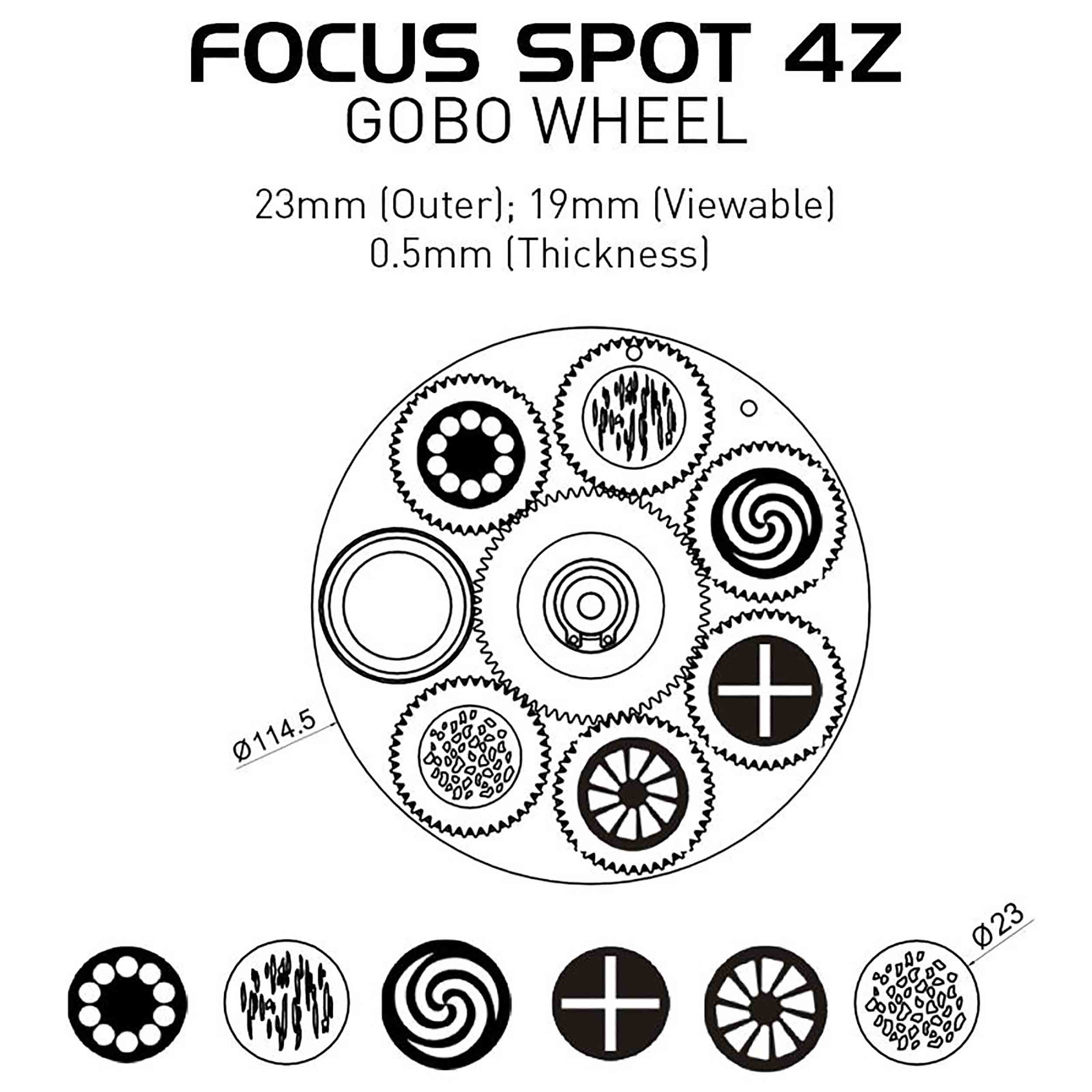

GOBO Wheel:

6 aluminum GOBOs + open

All GOBOs removable & rotatable

GOBO Shake Effect

GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

Prism Wheel:

Prism Wheel 1: Rotatable5-facet Linear

Prism Wheel 2: Rotatable 6-facet Circular

Prism Indexing


3 DMX Channel Modes: 16/18/22 Channels

Color LCD display with 6-button function menu

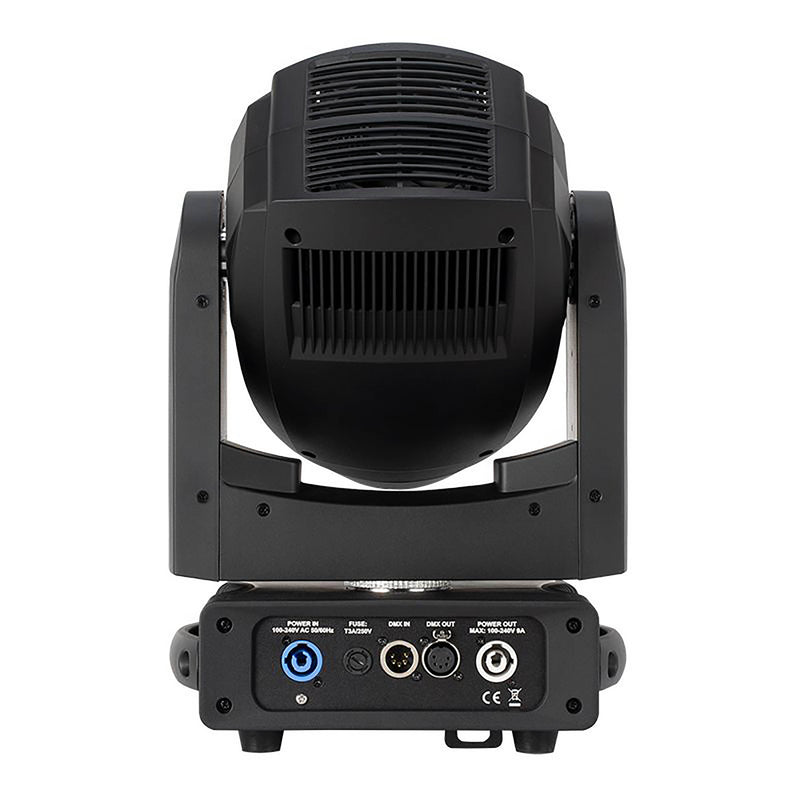

Data In/Out: 5-pin DMX

Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)

Control Mode: DMX512 or internal programs

6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

0-100% smooth dimming

Various strobe speeds

USB firmware update port

With Wired Digital Communication Network

RDM (Remote Device Management)


Pan: 540 & 630 degrees

Tilt: 270 degrees

What’s Included:

Omega Bracket

6 ft/3M Locking power to Edison cable

Safety Cable

Optional Road Cases:

DRC MH: 2 Focus Spot 4Z fit in the DRC MH Road Case

QRC MH: 4 Focus Spot 4Z fit in the QRC MH Road Case

Dimensions & Weight:

Dimension: 7.15 (L)” x 10.97” (W) x 18” (H) / 181.5 x 278.6 x 457.4mm

Weight: 23 lbs. / 10 kg.
