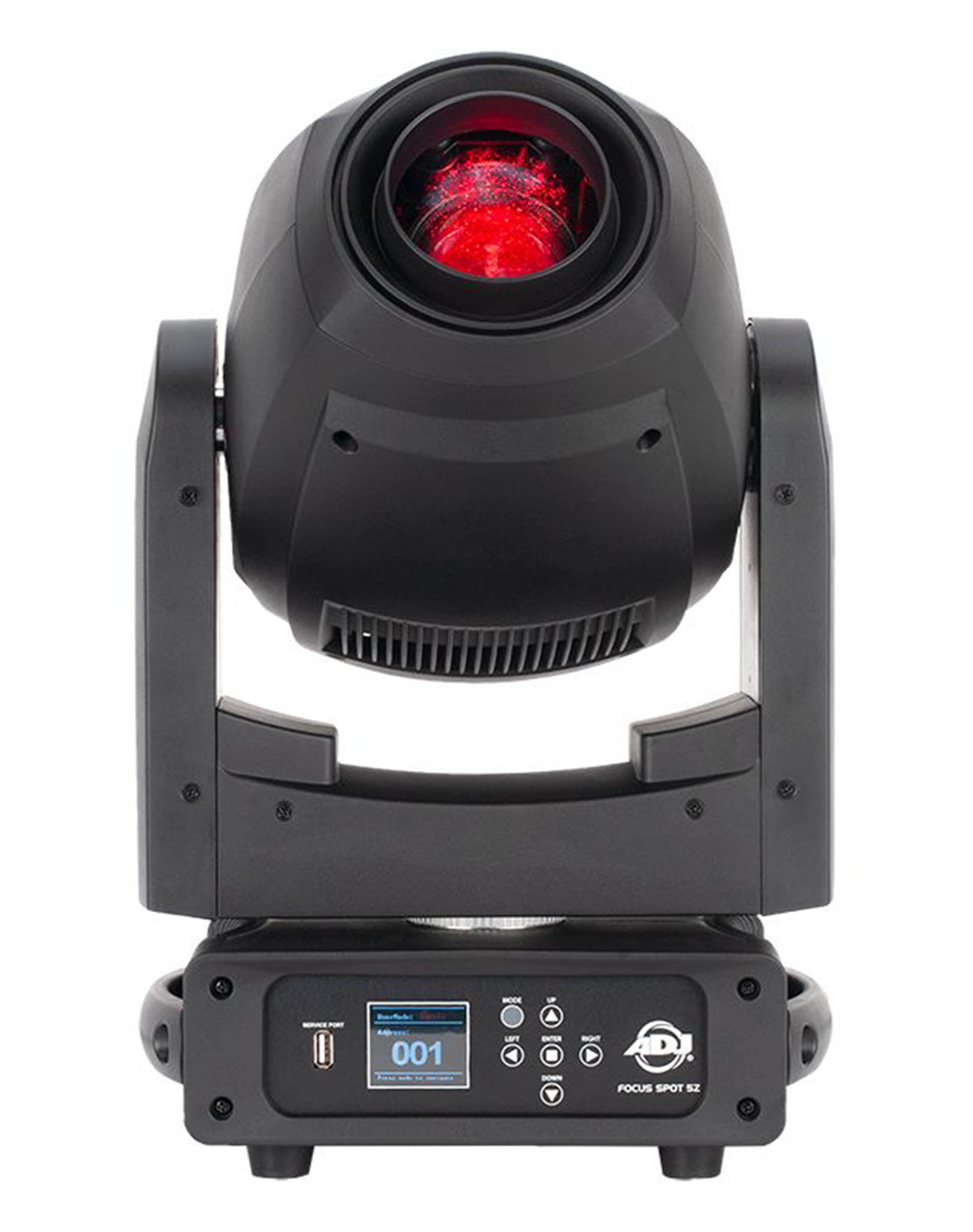

ADJ Focus Spot 5Z, Moving Head Light with 200-Watt Cool White LED Engine

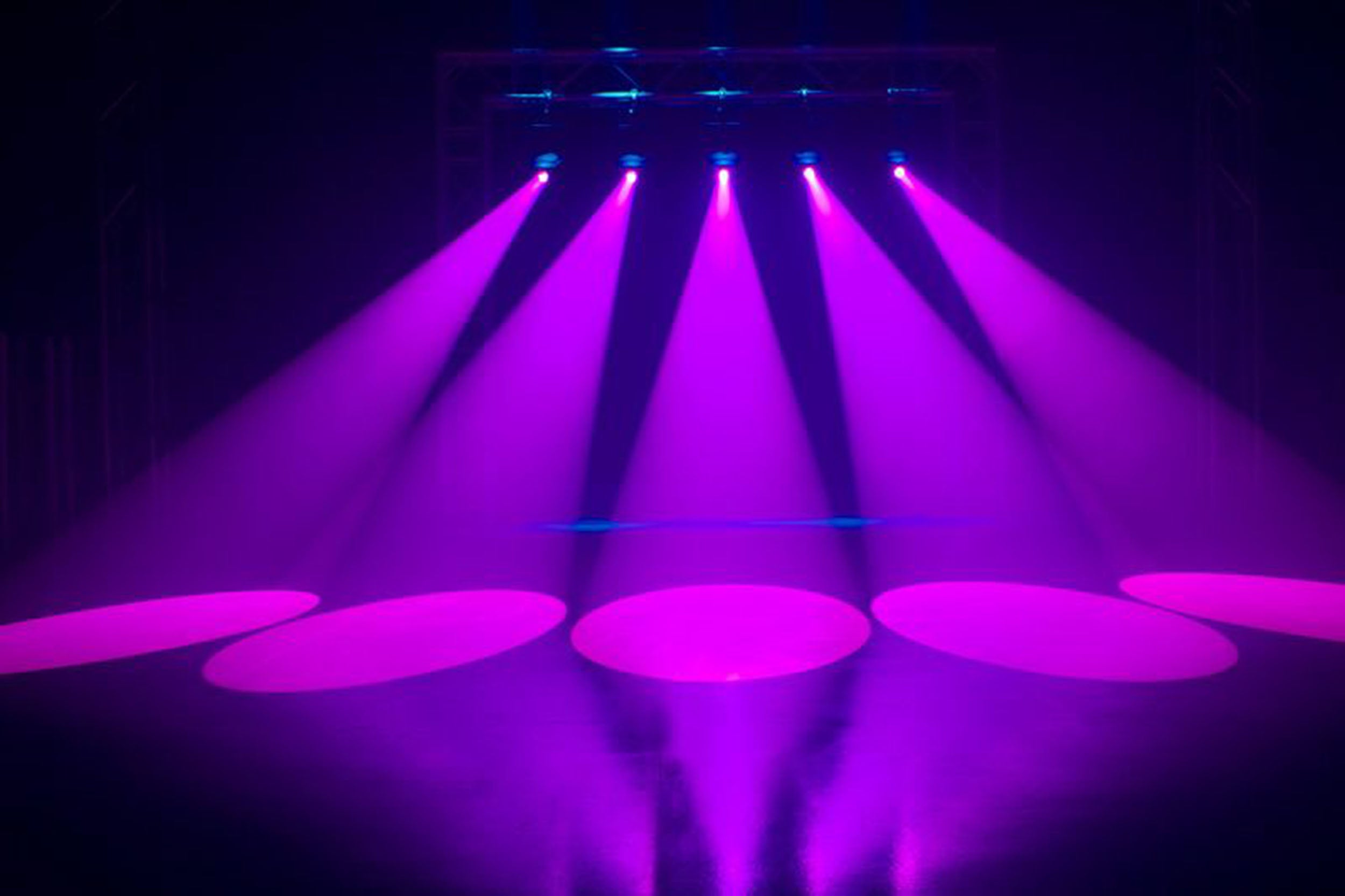

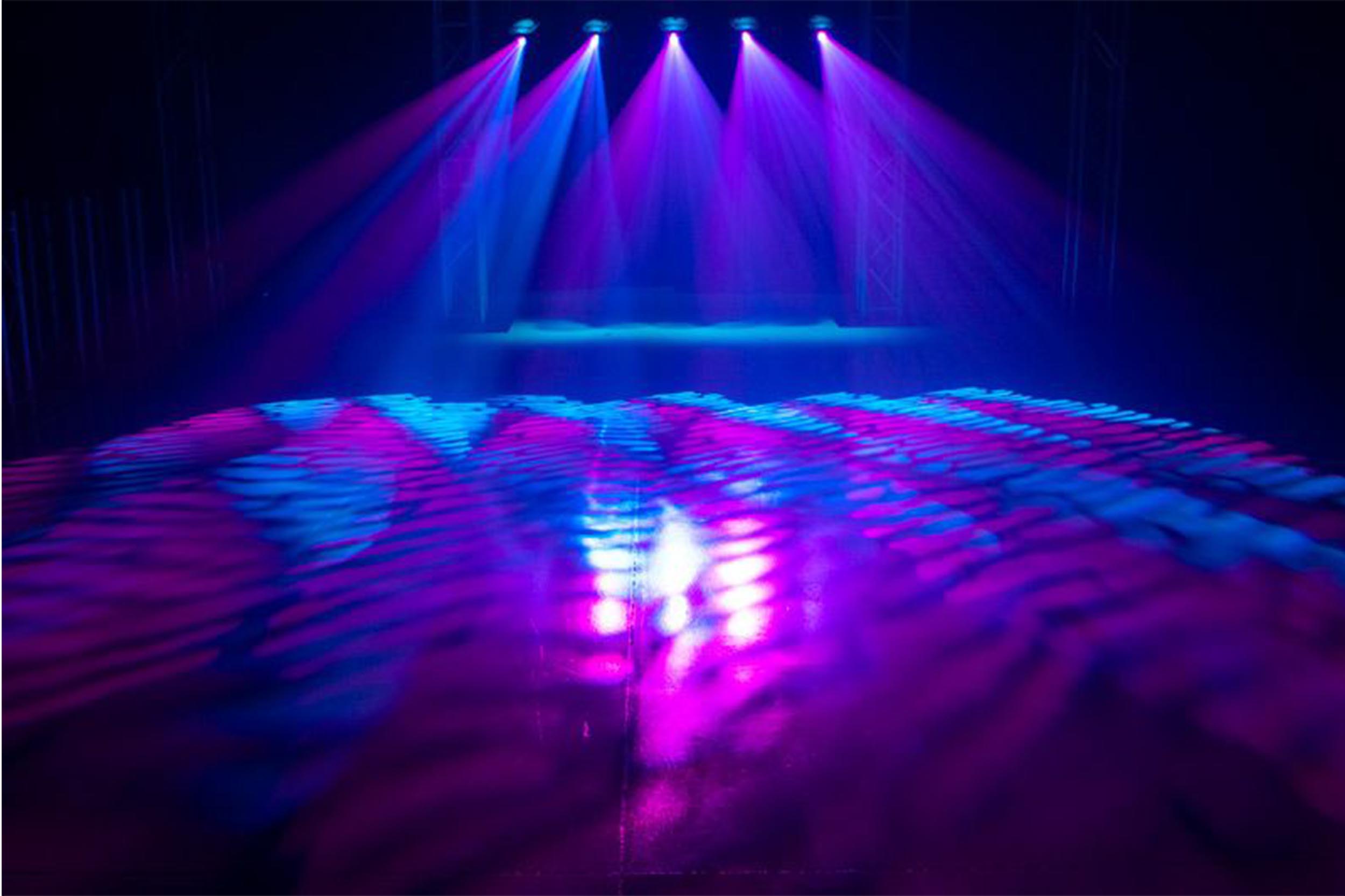

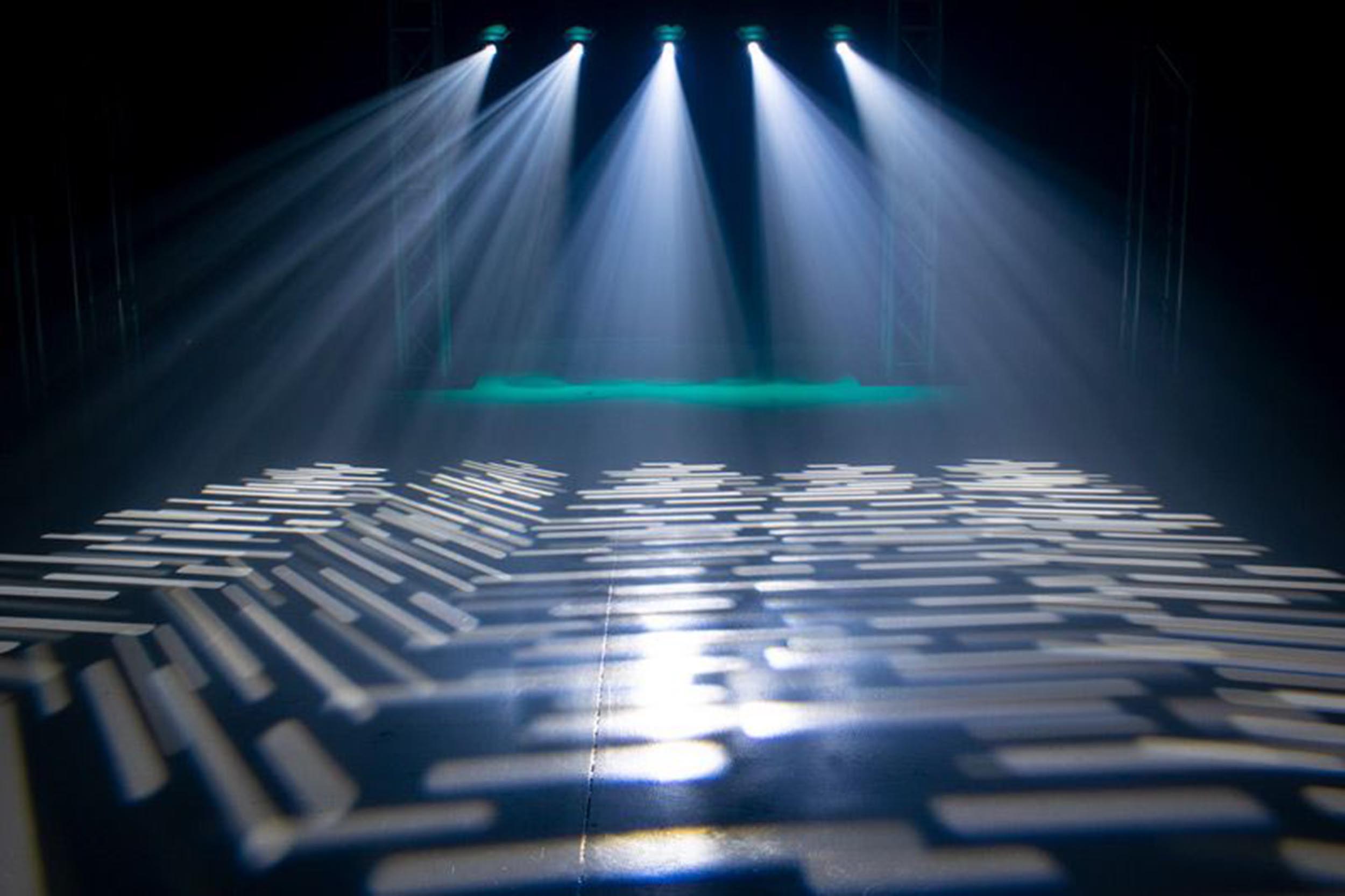

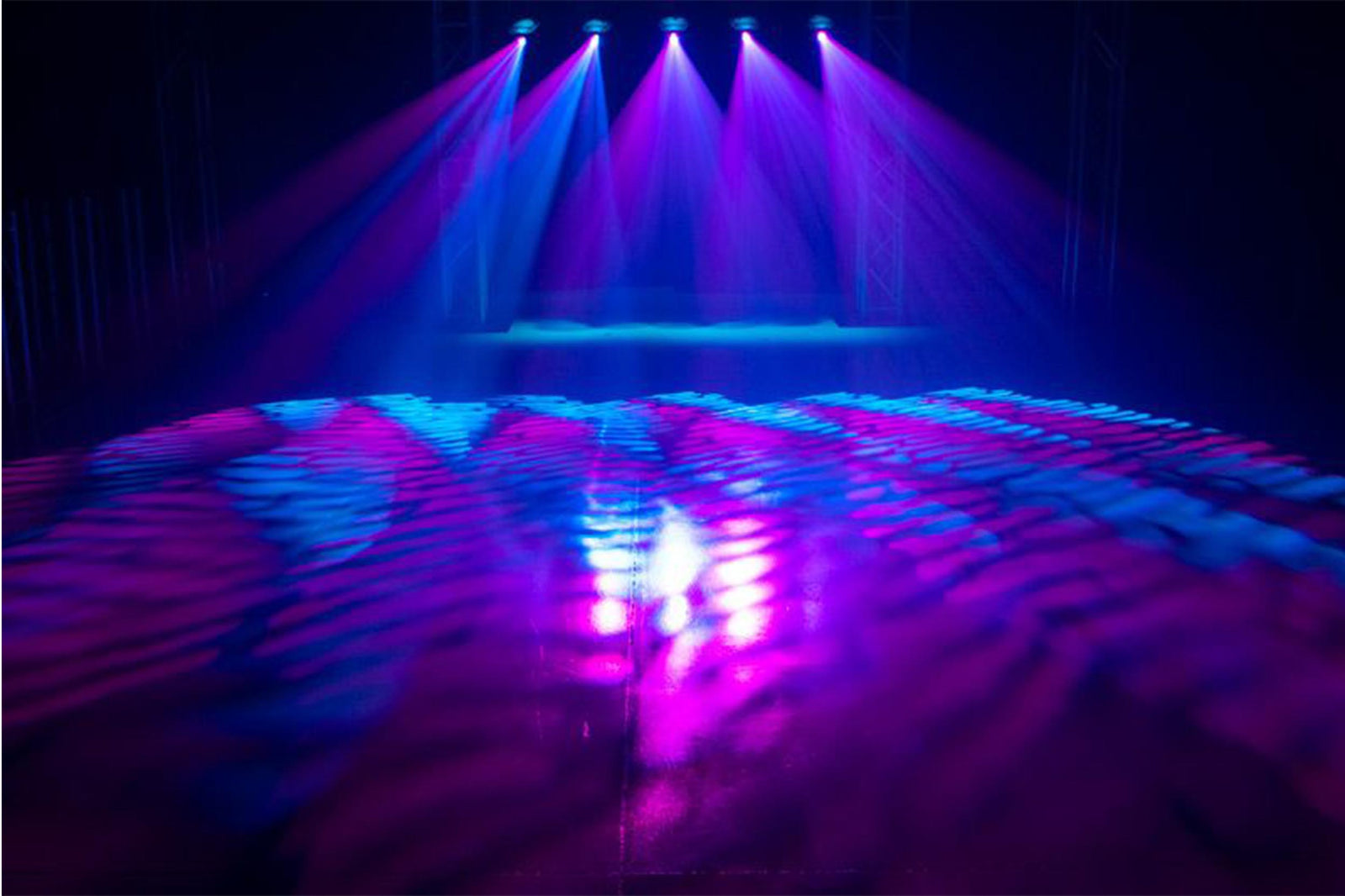

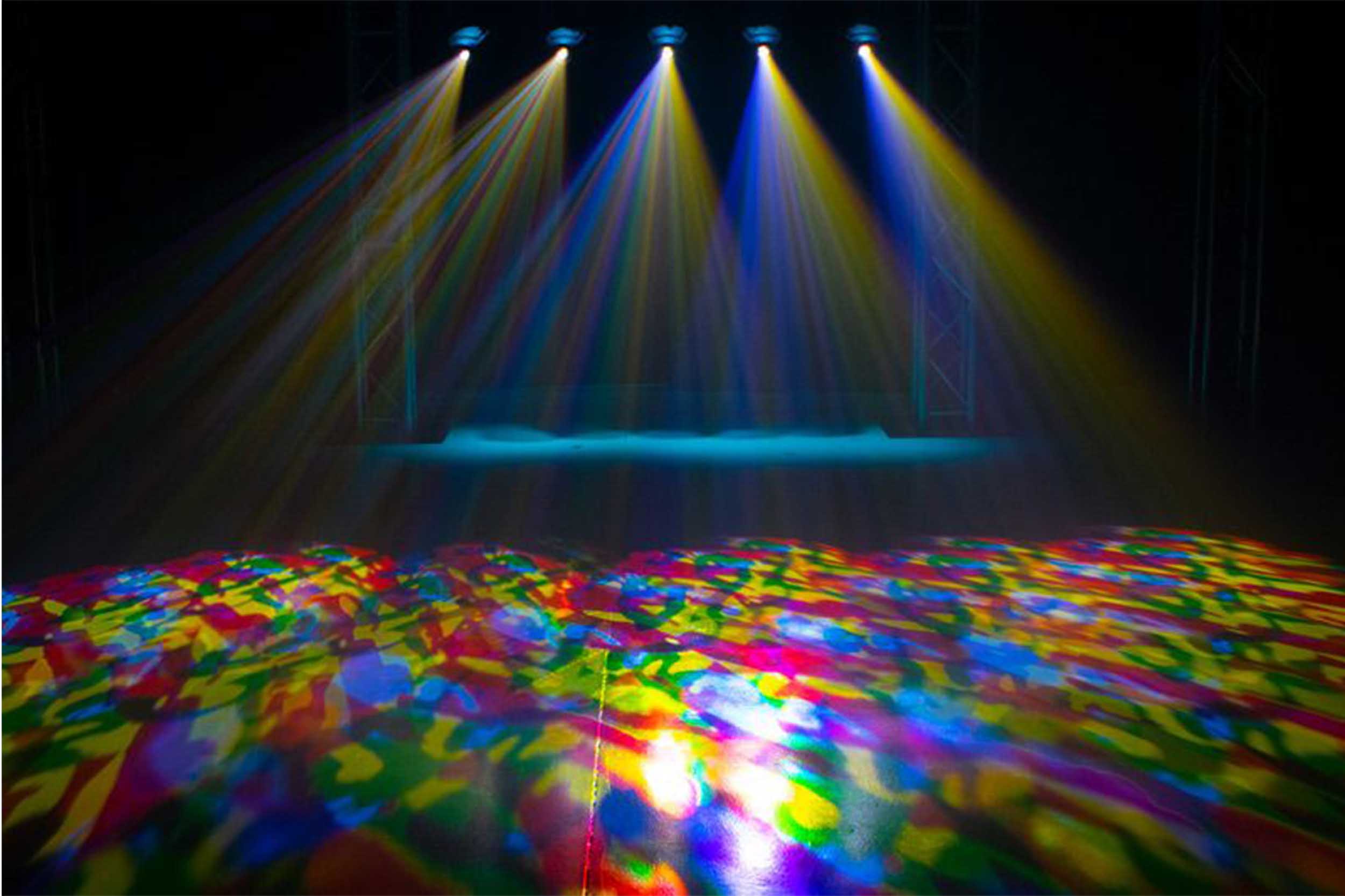

The ADJ Focus Spot 5Z, Moving Head Light with 200-Watt Cool White LED Engine is designed for temporary live events and fixed installations in nightclubs, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS (5 aluminum and 1 glass GOBO), two COLOR wheels, each with 8 vibrant colors plus white, and 2 rotating/indexable prisms, (one 5-facet linear and one 6-facet circular). It also has two frost effects (heavy frost and light frost).

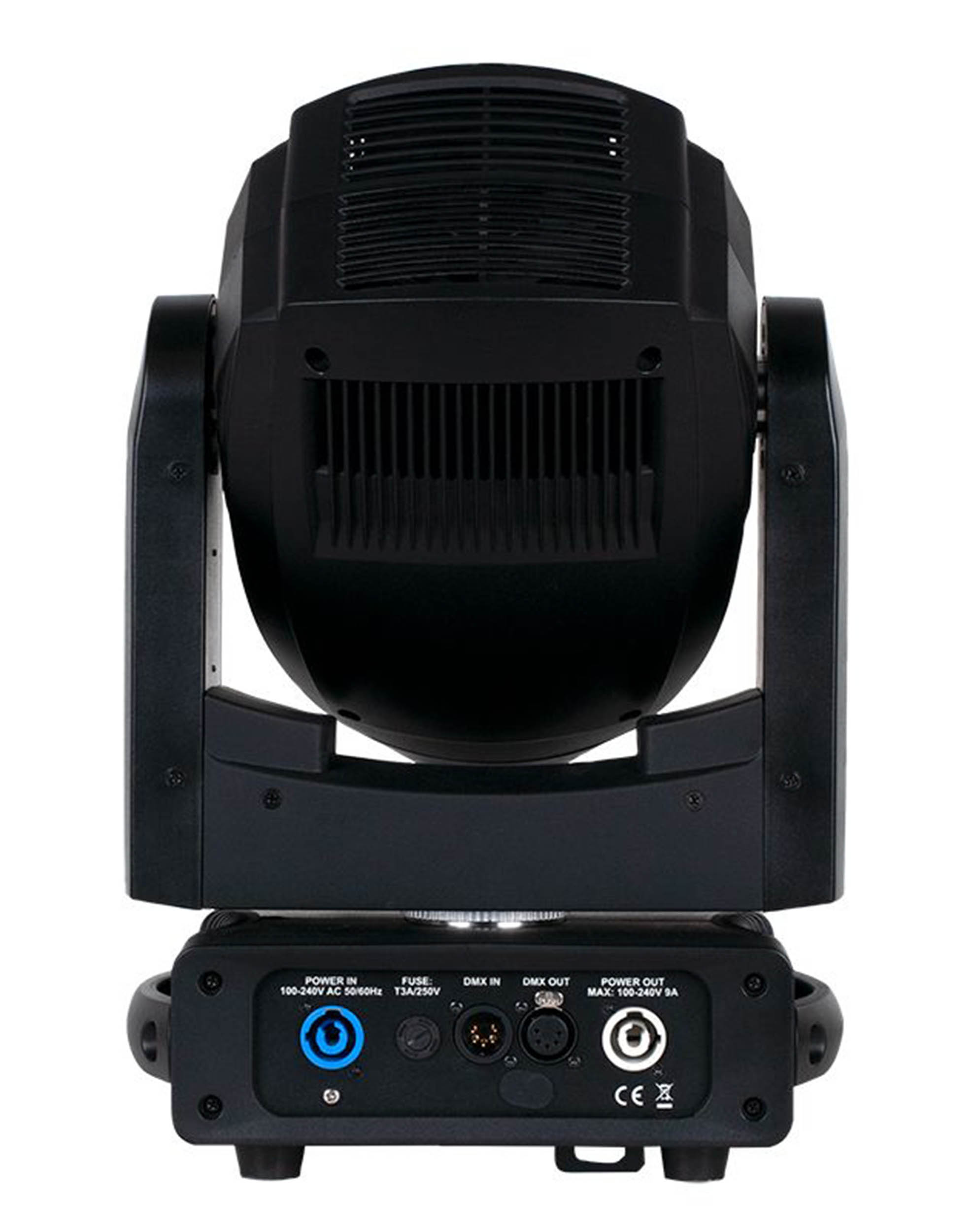

The Focus Spot 5Z has locking power In and out connectors to daisy chain the power, as well as 5-pin DMX in/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 5Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

Product Specifications:

Fixture Type: Moving Head / Spotlight

Light Source: 1x White LED - 200 W

Expected Lamp Life: 50,000 Hours

Photometrics:

15°:

21,746 fc / 234,074 Lux at 3.3' / 1 m

5436 fc / 58,518 Lux at 6.6' / 2 m

2416 fc / 26,008 Lux at 9.8' / 3 m

1359 fc / 14,630 Lux at 13.1' / 4 m

870 fc / 9363 Lux at 16.4' / 5 m

9°:

46,653 fc / 502,189 Lux at 3.3' / 1 m

11,663 fc / 125,547 Lux at 6.6' / 2 m

5184 fc / 55,799 Lux at 9.8' / 3 m

2916 fc / 31,387 Lux at 13.1' / 4 m

1866 fc / 20,088 Lux at 16.4' / 5 m

28°:

6450 fc / 69,427 Lux at 3.3' / 1 m

1613 fc / 17,357 Lux at 6.6' / 2 m

717 fc / 7714 Lux at 9.8' / 3 m

403 fc / 4339 Lux at 13.1' / 4 m

258 fc / 2777 Lux at 16.4' / 5 m

Beam Angle: 11 to 22°

Shutter / Strobe: Mechanical

Iris: No

Focus: Motorized

Zoom Adjustment: Motorized, 11 to 22°

Dimming: 16-Bit Electronic, 0 to 100% with 6 Dimmer Modes

Prism:

5-Facet Linear (Rotating)

6-Facet Circular (Rotating)

Operating Modes: Automatic, DMX

Macros / Programs: No

Effects:

Frost Filter

Gobo Shake

Strobe (Variable Speed)

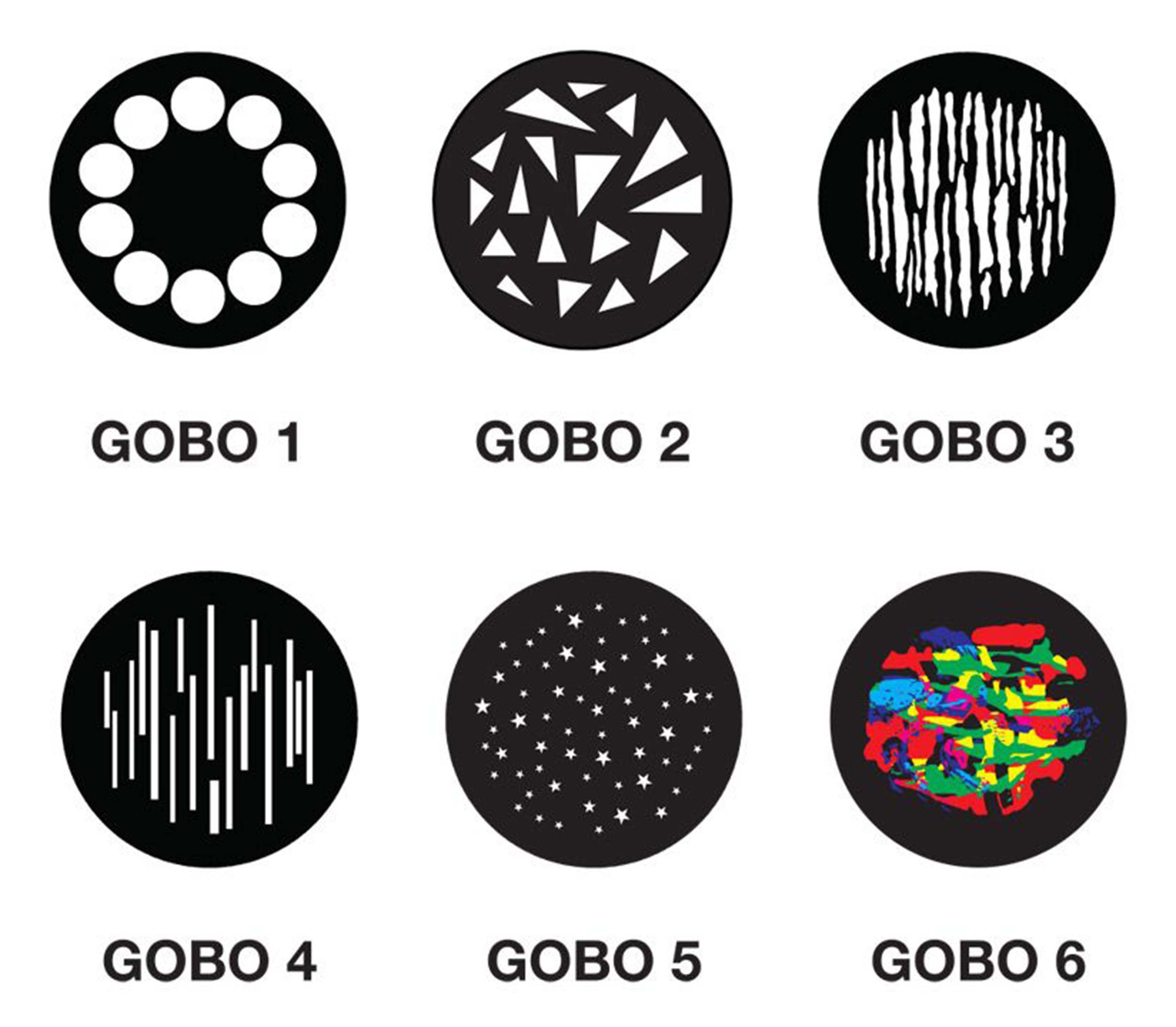

Gobos:

5x Removable Metal Gobo

1x Removable Glass Gobo

1x Spot/Open

Gobo Size: Metal Gobo:

Outer Diameter: 0.9"" / 23 mm

Max Image Size: 0.7"" / 19 mm

Max Thickness: 0.01"" / 0.5 mm

Outer Diameter: 0.9"" / 23 mm

Max Image Size: 0.7"" / 19 mm

Max Thickness: 0.12"" / 3.3 mm

Refresh Rate: 900 Hz to 25,000 Hz (Adjustable)

Tilt Ranges: 270°

Pan Ranges: 630°

Pan/Tilt Inversion: Yes

Movement Resolution: 8 / 16-Bit

Control Protocols: DMX512

DMX Channel Modes: 3 Mode(s): 19 / 22 / 25-Channel

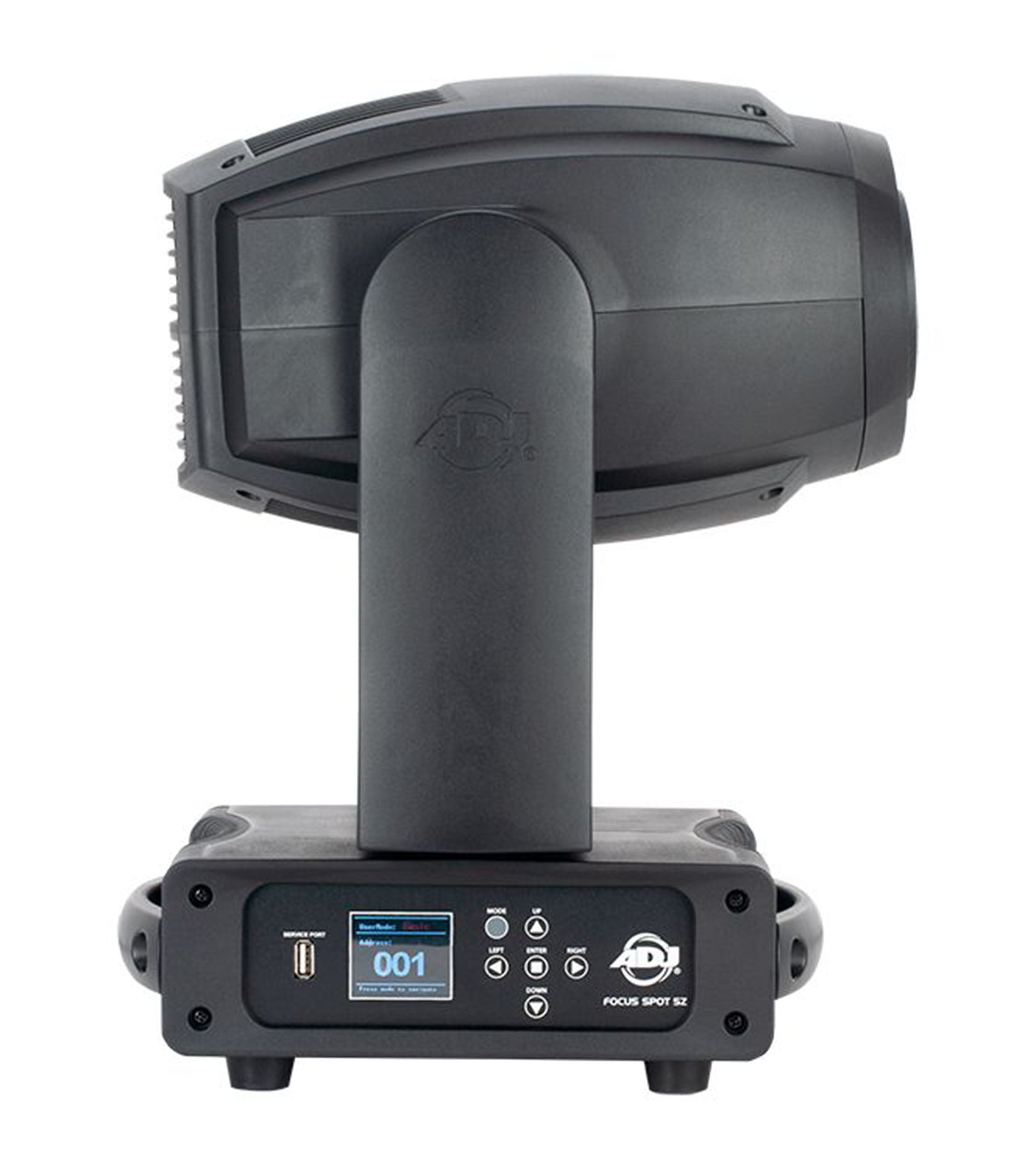

Display / Controls: LCD / 6-Button

Remote Control: No

Mobile App Compatible: No

Inputs/Outputs:

1 x USB-A Service Input

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

AC Input Power: 90 to 240 VAC, 50/60 Hz

AC Power Connector:

Input: 1x powerCON

Output: 1x powerCON

Fuse: T 3 A 250 V

Power / Current Consumption: 280 W (Max)

Environmental Protection: No

Operating Temperature: -13 to 113°F / -25 to 45°C

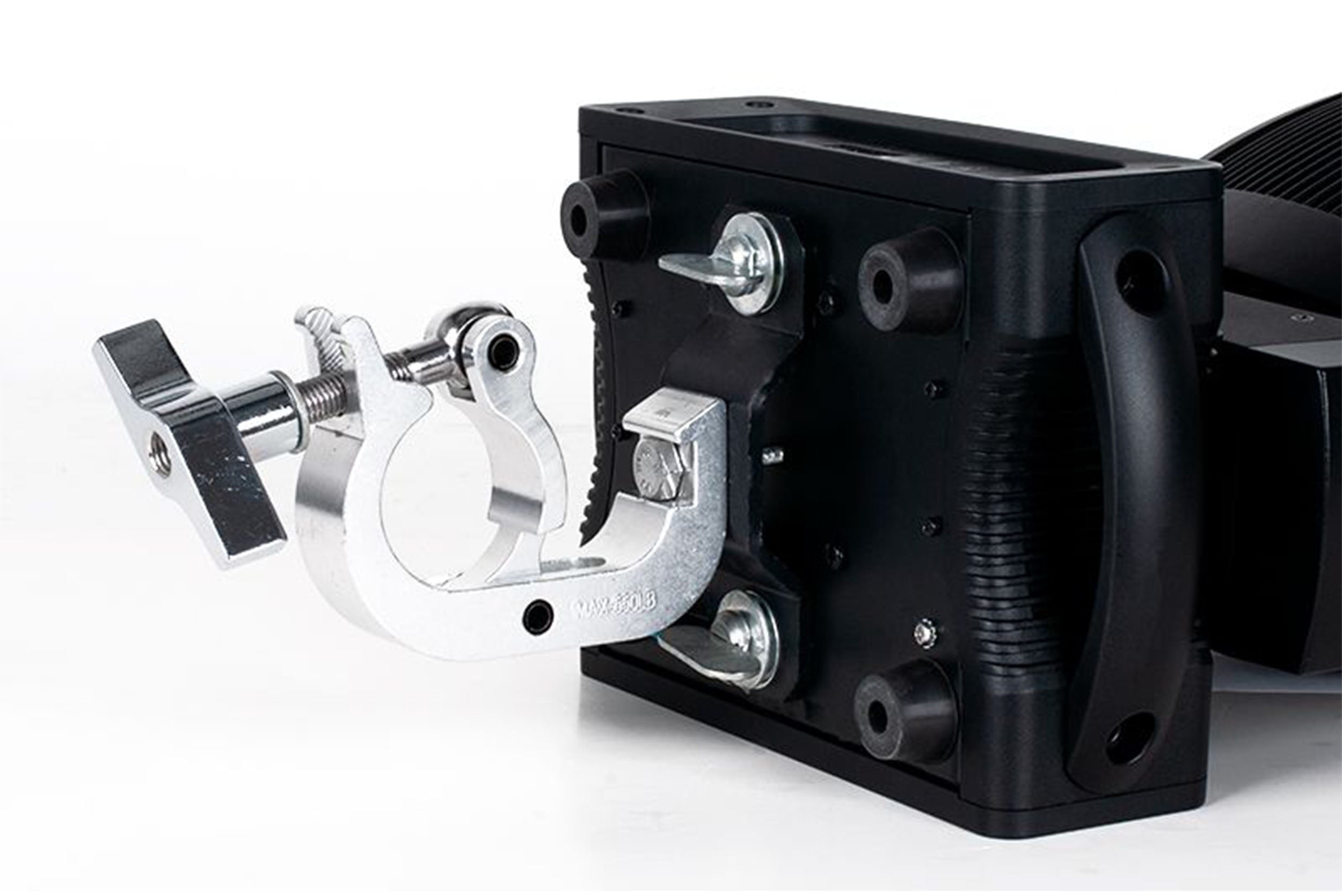

Mounting: Omega Bracket

Duty Cycle: No

Exterior Color: Black

Cooling: Fan

Certifications: CE, ETL

Product Dimensions: 7.2 x 11 x 18" / 18.2 x 27.8 x 45.7 cm

Product Weight: 23 lb. / 10 kg

Shipping Weight: 31 lbs.

Shipping Dimensions (LxWxH): 23.3 x 16.9 x 14.5"
