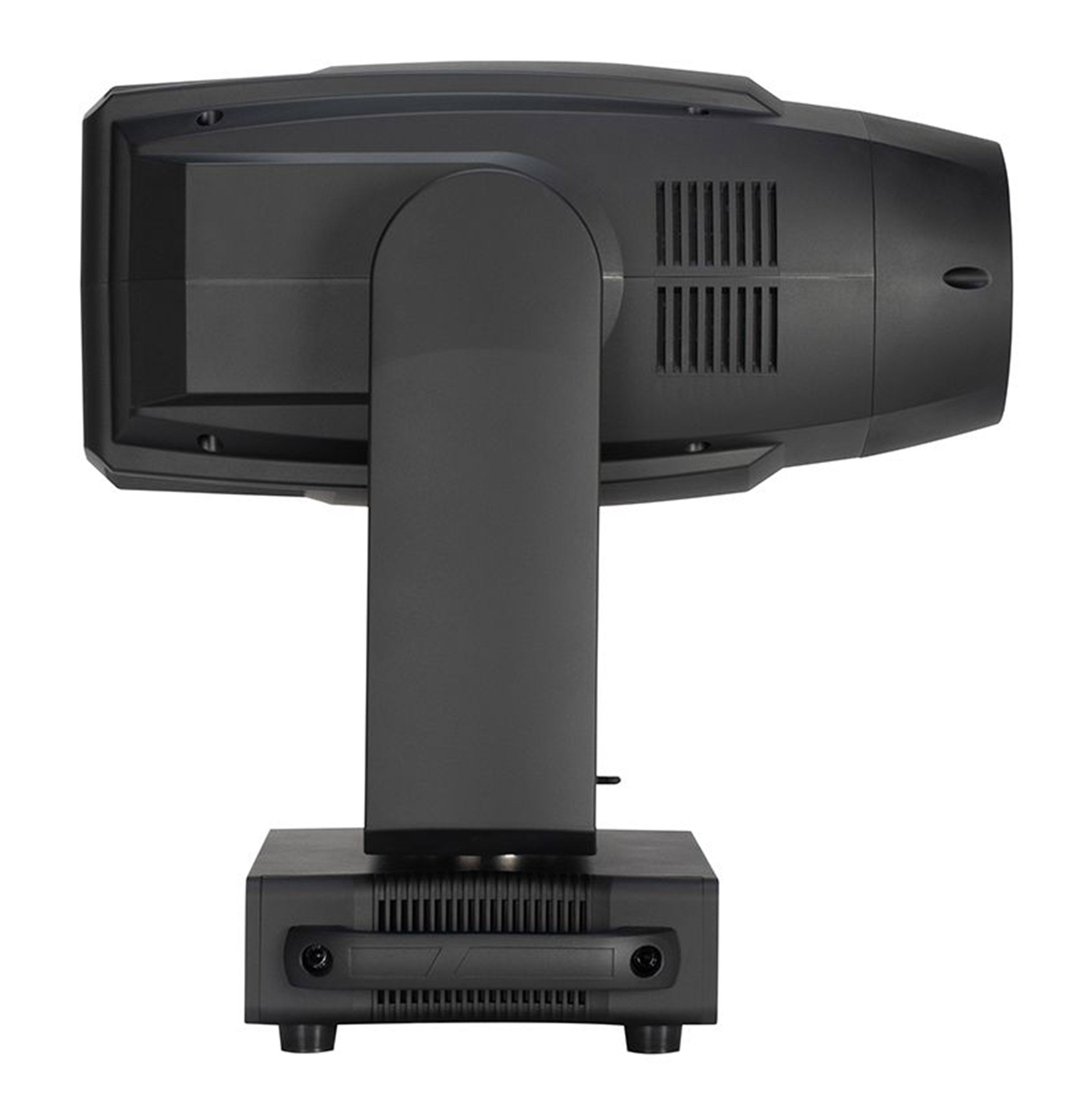

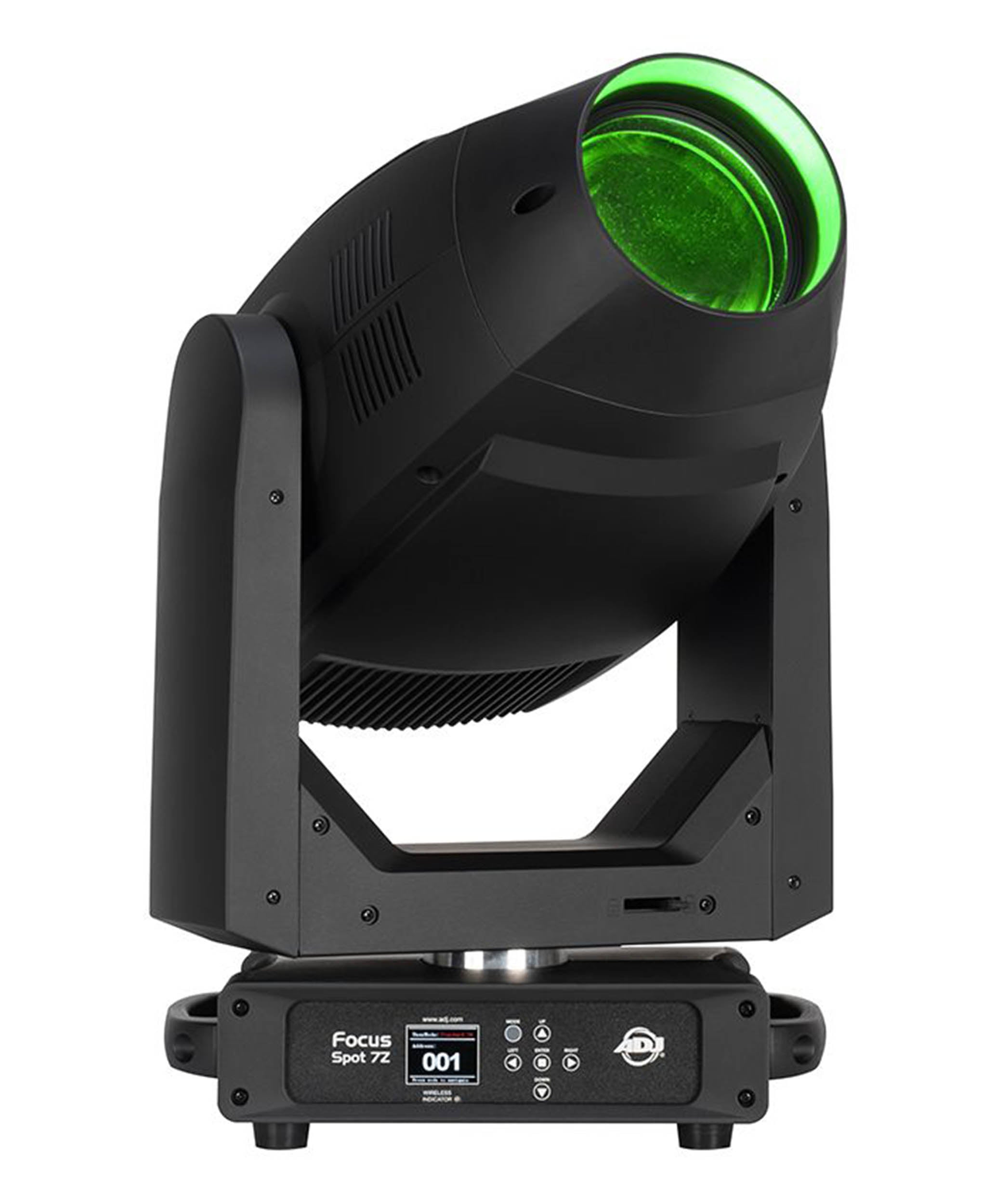

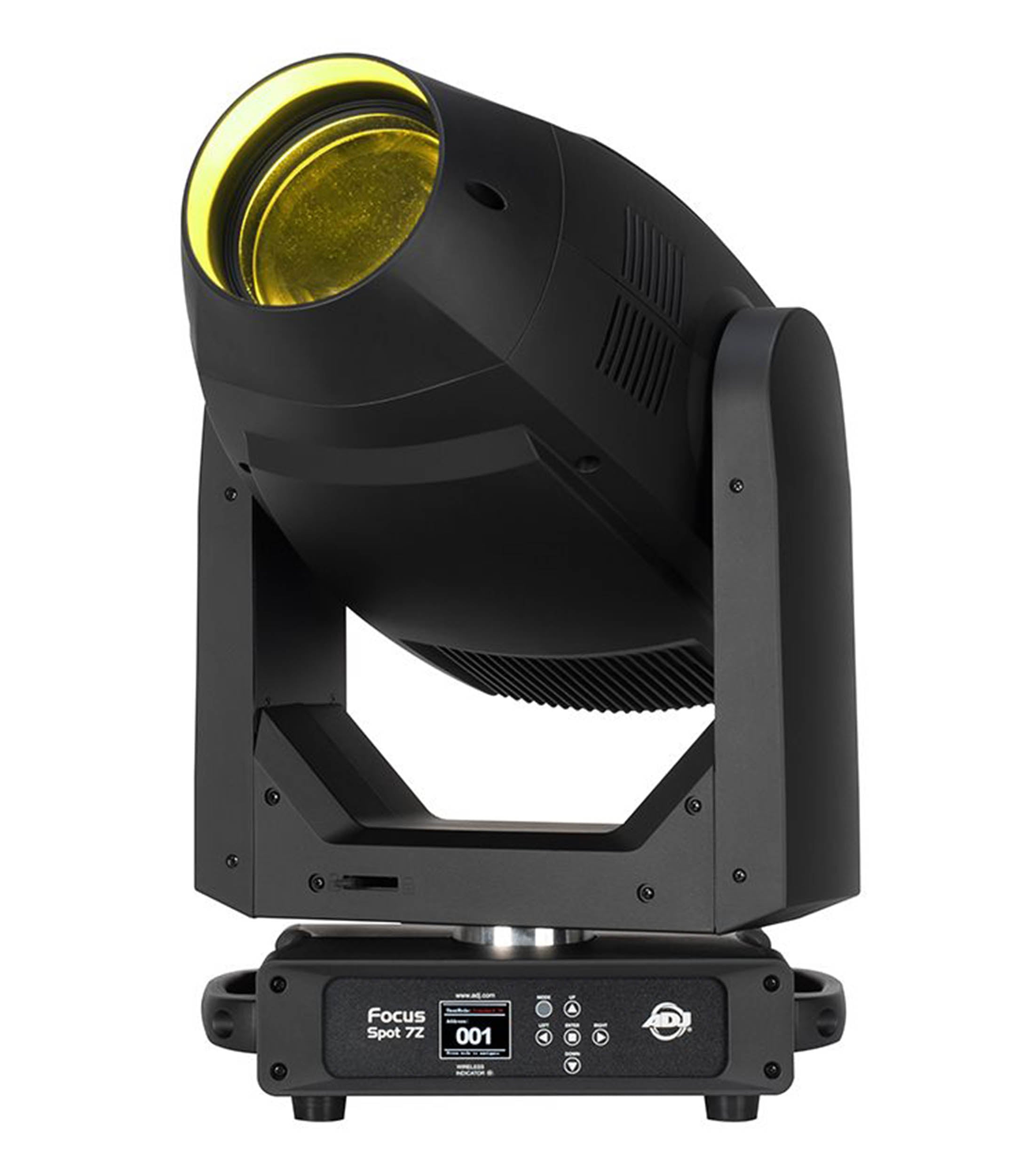

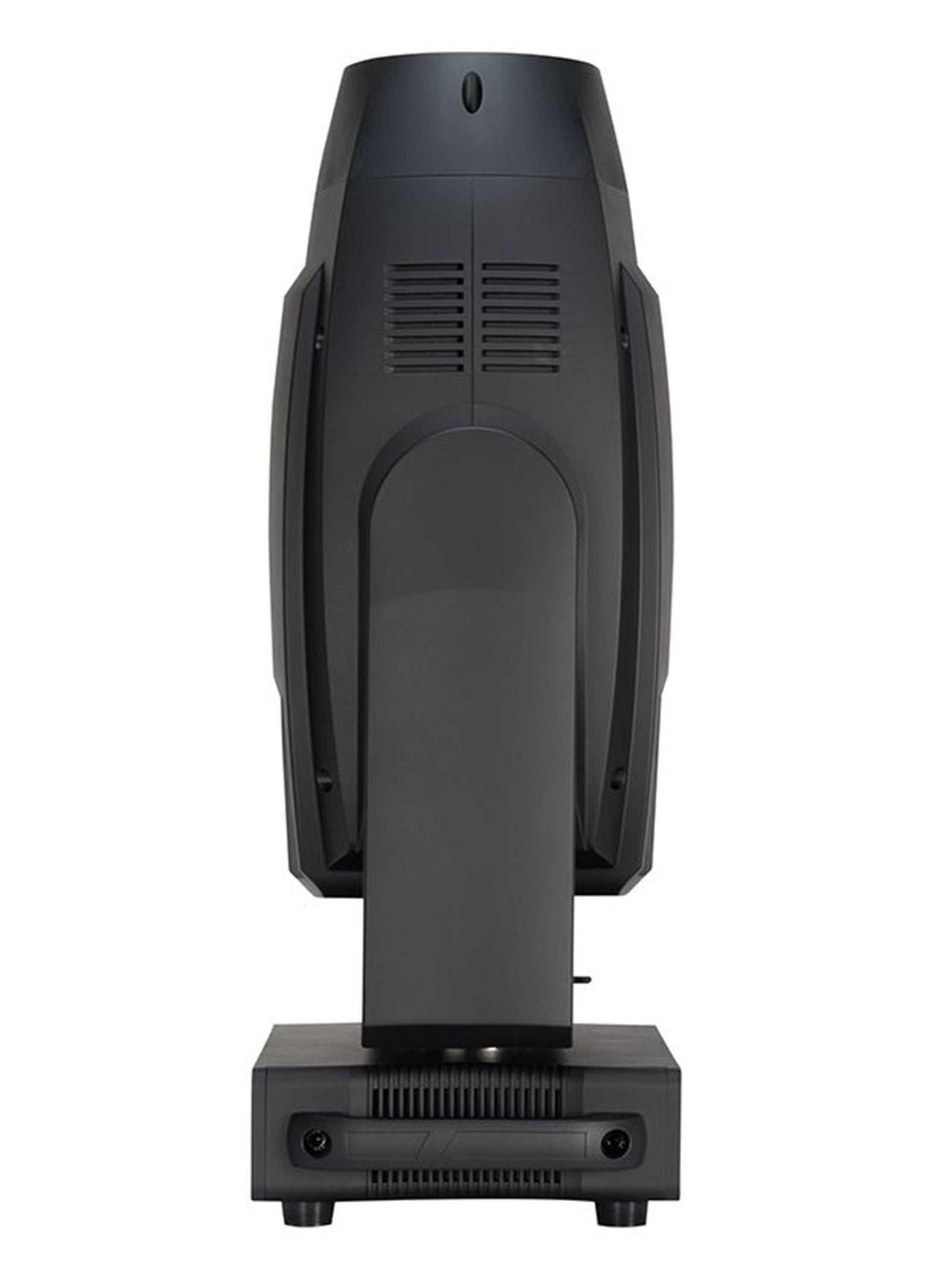

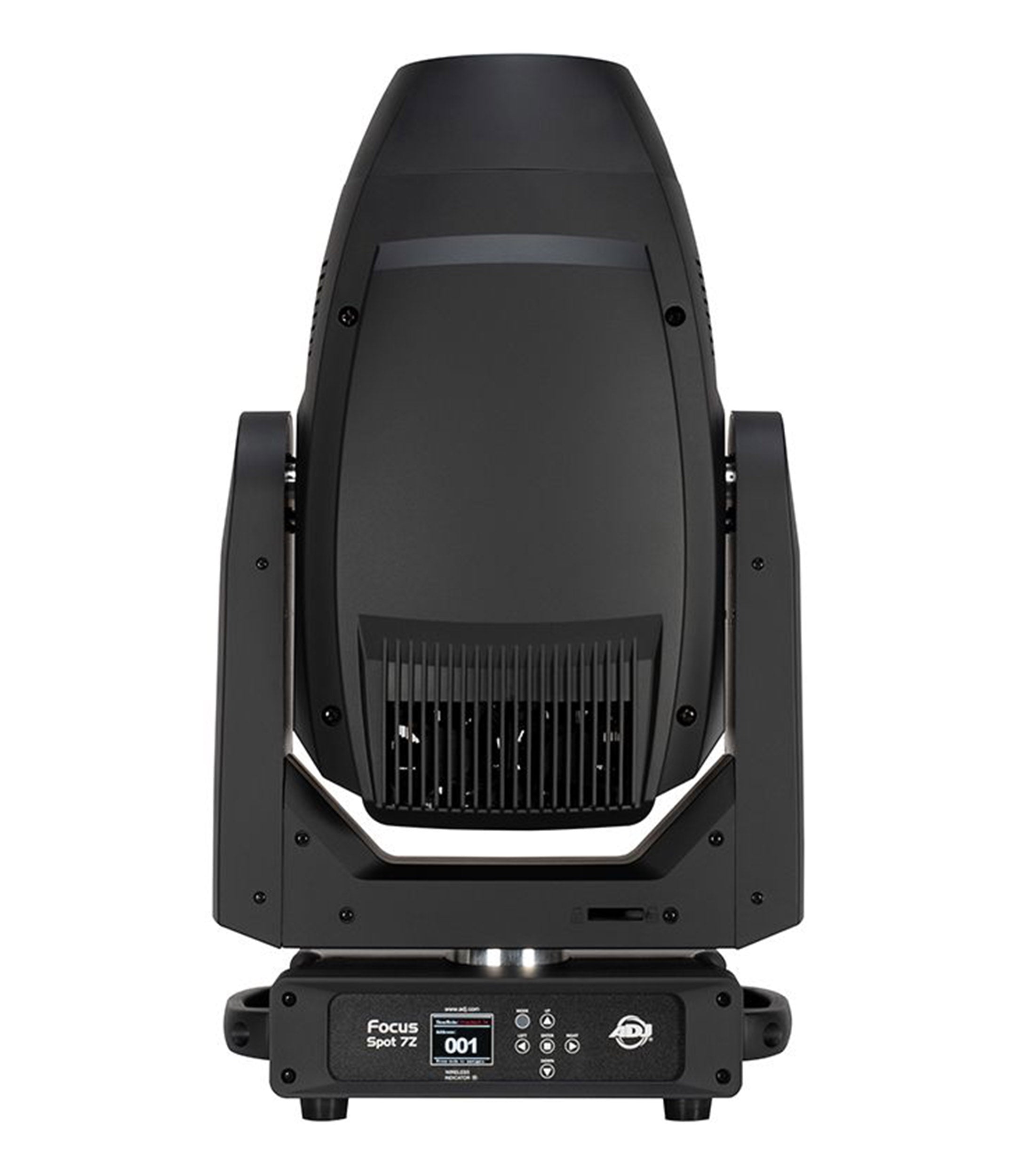

ADJ Focus Spot 7Z, Feature-Packed Moving Head Spot Luminaire with 7 Color LED - 420 Watt

The ADJ Focus Spot 7Z, Feature-Packed Moving Head Spot Luminaire with 7 Color LED - 420 Watt is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (8,000K) LED engine, which has an average operational life of 20,000 hours. Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 20,000 Lumens.

An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2,700K to 8,000K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters).

The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).

Product Specifications:

Source:

420W White LED Engine

20,000 Hour Average LED Life

Photometric Data:

19,000 Total Lumens

7,000K, >73CRI (without CRI Filter)

7,700K >85CRI (with CRI Filter)

50,528 LUX @16.4’ (5m) (6° Beam)

1,799 LUX @16.4’ (5m) (48° Beam)

Effects:

4-Facet Circular & 6-Facet Linear Rotating Prisms

2 Frost Filters (Light & Heavy)

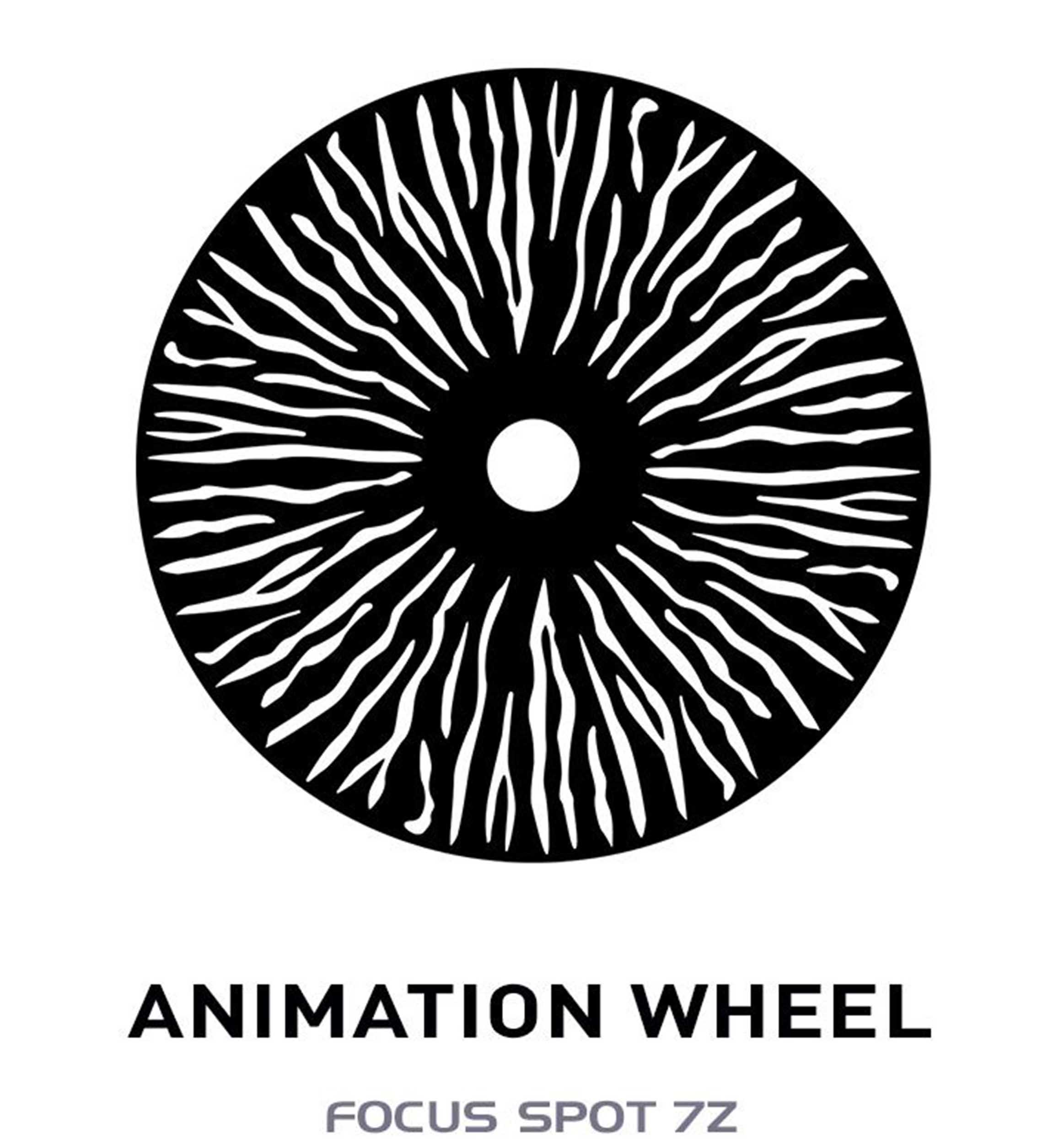

Animation Wheel (Rotatable and Indexable)

Motorized Zoom (6° ~ 48°)

Motorized Focus

Motorized Iris

Electronic Dimming & Strobe (1-20Hz)

Color:

Full CMY color mixing

Variable CTO (2,700K to 8,000K)

Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)

CMY and Color Wheel preset macros

Gobos:

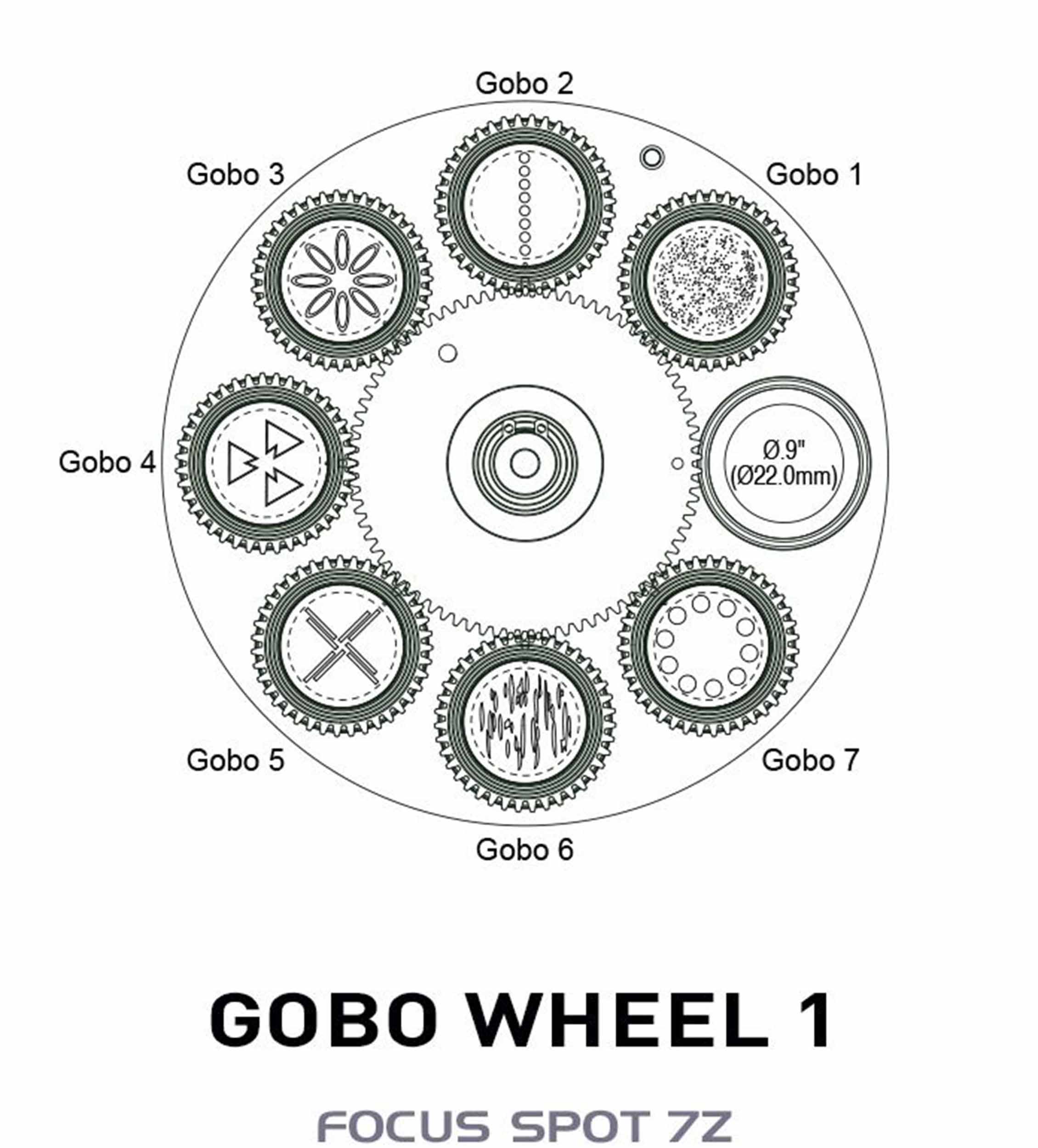

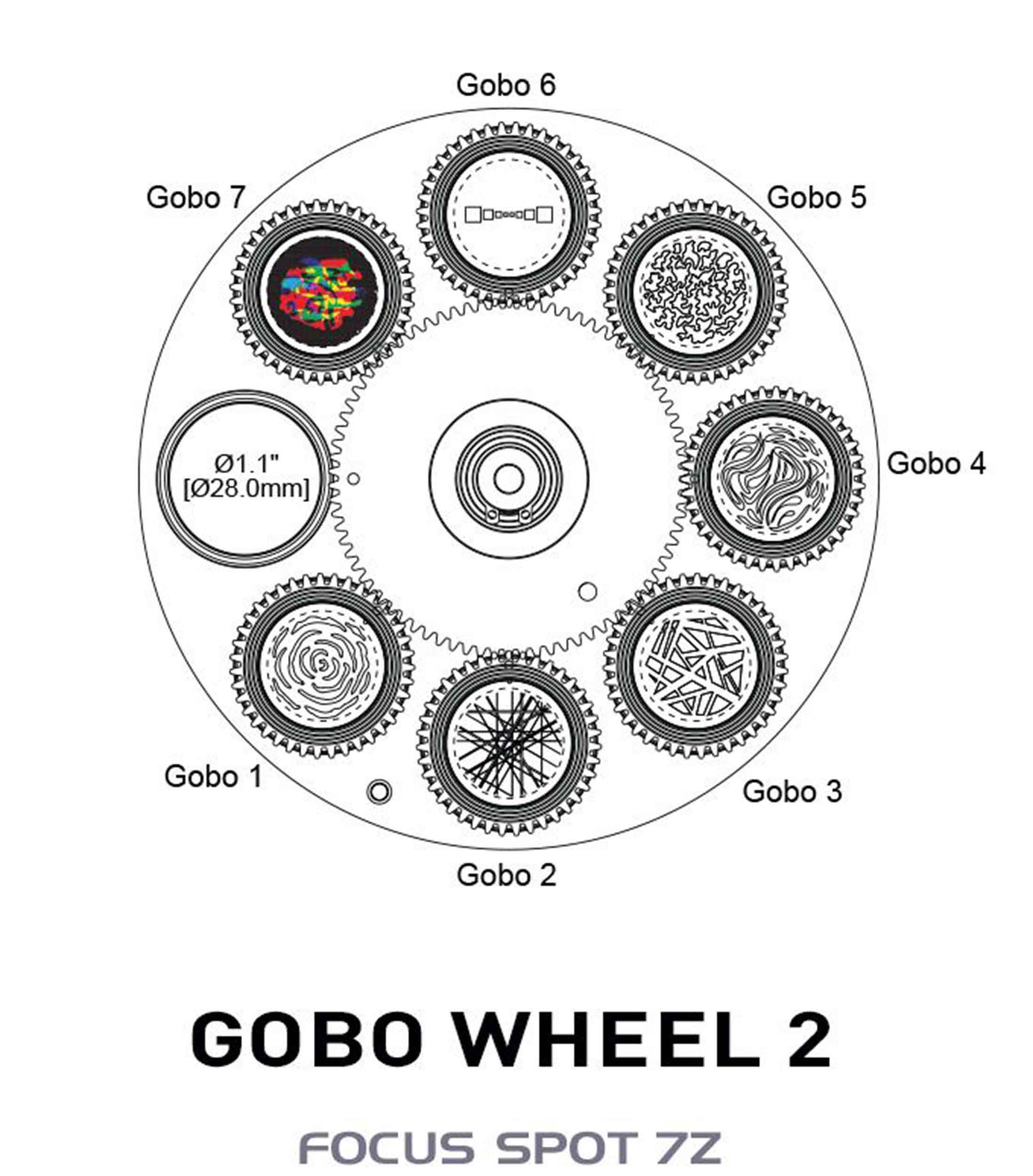

(2) Gobo Wheels

#1 - (7) Interchangeable Rotating-Indexing Glass Gobos

#2 - (7) Interchangeable Rotating-Indexing Glass Gobos

Control / Connections:

(3) DMX Channel Modes (30 / 34 / 45)

DMX512, Art Net and sACN protocols

Wireless DMX Built-in

RDM (Remote Device Management) compliant

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

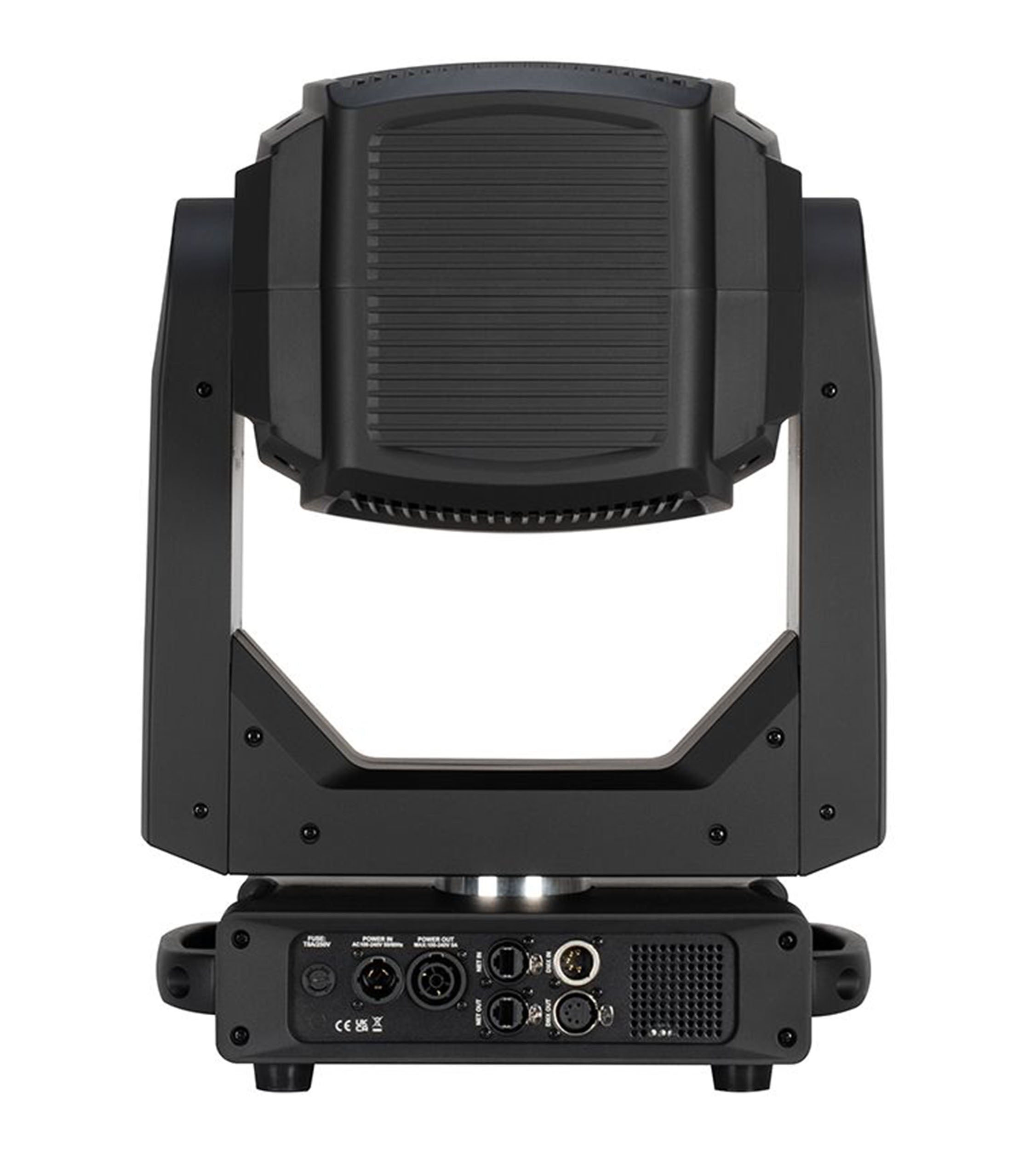

5-pin XLR DMX in/Out

RJ45 connectors in/Out

Locking In/Out power connections

With Wired Digital Communication Network

Pan / Tilt:

Pan: 540-degrees

Tilt: 270-degrees

Pan & Tilt Locks

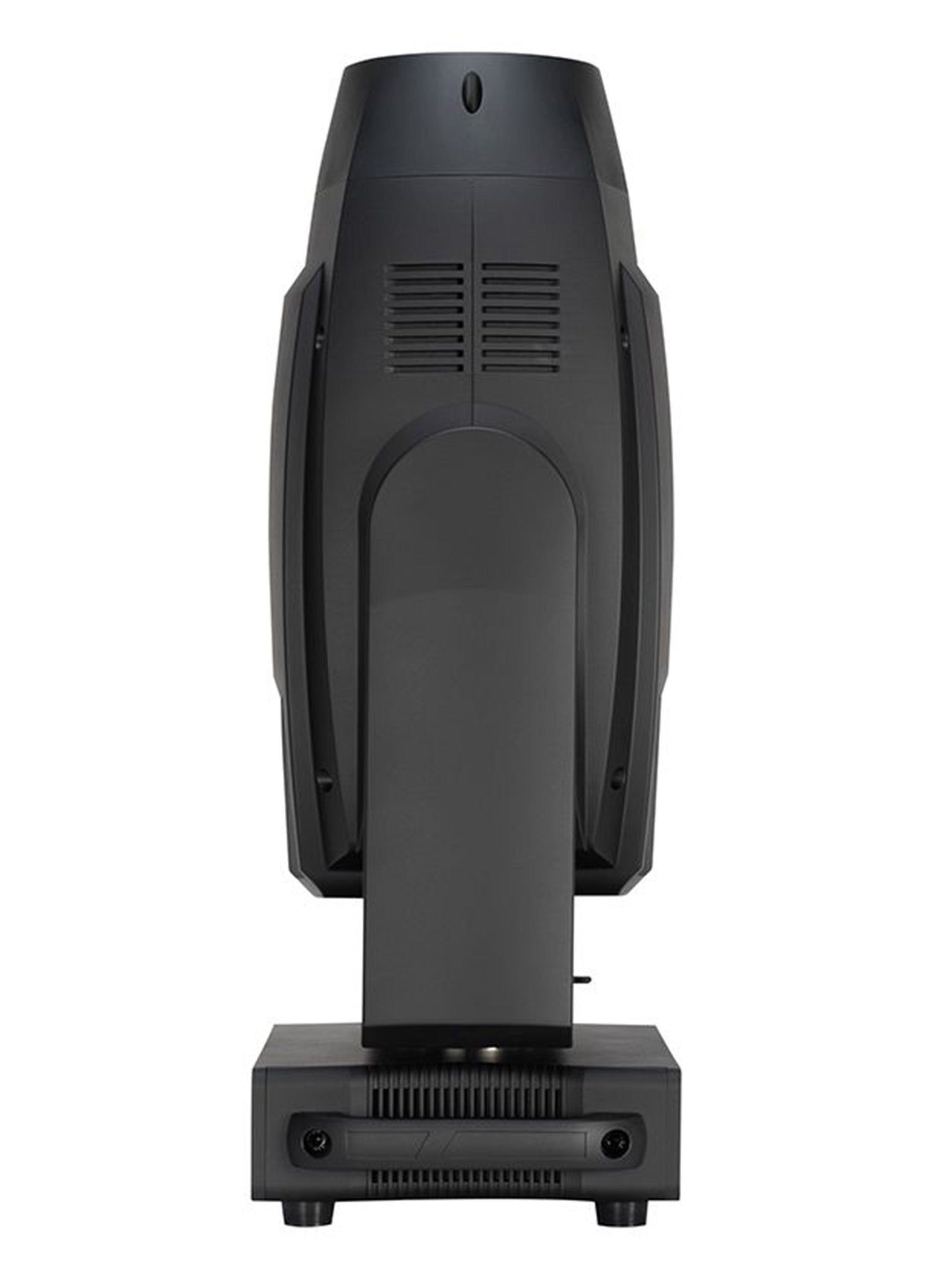

Size / Weight:

Length: 18.8” (477.5mm)

Width: 14.7” (374mm)

Vertical Height: 25.7” (653mm)

Center Spacing: 24.0” (609.6mm)

Weight: 55.3 lbs. (25.1kg)

Electrical / Thermal:

AC 100-240V - 50/60Hz

Max Power Consumption: 524W

Max ambient temperature: 14°F to 113°F (-10°C to 45°C)

Max housing temperature: 136°F (58°C)

Technical Data:

DB Rating @ 3ft.: 49dB

BTU: 0.53

BTU/H: 1,909.60

Approvals / Ratings:

CE | ETL Approved (Control #4010765)

IP20

Included Accessories:

Locking Power cable

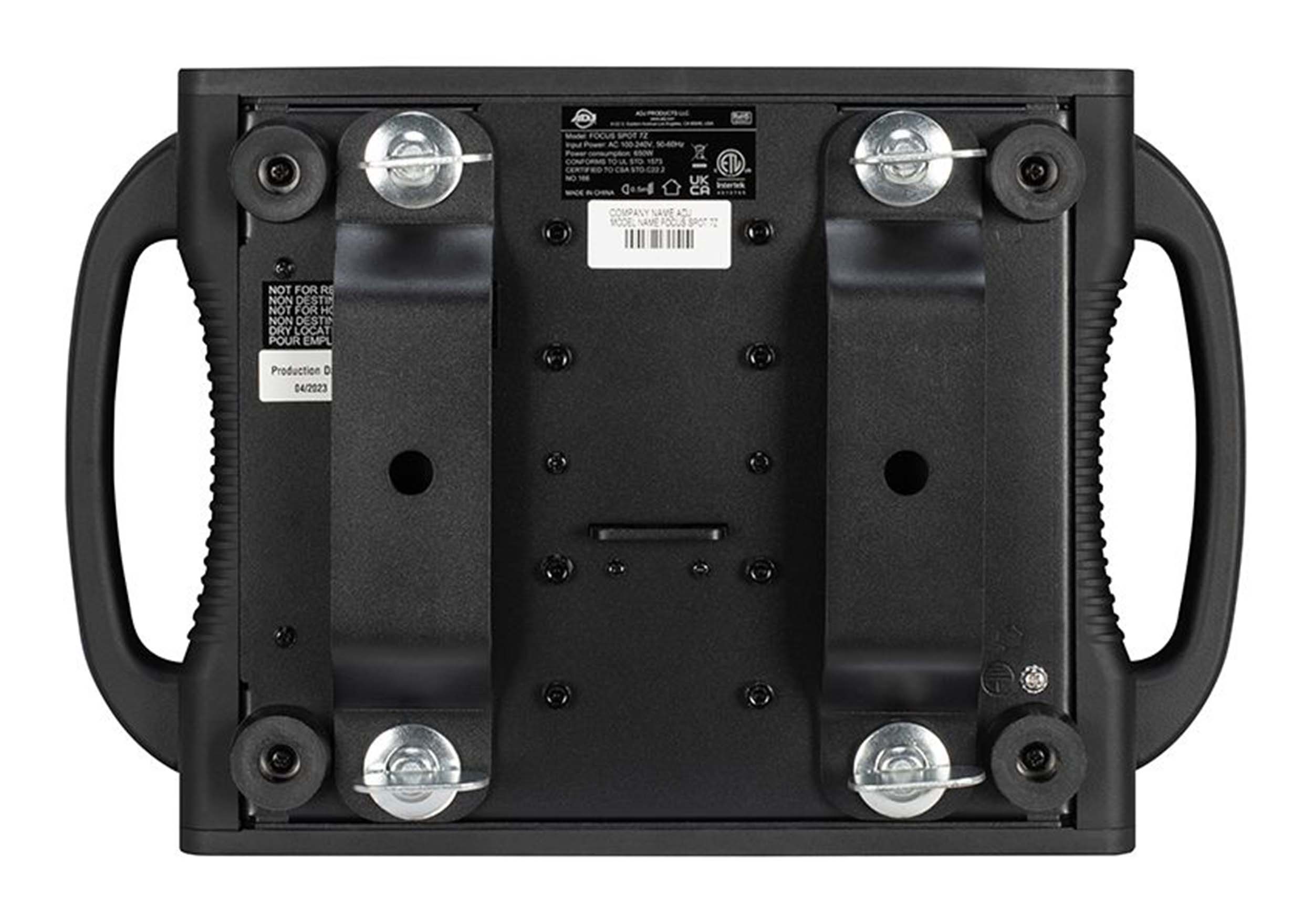

180mm Omega brackets (x2)
