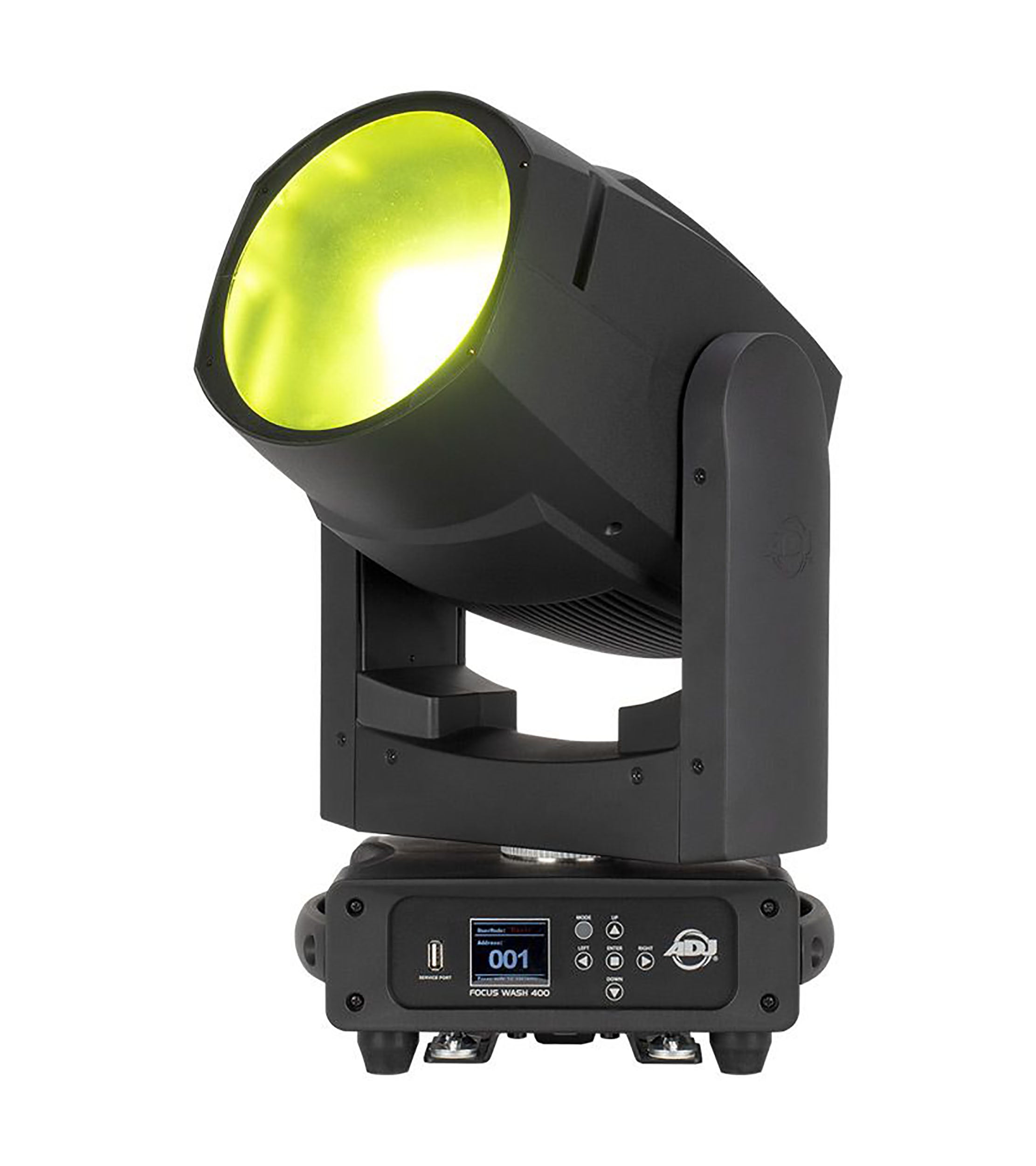

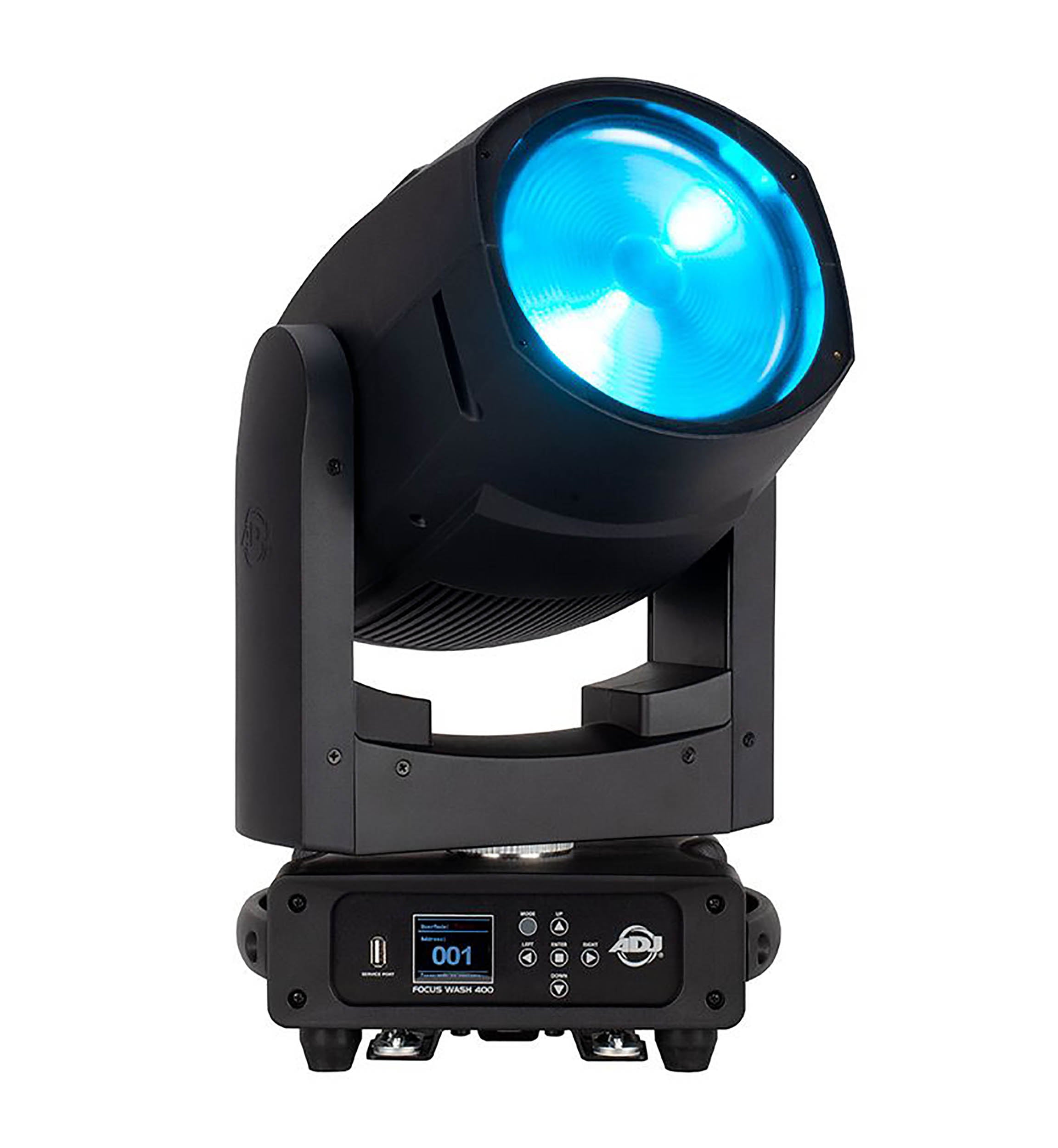

ADJ Focus Wash 400, LED Moving Head Wash with Motorized Zoom - RGBACL

The ADJ Focus Wash 400, LED Moving Head Wash with Motorized Zoom with RGBACL LED engine. A 6-inch Fresnel lens with 10-to-41-degree motorized zoom produces an even field light output. Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white color temperature control from 2700K - 6500K, as well as, preset white color macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to its tunable white feature, the Focus Wash 400 has a virtual CMY color mixing channel which allows users to choose any hue on a color picker.

The FOCUS WASH 400’s unique color engine produces a high CRI of 90+ for bright whites and a CRI R9 of 88 to help make red tones more vibrant. The fixture also includes, 16-bit pan / tilt movement, RGBACL color mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM (remote device management) protocol support.

The fixture comes standard with locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, color LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.

Product Specifications:

Source:

400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)

50,000 Hour Average LED Life

May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data:

7139 Total Stable Lumen Output (Full ON, Zoomed Out to Full)

11072 LUX, 1029 FC @ 9.8’ (3m) (Zoomed In / Full ON)

1858 LUX, 173 FC @ 9.8’ (3m) (Zoom Out / Full ON)

Beam Angle: 9.1° to 42.9°

Max Field Angle: 54.5°

Color Temperature: Tunable, 2400K to 8500K

CRI: 95.2

Color:

Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control

Virtual Color Wheel Control

Virtual CMY Control

Effects:

RGBACL Color Mixing

Virtual CMY Color Mixing

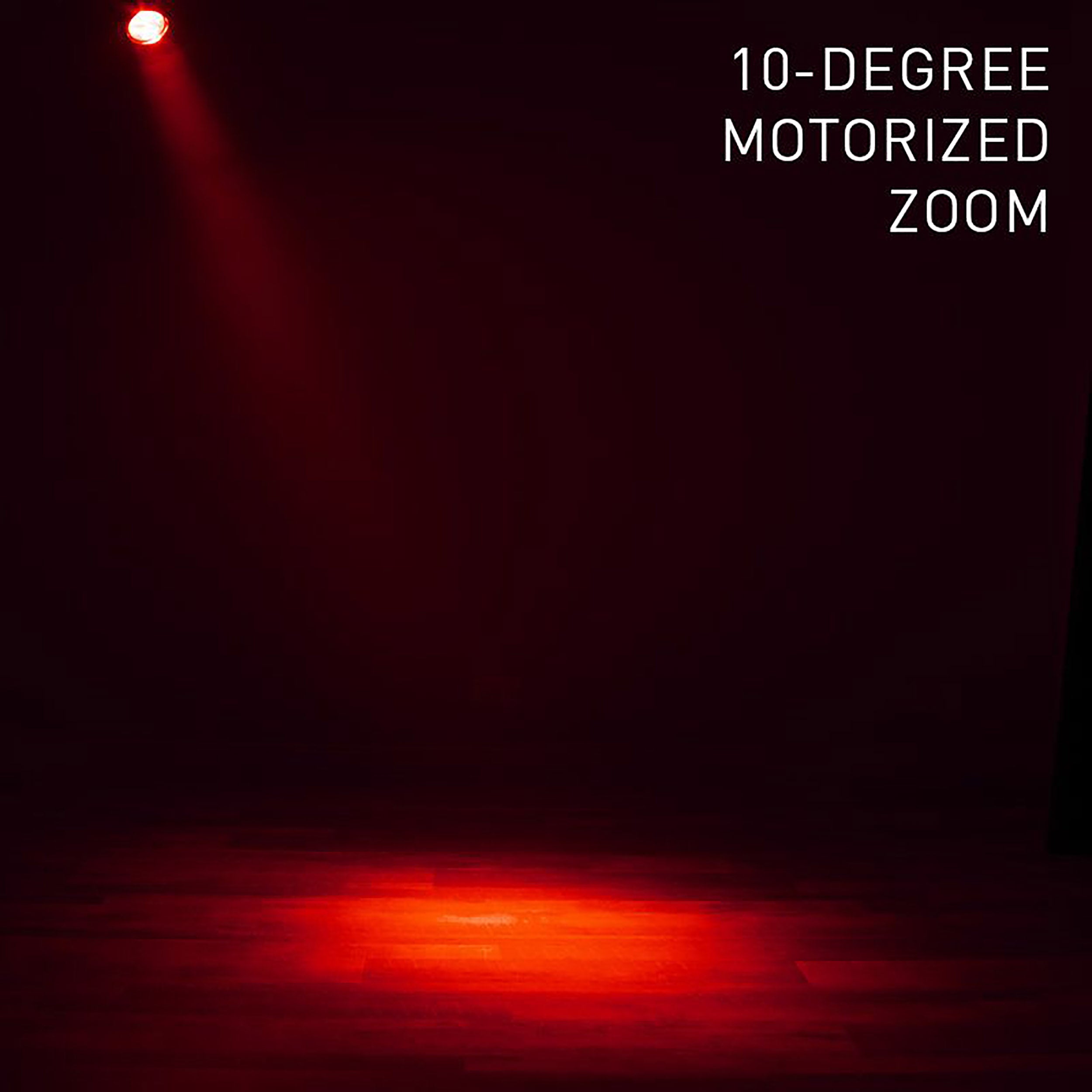

9° - 42°-degree Motorized Zoom

Electronic Strobe and Dimmer

Color Temperature Red to Green control via DMX

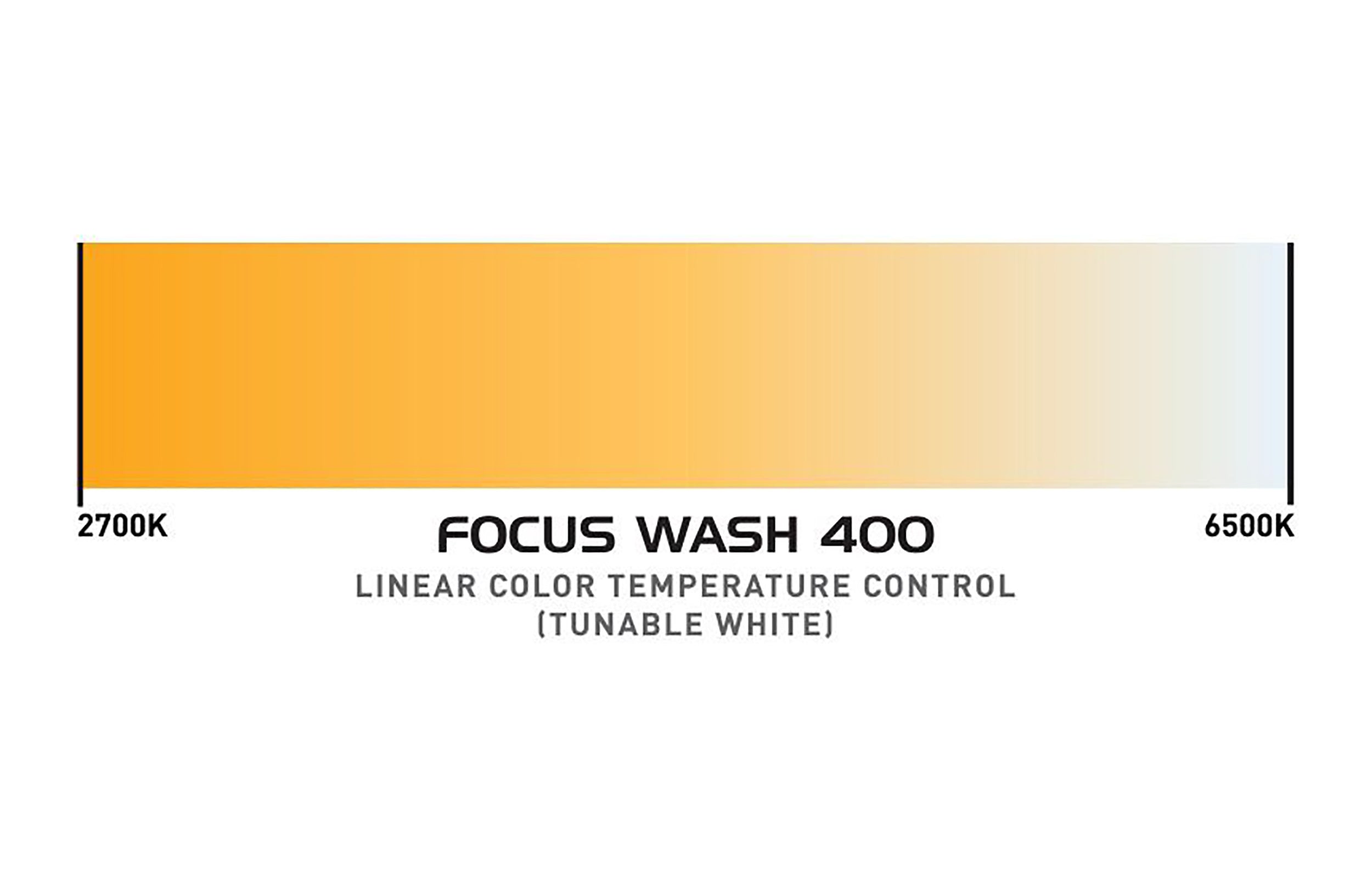

Linear Color Temperature control, 2700K to 10,000K

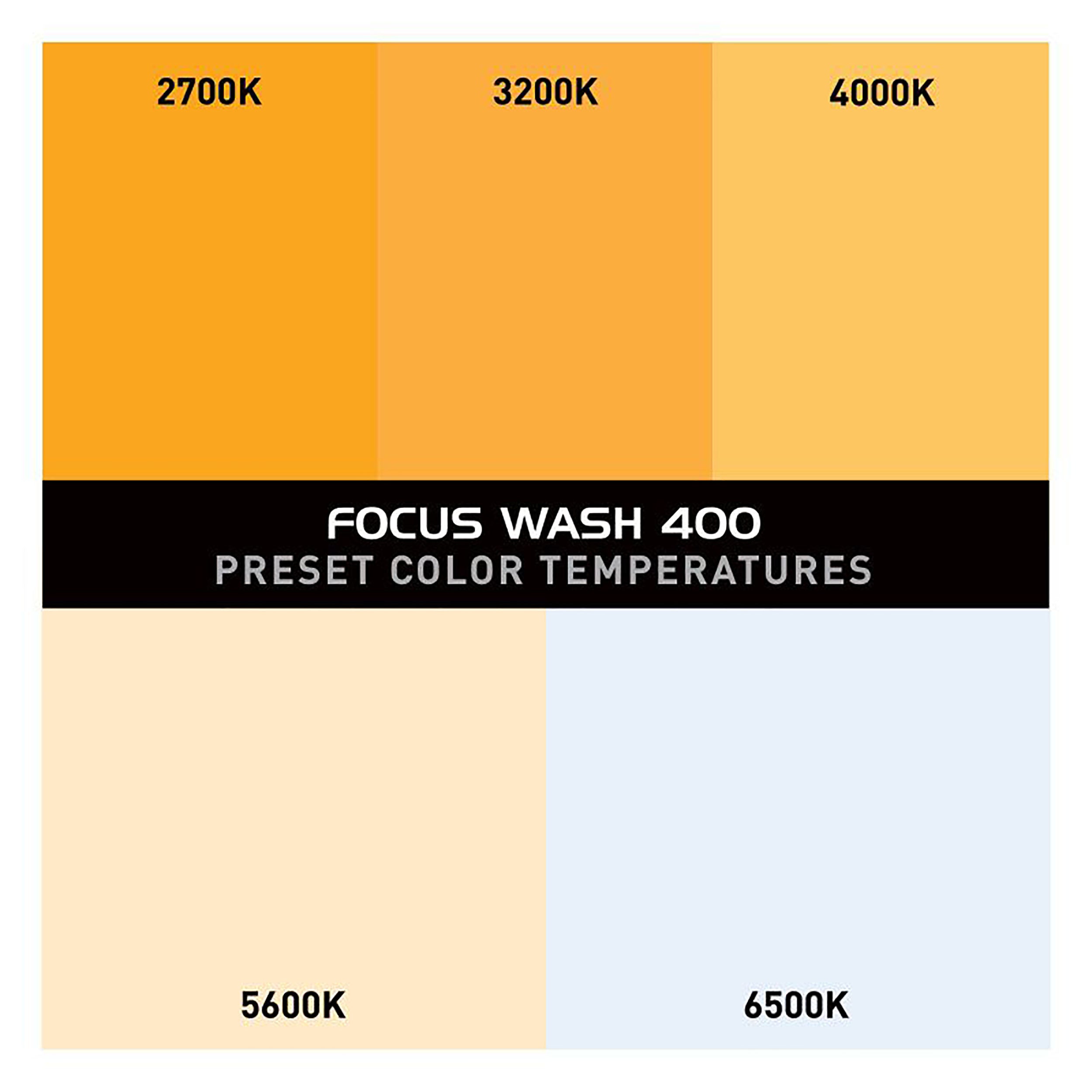

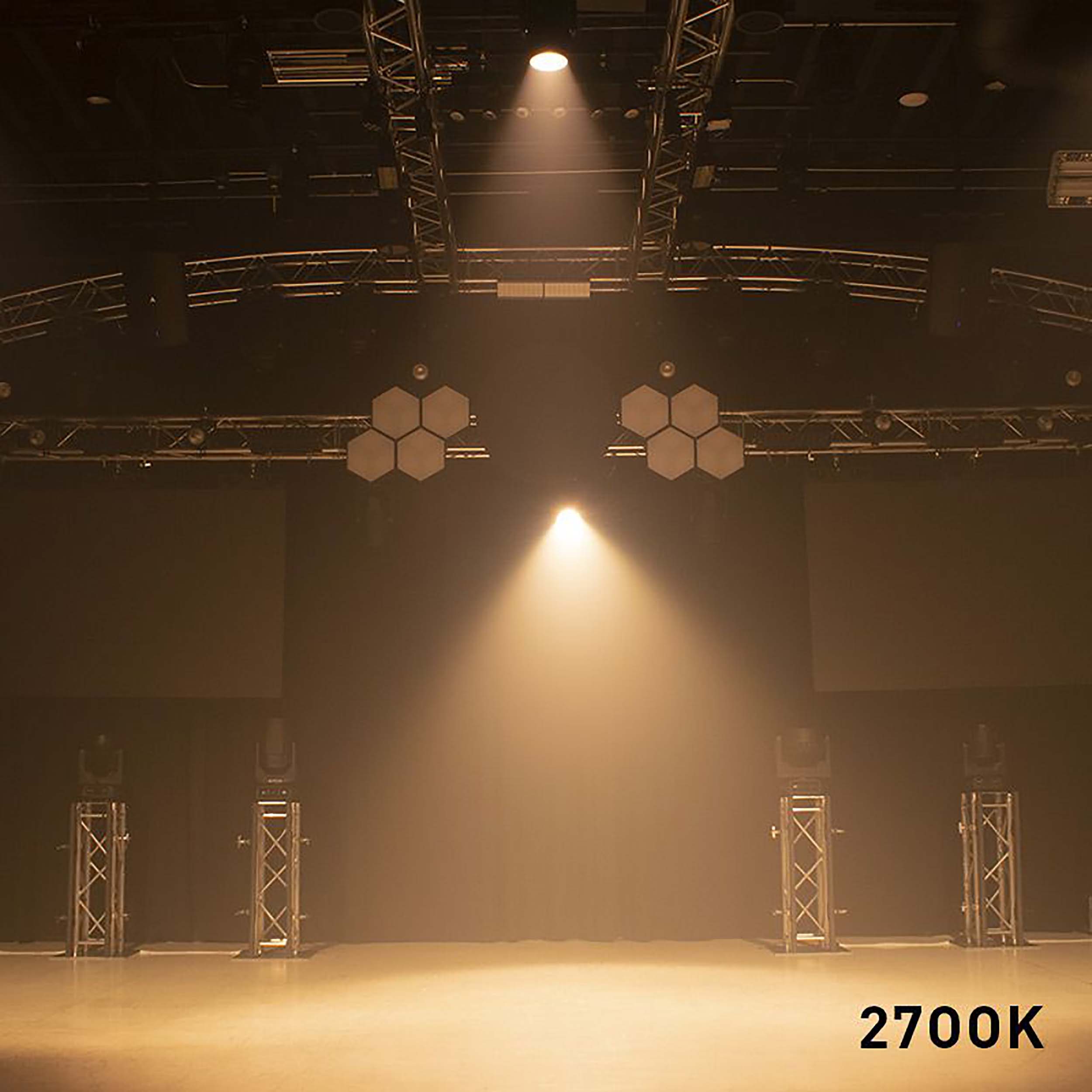

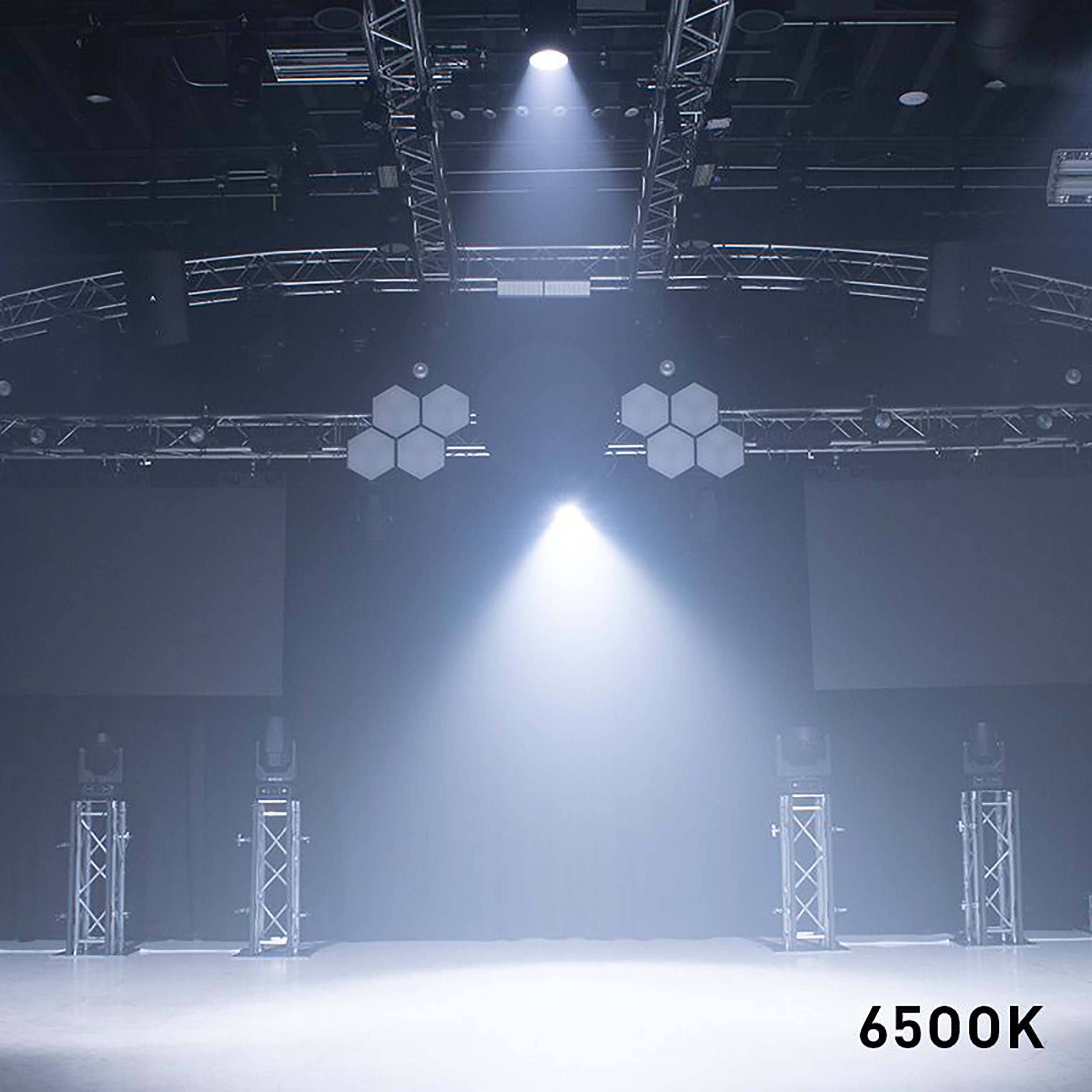

Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)

Control / Connections:

5 DMX Channel Modes: [Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24)]

Selectable LED Refresh Rates, 900Hz to 25kHz.

Linear Dimming with user selectable Dim Curves, Dim Modes and Dim Speeds

6-button Control Panel and LCD Menu Display

USB Firmware Update Port

RDM (Remote Device Management)

Quiet Fan Mode

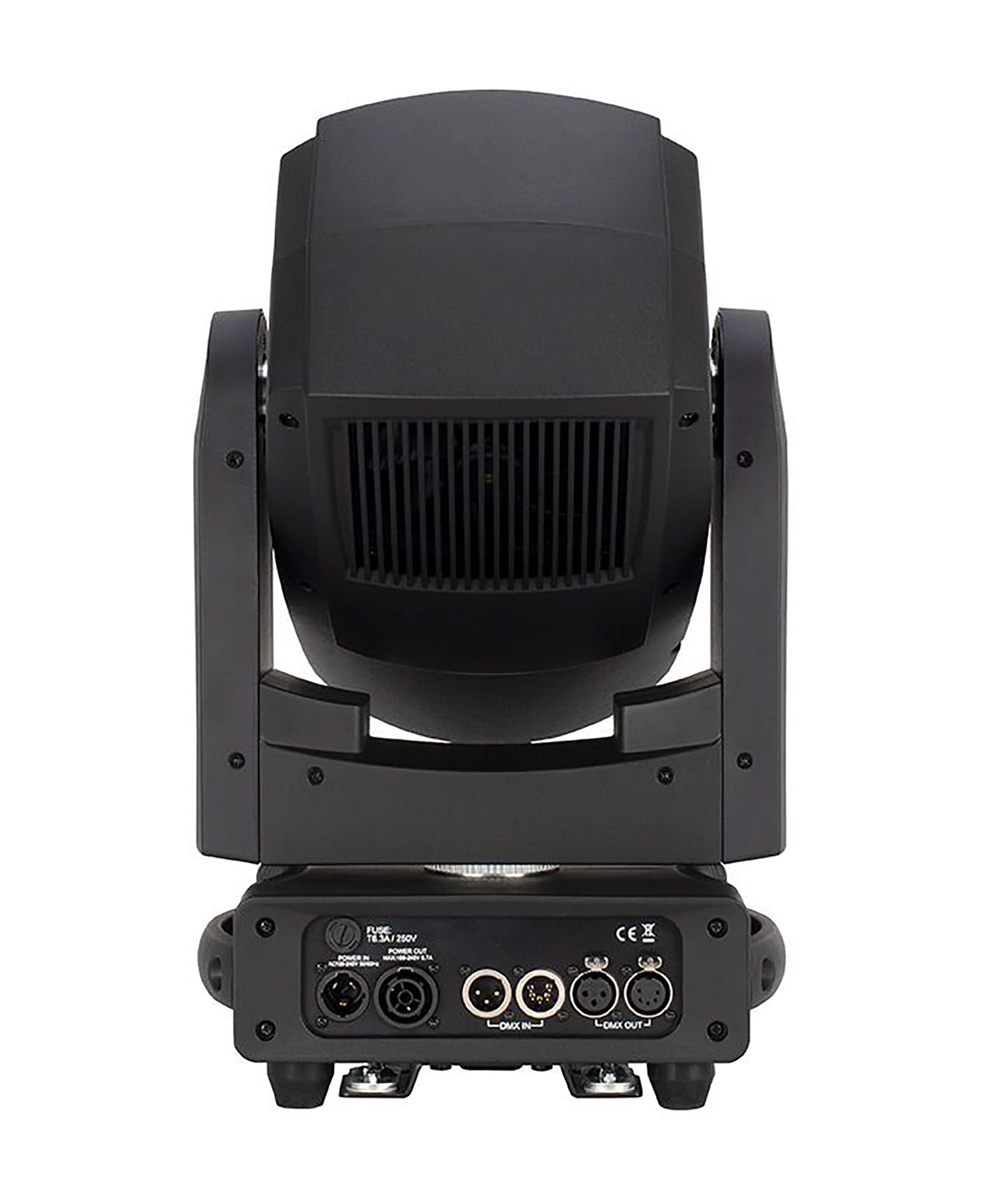

Locking 3-pin and 5-pin XLR Connector In/Out

IP65 Locking Power Connector In/Out

With Wired Digital Communication Network

Size / Weight:

Length: 10.96" (278.43mm)

Width: 8.4" (213.33mm)

Vertical Height: (Without Snoot)19.6" (498.1mm)

Vertical Height: (With Snoot) 22.37" (568.1mm)

Weight: 23.5 lbs. (10.7 kg)

Electrical / Thermal:

Multi-voltage: AC 100-240V / 47/63Hz

460W Power Consumption @ 120V

430W Power Consumption @ 240V

Multiple Unit Power Linking

5°F to 113°F (-15°C to 45°C)

Approvals / Ratings:

CE Compliant

cETLus (Control #4010765)

IP20

dB Rating: 46dB @ 3'

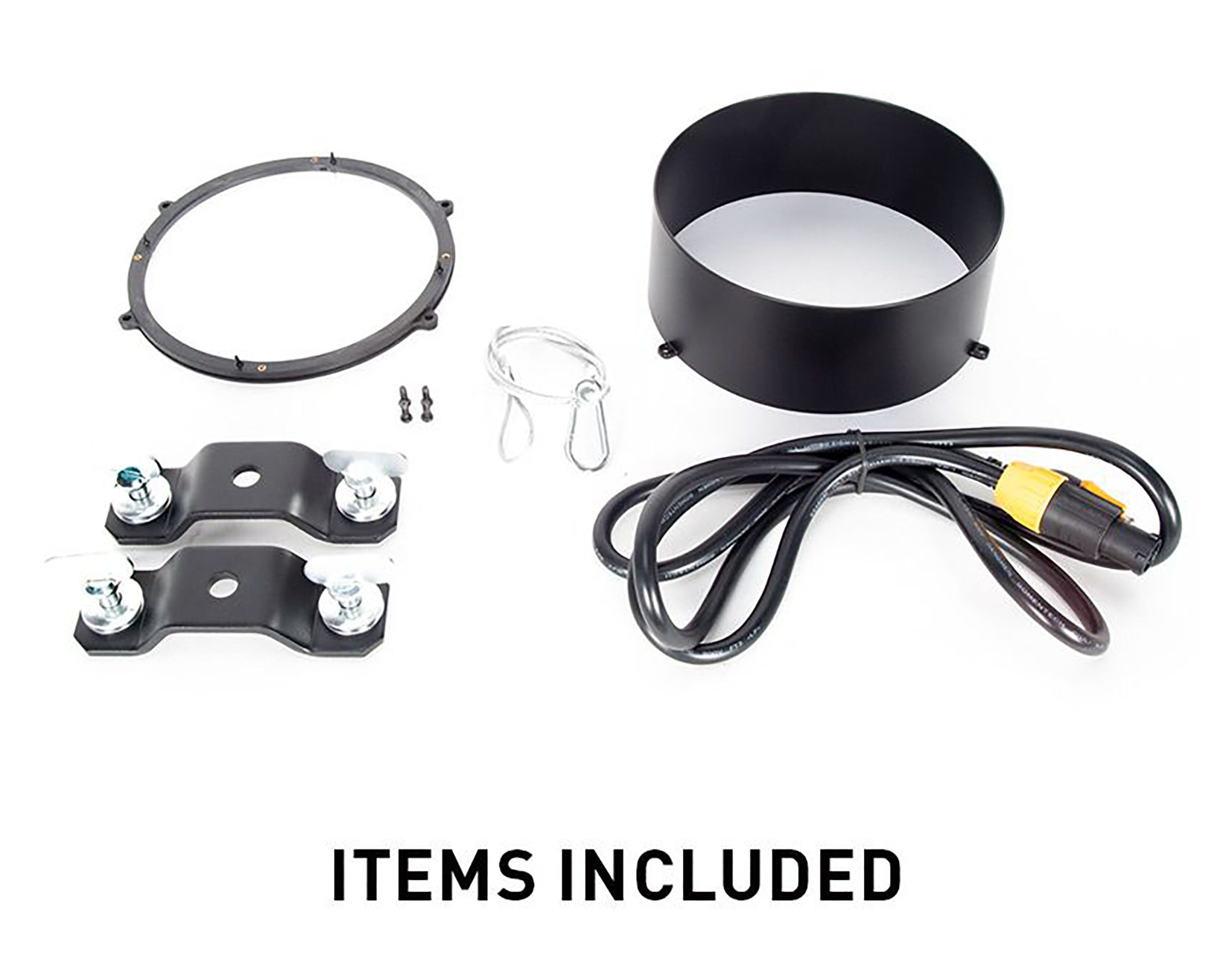

Included Accessories:

Snoot

1x40 Degree Linear Lens

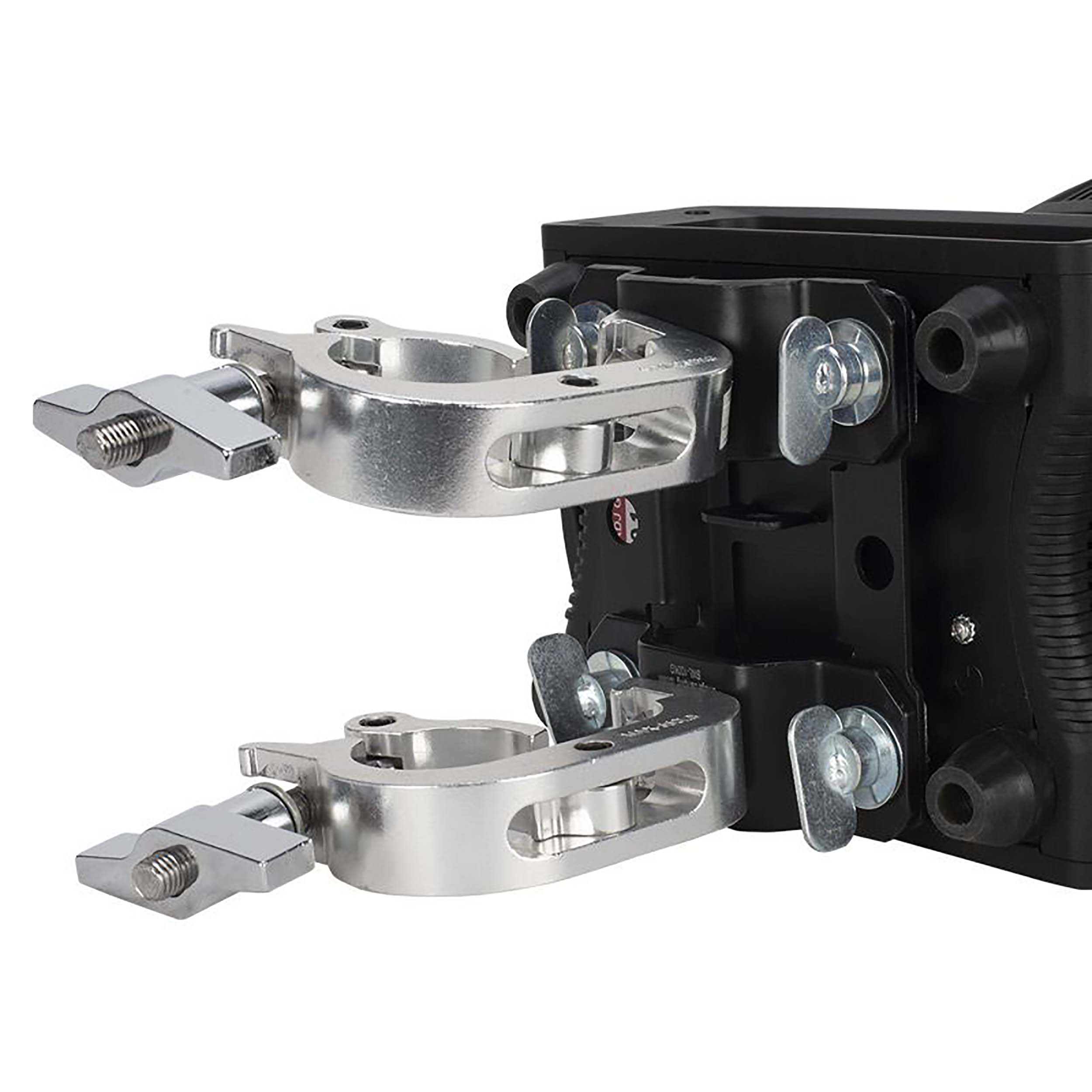

2 Omega Brackets

Safety Cable

IP65 Locking Power Cable
