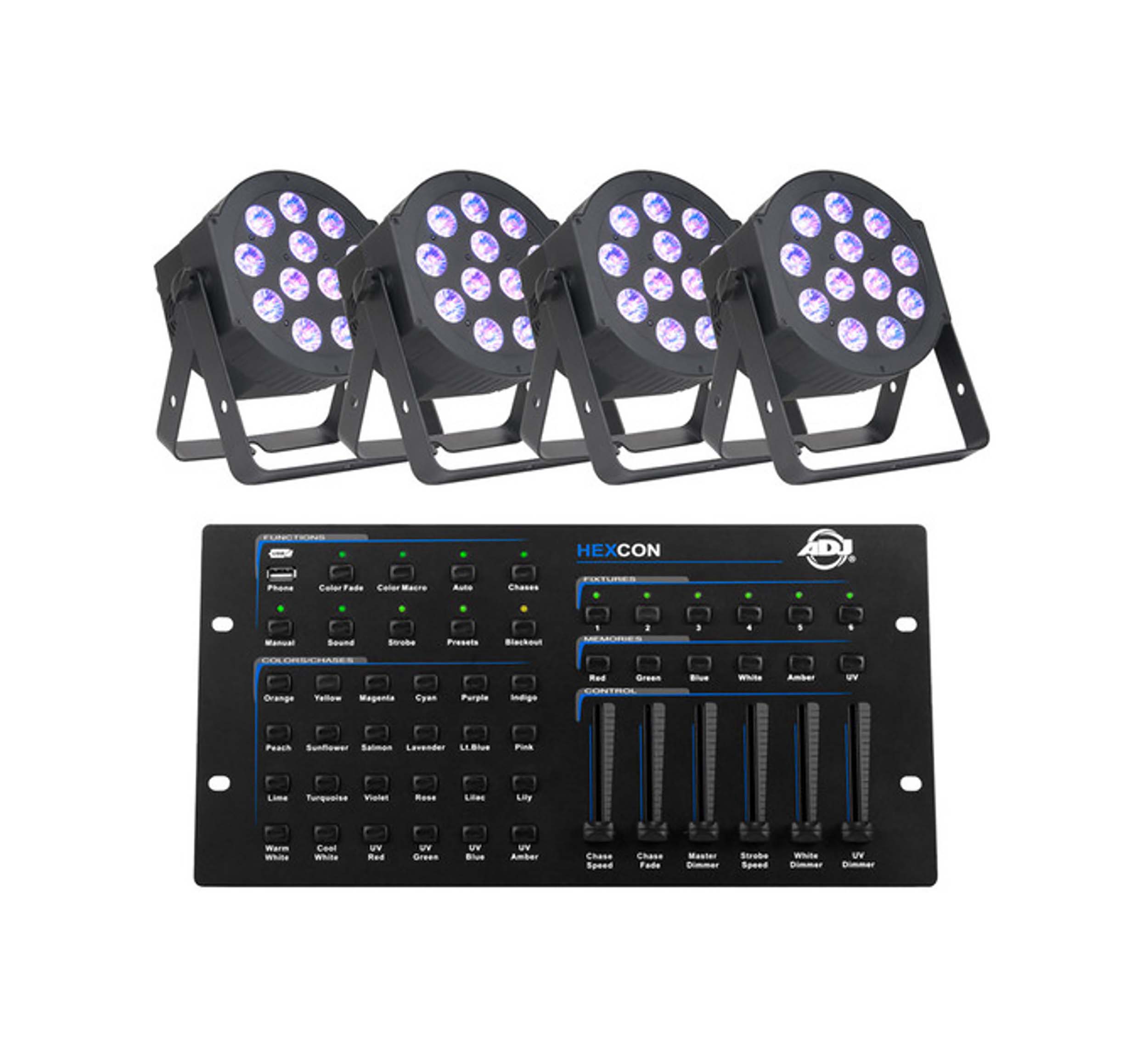

The ADJ HEX PX PAR HEXCON PAK, four (4) 12PX HEX LED Par Fixtures and HEXCON Controller - Black is designed for creating and controlling wide UV-infused color washes with bright and smooth color mixing. Ideal for installations, DJs, and mobile entertainers, the four fixtures can be used in tandem for broad venue up lighting, dancefloor color washing, and more.
American DJ 12PX HEX LED Par Fixture (RGBAW+UV, Black)
The black ADJ 12PX Hex is a 6-in-1 LED Par fixture, well suited for architectural wall washes, performance stages, and truss up lighting. The fixture utilizes twelve 12W LEDs that produce red, green, blue, amber, white, and UV colors with a 30° beam angle. The included scissor yoke allows for a variety of placement/installation options, while the rubber feet allow the unit to sit flush on the ground.
The 12PX Hex features a four-button DMX digital display on the rear panel, which allows you to select between seven built-in programs and 63 color macros. The fixture offers electronic dimming (0 to100%), LED pulse and strobe effects, five selectable dimming curves (standard, stage, TV, architectural, and theater) and five operational modes including static, RGBAW+UV dimmer, program, sound-active, and DMX. The four DMX channel modes (6, 7, 8, and 12) provide a wide variety of control parameters from any compatible DMX board or software.
Product Specifications:
Light:
Fixture Type: PAR
Light Source: 12 x Color/UV LED - 12 W
Light Source Life Expectancy: 50,000 Hours
Colors: Red, Green, Blue, Amber, White and Ultraviolet
Photometrics 24°:
1194.4 fc / 12,857 Lux at 3.3' / 1 m (Full On)
298.6 fc / 3214 Lux at 6.6' / 2 m (Full On)
74.7 fc / 804 Lux at 9.8' / 3 m (Full On)
74.7 fc / 804 Lux at 13.1' / 4 m (Full On)
47.8 fc / 514 Lux at 16.4' / 5 m (Full On)
Shutter / Strobe: Electronic
Iris: No
Focus: Manual
Zoom Adjustment: None
Dimming: Electronic, 0 to 100% with 5 Dimmer Modes
Operating Modes:
Color Dimmer, DMX, Program, Sound-Active, Static Color
Macros / Programs:
63 x Color Macro
7 x Internal Program
Effects:
Pulse (Variable Speed)
Strobe (Variable Speed)
Gobos: None
Control Protocols: DMX512, RDM
DMX Channel Modes:
4 Mode(s):
6 / 7 / 8 / 12-Channel
Display / Controls: LED / 4-Button
Remote Control: RF Remote (with Optional Equipment)
Inputs/Outputs:
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
AC Input Power: 100 to 240 VAC, 50/60 Hz
AC Power Connector:
Input: 1 x powerCON
Output: 1 x powerCON
Fuse: None
Power / Current Consumption: 133 W
IP Rating: None
Mounting: Dual/Scissor Yoke
Duty Cycle: None
Exterior Color: Black
Certifications: CE, ETL
Weight: 8.7 lb. / 3.9 kg
Dimensions: 5.3 x 9.8 x 11.7" / 13.6 x 24.9 x 29.7 cm
