Description

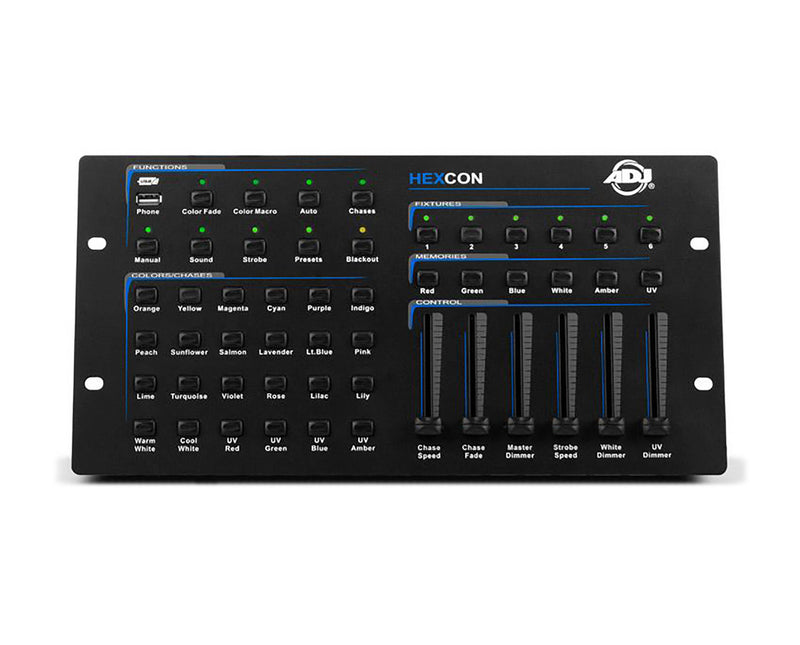

The ADJ HEXCON, 36-Channel DMX controller is specifically designed for our “HEX Series” products. Up to 6, RGBAW+UV, LED fixtures or fixture groups can independently be controlled via six fixture buttons. All ADJ HEX series fixtures or fixture groups must be set to run in DMX mode and be addressed at channels 1, 7, 13, 19, 25 and 31 to access independent fixture control. The HEXCON control panel includes 24 direct access pre-programmed color macro buttons, 6 user programmable color preset buttons which come factory set to control Red, Green, Blue White, Amber and UV, 6 multi-function channel faders which are used to control individual color intensity, Chase program “Speed”, Chase program “Fade”, Master Dimmer and Strobe speed.
There is an array of 8 “Function” buttons which are used to select the controller’s operation mode, including Color Fade, Color Macro, Auto, Chases, Manual, Sound, Strobe, Presets and Blackout modes. A USB port is also conveniently included so most phones or tablets can be connected and charged. The HEXCON is one of the simplest and most versatile LED controllers available today. It’s ideal for D.J.’s, nightclubs, lounges, bars or for anyone that wants to get the most out of their HEX series LED products.
Product Specifications:
Type: DMX Controller for Hex Series products
Controls: Up to 6 individual RGBWA+UV LED fixtures or fixture groups
Direct Access Buttons:
6 user-programmable
24 color presets
Playback Modes: Color Macro, Color Fade, Color Chase, Auto Run, Sound Active, Preset, and Strobe
Audio Trigger: Built-in microphone
Fade Control: On-the-fly Speed & Fade control of all chase programs
Strobe: Variable
Blackout Button: Yes
USB: Standard Type-A Female charging port
Connectors: DMX Output Connector: 3-pin XLR
Power: 12 VDC 500 mA UL approved power supply
Power Consumption: 3.6 W
Product Weight: 4 lb. (1.74 kg)
Product Dimensions (LxWxH): 14.2 x 5.25 x 2.5" (361 x 185 x 65 mm)
Shipping Weight: 4.95 lb.
Shipping Dimensions (LxWxH): 19 x 9.2 x 5.4"
