Description
The HEXCON L is a 36-channel DMX hardware controller designed specifically for managing ADJ RGBAL+UV HEX Series LED fixtures. It offers precise control over up to six individual fixtures or fixture groups, making it ideal for both small and medium-sized lighting setups. Users simply assign each fixture to channels 1, 7, 13, 19, 25, or 31 in DMX mode to access full functionality, allowing for seamless integration into any lighting rig.

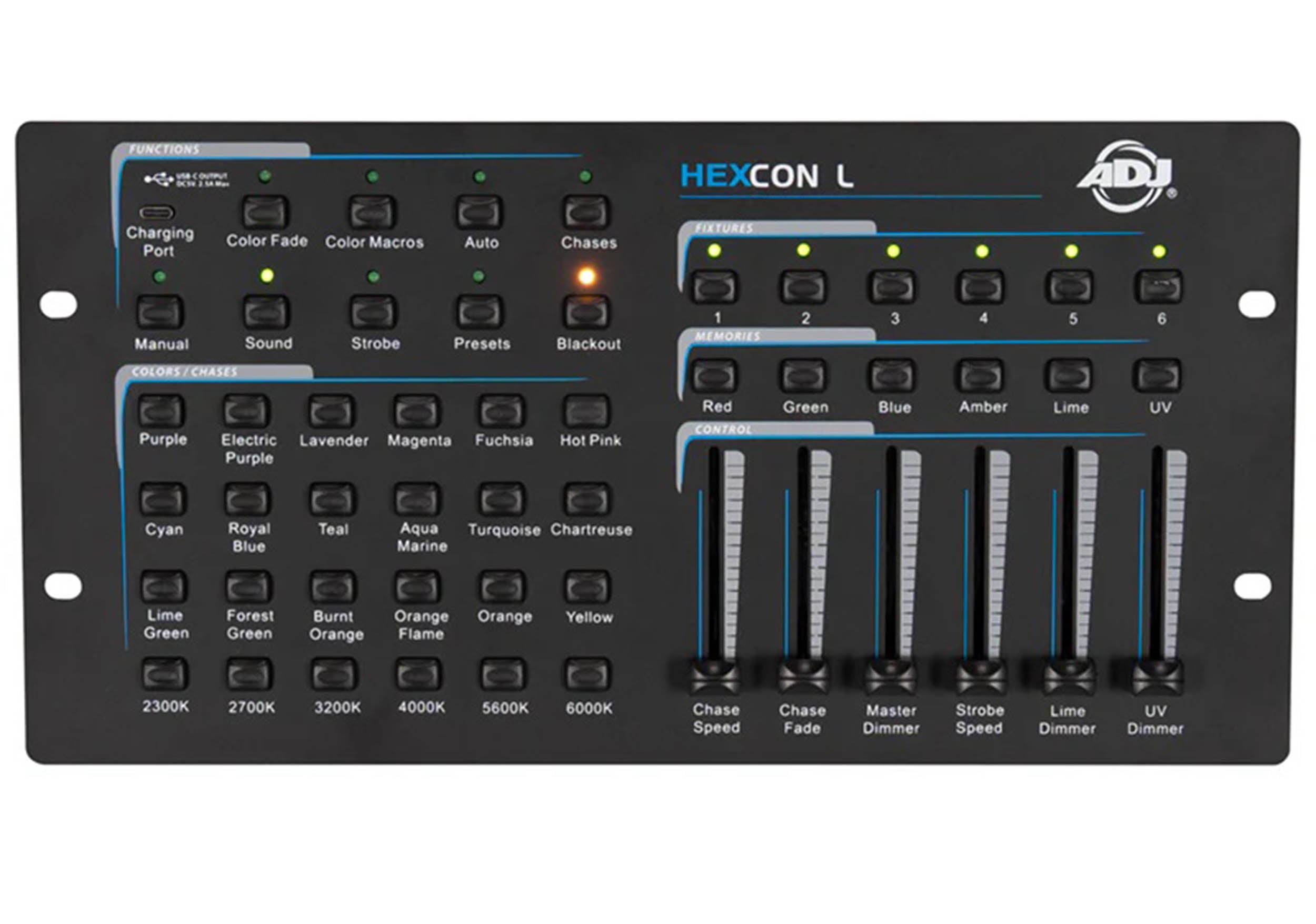

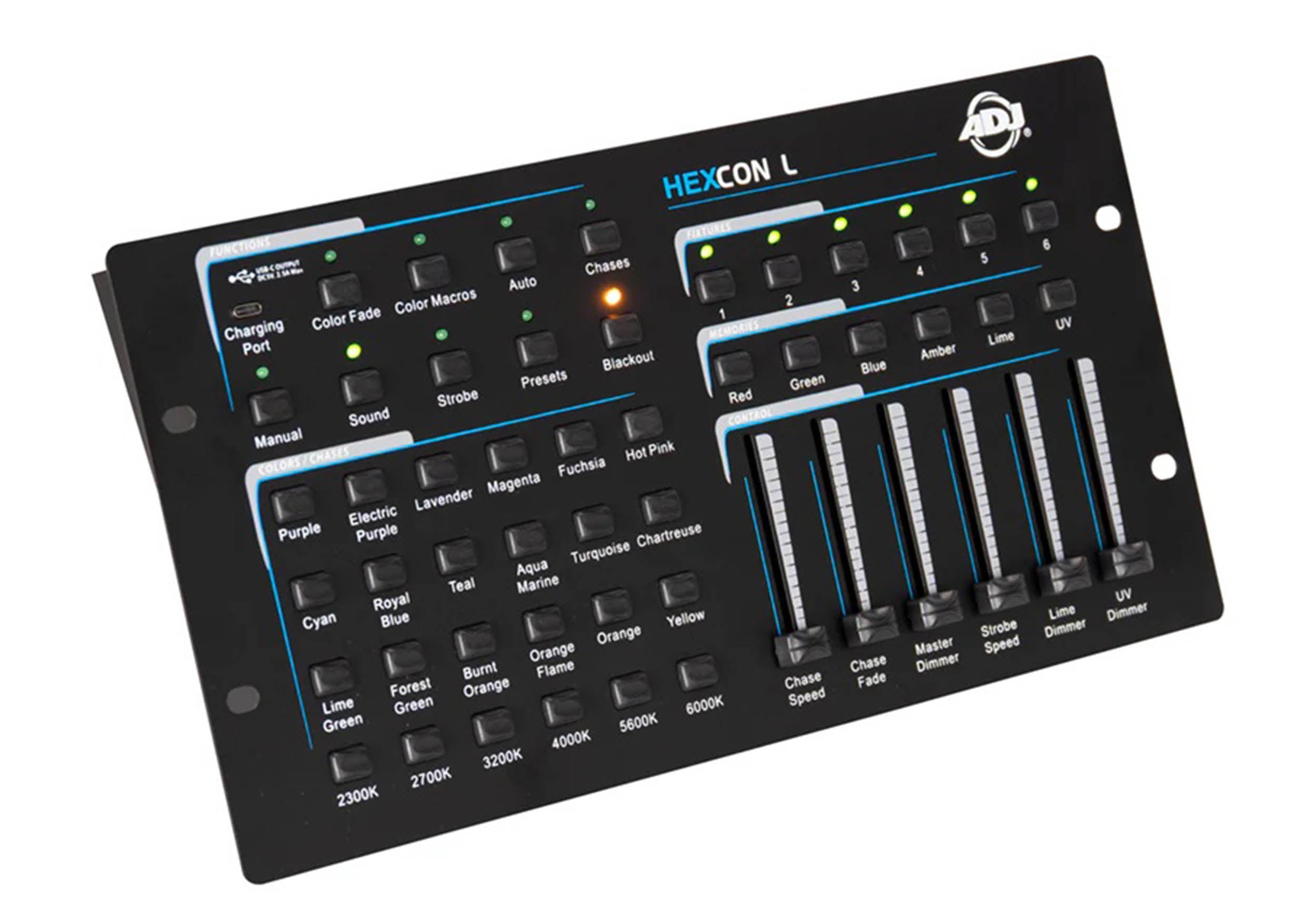

The control panel is equipped with 24 vivid pre-programmed color macros, 6 user-programmable preset buttons, and six multi-function faders. These faders provide direct manipulation of color intensity, chase speed, fade effects, master dimming, and strobe, giving users total creative flexibility. Additionally, six white color temperature presets-ranging from 2300K to 6000K-allow for accurate and consistent lighting in any environment.
For dynamic show control, the HEXCON L includes eight versatile function buttons that enable quick switching between modes such as Color Fade, Color Macro, Auto, Chase, Manual, Sound, Strobe, Presets, and Blackout. A USB-C charging port on the main panel adds convenience by allowing most mobile phones and tablets to be charged directly from the controller, making the HEXCON L a compact, intuitive, and highly functional tool for live lighting professionals.
Product Specifications:
Controls:
Controls up to 6 individual LED fixtures or fixture groups
6 user-programmable presets with direct access buttons
30 color preset direct access buttons
6 multi-function faders
Colors:
Color Macro playback mode
Manual RGBAL+UV intensity control mode
Color Fade Mode, Color Chase Mode, Auto Run, Sound Active, and Strobe functions
On-the-fly speed and fade control of all chase programs
Sound active mode via internal microphone with adjustable sensitivity
Variable strobe: 0.33 Hz to 11 Hz
Blackout button

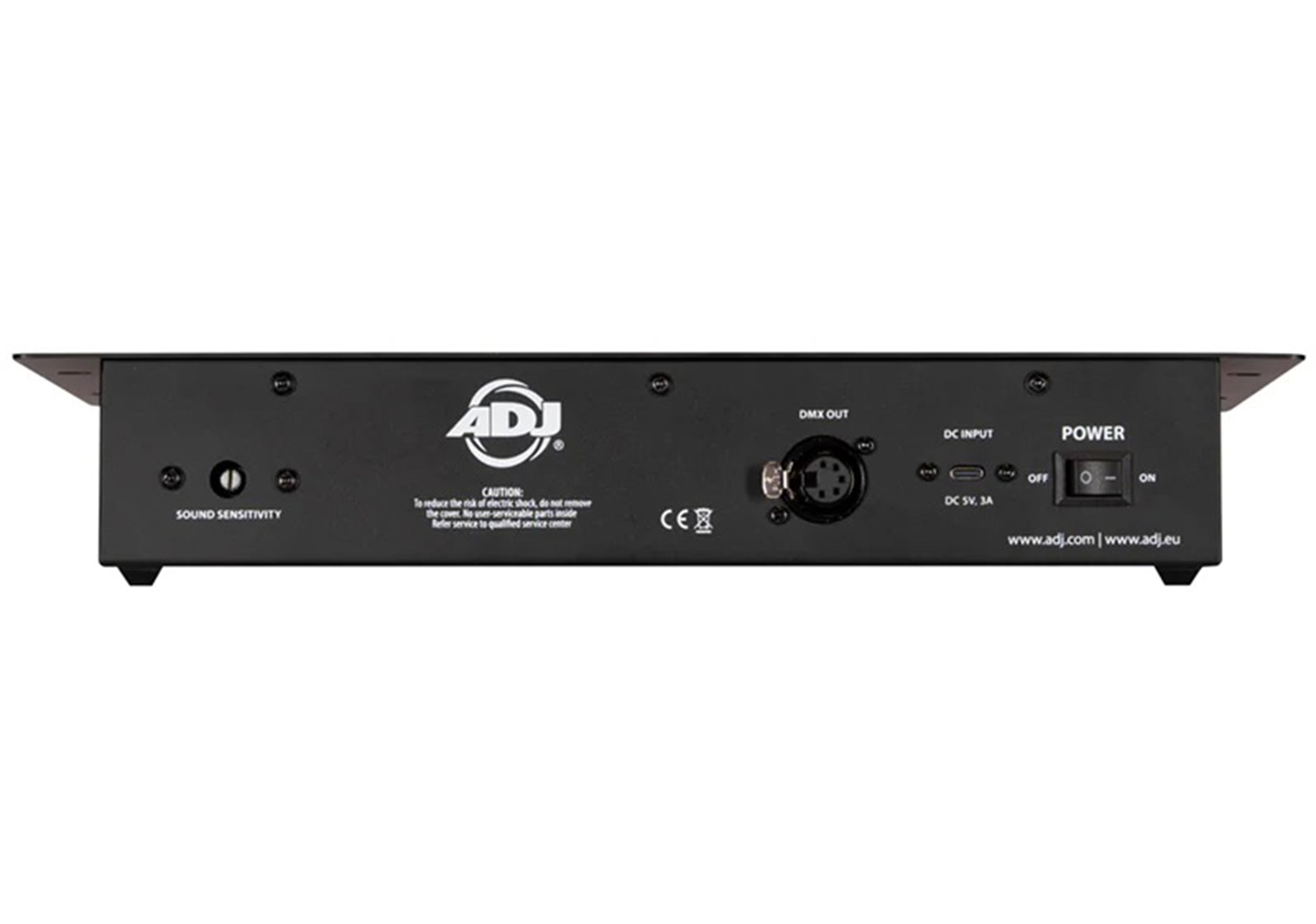

Connectivity: DMX output 5-pin XLR, USB-C charging port (charges most mobile phones and tablets)

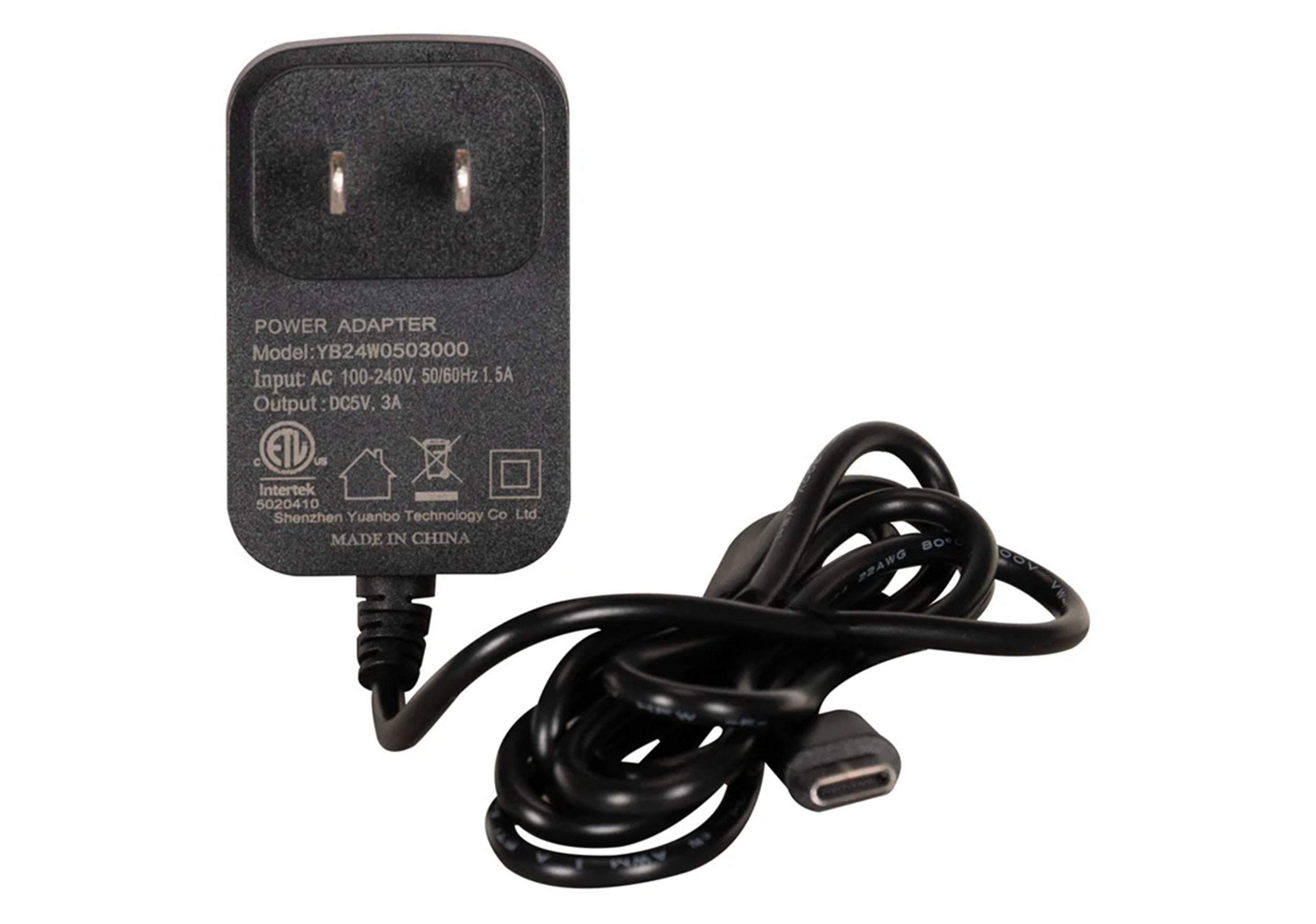

Power Input: 5 VDC, 3 A UL-approved power supply (included)
Power consumption: 15 W
Approvals & Ratings: CE, cETLus, FCC
IP Rating: IP20
Ambient Usage Temperature: -20°C to 40°C
Storage Temperature: -30°C to 45°C
Product Weight: 4 lbs / 1.74 kg
Product Dimensions (L × W × H): 14.2 in × 7.2 in × 2.7 in / 360 mm × 183 mm × 69 mm
