Description

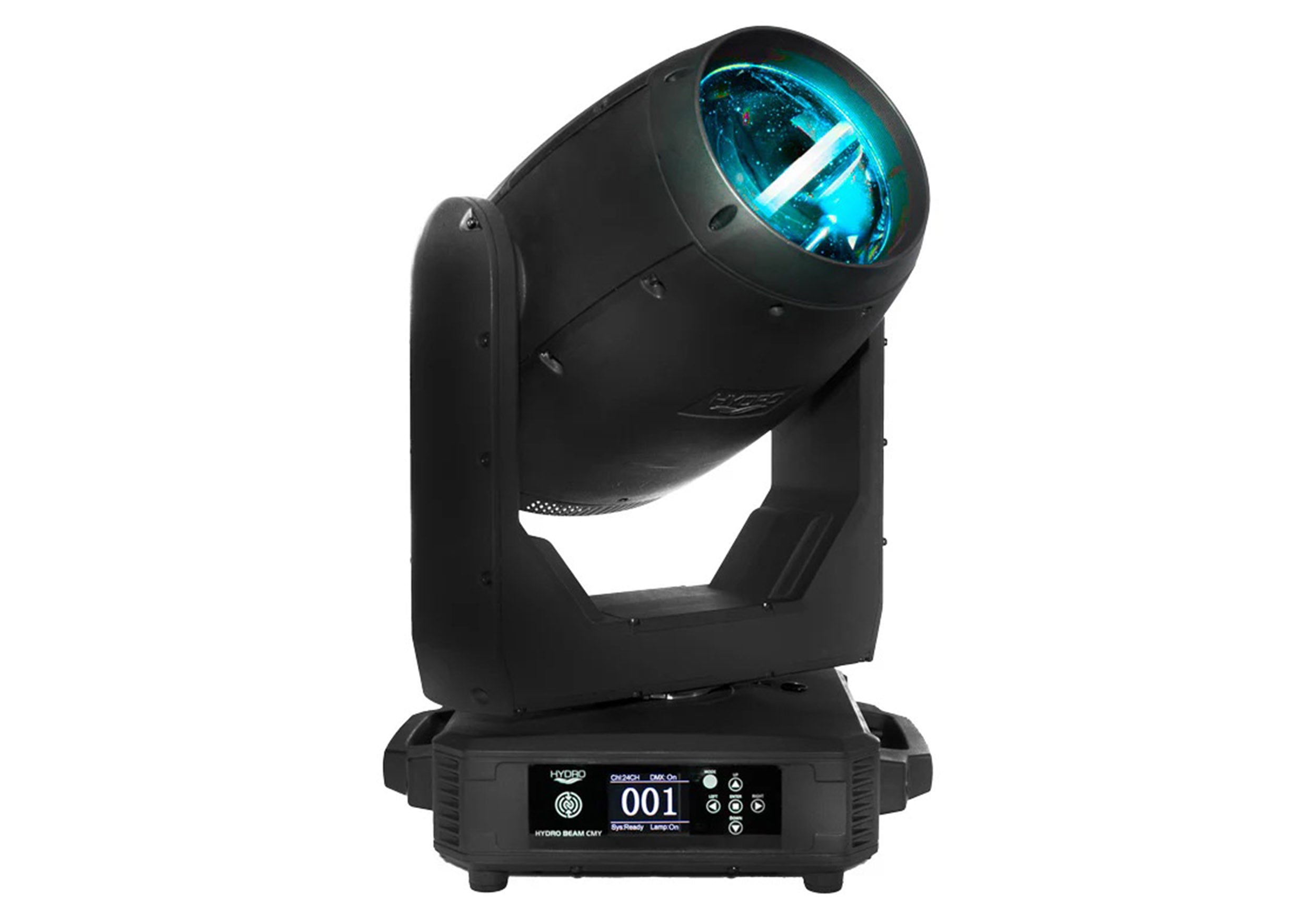

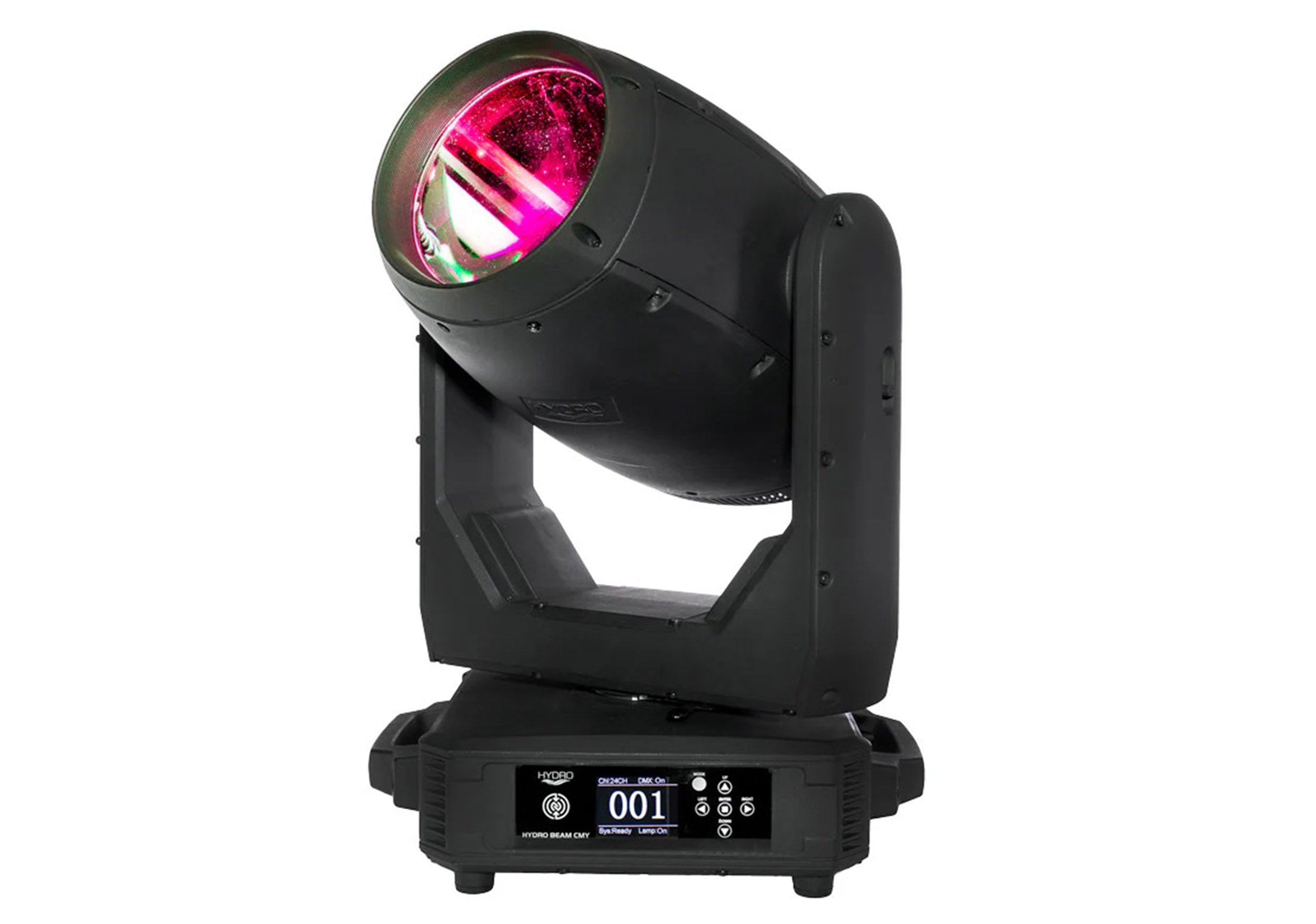

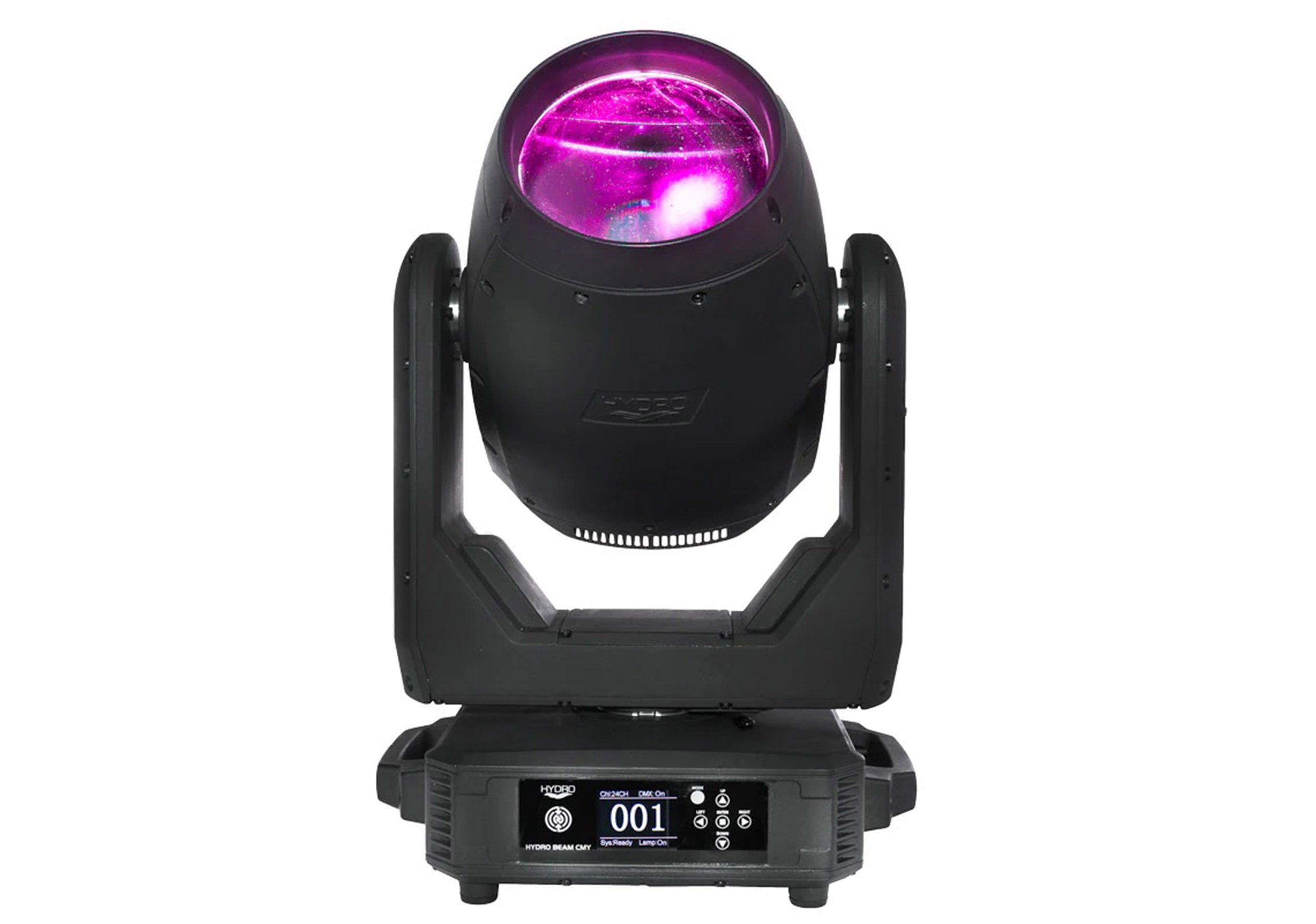

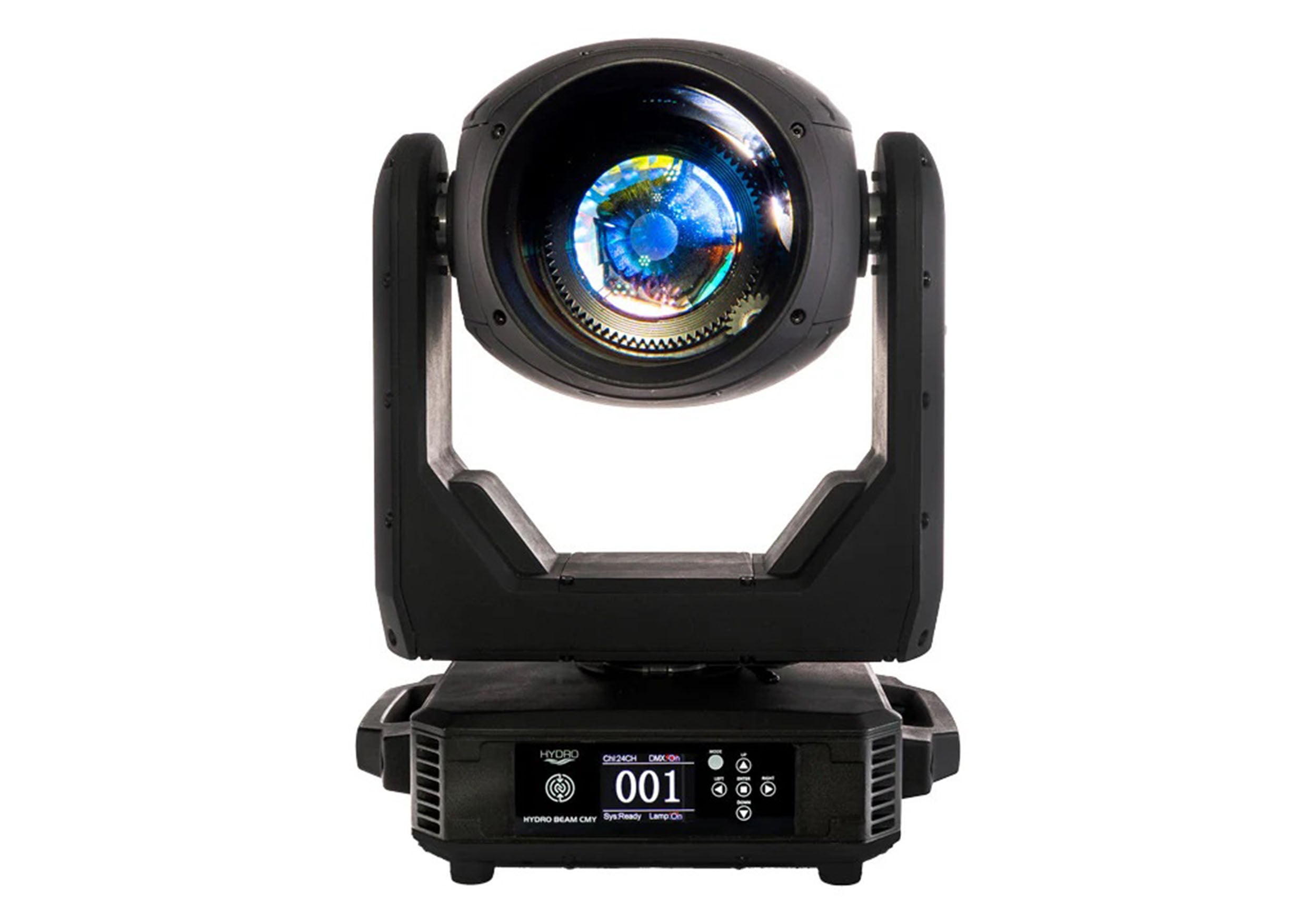

The ADJ Hydro Beam CMY is a powerful and precise IP65-rated automated beam luminaire designed to deliver striking aerial effects for both indoor and outdoor events. Equipped with an OSRAM Sirius HRI 310W PRO discharge lamp, it produces an ultra-bright, razor-sharp 2-degree beam through high-quality glass optics, ensuring exceptional clarity and beam definition even in large venues, stadiums, or outdoor festivals. Its motorized focus system with 16-bit precision guarantees crisp projections at any distance, making it a versatile choice for professional lighting designers.
Engineered for maximum creative flexibility, the Hydro Beam CMY features a full CMY color mixing system for smooth, continuous color transitions and a 14-position dichroic color wheel that includes CTO (3200K), CTB (9000K), and UV filters. The fixture also includes 17 static GOBO patterns, four beam reducers, shake and split-color effects, plus two rotating prisms (16-facet circular and 6-facet linear) and a frost filter for soft-edge washes, enabling limitless design possibilities for dynamic light shows.
Built for reliability in demanding environments, the Hydro Beam CMY combines lightning-fast 3-phase pan and tilt motors with robust IP65-rated construction, protecting it from dust and water. It supports both cabled DMX with RDM and integrated Aria X2 wireless DMX control for easy setup and remote fixture management. With its combination of speed, precision, and durability, the Hydro Beam CMY delivers professional-grade performance and enormous creative potential for large-scale events and touring applications.
Product Specifications:
Light Source: OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
Color Temperature: 7850K (±500K)
CRI: 86 (±5)
Color Wheel: 14 dichroic colors + white including CTO (3200K), CTB (9000K) & UV; Indexable wheel for
split colors; Separate Multi-Color Effect
GOBO Wheel: 17 static GOBOs + open; 4 GOBOs are beam reducers; GOBO Shake Effect
Prism Wheels: 2 Rotating prisms; 16-facet circular and 6-facet linear prisms; Prisms Overlay
Control: DMX512, RDM, Aria X2, NFC; Control Modes: DMX512 & Manual (On-board); 2 DMX Channel
Modes: 20/24 Channels; Color LCD display with 4-button function menu; 0-100% smooth dimming; Various
strobe speeds; Wired digital communication network
Pan/Tilt: Pan: 540° with 16-bit fine pan; Tilt: 270° with 16-bit fine tilt; 3-phase high-speed Pan/Tilt motors

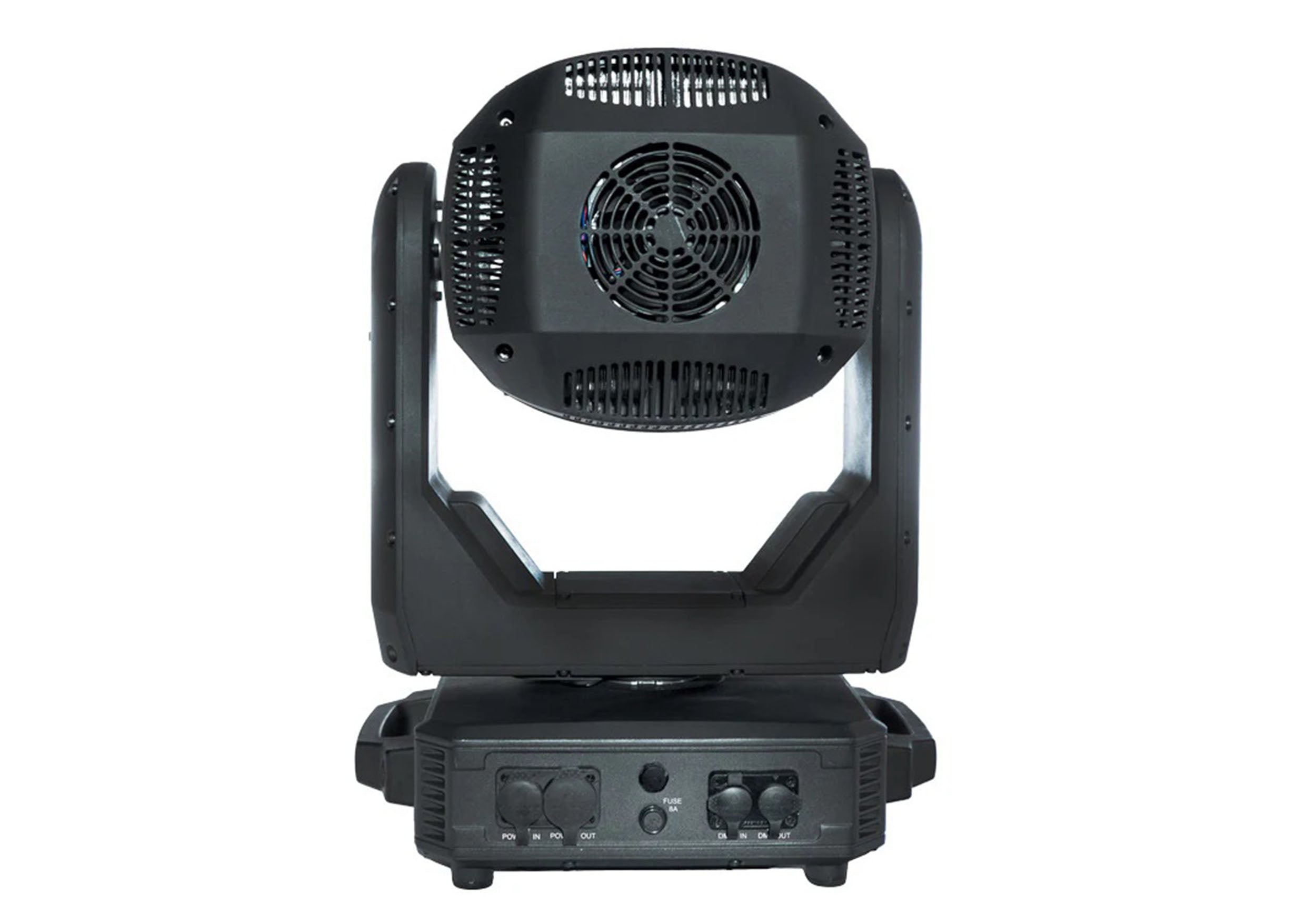

Connections: DMX: Seetronic IP65 rated 5-pin DMX In/Out (max 32 fixtures); Power: IP65 locking In/Out
for daisy chain power
Electrical: Multi-voltage: 100–240V, 50/60Hz
Max Power Consumption: 450W (@120V), 430W (@230V)
Fuze Protected: 6.5A
Approvals / Ratings: CE; cETLus (Pending); FCC; IP65
Product Weight: 56 lbs / 25.6 kg
Product Dimensions (L × W × H): 15 in × 11.2 in × 23 in / 381.6 mm × 284.5 mm × 568.5 mm
