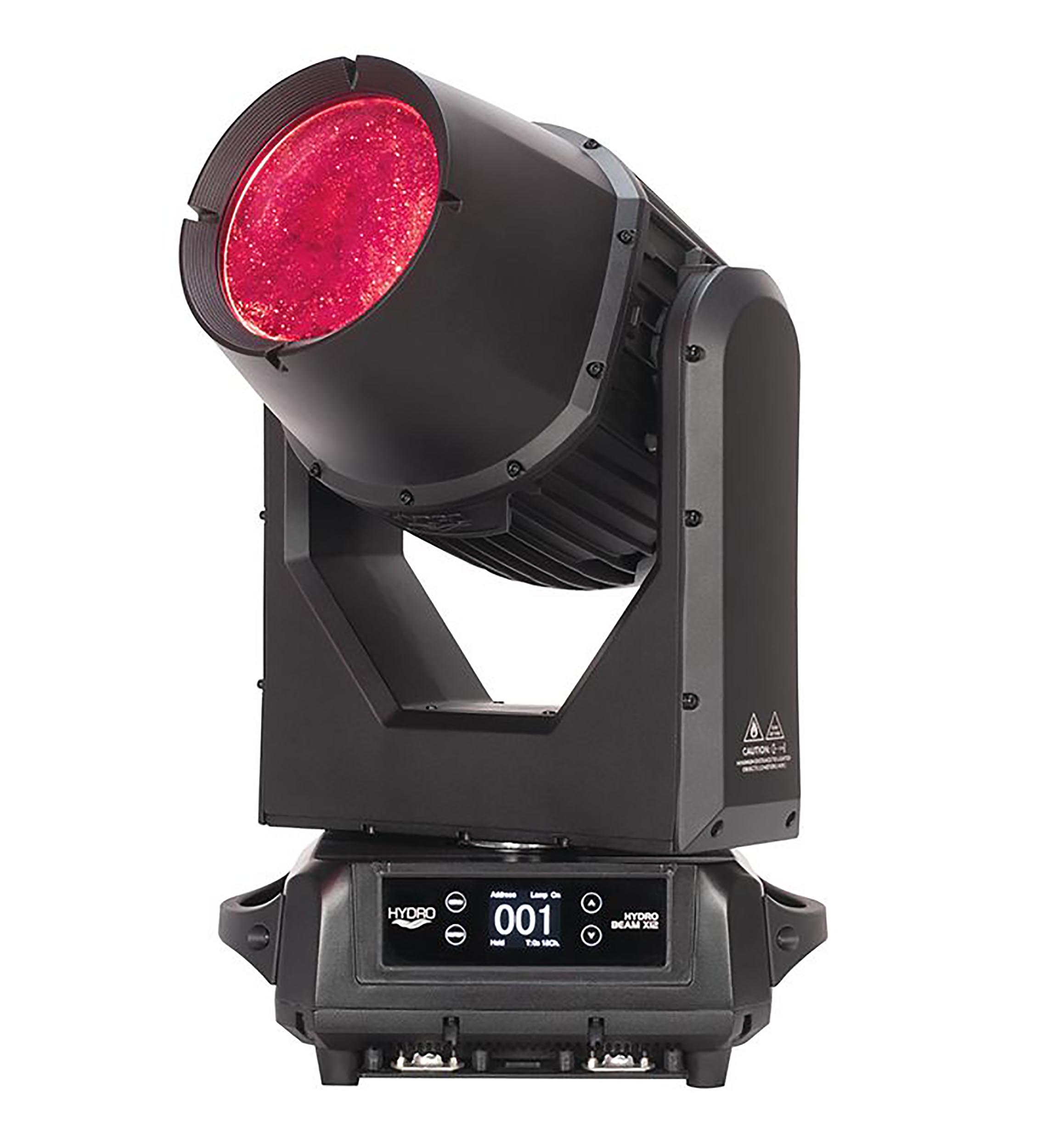

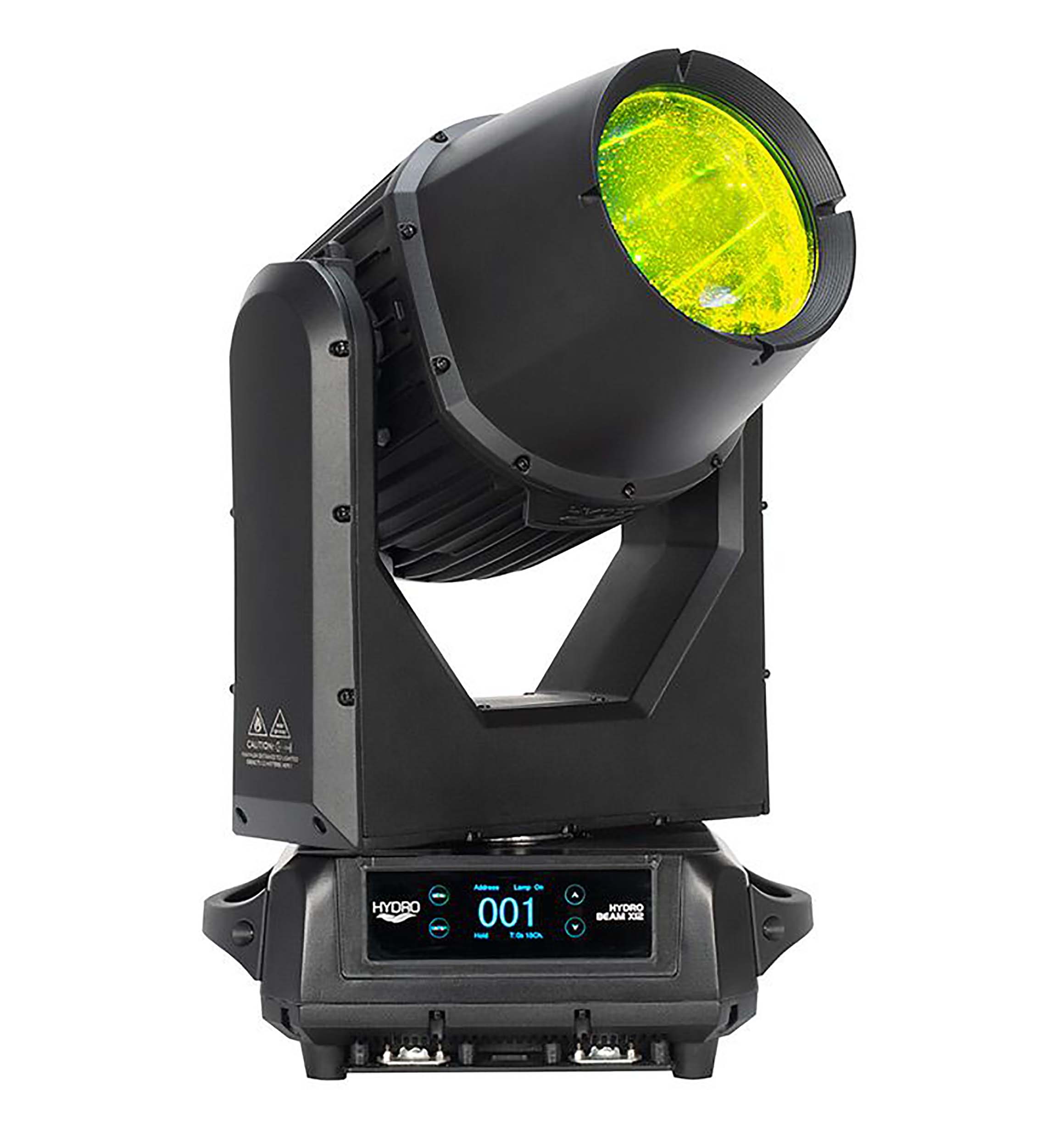

ADJ Hydro Beam X12, High Output Moving Head Beam Fixture with Robust IP65-Rated Enclosure

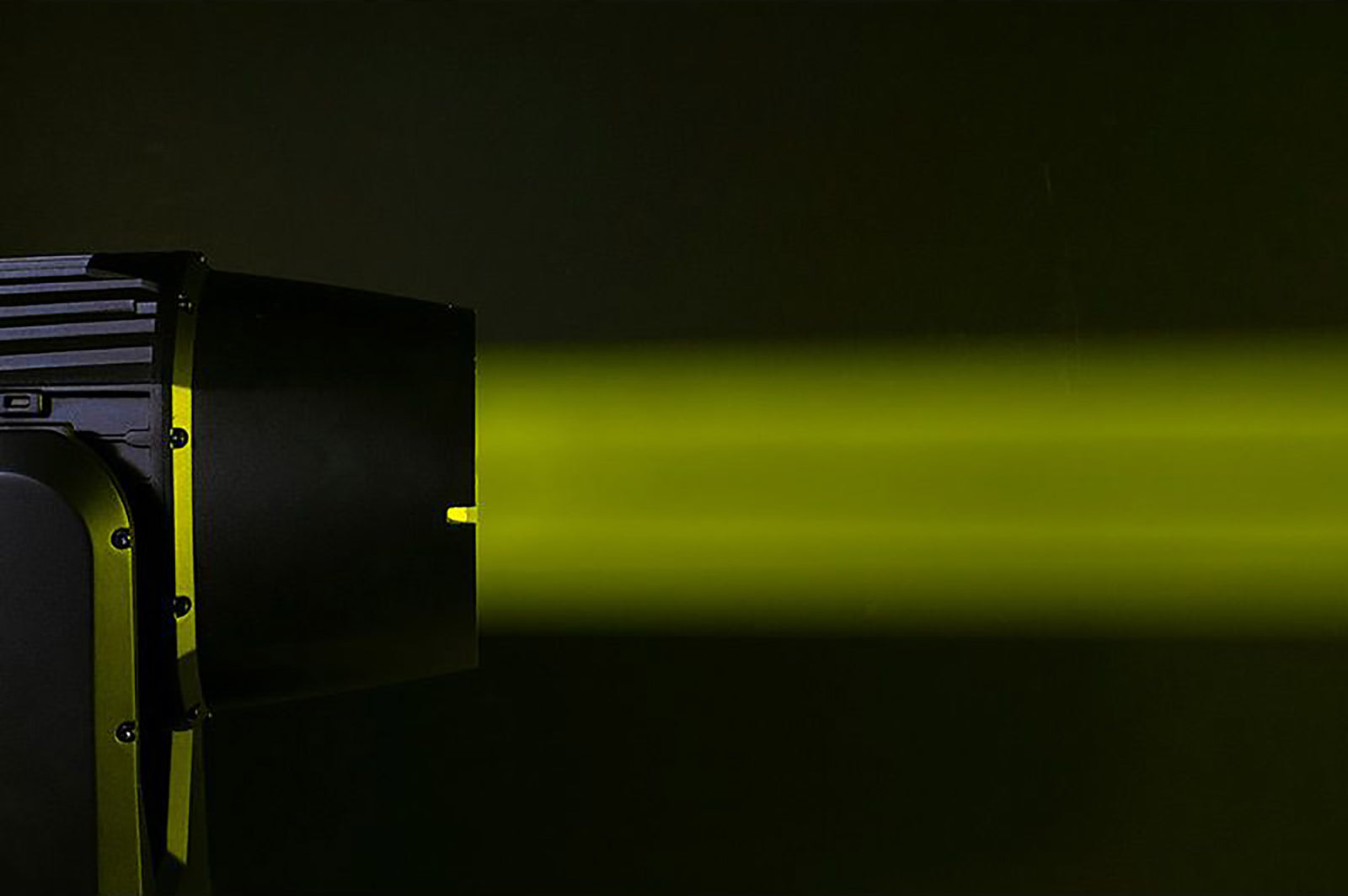

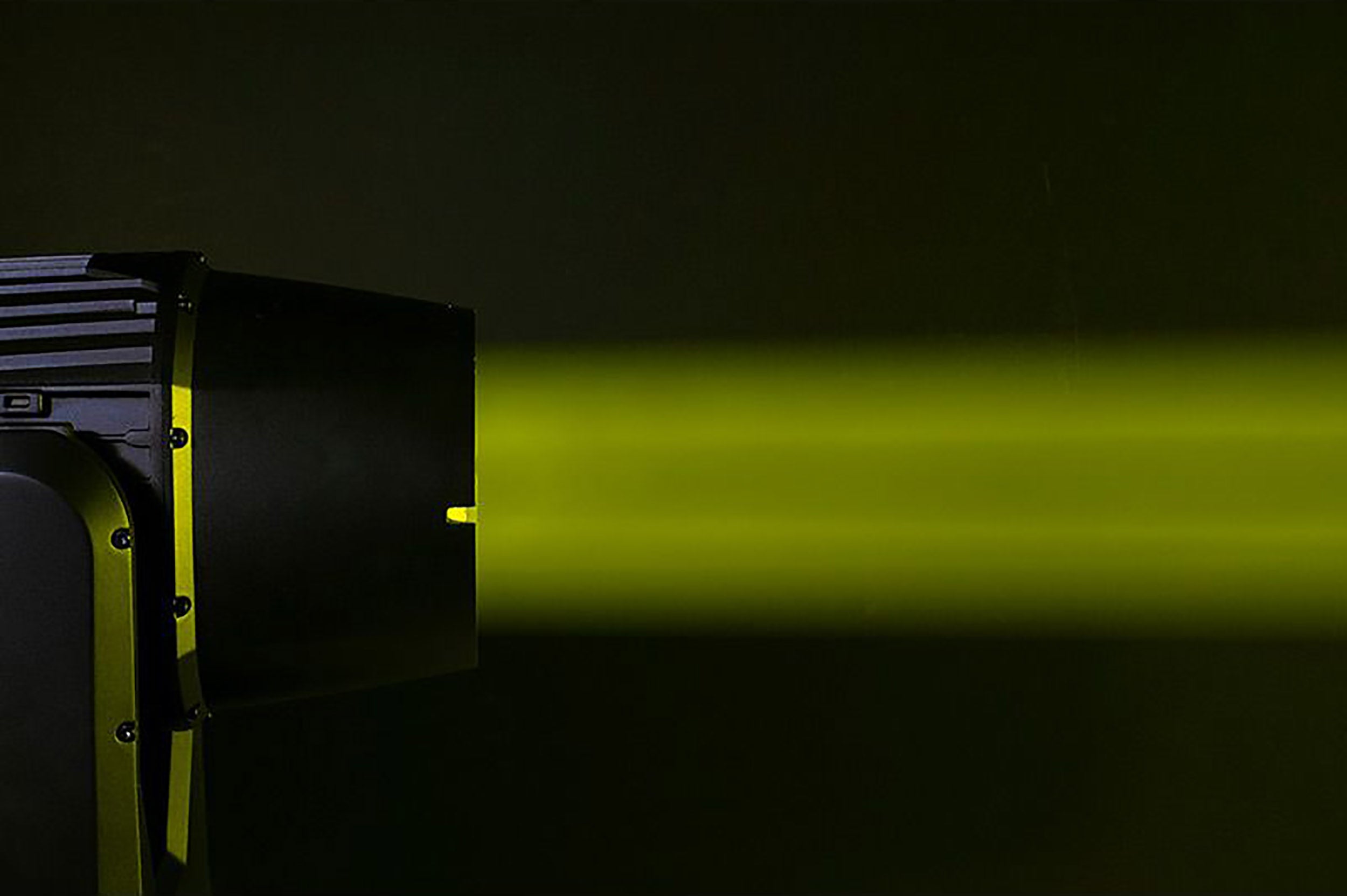

The ADJ Hydro Beam X12, High Output Moving Head Beam Fixture with Robust IP65-Rated Enclosure is designed to create stunning aerial effects both inside and outdoors. Harnessing the power of the latest Philips Platinum 12R LL MSD Discharge Lamp technology, focused through high quality optics, it creates a piercing beam of light with a tight 2-degree beam angle.

Designed for both indoor and outdoor use, the Hydro Beam X12 has a robust construction and an IP65-rating. Its durable casing protects it from dust, sand, moisture, and liquids, making it ideal for use in all situations from sandy beach parties to rainy festival fields. Perfect for all kinds of outdoor events, as well as installation in open-air clubs and other outside entertainment spaces, this ground-breaking fixture also offers an extended operational life and reduced maintenance requirement when installed indoors, due to its sealed casing design.

The Hydro Beam X12’s carefully curated selection of beam-shaping tools delivers the functionality that lighting designers need, while allowing the fixture to remain compact and agile. It features 14 colors + white, including UV, CTO (3200K) and CTB (6000K), with support for split colors and bidirectional scrolling. A static GOBO wheel features 16 patterns (plus open) optimized for aerial effects, including four beam reducers, and offers GOBO shake and bidirectional GOBO scrolling effects. The fixture also includes motorized focus, a Frost Filter to create a wash effect, and two rotating prisms (6-facet linear and 24-facet circular).

Product Specifications:

Light Source:

Philips, 260W, MSD Platinum 12R LL Discharge Lamp (6,000 hours)

Color temperature: 7800K

LUX: 522,000 @10M

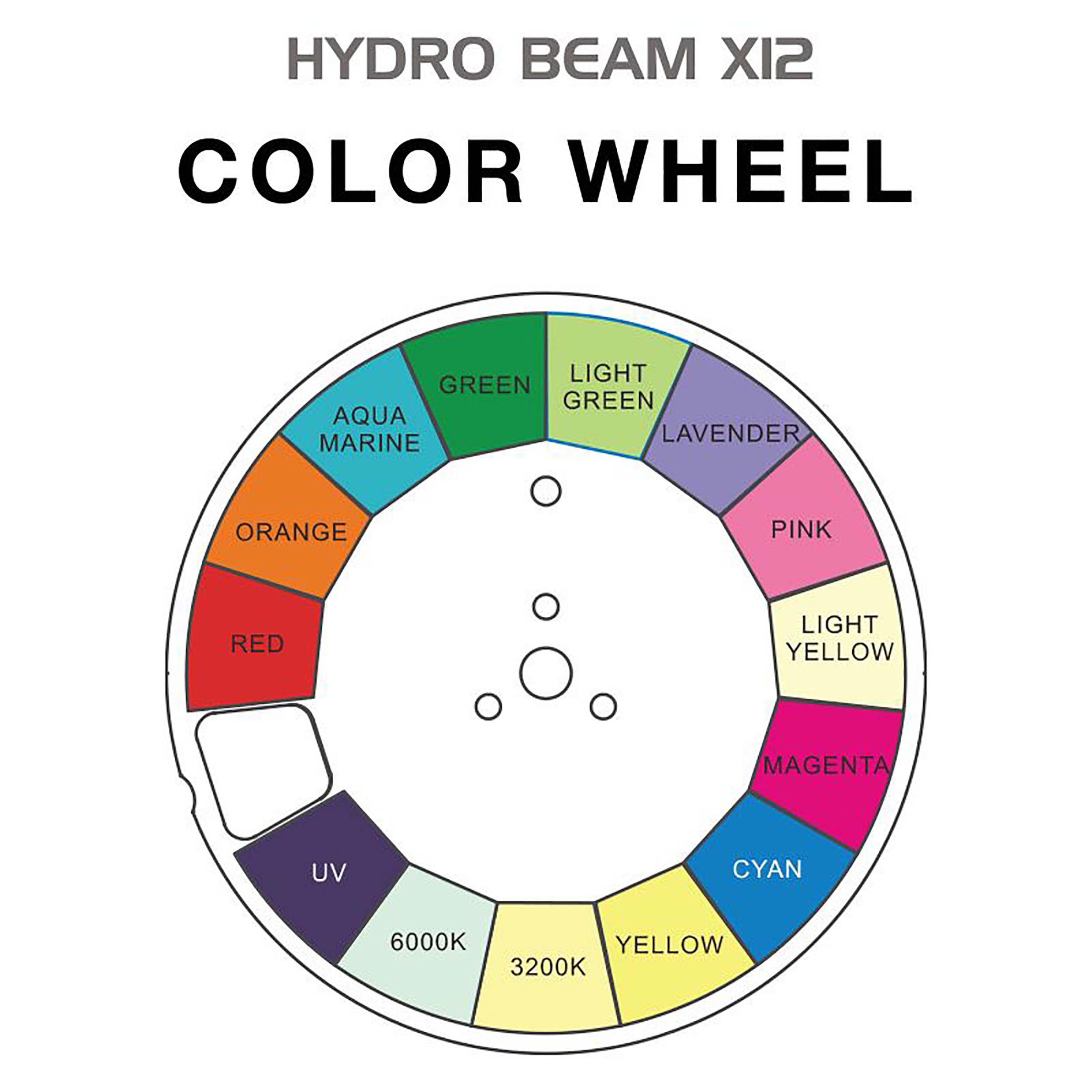

Color Wheel:

14 dichroic colors + white [Includes CTO (3200K), CTB (6000K) & UV]

Split Colors

Bidirectional color wheel scrolling

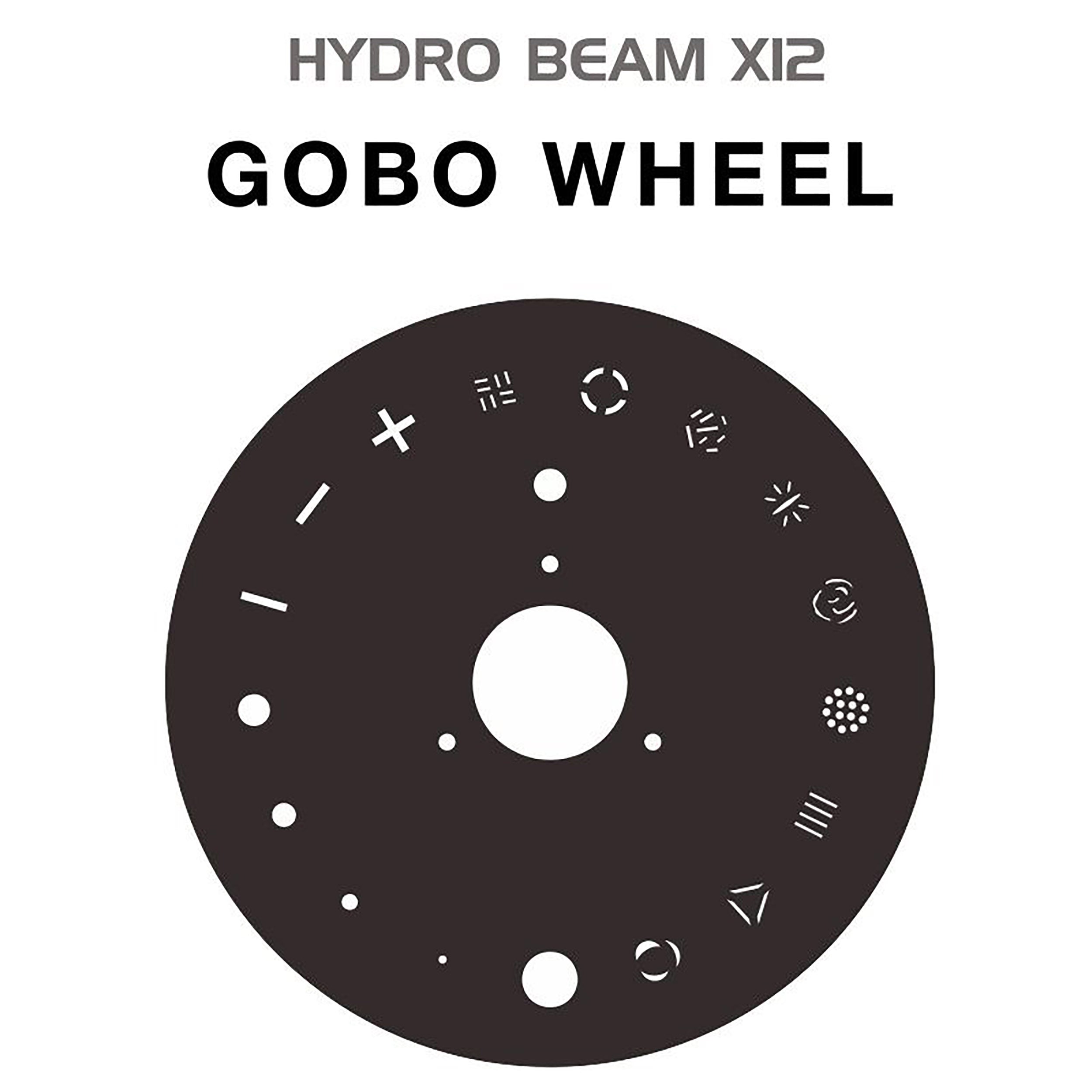

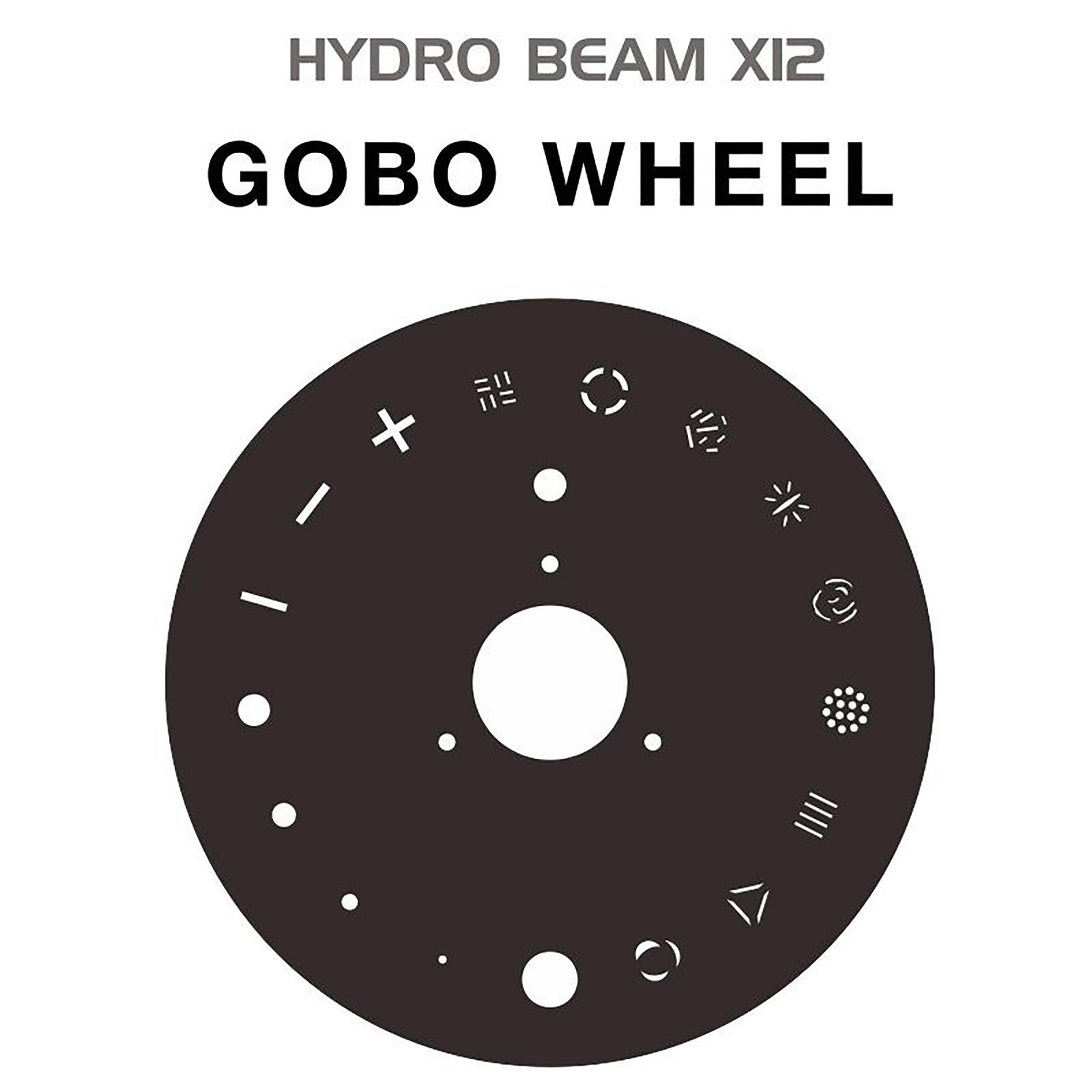

GOBO Wheel:

16 static GOBOs + open (4 GOBOs are beam reducers)

GOBO Shake Effect

Bidirectional gobo wheel scrolling

Prisms:

6-facet linear and 24-facet circular

Bidirectional prism rotation for each prism

Prisms can be overlaid

Control:

Configurable via RDM

Controllable via DMX512 via hardwire or wirelessly with Wifly EXR Transceiver (Sold Separately)

2 DMX Channel Modes are 14/18 Channels

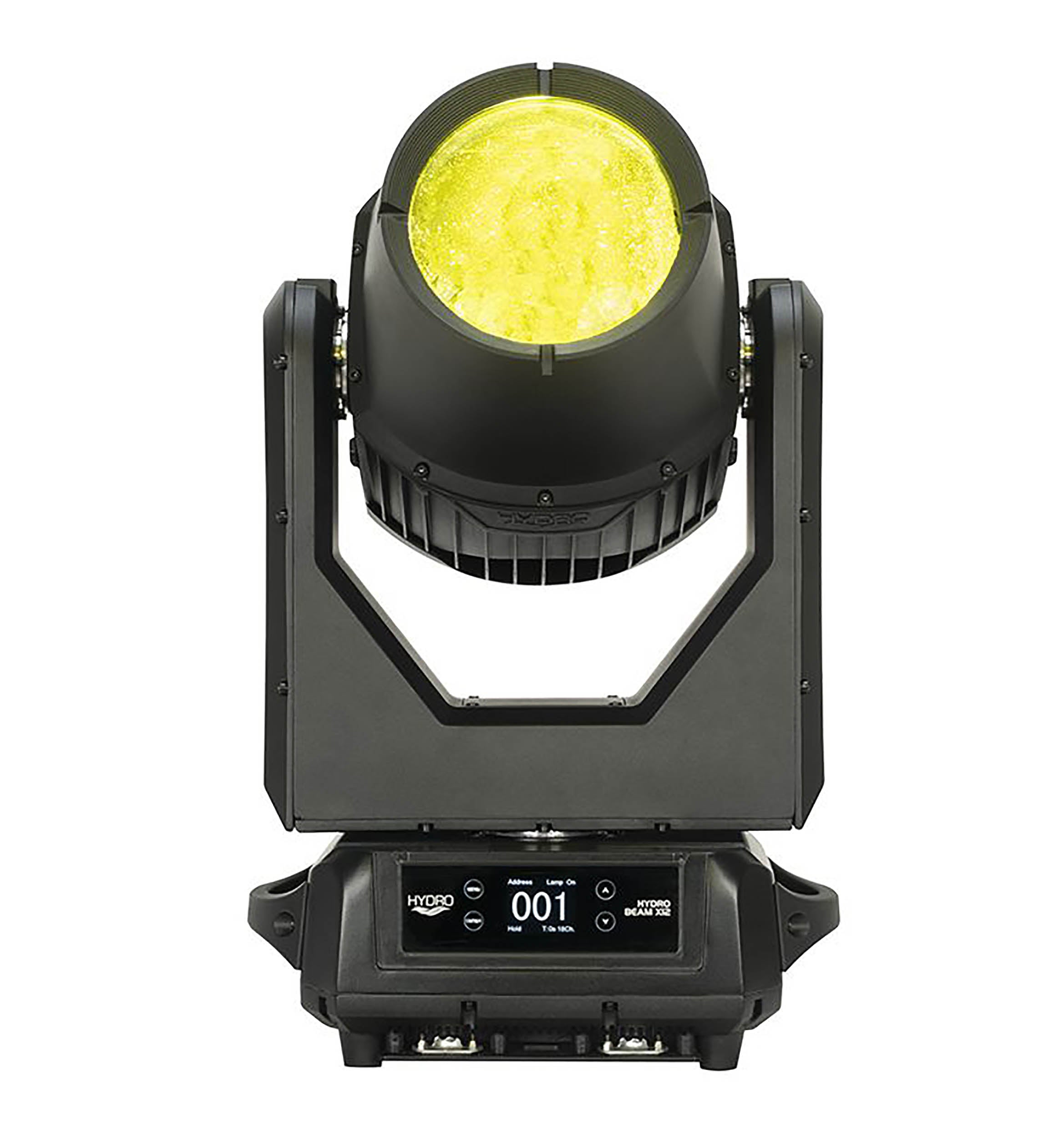

Color LCD display with 4-button function menu

5 Dimmer Curves

0-100% smooth dimming

Various strobe effects with speed control

USB firmware update port

With Wired Digital Communication Network

Pan/Tilt:

Pan: 540 degrees (plus 16-bit fine pan)

Tilt: 270 degrees (plus 16-bit fine tilt)

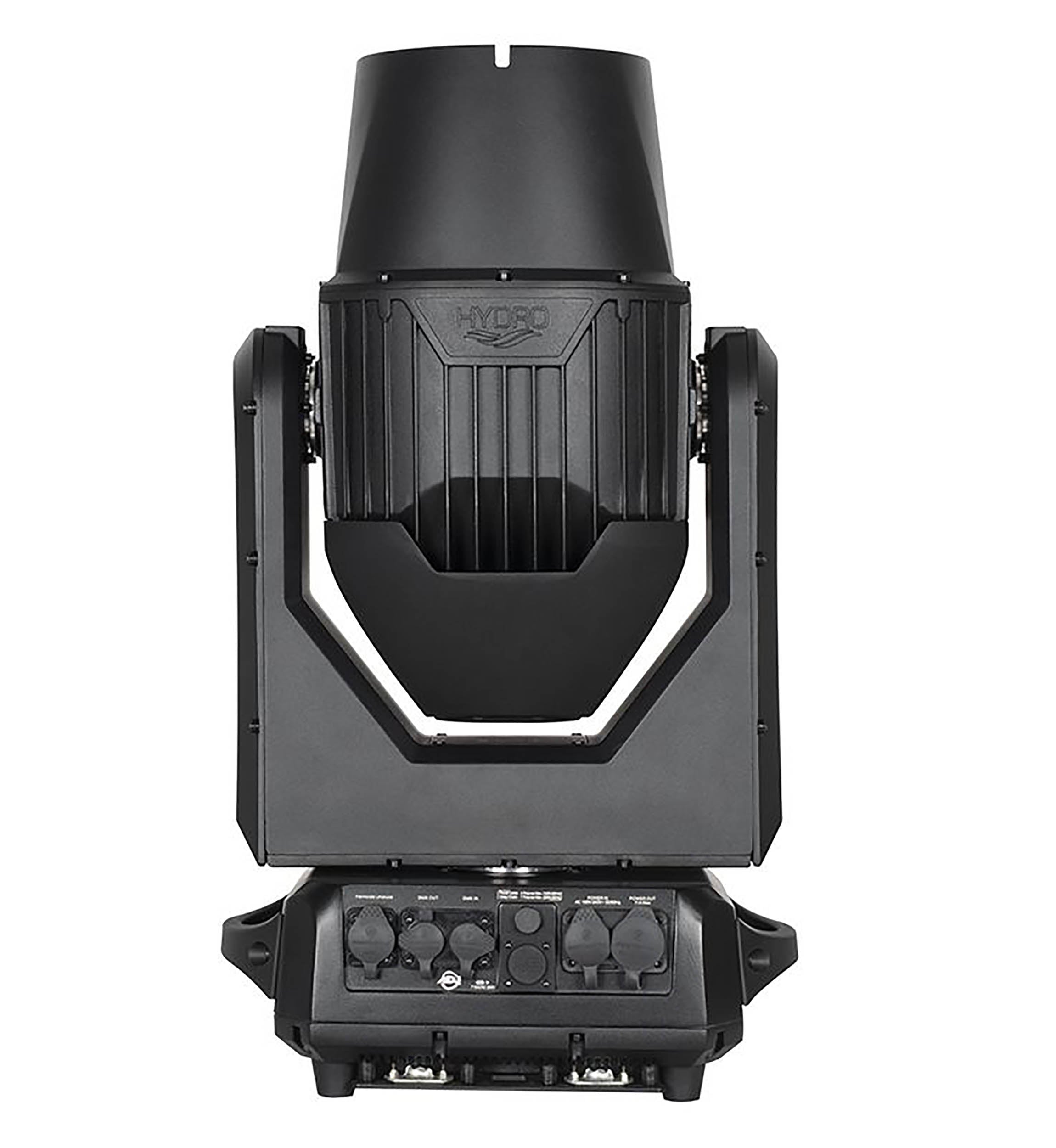

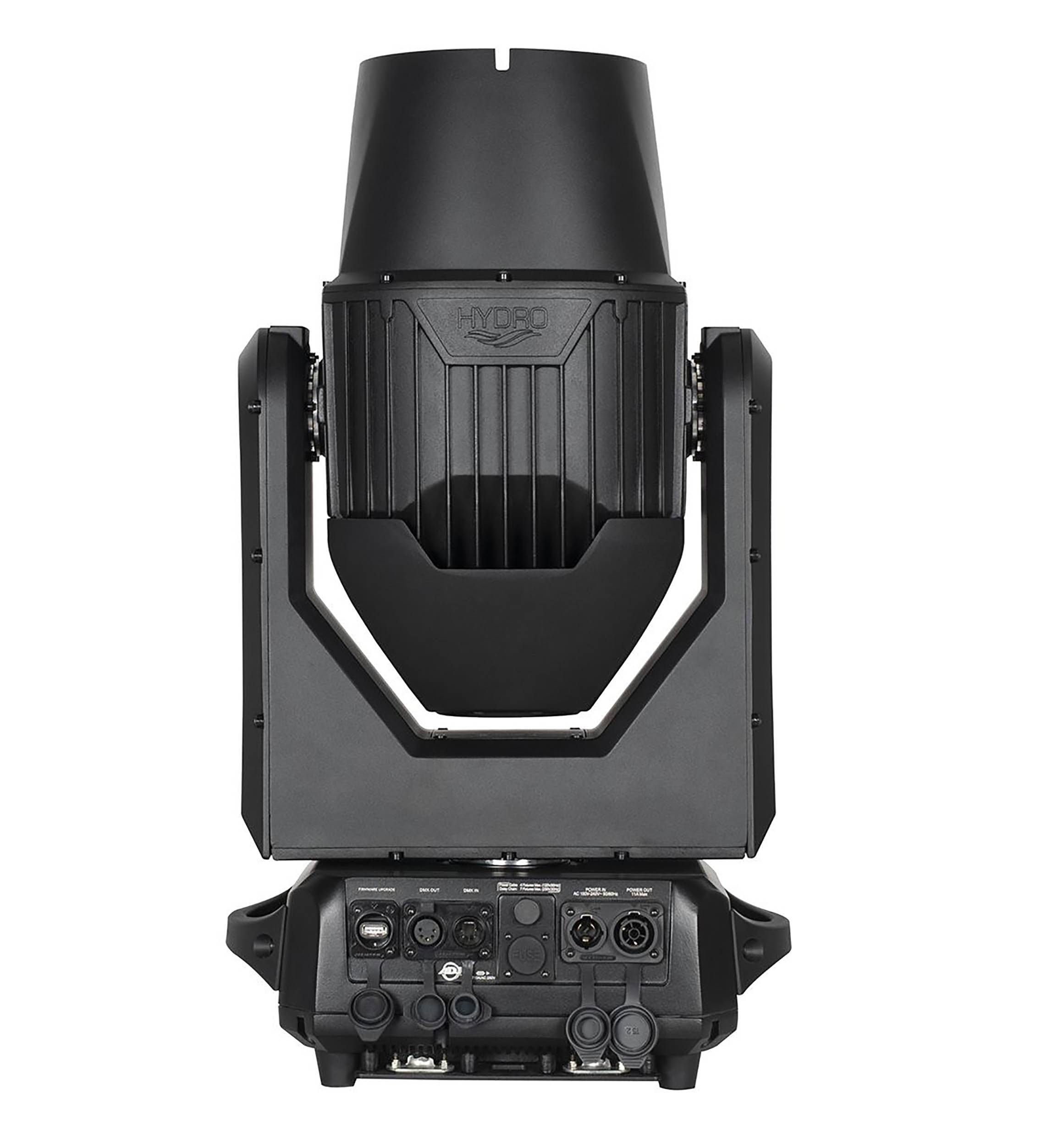

Connections:

DMX Connections: 5-pin DMX In/Out

Power Connections: IP65 Locking Power In/Out

Electrical:

Multi-voltage operation: 100-240V, 50/60Hz

Max power consumption: 412W (@120V), 405W (@230V)

Dimensions & Weight:

Dimension: 14” (L) x 9.4” (W) x 24.4” (H) / 356 x 240 x 621mm

Weight: 48 lbs. / 21.8 kg.

What’s Included:

Omega Brackets for hanging

4.92ft. / 1.5m. IP65 Locking power cable

Optional Road Cases:

DRC MHX: two Hydro Beam X12 fit in the DRC MHX Road Case

Approvals / Ratings:

cETLus (Control # 4000358)

CE Certified

IP65 (Temporary outdoor use only)
