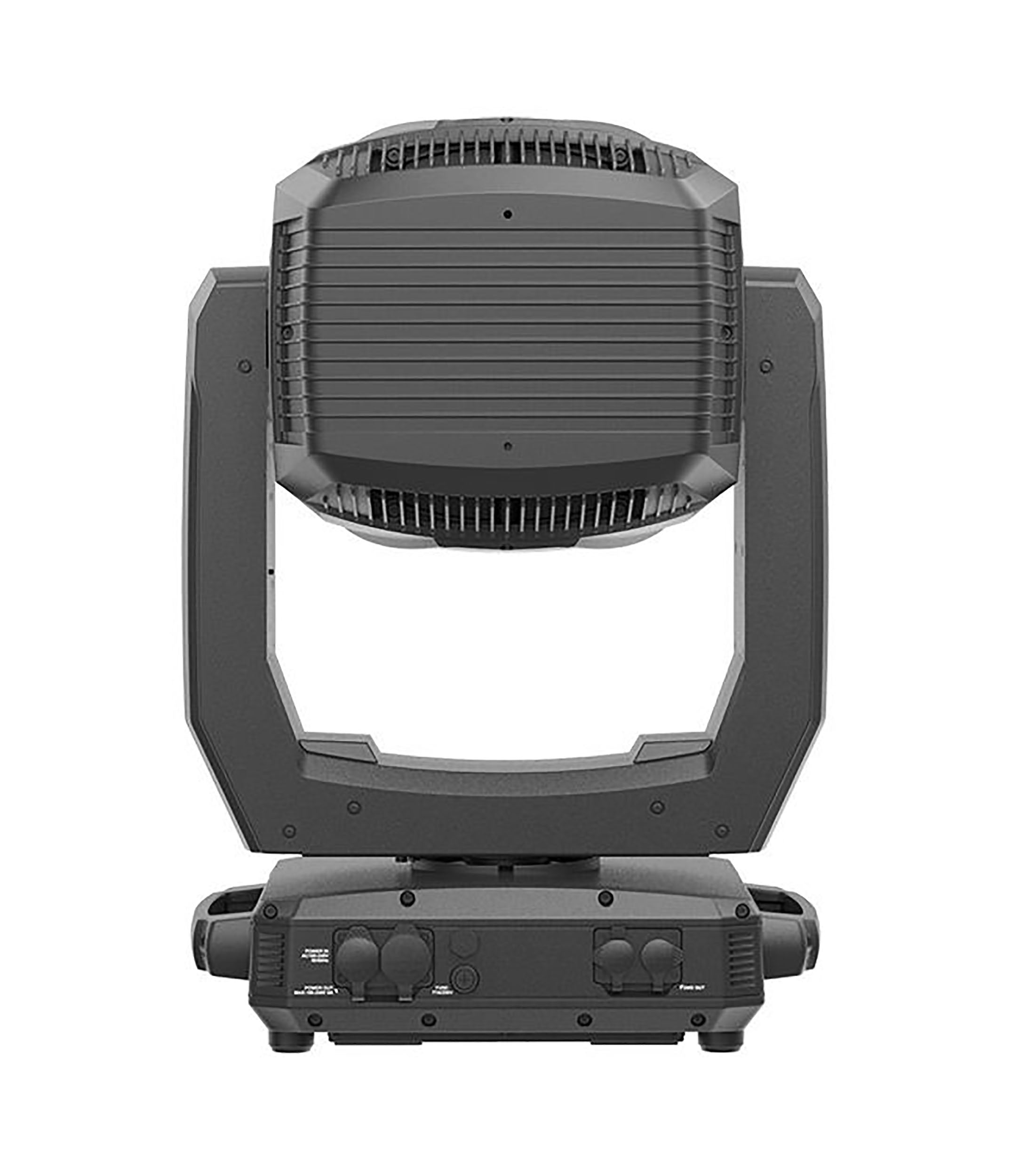

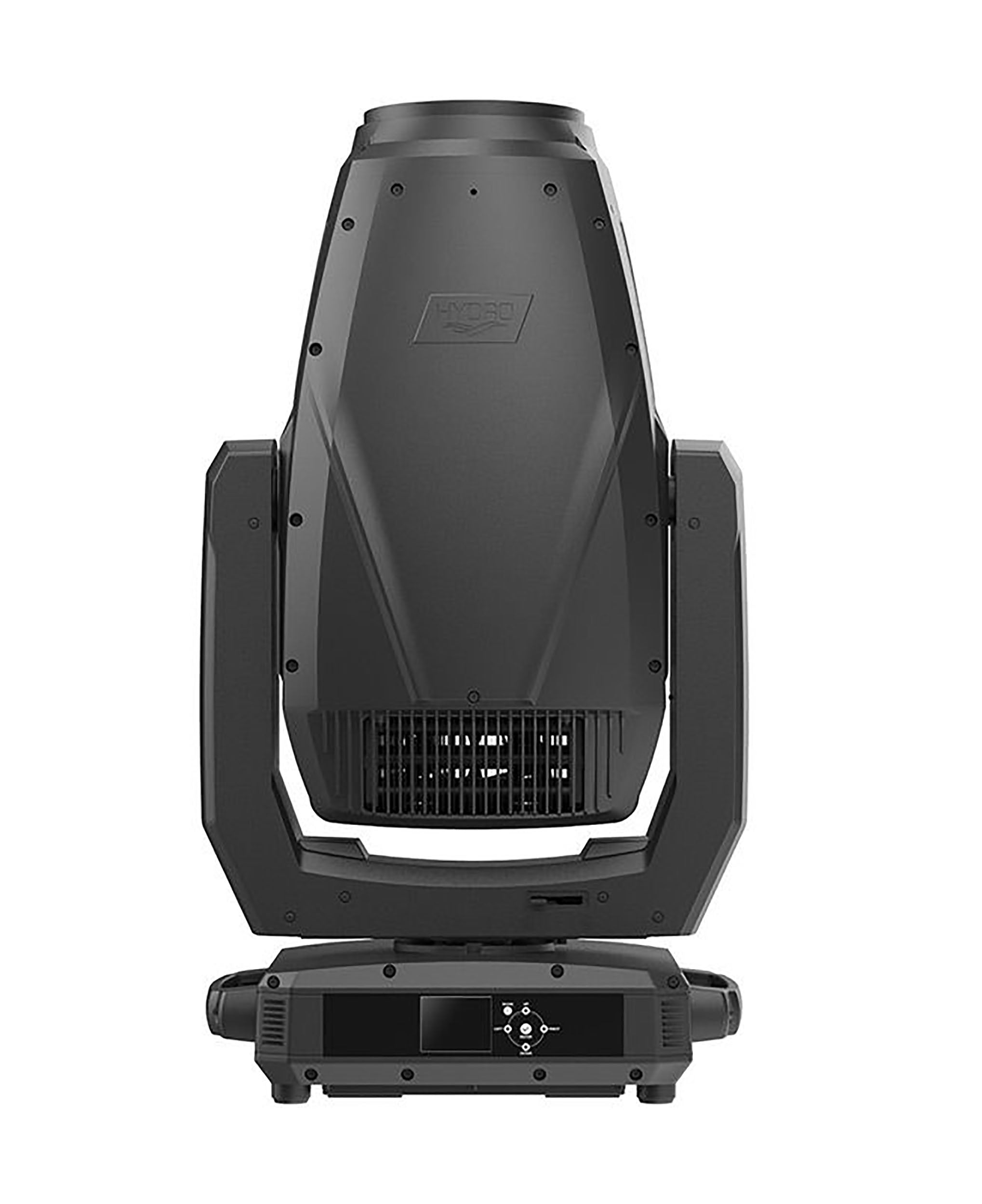

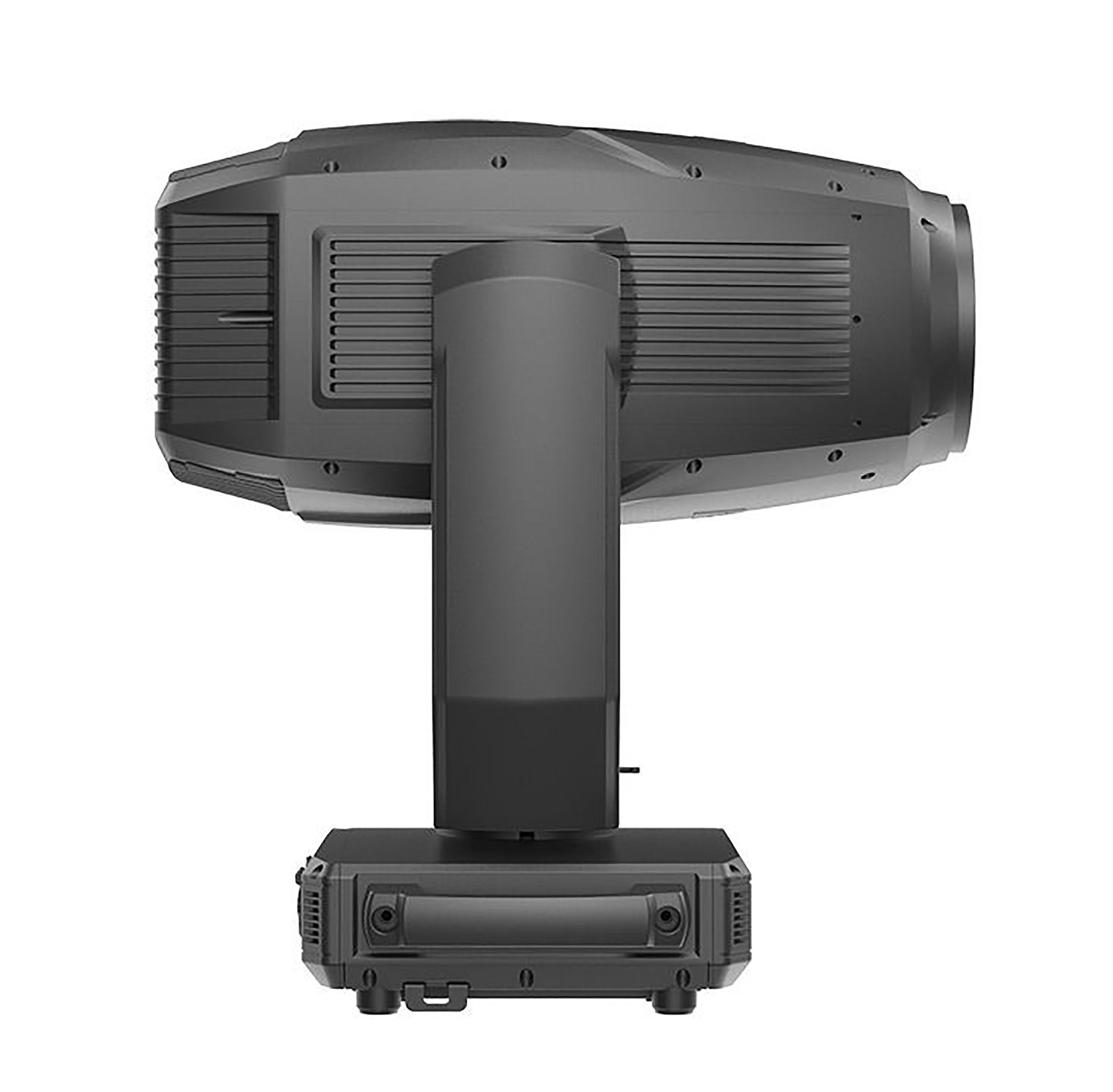

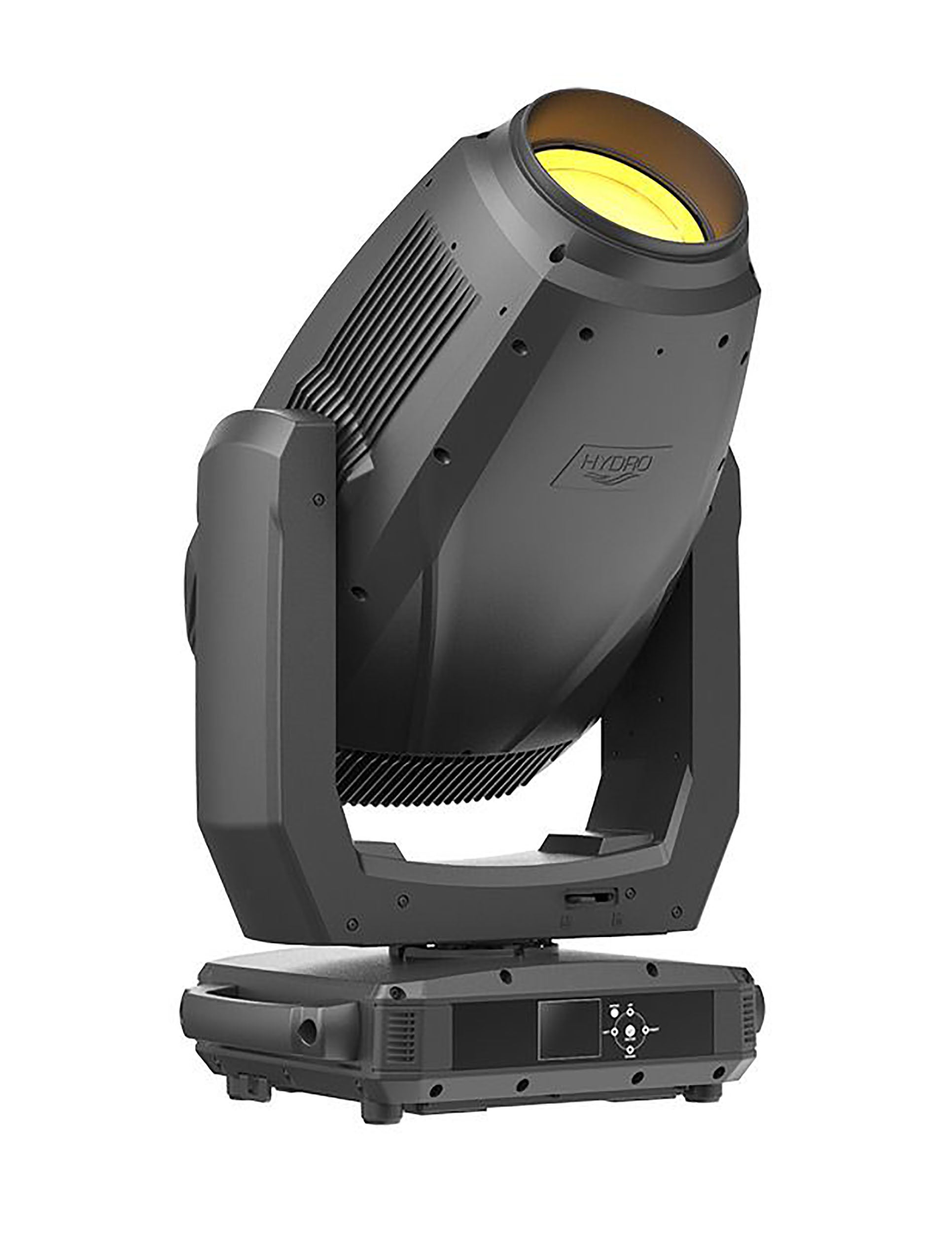

ADJ Hydro Hybrid IP65-Rated LED Moving Head

The ADJ Hydro Hybrid, a versatile moving head luminaire that produces a beam, spot, and wash and is well suited for large-scale outdoor and indoor events. The IP65-rated housing provides ample protection to the 420W Osram SIRIUS HRI light engine, which creates stunning mid-air effects thanks to an assortment of creative beam-shaping tools and built-in performance macros.

The fixture has two prisms on dual planes, offers motorized zoom and focus, and 2 GOBO Wheels (9 rotating/removable and 14 fixed). Any desired color can be selected from the CMY color mixing system, or choose from the 12 colors on the built-in color wheel. Additionally, there are preset white color temperature macros available to help aid with specific shades of white that can be changed on the fly. The Hydro Hybrid ships with a locking power cord and two Omega brackets.

Product Specifications

Fixture Type: Moving Head

Light Source: 1x Discharge Bulb - 420 W

Expected Lamp Life: 4000 Hours

Colors: Unspecified Colors

Photometrics: 17.7°:

52,265 fc / 562,600 Lux at 16.4' / 5 m

39.2°:

21,664 fc / 233,200 Lux at 16.4' / 5 m

Lumen Output: 12,319 Lumens

14,416 Lumens

Beam Angle: 1.6 to 17.7° (Beam)

3.1 to 39.2° (Spot)

Shutter / Strobe: Electronic

Focus: Motorized

Zoom Adjustment: Motorized, 1.6 to 39.2°

Dimming: Electronic, 0 to 100%

Prism: 8-Facet Circular (Rotating)

6-Facet Linear (Rotating)

Operating Modes: Automatic, DMX, Program

Macros / Programs: 27x Color Macro

Color Mixing

Gobo Macro

Prism Macro

Effects: Frost Filter

Strobe (Variable Speed)

Gobos: 9x Removable Glass Gobo

14x Fixed Metal Gobo

Color Accuracy Index: CRI: 77

Tilt Ranges: 270°

Pan Ranges: 630° / 540°

Pan/Tilt Inversion: Yes

Control Protocols: DMX512, RDM

DMX Channel Modes: 3 Mode(s):

24 / 28 / 32-Channel

Display / Controls: LCD / 6-Button

Remote Control: No

Mobile App Compatible: No

Inputs/Outputs: 1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

Wireless: No

AC Input Power: 100 to 240 VAC, 50/60 Hz

AC Power Connector: Input: 1x Seetronic IP-Rated

Output: 1x Seetronic IP-Rated

Cord Length: 5.9' / 1.8 m"

Fuse: No

Power / Current Consumption: 580 W (Max)

Environmental Protection: Dust/Water-Resistant (IP65)

Operating Temperature: -4 to 113°F / -20 to 45°C

Mounting: Omega Bracket

Included Accessories: 1x Power Cable

Duty Cycle: No

Exterior Color: Black

Certifications: CE, cETLus

Dimensions: 29.17 x 16.31 x 11.4" / 74.09 x 41.43 x 29 cm

Weight: 69.7 lb / 31.6 kg
