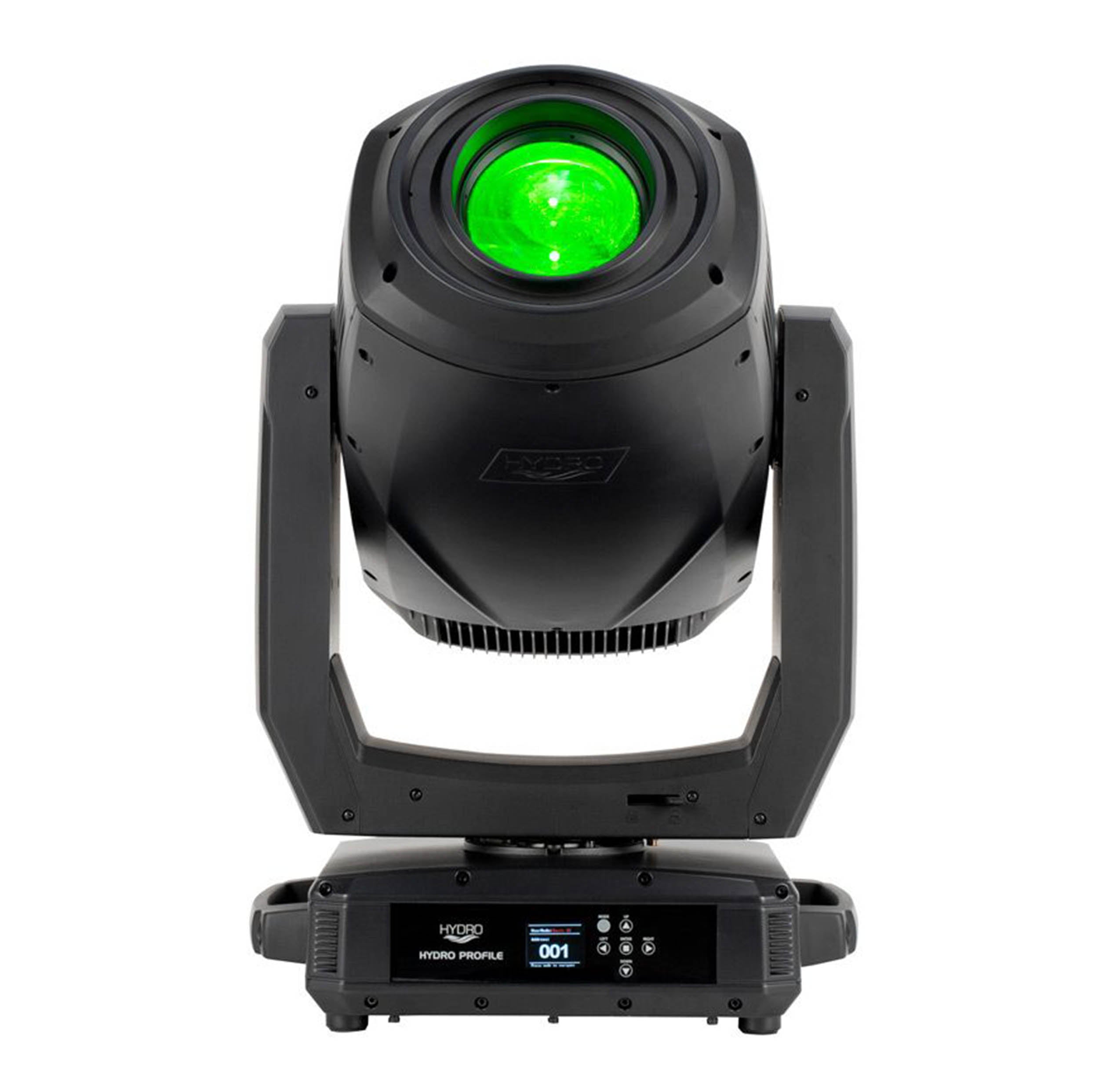

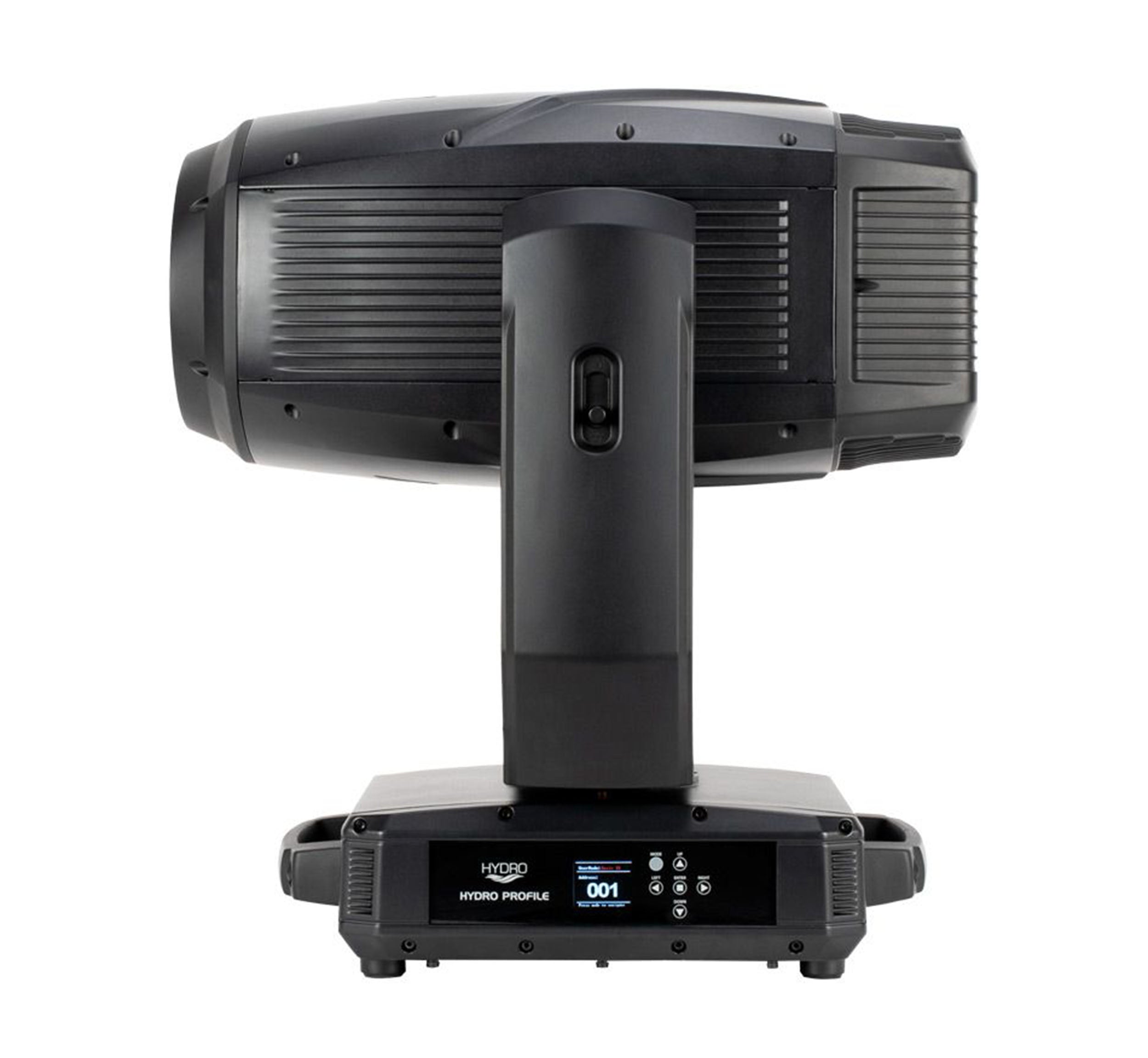

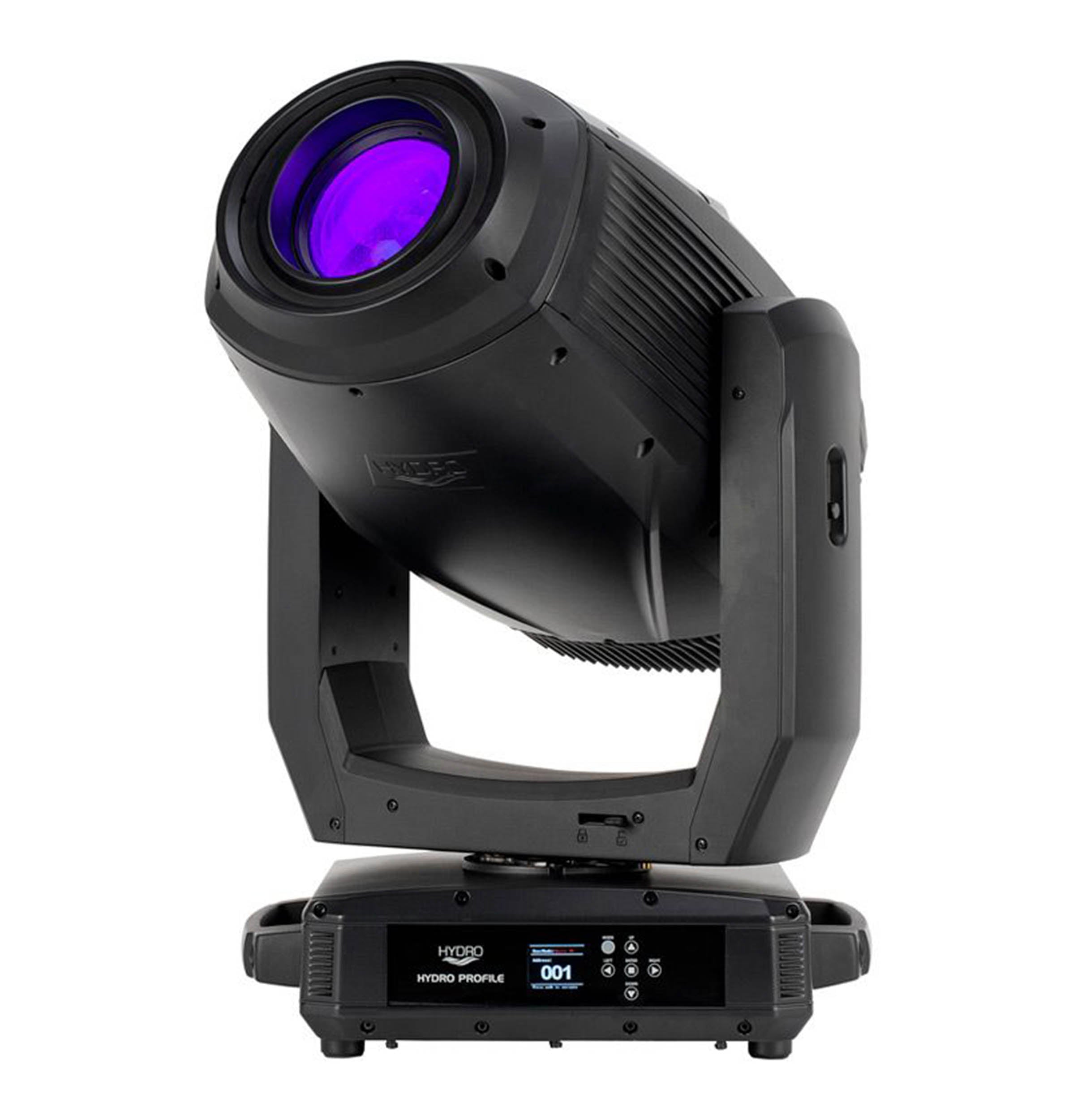

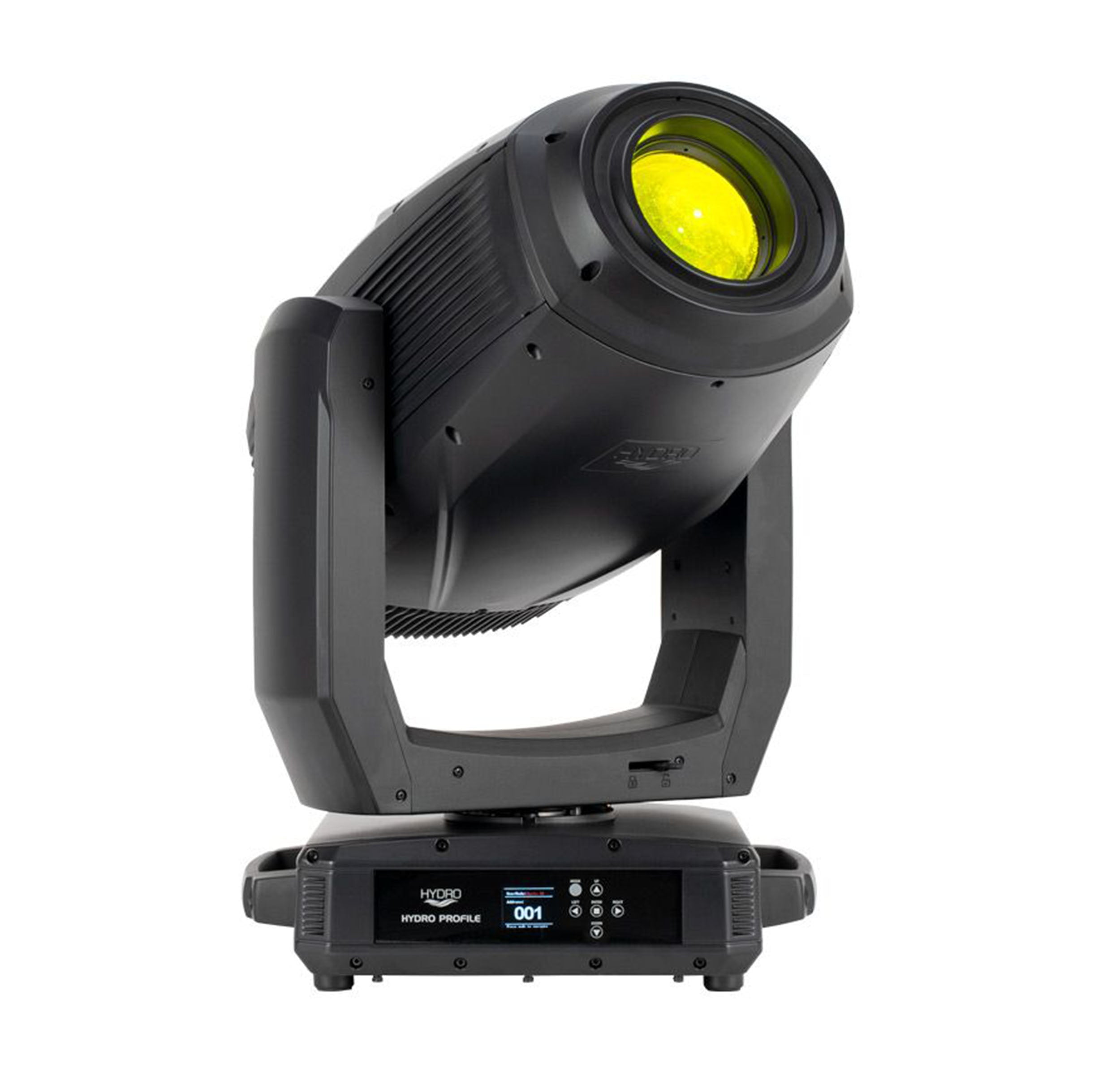

ADJ Hydro Profile, Weather Proof 660-Watt LED IP65 Moving Head Profile Fixture

Save 29%
ADJSKU: H-ADJ-HYDROPROFILE
UPC: 810087370473
Price:
Sale price$5,999.99 Regular price$8,399.95
Stock:
Sold out

Notify me when available

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.

Description

The Hydro Profile is ADJ’s first weatherproof moving head profile fixture, which combines a potent 660-Watt cool white LED light engine with an impressive 25,000+ Lumens, and an expansive feature set to deliver a truly powerful and versatile luminaire. It is part of ADJ’s Hydro Series of robust IP65-rated moving heads, which are all designed for a demanding life on the road. They can be used outdoors in any weather as well as for indoor productions where they are protected against everything from dust and smoke residue to spilt drinks and humidity.

Heading up the Hydro Profile’s collection of beam-shaping tools is a 4-blade framing system. Each shutter is controlled using two independent motors, one for each side, which allows the individual blades to be applied at any desired angle. In addition, rotation of the combined shutter assembly means the shape created using the four shutters can be precisely positioned. Further manipulation of the output is provided by a motorized zoom function, which can be used to alter the beam angle between 6 and 45-degrees. An even narrower beam can then be achieved utilizing the motorized iris, which also offers automated pulsing effects. In addition, the fixture offers two frost filters, a heavy filter for creating a wash output and a medium filter for blurring the edges of GOBOs.

An almost unlimited variety of aerial effects and surface pattern projections can be created using the Focus Profile. It features two independent GOBO wheels, one with 7 indexed, rotatable patterns and the other with 8 fixed patterns, all of which are replaceable. It also incorporates two indexed, rotatable prisms – 4-facet circular and 6-facet linear – as well as an animation wheel. Any desired color can also be selected thanks to a CMY color mixing system with additional CTO flag. The fixture also offers a separate 7-position color wheel which is loaded with a selection of useful dichroics, including CTB and High CRI filters. The colors are all replaceable, allowing for the use of custom filters should a very specific shade or hue by required for a specific production.

What’s Included:

Omega Bracket

1.83M locking power cable


Product Specification:

Light Source:

660W Cool White LED Engine (50,000 hr.)

25,000+ Lumens

CRI: 89.9 (Out of the fixture)

Color:

CMY color mixing system

Variable CTO flag

Color wheel with 7 dichroic colors + white (includes CTB and High CRI filters)

Colors on wheel are removable and replaceable

Gobo Wheels:

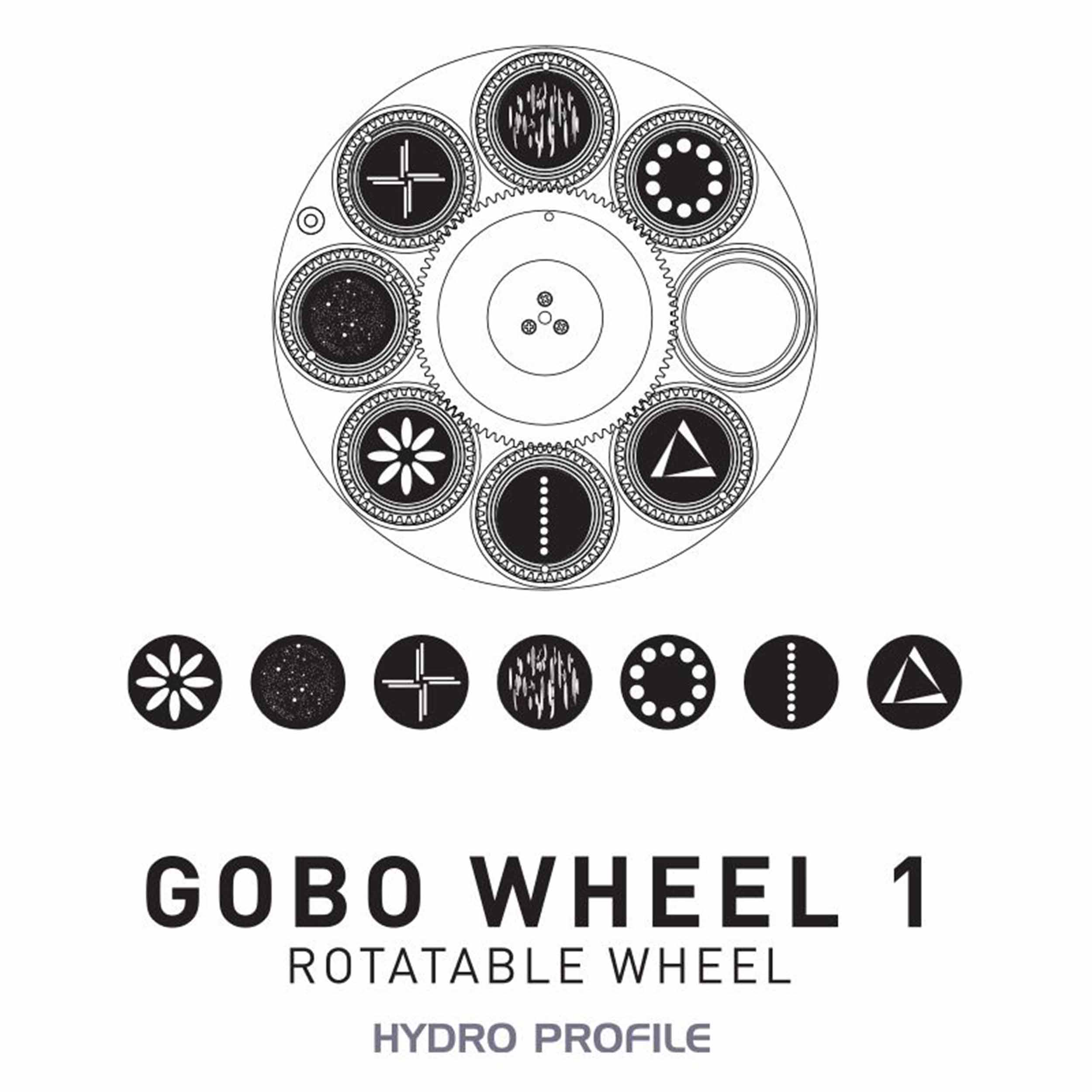

(1) Rotating Gobo wheel with 7 Gobos

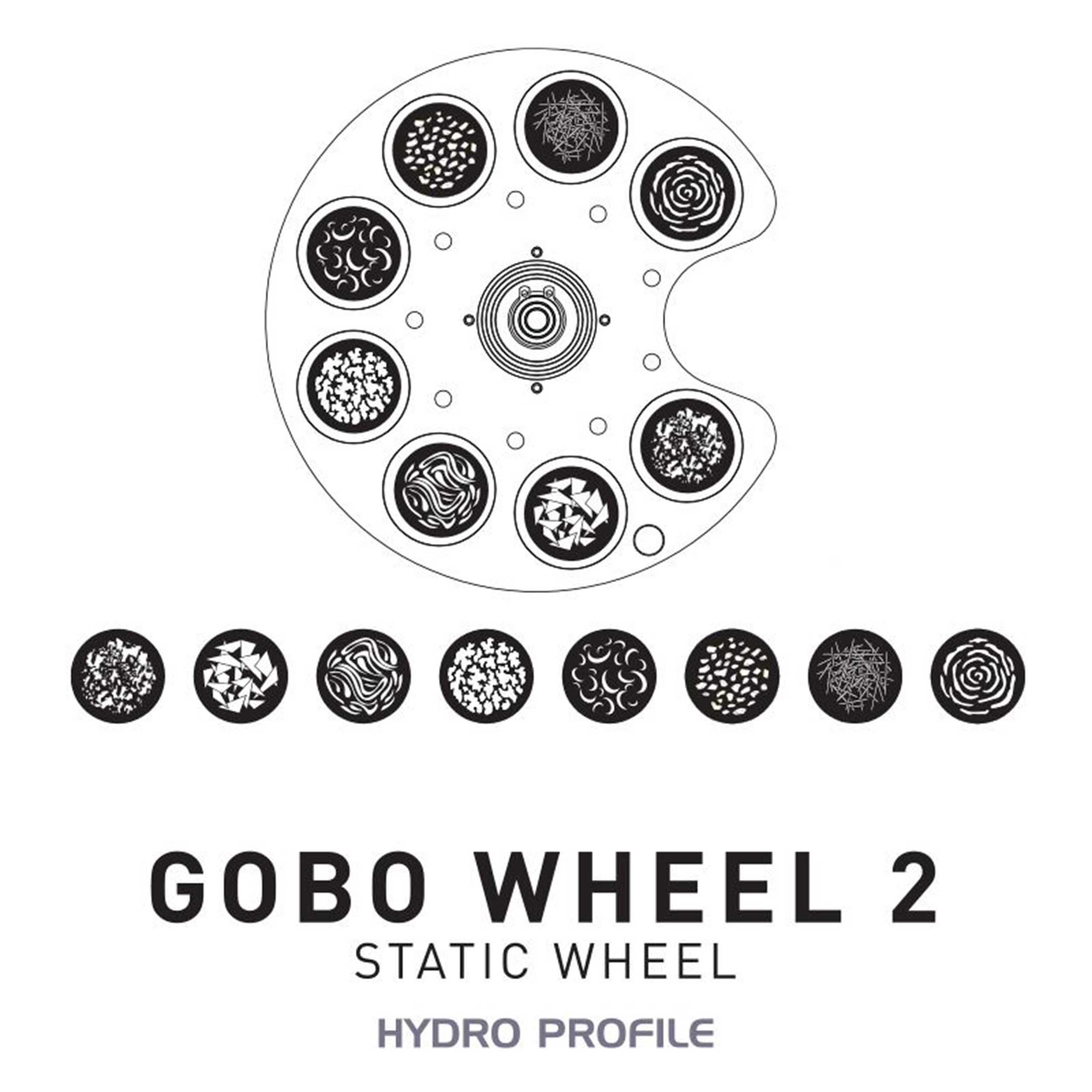

(1) Static Gobo wheel with 8 Gobos

All Gobo’s are replaceable

Gobo Shake Effect on both wheels

Aluminum Gobo size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

Prism Wheel:

Prism Wheel 1: Rotatable 6-facet Linear

Prism Wheel 2: Rotatable 4-facet Circular

Both Prisms are indexable

Frost Filters:

Frost 1: Heavy frost for wash effect

Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX

Control:

3 DMX Channel Modes: 36/50/57

Wifly EXR (Wireless DMX)

Color LCD display with 6-button function menu

Control Mode: DMX512 or internal programs

6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2

4 Dim Curves: Square, Linear, Inv. Square and S. Curve

Selectable LED Refresh Rates (900 Hz~25K Hz)

0-100% smooth dimming

Various strobe speeds

With Wired Digital Communication Network

RDM (Remote Device Management)

Pan/Tilt:

Pan: 540 degrees

Tilt: 270 degrees

Pan & Tilt Locks

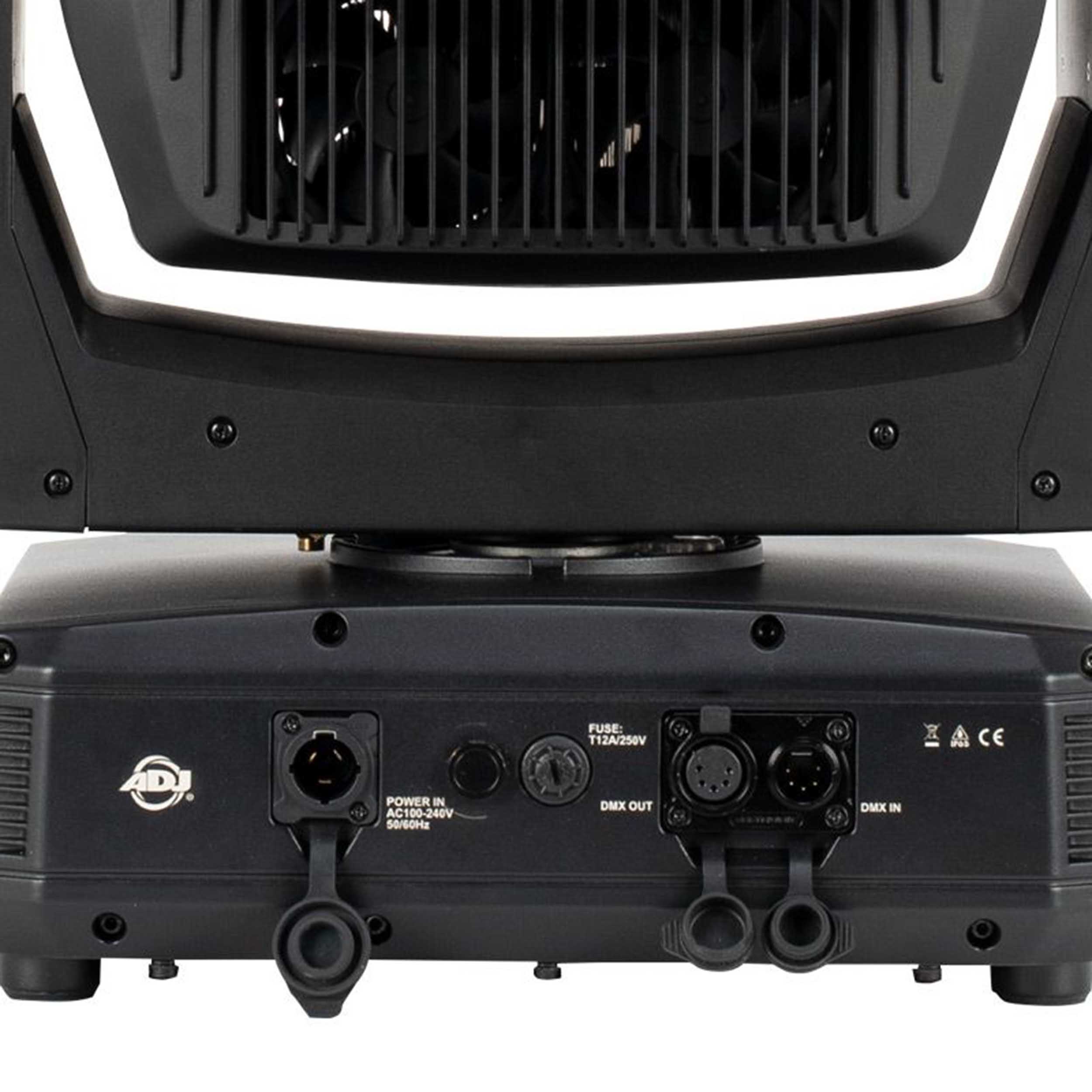

Connections:

DMX Connections: 5-pin XLR in/Out

Power Connections: IP65 Power Lock Input

Electrical:

Multi-voltage operation: 100-240V, 50/60Hz

Max power consumption: 1088W

Dimensions & Weight:

Dimensions (LxWxH): 12.5" x 17.0" x 28.3" (319x433x720mm)

Weight: 84.9.lbs (38.5kg)

Approvals / Rating:

ETL Approved / CE Certified

IP65 with Marine Coated Exterior and conformal coated PCBs
