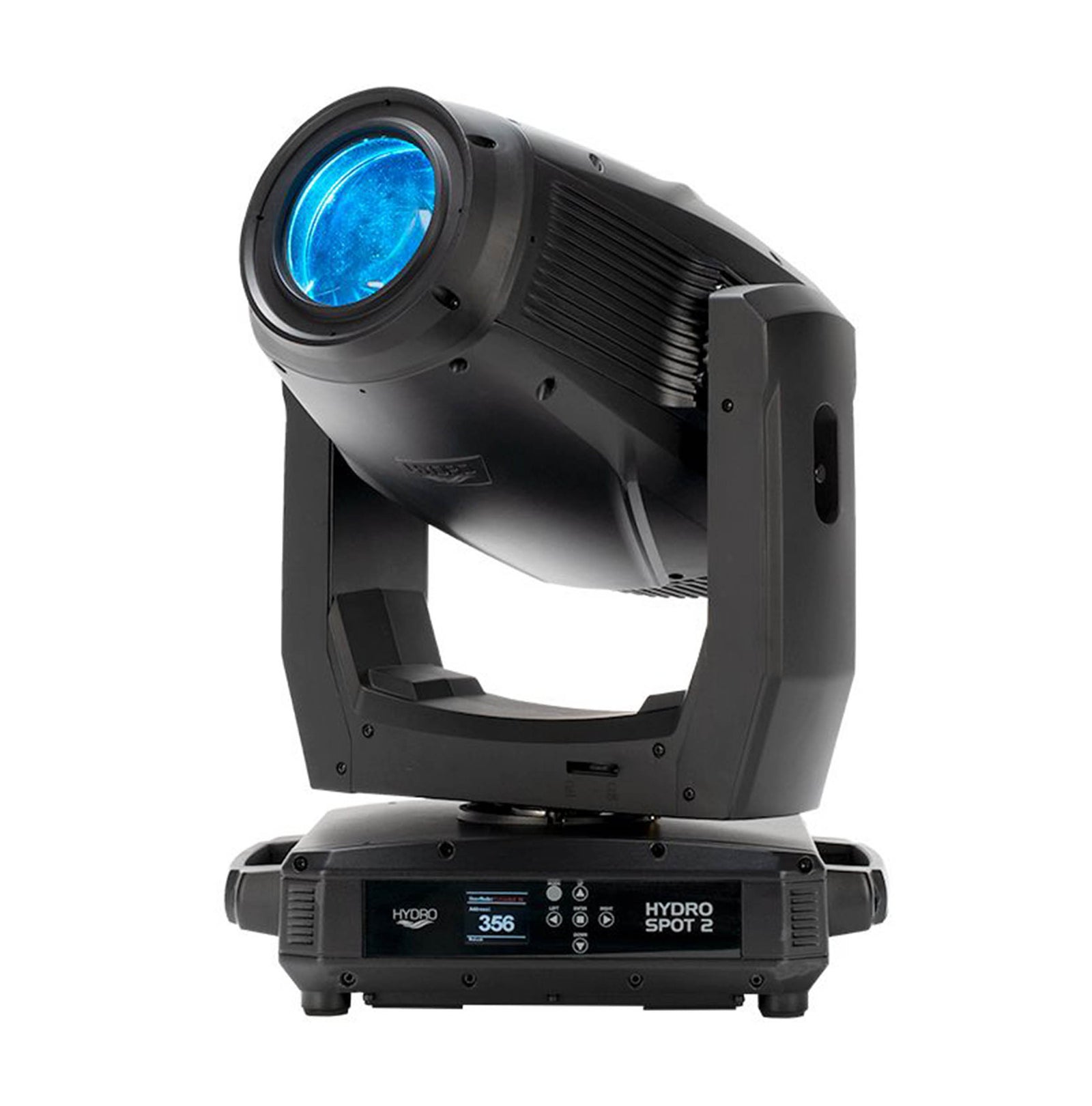

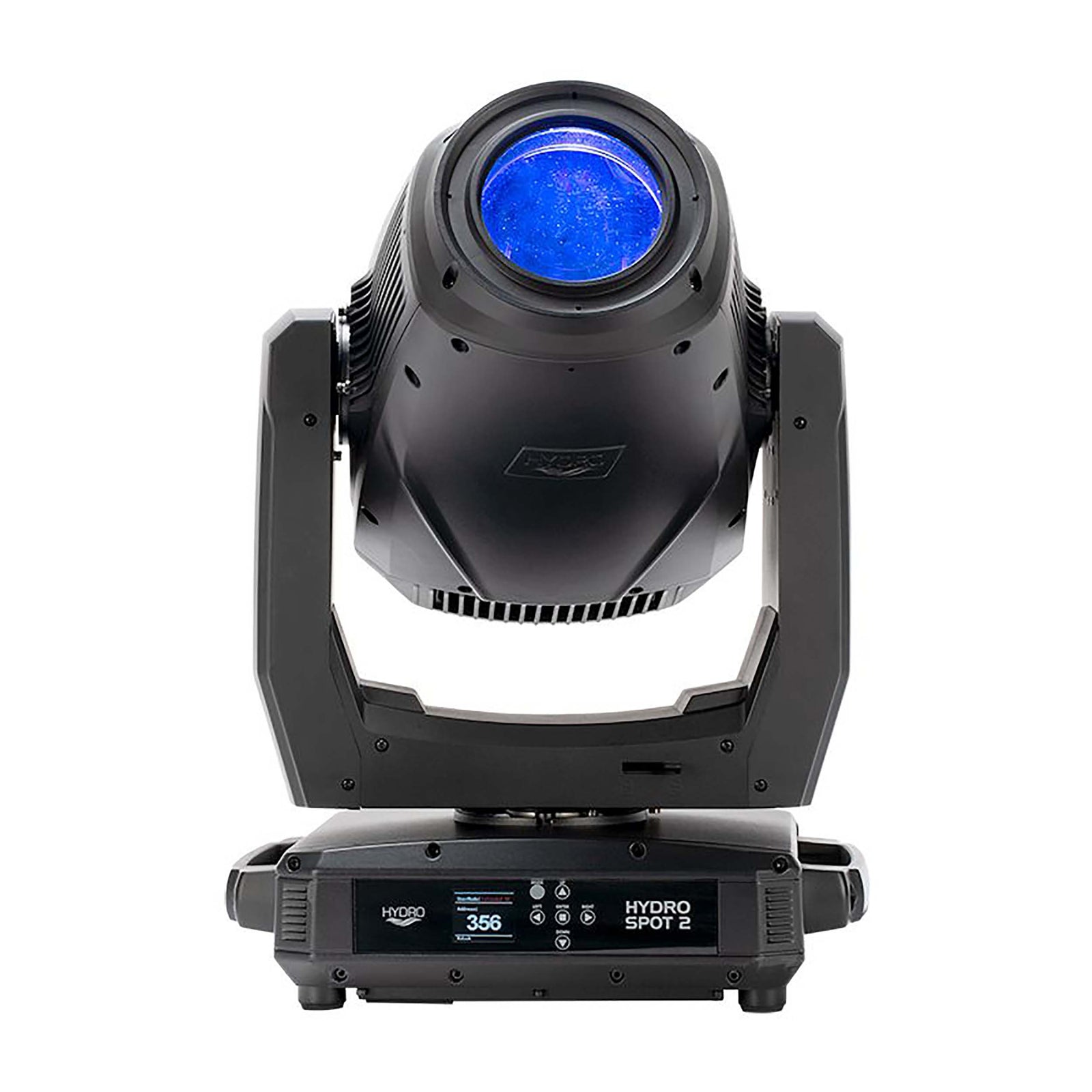

ADJ Hydro Spot 2, IP65-Rated Professional Moving Head Luminaire with 320-Watt Cool White LED Engine

The ADJ Hydro Spot 2, IP65-Rated Professional Moving Head Luminaire with 320-Watt Cool White LED Engine is a powerful and versatile professional moving head luminaire. It combines an expansive feature set with a robust IP65-rated construction to deliver a fixture that is ideal for temporary event production both indoors and outside in any weather. It is also suitable for permanent installation within all kinds of venues, from concert halls to nightclubs, theatres to churches, where its sealed casing design protects its internal components from dust and grime to allow for a reduced maintenance schedule and prolonged operational life expectancy.

Motorized zoom allows the fixture’s beam angle to be altered between a tight 8-degrees and wide 41-degrees, while two frost filters can also be applied to soften the beam edges and further widen the beam angle. The medium frost filter is designed to lightly blur the edges of GOBO/prism effects, while the heavy frost filter allows the fixture to be used for wash lighting duties. An almost limitless spectrum of colors can be generated by the fixture thanks to CMY color mixing, while a separate variable CTO flag allows for color-corrected white light output. In addition, a color wheel is also provided with seven dichroic color filters, including CTB and High CRI options.

The Hydro Spot 2 offers two independent GOBO wheels, one with 8 static patterns and the other with seven rotating and replaceable GOBOs (either aluminum or glass). Motorized focus can be used to ensure patterns remain sharp across varying projection distances while dynamic effects can be produced using the integrated animation wheel. Wider surface projection and aerial beam effects can be generated using a choice of two indexed, rotating prisms: 5-facet linear or 6-facet circular. Finally, the fixture’s 15,000 lumen white light LED engine allows for smooth 0-100% digital dimming (with a choice of modes and curves) as well as variable speed strobe effects.

Product Specifications:

Light Source:

320W Cool White LED Engine (50,000 hr.)

15,000 Lumens

Color:

CMY color mixing system

Variable CTO flag

Color wheel with 7 dichroic colors + white (includes CTB and High CRI filters

Gobo Wheels:

Rotating GOBO wheel with 7 GOBOs

Static GOBO wheel with 8 GOBOs

All GOBOs on rotating wheel are replaceable

GOBO Shake Effect on both wheels

Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

Glass GOBO size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

Prism Wheel:

Prism Wheel 1: Rotatable 6-facet Circular

Prism Wheel 2: Rotatable 5-facet Linear

Both Prisms are indexable

Frost Filters:

Frost 1: Heavy frost for wash effect

Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX

Control:

3 DMX Channel Modes: 24/29/36

Wifly EXR (Wireless DMX)

Color LCD display with 6-button function menu

Control Mode: DMX512 or internal programs

6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2

4 Dim Curves: Square, Linear, Inv. Square and S. Curve

Selectable LED Refresh Rates (900 Hz~25K Hz)

0-100% smooth dimming

Various strobe speeds

RDM (Remote Device Management)

With Wired Digital Communication Network

Pan/Tilt:

Pan: 630 degrees

Tilt: 270 degrees

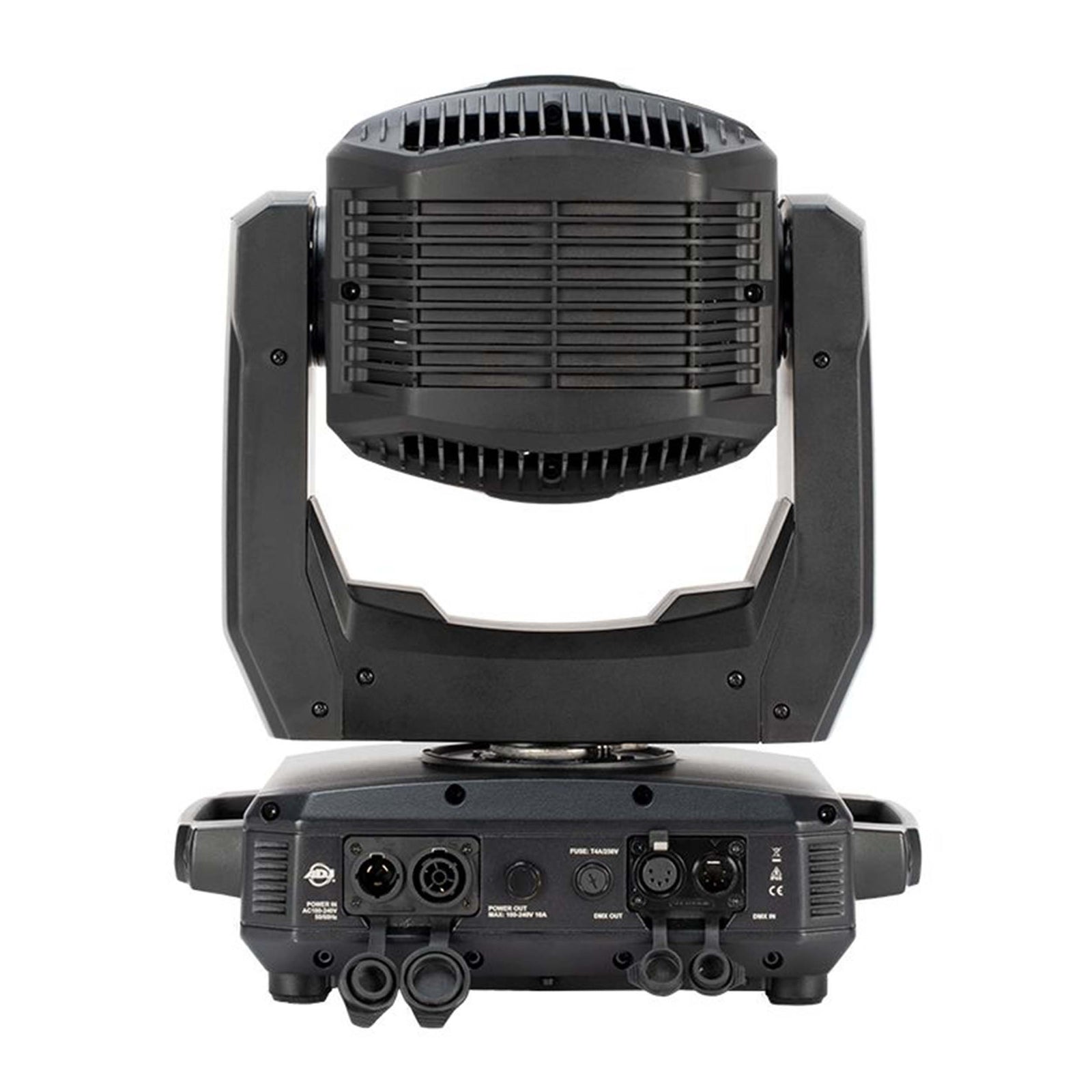

Connections:

DMX Connections: 5-pin XLR In/Out

Power Connections: IP65 Power Lock In/Out to daisy chain power

Electrical:

Multi-voltage operation: 90-240V, 50/60Hz

Max power consumption: 450W

Dimensions (LxWxH): 11.4" x 16.0" x 24.1" (290x405.9x612.1mm)

Weight: 57.2lbs (26kg)

What’s Included:

Two Omega Brackets

1.83M locking power cable

Optional Road Cases:

DRC MHX: two Hydro Spot 2's fit in the DRC MHX Road Case

Approvals / Rating:

ETL Approved / CE Certified

IP65 with Marine Coated Exterior and conformal coated p.c. b’s
