Description

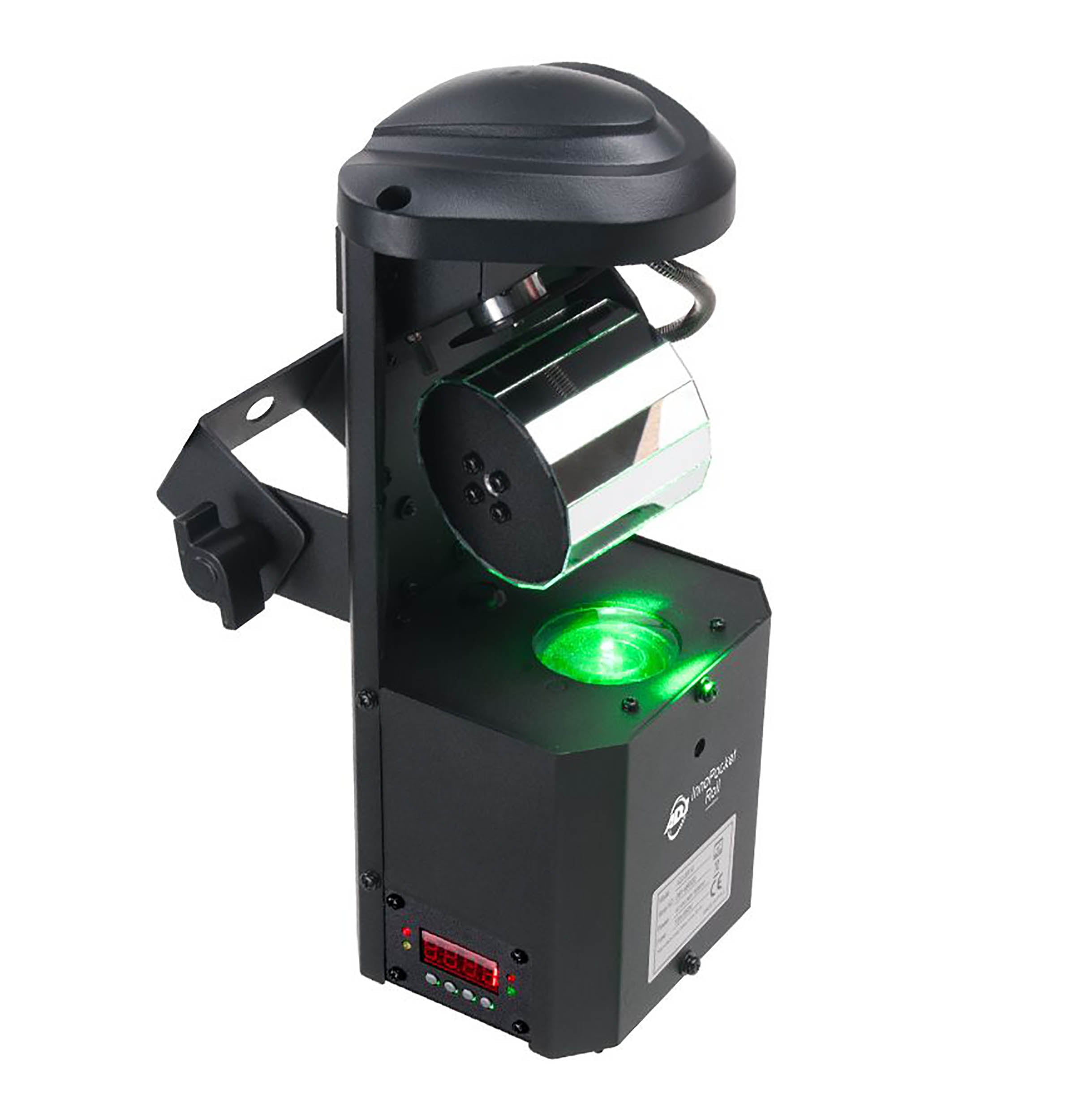

The ADJ Inno Pocket Roll, LED Barrel-Mirrored Scanner is a revolution scanner with its compact size and light weight, the ADJ Inno Pocket Roll is an ideal lighting effect for any mobile entertainer, small nightclub, bar or lounge and for Bowling and entertainment centers. This fixture features a bright 12-Watt LED engine and 12 exciting built-in light shows, in a very compact, mobile case.
This pocket sized; Barrel Mirrored Scanner has a 14-degrees beam angle that projects 8 fixed GOBO/Color patterns (plus spot/white) from a single wheel. The Inno Pocket Roll is built with high quality, precision stepper motors for speed and accuracy.
The fast mirror speed means that the Inno Pocket Roll is great for high energy music, plus the Barrel Mirror produces multiple beams that shoot around a room for a unique effect. This fixture provides a great compliment to Moving Head effects for pure lighting excitement.
Product Specifications:
Type: Barrel-mirrored scanner
Light Source:12 W white LED source, rated at approximately 50,000 hours
Illuminance:
1200 lux at 6.5' / 2 m
310 lux at 13.1' / 4 m (14° beam)
Beam Angle: 14°
Gobos:
Single gobo/color wheel
8 fixed gobo/colors + spot/white
Gobo shake effect
Gobo scroll mode
DMX Channels: 6
Dimming:
Electronic 0-100%
5 x dimmer curves (Standard, Stage, TV, Architectural, Theater)
Modes of Operation: DMX512, Sound Active, Internal Show Control
Effects:
X/Y mirror movement
Shutter: Pulse effect, random strobe (slow to fast)
Display: LED display with display inversion mode
Motors: Stepper motors with micro stepping

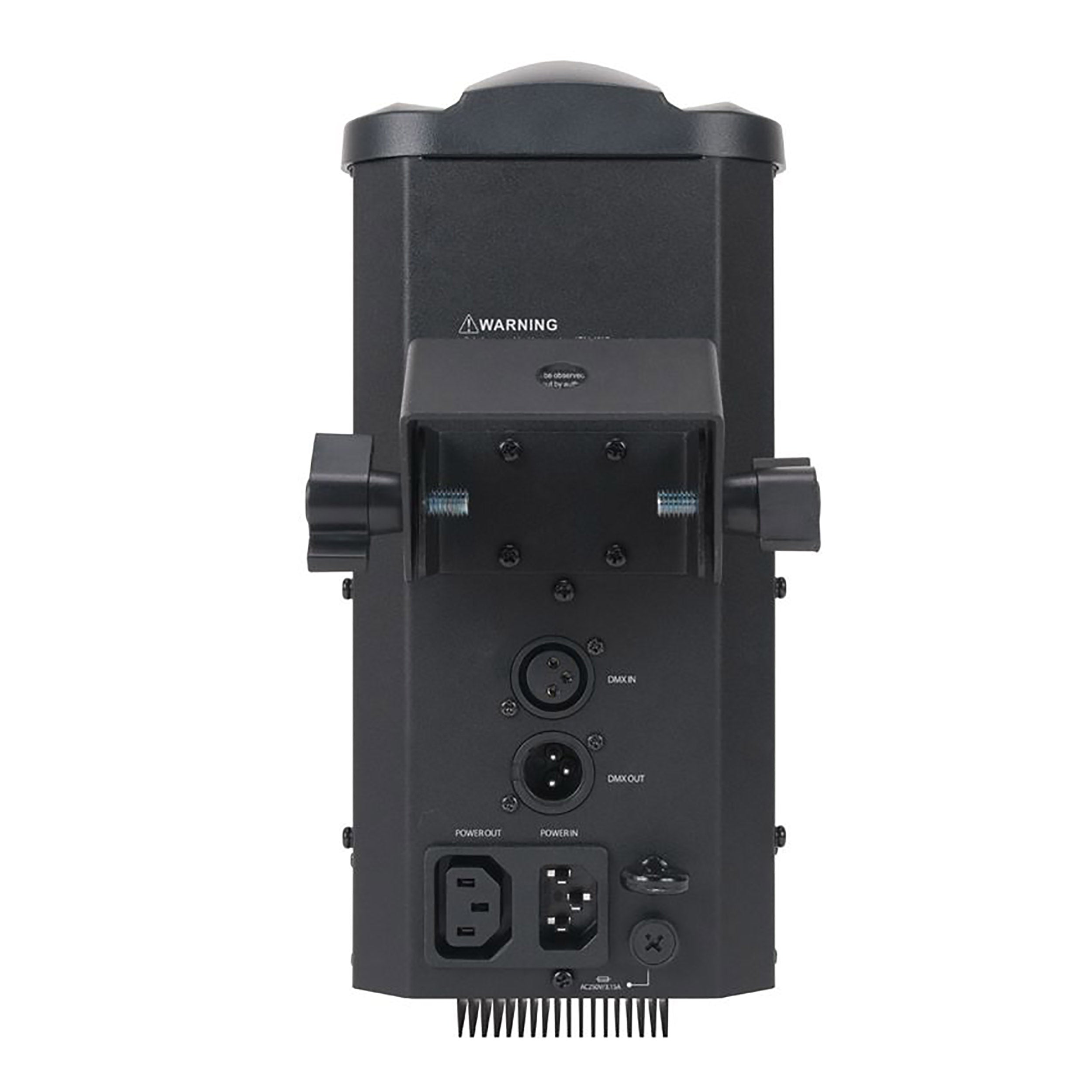

Connections:
1 x 3-pin XLR DMX input
1 x 3-pin XLR DMX output
1 x IEC power input
Wireless Control:
ADJ UC IR remote, Airstream IR app (available separately)
Controls: Full On, Stand by, Strobe, Color Change, Dimming, Sound Active On/Off
Power: 100 to 240 VAC, 50/60 Hz
Fuse: 3.15 A
Power Consumption: 36 W, at full on
Mount: Hanging yoke
Power Linking: 19 fixtures at 120 VAC, 35 fixtures at 230 VAC
Product Dimensions: 13 x 5.25 x 6.5" (329 x 133 x 165 mm)
Product Weight: 6.0 lb. (2.6 kg)
Shipping Weight: 7.8 lb.
Shipping Dimensions (LxWxH): 16.3 x 9.5 x 8.4"
