ADJ JOLT 300, High-Powered Strobe Fixture - RGBW

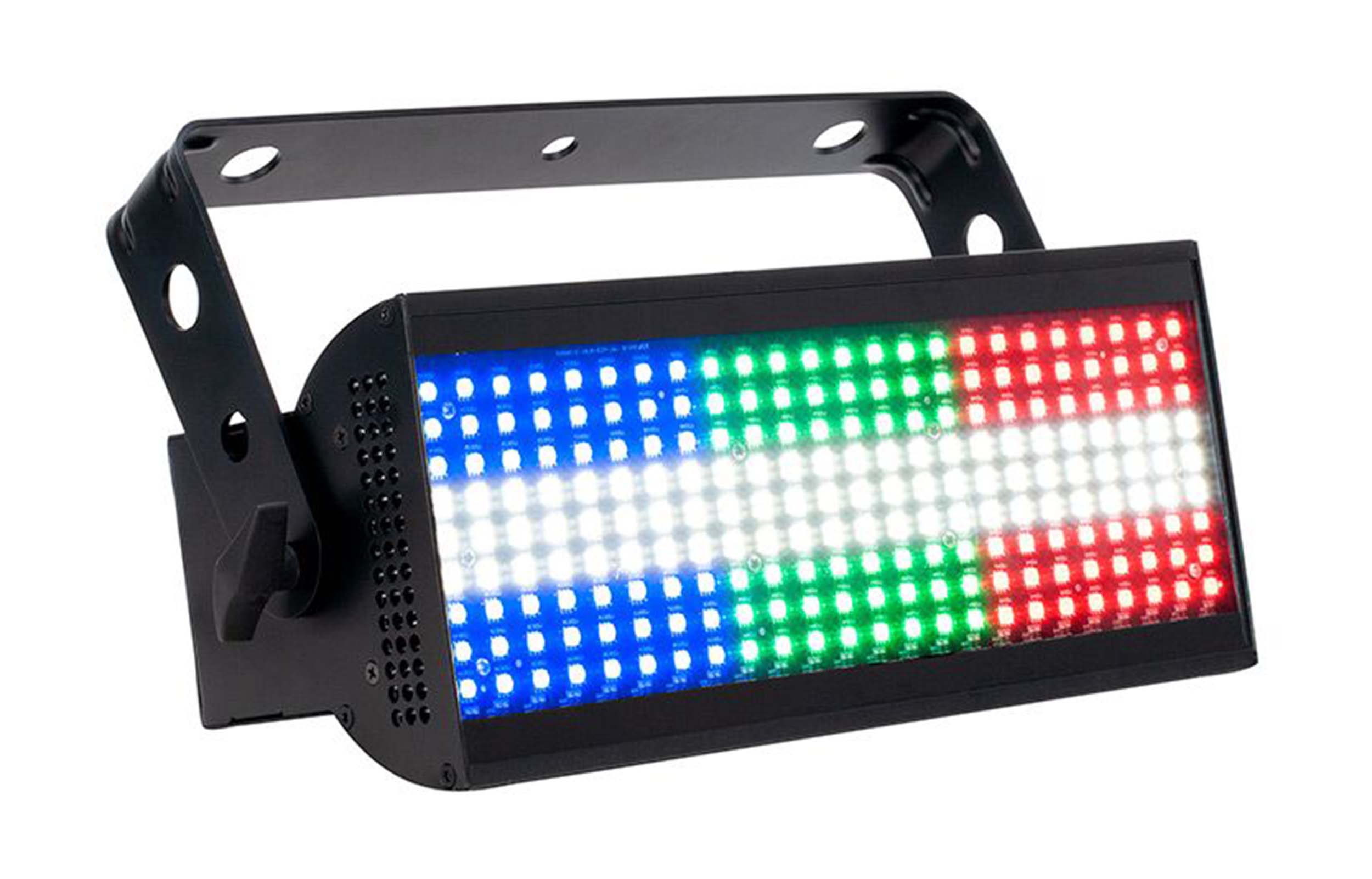

The ADJ JOLT 300, High-Powered Strobe Fixture is an innovative 288-LED strobe and eye-candy fixture, well suited for large stages, nightclubs, live events, and touring. The fixture provides zone-chasing to create bright and moving effects and includes several advanced features such as dimming modes, dimming speed, 32 programs, 64 color macros, 3 sections of LED control, LED refresh rate, gamma settings, and DMX channel modes.

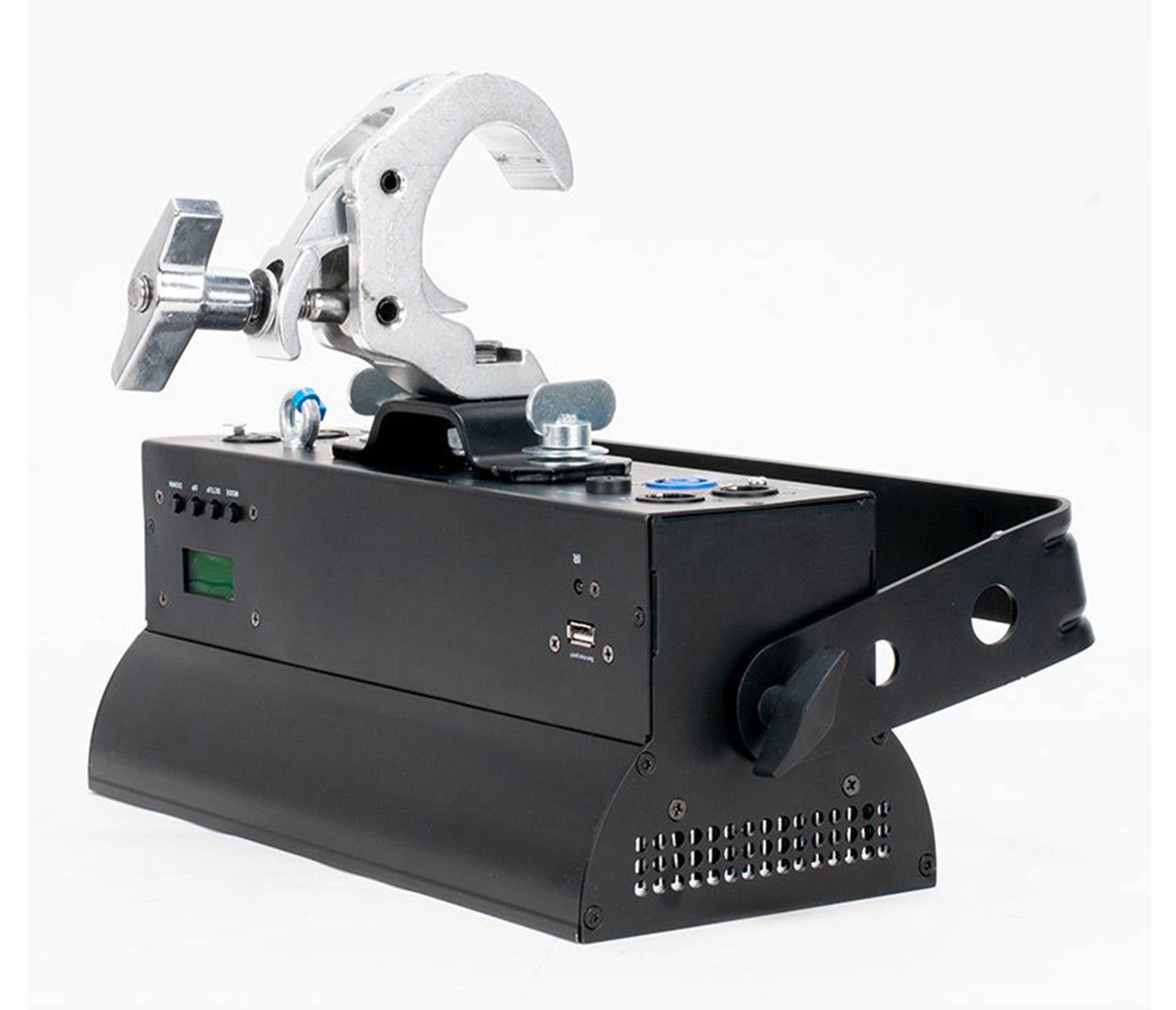

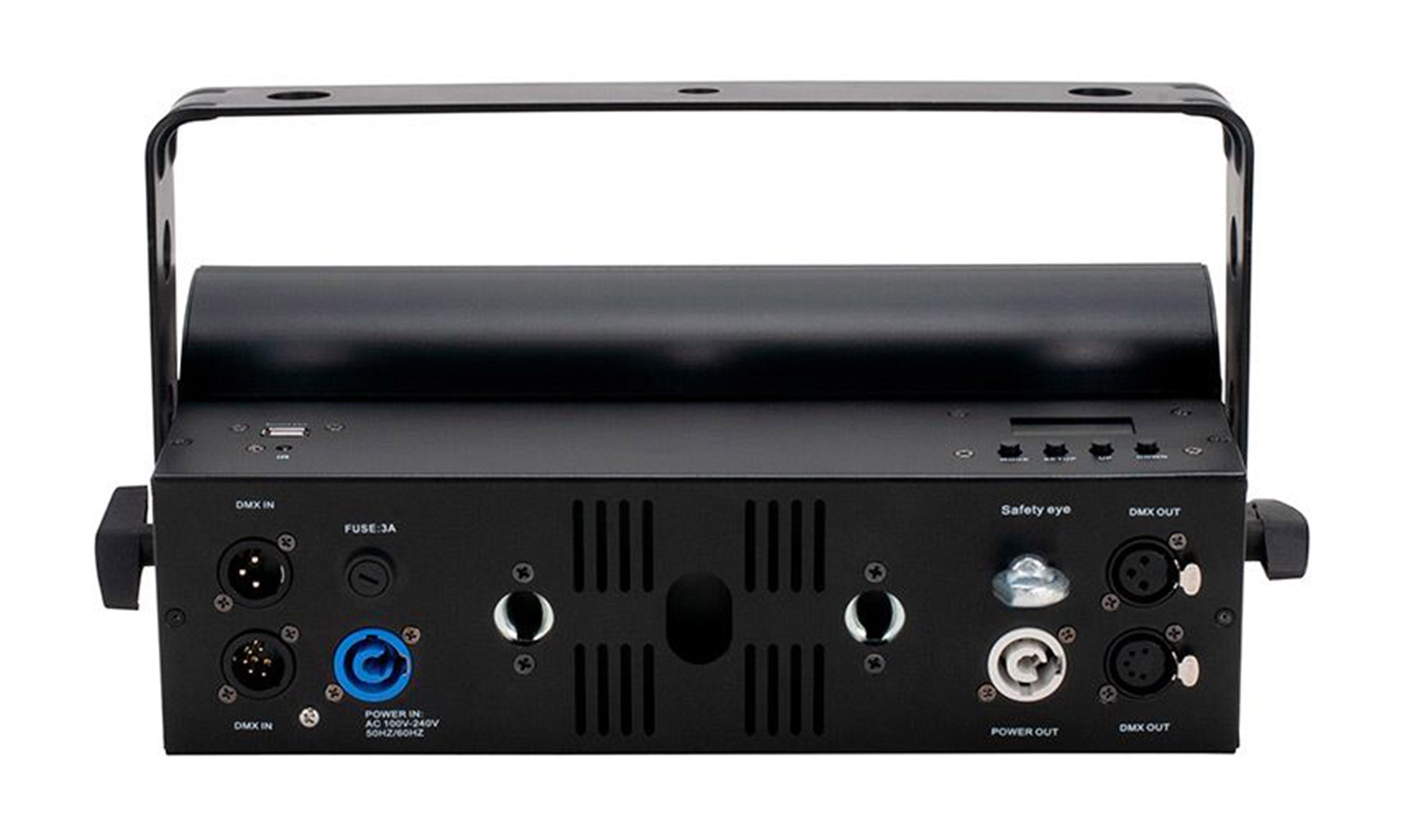

The rear panel offers 3-pin and 5-pin DMX connections with twist lock power input and output for daisy-chaining data and power to several fixtures. A USB port is provided for easy firmware updates. The American DJ Jolt 300 includes a scissor yoke, Omega bracket, and locking power cord.

Product Specifications:

Light Source:

144x 1.5W RGB SMD LEDs + 144x .5W Cool White SMD LEDs

120-degree Beam Angle

6000k Color Temperature (White LED’s only)

50,000 Hour Average LED Life

Control:

Control Protocol: DMX

6 DMX Modes: 4, 8, 10, 10a, 12,15, 18 and 18a

Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

Dim Speed control (0.1~10 Seconds)

0-100% Dimming

Strobe, shutter & pulse control

Adjustable LED Refresh Rates (900~25kHz)

Adjustable Gamma Settings (1.0-2.8)

With Wired Digital Communication Network

Display: LCD display with 4-button touch menu

Compatible with ADJ’s UC IR wireless remote

Connections:

Data: 3-pin & 5-pin DMX In/Out

Twist locking power In/Out to daisy chain power

Scissor yoke

Omega bracket attachment

Safety bolt

USB port to update firmware

Twist locking power in/out connections on rear to daisy chain power (up to 4 fixtures @ 120V)

Electrical:

100-240V 50Hz/60Hz (Auto Sensing)

Max Power Consumption: 226W

Dimensions / Weight:

Length x Width x Height: 15.3” x 5.63” x 8.38”

Weight: 10.5 lbs. (4.75kg)

What’s Included:

1x Omega Bracket

1x power locking power cable
