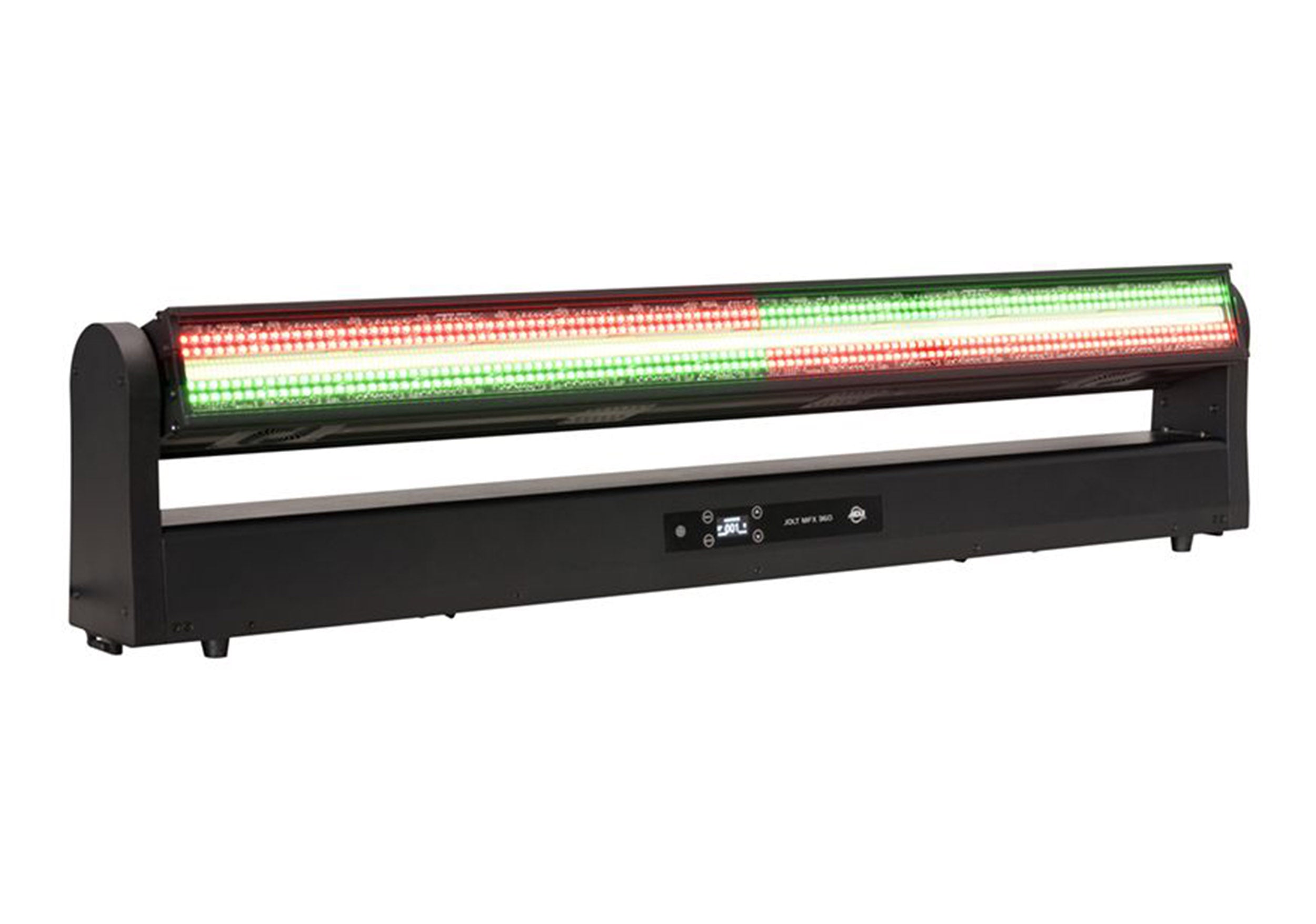

ADJ Jolt MFX 360 Tilting Dual FX Bar w/ Wired Digital Communication

The ADJ Jolt MFX 360 is a boundary-pushing hybrid lighting fixture that fuses two of ADJ’s most iconic effects into one powerful, fully integrated design. Engineered for maximum visual versatility, it features a dual-sided configuration that seamlessly merges the atmospheric warmth of the Vintage Bar with the explosive energy of the Jolt Bar, unlocking an entirely new dimension of creative possibilities for lighting designers, rental houses, and integrators.

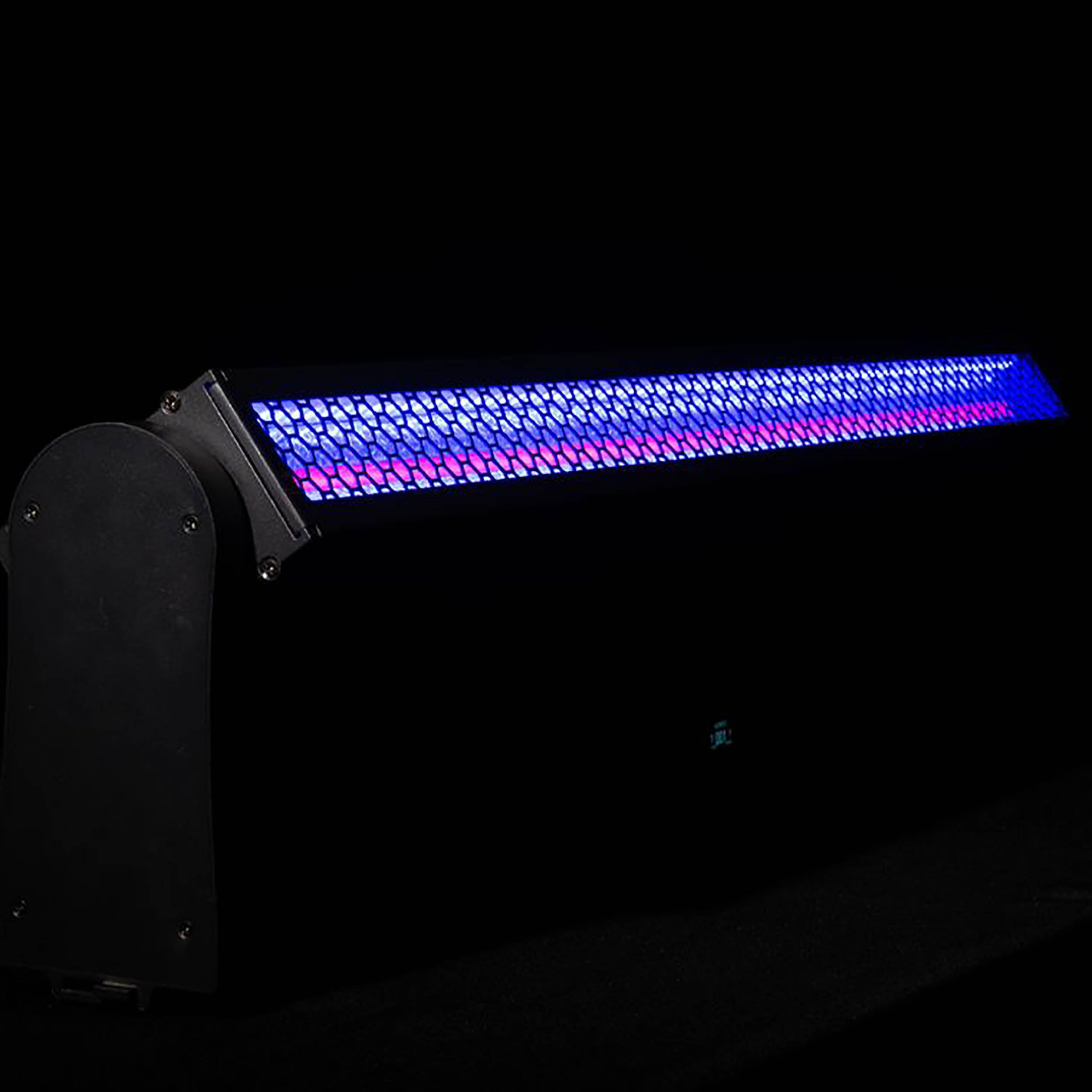

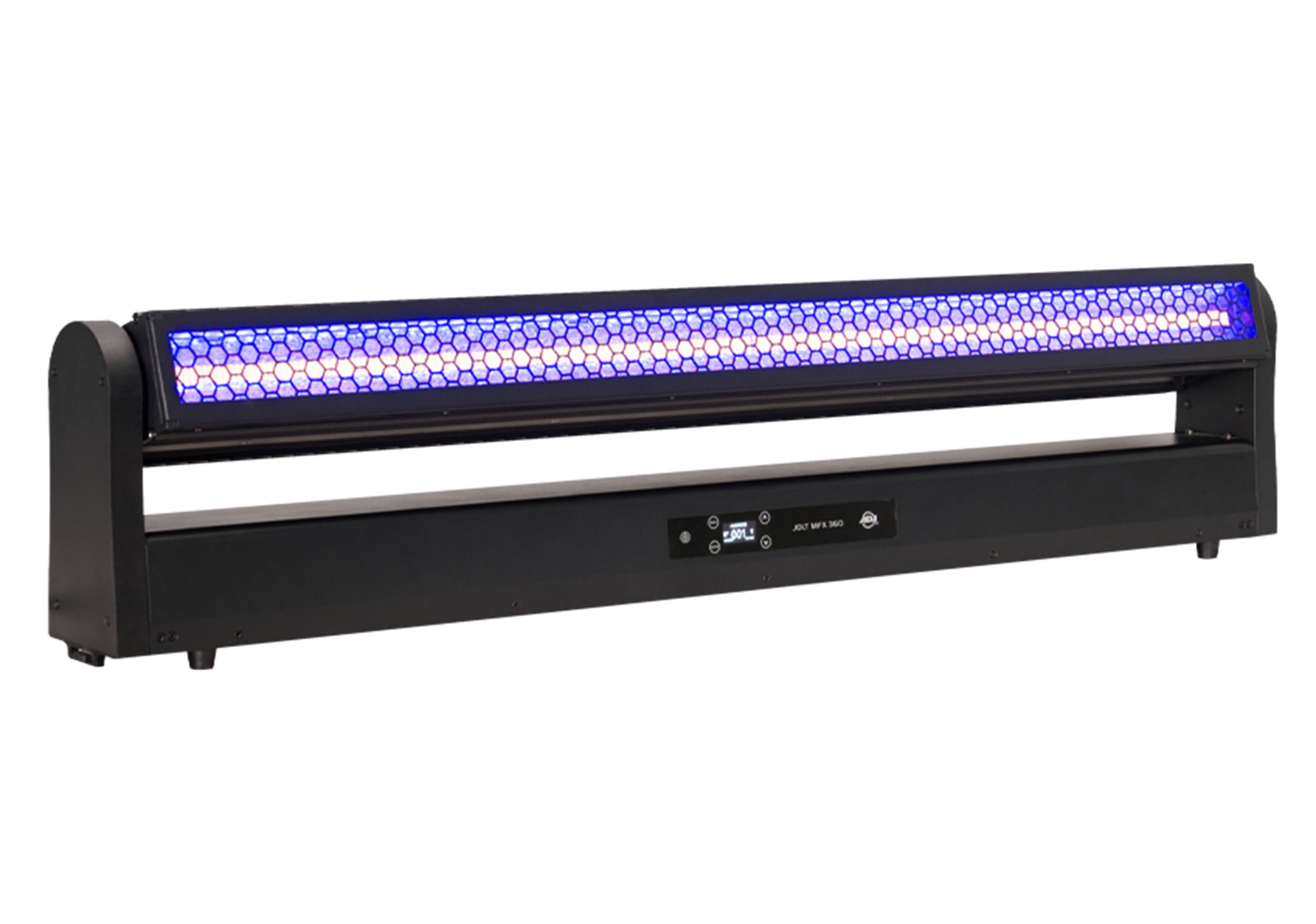

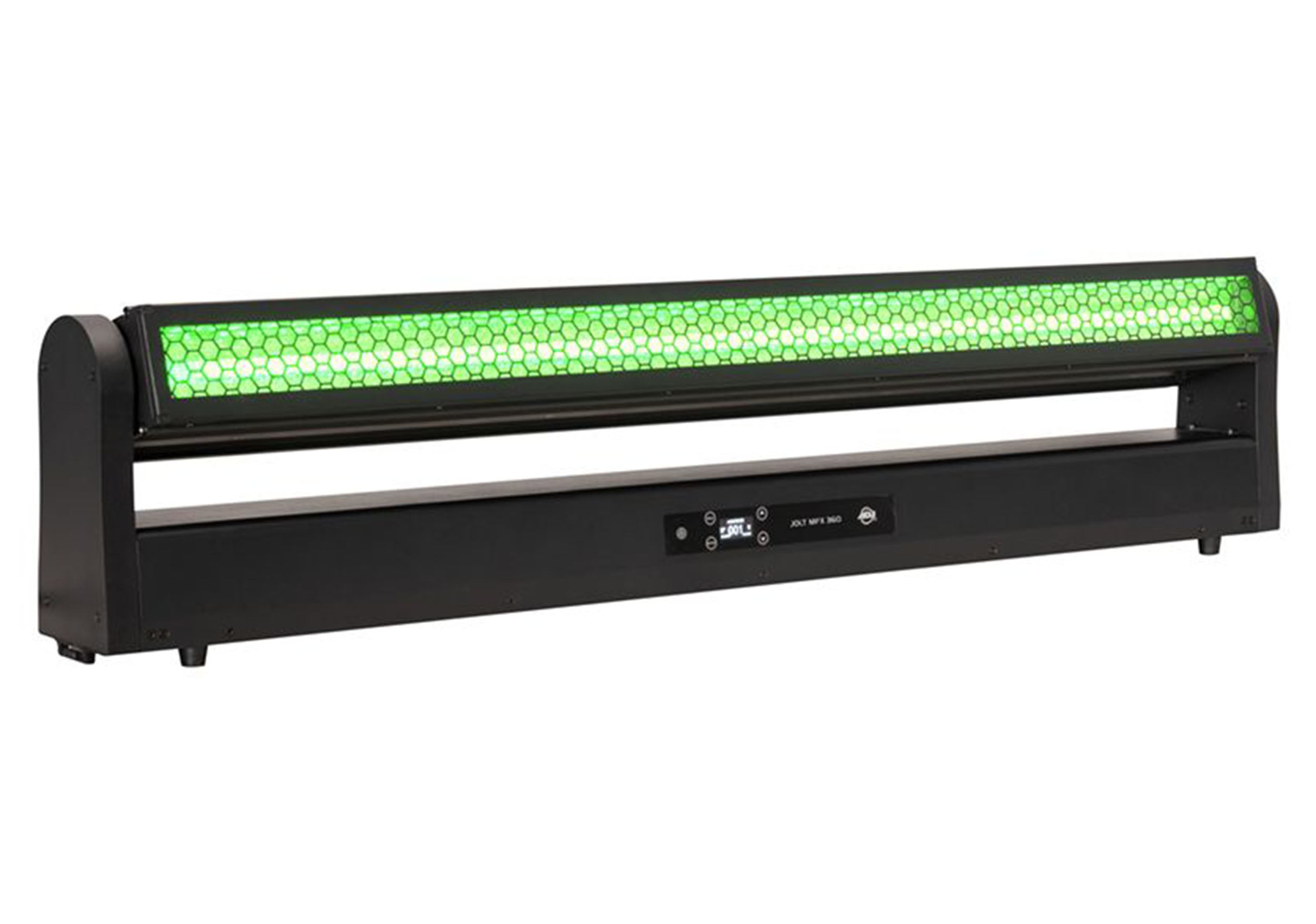

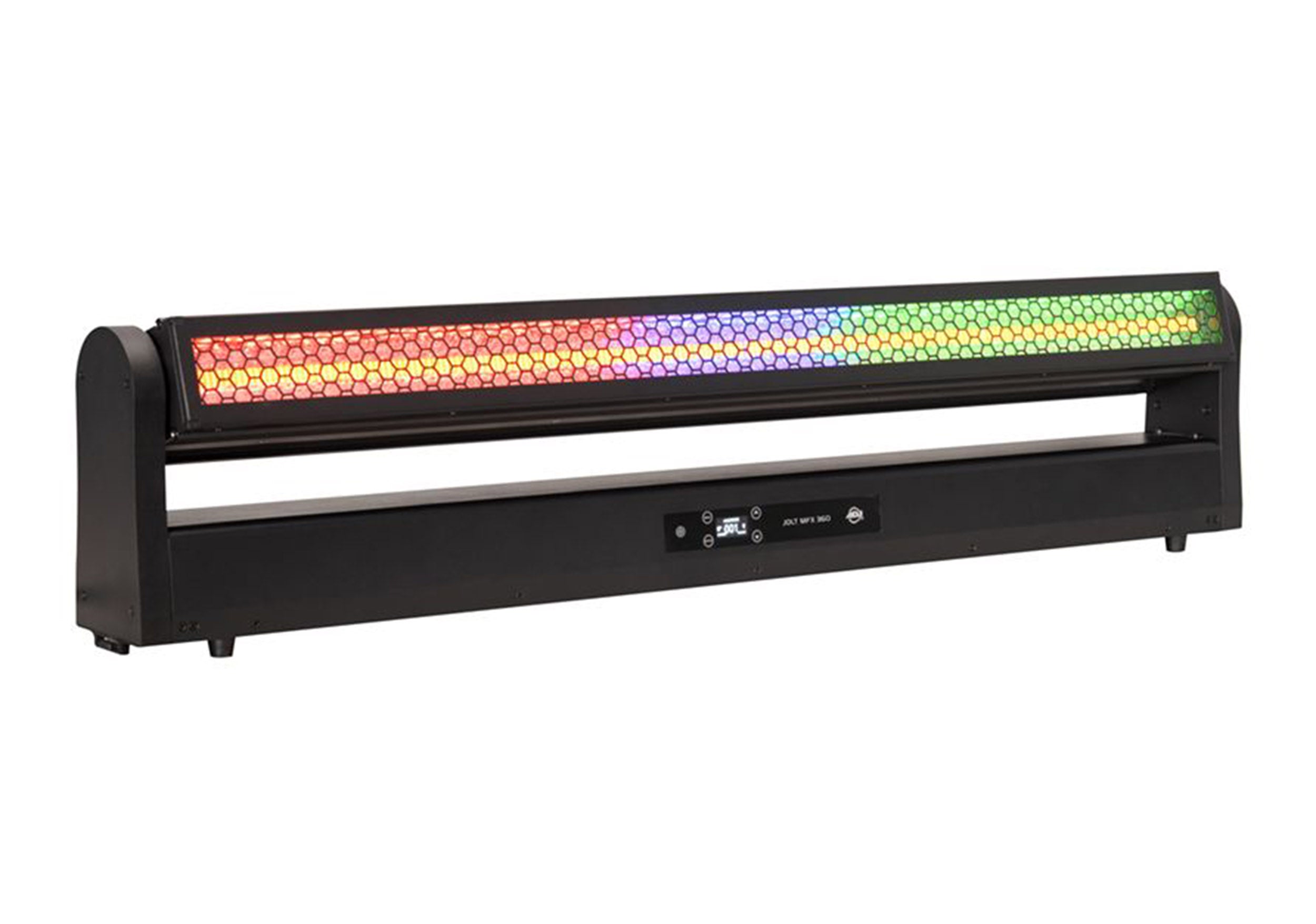

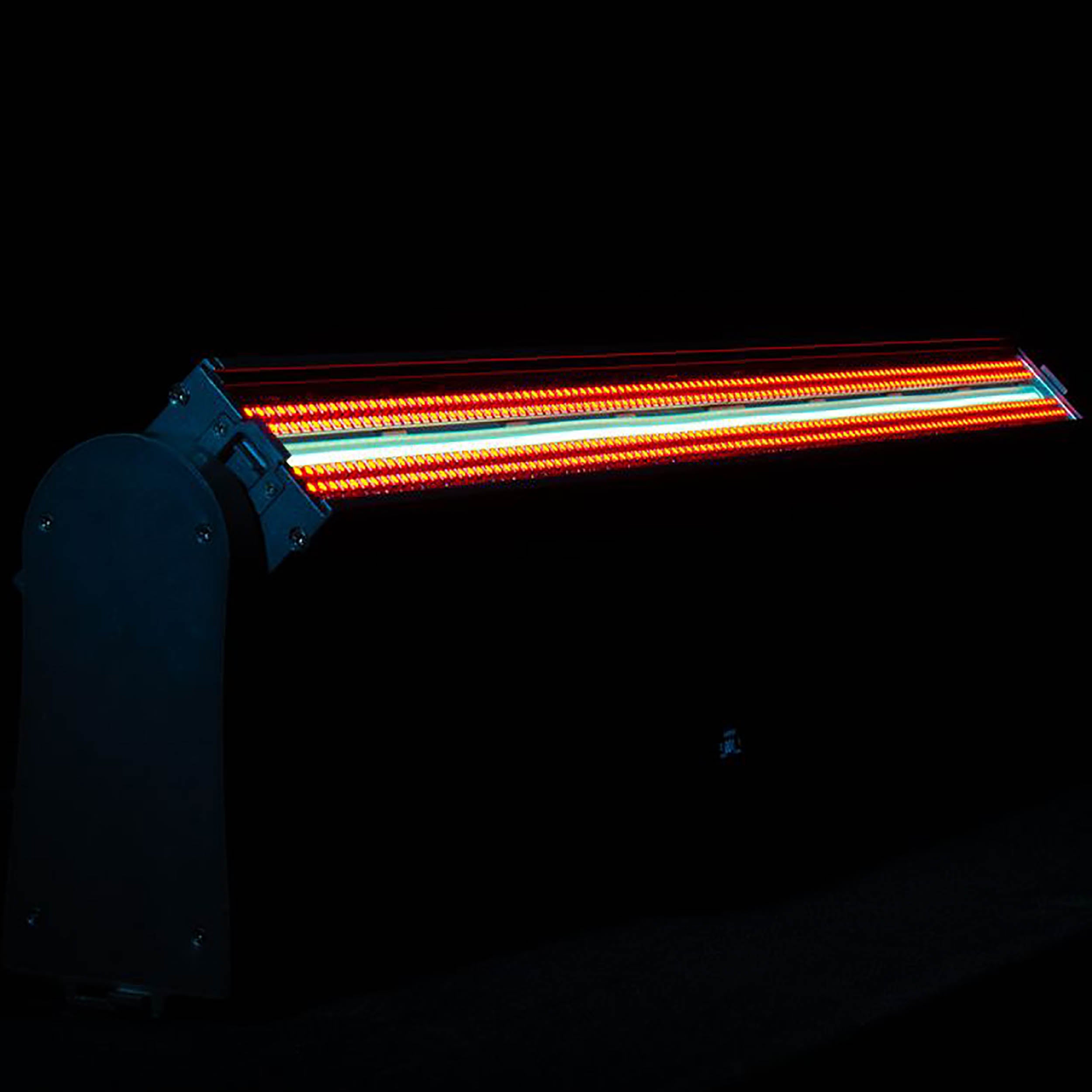

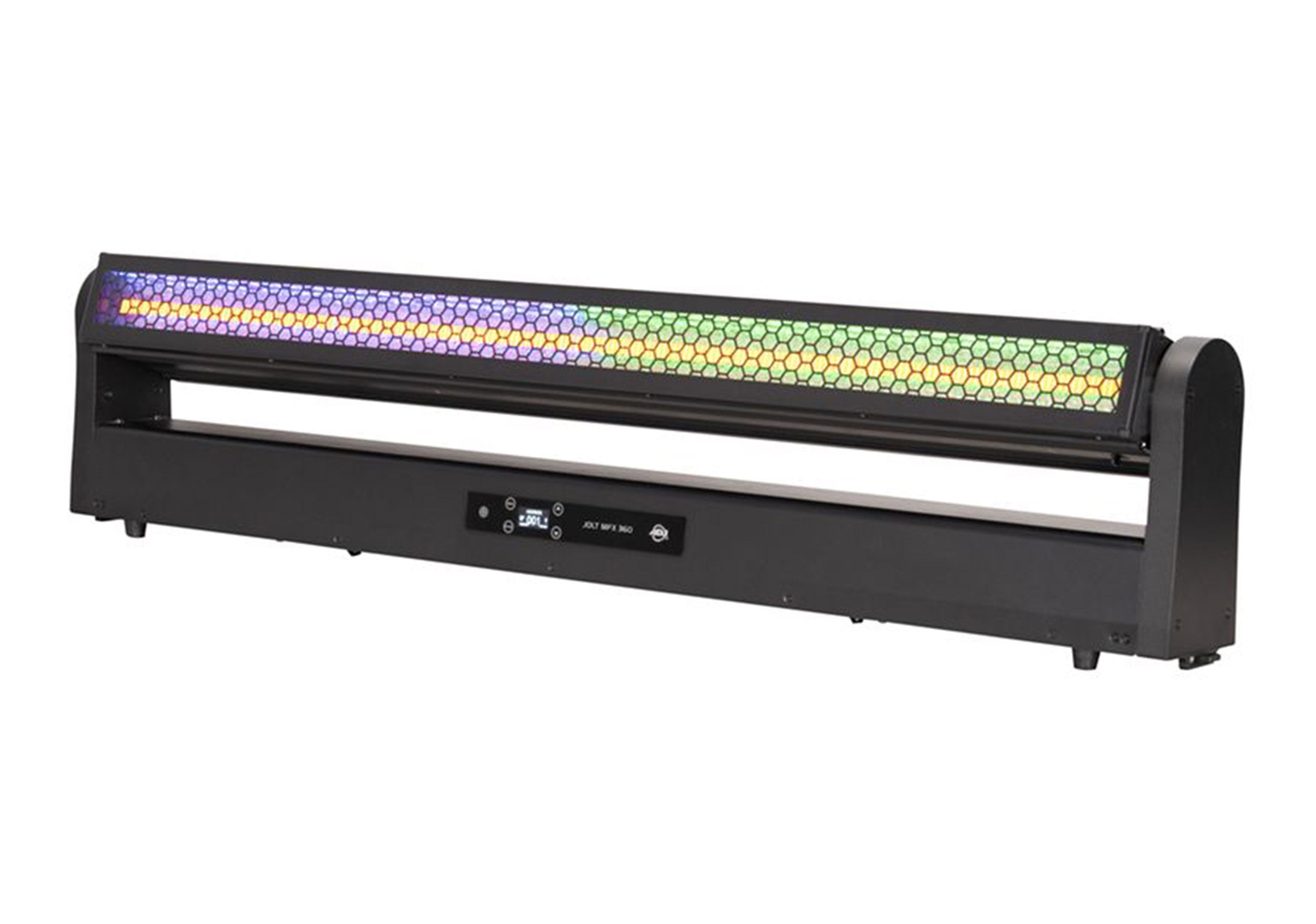

On one side, the Vintage Bar scenic effect delivers a nostalgic glow with a central strip of four 100-watt amber COB LEDs that emulate classic filament-style blinders, surrounded by a textured reflector illuminated by 140 x 0.8-watt RGBL SMD LEDs for vibrant background ambience. Flip to the opposite side, and the Jolt Bar effect takes over with a central strip of 448 x 1-watt cool white strobe LEDs, surrounded by 448 x 0.5-watt RGB color mixing LEDs that provide bold, high-impact washes. The combination of these two contrasting looks allows designers to shift instantly from warm, retro mood lighting to punchy, modern strobe-driven energy.

Thanks to fast motorized tilt and 360° continuous rotation, the Jolt MFX 360 can transform any stage or venue with fluid, high-speed transitions and immersive hybrid effects that move well beyond the capabilities of traditional static fixtures. Creative control is further expanded with an extensive library of built-in macro programs, zone-based pixel mapping, and flexible dimming profiles. A lens slot on the Jolt Bar side enables use of optional frost filters to diffuse the output for a more homogenized look.

Designed for both touring and fixed installations, the Jolt MFX 360 features integrated Aria X2 wireless management system and NFC configuration, ensuring fast setup and robust control across DMX (with RDM), Art-Net and sACN. Rugged construction, a useful tilt lock, and magnetic end caps for easy alignment of fixtures placed end-to-end, round out a fixture built for professional demands.

From generating warm scenic effects to unleashing full-throttle strobe sweeps, the Jolt MFX 360 stands as a singular tool capable of delivering multiple signatures looks from one compact unit - making it a transformative addition to any lighting rig.

Product Specifications:

Vintage Effect Side:

LEDs: 4 × 100W COB Amber (1800K)

Wavelength: 588–592 nm

Output: 473 Lux

CRI: 60

Beam Angle: 120°

Field Angle: 140°

LED Life: 50,000 hours

RGBL LEDs: 140 × 0.8W RGBL SMD

RGBL Wavelengths: Red (620–625 nm), Green (520–525 nm), Blue (455–460 nm), Lime (570 nm)

RGBL LED Life: 50,000 hours

Jolt Bar Effect Side:

Cool White LEDs: 448 × 1W SMD (6500K)

Wavelength: 620 nm

Output: 585 Lux

CRI: 73

Beam Angle: 60°

Field Angle: 80°

LED Life: 50,000 hours

RGB LEDs: 448 × 0.5W RGB SMD

RGB Wavelengths: Red (630 nm), Green (520–525 nm), Blue (470 nm)

RGB LED Life: 50,000 hours

Control & Effects:

Control Protocols: DMX, ArtNet, sACN, Aria X2, NFC, RDM

DMX Channel Modes: 16, 31, 36, 42, 79, 96, 99, 105, 203, 220, 223, 229

Dimming: 0–100% smooth

Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

Dim Curves: Linear, Square Law, Inverse Square Law, S-Curve

Strobe Effects: Linear, Pulse, Random

Strobe Rate: 0.35–25 Hz

Refresh Rate: 900 Hz – 25 kHz

Movement & Display:

Tilt Movement: 360° continuous (bi-directional)

Tilt Lock: Yes

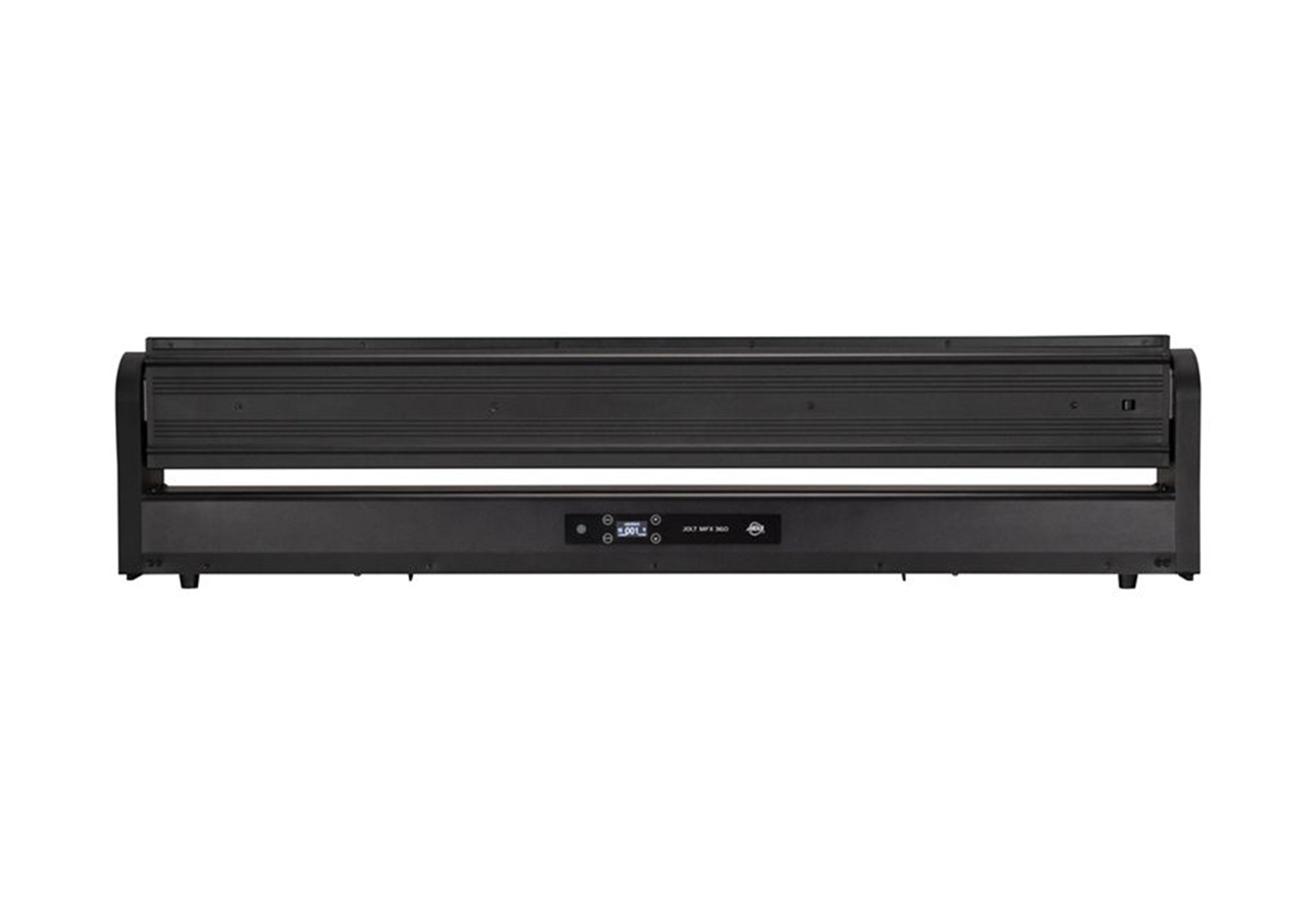

Display: OLED with 4 touch buttons

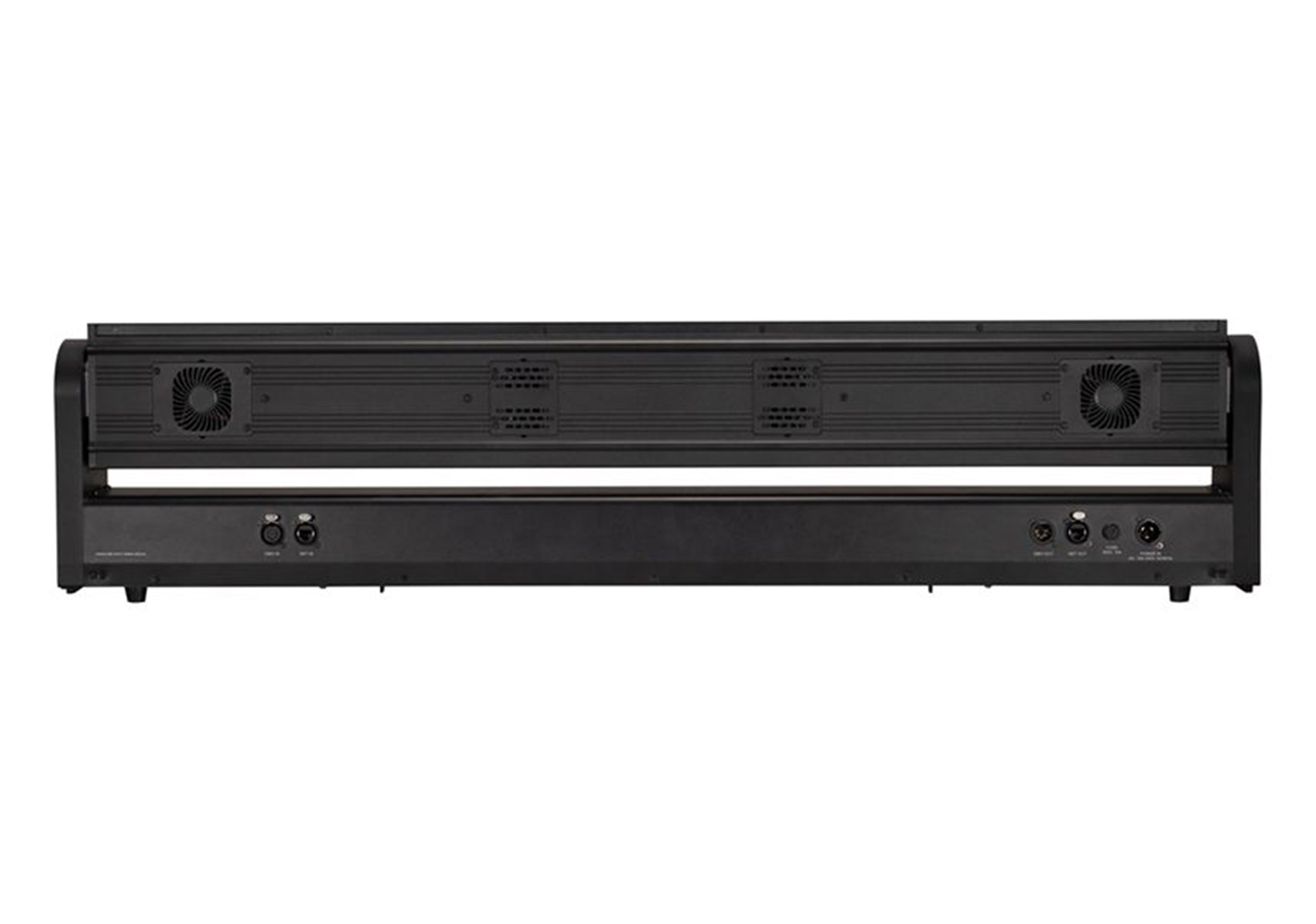

Connections:

DMX: Seetronic 5-pin XLR Locking In/Thru

Data: Seetronic RJ45 Locking In/Thru

Power: IP65 Locking Power In/Thru

Electrical:

Input Voltage: 100–240V AC, 50/60 Hz (Auto-sensing)

Max Power Consumption: 780W (3.55A @ 220V)

Power Linking: Up to 4 units @ 220–240V

Fuse: T6.3A / 250V Glass (5 × 20 mm)

Product Weight: 40.34 lbs

Product Dimensions (L × W × H): 42.45 × 5.09 × 11.02 Inches
