Description

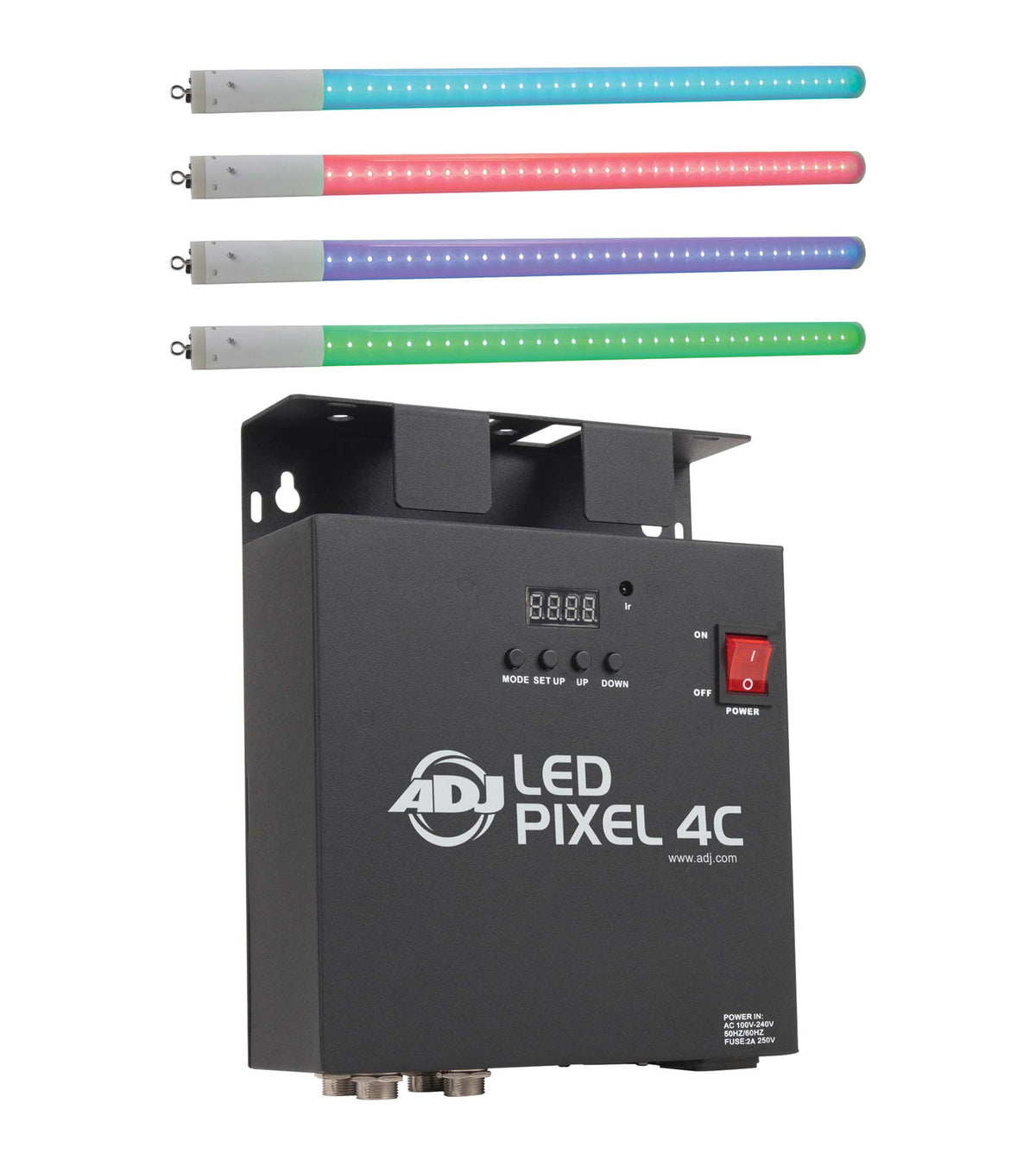

The ADJ LED Pixel Tube 360 System combines four bright, 360-degree LED color tubes with an LED Pixel 4-Channel Controller/Driver to create dynamic lighting displays for DJs, musicians, nightclubs, live performances, retail environments, and architectural installations. Each 39.5-inch tube features 64 TRI LEDs with RGB color mixing, delivering vibrant colors and eye-catching visual effects. The tubes consume just 15 watts each and feature a rated LED lifespan of 50,000 hours, making the system suitable for extended operation in entertainment and event settings.
Versatile Controller and Lighting Effects

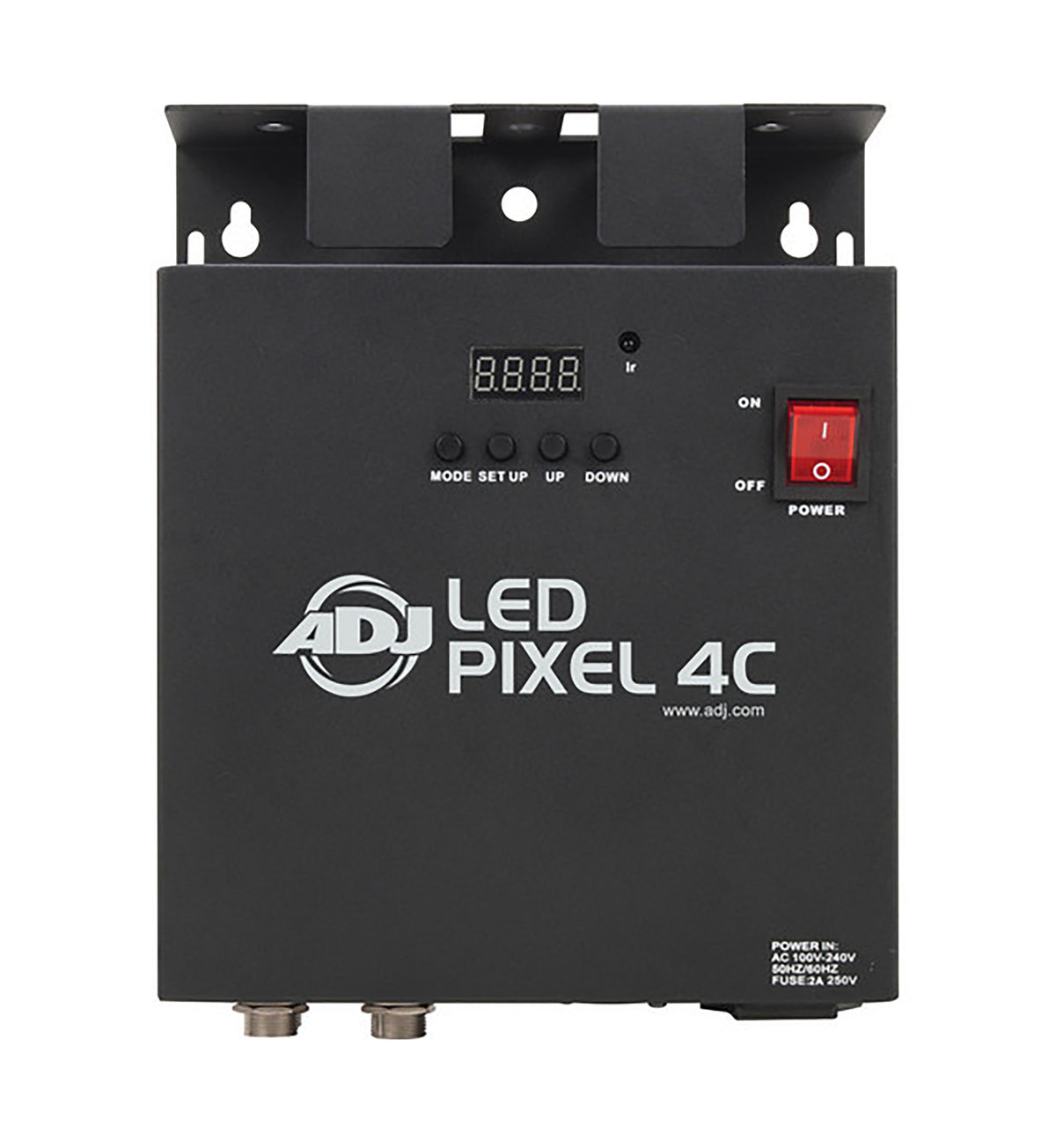

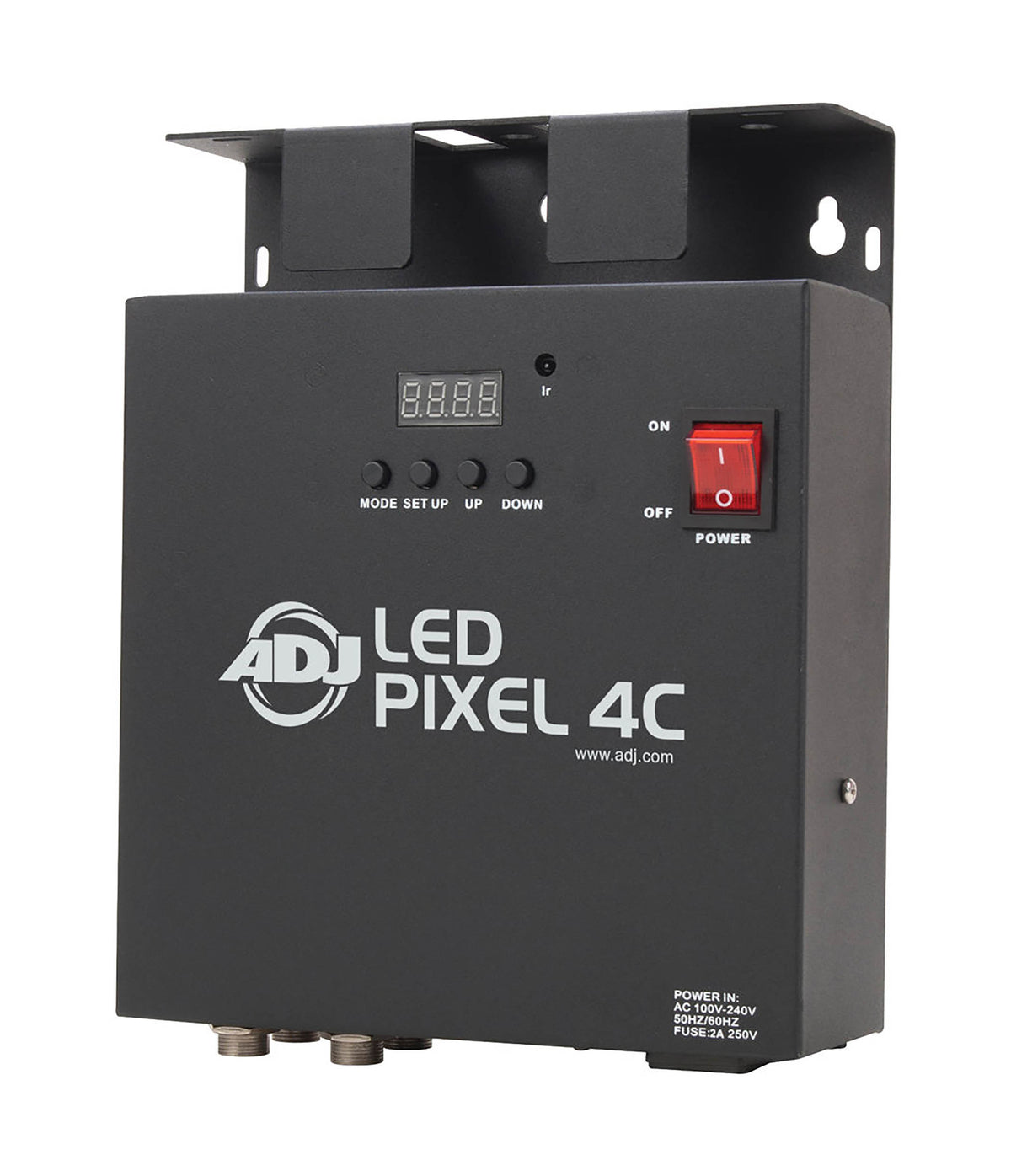

The included LED Pixel 4-Channel Controller offers five operating modes: sound active, automatic, RGB dimmer, static color, and DMX control. With 24 built-in programs, electronic dimming from 0 to 100%, and an integrated microphone for sound-responsive effects, the controller provides flexible lighting options for different applications. DMX-512 compatibility includes 5-, 7-, 14-, and 192-channel modes, while the three-pin DMX connections support integration with compatible lighting equipment. The controller also features a four-button LED display and a reversible hanging/truss bracket.
Flexible Installation and System Connectivity

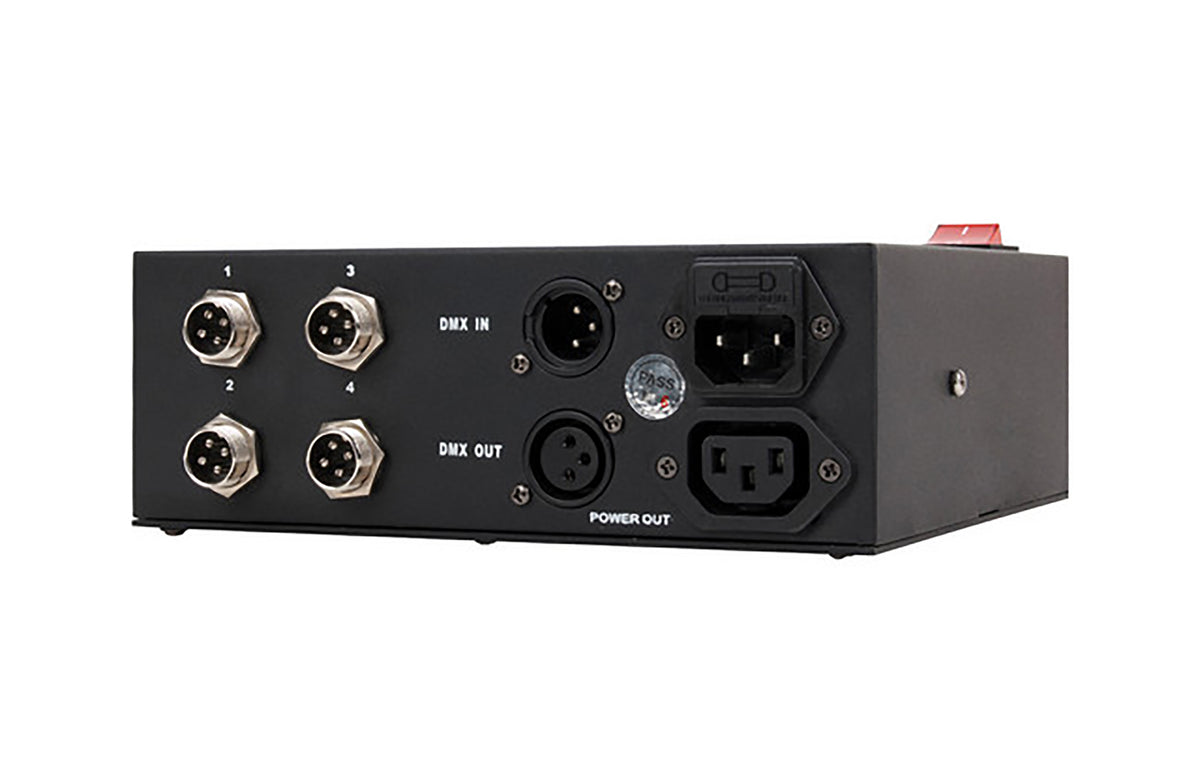

Designed for versatile installation, the controller can be positioned on a flat surface or mounted to trussing or a ceiling using its built-in bracket. Its IEC AC power input and output support power daisy-chaining, while three-pin XLR input and output connections allow linking with compatible LED Pixel controllers. Each tube uses a 24V DC power input with a four-pin female connector and requires a compatible controller. Extension cables and the optional ADJ LED RC wireless remote control are sold separately.
Product Specifications:
Product Type: LED Pixel Tube Lighting System
Included LED Tubes: 4 x LED Pixel Tube 360
Included Controller: LED Pixel 4-Channel Controller/Driver
LED Type: TRI LEDs
LED Quantity: 64 per Tube
Color Mixing: RGB
Viewing Angle: 360 Degrees
LED Lifespan: 50,000 Hours
Lighting Effects: Strobe, Pulse, and Color Macros
Controller Operating Modes: Sound Active, Auto, RGB Dimmer, Static Color, and DMX
Built-In Programs: 24
Dimming: Electronic, 0–100%
Sound Activation: Built-In Microphone
DMX Protocol: DMX-512
DMX Modes: 5, 7, 14, and 192 Channels
DMX Connections: 3-Pin DMX Input/Output
Tube Power Input: 24V DC, 4-Pin Female Connector
Power Consumption: 15W per Tube
Controller Voltage: 100–240V AC, 50/60Hz
Controller Power Draw: 72W
Controller Fuse: 2A
Power Daisy-Chaining: IEC AC Input/Output
Controller Mounting: Reversible Hanging/Truss Bracket
Wireless Remote Compatibility: ADJ LED RC, sold separately
Extension Cables: Sold separately
Tube Dimensions (L x W x H): 39.5" x 2" x 2" per tube
Tube Weight: 2 lbs. per tube
Controller Dimensions (L x W x H): 10.25" x 8" x 3.25"
Controller Weight: 5 lbs.
Shipping Dimensions (L x W x H): 45" x 6" x 6"
Shipping Weight: 10 lbs.
Included Accessories: 4 LED Pixel Tube 360 Tubes and 1 LED Pixel 4-Channel Controller/Driver
