Description

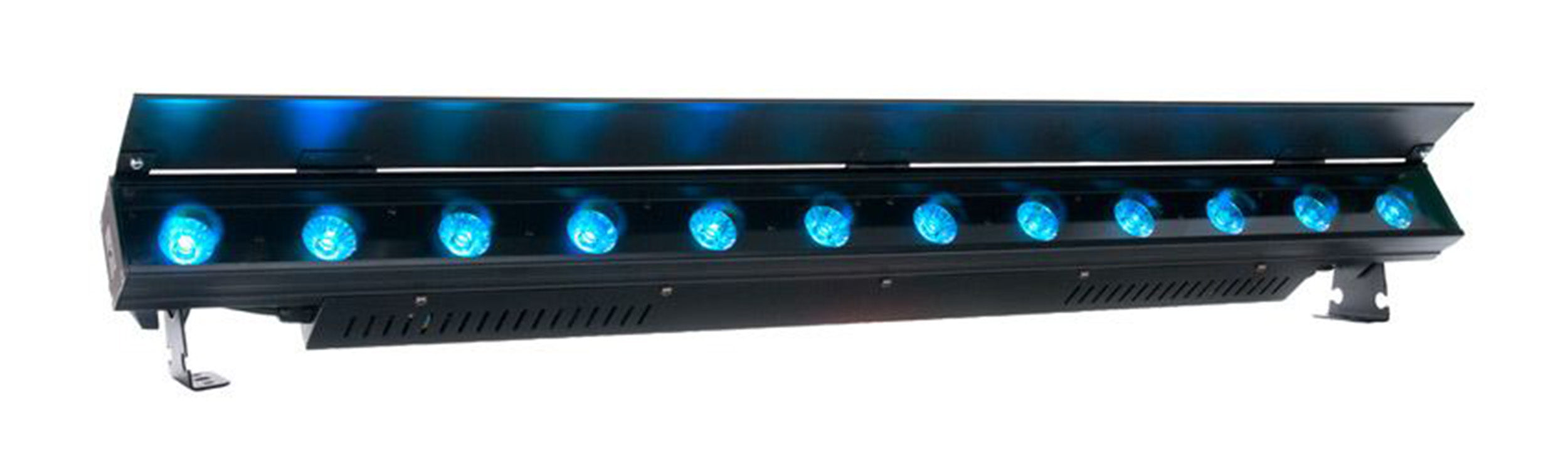

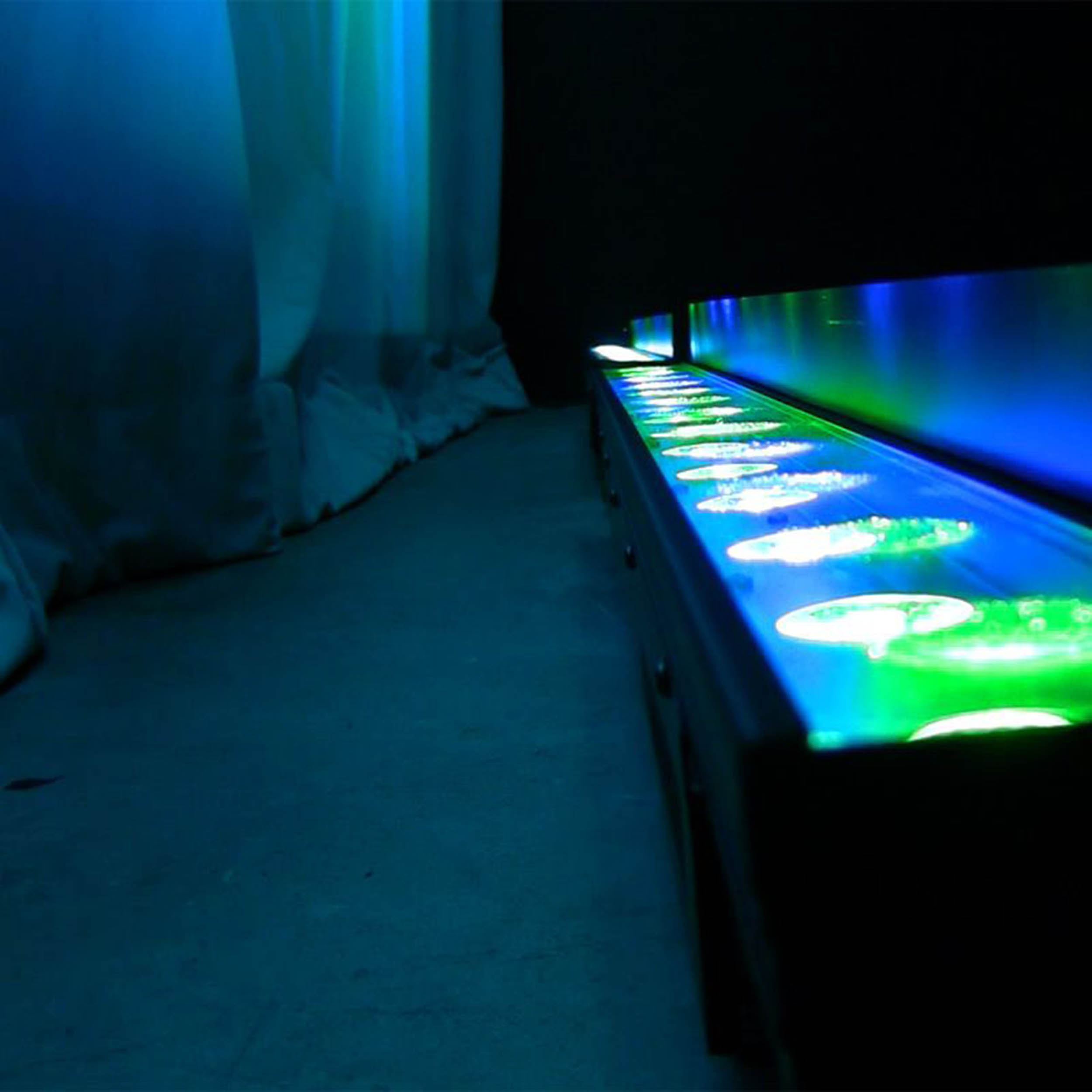

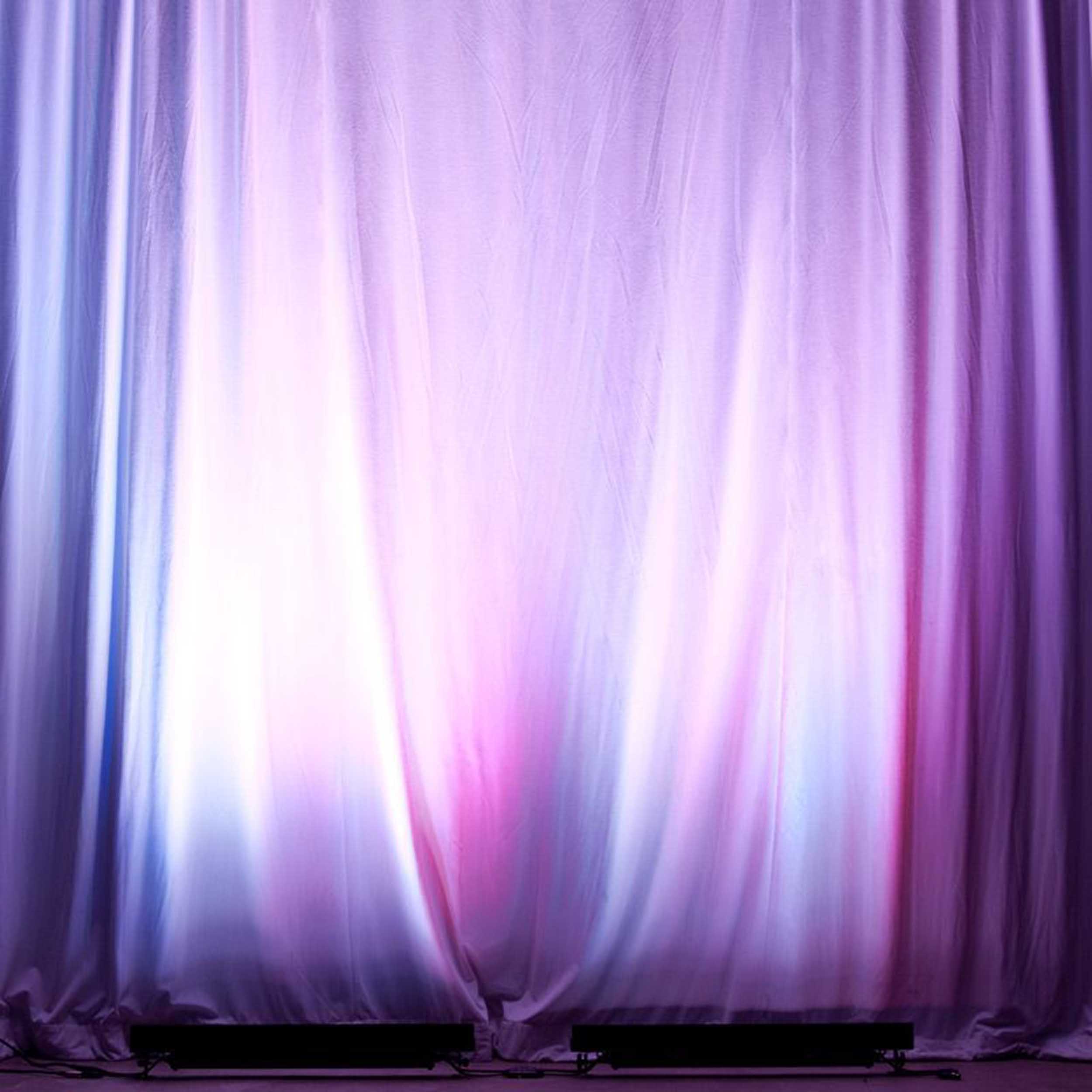

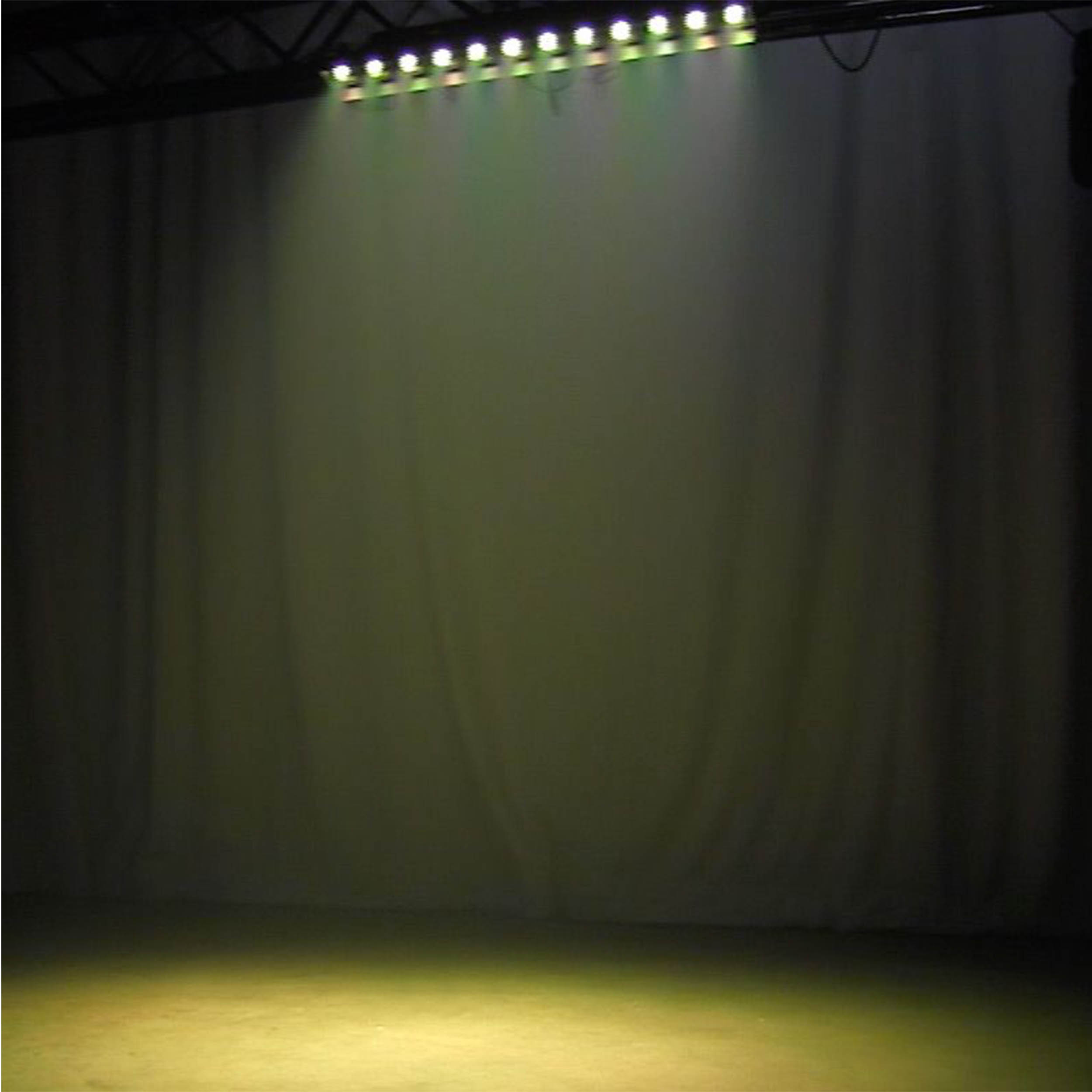

The ADJ Lighting ULTRA HEX BAR 12, Led Linear Fixture is a versatile LED Linear fixture with 12 x 10-Watt, 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for up lighting avenue.

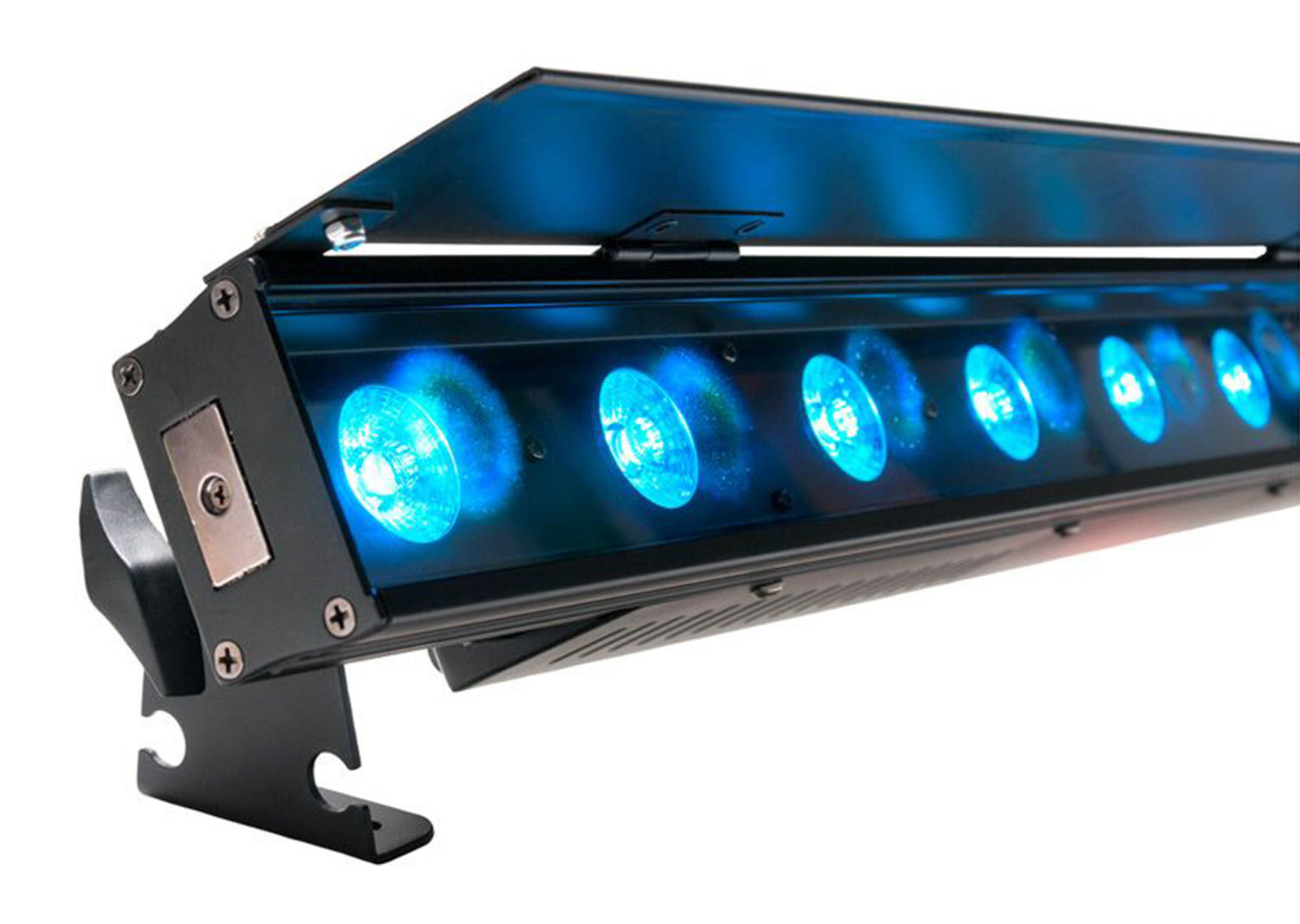

Ultra-HEX Bar 12 professional features include: 5 DMX modes (6, 7, 8, 12, & 36 channel), 6 operational modes, 5 dimming curves, flicker free operation a 4-Button DMX menu with digital display, plus ADJ’s patent pending magnetic “Quick Align” end locking allows for a seamless output of light with no breaks of color. Daisy chain up to 7 units together via the fixtures built-in IEC in/Out power connectors.
The Ultra-HEX Bar 12 is compatible with the ADJ RFC, easy-to-use, wireless remote. Alternatively, the fixture may be operated via a DMX controller or the unit’s built-in programs.
Product Specifications:
Fixture Type: Linear/Bar Light
Light Source: 12 x Color/UV LED - 10 W
Expected Lamp Life: 50,000 Hours
Colors: Red, Green, Blue, White, Ultraviolet
Photometrics: 109 fc / 1172 Lux at 13.1' / 4 m
Beam Angle: 40°
Shutter / Strobe: Electronic
Dimming: Electronic, 0 to 100% with 5 Dimmer Modes
Operating Modes: Automatic, Program, Static Color
Macros / Programs: 63 x Color Macro
Effects: Strobe
Gobos: No
Refresh Rate: 2.88 kHz
Control Protocols: DMX512, Internal

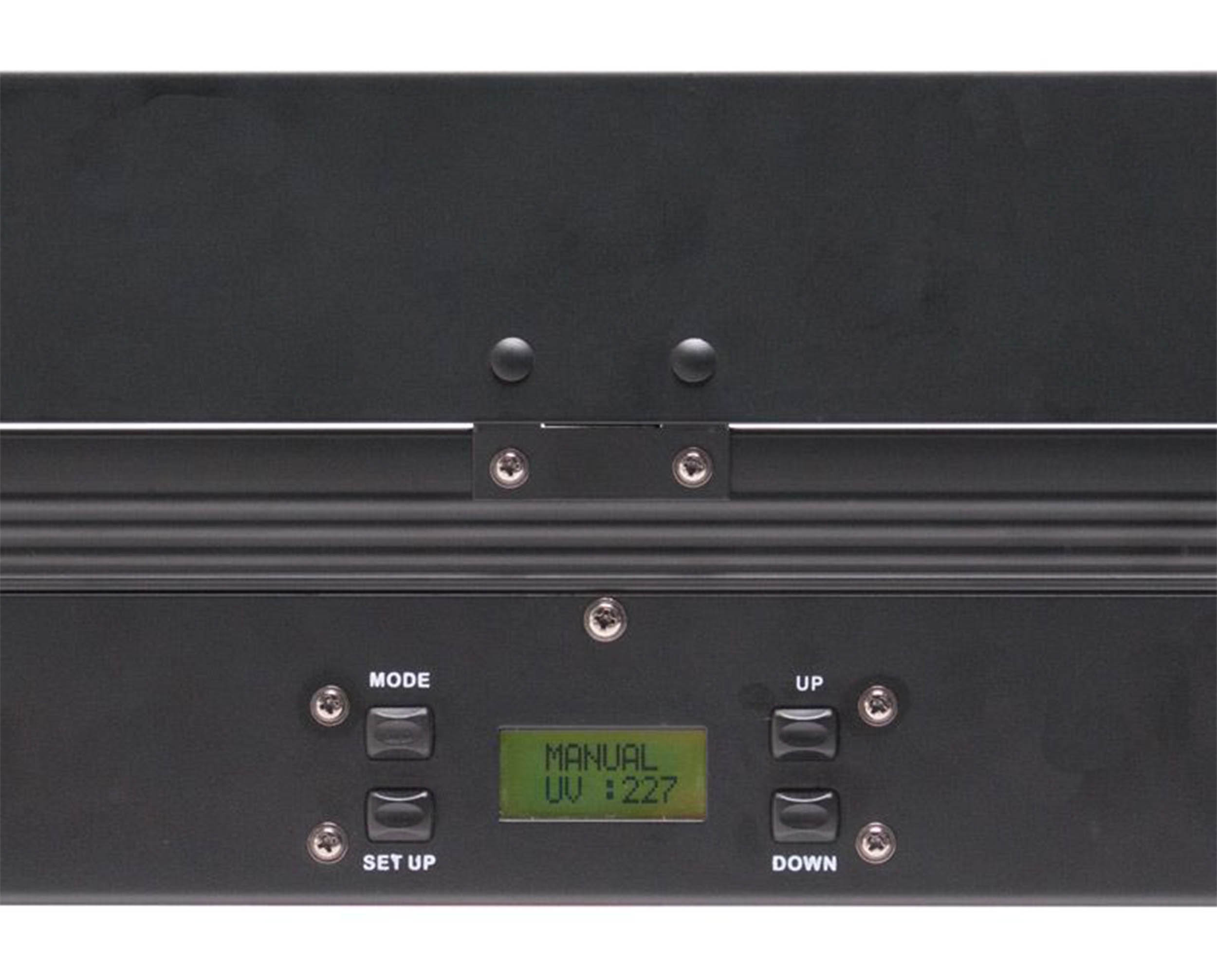

Display / Controls: LCD
Remote Control: RF Remote (with Optional Equipment)
Inputs/Outputs:
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Wireless Range: 30' / 9.1 m (with Optional Equipment)
AC Input Power: 100 to 240 VAC, 50/60 Hz

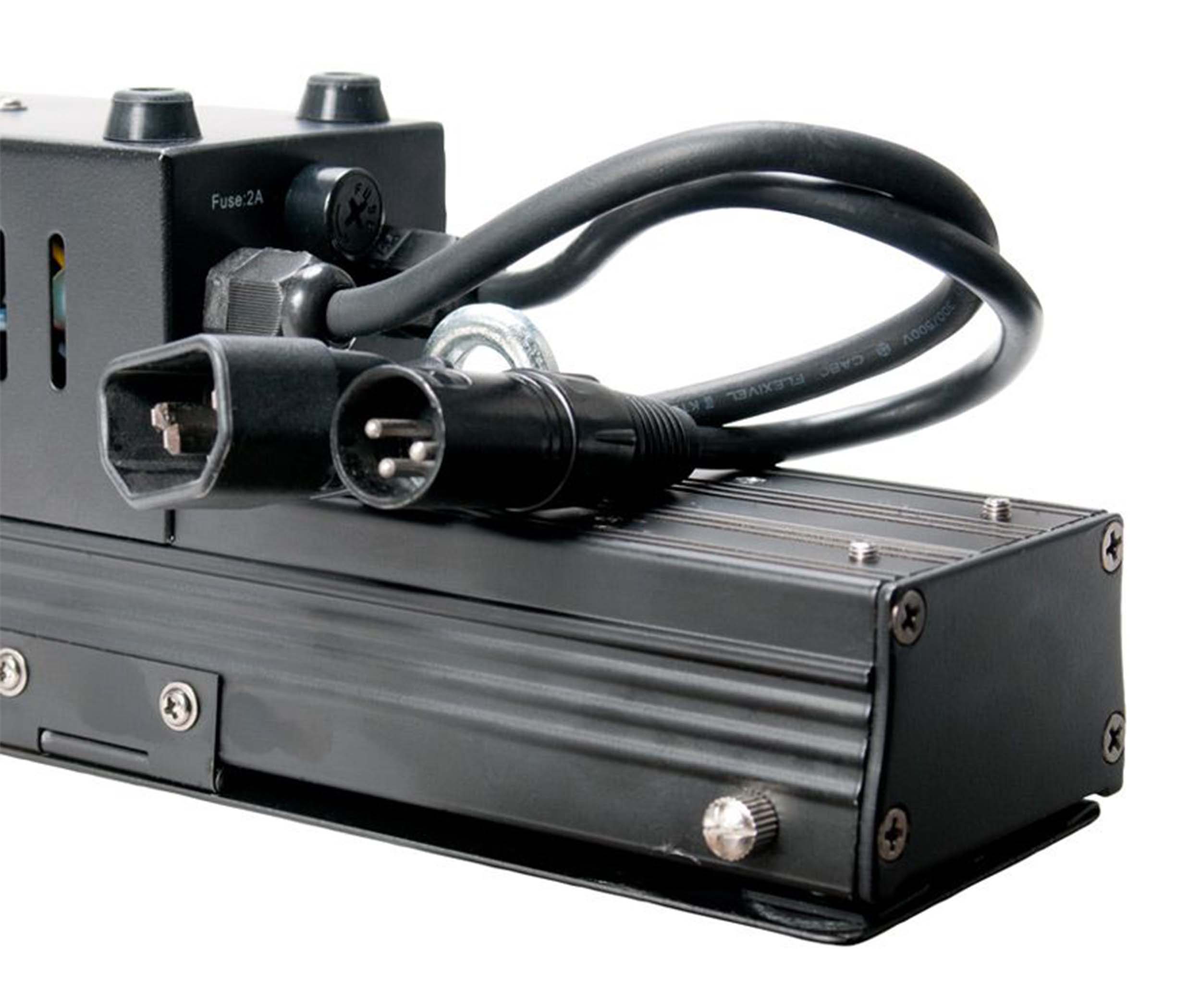

AC Power Connector:
Input: 1 x IEC
Output: 1 x IEC
Cord Length: 5.9' / 1.8 m
Power / Current Consumption: 90 W
Power Linking: 12 Units
Environmental Protection: No
Mounting: Mounting Bracket
Duty Cycle: No
Exterior Color: Black
Dimensions: 40.25 x 4.75 x 2.75" / 1022.35 x 120.65 x 69.85 mm
Weight: 11 lb / 5 kg
Shipping Weight: 15.15 lb
Shipping Dimensions (LxWxH): 41 x 7.25 x 5.5"
