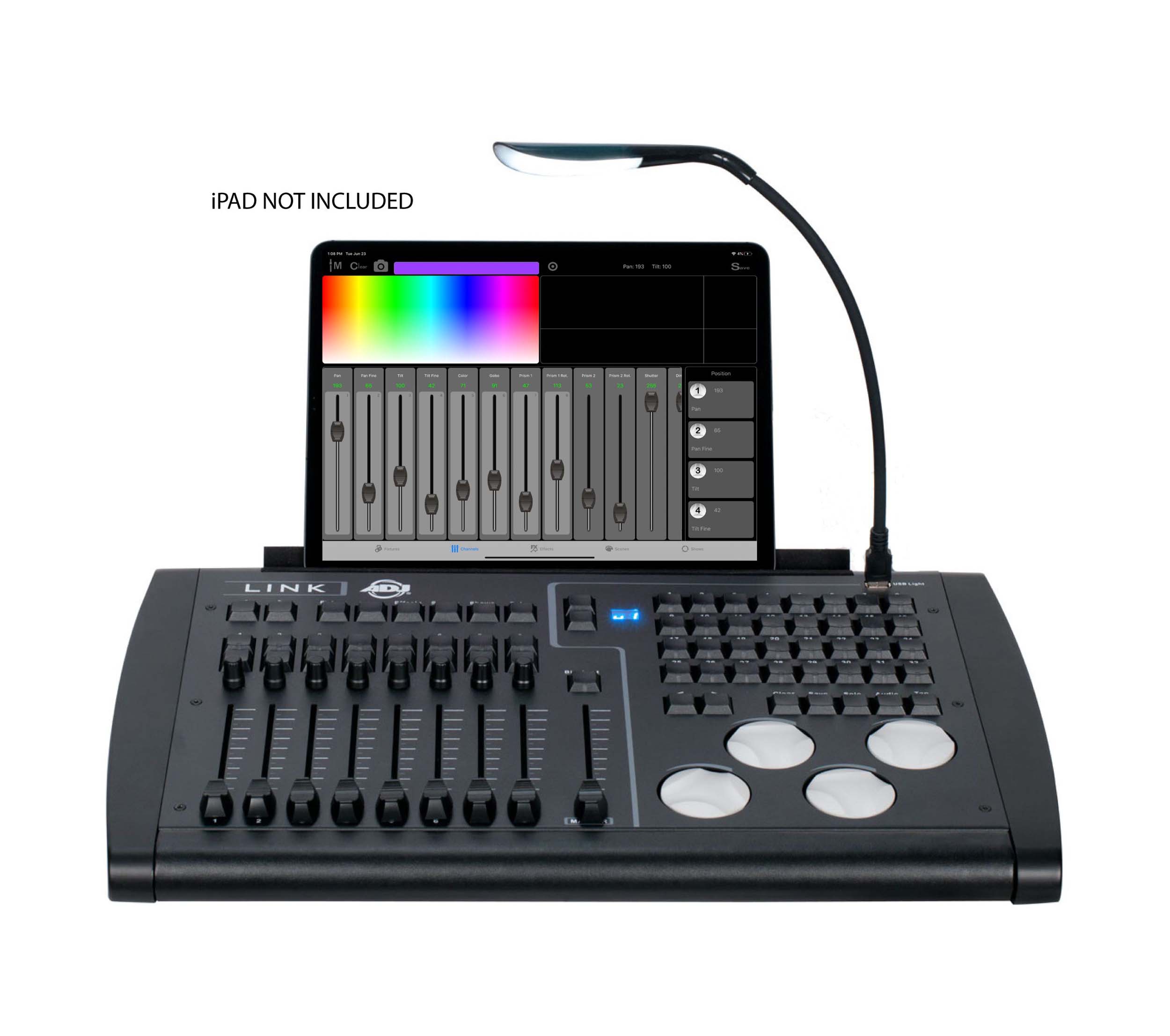

ADJ LINK 4-Universe DMX Hardware Controller for iPad & ADJ's Airstream

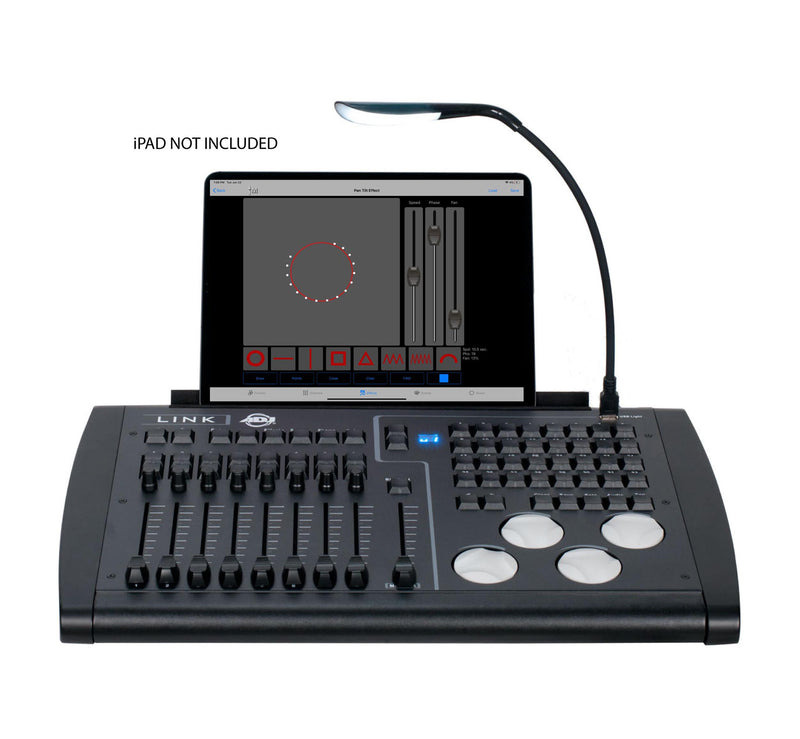

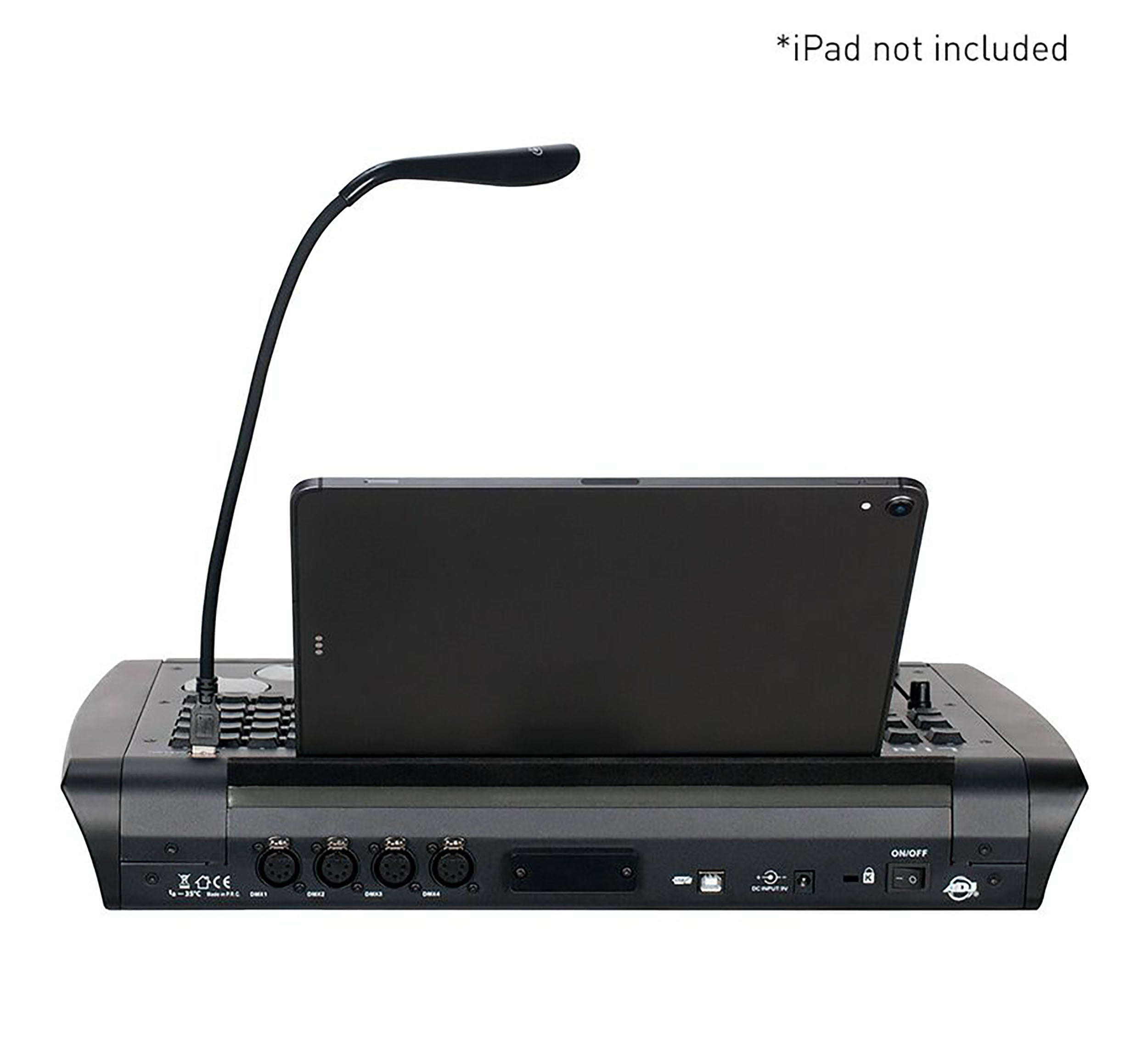

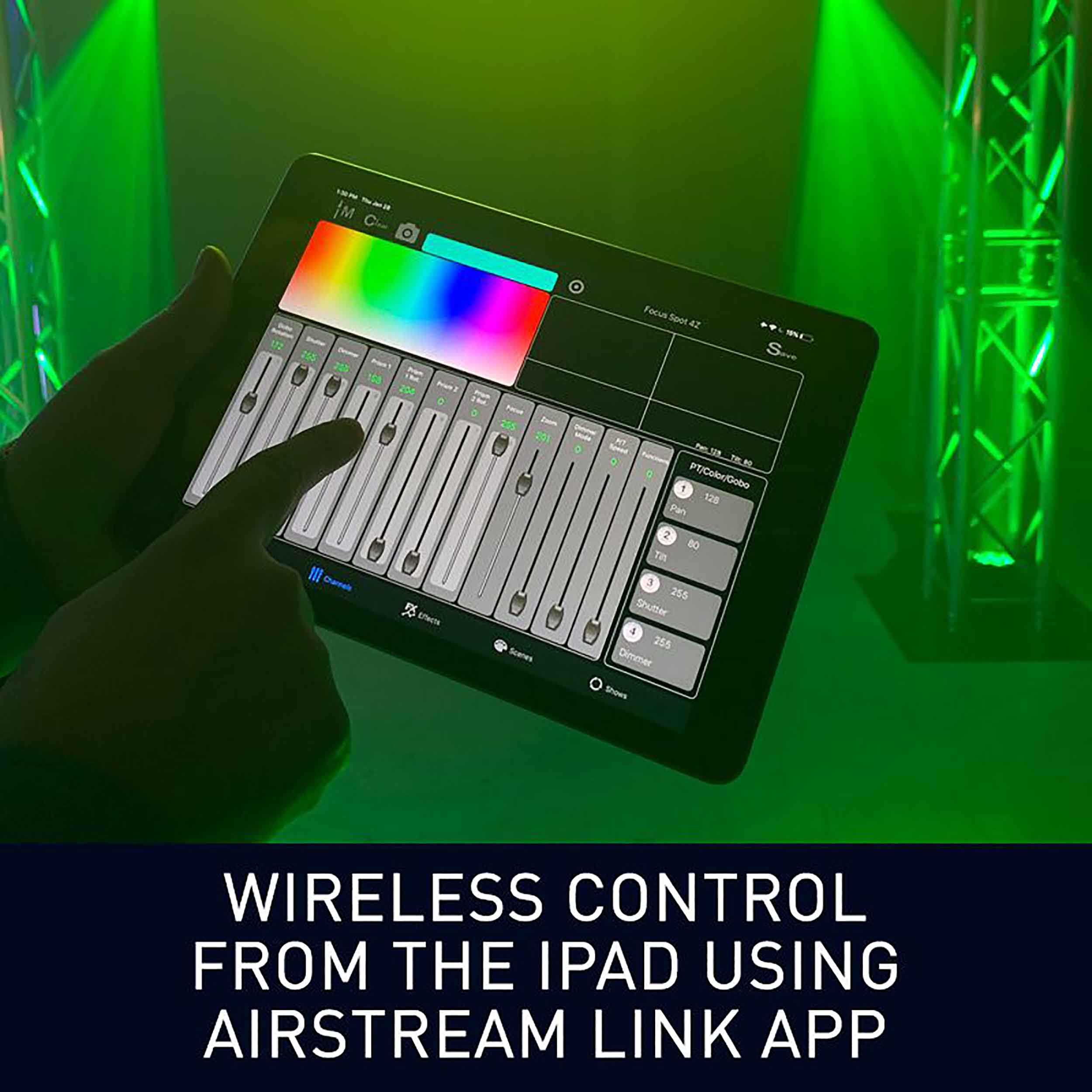

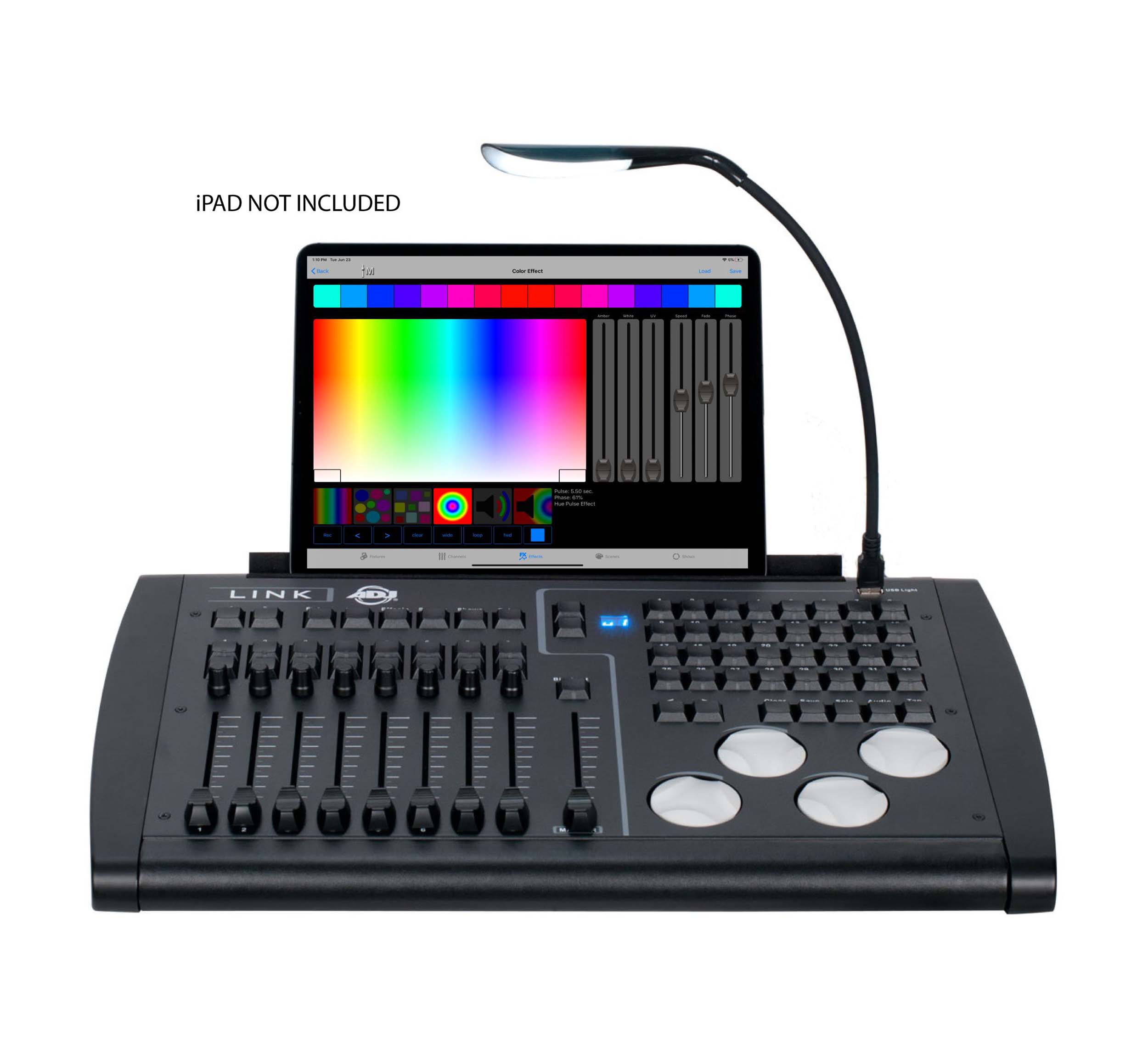

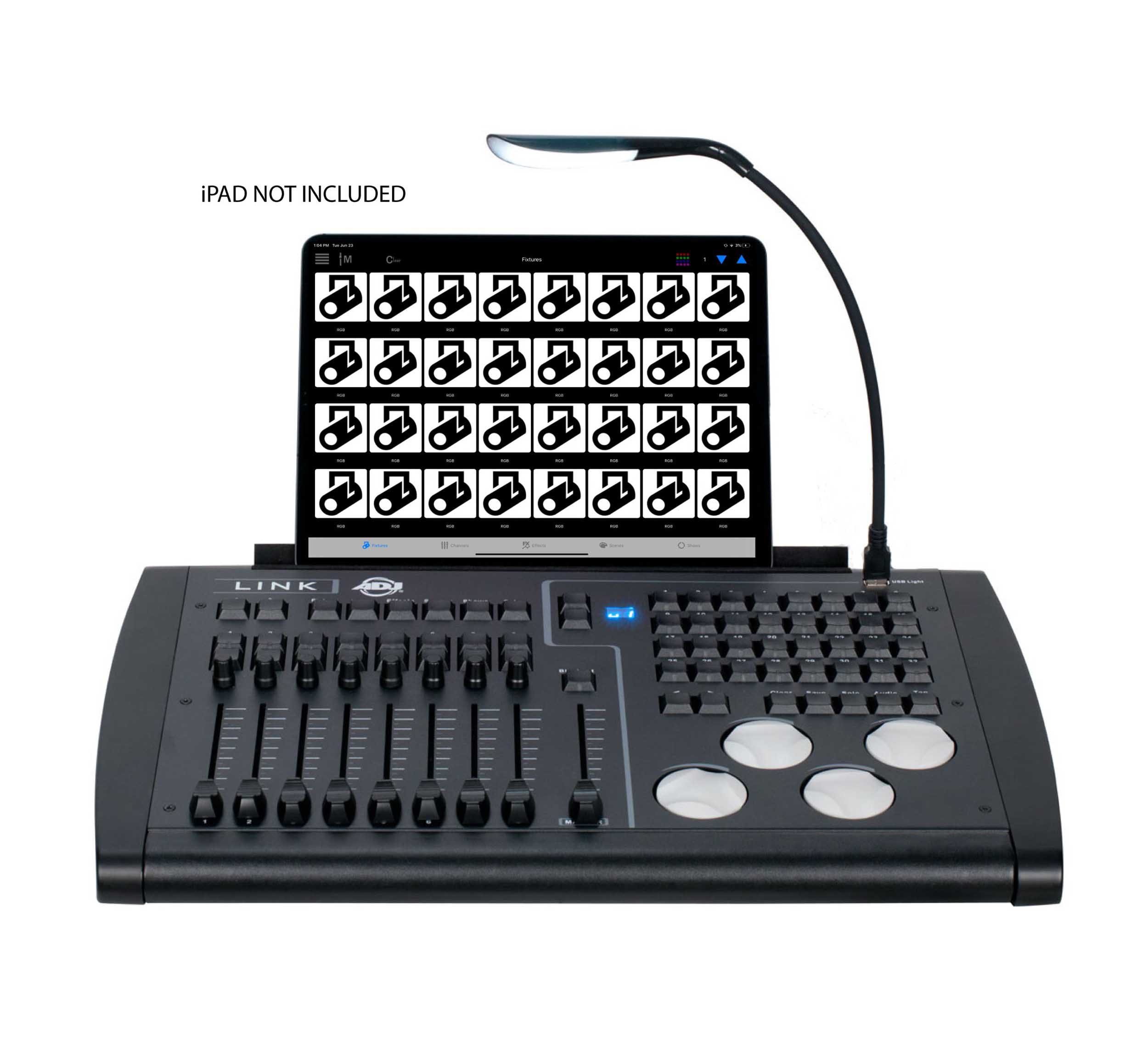

The ADJ LINK, 4-Universe DMX Hardware Controller for iPad and ADJ's Airstream App controls compatible DMX devices with control from the dedicated Airstream DMX LINK iOS App for iPad. LINK can connect to an iPad wirelessly or hardwired. When connected wirelessly, LINK creates a private standalone 2.4 or 5 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network between an iPad and LINK console, which can coexist in busy RF environments alongside other wireless technologies. Connecting wirelessly will also allow you to undock the iPad and remotely control, program and playback your light show. If you prefer to use a hardwired connection between the iPad and LINK you will need a USB cable adapter, not included, which will also allow the iPad to charge at the same time. Four (4) hardwired, 5-pin XLR outputs on the rear of LINK send constant and reliable DMX signal to compatible DMX devices.

LINK is ideal for small production events, nightclubs, bars or any event or venue which requires the flexibility of wireless iPad control, and who are looking for a robust, 4 DMX universe APP based lighting control solution.

Product Specifications:

Control / Connections:

(6) General Purpose Buttons

(1) Master and (8) Control 100mm Faders

(16) Page Playback Buttons Above Faders

(8) Rotary Dials with Push-In Selection Above Faders

(1) Blackout Button

(32) Instant Effect or Scene Calling Buttons

(8) Bump / Momentary Effect Buttons

(4) Rotary Encoder Wheels with Push-In Selection

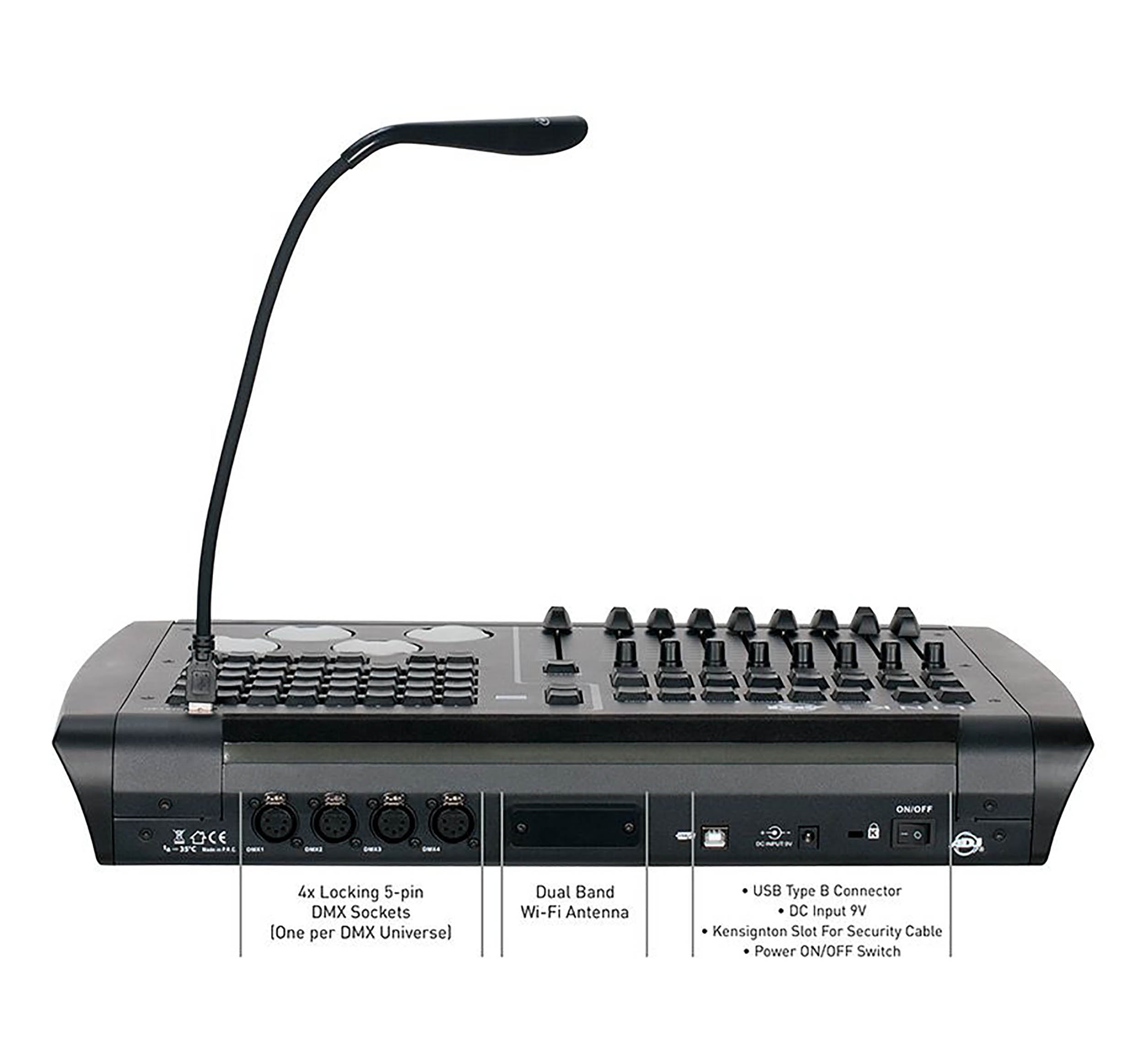

USB 2.0 Type “B” Port

(4) 5-pin DMX output ports

Approvals: cETLus (Control #5014475)

Length: 20.3” (514mm)

Width: 13.2” (336mm)

Vertical Height: 3.5” (88mm)

Weight: 13.0 LBS. (5.9 kg)

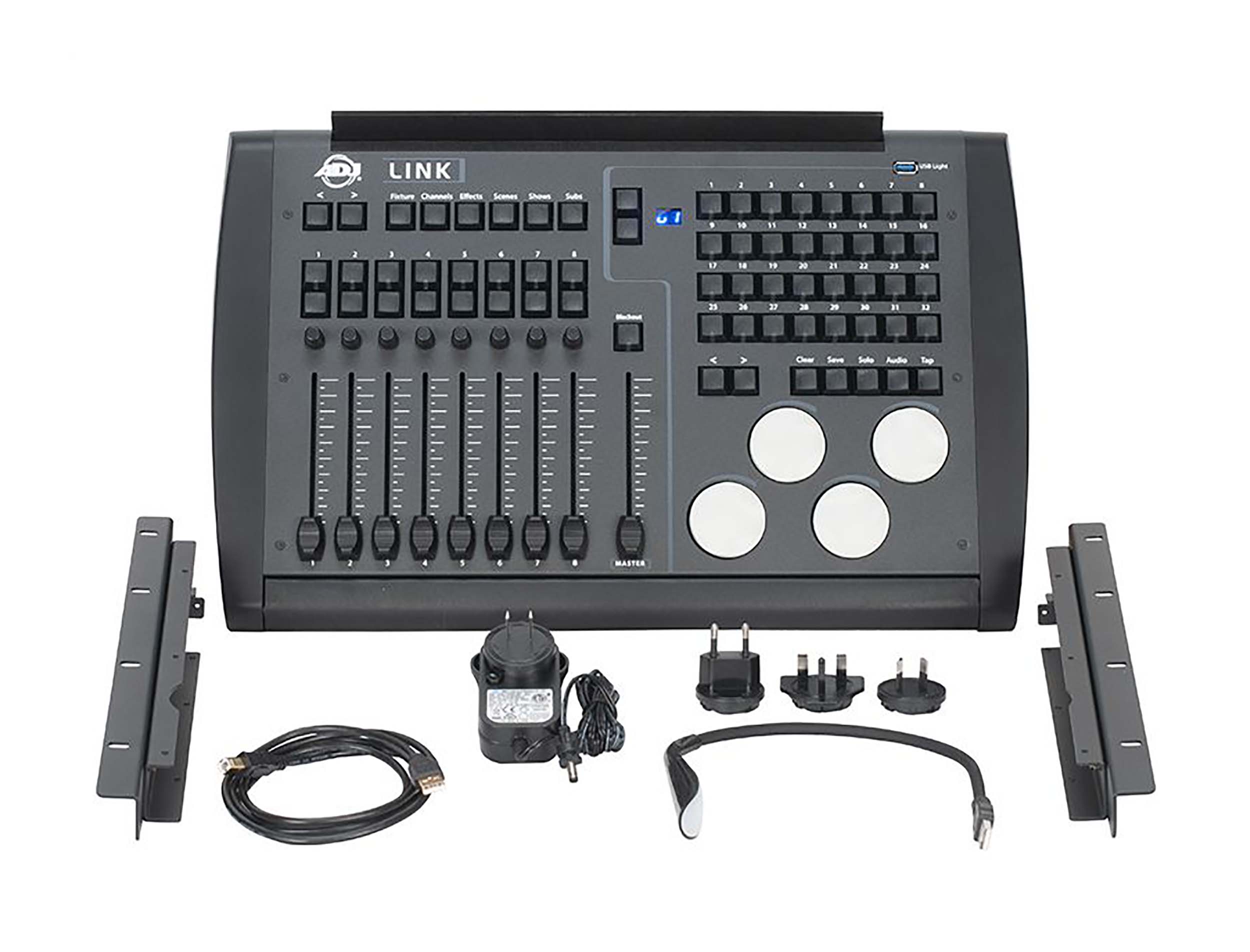

Included Items:

USB Cable

Multi-voltage DC9V Power Supply (100-240V, 50/60Hz)

4 Power Adapters:

Type A (US), Type C (Europe), Type G (UK), Type I (Australia, China)

Rack Mount Kit

Compatibility:

iPad only

Requires iPad OS 14.5 or later
