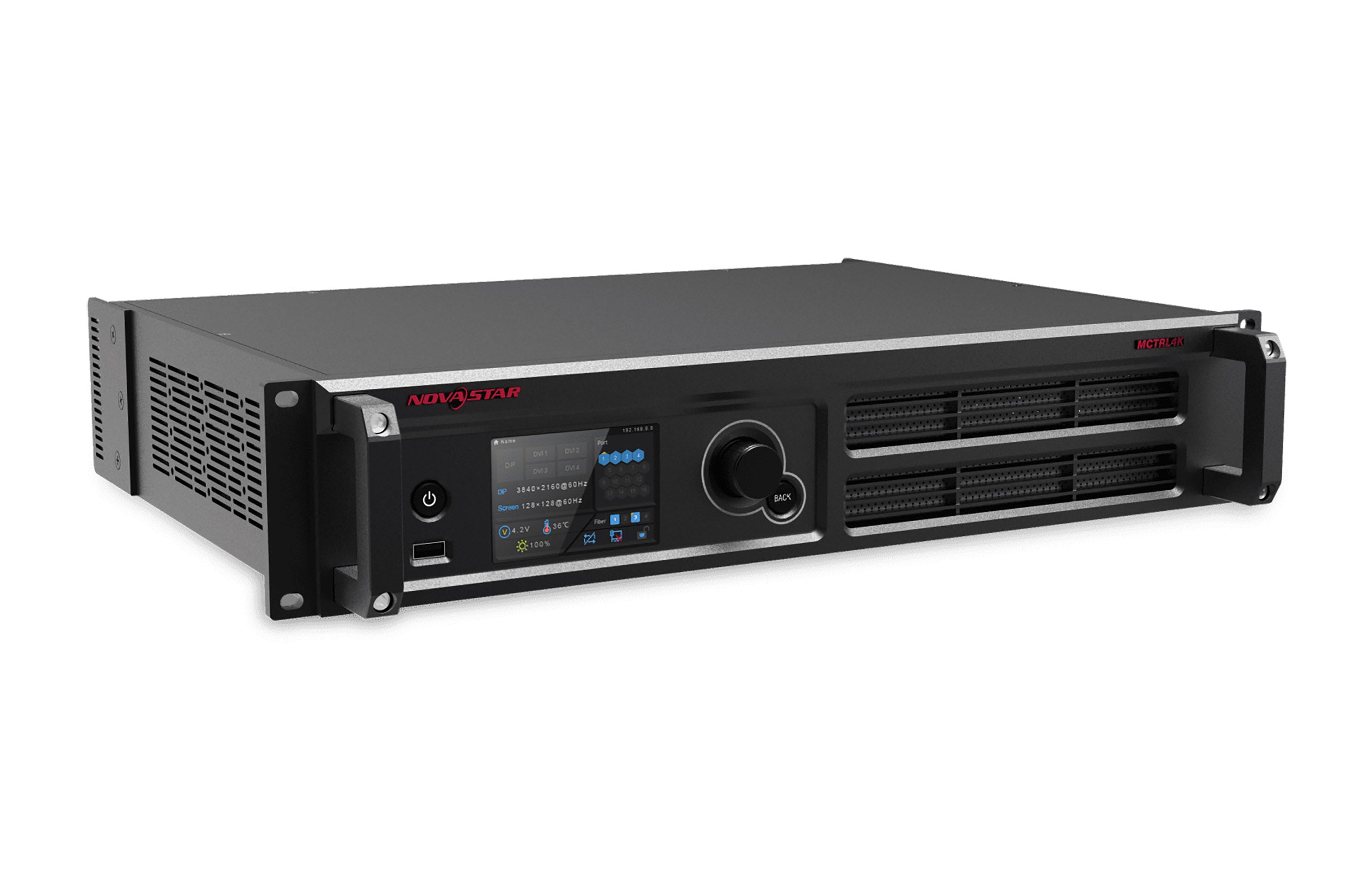

ADJ MCTRL4K, Novastar Independent Master Controller

The ADJ MCTRL4K, Novastar Independent Master Controller is a cutting-edge solution designed to deliver high-quality video performance and versatility for various applications. Featuring a range of video input interfaces, advanced output capabilities, and innovative technology, this unit is ideal for professional stage setups, broadcasting, and large-scale displays.

Product Specifications:

Inputs:

(1) DP 1.2 standard

Max. supported resolution: 3840×2160@60Hz,

Max. width and height are 3840(downward compatibility)

(1) HDMI 2.0 standard

Max. supported resolution: 3840×2160@60Hz

Max. width and height are 3840 (downward compatibility)

(2) Dual-Link DVI

VESA standard, max. supported resolution:

3840x1080@60Hz and 3840×2160@30Hz

(Downward compatibility)

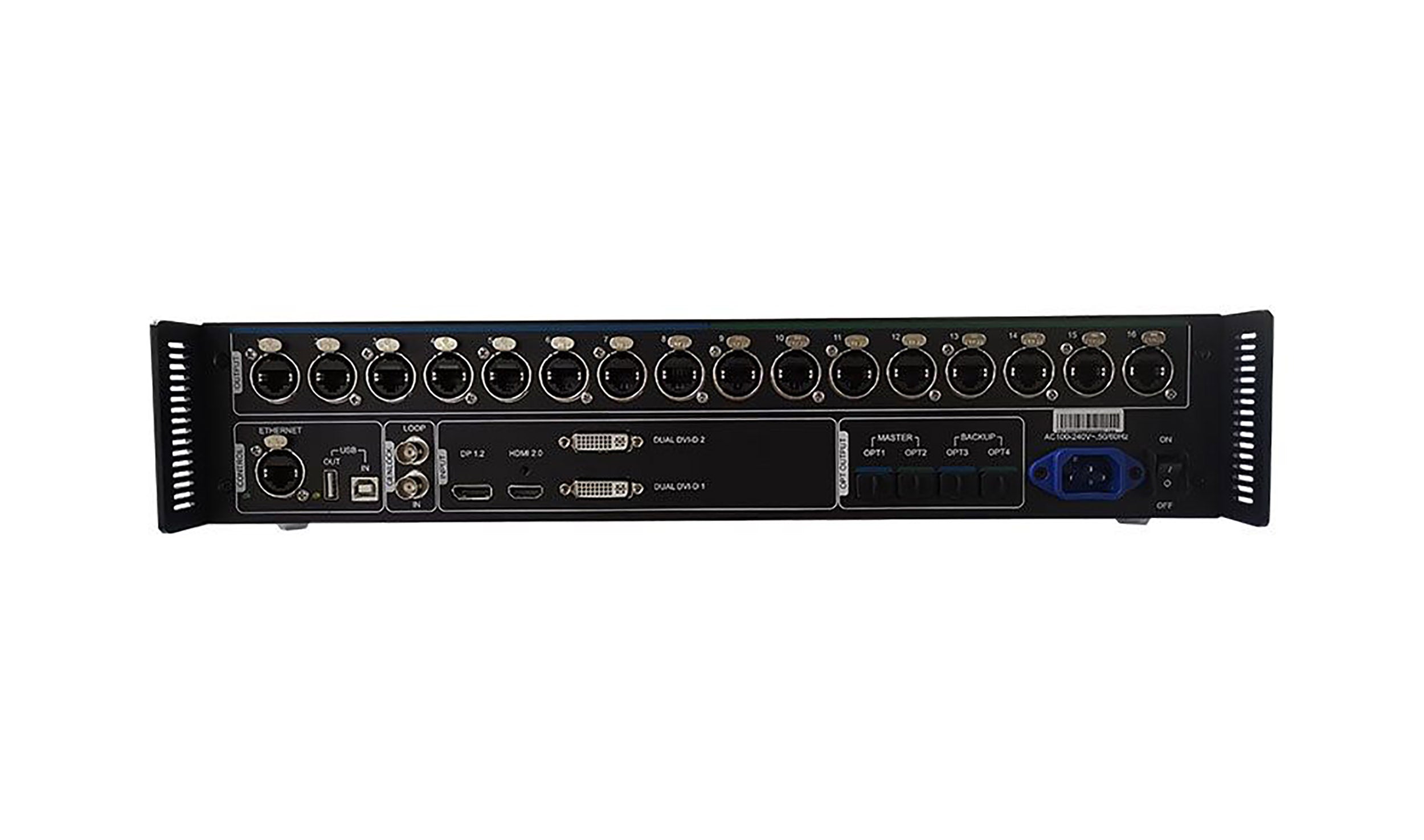

Outputs:

(16) RJ45 Neutrik Gigabit Ethernet Ports

(4) Optical Fiber Ports, single mode and double fiber, LC port, 1310mm

OPT1 is used for transferring the data of port 1-8

OPT2 is used for transferring the data of port 9-16

OPT3 is the backup channel of OPT1

OPT4 is the backup channel of OPT2

Either Gigabit Ethernet port or optical fiber port can be used at the same time. Two types of ports cannot be used to connect devices simultaneously.

Control:

(1) ETHERNET Control interface

(2) USB Control interface of upper computer and cascading interface

Size / Weight:

Length: 19.0” (482.6mm)

Width: 14.6” (372mm)

Depth: 3.5” (89mm)

Weight 10.1 lbs. (4.6kg)

Electrical / Thermal:

Input Power AC: 100-240V, 50/60Hz

Overall Power Consumption: 30W

Operating temperature: -20~60℃

Approvals:

cULus | CE | RoHs | EAC | FCC
