Description

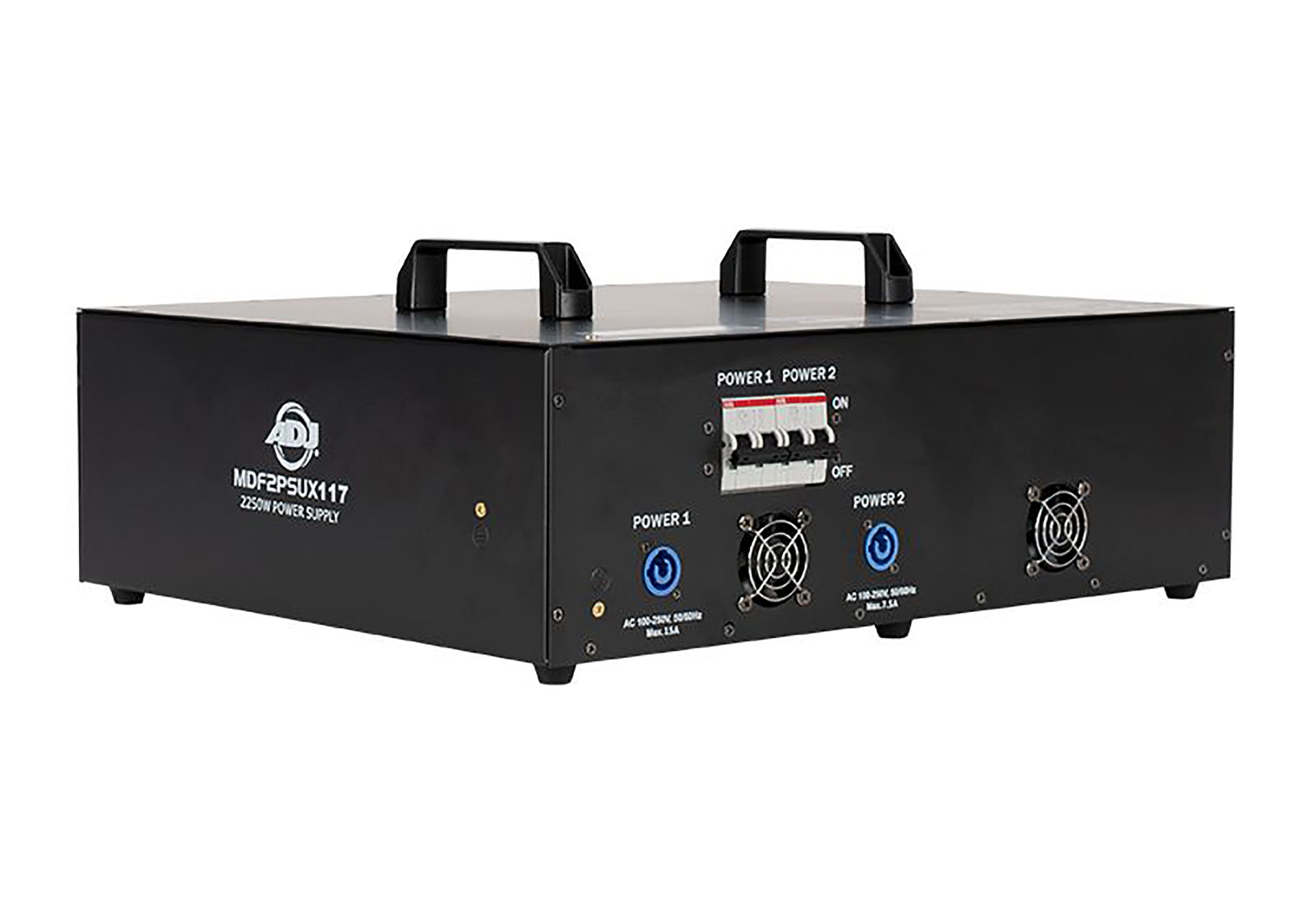

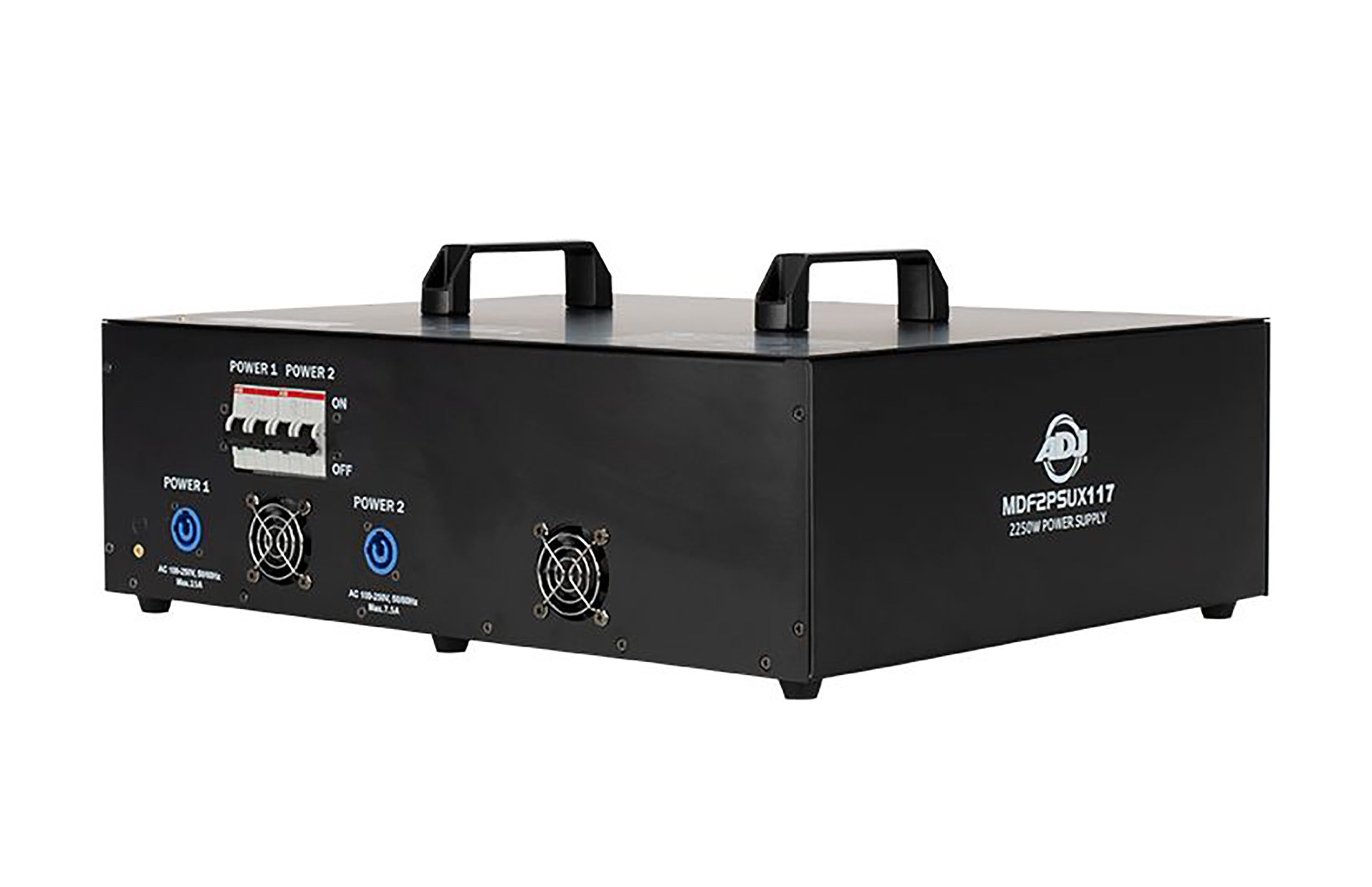

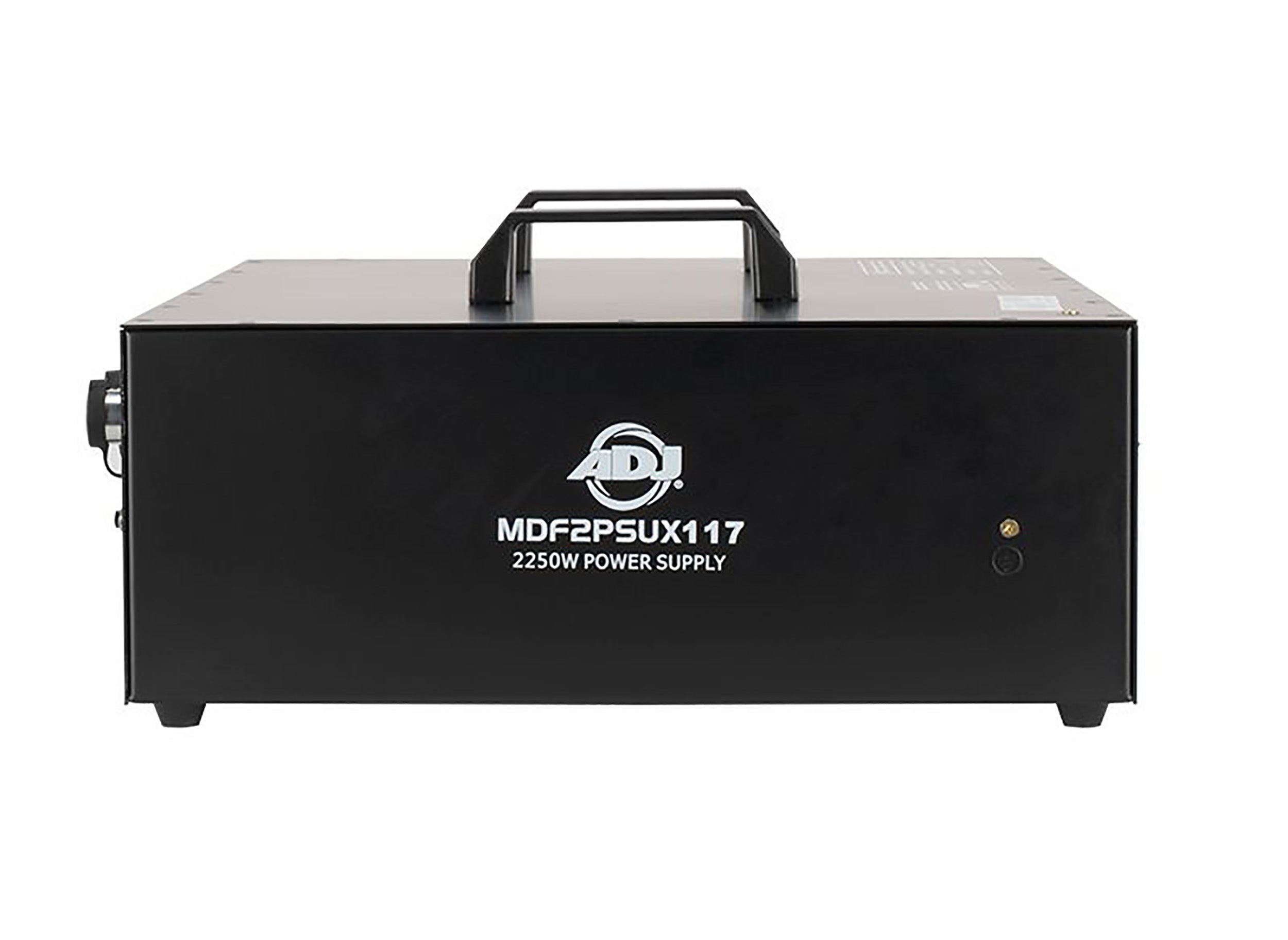

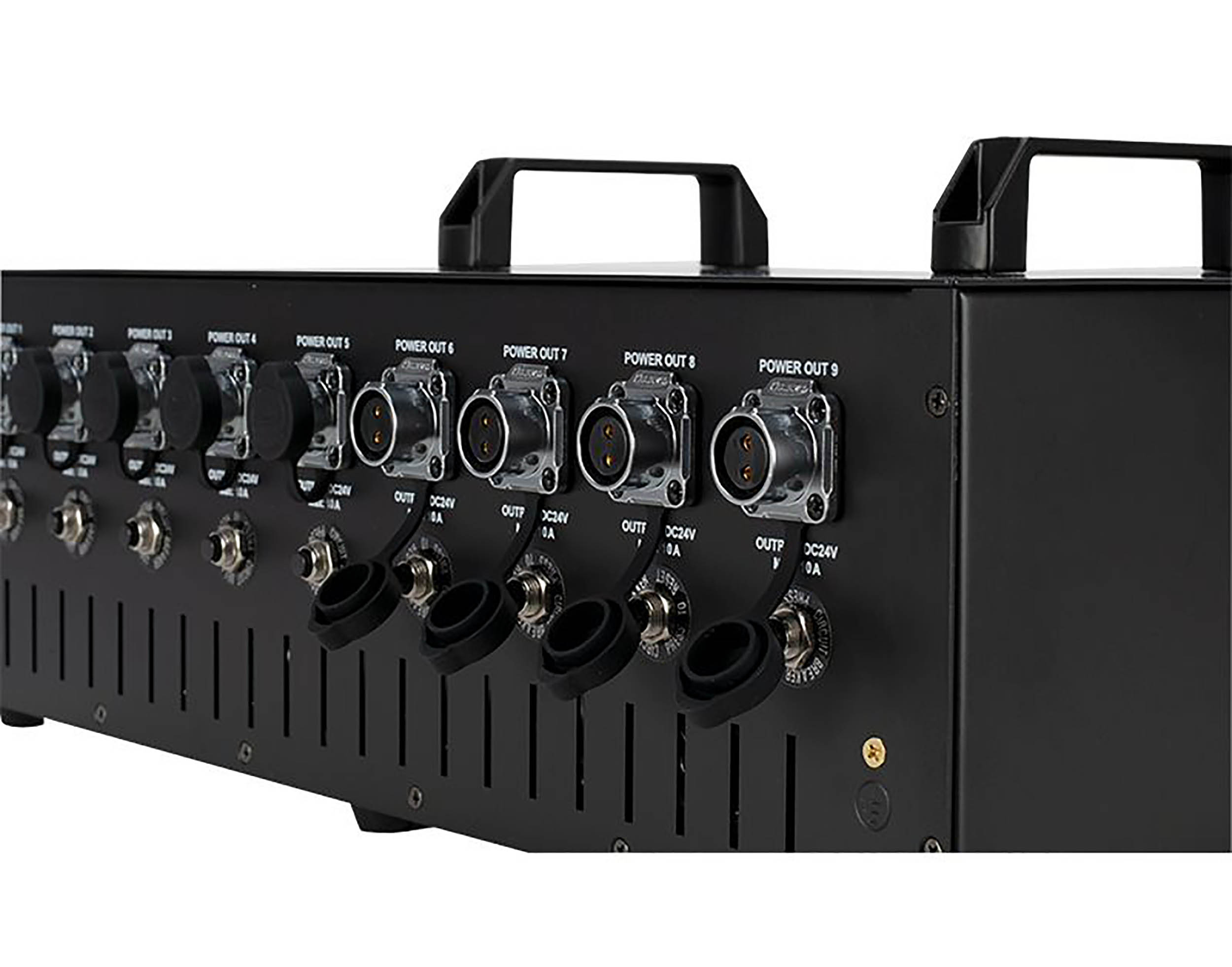

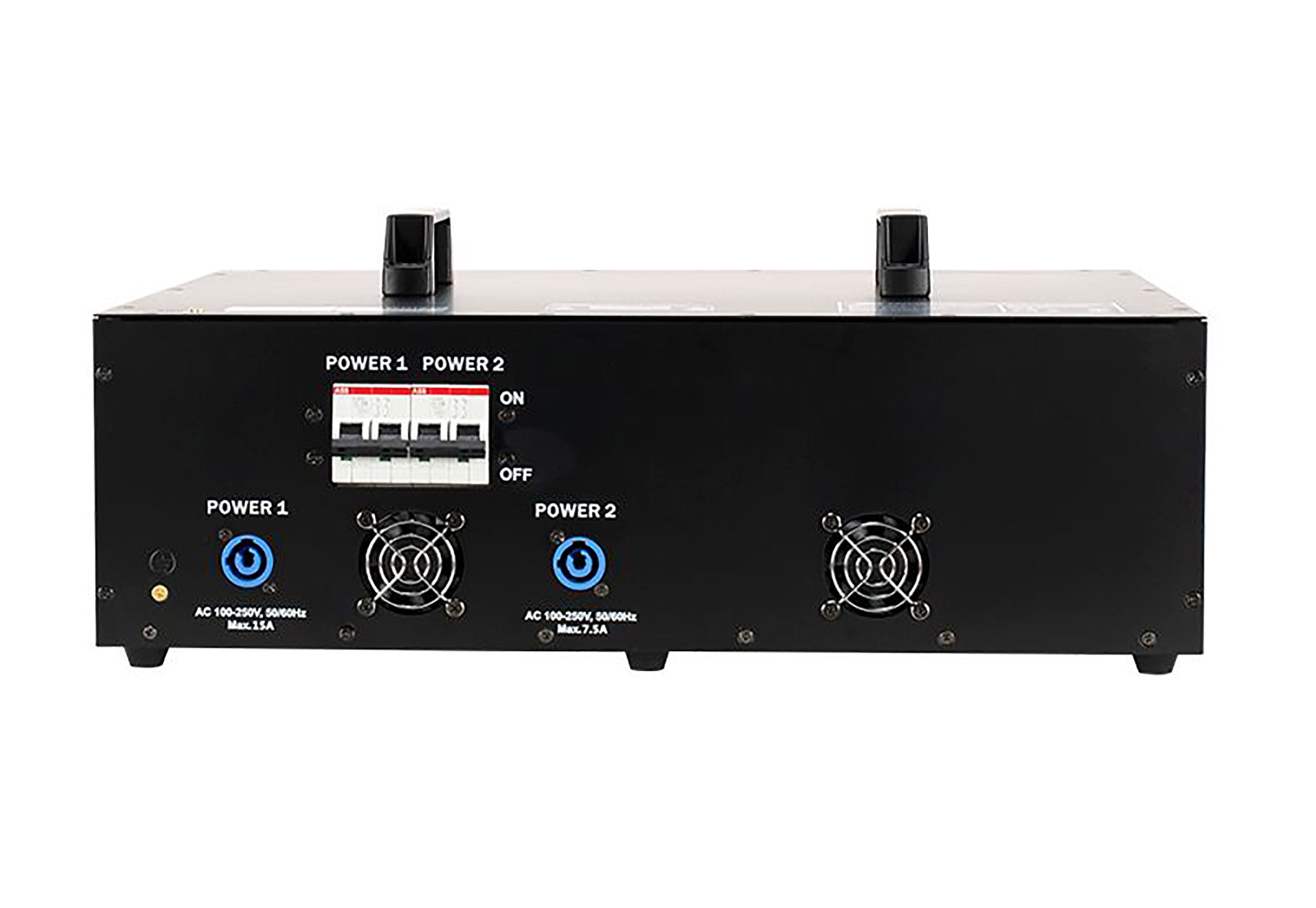

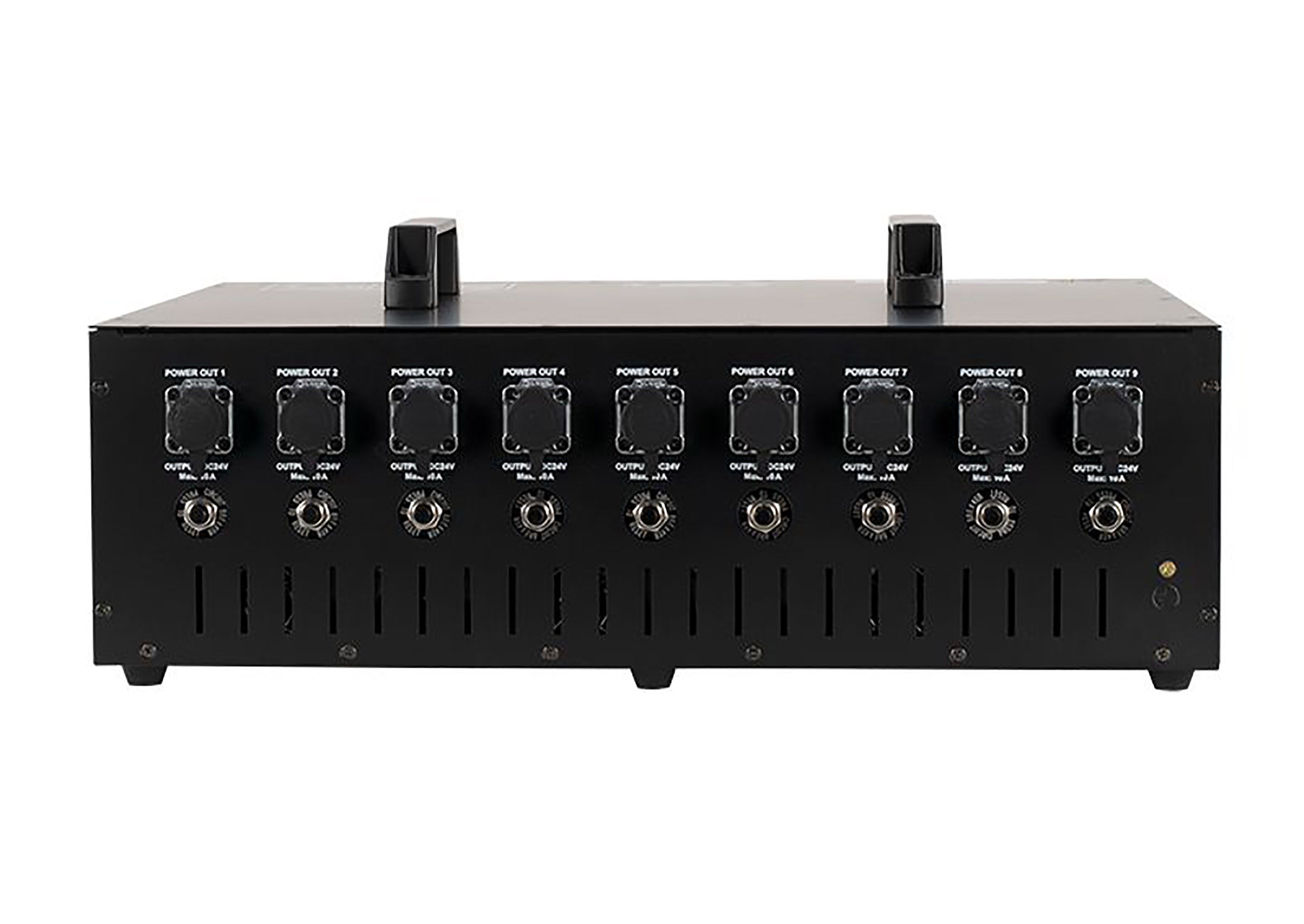

The ADJ MDF2PSUX117 is a 2250W external power supply for up to 117 ADJ MDF2 dance floor panels. It has two power locking inputs and two power breakers that each control 6 outputs. There are 9 power outputs with rubber protectors and 9 resettable breakers. There are two carrying hands on the top of the power supply, with rubber feet on the bottom.
The MDF2PSUX117 has two fans to keep the unit cool. There are two locking input power cables and nine 2-pin power output cables included in the box.
Product Specifications:
What’s Included:

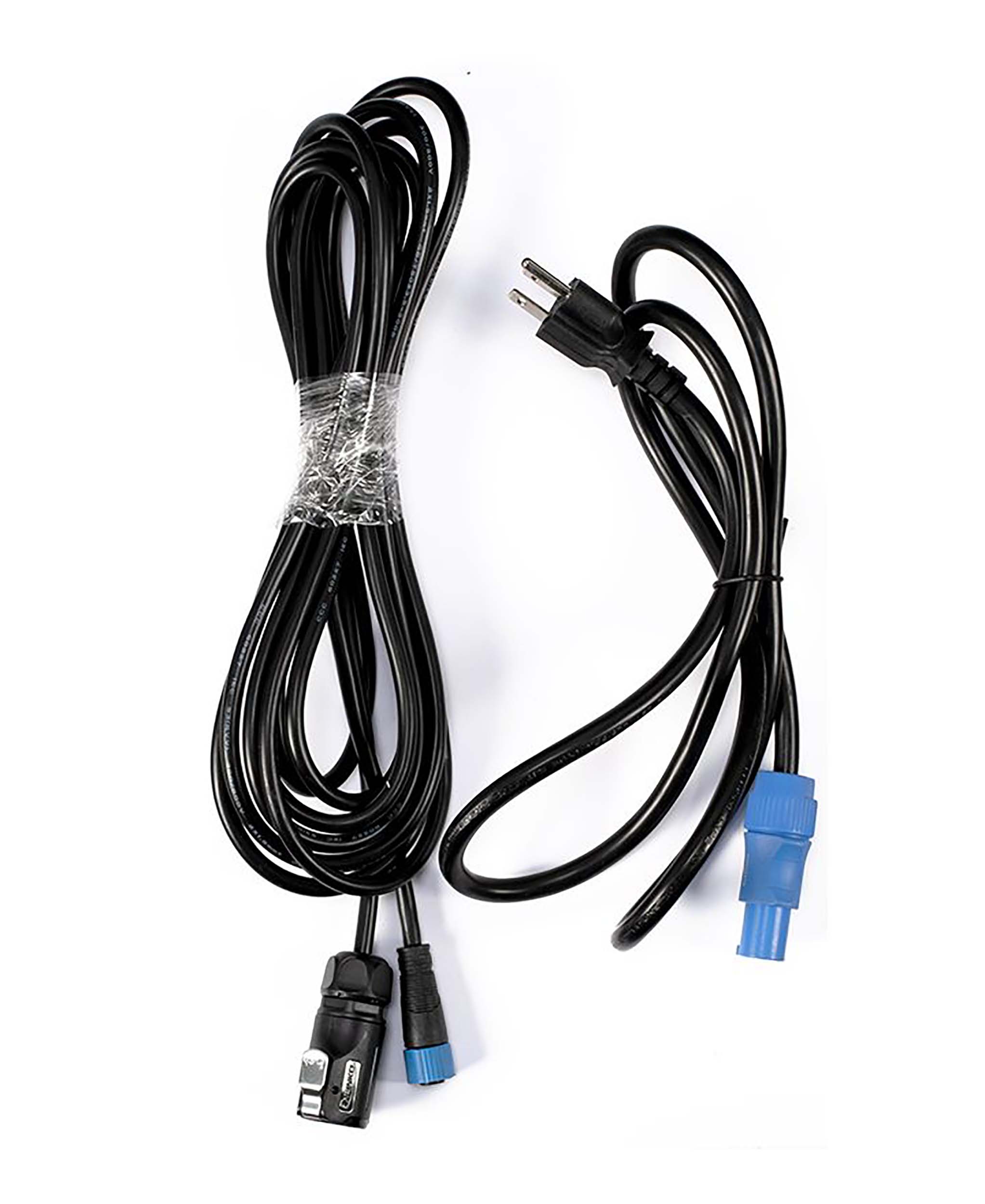

Includes two (2) 3-foot locking power cables

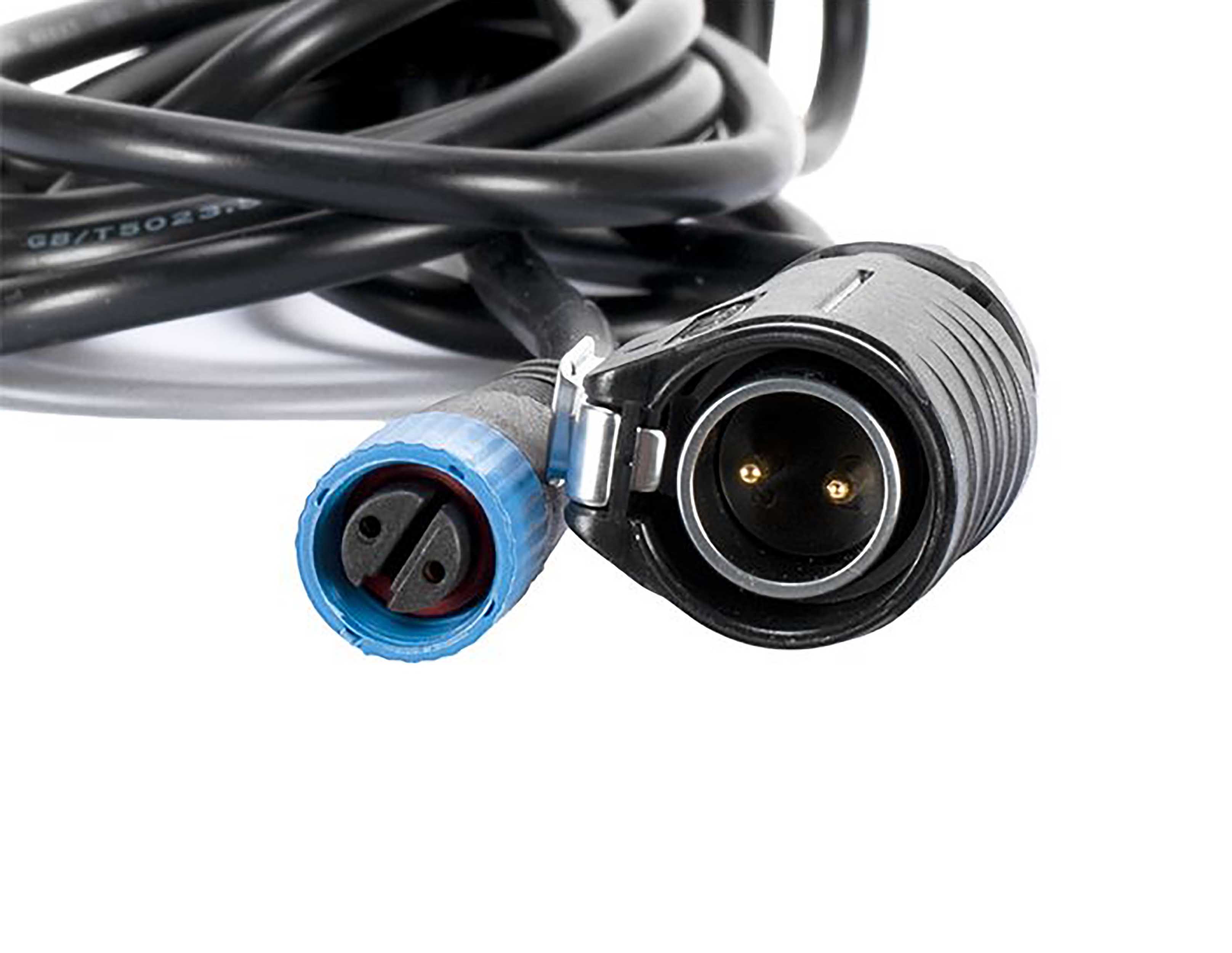

Includes nine (9) 15-foot 2-pin power output cables to connect to MDF2 panels
Electrical:
Input voltage: AC100-240VAC, 50/60Hz
Output voltage: DC24V
Maximum load power: 2250W
Load Current: 90A
Current Overload Protector Trip Time:
Within 10A of max load: no trip;
10-15A over max load: trip within 1 hour;
15-20A over max load: trips in 5.2 to 30 second;
20-30A over max load: trips in 1.5 to 5.5 seconds
Fan cooled
Dimensions / Weight:
Dimensions (LxWxH): 19.7” x 17.0” x 8.1” (650.0mm x 433.0mm x 205.5mm)
Weight: 30 lbs. (13.6 kg)
Ambient Operating Conditions:
Ambient Operating Temperature: -4˚ F to 158˚ F (-20˚ C to 70˚ C)
IP Rating: IP20
