ADJ Mirage Q6 PAK, All-in-One IP65 Battery-Powered Event Up Lighting System

The AADJ Mirage Q6 PAK, All-in-One IP65 Battery-Powered Event Up Lighting System with six (6) IP65 rated, for outdoor or indoor use, battery powered fixtures and a durable flight case with an on-board battery charging solution.

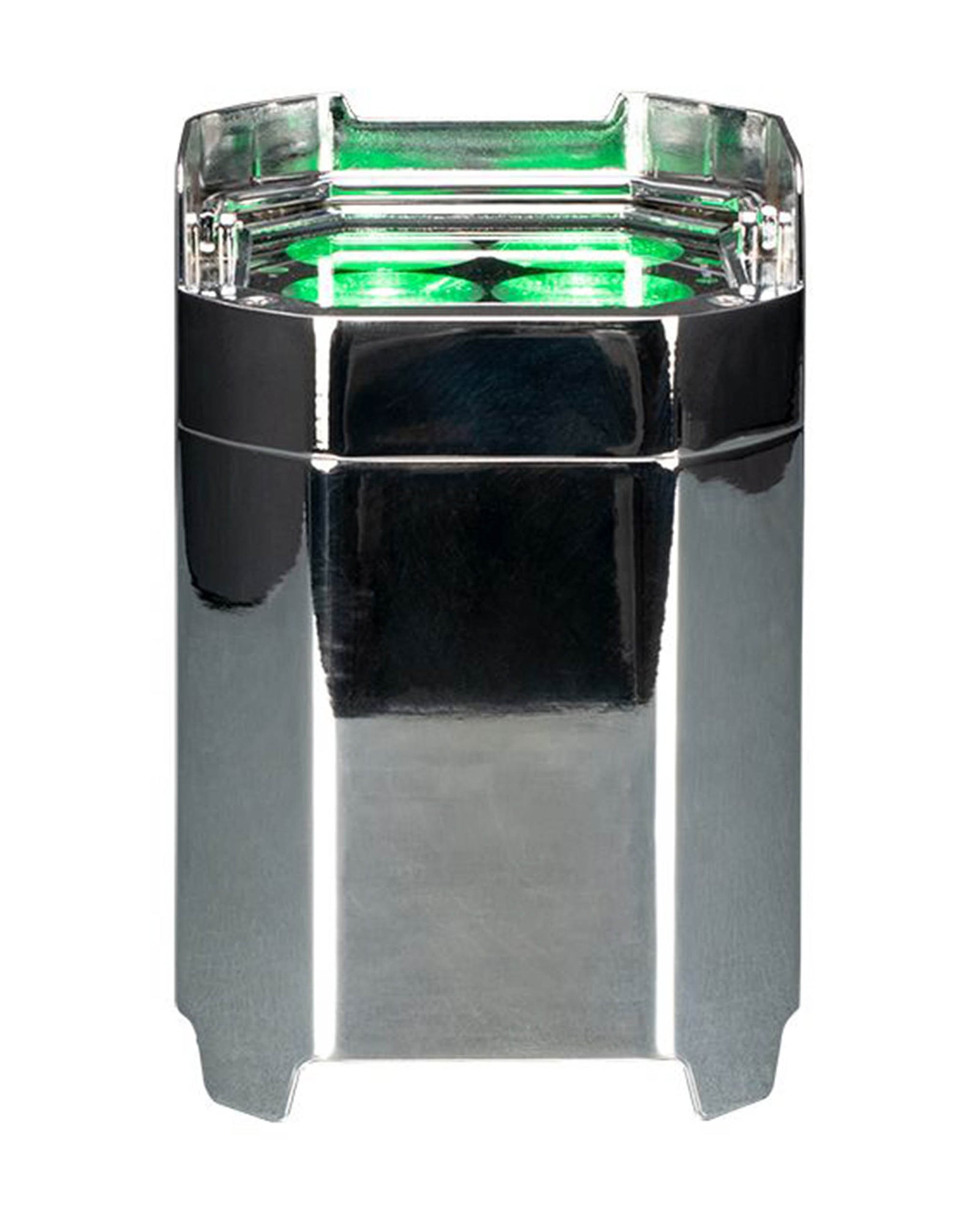

Each Mirage Q6 IP fixture is powered by four (4) 10W RGBA LEDs that produce a 11-degree beam angle. The fixture is IP65 rated and is waterproof; suitable for temporary use outdoors with protection against the elements (rain, snow, dust and sand). Built-in WiFLY EXR wireless DMX allows for the fixtures to communicate with a lighting controller, also with WiFLY EXR wireless DMX, up to 2,500 feet (700M) away.

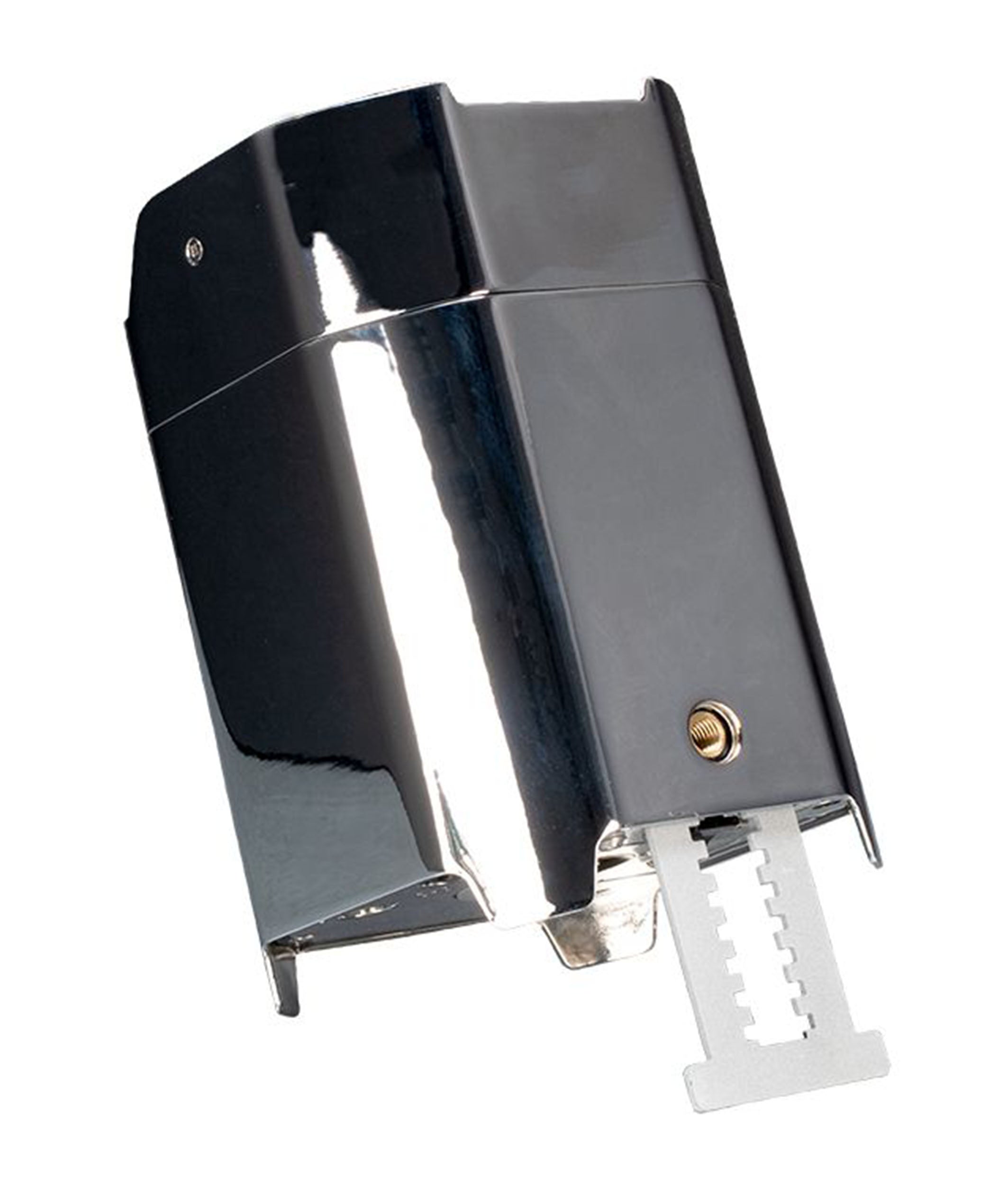

Ideal for wall washing, Mirage Q6 IP fixtures are all fitted with an integral carry handle and built-in feet which mean they can simply be dropped in place and are ready to go. They also feature a built-in kickstand which allows the beam to be easily angled inwards towards a wall if required. This creates a more intense wash and minimizes light spill onto the ceiling above.

Each fixture has an alarm system with on/off controls. If someone picks up the fixture with the alarm system on, the fixture will make a beeping sound and strobe in red. The robust battery will operate up to 40 hours on a single color (20 hours changing colors). The battery charge time is 7 hours.

Product Specifications:

Mirage Q6 Pak Includes:

(6) Mirage Q6 Ip Fixtures

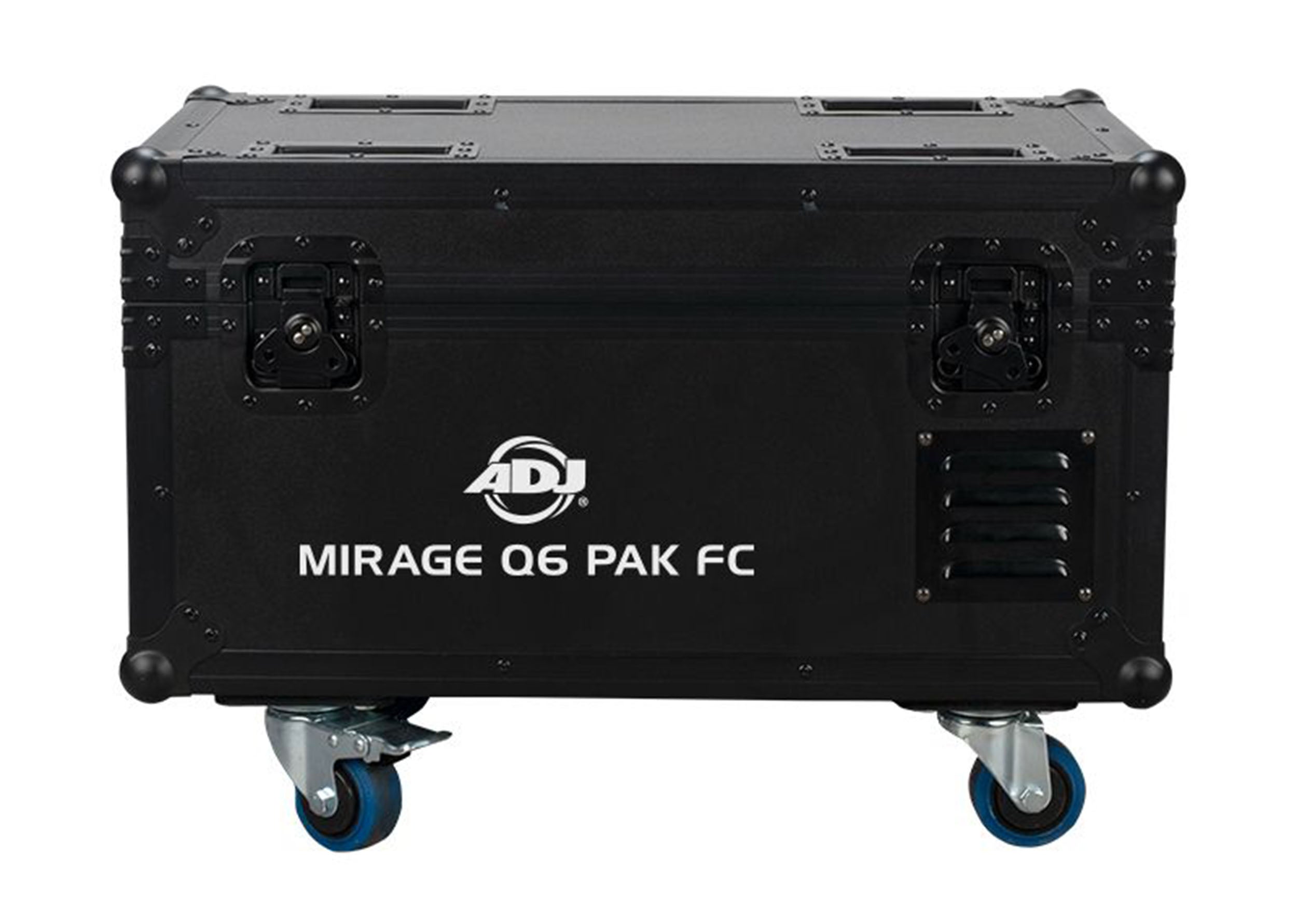

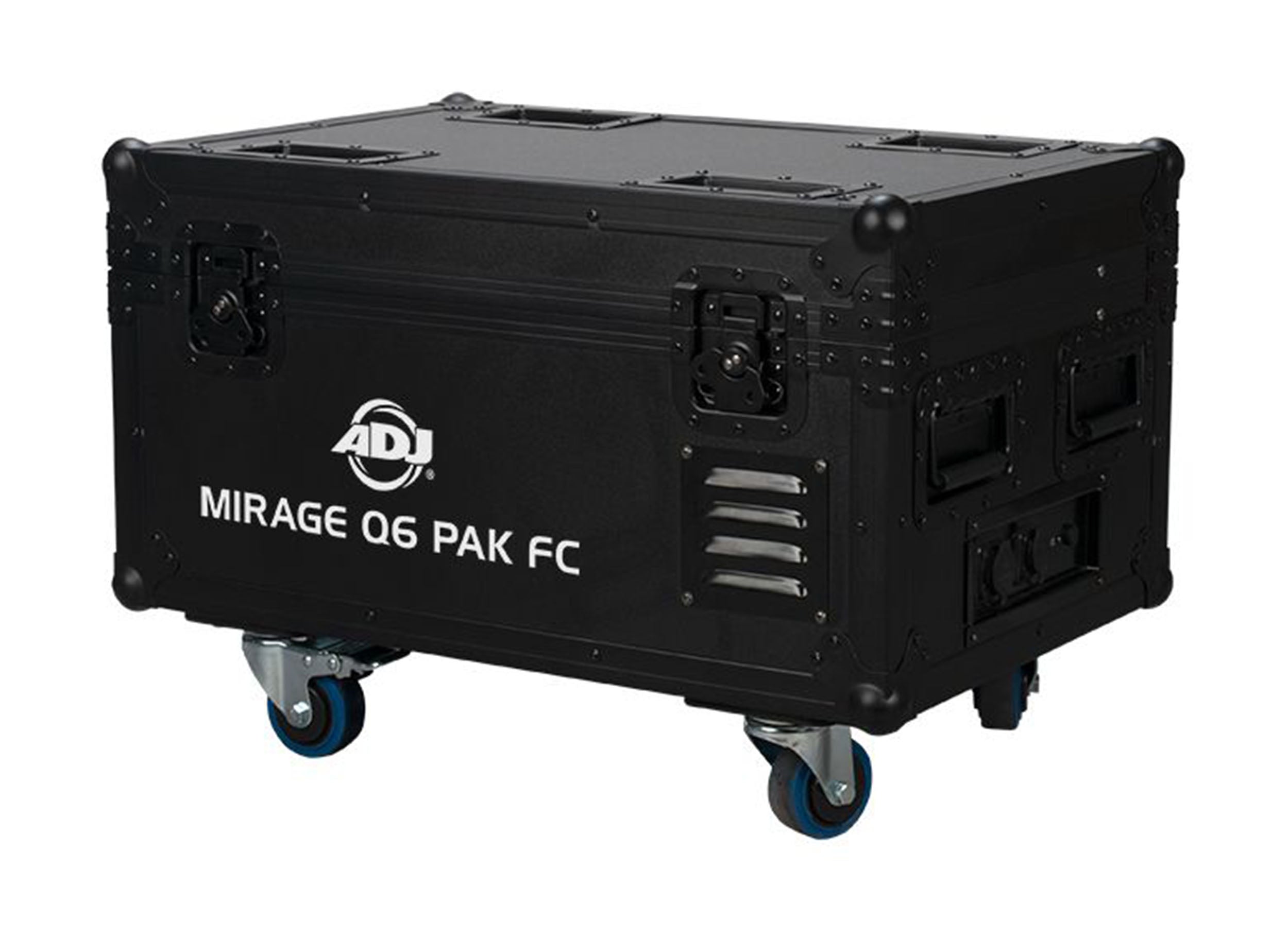

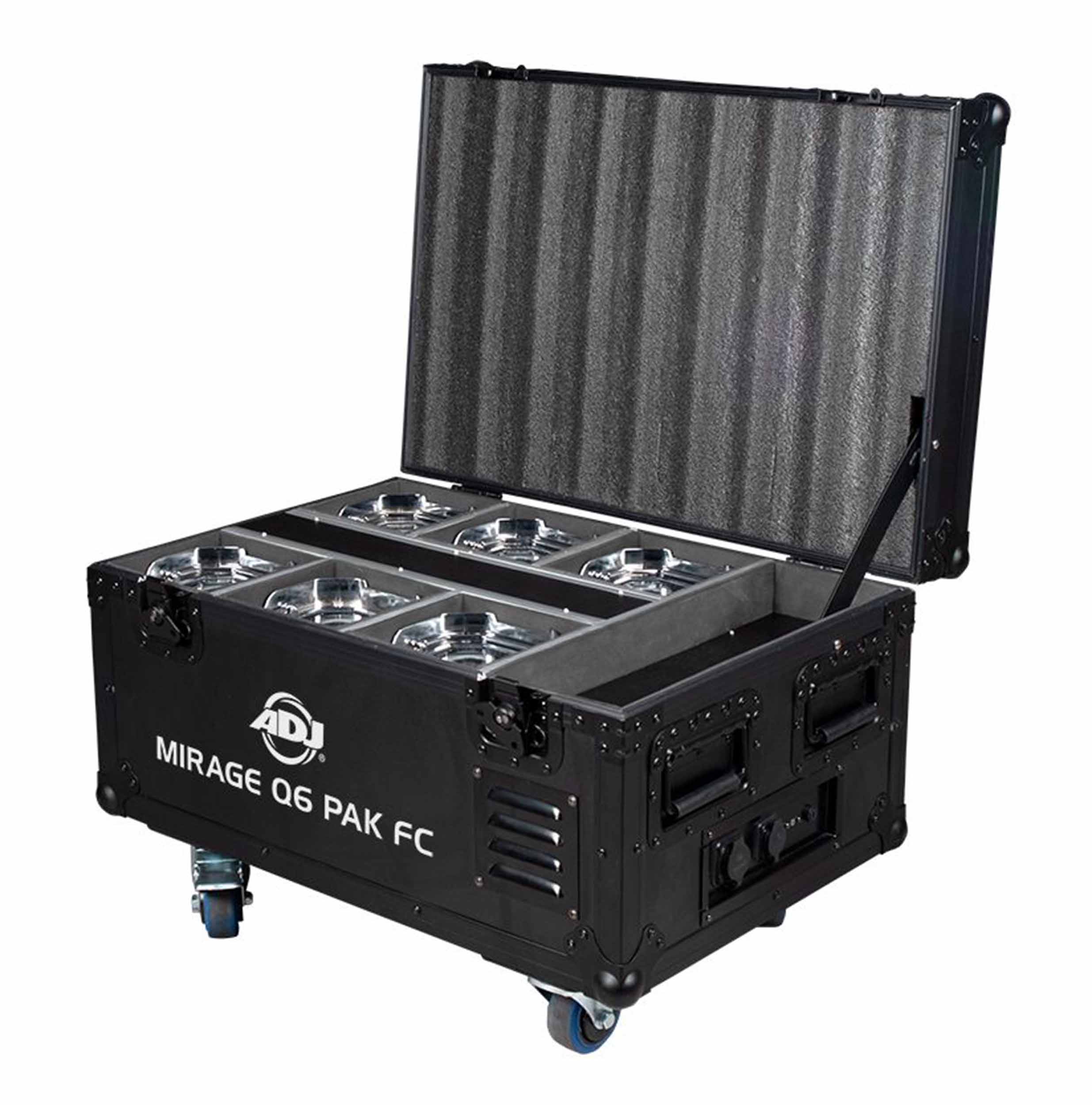

(1) Mirage Q6 Fc Flight Case

(6) Mirage Q6 Ipcb Charging Bases and Power Supplies

(1) Uc-Ir Wireless Infrared Controller

(1) Ip65 Locking Power Cable

Mirage Q6 Pak Features:

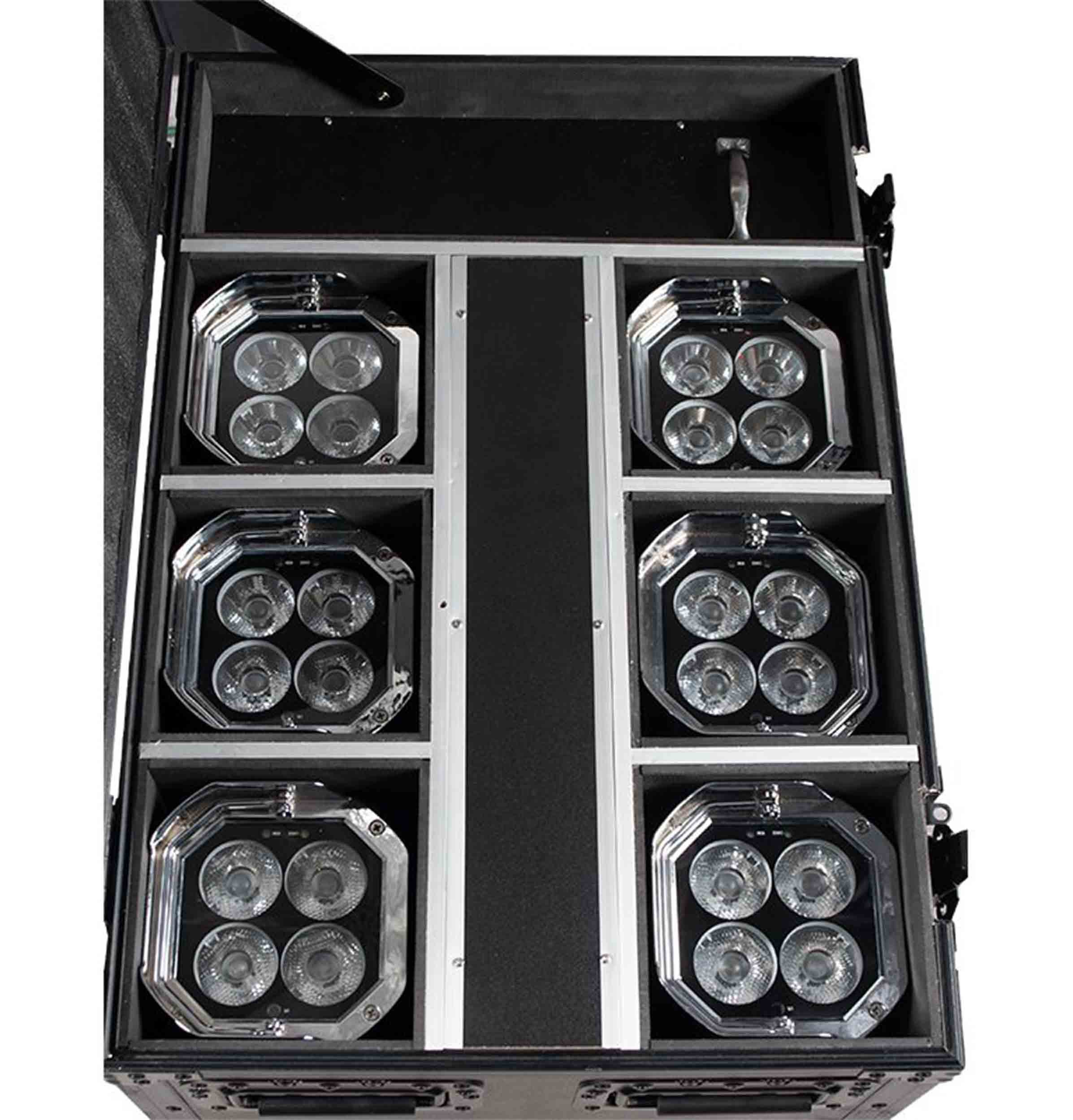

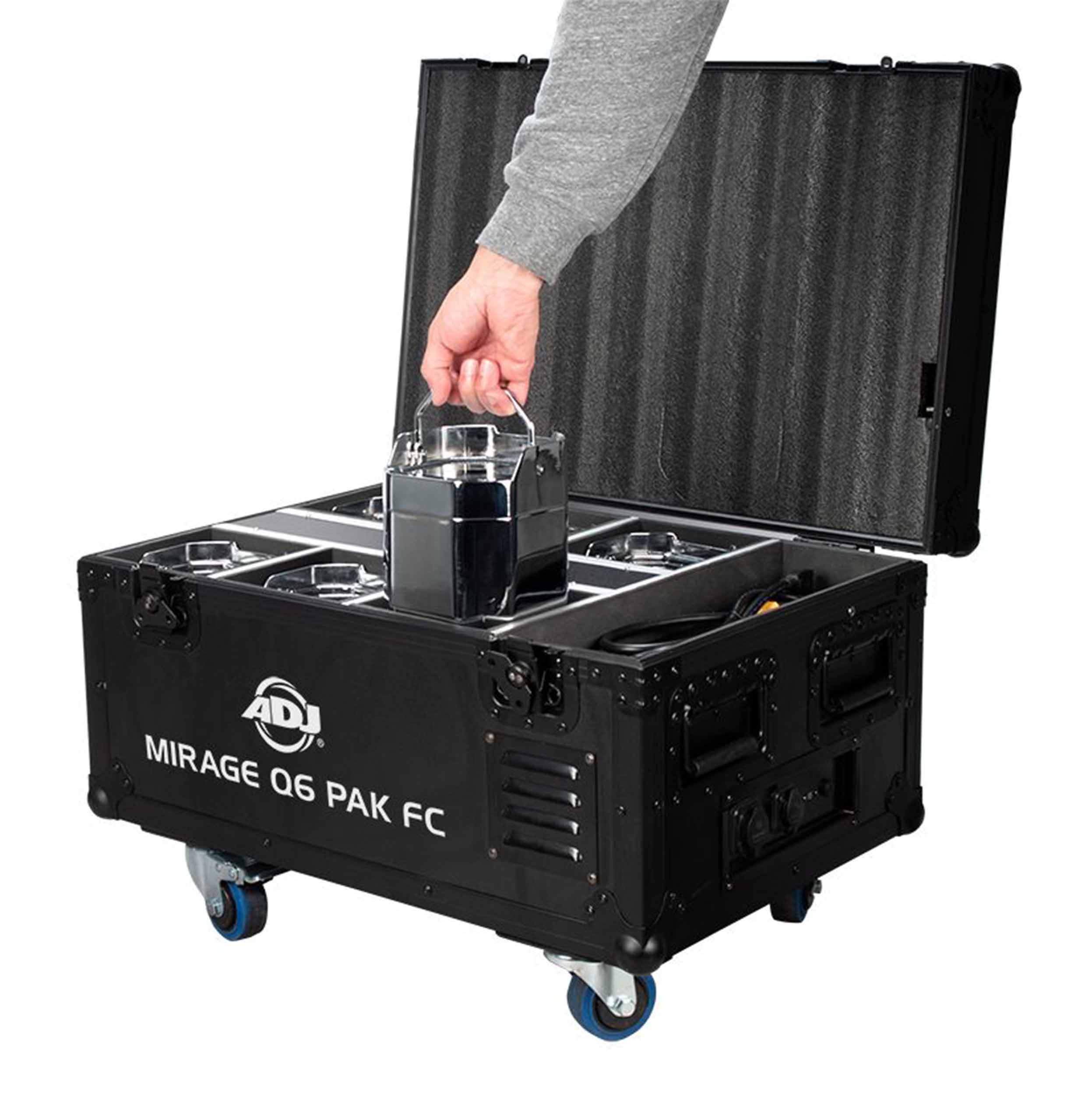

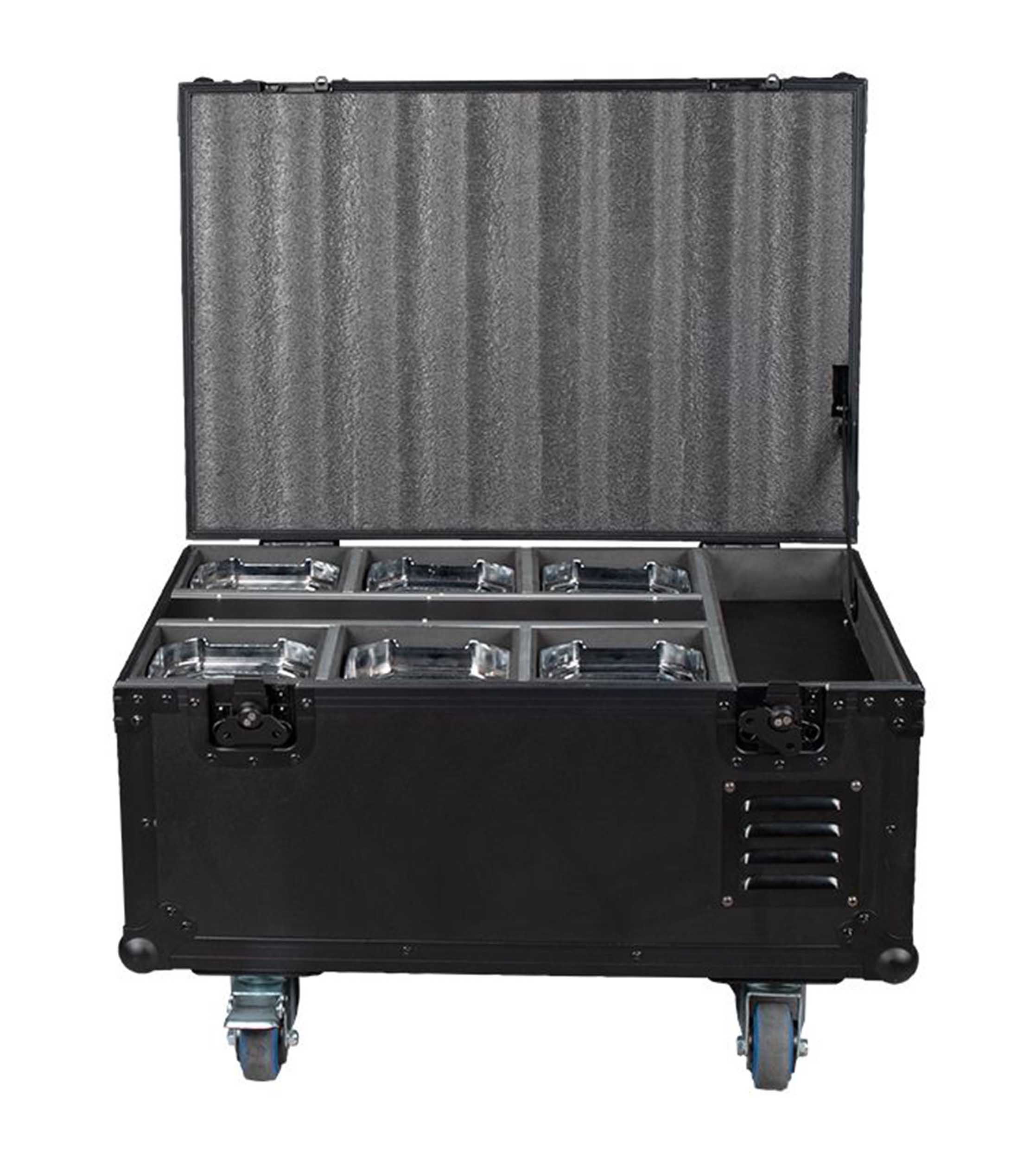

Houses / Transports and Charges (6) Mirage Q6 Ip Fixtures

Mirage Q6 Pak Dimensions / Weight:

Length: 26.4” (671mm)

Width: 18.2” (461mm)

Vertical Height: 18.1” (459mm)

Loaded Weight: 97.9 Lbs. (44.4 Kg)

Pak Electrical / Thermal:

Power Input: Ac100vac~240vac, 50/60hz

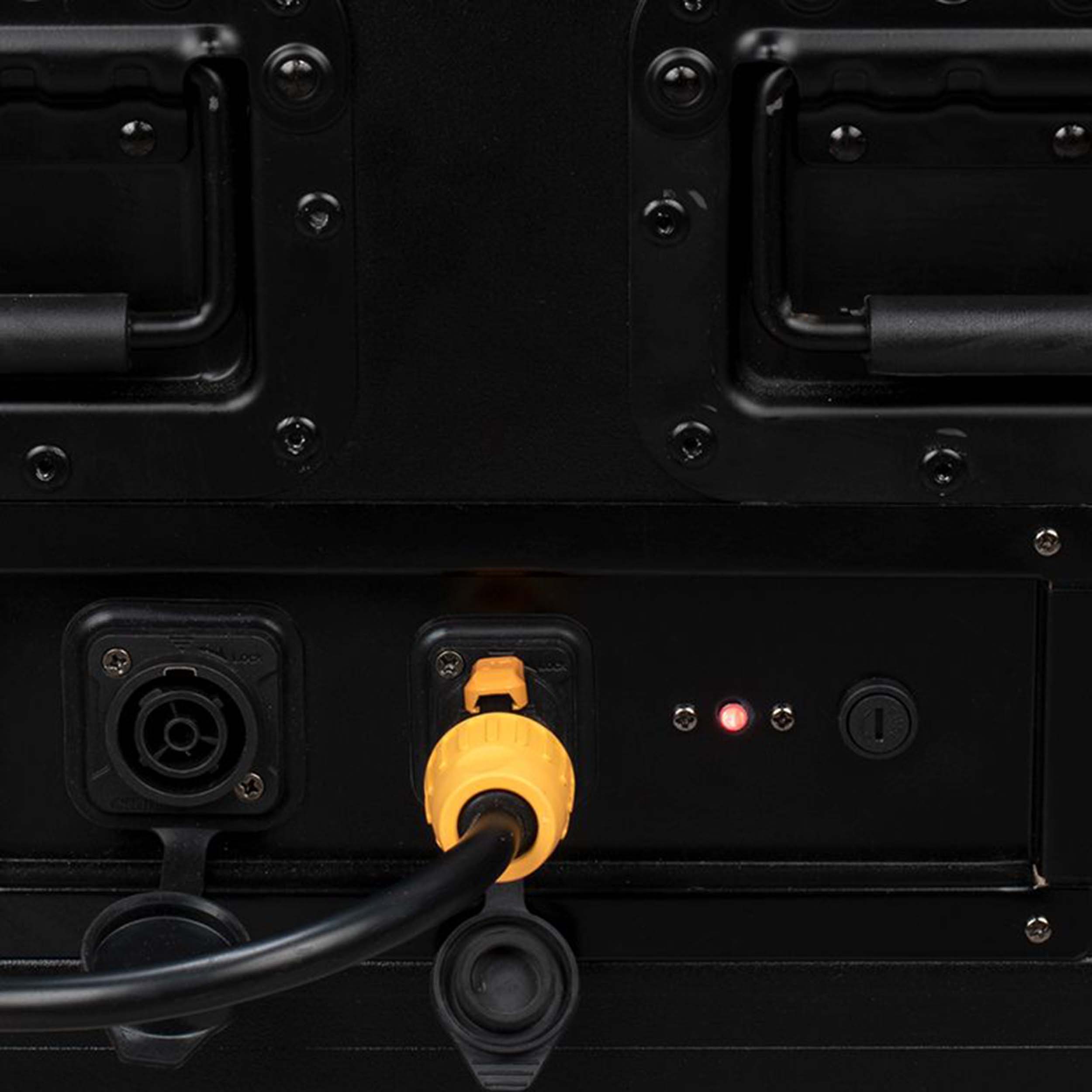

Ip65 Power Locking Input and Output

Max Power Consumption: 400 Watts

Power Draw: 4a

Charge Status Indicator

14°F To 113°F (-10°C To 45°C)

Fixture Source:

4 X 10-Watt Rgba Leds (4-In-1 - Red, Green, Blue & Amber)

50,000 Hour Average Life

May Vary Depending on Several Factors Including but Not Limited To:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, And Dimming.

Photometric Data:

Lux: 9903 @ 2m; 2303 @ 4m

Fixture Optics:

11-Degree Beam Angle

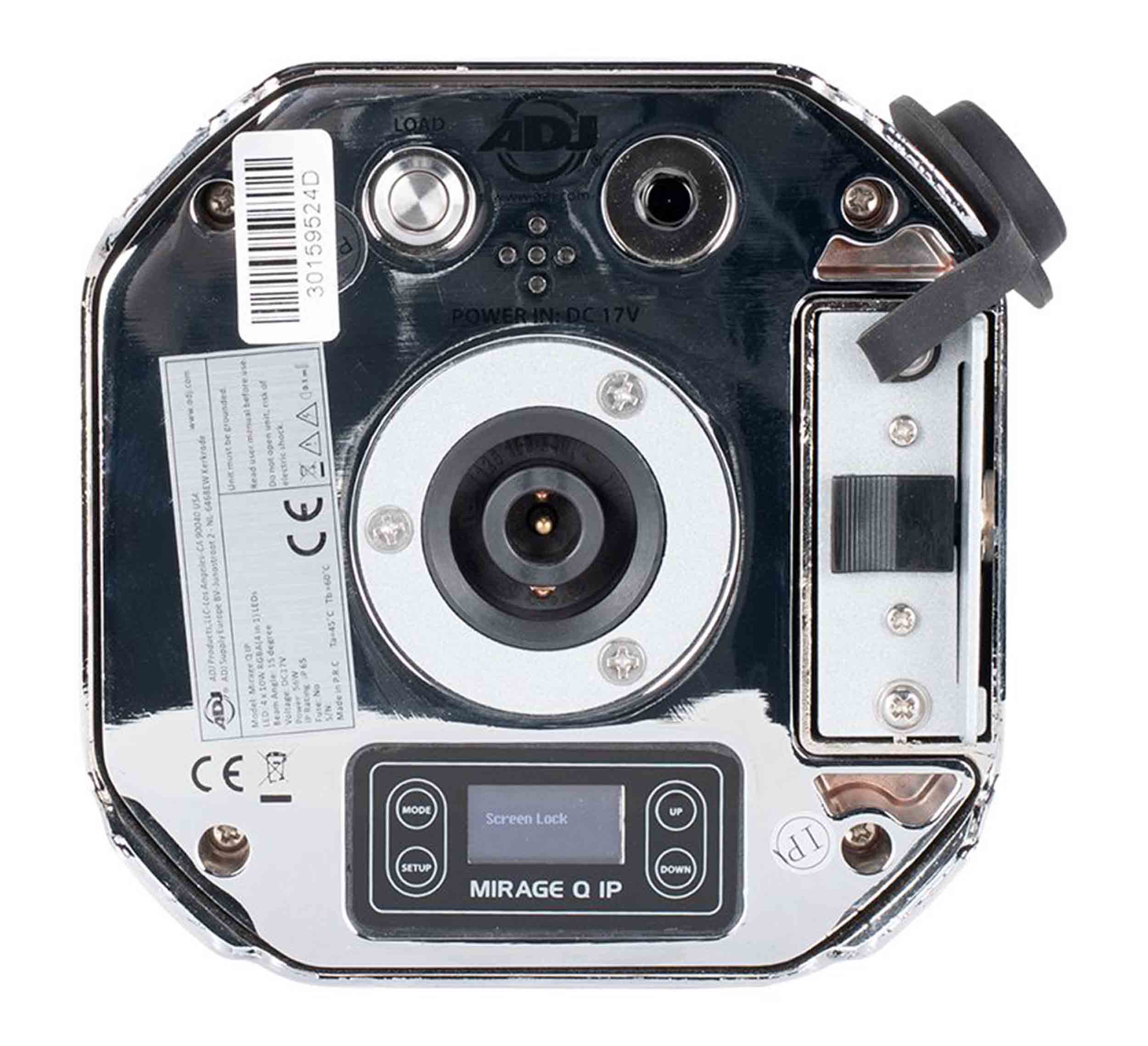

Fixture Control / Connections:

Control Protocol: Wifly Exr Wireless Dmx

11 Dmx Channel Modes: 4, 6, 7, 8, 9a, 9b, 10, 11, 12, 15 Or 18 Channels

Remote Control: Wifly Exr Dmx, Uc-Ir (Included), Airstream Ir

5 Operation Modes:

Rgba Dimmer Mode; Auto Run Mode (13 Programs, & 1 Color/Fade Combo Mode)

Static Color Mode; And Wireless Dmx Control

With Wired Digital Communication Network

Contact Charging System. 6x Charging Bases and Power Supplies Included in Flight Case

Fixture Battery:

Battery Type: Fixed Lithium Battery

Battery Energy: 162.8wh (Watt Hours)

Battery Weight: 0.84 Kg.

Battery Voltage: 14.8v

Battery Capacity: 11000mah (Typical Capacity)

Total Lithium Ion Cells: 20 Pieces

Battery Wrap Material: Pvc Sleeving + Highland Barley Paper

Battery Charge Time: 7 Hours

Battery Life:

14 Hours (When Color Changing in Battery Saver Mode 14)

40 Hours (When Set to A Single Color in Battery Saver Mode 14) Battery Saver Mode 14 Is Available In Software V1.03>

Fixture Dimensions / Weight (Single Unit):

Dimensions

Length: 5.6” (143.2mm)

Width: 5.6” (143.2mm)

Vertical Height: 8.3” (211mm)

Weight: 8.84 Lbs. (4.01 Kg.)

Fixture Electrical / Thermal:

Power Input: Dc 17.3v

Amperage Draw: 2a

40w Max Power Consumption (Each Unit)

14°F To 113°F (-10°C To 45°C)

Fixture Certifications:

CETLus Approved (Control #4002034)

Ce Approved

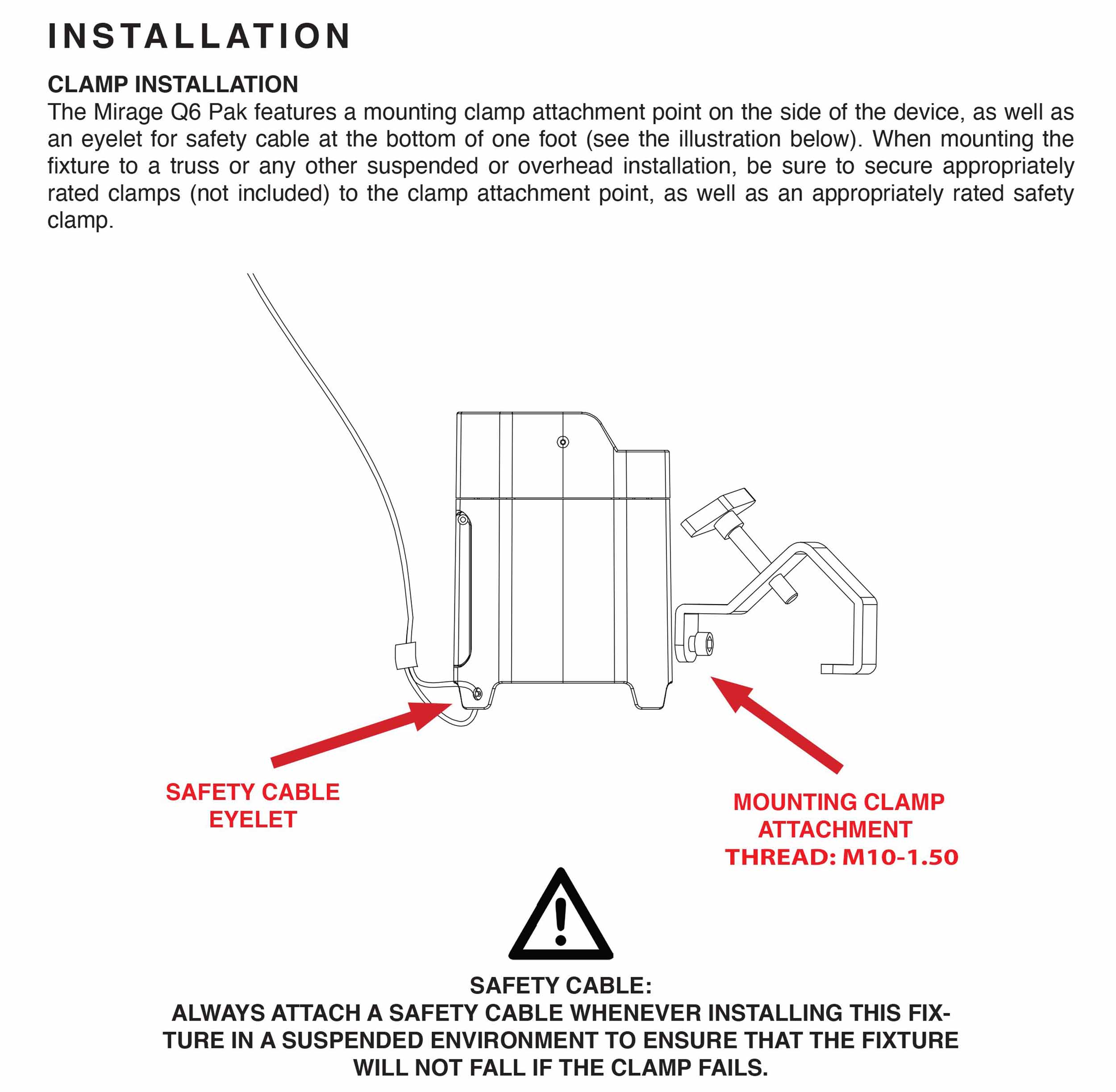

Installation:

Rigging: Clamps (Not Included) / Floor

Working Position: Any (360°)
