Description

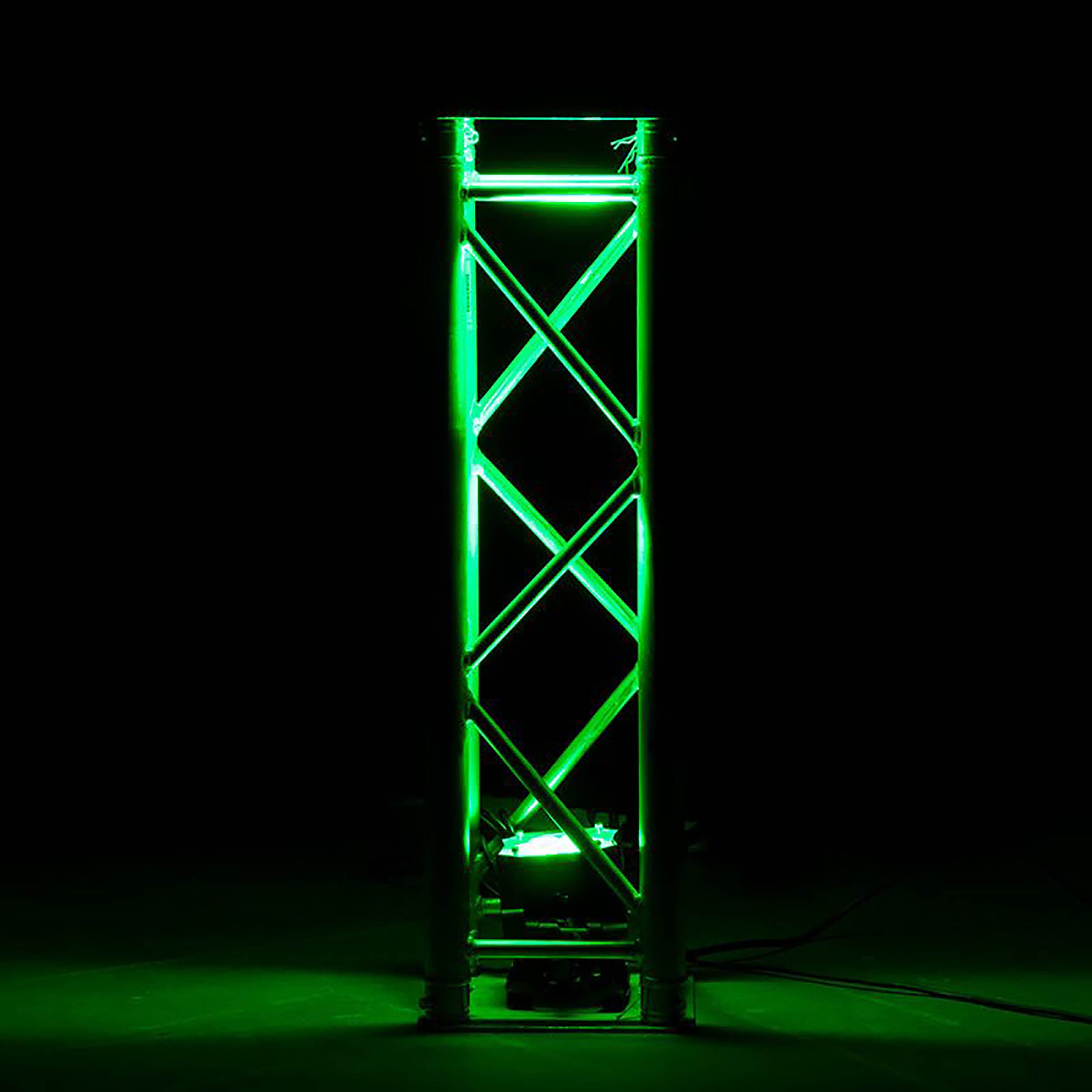

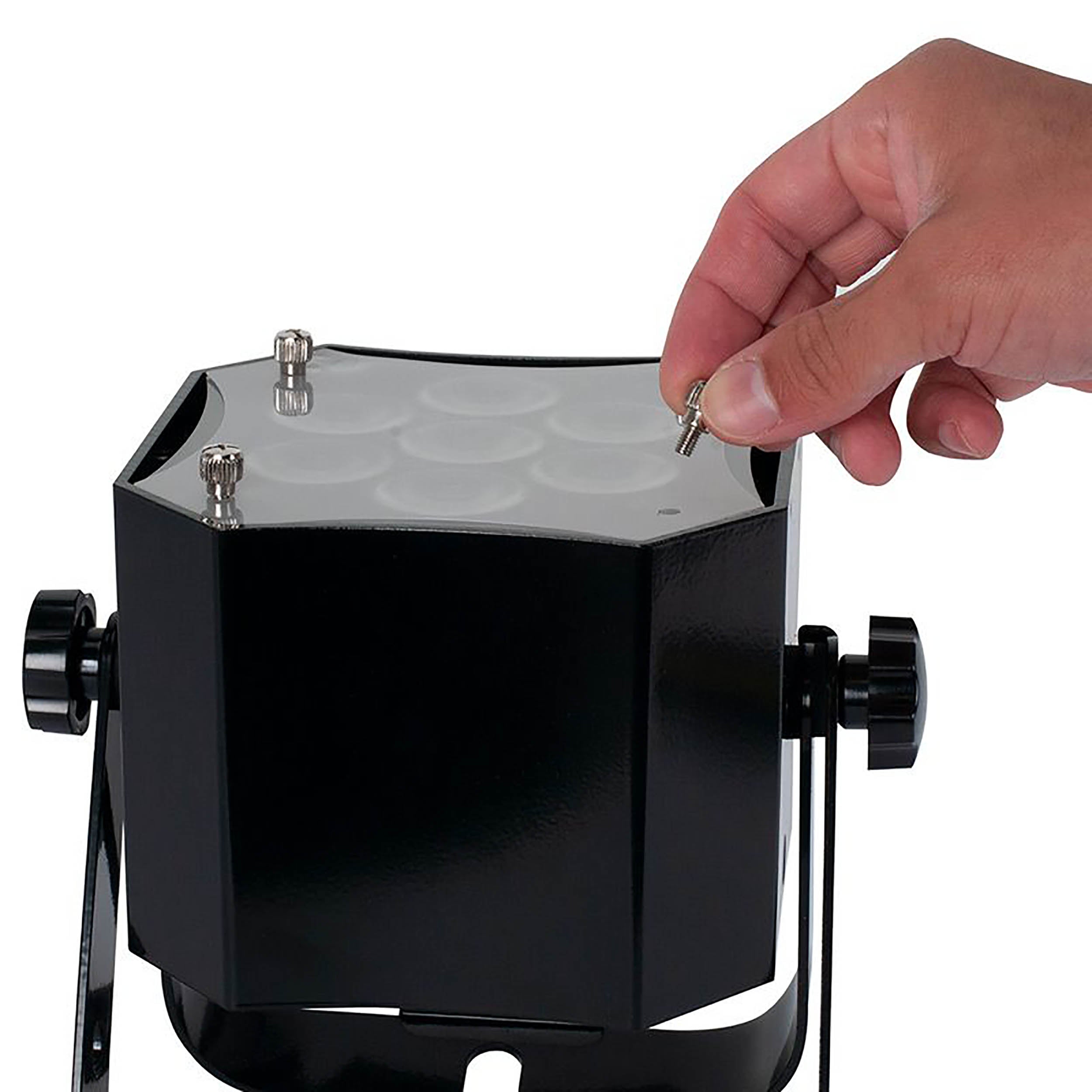

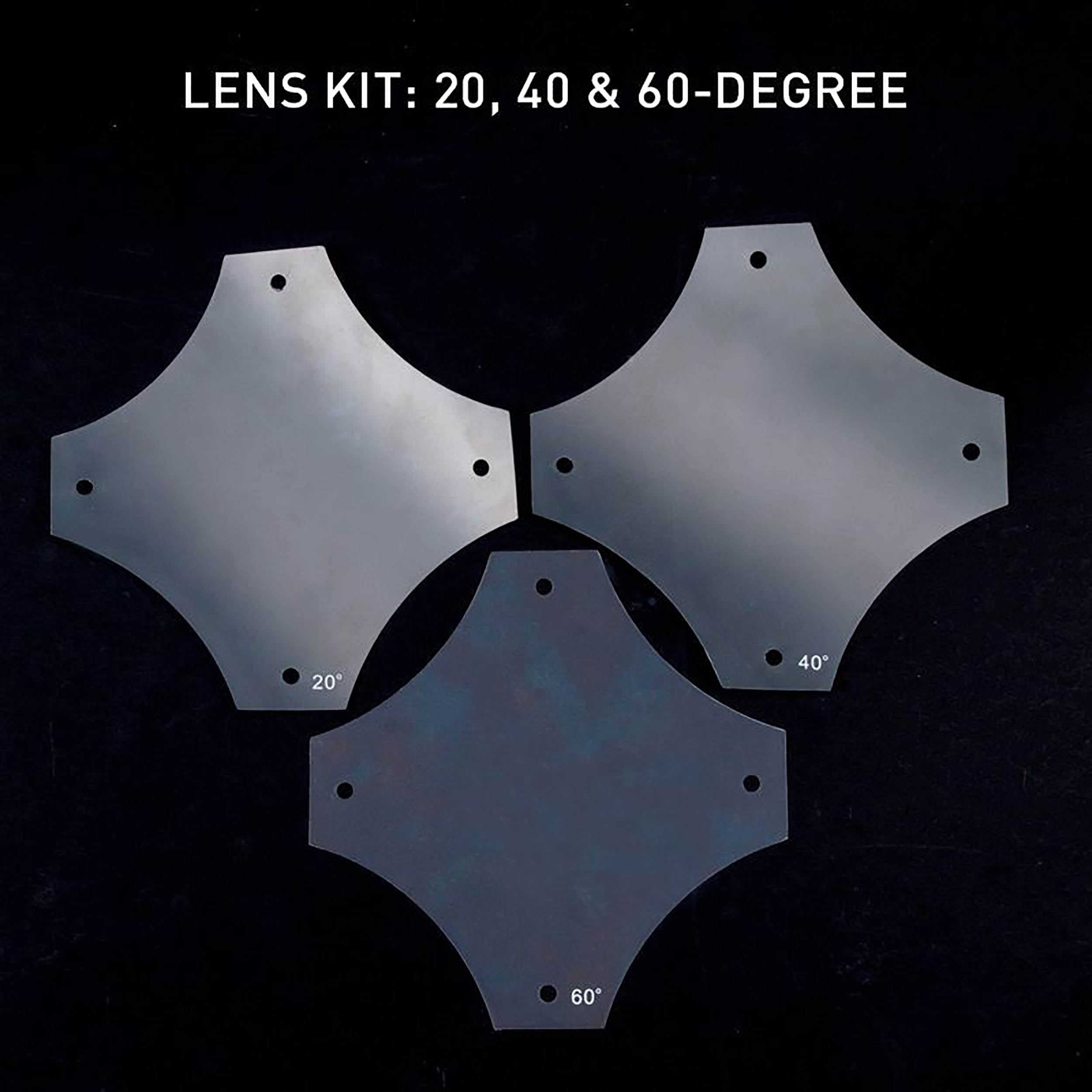

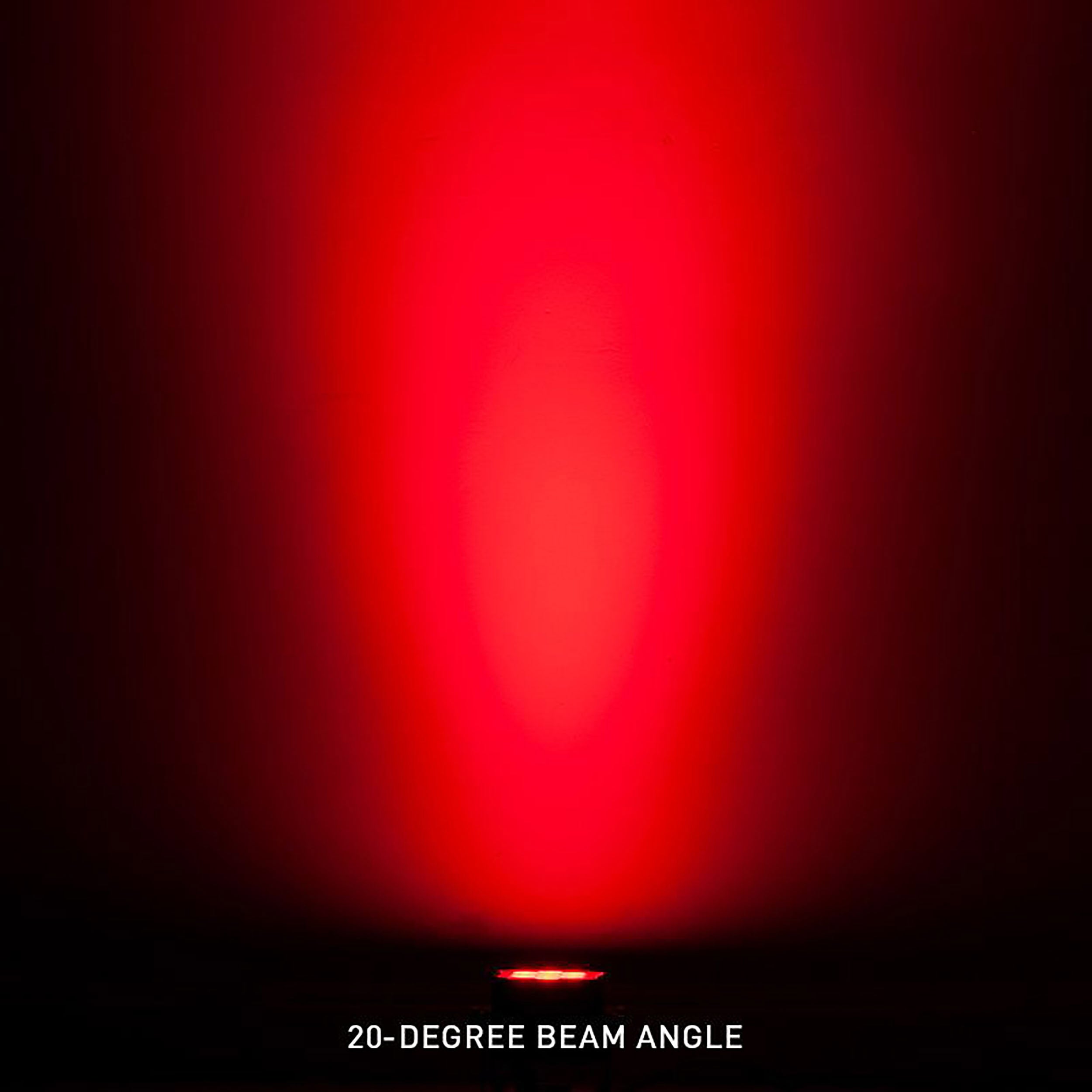

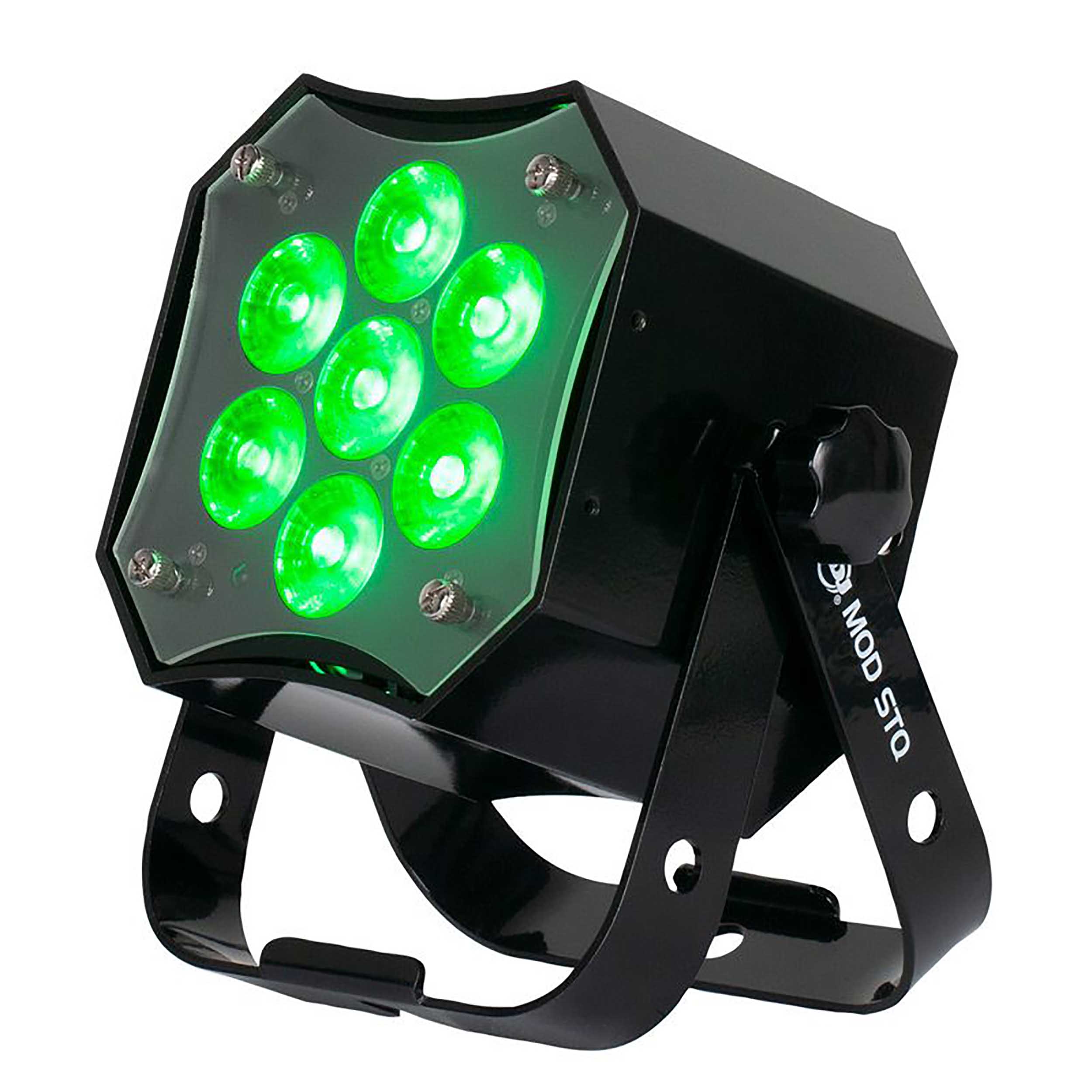

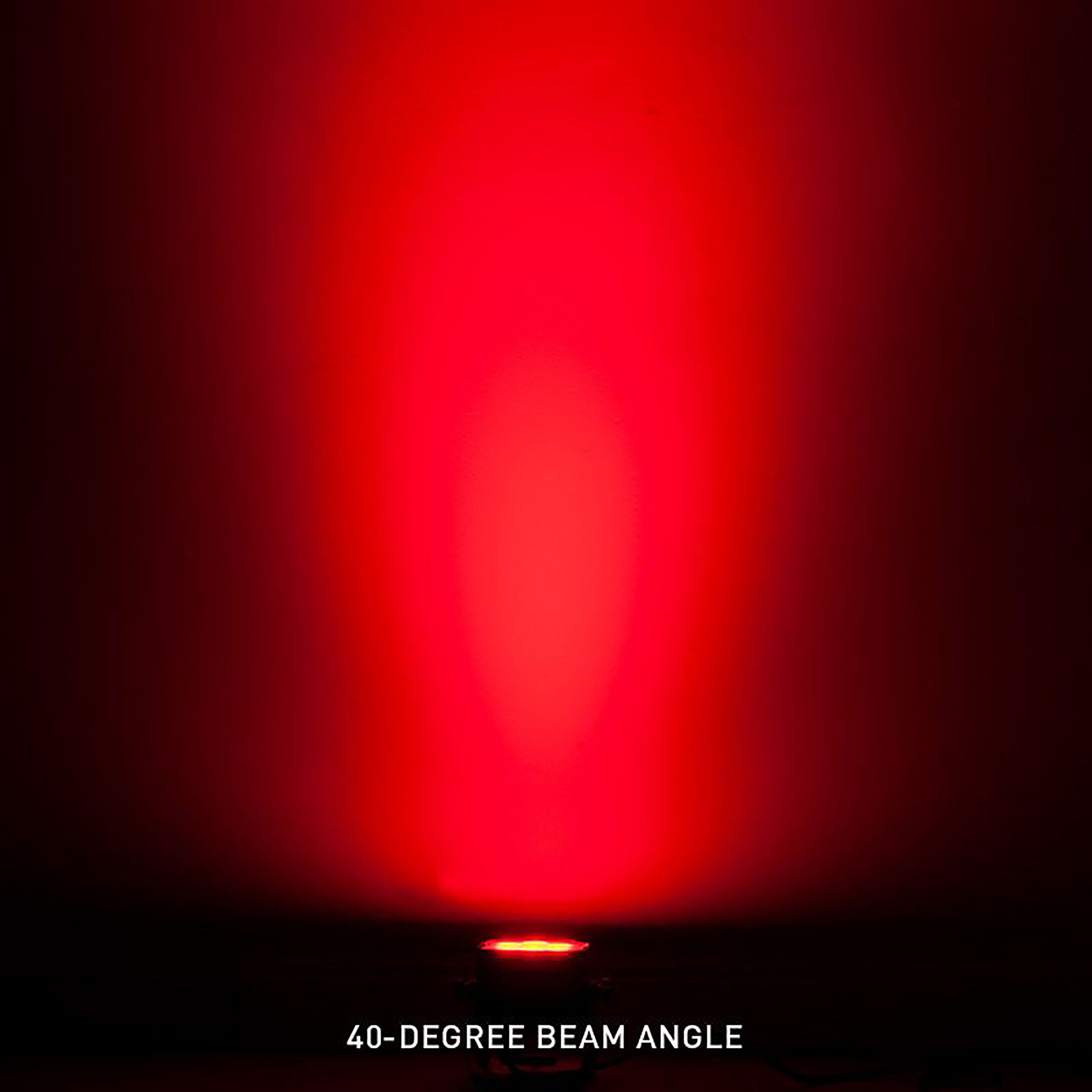

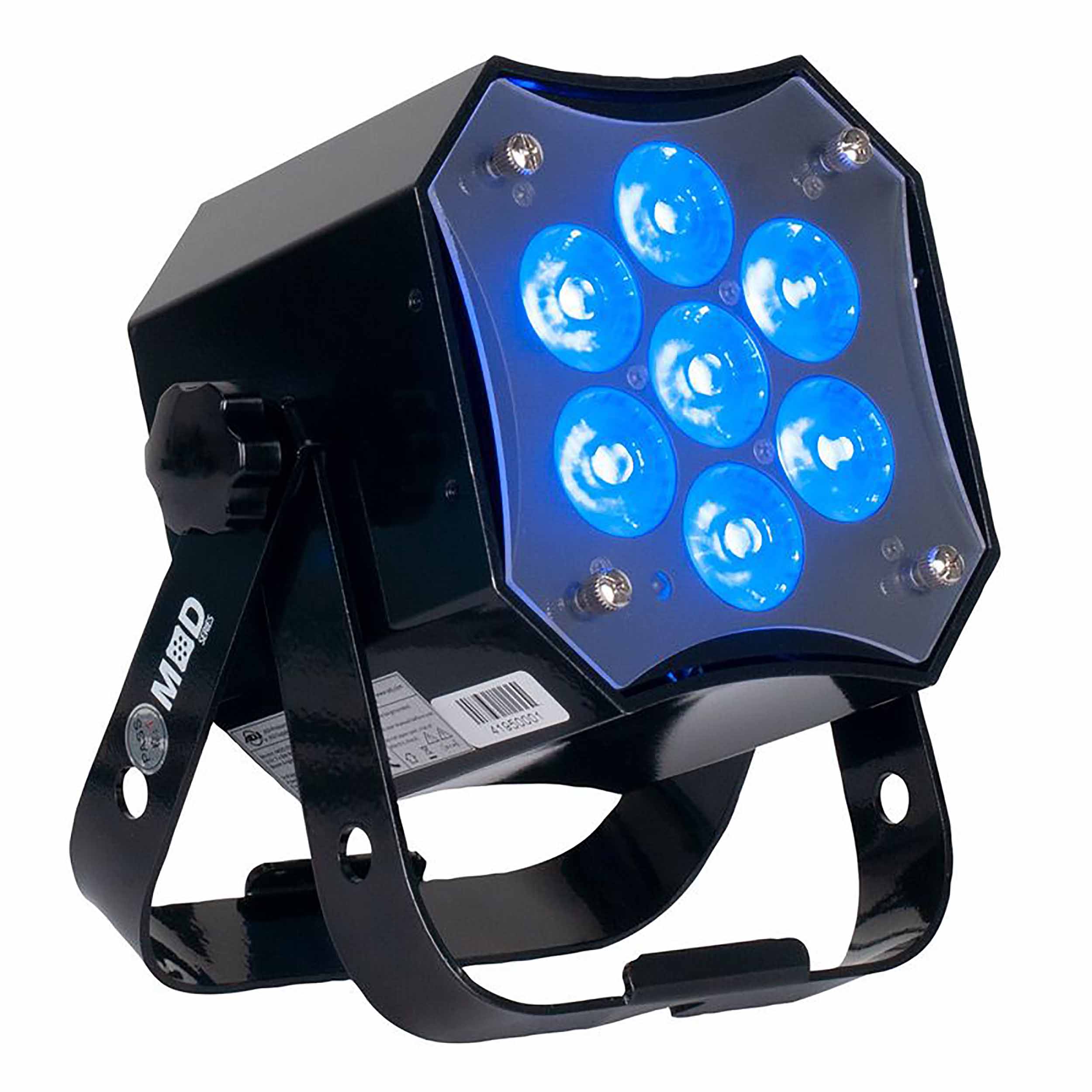

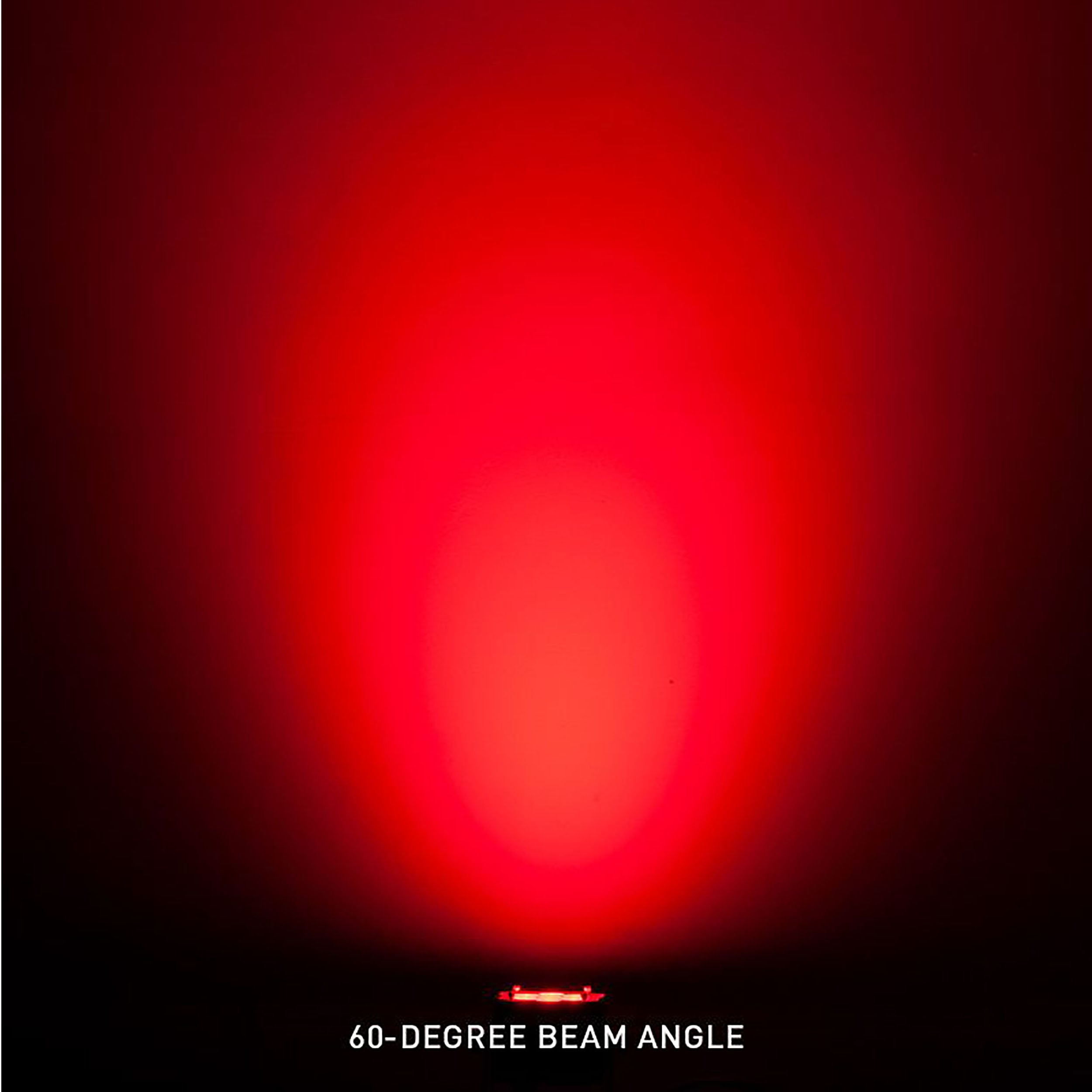

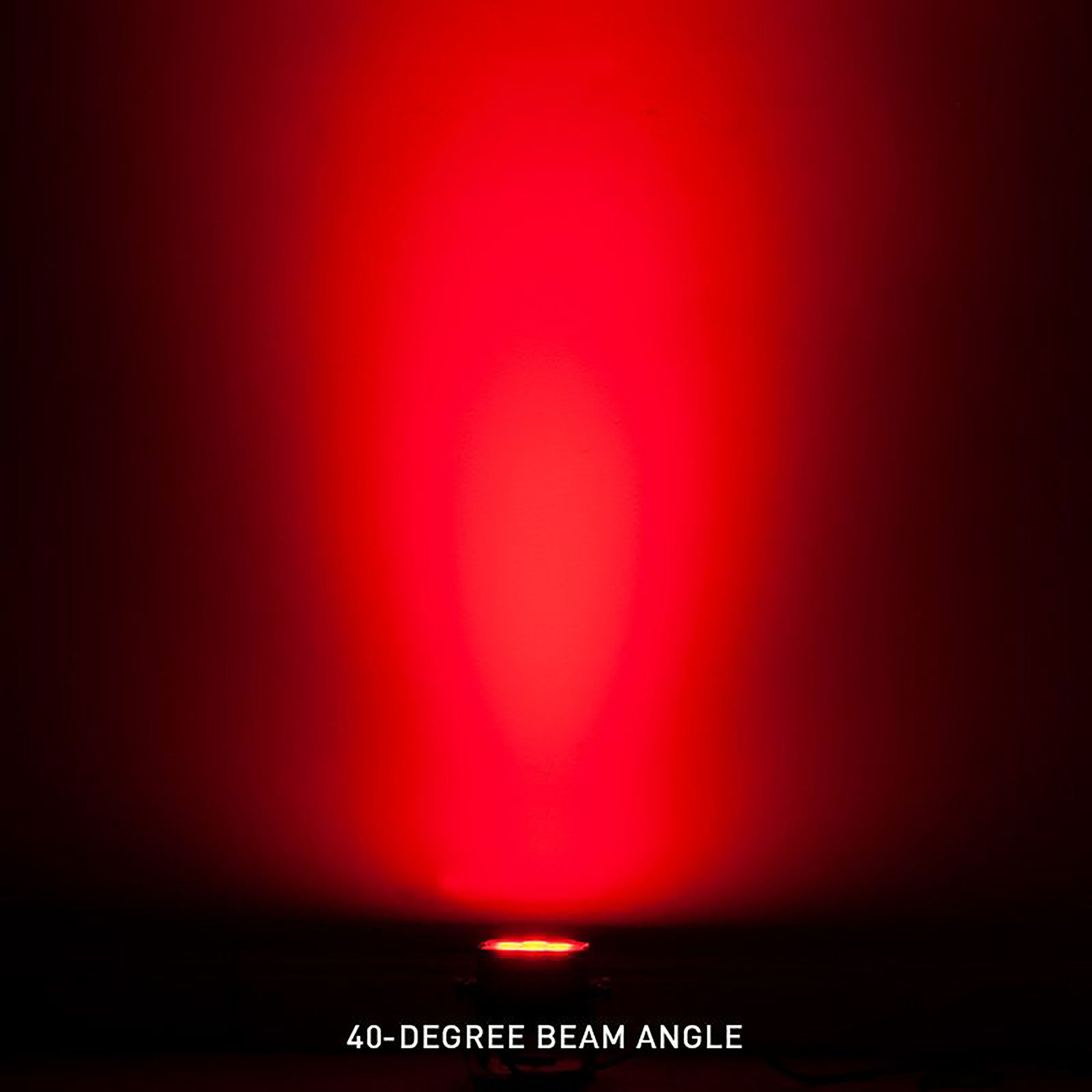

The ADJ Lighting MOD STQ is a compact, high out, low power draw LED Par used as a wash fixture or up light for stages, churches, clubs, lounges and fun centers. It comes equipped with seven 8-Watt RGBW (4-IN-1) LED diodes (for a total output of 56W), a scissor yoke and three interchange frost filters that are easily replaceable by thumb screws. The 17-degree standard beam may be changed on the fly to 20, 40 or 60-degrees. The MOD STQ is a versatile LED Par that may be used as stage lighting, up lighting or truss warming.
From the 4-button display menu controls users have full access to 64 color macros, 8 DMX channel modes, 5 operational modes, 6 dimming curve modes, as well as, LED refresh rate and gamma control settings.

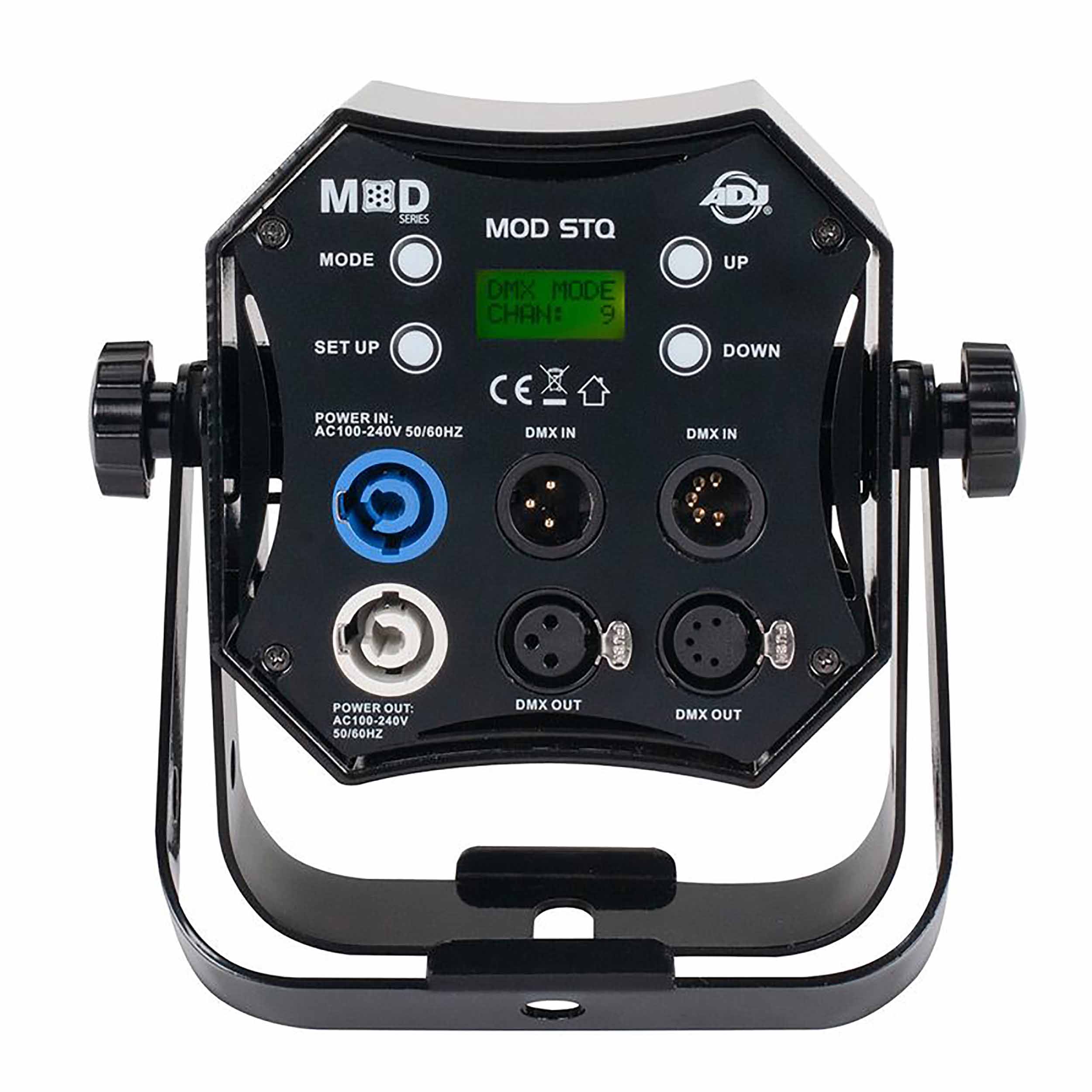

Connections on the MOD STQ are very flexible with twist lock In/Out sockets to daisy chain the power from one fixture to another. Plus, there are both 3-pin and 5-pin DMX sockets for data linking.
Product Specifications:
Light Source:

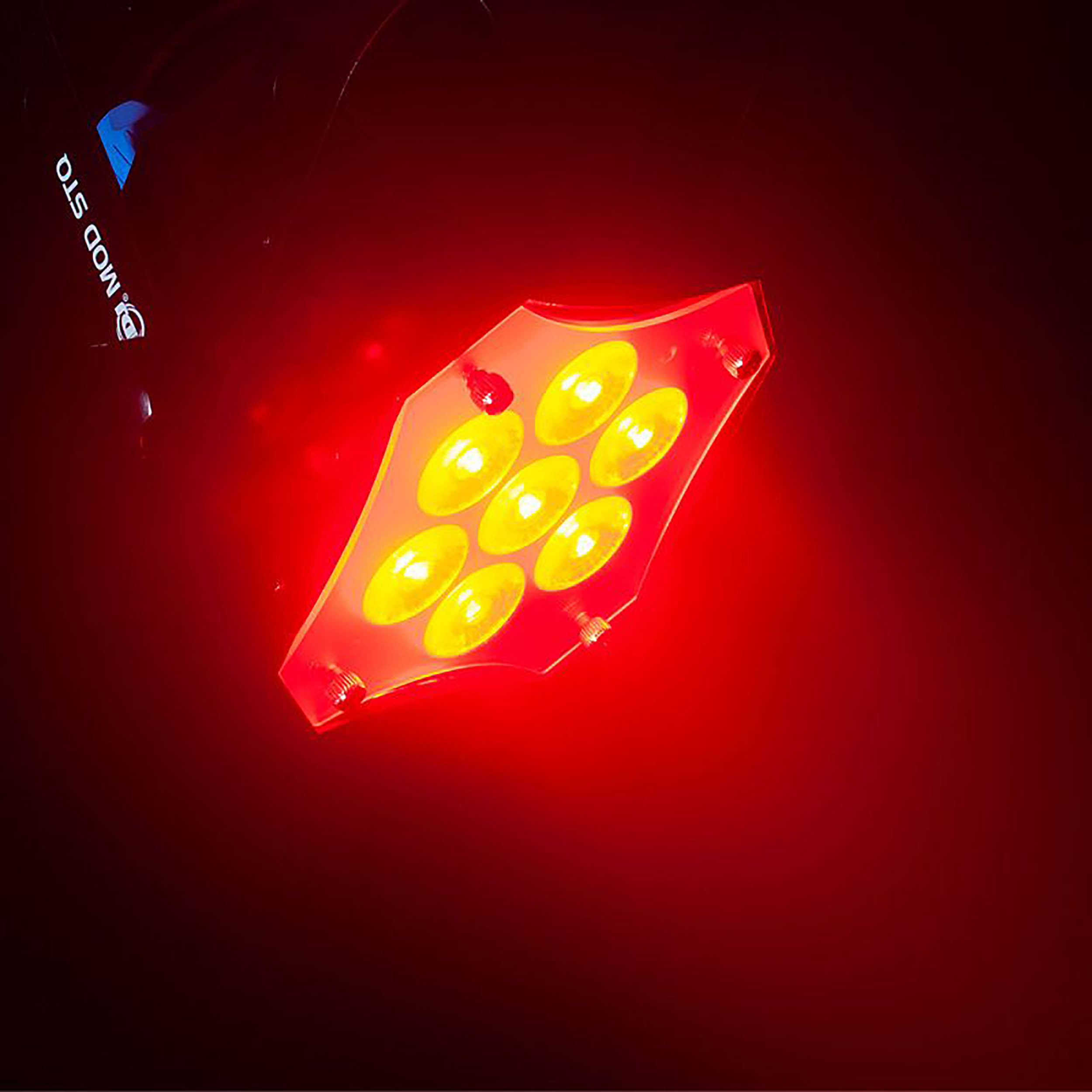

7x 8-Watt RGBW (4-IN-1 – Red, Green, Blue & White) LEDs
50,000 Hour Average LED Life
Output:
Total Lumens:>2500
LUX:2952 @ 3M (9.8 ft.)
Beam angle:17-degrees
Connections:
Power:Twist locking power input and output
DMX:3-pin & 5-pin In/Out
With Wired Digital Communication Network
Control:
UC IR wireless remote included
8 DMX Channel Modes:4, 5, 7, 8, 9, 12 ,13 or 15
64 built-in Color Macros
5 operational modes
4-button control menu with display
Electronic Dimming:0-100%
Variable strobe control
6 dimming curve modes
Adjustable LED Refresh Rate and Gamma Control
Electrical:
Input Voltage:100-240V 50Hz/60Hz (Auto Sensing)
Max Power Draw:57W
Locking power in/out to daisy chain up to:7 Fixtures Max@ 120V, 12 Fixtures Max@ 240V
Dimensions/Weight:
Dimensions (LxWxH):7.75” x 7.4” x 8” / 197 x 187.8 x 203mm
Weight:4.3 lbs. / 1.95 kg.

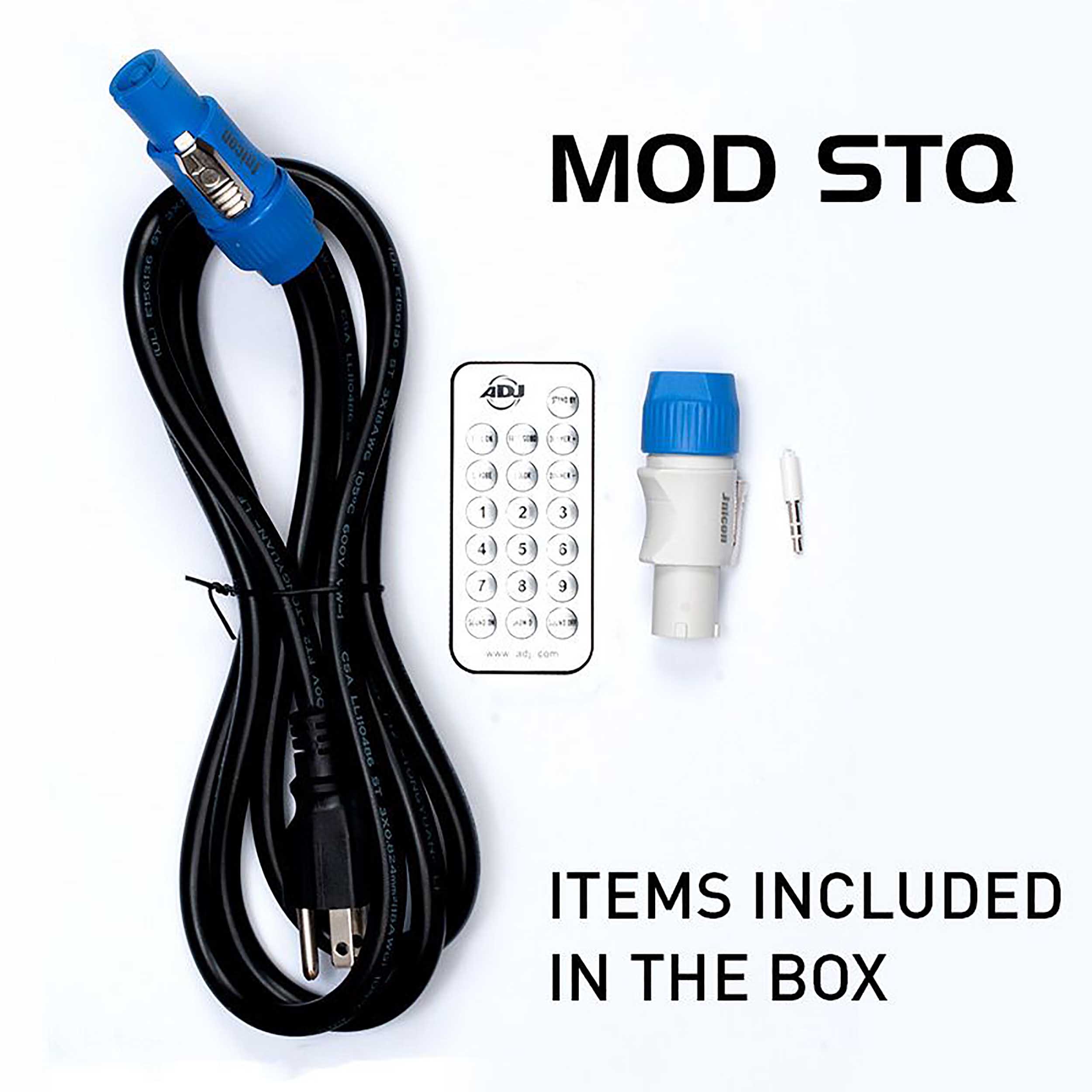

What's in the Box (Included):
UC IR wireless remote
Airstream IR adapter for use with Airstream IR APP
Power Cable
Twist locking power output adapter (so you can make your own power linking cables)
Accessories (sold separately):Black metal Barn Doors
