ADJ NOVAPRO UHD JR, All-in-One Video Processing Controller

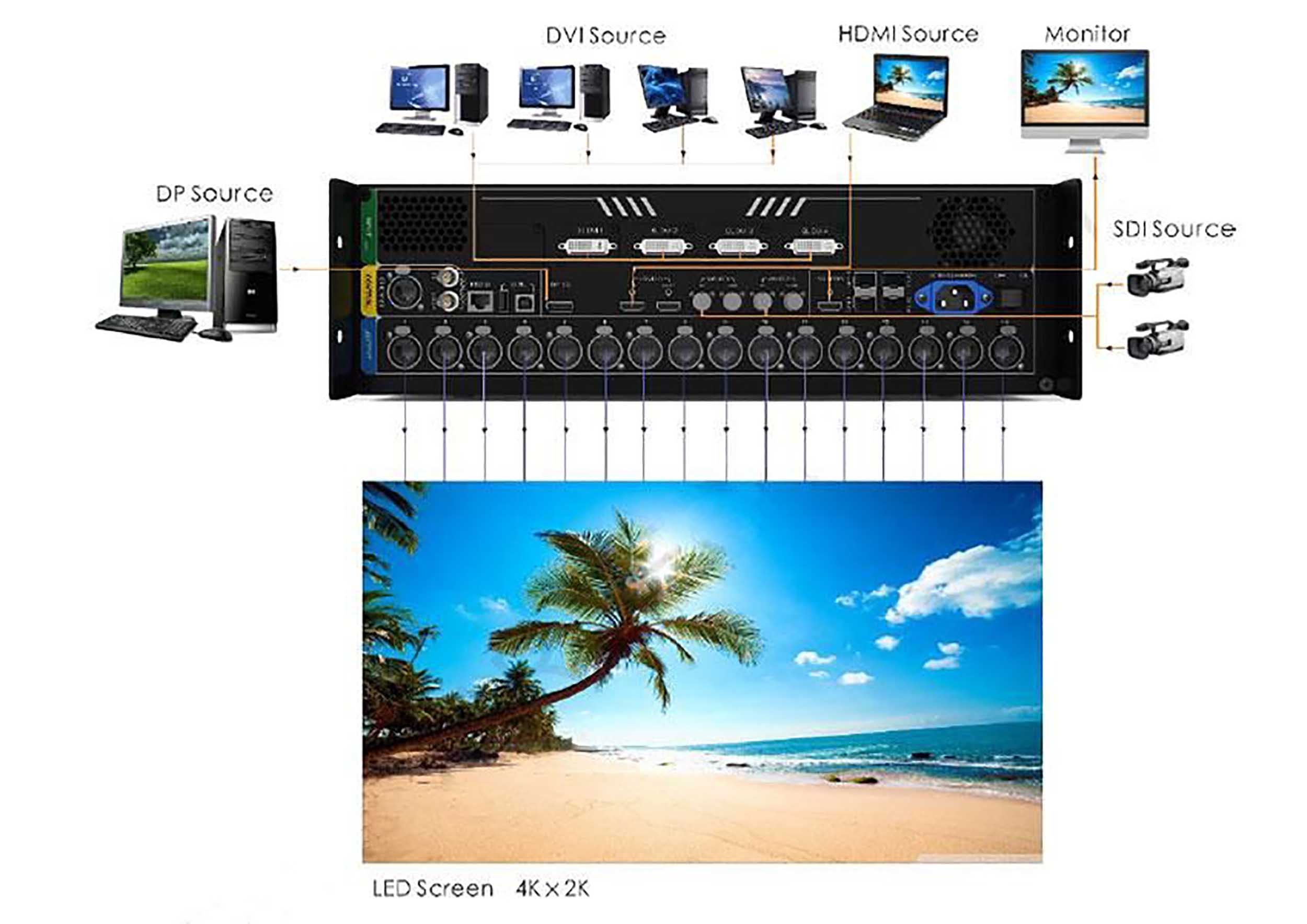

The ADJ NOVAPRO UHD JR, All-in-One video processing controller is a versatile video processor designed for professional display applications. With a range of inputs and outputs, including 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0, and 2 × 12G-SDI, it offers flexibility for various setups. It supports up to 16 Neutrik Ethernet outputs and 4 optical fiber outputs, accommodating loading capacity up to 8,300,000 pixels. The VX6s features DVI mosaic capabilities, combining up to 4 DVI input sources into one.

Enhanced HDR output ensures clear and vivid images, while 3D image output and decimal refresh rates contribute to an immersive viewing experience. With low-latency output, there's zero frame delay from the device to the receiving card. Customized background (BKG) settings support pure color and image BKGs, offering personalized image scaling with auto fit, pixel to pixel, and custom modes.

The VX6s also includes a capture function to use input source images as BKGs, supporting cascading with up to 4 devices for super-large screens. It's compatible with V-Can (Nova Star’s smart control software) and allows for 10 user presets to be saved for convenient use. Additionally, it supports EDID management, allowing for custom and standard EDID configurations.

Product Specifications:

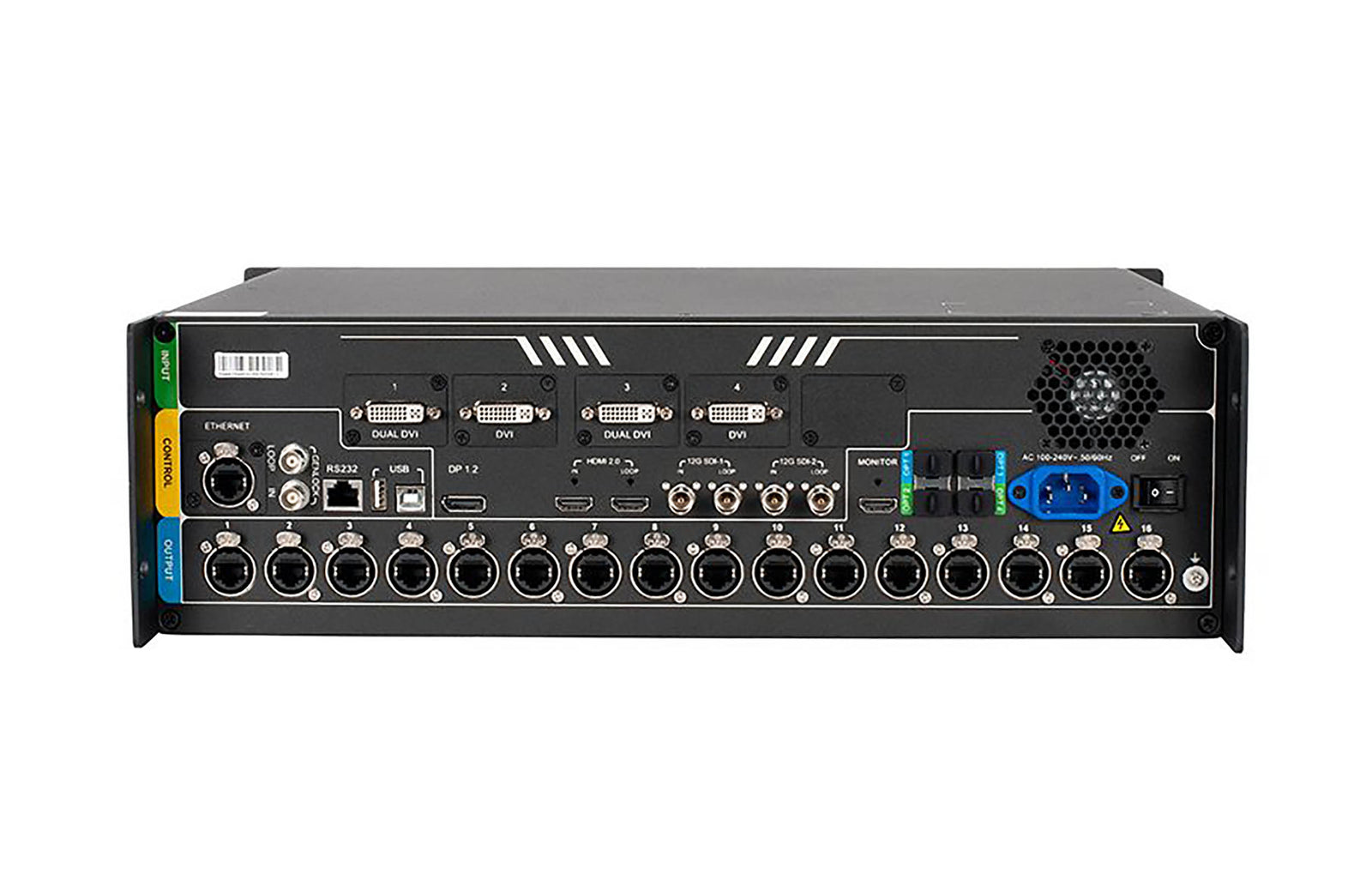

Control / Connections:

(16) Output RJ45 EtherCON Ports

(4) Fiber Optic Ports

USB and Genlock In/Loop Ports

Audio Input: 1/8-inch connector

Video Input: 1x DP 1.2 / 1x HDMI 2.0 with loop output and 2x

12G SDI with loop output

Locking IEC Power Input

 Size / Weight:

 Length: 19.0” (483mm)

 Width: 15.6” (396mm)

 Height: 5.5” (139mm)

 Weight: 13.9 lbs. (6.3kg)

 Electrical:

 AC 100-240V - 50/60Hz

 Max Power Consumption: 70W
