Description
The ADJ NovaStar MCTRL R5 is an advanced LED display controller that supports display rotation, offering a loading capacity of up to 3840×1080@60Hz. With the ability to handle custom resolutions within its capacity, it is perfect for ultra-long or ultra-wide LED displays. Designed for rental and fixed applications such as concerts, live events, monitoring centers, and sports venues, the MCTRL R5 allows free screen configuration when used with A8s or A10s Plus receiving cards via SmartLCT software. It features innovative architecture for quick and smart configuration, reducing stage preparation time. Equipped with the NovaStar G4 engine, it ensures a stable, flicker-free display with excellent depth perception. The MCTRL R5 supports multiple input options, including 6G-SDI, dual-link D-DVI, and HDMI 1.4, and output options like 8 Gigabit Ethernet ports and 2 fiber optic outputs. It also supports the new generation of NovaStar pixel-level calibration technology and easy manual brightness adjustment for optimal display quality.
Product Specifications:
Input Ports:
1 × 6G-SDI connector
1 × HDMI 1.4 connector
1 × dual link D-DVI connector

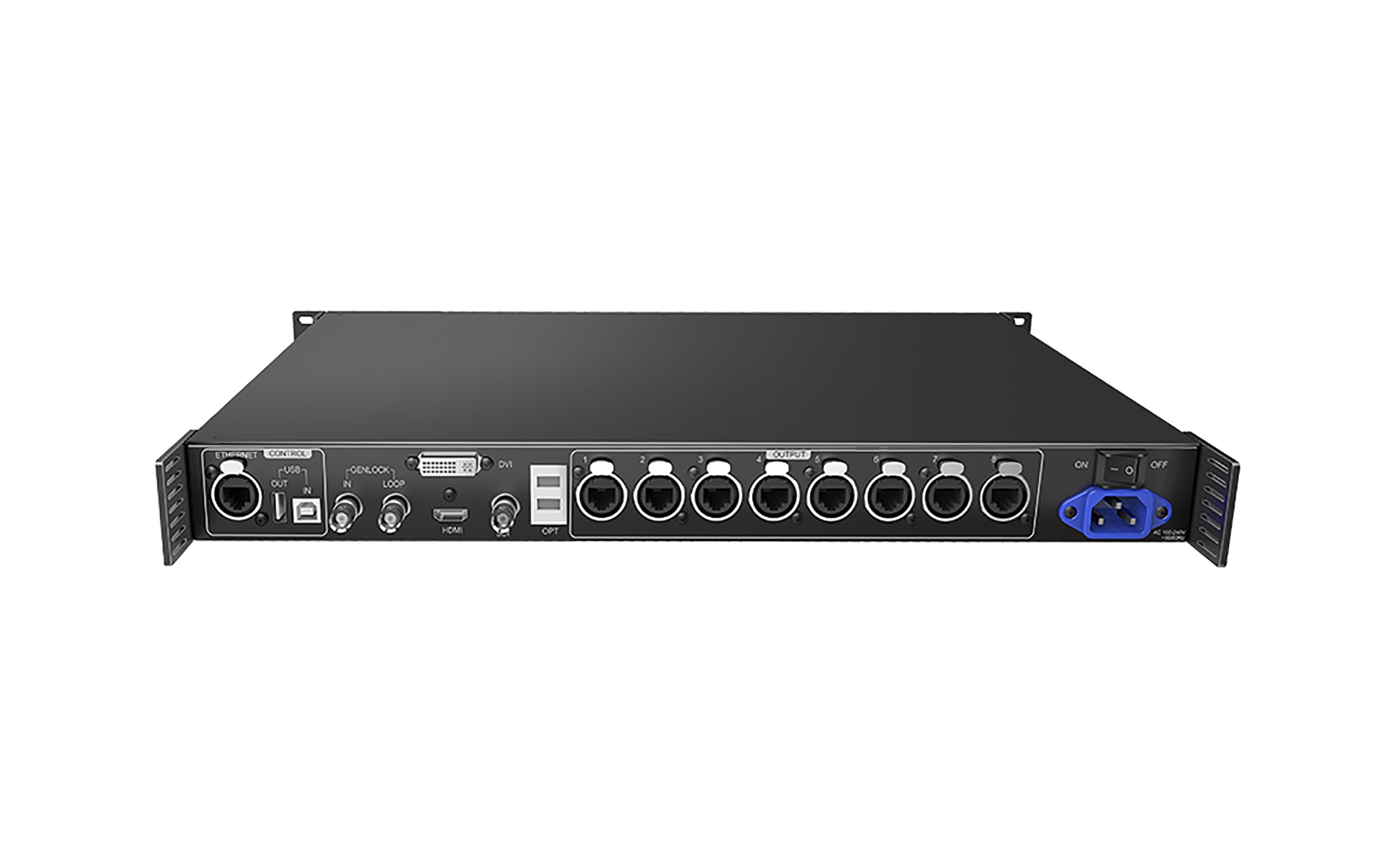

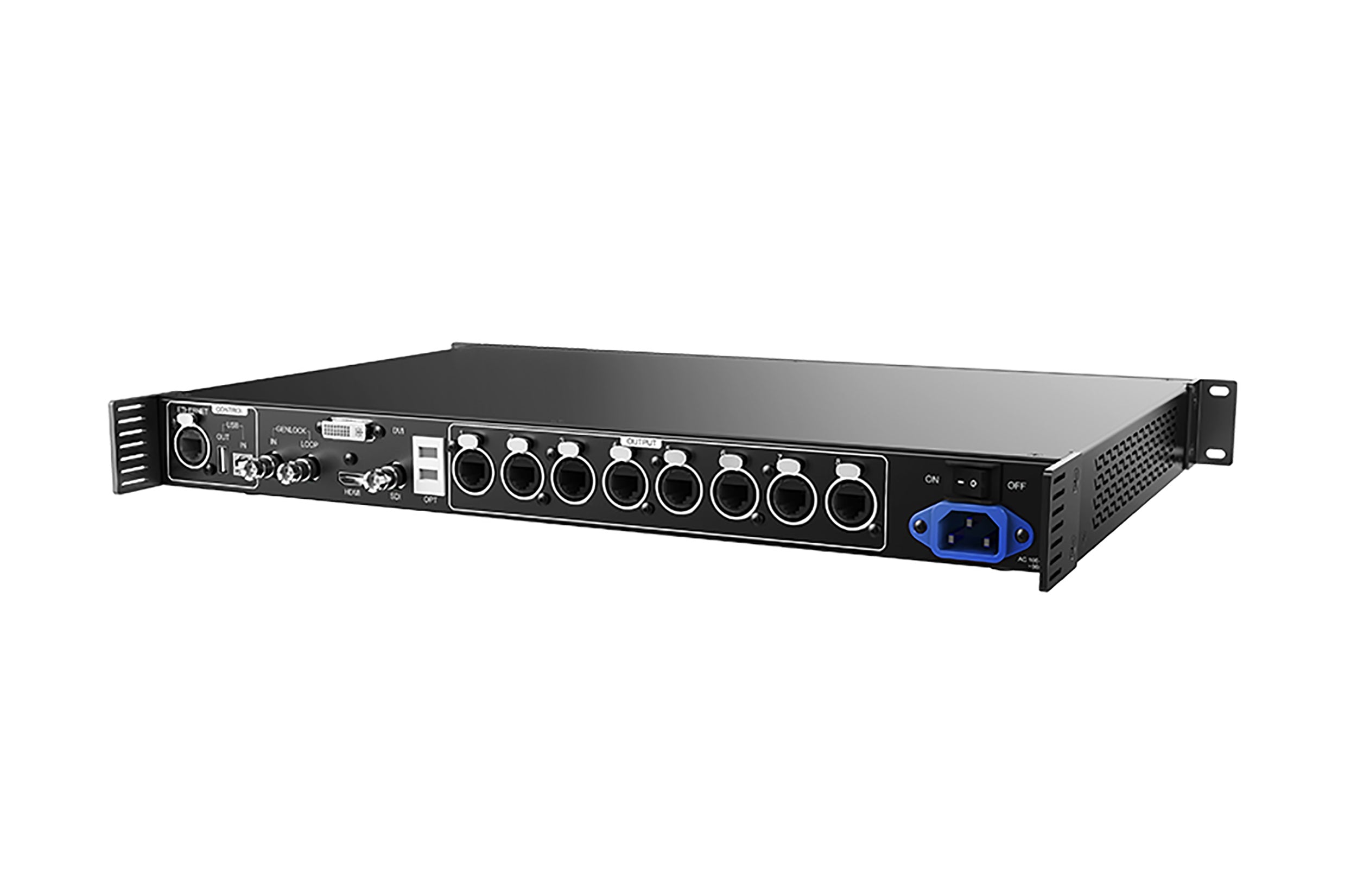

Output Ports:
8 × Neutrik (NE8FBH) Gigabit Ethernet outputs
2 × Fiber optic outputs (OPT1 for Ethernet ports 1–8, OPT2 as a backup)
Control Ports:
Ethernet for PC connection
USB IN for cascading devices or PC connection
USB OUT for cascading devices
GENLOCK:
IN: GENLOCK type - Blackburst
LOOP: GENLOCK loop output
Power Supply:
AC 100-240 V, 50/60 Hz
Pixel Capacity: Up to 4,140,000 pixels
Compatibility: Works with A8s or A10s Plus receiving cards for SmartLCT configuration
Firmware Update: Via USB port on the front panel
Shipping Weight: 15 lbs.
Shipping Dimensions: 22" x 18" x 6"
