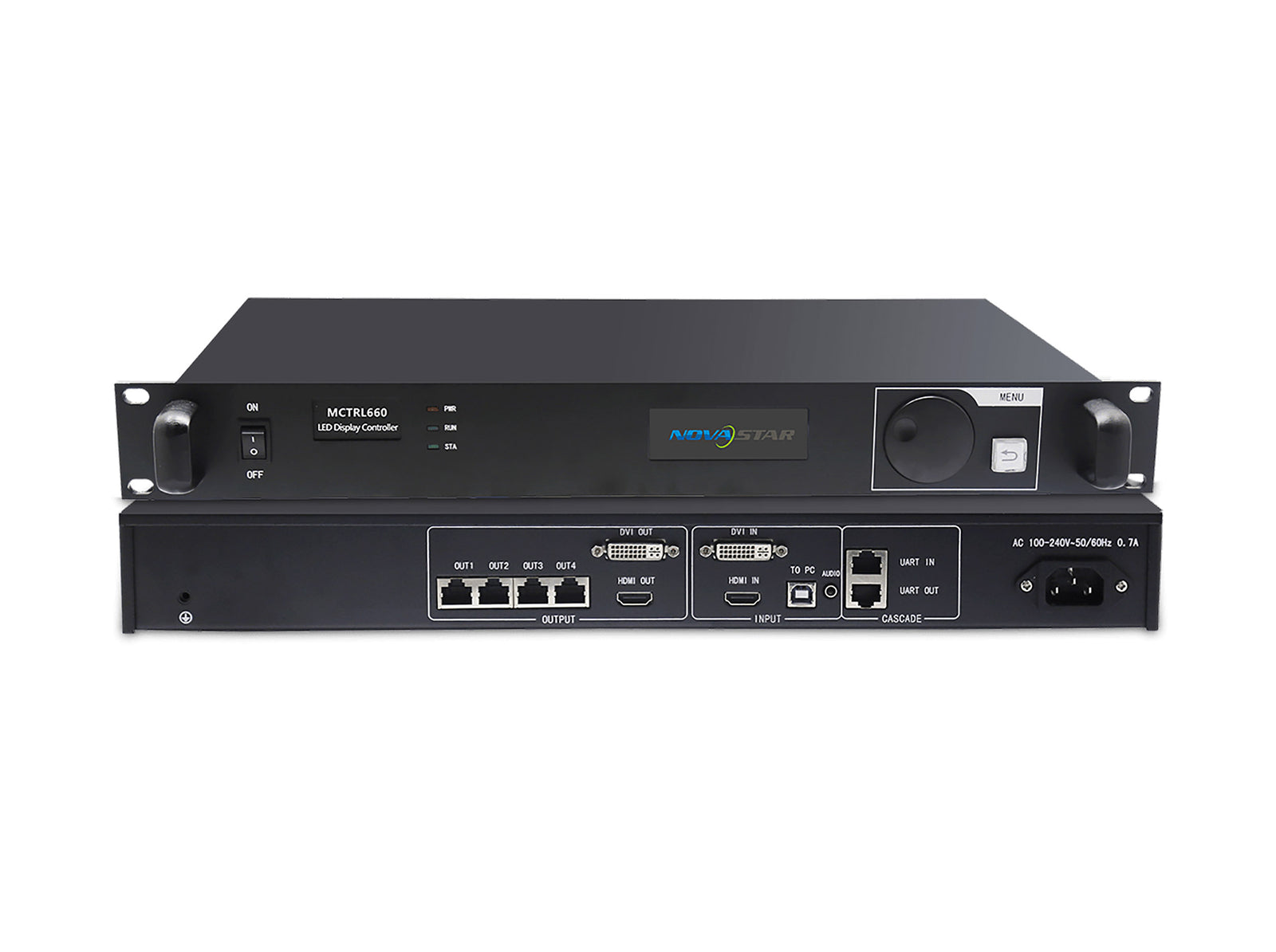

ADJ Novastar MCTRL660, Pro LED Display Controller

The ADJ Novastar MCTRL660, Pro LED Display Controller is a cutting-edge solution designed to offer smart configuration and superior image quality for LED displays. Featuring the innovative Nova G4 engine, this system ensures stable, flicker-free screens without scanning lines, delivering exquisite images with a good sense of depth. The system supports Nova's new-generation pixel-by-pixel calibration technology for fast and efficient calibration, ensuring accurate color restoration through white balance calibration and color gamut mapping based on different LED features.

The NovaStar Control System supports HDMI/DVI input and output, external audio input, and high-definition multimedia interface (HDMI) with high-bandwidth digital content protection (HDCP). With a resolution support of up to 3840 pixels in width, cascading capabilities, and independent power supply, this system is designed for ease of use and exceptional performance in display rental services and permanent installations.

Product Specifications:

Pro LED Display Controller

HDMI and HDCP support

Screen configuration without PC

Manual adjustment of screen brightness

Supports cascading for multiple units

Independent power supply

19 × 1.5U standard rack mount

Configuration Time: Screen configuration completed within 30 seconds

Engine: Nova G4 engine for stable and flicker-free images

Calibration Technology: Pixel-by-pixel calibration, white balance calibration, and color gamut mapping

Input Interfaces:

HDMI input

DVI input

HDMI/external audio input

Output Interfaces:

HDMI output

DVI output

Supported Video Formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4

Supported Resolutions:

2048×1152@60Hz

1920×1200@60Hz

2560×960@60Hz (8-bit)

1440×900@60Hz (12-bit/10-bit)

Customized resolution: Maximum width/height up to 3840 pixels

HD Video Source: 12-bit/10-bit/8-bit HD video source

Gray Scale: 18-bit processing and presentation
