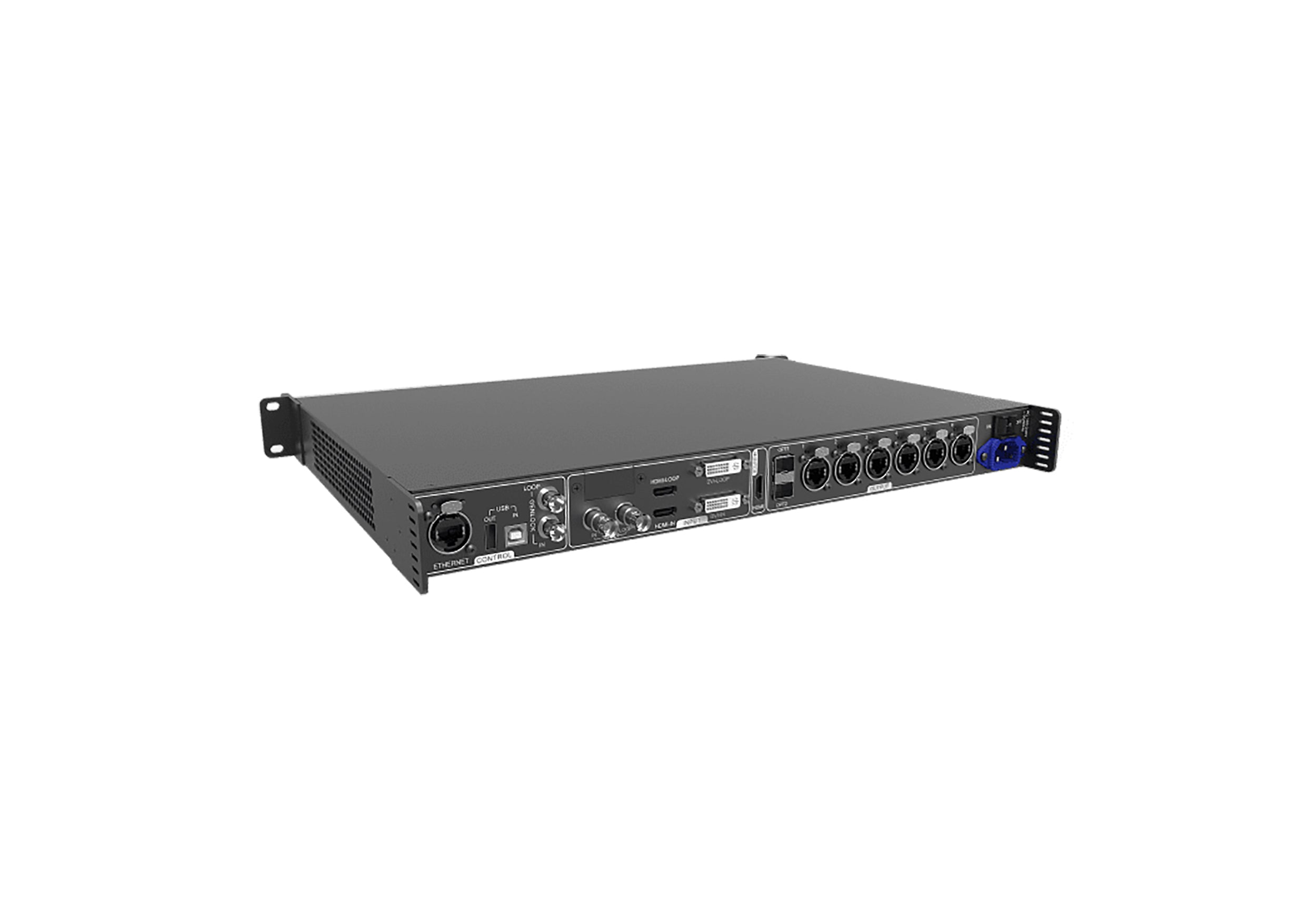

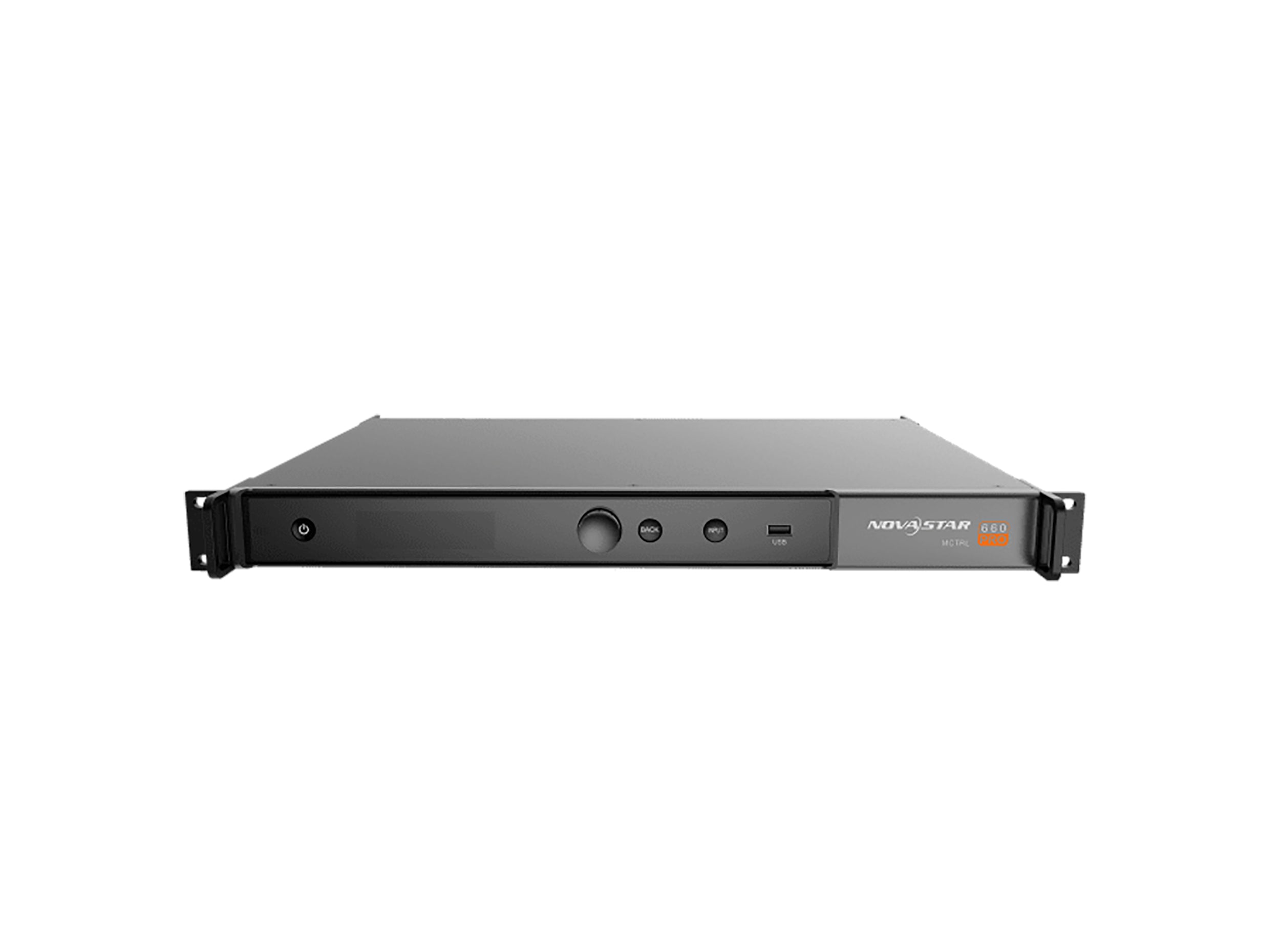

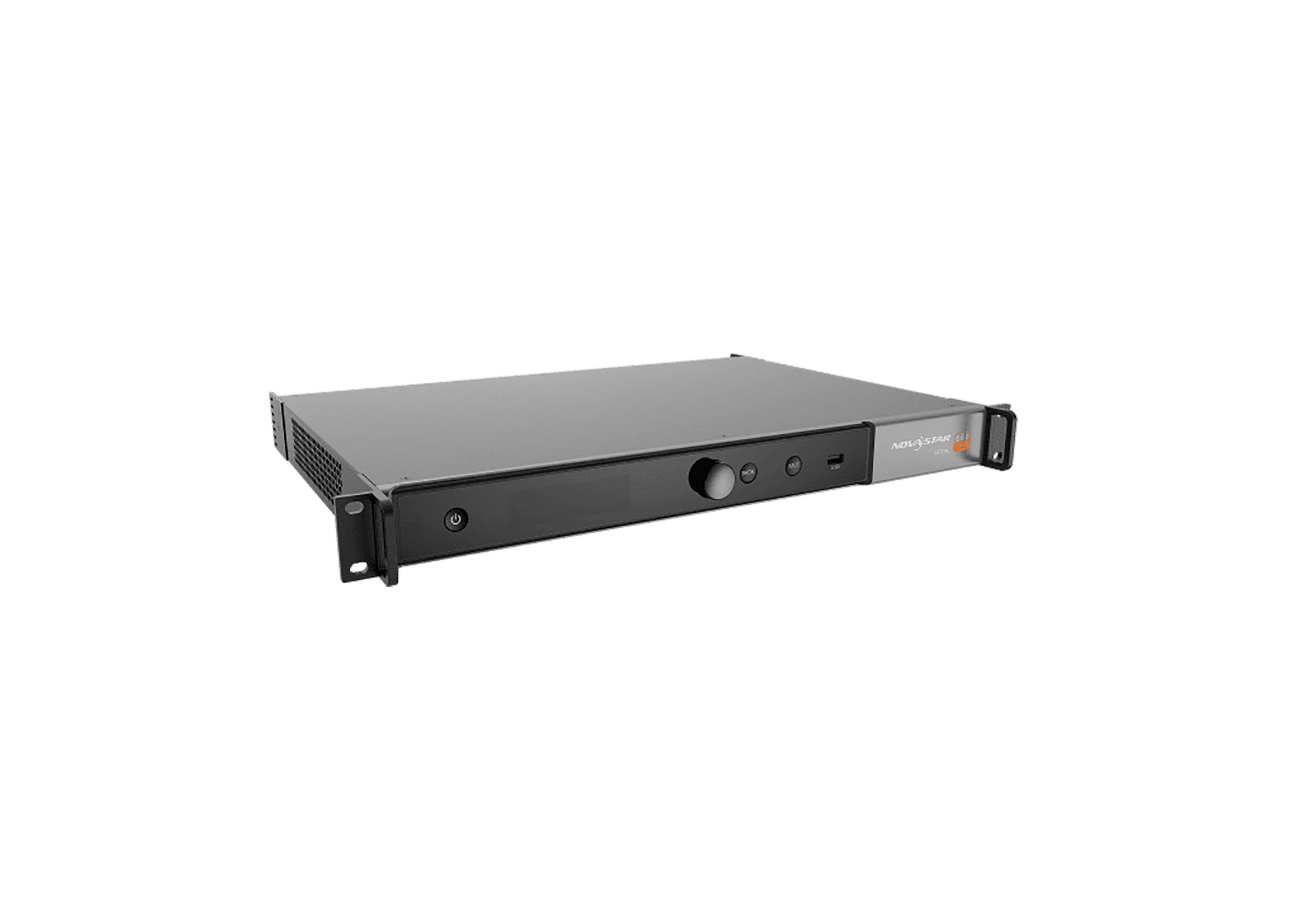

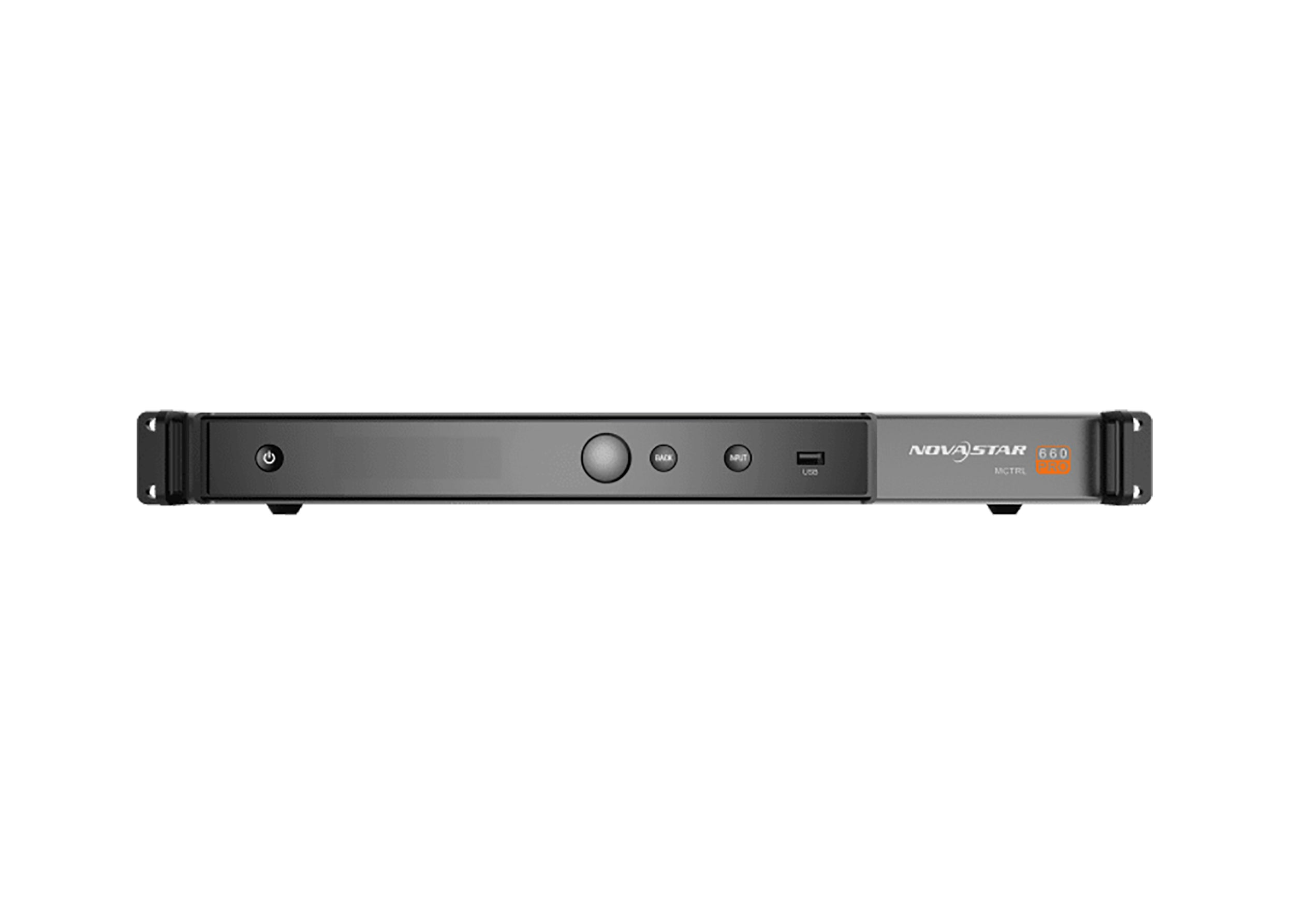

ADJ Novastar MCTRL660PRO, LED Display Controller

The ADJ Novastar MCTRL660PRO, LED Display Controller is designed to offer superior image quality and control for rental and fixed installations, such as concerts, live events, security monitoring centers, and sports venues. With a variety of input and output connectors and industry-leading technologies, this controller ensures high performance and reliability for your LED display needs.

Product Specifications:

Individual Gamma adjustment for RGB (10-bit/12-bit input source)

One-click backup and recovery

Image mirroring

Auto LED screen configuration

Web control

Pixel level brightness and chroma calibration

Input monitoring

Cascading support for multiple units

Input Connectors:

1 × 3G-SDI

1 × HDMI 1.4a

1 × Single-link DVI

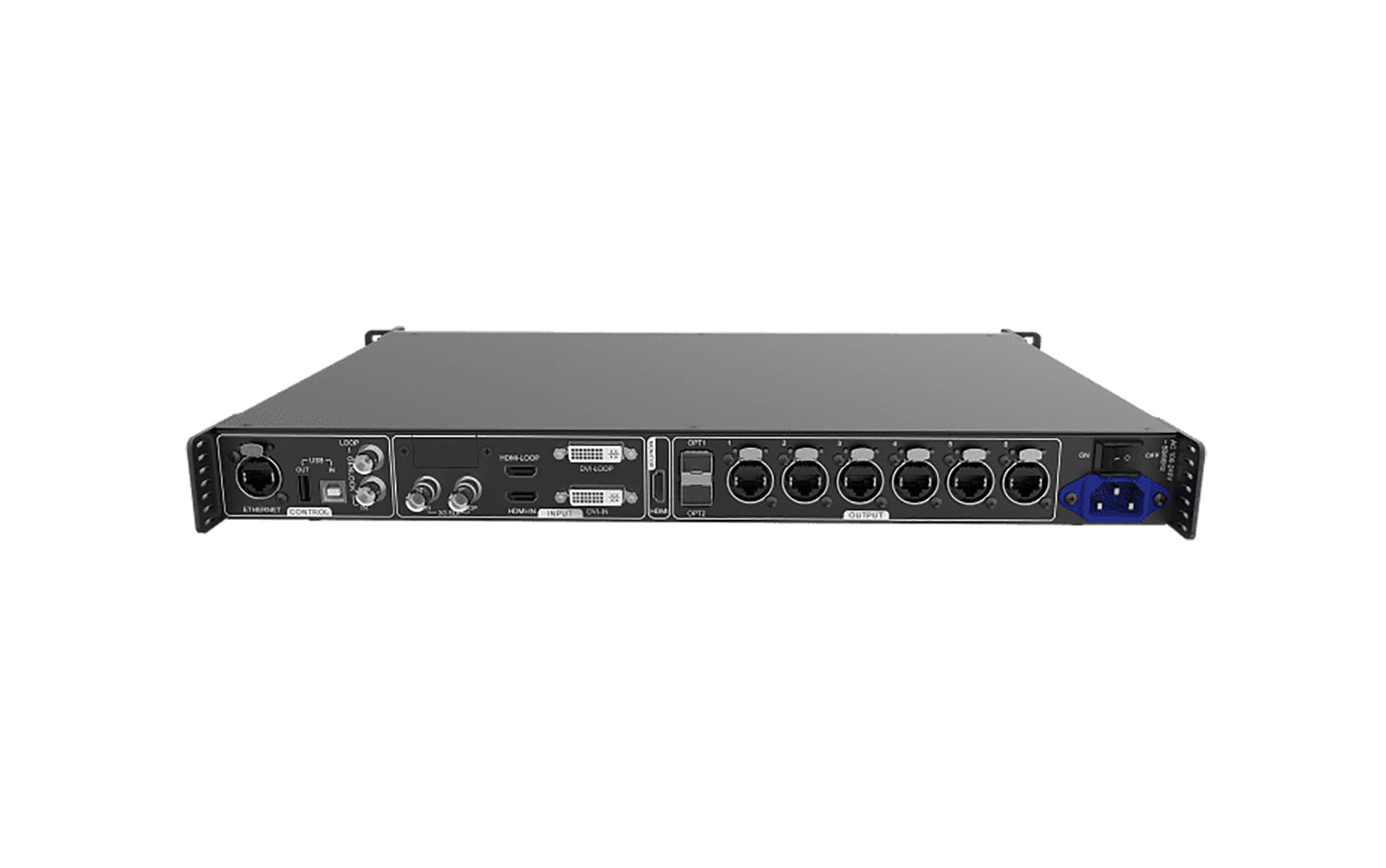

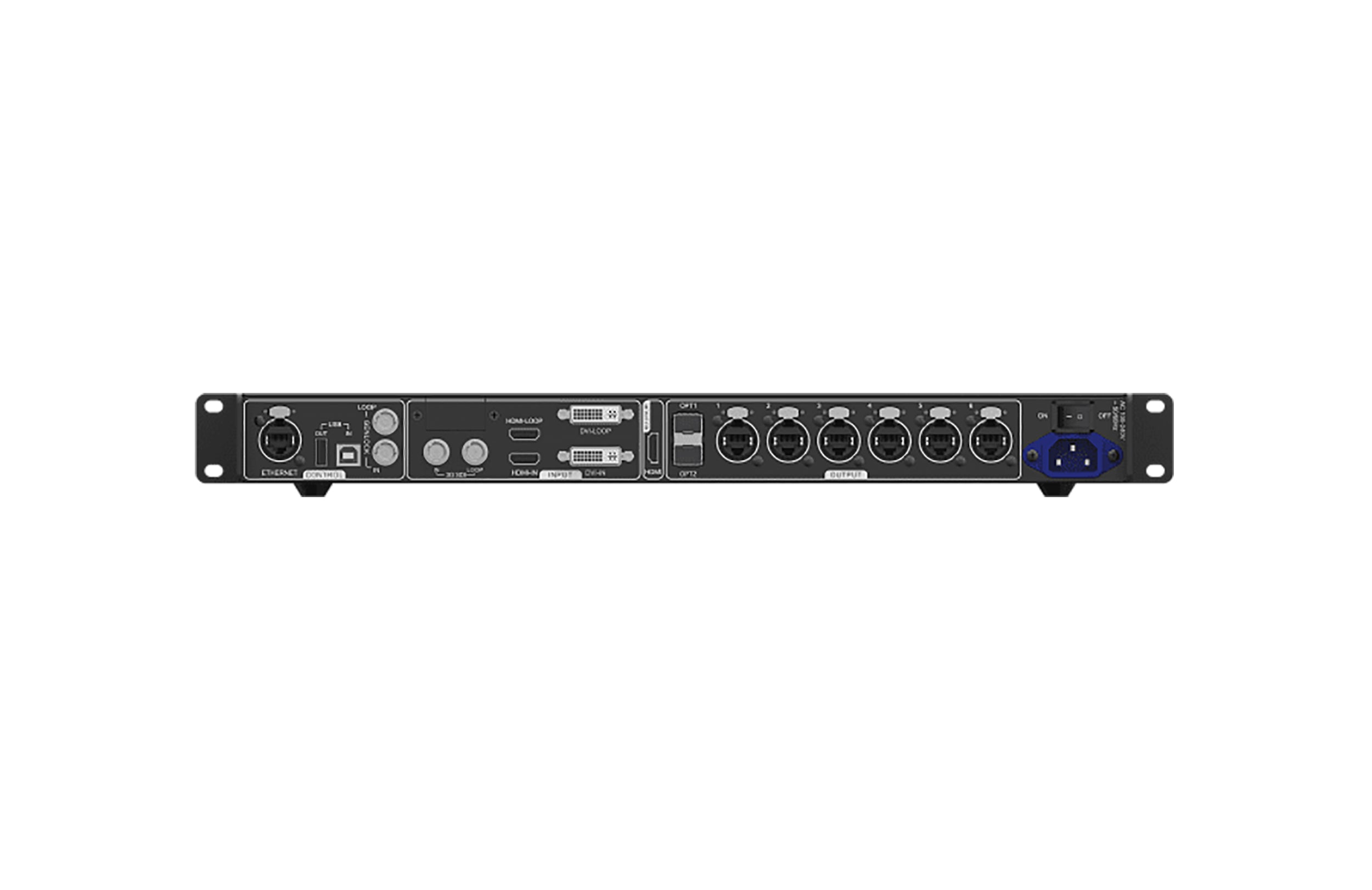

Output Connectors:

6 × Gigabit Ethernet ports

2 × 10G optical ports

Loop Output Connectors:

1 × 3G-SDI LOOP

1 × HDMI 1.4a LOOP

1 × DVI LOOP

Input Resolution:

Up to 1920×1080@60Hz

Color Depth:

10-bit/12-bit RGB 4:4:4/YCbCr 4:4:4

Latency:

Less than 1 ms (when the start position of the image is 0)

Working Modes:

Sending card

Fiber converter
