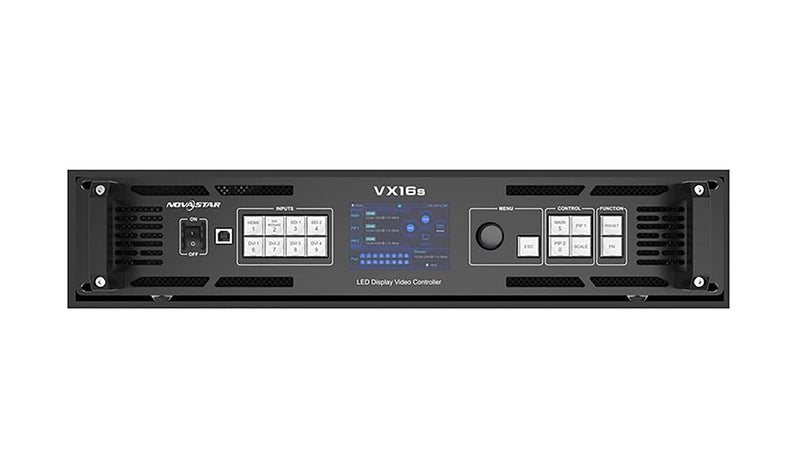

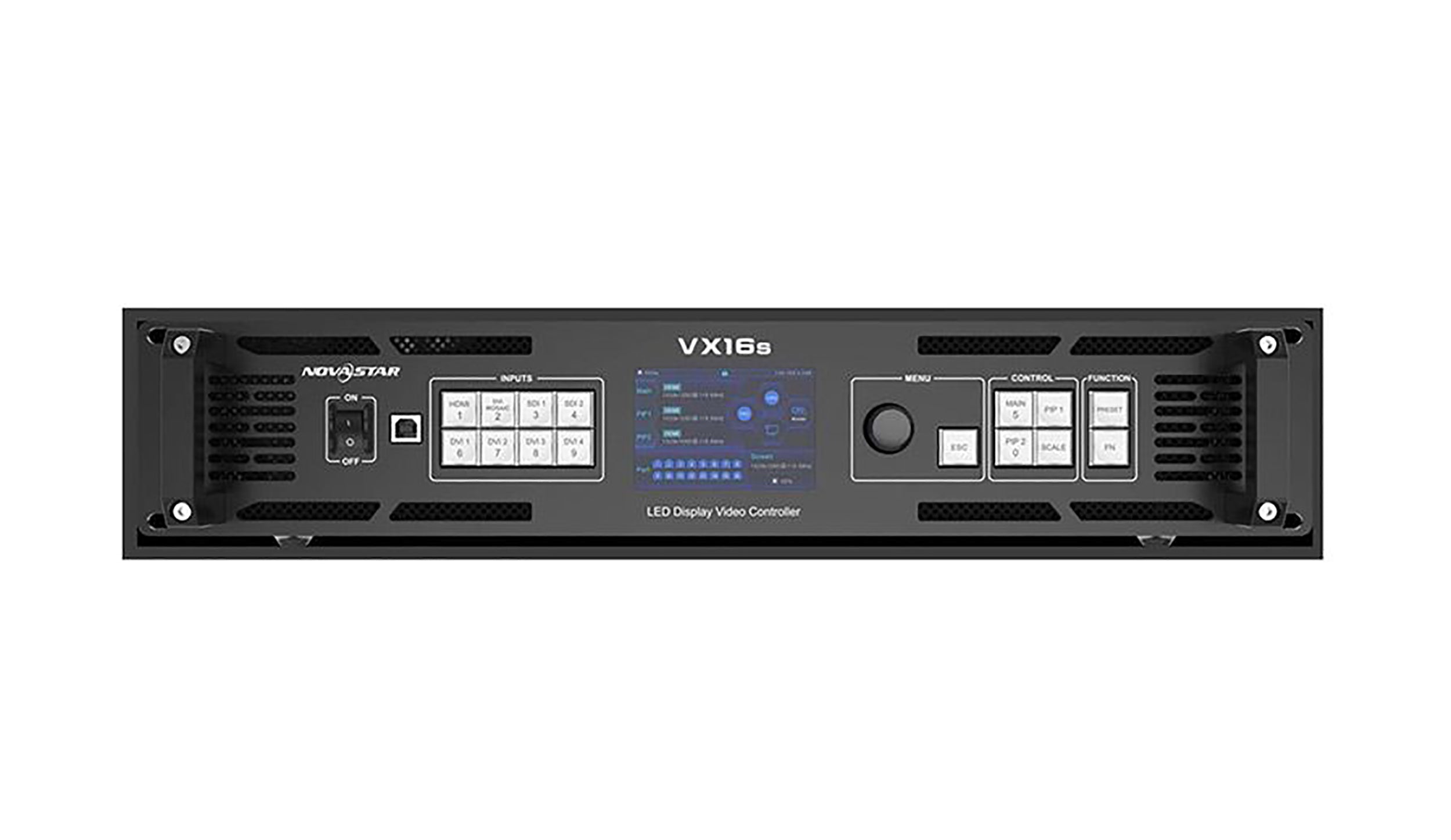

ADJ Novastar VX16S, All-in-One Video Processor

The ADJ Novastar VX16S, All-in-One Video Processor integrates video processing, video control and led screen configuration into one unit.

Together with NovaStar's V-Can video control software, it enables richer image mosaic effects and easier operations.

The VX16s Novastar led controller supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.

Thanks to its powerful image processing and sending capabilities, the Nova VX16S video screen controller can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays.

Product Specifications:

VX16S video processor

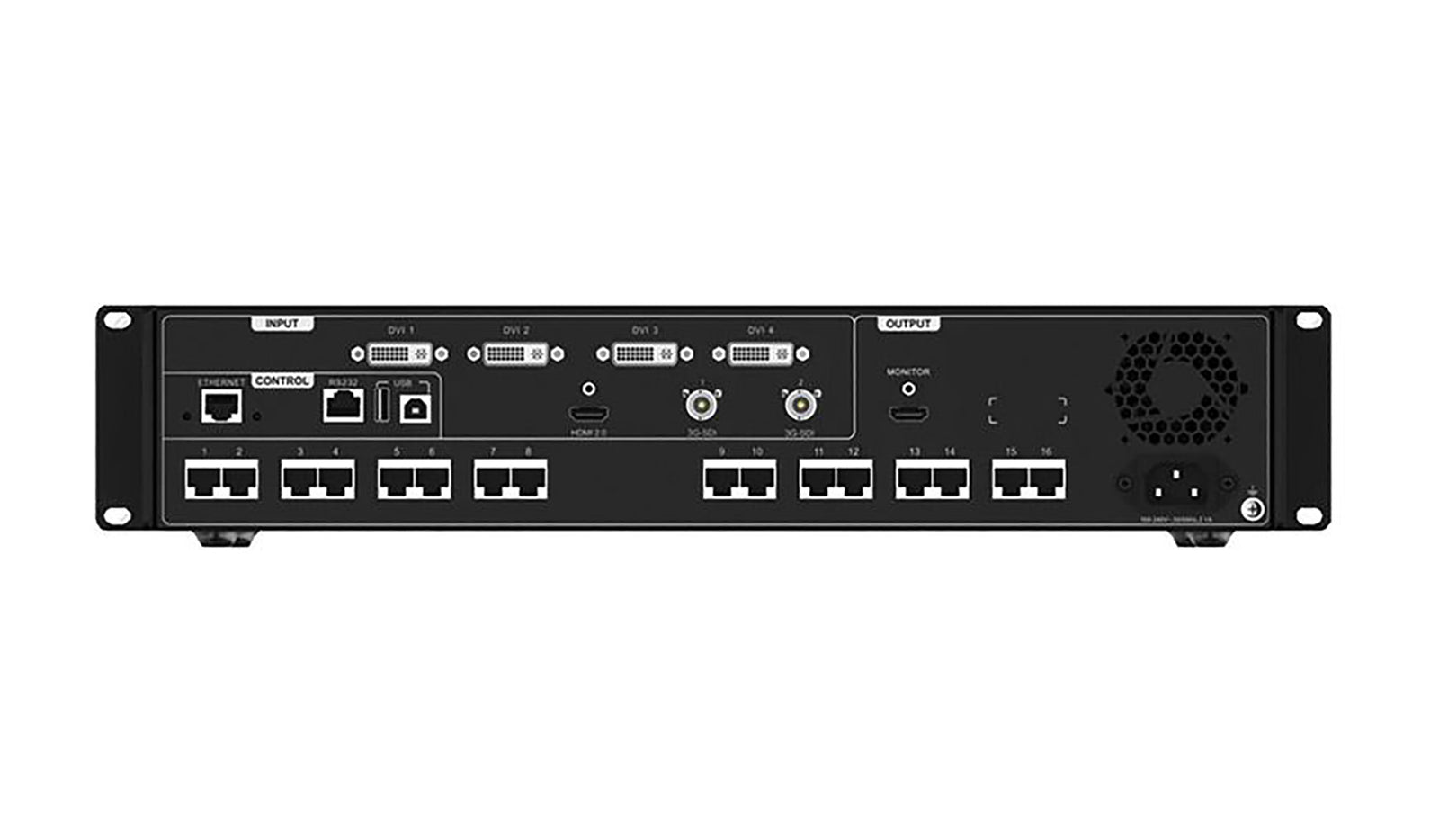

Industry-standard input connectors:

2x 3G-SDI

1x HDMI 2.0

4x SL-DVI

16 Ethernet output ports load up to 10,400,000 pixels.

3 independent layers:

1x 4K×2K main layer 2x 2K×1K PIPs (PIP 1 and PIP 2)

Adjustable layer priorities

DVI Mosaic:

Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic.

Decimal frame rate supported:

Supported frame rates: 23.98 Hz, 29.97 Hz,47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz.

3D:

Supports 3D display effect on the LED screen. The device output capacity will be halved after the 3D function is enabled.

Personalized image scaling:

Three scaling options are pixel-to-pixel, full screen and custom scaling.

Image mosaic:

Up to 4 devices can be linked to load a super large screen when used together with the video distributor.

Easy device operation and control through VCan

Up to 10 presets can be saved for future use.

EDID management:

Custom EDID and standard EDID supported

Device backup design

In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup device will take over the task automatically.

Electrical Specifications

Power connector: 100–240V~, 50/60Hz, 2.1A

Power consumption: 70 W

Operating Environment

Temperature: 0°C to 50°C

Humidity: 20% RH to 85% RH, non-condensing

Storage Environment

Temperature: –20°C to +60°C

Humidity: 10% RH to 85% RH, non-condensing

Physical Specifications

Dimensions: 482.6 mm x 372.5 mm x 94.6 mm

Net weight: 6.22 kg

Gross weight: 9.78 kg

Packing Information

Carrying case: 530.0 mm x 420.0 mm x 193.0 mm

Accessories:

1x European power cord / 1x US power cord / 1x UK power cord / 1x Cat5e Ethernet cable / 1x USB cable / 1x DVI cable / 1x HDMI cable / 1x Quick Start Guide / 1x Certificate of Approval

Shipping Weight: 25 lbs. (11.34 kg)

Shipping Dimensions (LxWxH): 22" x 18" x 8" (55.88 cm x 45.72 cm x 20.32 cm)
