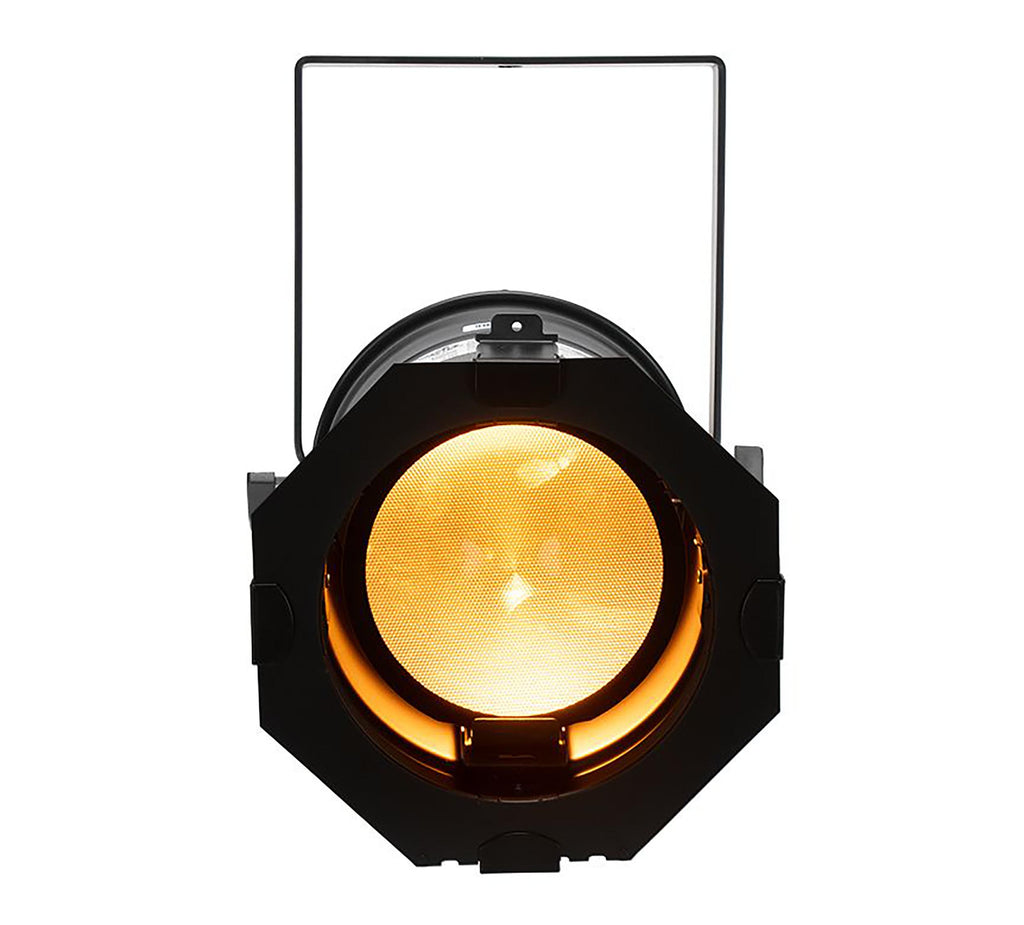

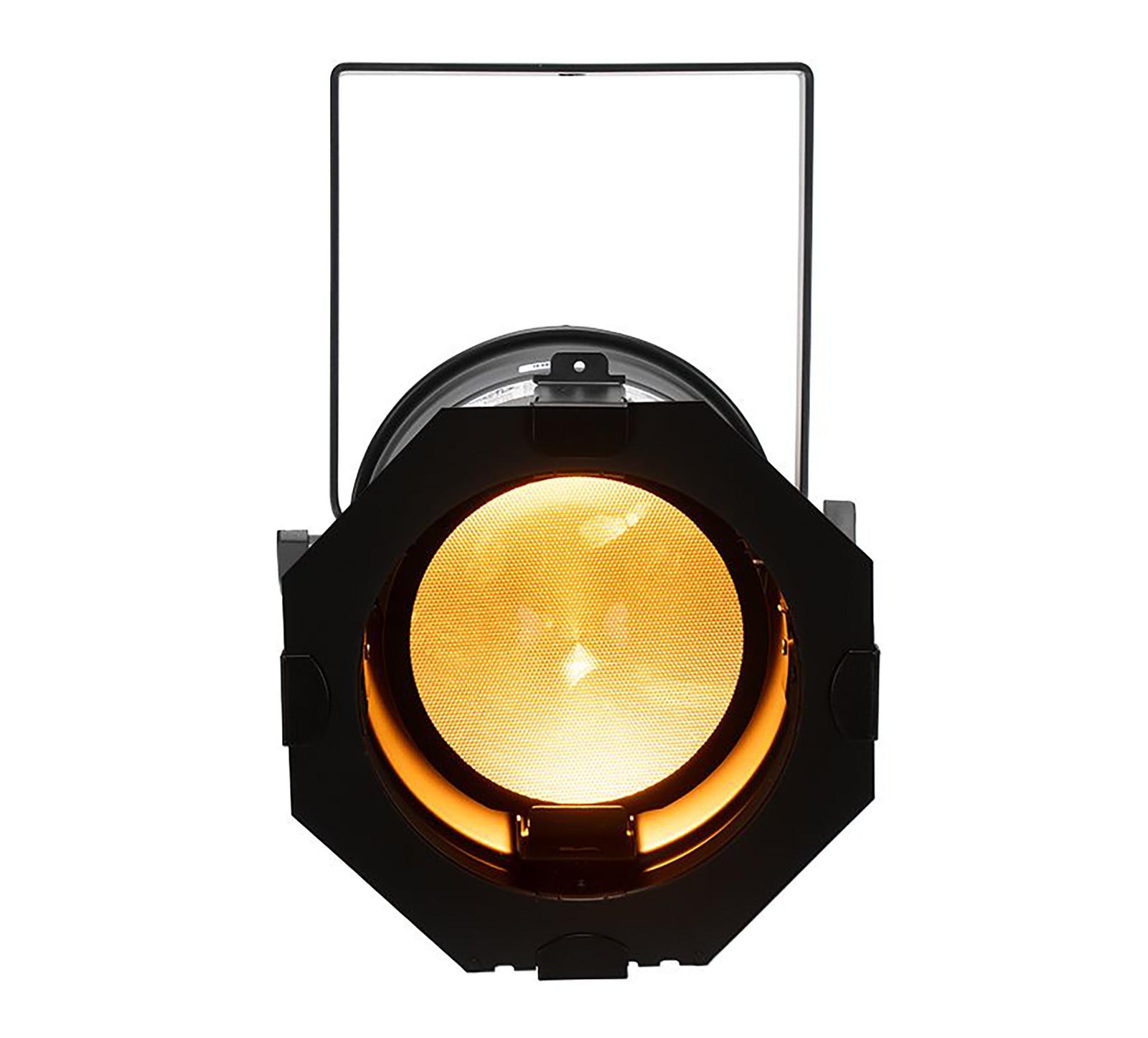

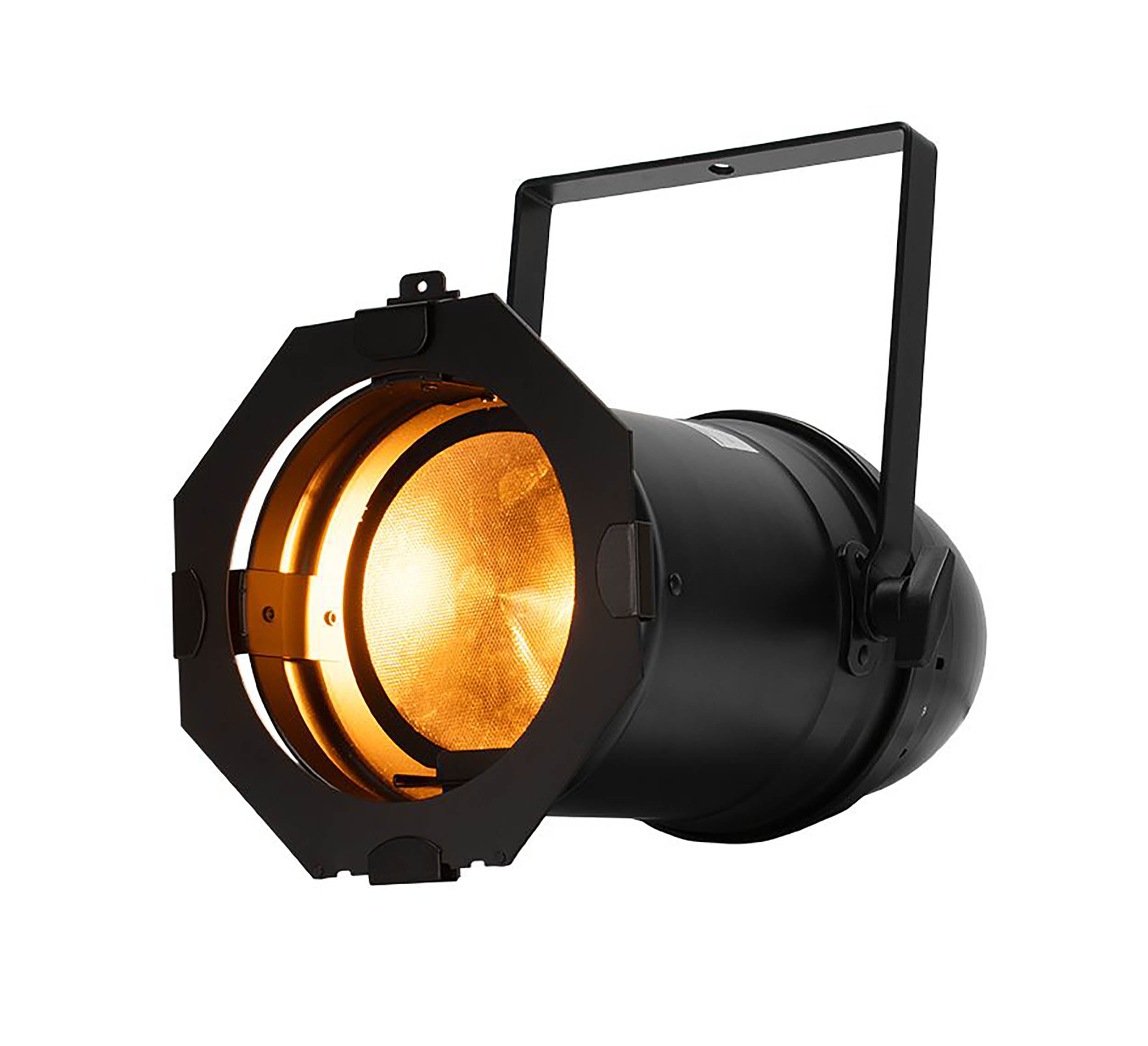

ADJ Par Z150 RGBA Plus Battery LED Par with Aria X2 - 150 Watt

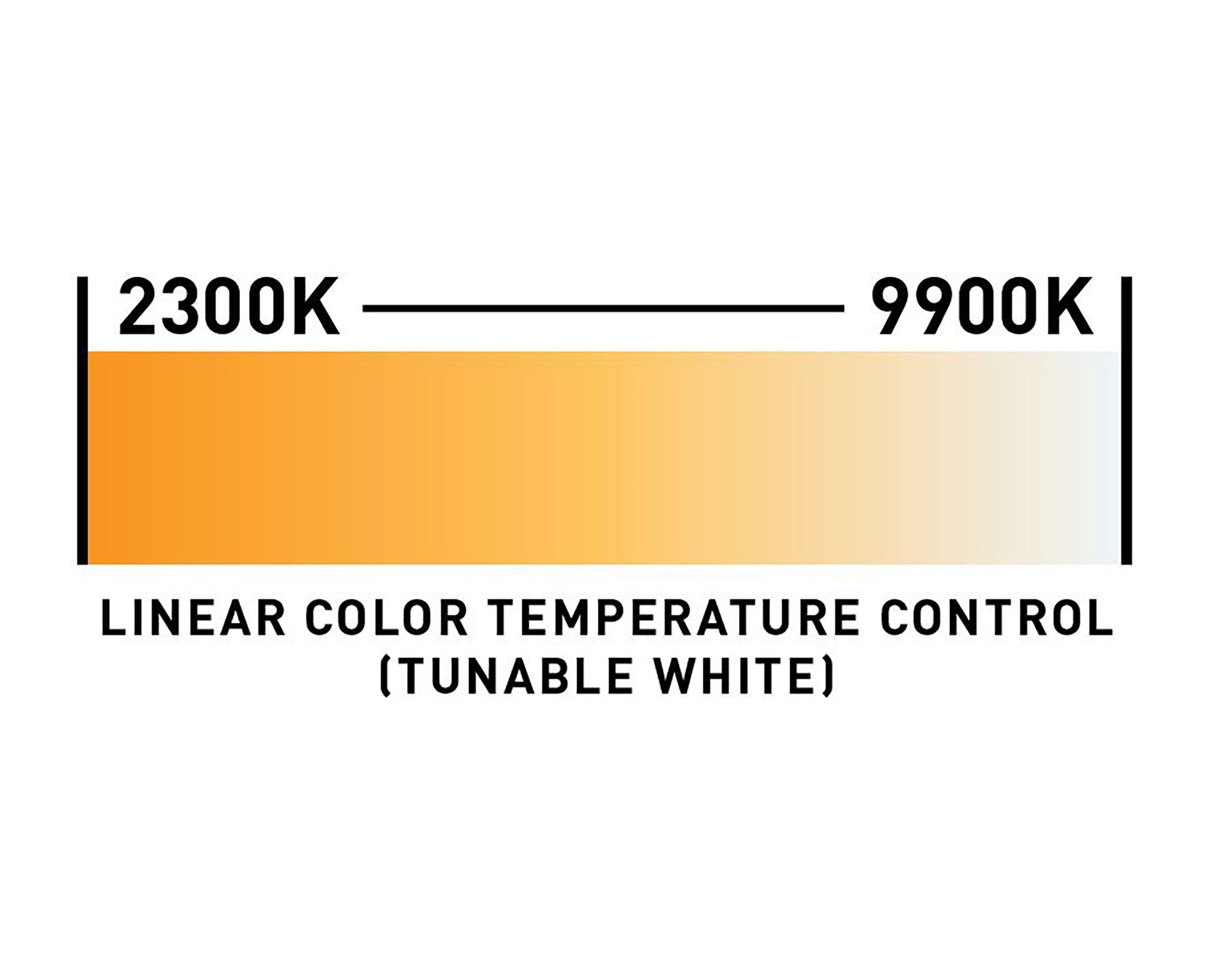

The ADJ Par Z150 RGBA Plus 150-Watt RGBA Battery LED Par with Aria X2 combining the classic aesthetic of the traditional Par Can with the power-saving and heat-reducing advantages of a modern LED light source, ADJ’s Par Z Series provides flexible wash lighting solutions for a wide variety of applications. The Par Z150 RGBA Plus model harnesses the power and versatility of a 150-Watt quad color (red, green, blue, and amber) C.O.B. LED engine, which delivers a huge spectrum of color options, including white light with color temperature variable between 2300K and 9900K, plus its equipped with the Aria X2 wireless management system for over the air firmware/software updates for streamlined control. In addition, this fixture is fitted with a rechargeable Lithium-ion battery (with user adjustable durations from 5 to 20 hours).

C.O.B (Chip on Board) technology ensures uniform output with no color shadows, while a high CRI of >90 means that colors are rendered more accurately when the fixture is used to illuminate scenery, décor, or performers, which is particularly important to ensure natural skin tones and enhanced depth. 64 built in color macros, along with additional white light color temperature macros, allow for quick and efficient programming. A choice of six dimming modes, four dimming curves, and an on-board color balance feature allows the fixture to be customized for different applications and user preferences.

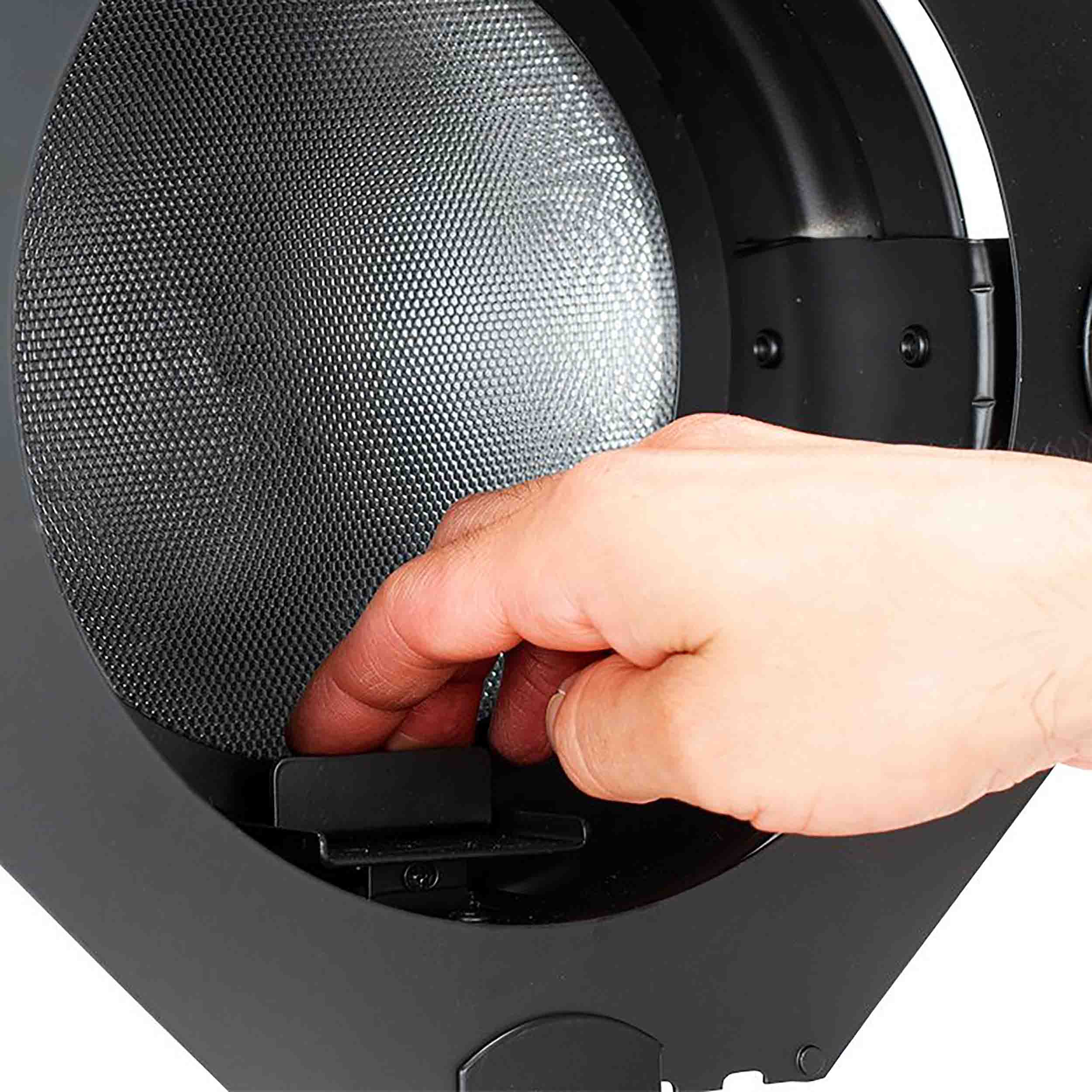

The luminaire offers five beam angle options (7°, 11.5°, 16°, 20.5° or 25°) and is supplied with a gel frame that can be used to add a diffusion filter (sold separately), allowing an even wider spread to be achieved. As well as smooth dimming control, the LED engine allows for variable speed strobing effects with a flash rate of between 0.6Hz and 7.5Hz. Another advantage of the LED light source is its long-life expectancy of 50,000 hours, which essentially removes the cost and inconvenience of regular lamp replacement.

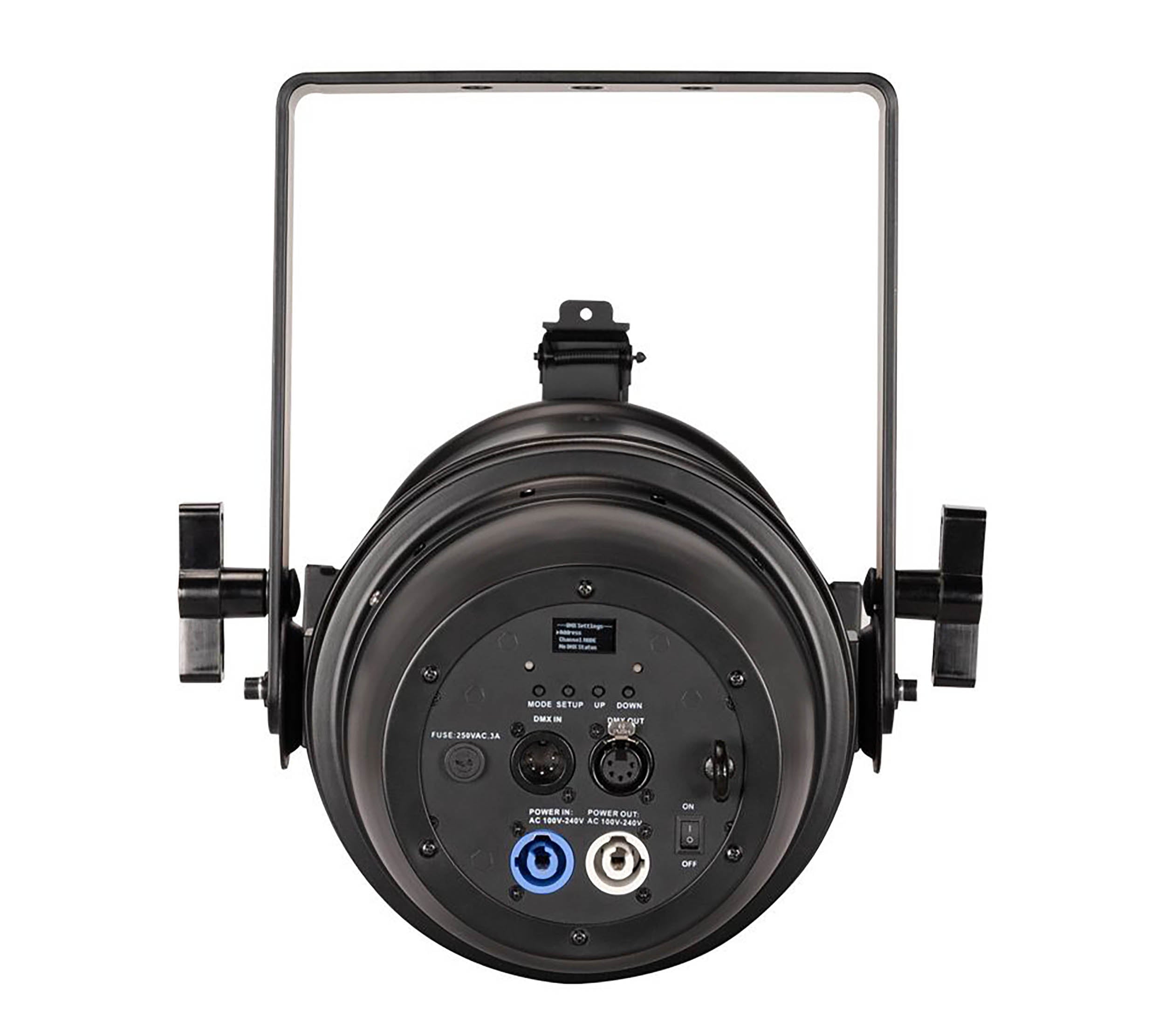

An adjustable bracket, locked in place using a pair of large plastic thumb screws, allows the fixture to hang from a truss or lighting stand at any desired angle. On the rear panel are 5-pin DMX input and output sockets as well as locking power input and output sockets, which allow the electrical supply for multiple fixtures to be daisy chained from a single outlet. Mode selection and DMX addressing is facilitated by an LED display and four corresponding push buttons, also located on the rear panel. In addition to standard DMX, the fixture is also compatible with the RDM protocol to allow remote fixture addressing.

What’s Included:

Gel Frame

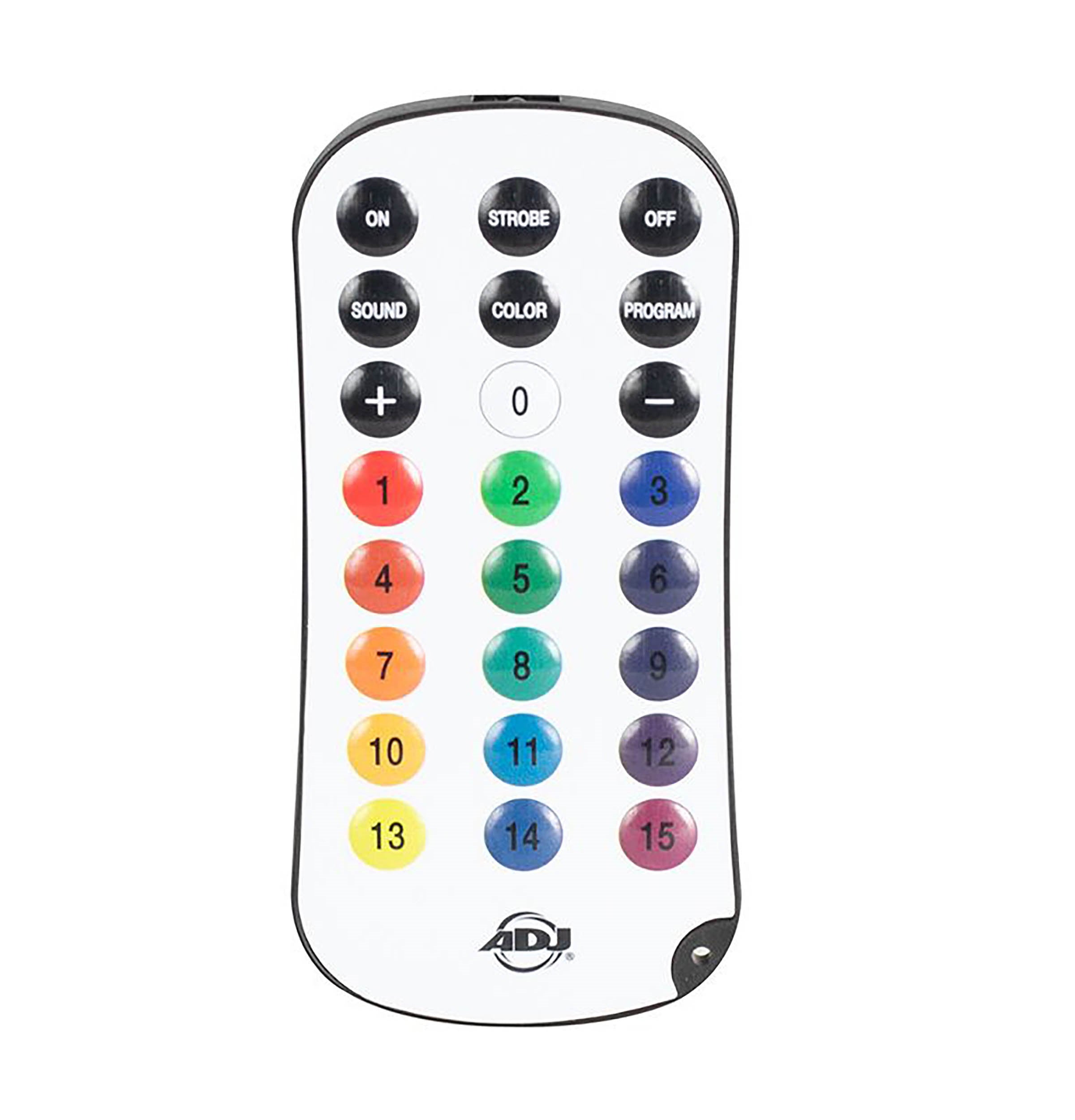

UCIR24 Wireless Remote

Power Cord

Product Specifications:

Optical:

150-Watt Quad RGBA C.O.B. LED (Chip on Board - Red, Green, Blue & Amber)

Life expectancy: rated at 50,000 hrs.

Manual Zoom: 7, 11.5, 16, 20.5 or 25-degrees

Zoom Ration: 3.3:1

Photometrics:

1360 Lux (Zoomed In to 7°)

487 Lux (Zoomed Out to 25°)

CRI: >90

Connections:

DMX: 5-pin DMX in/Out

With Wired Digital Communication Network

Locking power in/Out connections

Control:

DMX-512 and Aria X2 Wireless DMX / APP

9 DMX control modes: (4/5/6/7/8/9/10/11 & 12 Ch. modes)

RDM and RDM Net Compatible

Primary/Secondary, stand-alone mode

On-board manual control mode

Electrical:

Power Draw Total (All LEDs @ Full On): 157W

Power Consumption: 1.3A @ 120V/60Hz; 0.7A @ 220V/50Hz

Multi-voltage operation: AC 100-240V, 50/60Hz

Daisy chain: 9 fixtures @ 120V; 17 fixtures @ 230V

Fuse protected: 3A/250V

Battery:

Rechargeable Lithium-ion

Battery Capacity: 7,000mAh

Battery Voltage: 22.2V

Charge Time: 6 Hours (To Full)

Battery Cycles: 500

Battery On/Off button

Ambient Temperature Range (For Use):

-4° ~ 113°F (-20°C ~ 45°C)

Storage Temperature Range:

-22° ~ 113°F (-30°C ~ 45°C)

Shipping Weight: 12.79 lbs. / 5.8kg.

Shipping Dimensions (LxWxH):19.25” x 10.94” x 10.68” / 489 x 277.7 x 272.1mm
