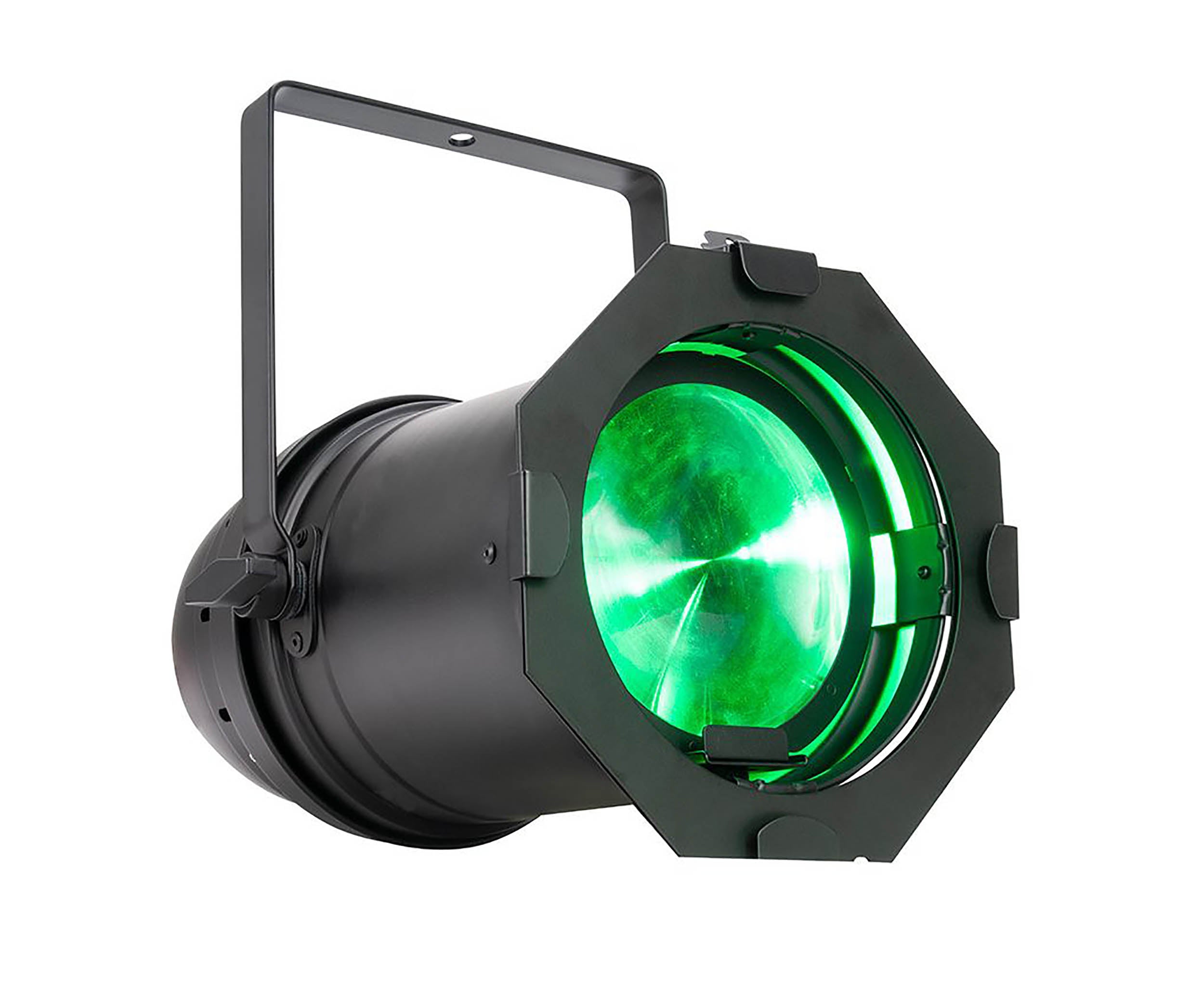

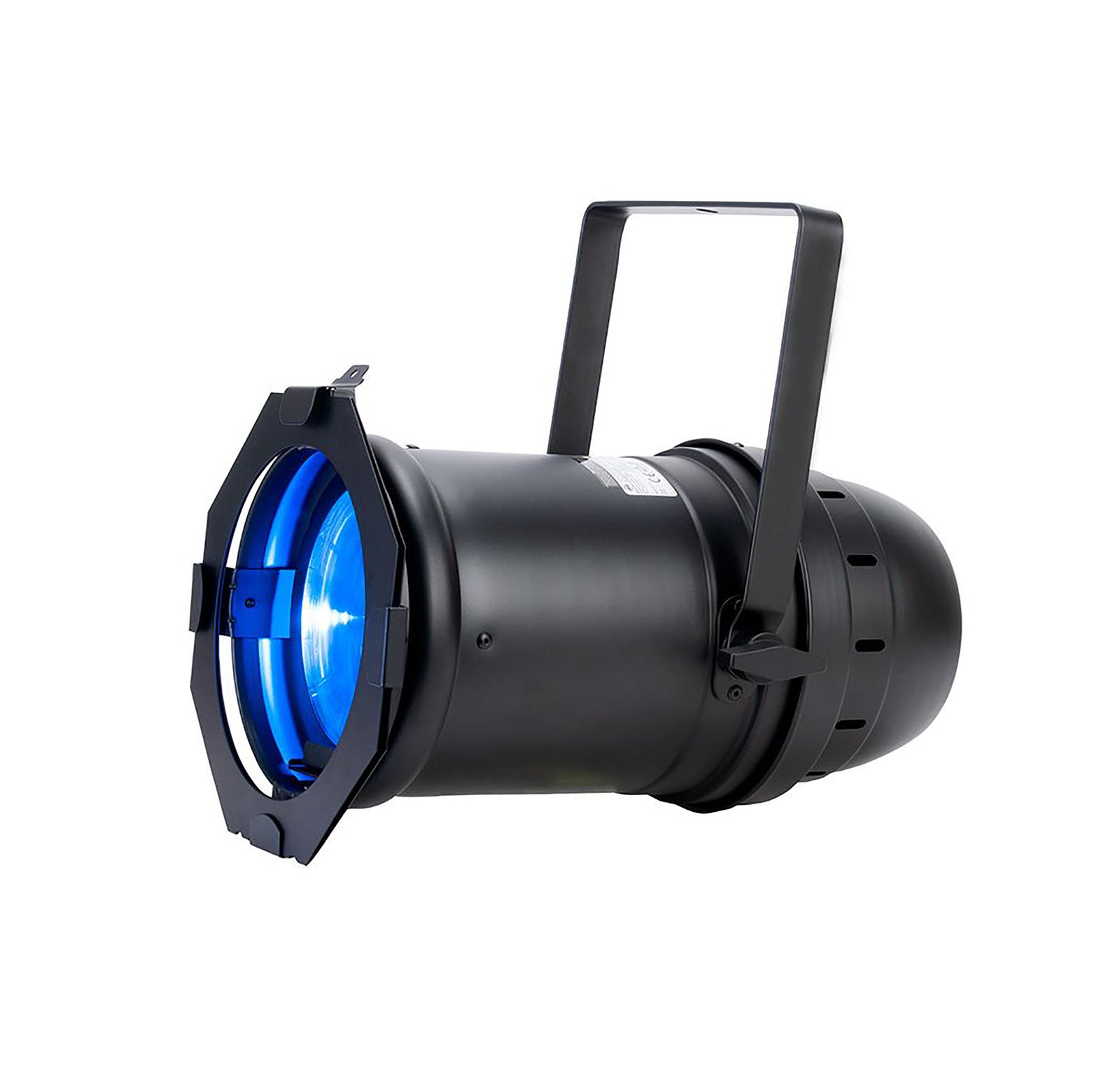

ADJ Par Z150 RGBA, Quad RGBA C.O.B. LED Fixture 150-Watt

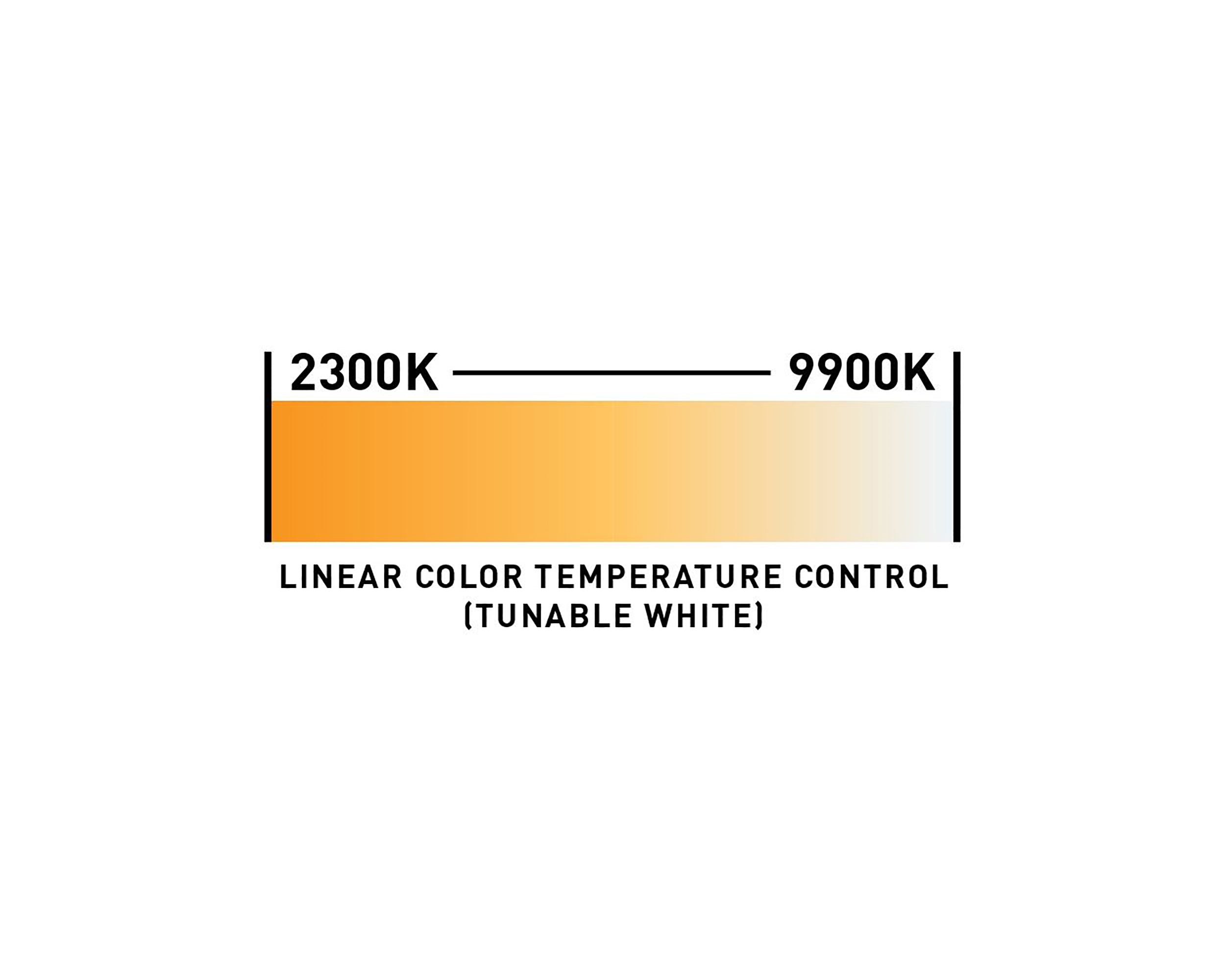

Combining the classic aesthetic of the traditional Par Can with the power-saving and heat-reducing advantages of a modern LED light source, ADJ’s Par Z Series provides flexible wash lighting solutions for a wide variety of applications. The Par Z150 model harnesses the power and versatility of a 150-Watt quad color (red, green, blue, and amber) C.O.B. LED engine, which delivers a huge spectrum of color options, including white light with color temperature variable between 2300K and 9900K.

C.O.B (Chip on Board) technology ensures uniform output with no color shadows, while a high CRI of >90 means that colors are rendered more accurately when the fixture is used to illuminate scenery, décor, or performers, which is particularly important to ensure natural skin tones and enhanced depth. 64 built in color macros, along with additional white light color temperature macros, allow for quick and efficient programming. A choice of six dimming modes, four dimming curves, and an on-board color balance feature allows the fixture to be customized for different applications and user preferences.

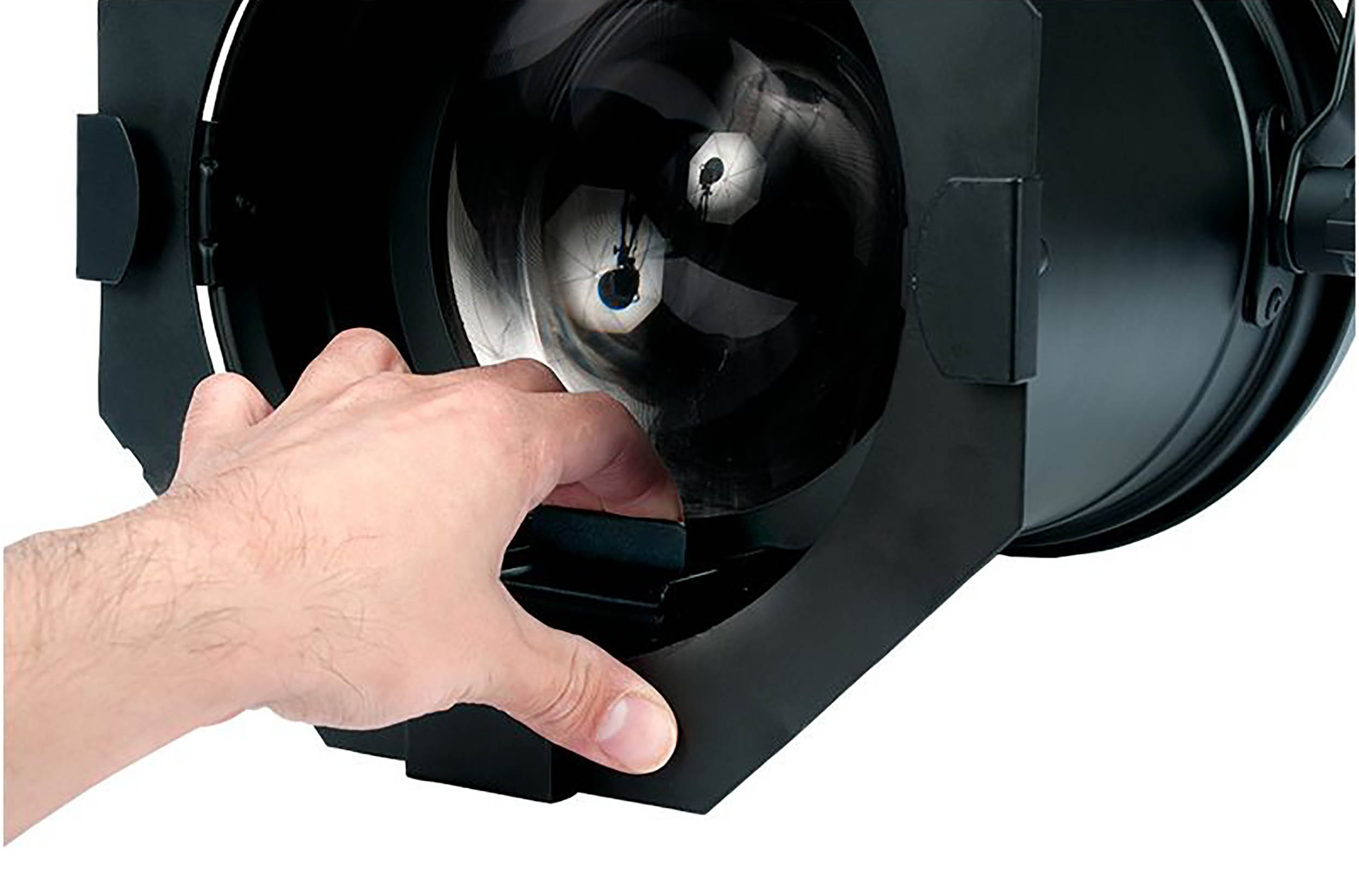

The luminaire offers five beam angle options (7°, 11.5°, 16°, 20.5° or 25°) and is supplied with a gel frame that can be used to add a diffusion filter (sold separately), allowing an even wider spread to be achieved. As well as smooth dimming control, the LED engine allows for variable speed strobing effects with a flash rate of between 0.6Hz and 7.5Hz. Another advantage of the LED light source is its long-life expectancy of 50,000 hours, which essentially removes the cost and inconvenience of regular lamp replacement.

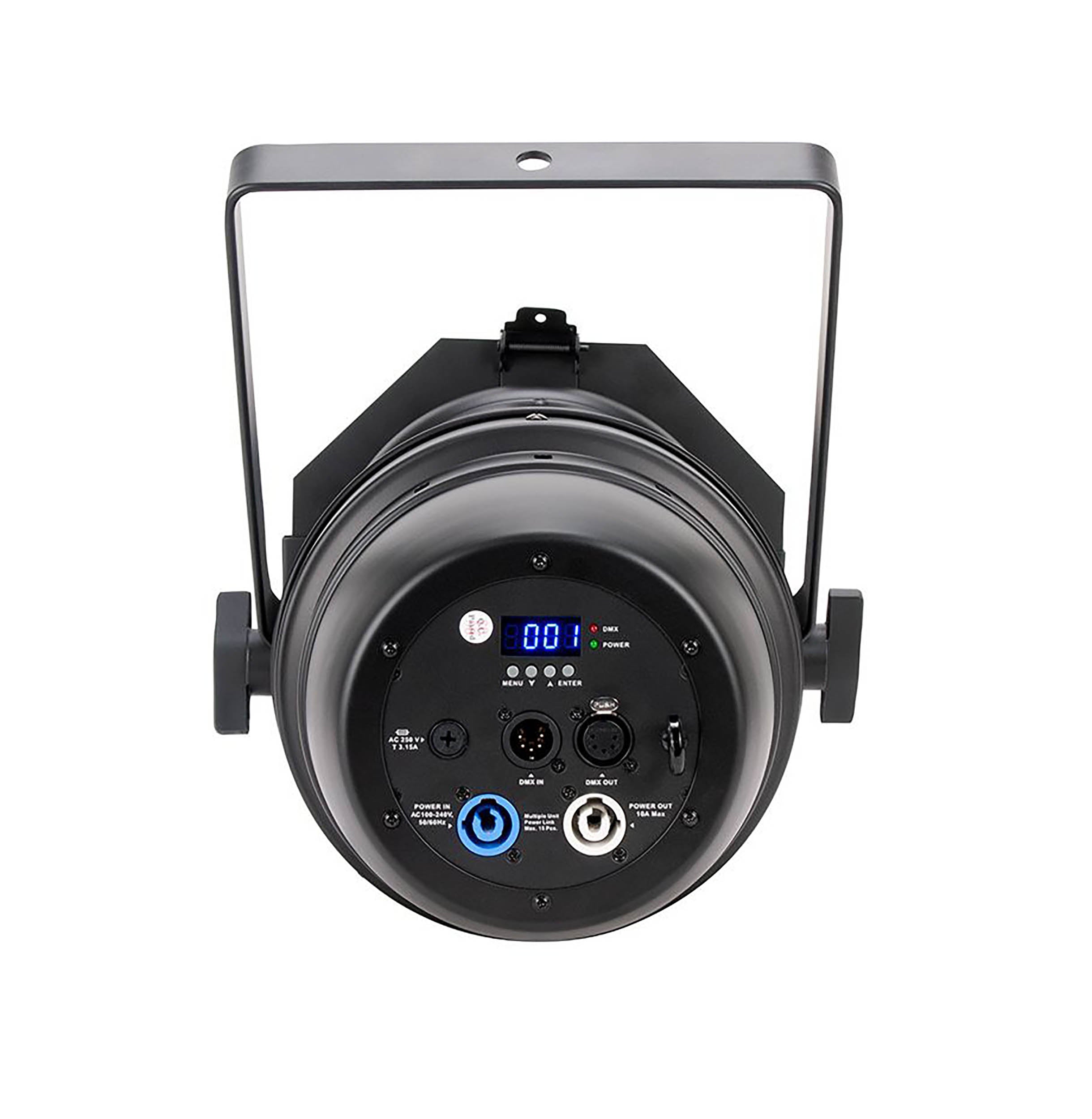

An adjustable bracket, locked in place using a pair of large plastic thumb screws, allows the fixture to hang from a truss or lighting stand at any desired angle. On the rear panel are 5-pin DMX input and output sockets as well as locking power input and output sockets, which allow the electrical supply for multiple fixtures to be daisy chained from a single outlet. Mode selection and DMX addressing is facilitated by an LED display and four corresponding push buttons, also located on the rear panel. In addition to standard DMX, the fixture is also compatible with the RDM protocol to allow remote fixture addressing.

Product Specifications:

Fixture Type: PAR

Light Source: 1x White LED (COB) - 150 W

Expected Lamp Life: 50,000 Hours

Colors: Amber, Blue, Green, Red

Photometrics:

7°:126 fc / 1360 Lux at 16.4' / 5 m

25°:45 fc / 487 Lux at 16.4' / 5 m

Color Temperature: 2300 to 9900K

Beam Angle: 7 to 25°

Focus: Manual

Dimming: Electronic, 0 to 100% with 6 Dimmer Modes

Operating Modes: DMX, Primary/Secondary, Standalone

Macros / Programs: No

Effects: Strobe

Strobe Rate: 0.6 to 7.5 Hz

Gobos: No

Color Accuracy Index: CRI: 90

Control Protocols: DMX512, RDM

DMX Channel Modes:

9 Mode(s):

4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12-Channel

Display / Controls: LED / 4-Button

Remote Control: No

Mobile App Compatible: No

Inputs/Outputs :

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

Wireless: No

AC Input Power : 100 to 240 VAC, 50/60 Hz

AC Power Connector:

Input: 1x powerCON

Output: 1x powerCON

Fuse: 3 A 250 V

Power / Current Consumption:

120 VAC, 60 Hz: 157 W / 1.3 A

230 VAC, 50 Hz: 157 W / 0.7 A

Power Linking:

15 Units at 120 VAC

25 Units at 230 VAC

Environmental Protection: No

Operating Temperature: -4 to 113°F / -20 to 45°C

Mounting: Single Yoke Only

Included Accessories: 1x Power Cable

Duty Cycle: No

Exterior Color: Black

Certifications: CE, FCC

Shipping Dimensions: 19.25 x 10.94 x 10.68" / 48.9 x 27.79 x 27.13 cm

Shipping Weight: 7.9 lb. / 3.6 kg
