Description

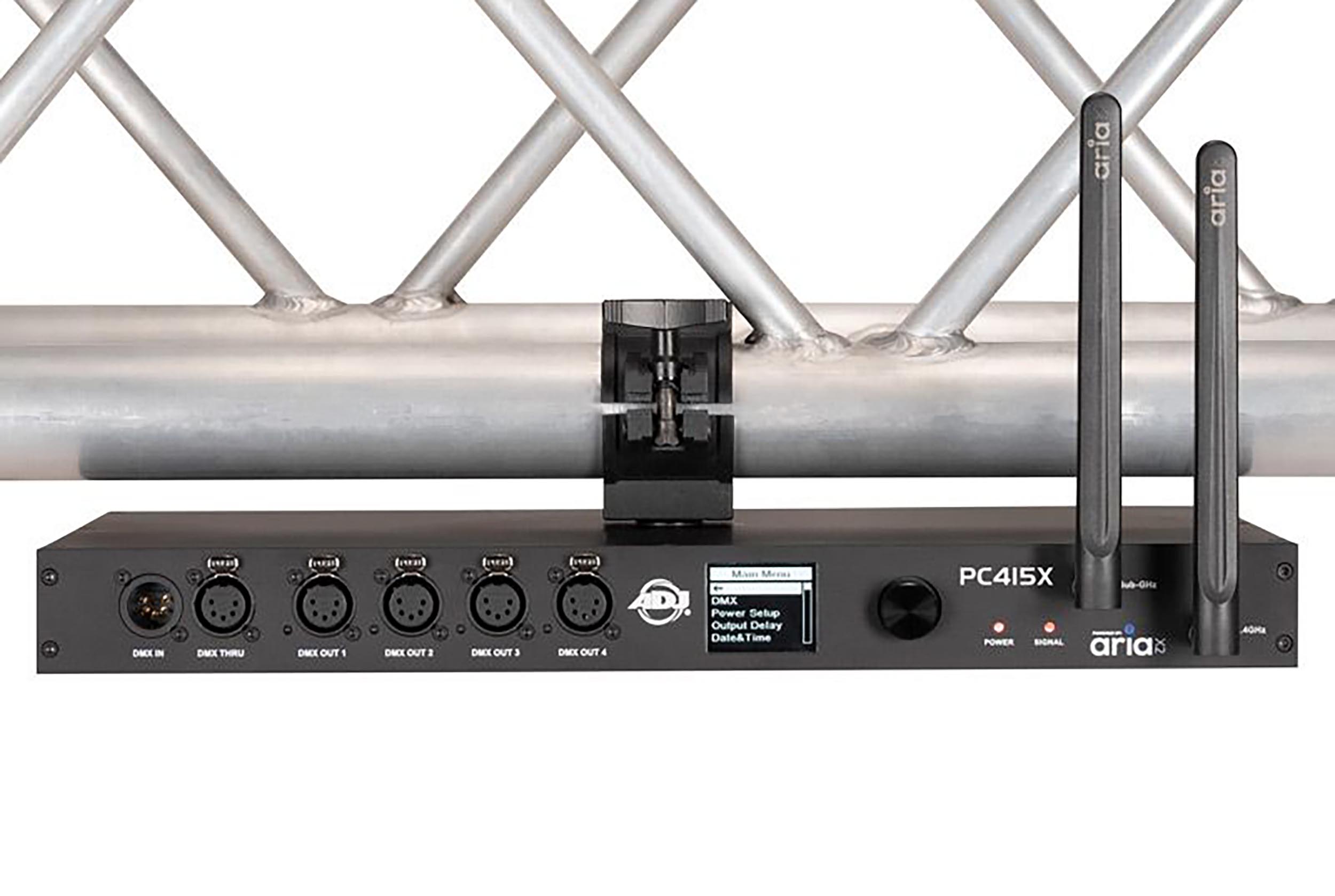

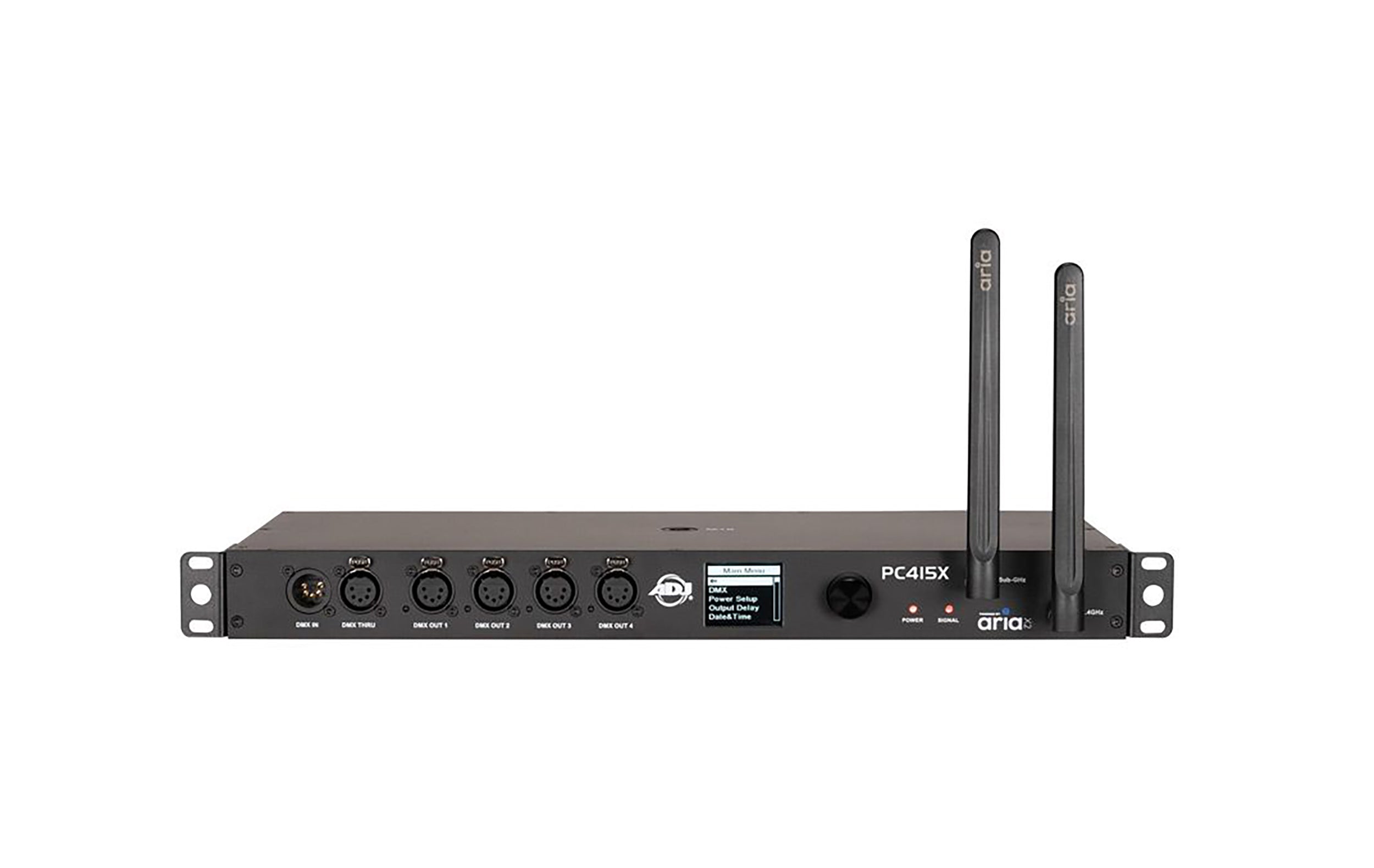

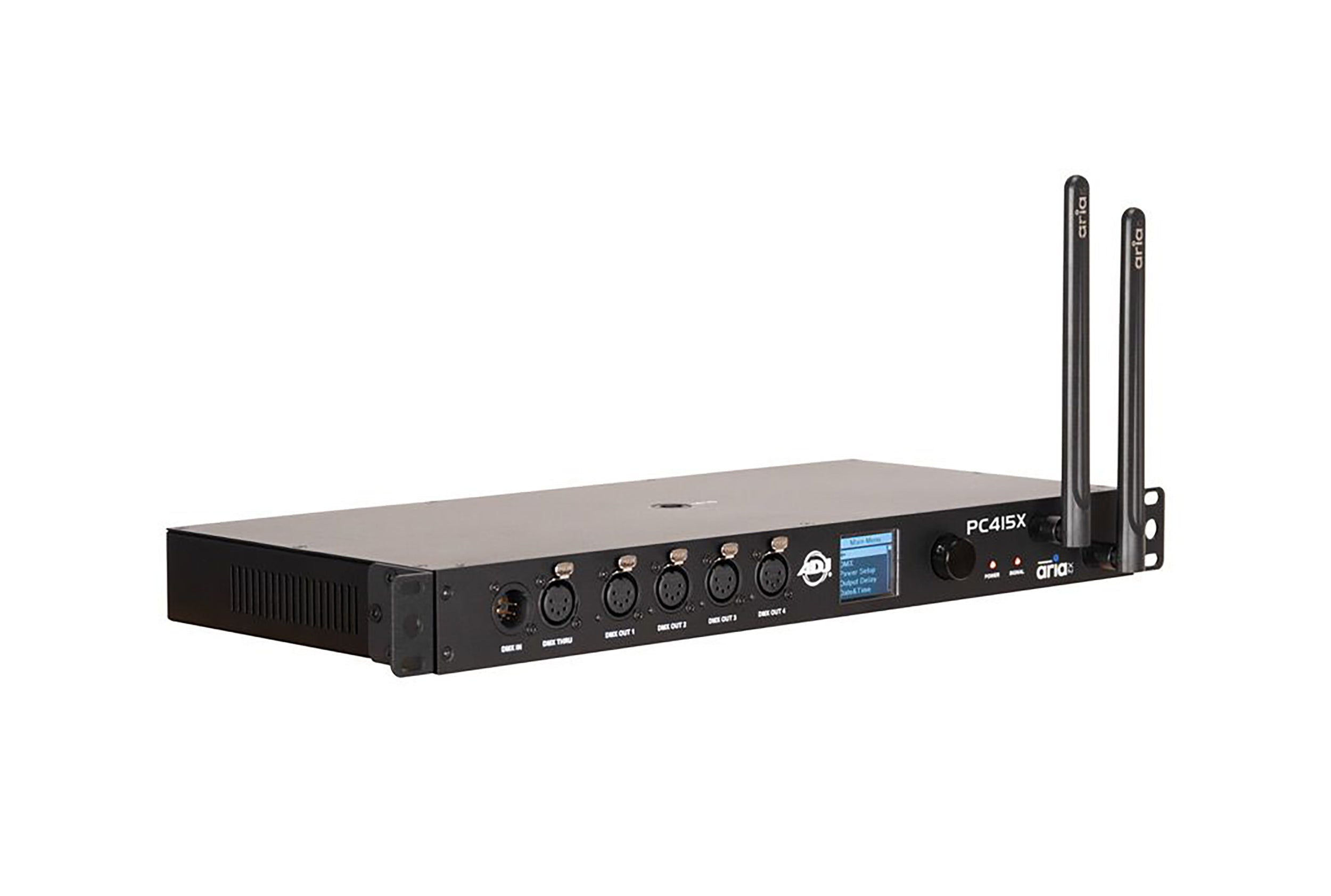

The ADJ PC415X Advanced Power and DMX Controller, all-in-one solution for lighting professionals, venues, and production teams seeking a reliable, efficient, and versatile power distribution and DMX control hub. This state-of-the-art device seamlessly integrates three essential features into one compact, rack-mountable unit: a 4-output power distribution center, an advanced Aria X2 wireless DMX transceiver, and a 4-output DMX/RDM splitter. This powerful combination provides users with an unprecedented level of control and flexibility, making it an invaluable asset for live events, stage productions, touring, and fixed installations.
Product Specifications:
Supported Protocols:
DMX/RDM: Designed for DMX lighting control, with RDM support planned in a future software release
Proprietary Protocols: Supports Aria X2 Mesh Protocol and 802.15.4 communication, plus Bluetooth 5.2 for versatile device connectivity
RF Characteristics:
Frequency Range: Operates between 2404-2480 MHz, with additional EU (863-870 MHz) and US (902-928 MHz) bands.
Enhanced Reliability: CSMA and planned adaptive frequency hopping ensure minimal interference
Over-the-Air Updates: Future-proof your setup with OTA updates
Standards & Compliance:
Safety: Meets EN IEC 62368-1 and BS EN standards for safe operation
Health & EMC: Complies with EN IEC 62311:2020 and ETSI EMC standards, ensuring safety and low interference
Connectors:

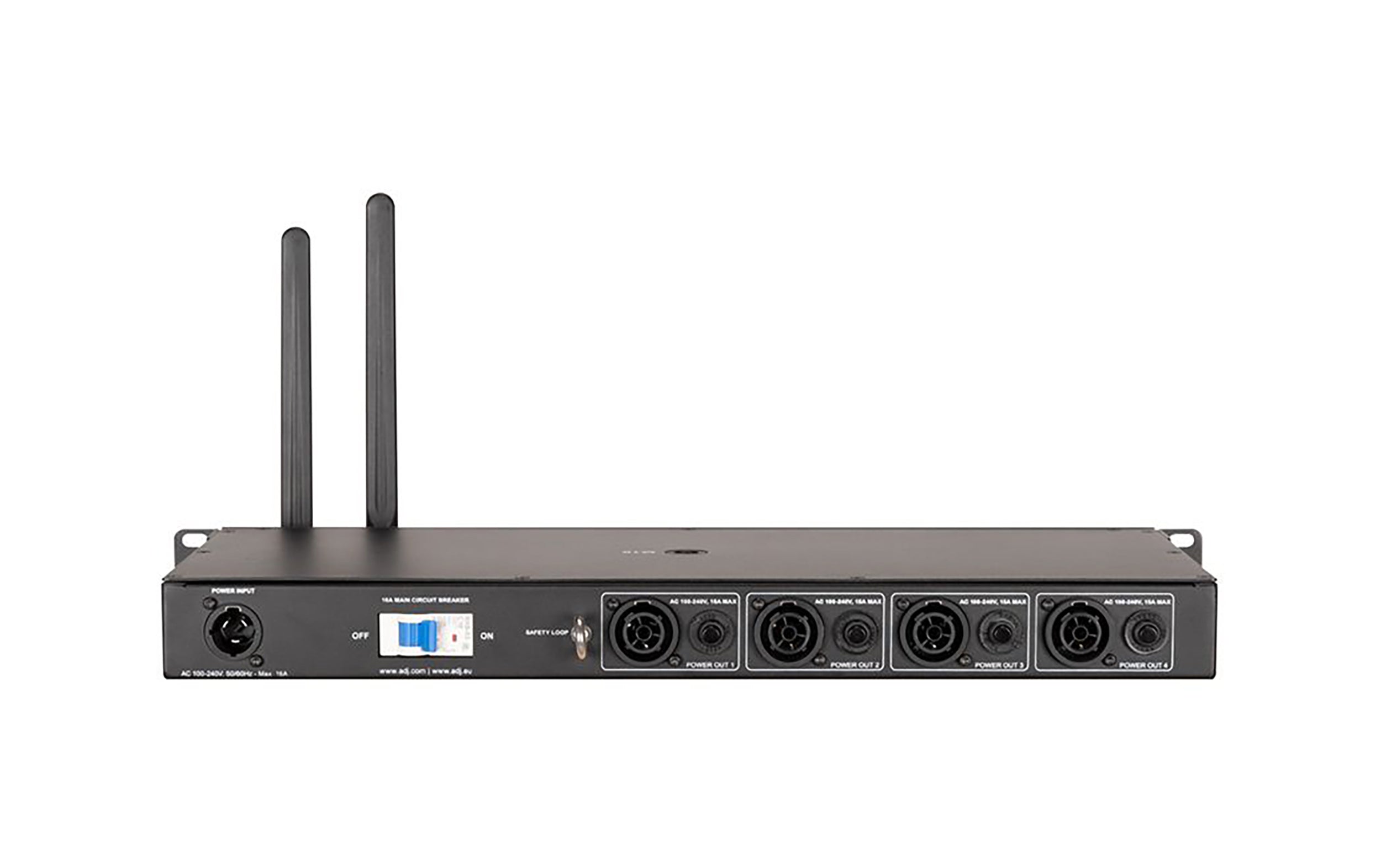

DMX and Power Options: Features (1) DMX input, (4) DMX outputs, and (4) IP65 locking power outputs with 15A resettable breakers.
Antenna Compatibility: Equipped with dual 5G JT SMA antennas.
Power Requirements:
Versatile Power Input: Compatible with AC100-240V 50/60Hz and equipped with a 16A main power switch
Low Power Consumption: Runs efficiently with minimal power requirements and features a CR2032 lithium battery for critical backup
Physical Specifications:

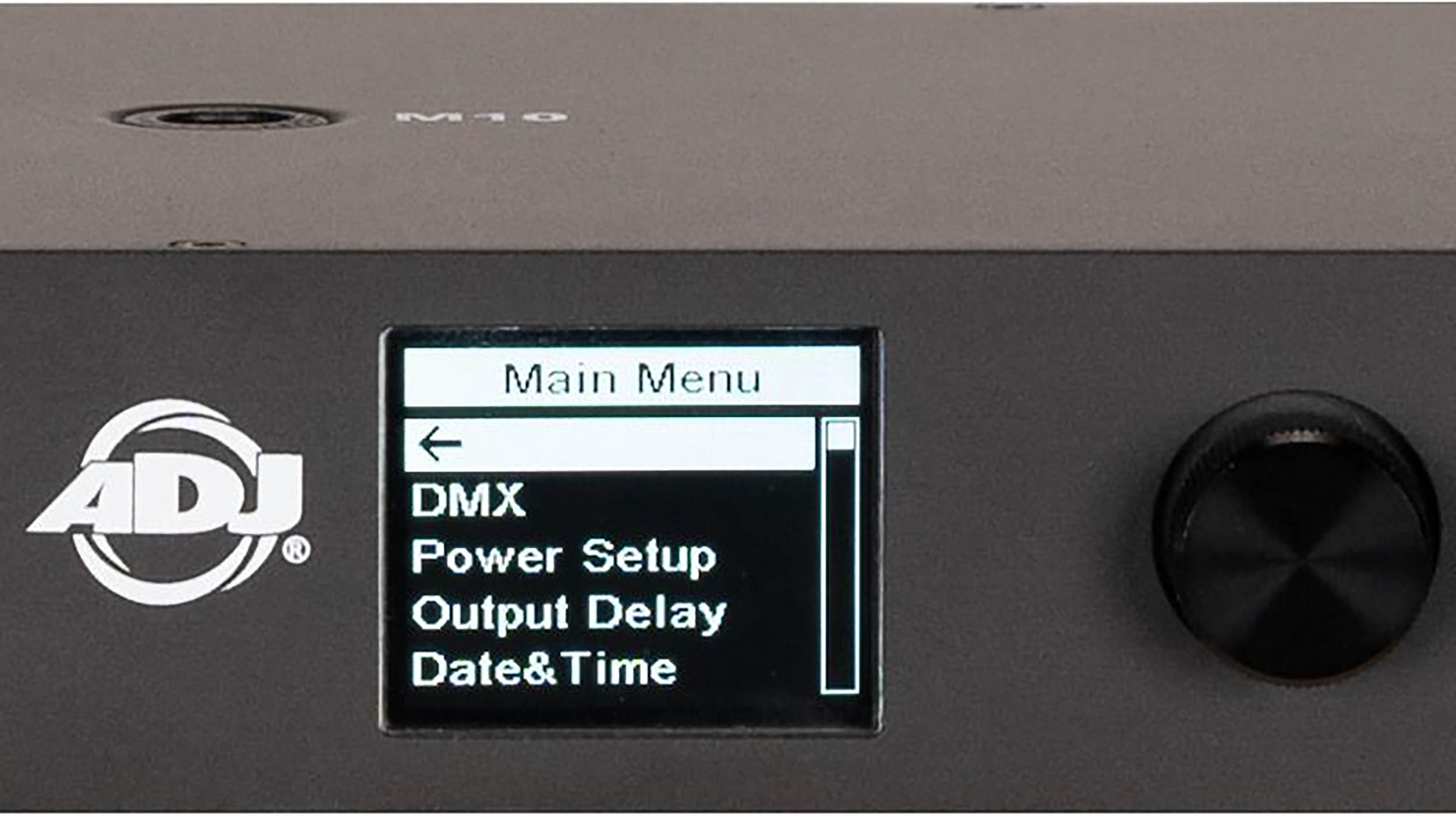

Robust Design: Durable IP20 metal enclosure with a digital screen, rotary knob, and safety eyelet
Temperature Tolerant: Operates in ambient temperatures up to 113°F and humidity below 75%
Compact Dimensions: At just 7.4 lbs., it’s designed for easy handling and secure installation
Dimensions & Weight:
Length: 19" (482mm)
Width: 9.81" (249.17mm)
Height: 1.73" (43.80mm)
Weight: 7.4 lbs. (3.36 kg)
Approvals: CE, cETLus (pending), IP20-rated for indoor use

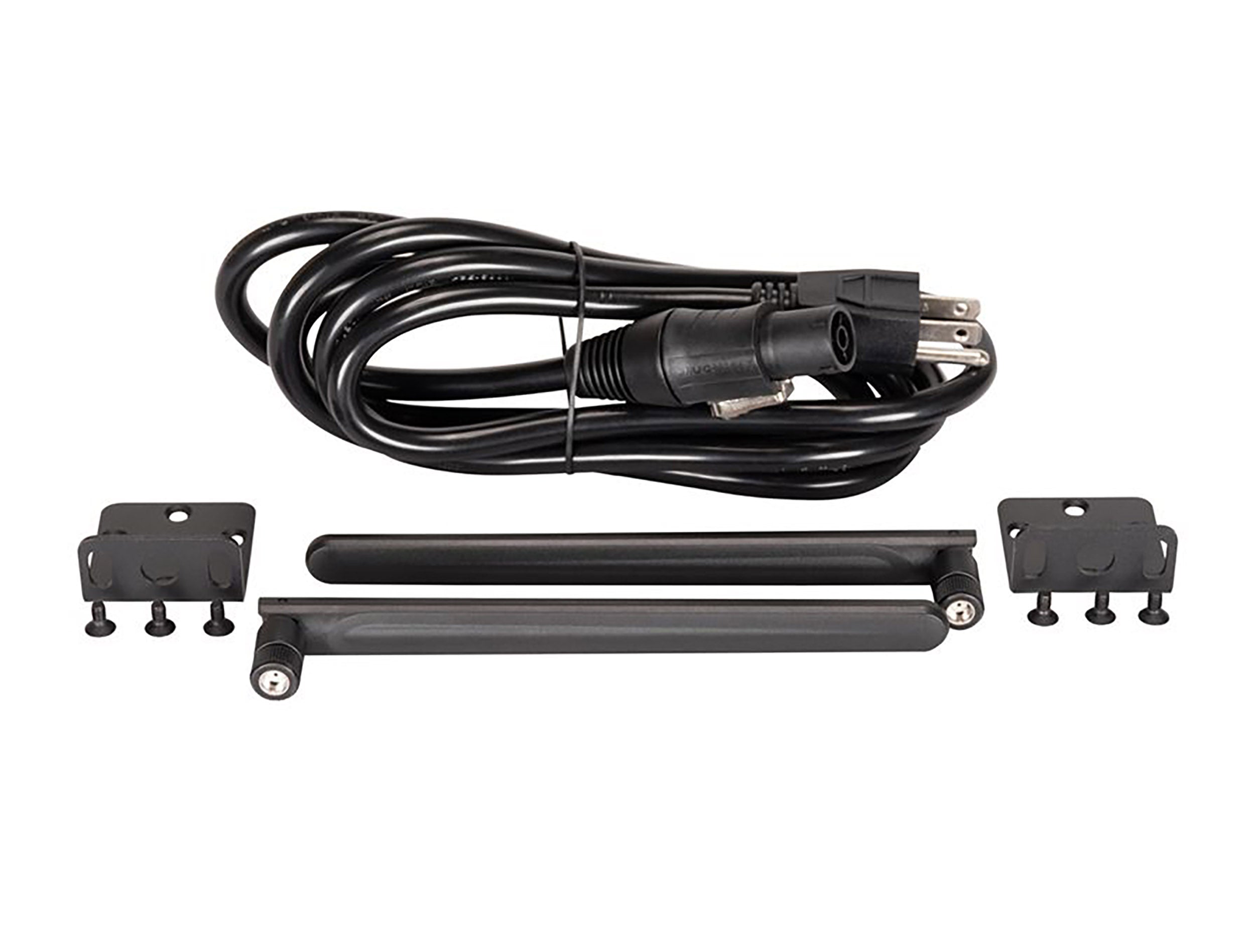

Accessories: Comes with rack ears for a standard 19-inch rack mount, two Aria X2 antennas and one IP65 locking power cable
