Description
The ADJ Pixie Driver 8000 V2, Power / Data Supply for Pixie Strip 30, 60, 120 and Pixie Curve 60 is designed specifically for the ADJ Pixie Strip Series. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels via Kling-Net, 1,360 max pixels via Art-Net or sACN (streaming ACN) protocols.
The Pixie Driver 8000 V2 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, locking RJ45 Ethernet in/out ports, (8) Pixie Strip outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixie strip (available in lengths from 2 to 50 feet (For additional details, see Accessories Sold Separately under the Specifications section). The Pixie Driver 8000 V2 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Product Specifications:
Control Quantity:
KlingNet: (34) Pixie Strip 30's, (17) Pixie Strip 60's (8) Pixie Strip 120's or (17) Pixie Curve 60's (Per port. Or any combination not exceeding 1,020 pixels per port)
ArtNet: (5) Pixie Strip 30's, (2) Pixie Strip 60's, (1) Pixie Strip 120 or (2) Pixie Curve 60's (Per port. Or any combination not exceeding 170 pixels per port)
sACN: (5) Pixie Strip 30's, (2) Pixie Strip 60's (1) Pixie Strip 120 or (2) Pixie Curve 60's (Per port. Or any combination not exceeding 170 pixels per port)

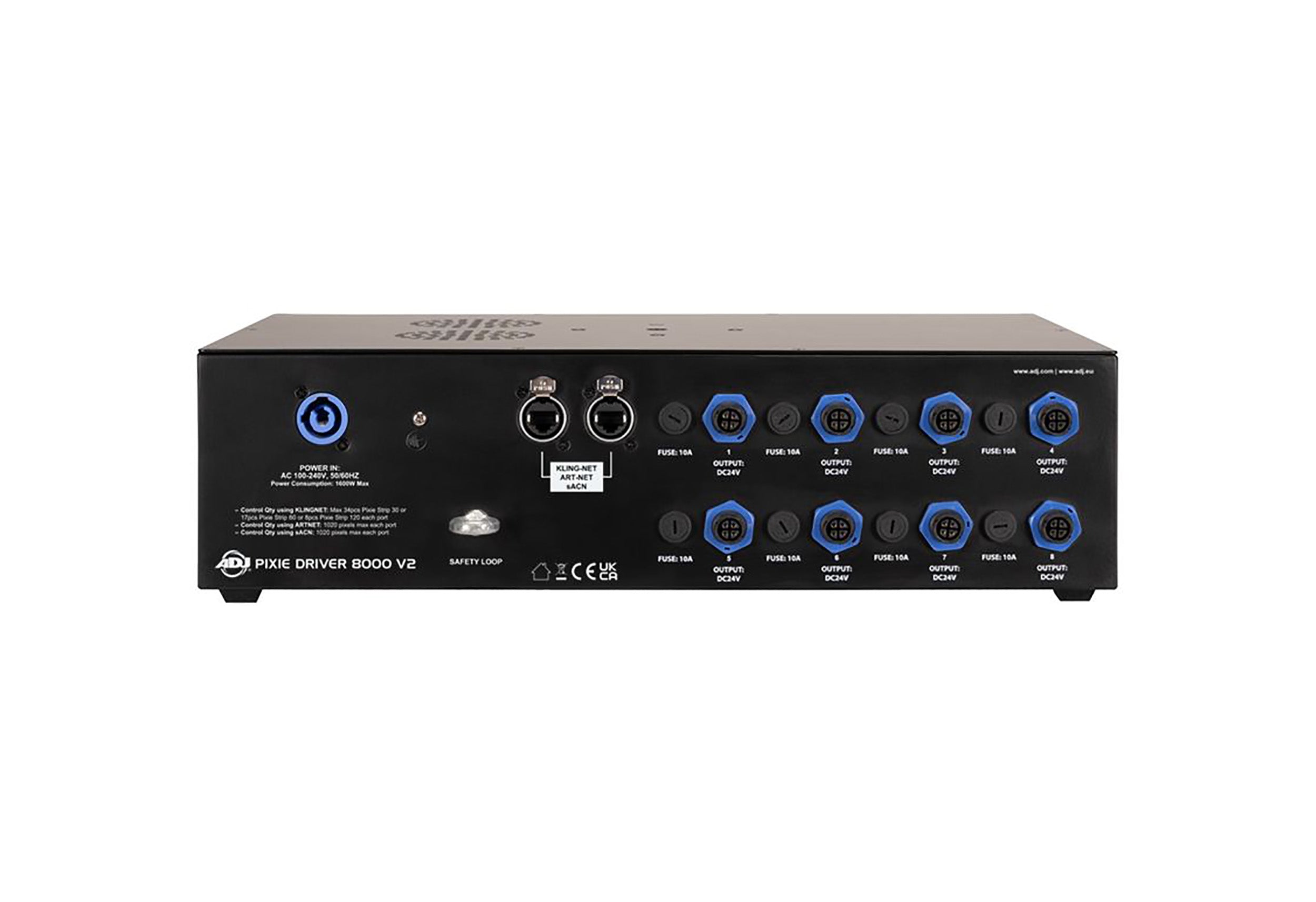

Connections:
Power: PowerLock Input
Two locking RJ45 ports
Eight 4-pin DC24V power/data outputs to Pixie Strips
Mounting Options:
Bolt to add a clamp to hang from truss (clamp and truss not included)
Includes 19-inch rack mount ears
Safety eye
Electrical:
Multi-voltage operation: AC 100-240V, 50/60Hz
Power Consumption: 1,600W max
-4°F to 113°F (-20°C to 45°C)
Product Dimensions (LxWxH): 11.8” x 18.9” x 4.7” / 300.3x480x120mm
Product Weight: 13.4 lbs. / 6.1 kg.
Approvals:
CE | cETLus (Pending)

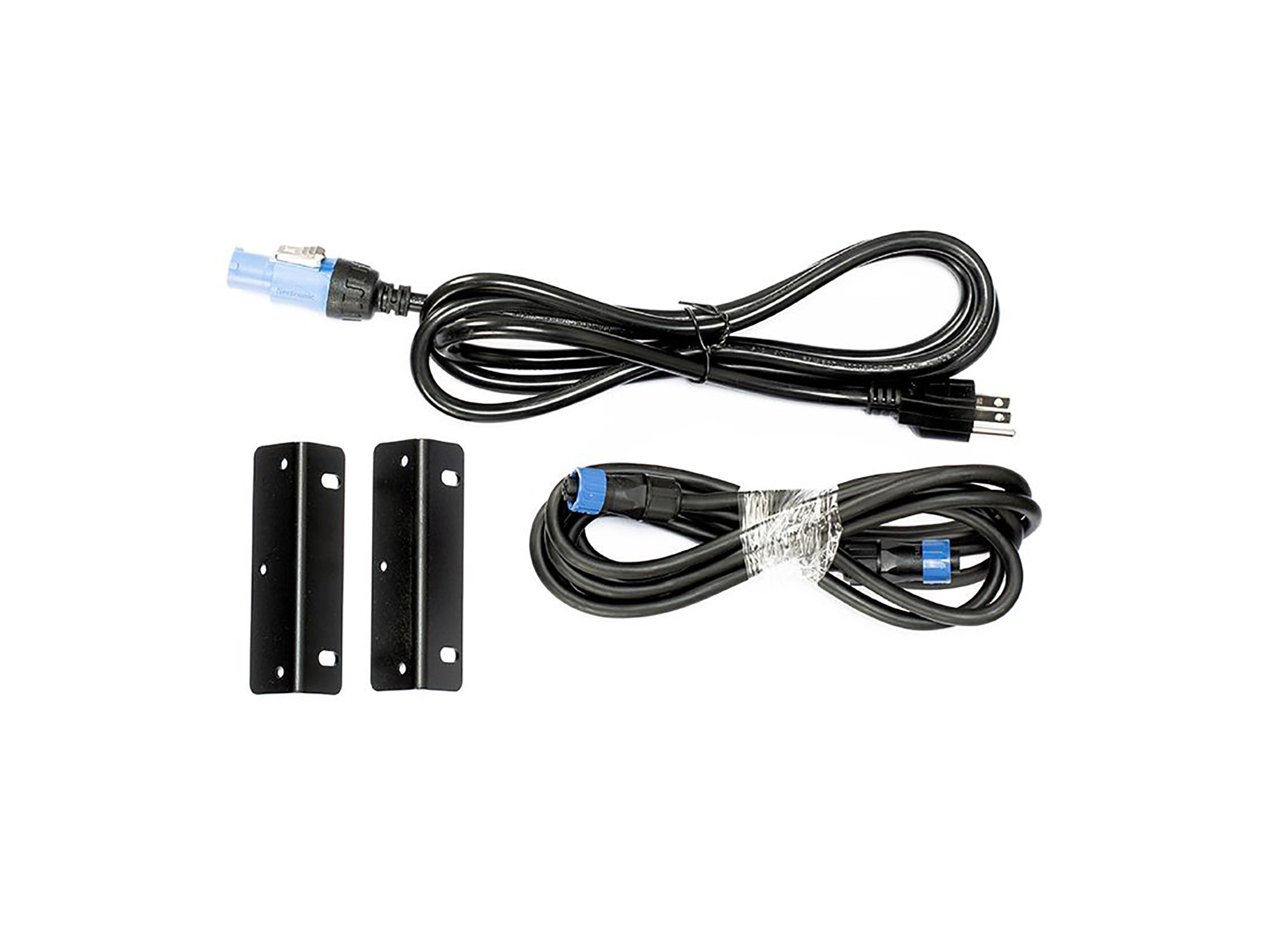

Included Accessories:
(1) PIXEL BC10 (PIX339): 10', 4-pin cable. Connects between Pixie Driver 8000 and Pixie Strip.
(1) SIP20MPC (SIP293): Power Input cable
(2) 19" Rack Ears
Accessories Sold Separately:
PSLC1 (PIX158): 1-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC3 (PIX174): 3-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC5 (PIX188): 5-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC10 (PIX200): 10-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC15 (PIX213): 15-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC25 (PIX229): 25-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
PSLC50 (PIX242): 50-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
