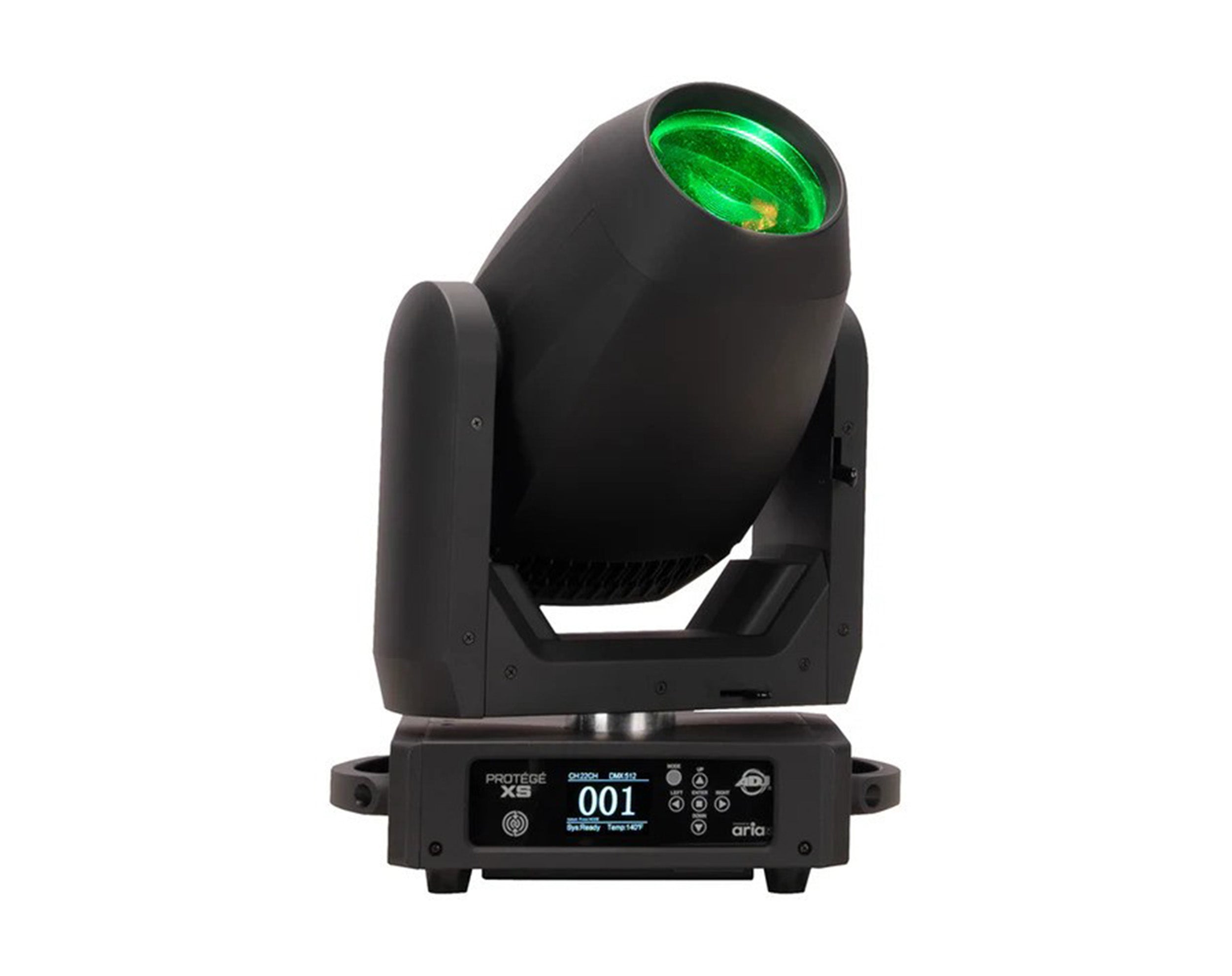

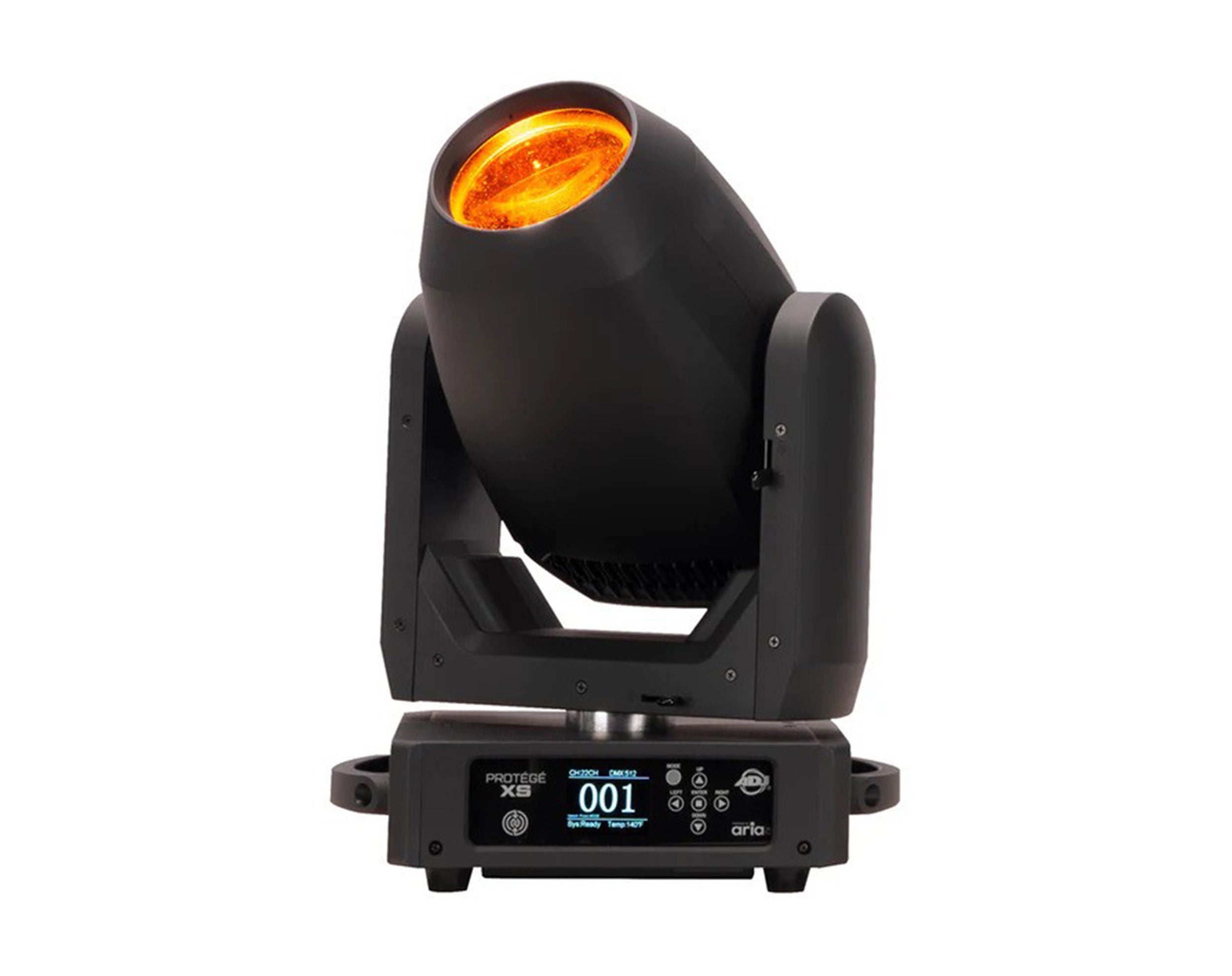

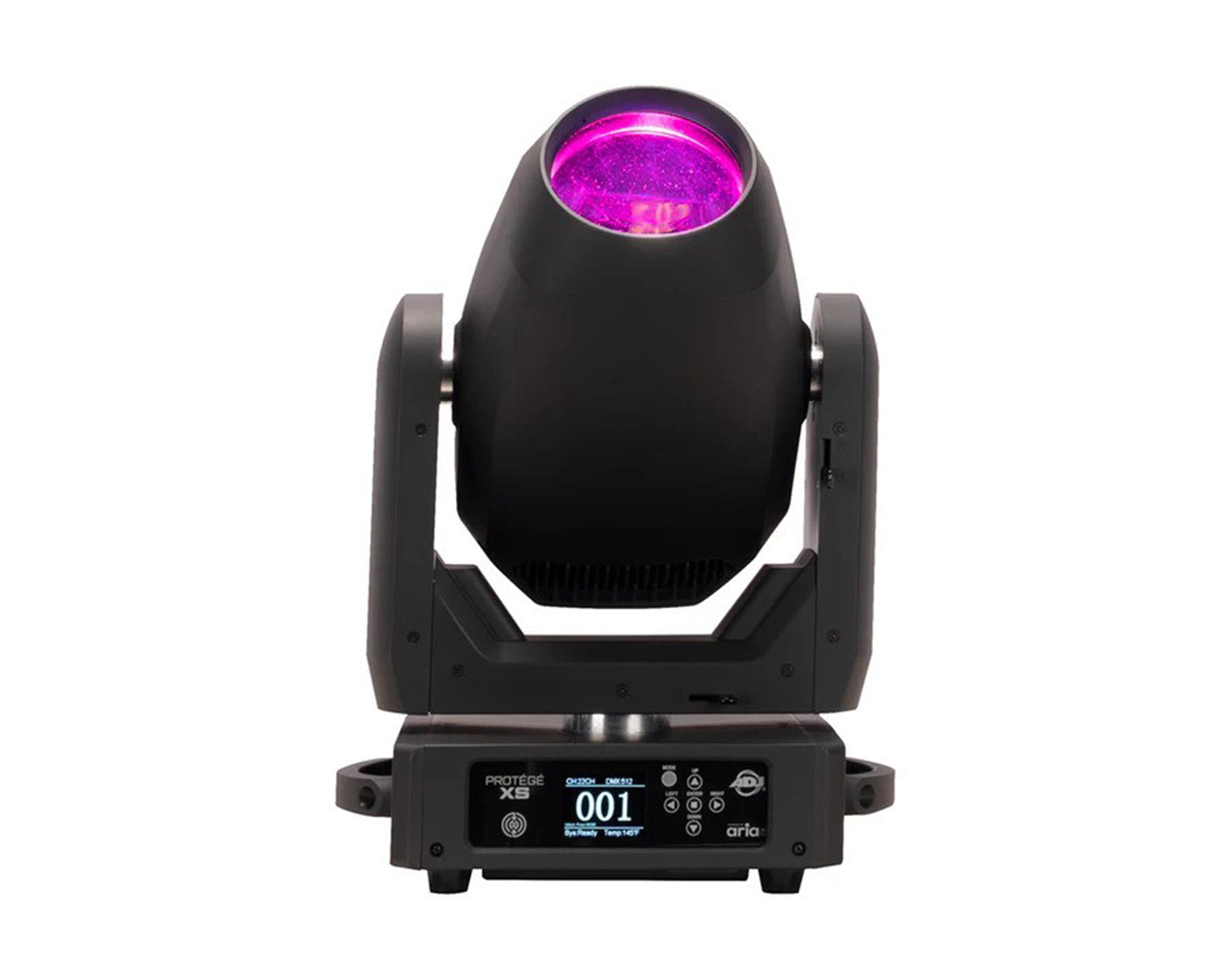

ADJ Prot égé XS LED Moving Head w/ Wired Digital Communication Network

The ADJ Protégé XS is a next-generation LED-powered Beam/Spot/Wash moving head spot luminaire that delivers exceptional creative potential from a streamlined form factor. Harnessing the output of a potent 250-watt white LED engine, it produces up to 9,800 lumens of crisp, high-intensity light. Designed to replace ADJ’s popular Focus Spot 4Z and 5Z models, the Protégé XS builds upon their proven reliability with enhanced optical precision, increased output, and refined effects.

This versatile fixture features a motorized zoom range of 4.8°–38°, allowing for everything from tight aerial beams, defined spot looks, to broad stage washes. Its dual color wheel system offers a wide palette of options, including 3200K CTO and 9000K CTB filters, while dual GOBO wheels (one rotating and replaceable, one static) provide a comprehensive range of textural projection possibilities. Creative effects are expanded even further through dual overlay-capable prisms – one 6-facet circular and one 6-facet linear – complemented by a heavy frost filter for smooth washes and an expressive animation wheel.

Engineered for modern control environments, the Protégé XS offers both wired 5-pin DMX and wireless Aria X2 management, alongside convenient NFC configuration from its base. Its three-phase motors ensure smooth, fast, and precise movement, including 360° continuous pan rotation, with pan/tilt locks for secure transport and setup. Compact, powerful, and affordably positioned, the Protégé XS brings professional-grade performance to churches, clubs, theatres, and event productions. Carrying forward the legacy of ADJ’s renowned Focus Spot Series, it redefines what a compact moving head can achieve — proving that true brilliance often comes in smaller packages.

Product Specifications:

Source:

250W White LED Engine

Color Temperature: 8500K (+/-200k)

20,000 Hour Average LED Life

Photometric Data:

9,800 Lumens

CRI: 73

Color:

2x Color Wheels

8 colors per color wheel

Color Wheel 1: Red, Blue, Green, Orange, Quad Color Yellow, Magenta, Congo Blue

Color Wheel 2: Dark Red, Light Turquiosise, UV, Pink, Quad Color, Lavender, CTO 3200K, CTB 9000K

Gobos:

1x Rotating Gobo Wheel: 7 Interchangeable, glass gobos (OD: 16mm, Image: 10mm)

1x Static Gobo Wheel: 11 Fixed, aluminum gobos, including two beam reducers

Effects:

Motorized Zoom: 4.8° ~ 38°

2x Prisms: 1x 6 Facet Linear & 1x 6 Facet Circular (Overlay Capable)

Heavy Frost Filter for Smooth Wash Effects

Animation Wheel on Movable Arm

Motorized Focus

1Hz ~10Hz Strobe Rate (Electronic)

Control / Connections:

(3) DMX Channel Modes (Basic / Standard / Extended)

DMX, RDM

Aria X2 Wireless Management System

NFC System

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

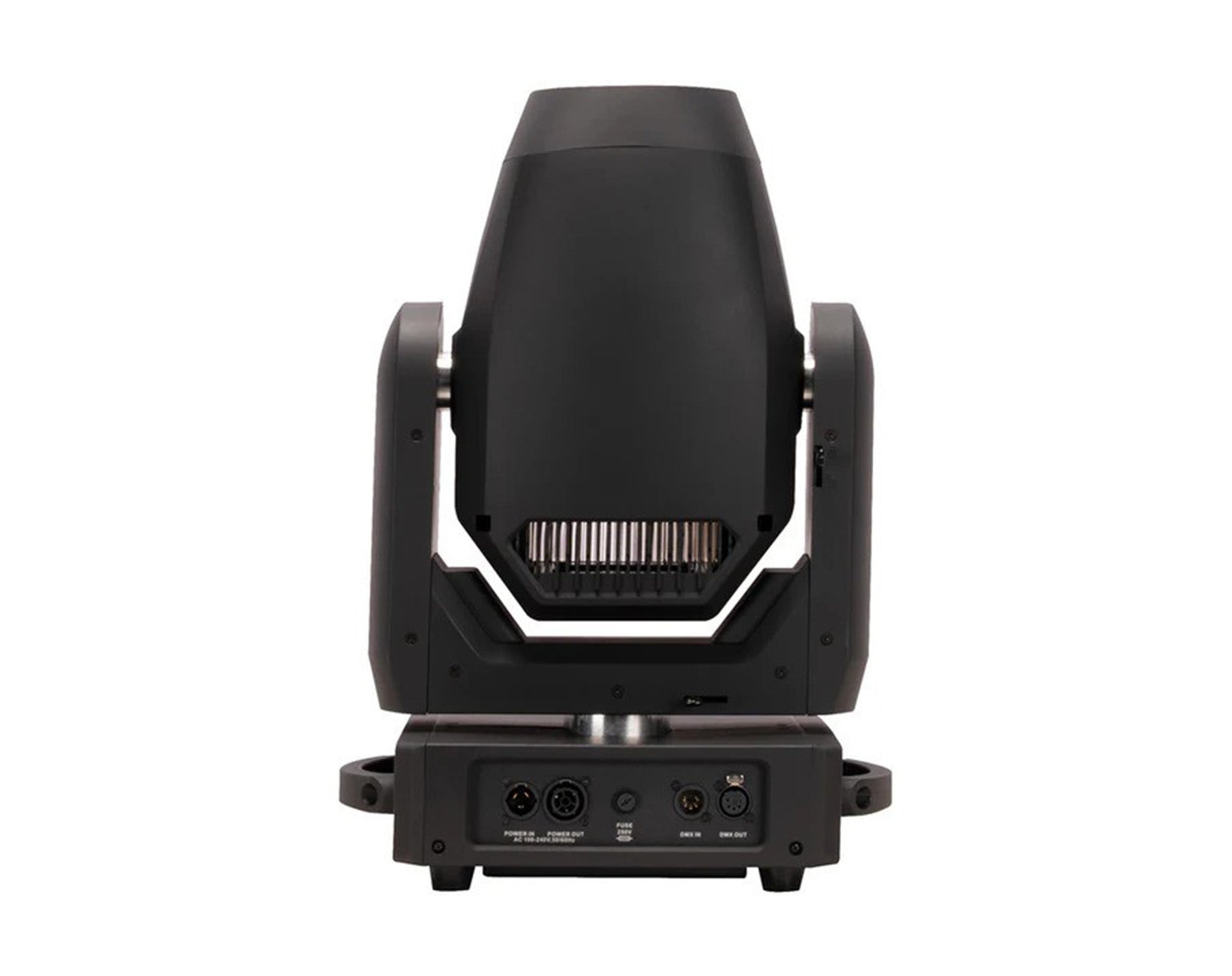

5 pin XLR DMX In/Out

IP65 Locking Power In/Out

Pan / Tilt:

Pan: 540/630° and separate 360° Continuous Pan Rotation

Tilt: 270°

Pan/Tilt Locks

3 Phase Motor

Included Accessories:

(1) Outdoor Locking Power cable (6.5ft.)

(2) Omega brackets (107mm)

(1) Safety Cable, 3mm (1.97ft.)

Electrical / Thermal: AC 100-240V - 50/60Hz

MaxPower Consumption: 616W

Power Link: 2 units @120V., 5 units @ 230V.

Max ambient temperature: -13°F to 113°F (-25°C to 45°C)

Technical Data:

DB Rating @ 3ft.: dB

Approvals / Ratings: CE, FCC, cETLus (Pending) and IP20

Size / Weight:

Length: 14.3" (364mm)

Width: 9.8" (248mm)

Vertical Height: 20” (509mm)

Product Weight: 39 lbs. (17.85kg)

Shipping Weight: 45 lbs.
