Description

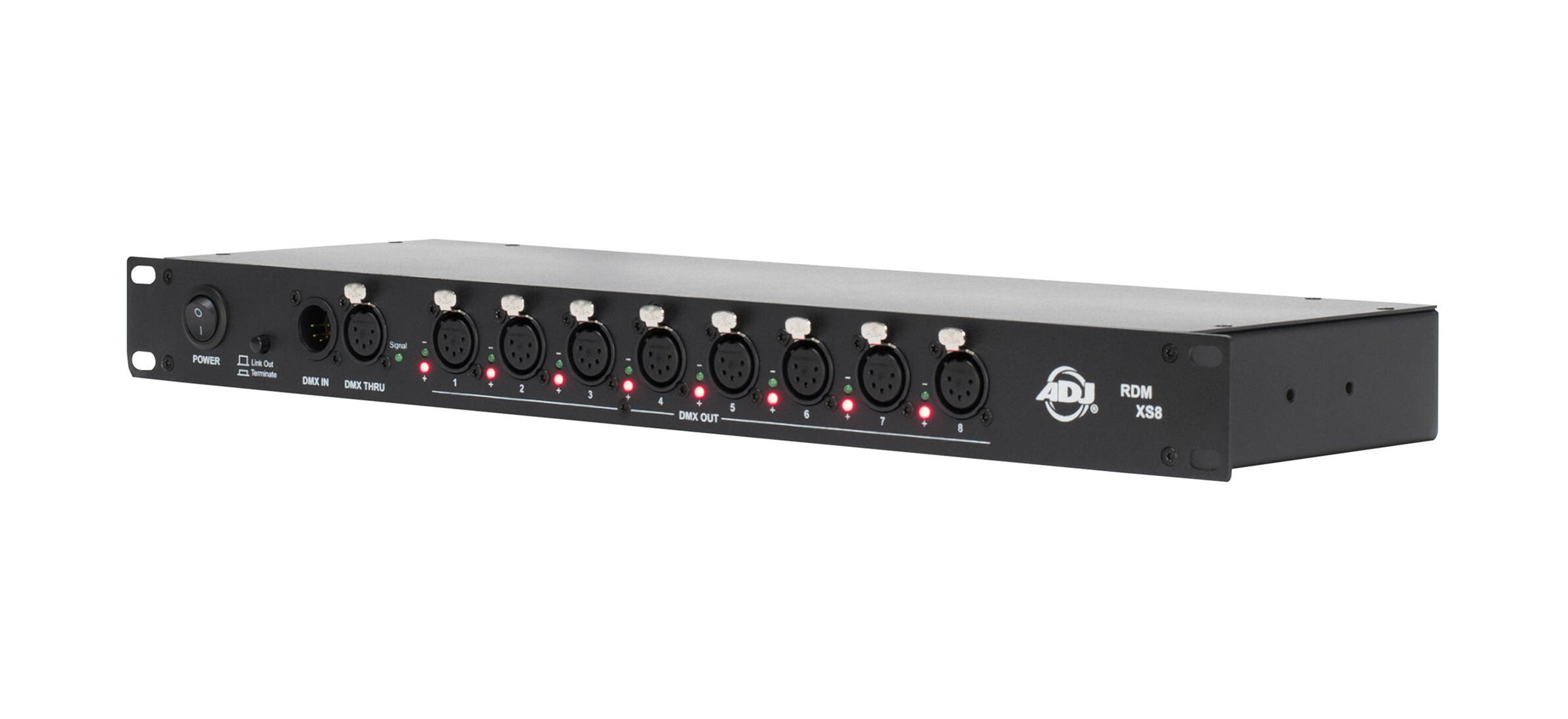

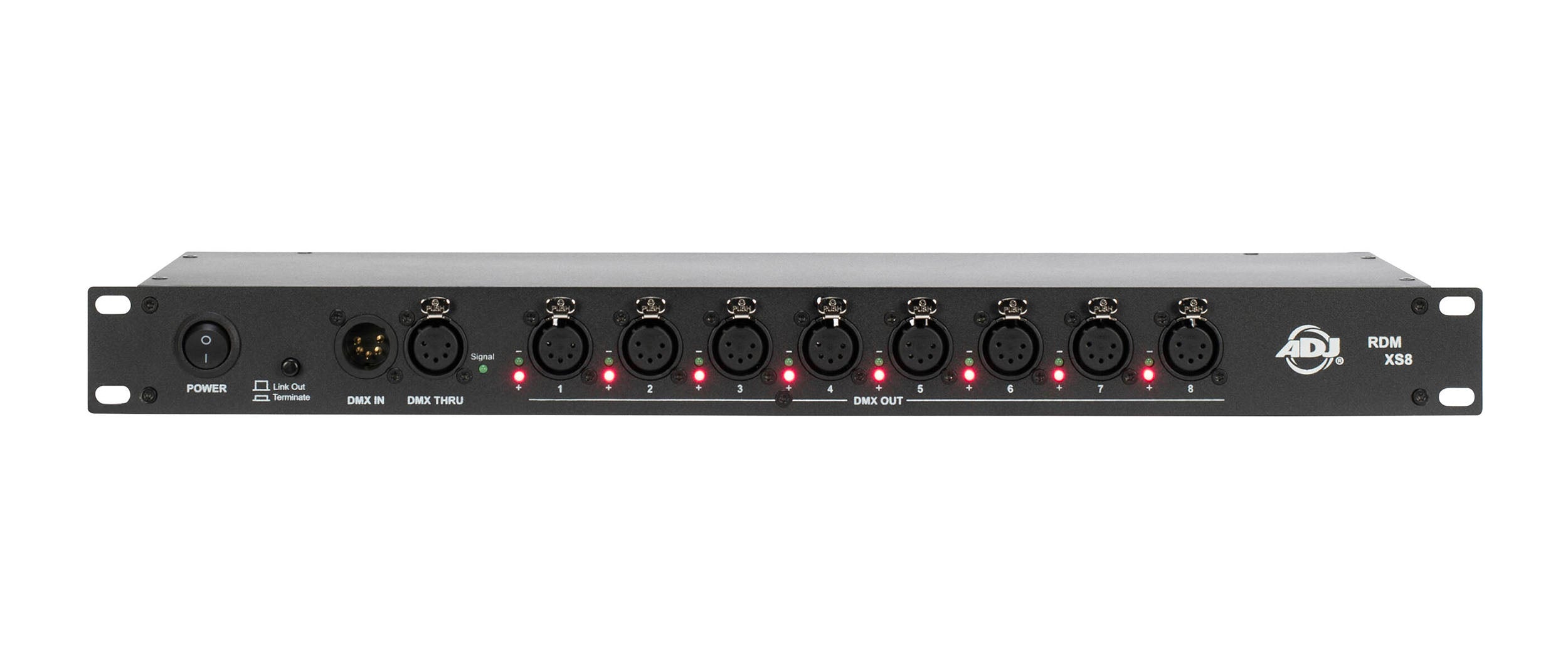

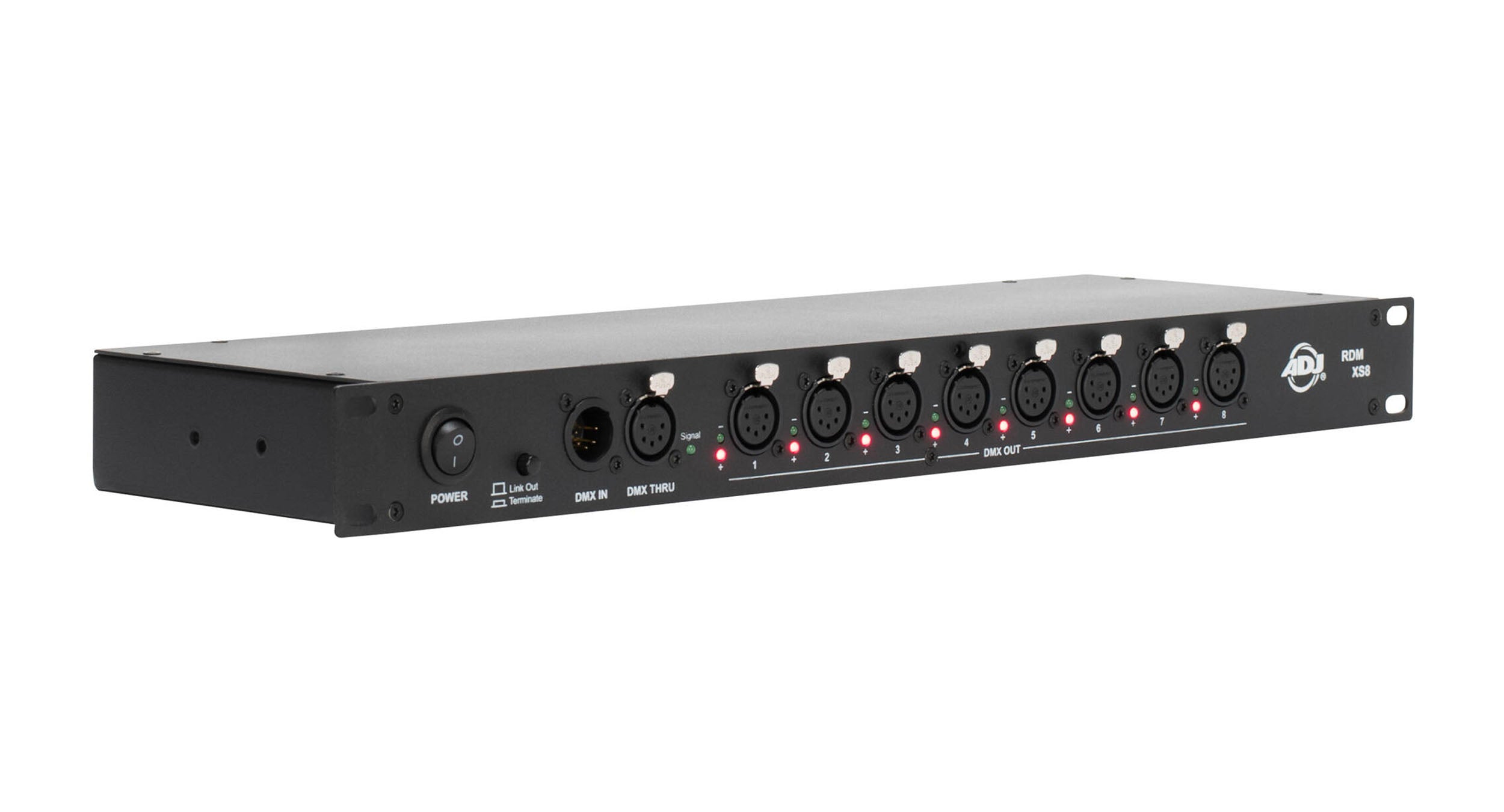

The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter. With one (1) 5-pin input, one (1) 5-pin thru and eight (8) 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient.
Product Specifications
Protocols:
DMX512
RDM
Inputs/Outputs:
1x XLR 5-Pin (DMX) Male Input
1x XLR 5-Pin (DMX) Female Throughput
8x USB-C 5-Pin (DMX) Female Output
Dimming: Optional
Power Source: AC Power
Power Consumption: 3.3 W
Input Power: 100 to 240 VAC, 50 / 60 Hz
Fuse: 1.25 A 250 V
Protocol: DMX512, RDM
Operating Temperature: 32 to 113°F / 0 to 45°C
Operating Humidity: 75%
Storage Temperature: 77°F / 25°C
Certifications: CE, cETLus, UKCA, FCC
Environmental Protection: Dust-Resistant (IP20)
Material of Construction: Metal
Rack Mount: Yes
Dimensions: 19.0 x 6.0 x 1.7" / 48.3 x 15.2 x 4.3 cm
Weight: 4.87 lb / 2.21 kg
