Description

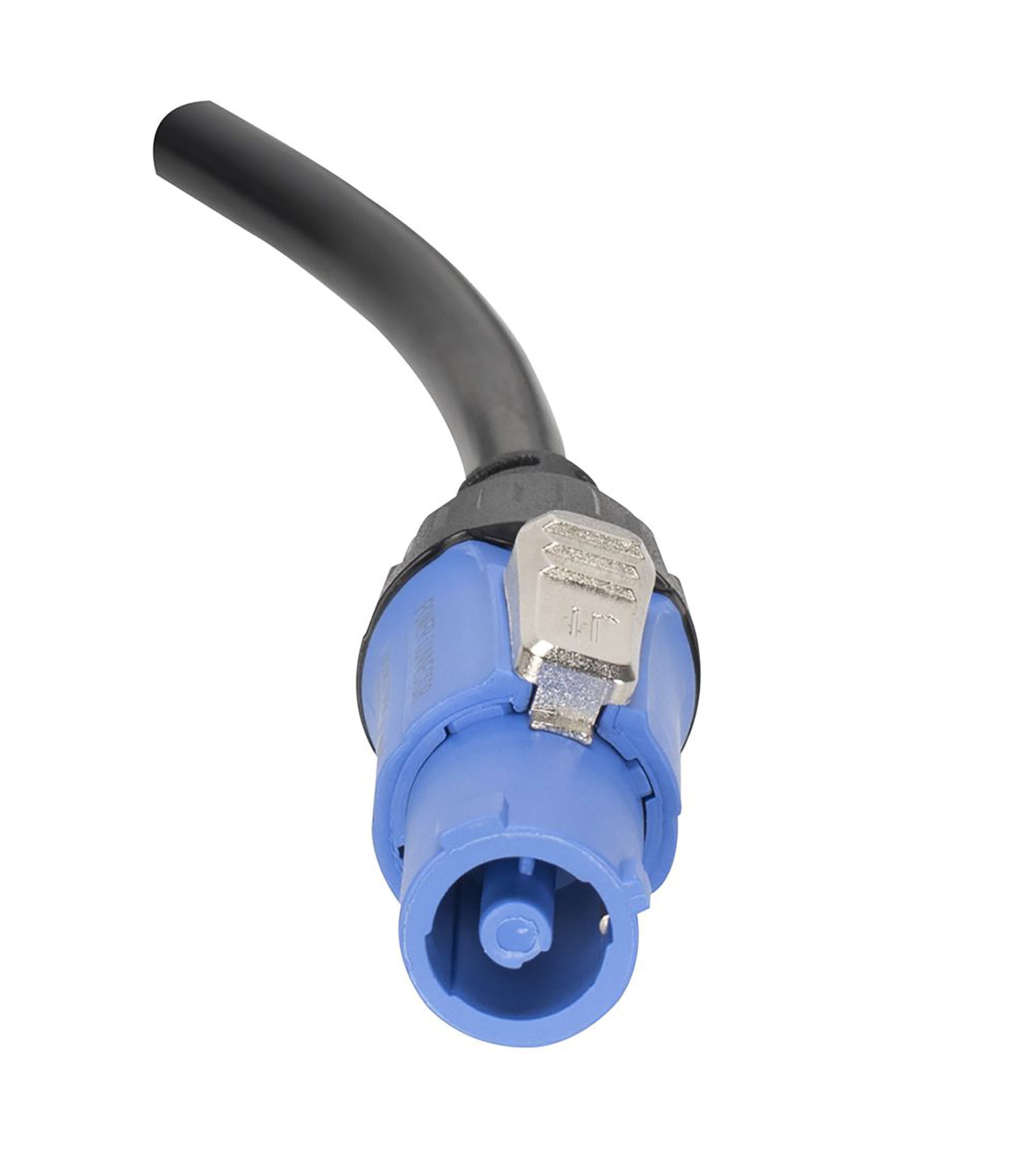

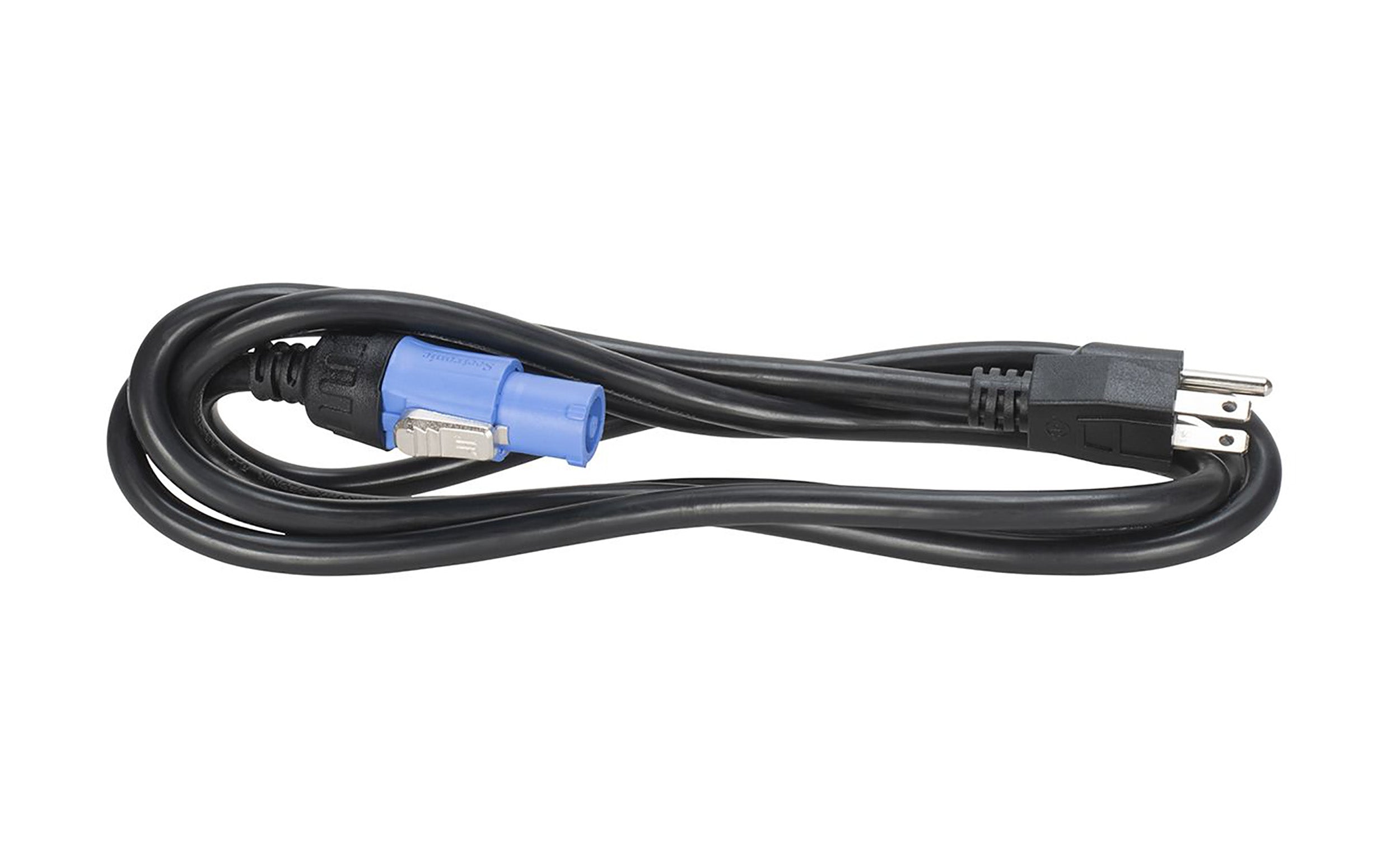

The ADJ SIP20MPC, Main Power Cord with IP20 Fixture Side Connector to 120V Male Edison Plug is a reliable and durable power connector designed for industrial applications. Featuring a robust PA shell and Cu Alloy contacts with Ag contact surface, it ensures a secure and efficient electrical connection. With an IP20 ingress protection rating and UL94-V0 flame-retardant grade, it offers safety and reliability. This connector is suitable for a wide temperature range from -22F to 176F (-30C to +80C) and complies with the IEC61984 standard for electrical connectors.
Product Specifications:
Shell: PA
Contacts: 2+PE
Contact Surface: Ag
Contacts: Cu Alloy
Standard: IEC61984
Rated Current: 15A
Rated Voltage: 250V AC
Ingress Protection: IP20
Contact Resistance: ≤5mΩ
Flame-retardant Grade: UL94-V0
Dielectric Strength: 4000V DC
Insulation Resistance: >1000MΩ
Service Life: >1000 Mating Cycles
Temperature Range: -22F to 176F (-30C to +80C)
Shipping Weight: 0.5 lbs.
Shipping Dimensions: 3" x 3" x 2"
