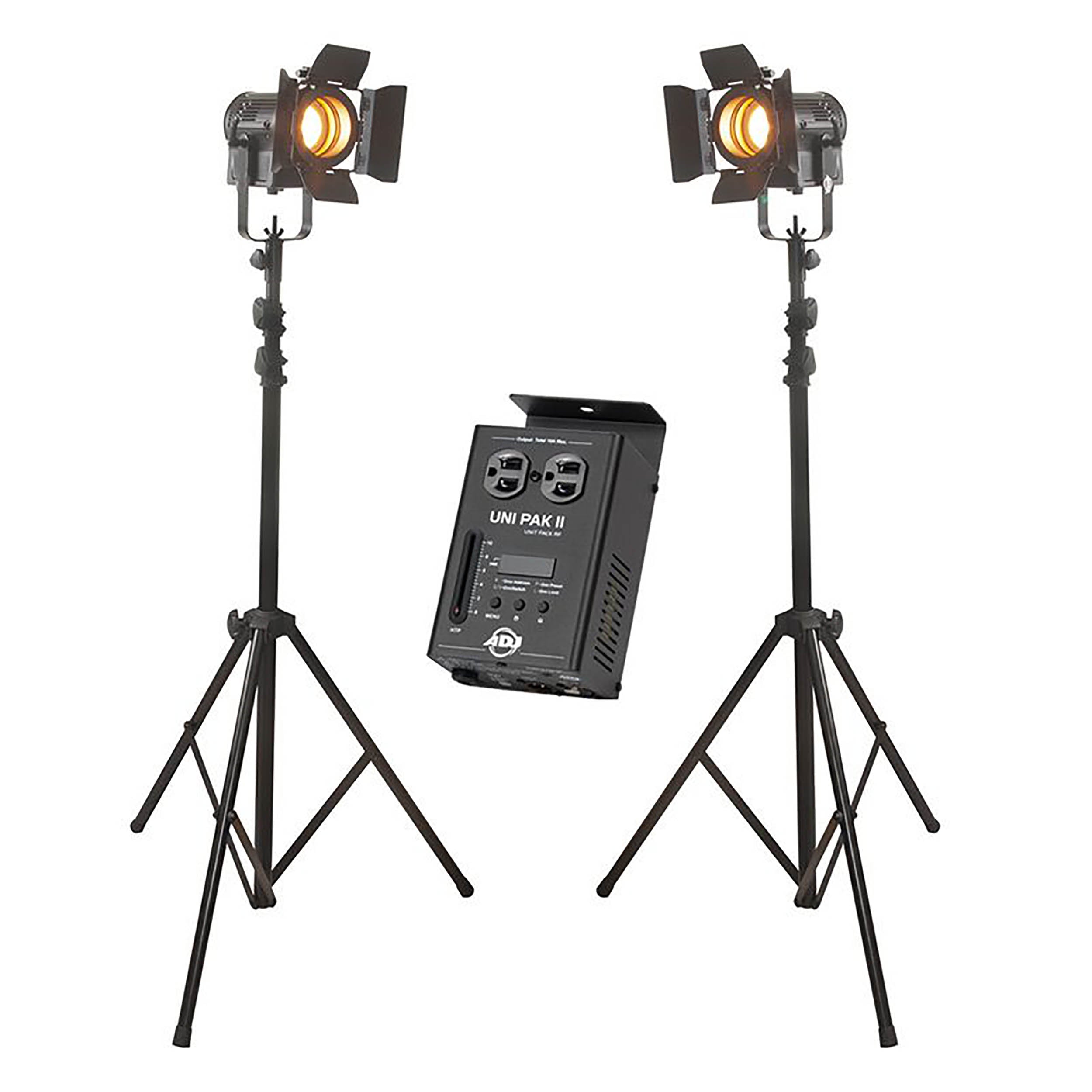

ADJ Encore FR20 DTW 2-Light Fresnel Kit with LTS6 AS Stands and Uni Pak II Dimmer

The ADJ Encore FR20 DTW Fresnel Light Kit (2 × Encore FR20 DTW + 2 × Accu-Stand LTS6 AS + 1 × Uni Pak II; also written FR20DTW, LTS6AS, and UniPak II) is a ready-to-set-up warm white lighting package for stage, theater, and commercial use. It includes two compact 2" Fresnel LED fixtures, two 9 ft aluminum T-bar stands, and a Uni Pak II dimmer pack that can run both lights, so you only need a DMX source or other controller to start dimming.

Each Encore FR20 DTW gives you a soft-edged, 3000K warm white beam from a 17W LED engine. Barn doors let you shape the light by hand, a frost filter widens the beam from 19° to 45°, and a gel frame lets you add color with gels sold separately. The fixtures are Triac dimmable, so the Uni Pak II can fade both lights up and down from your DMX control system, and the 9 ft stands are collapsible, so the whole kit is practical for a permanent bar, club, or stage as well as for mobile and touring work.

Key Features

• 2 × ADJ Encore FR20 DTW compact 2" Fresnel fixtures with a 17W warm white LED engine (3000K, CRI 92)
• Soft-edged 19° beam, widened to 45° with the included frost filter
• Dim-to-warm feature, plus a manual dimmer knob from 100% to 0% on each fixture
• Barn doors, gold snoot, gel frame, and safety cable included with each fixture
• 2 × Accu-Stand LTS6 AS aluminum T-bar tripod stands, adjustable up to 9 ft (2.7 m)
• 1 × ADJ Uni Pak II 1-channel dimmer pack and switch with DMX input, controlling two standard AC 3-prong fixtures
• Triac-dimmable fixtures, compatible with ADJ dimmer packs including the Uni Pak II
• Collapsible stands and compact fixtures for fast setup and teardown

Who Is This Fresnel Lighting Kit Ideal For?

• Stage, theater, and commercial venues that want soft, warm white light
• Bars, clubs, and small venues with a permanent or mobile lighting setup
• Mobile DJs, bands, and small stage productions

What's in the Package

Qty	Item	Role
2	ADJ Encore FR20 DTW Compact 2" Fresnel Lens Fixture with 17-Watt Warm White LED Engine	Warm white stage lights
2	Accu-Stand LTS6 AS Aluminum T-Bar Tripod - 9 Ft	Light stands
1	ADJ Uni Pak II 1-Channel Dimmer Pack / Switch	Dimming and on/off control

Not included: a DMX controller and gel (gel is sold separately).

Frequently Asked Questions

What is included in this Fresnel lighting kit?

Two ADJ Encore FR20 DTW fixtures, two Accu-Stand LTS6 AS 9 ft stands, and one ADJ Uni Pak II dimmer pack.

Can the Uni Pak II run both lights?

Yes. The Uni Pak II controls two standard AC 3-prong fixtures, and the Encore FR20 DTW is listed by ADJ as compatible with the Uni Pak II.

What do I need to control the lights?

The Uni Pak II has a 3-pin XLR DMX input, so you need a DMX controller or other DMX source. The Encore FR20 DTW can also be dimmed from Lutron or Leviton wall dimmers or other ADJ dimmer packs.

What color temperature is it?

3000K warm white with a CRI of 92. The fixture also has a dim-to-warm feature.

Can I change the beam angle?

Yes. The beam is 19° by default and widens to 45° with the included frost filter. Barn doors let you shape the beam by hand.

Can I add color gels?

Yes. Each fixture includes a gel frame. Gels are sold separately.

How high do the stands go?

Up to 9 ft (2.7 m). They collapse for transport.

What power do the lights need?

The Encore FR20 DTW runs on AC 100-240V, 50/60 Hz. The Uni Pak II uses 120 VAC, 60 Hz.

Included: ADJ Encore FR20 DTW Compact 2" Fresnel Lens Fixture (2 pieces)

The Encore FR20 DTW is part of ADJ's Encore stage lighting series. It produces a soft-edged beam for stage, theater, and commercial use at 3000K, with barn doors to adjust beam dispersion and a manual knob that dims from 100% to 0%. It is TRIAC-dimmable and works with ADJ dimmer packs or Lutron and Leviton wall dimmers.

Each fixture ships with a hanging bracket, removable barn doors, a gold snoot, a frost filter that changes the beam angle from 19° to 45°, a gel frame for adding a color gel (sold separately), and a safety cable. The dim-to-warm feature, 92 CRI, and a 50,000-hour LED life make it a dependable, low-maintenance choice for lighting people, sets, and stages. ADJ lists the Uni Pak II, along with the DP-415R and DP-DMX20L, as compatible dimmer packs, so the dimmer in this kit is a matched fit for both lights.

Encore FR20 DTW Specifications

Light source	17W warm white LED engine
Lens	2" Fresnel
Color temperature	3000K
CRI	92
Beam angle	19° (45° with frost filter)
Output	600 lux at 3 m (9.8 ft)
Dimming	0-100% knob, Triac dimmable, dim to warm
LED life	50,000 hours
Power	AC 100-240V, 50/60 Hz
Included per fixture	Hanging bracket, removable barn doors, safety cable, gel frame, frost filter, 2 retainer rings, gold snoot, metal spacer
Dimensions	10.25 × 5.25 × 8.25 in (259 × 133 × 210 mm)
Weight	5 lb (2 kg)

Included: Accu-Stand LTS6 AS Aluminum T-Bar Tripod - 9 Ft (2 pieces)

The LTS6 AS is a black aluminum tripod stand made for hanging par cans and lightweight fixtures. It extends up to 9 ft, collapses for transport, and has a 1" T-bar with 8 hanging-point bolts. Accu-Stand is an ADJ Products brand.

At 11 lb (5 kg), the LTS6 AS is light enough to carry and set up quickly, which suits DJs, mobile entertainers, and intimate venues that need fast setup and takedown. The included FS-Adapter lets you mount a single light, such as a moving head, on top of the stand, so the stand stays useful if you later add other fixtures.

LTS6 AS Specifications

Maximum height	9 ft (2.7 m)
T-bar diameter	1"
Hanging points	8 hanging point bolts on the T-bar
Included adapter	FS-Adapter for mounting one light on top
Material/color	Aluminum, black
Weight	11 lb (5 kg)

Included: ADJ Uni Pak II 1-Channel Dimmer Pack / Switch

The Uni Pak II sits between your DMX control system and your fixtures. It controls the light level of up to two standard AC 3-prong fixtures and manages which fixtures receive power. It is small enough for a permanent installation or a mobile rig.

Working as the middleman between your DMX control system and your fixtures, the Uni Pak II gives you precise control over the light level of your production and over which fixtures are receiving power at all. It is compact enough to fit into a permanent setup at a bar, club, or stage, or to travel with a mobile production, and ADJ builds it from high-quality materials to last. In this kit it is the one piece that lets both Encore FR20 DTW fixtures be dimmed together from a single DMX channel.

Uni Pak II Specifications

DMX I/O	1 × 3-pin XLR
AC input power	120 VAC, 60 Hz
Controls	Two standard AC 3-prong fixtures
Dimensions	7.25 × 3.62 × 2.62 in (184 × 92 × 92 mm)
Weight	3 lb (1.3 kg)
