Description
The ADJ Studio Server, ArKaos Powerful System for Lighting Designer is a powerful system meticulously designed for professional lighting designers. This advanced media server provides exceptional video playback, real-time effects, and seamless integration with lighting setups, making it an essential tool for sophisticated and demanding lighting productions.
Smart Design
Runs full HD video on up to four EDID managed outputs
One HD-SDI input and fast SSD drive

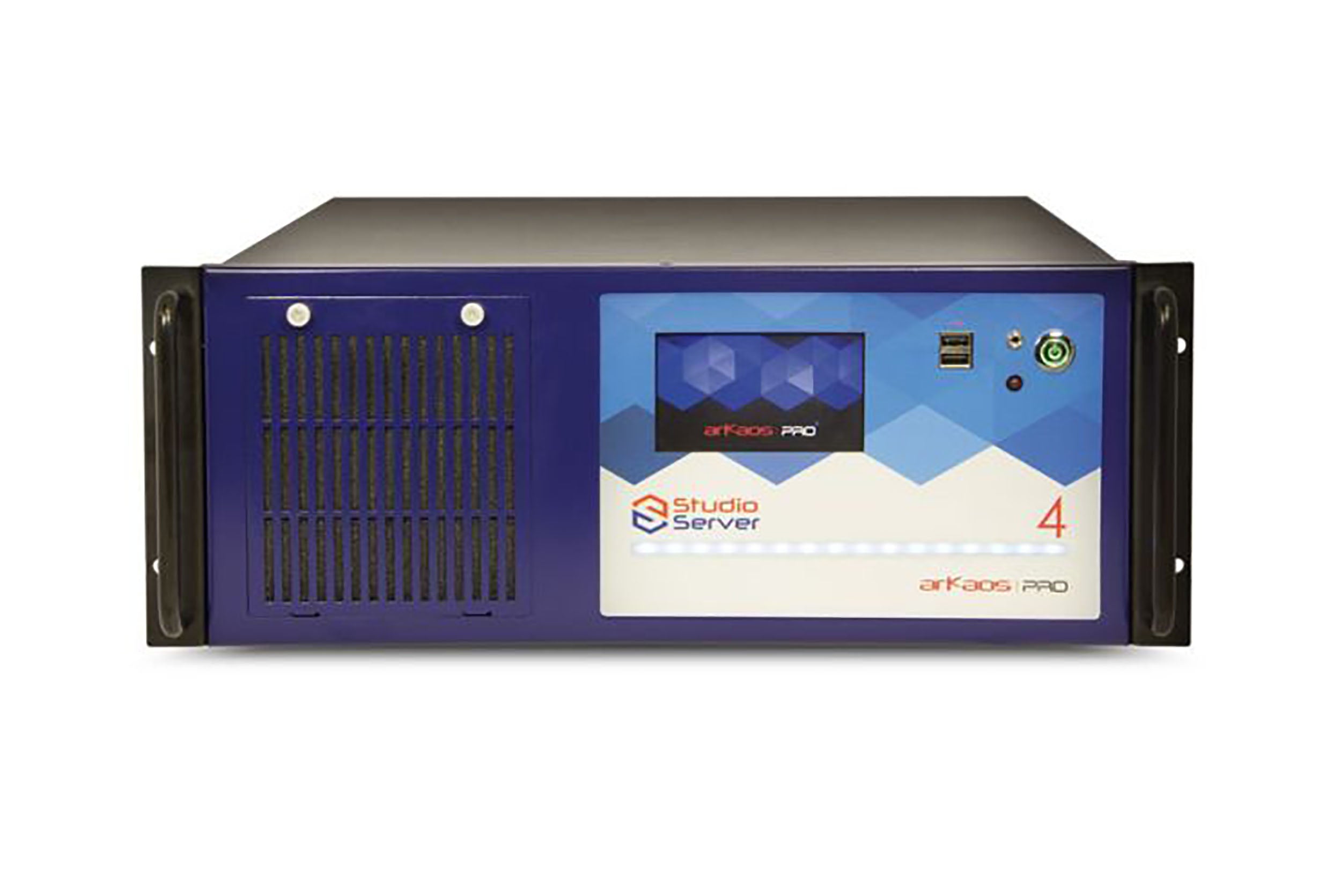

Large LED status strip for quick visual feedback on the server’s operation state
Front display allows use of server without the need of additional screens
Fast recovery system by Acronis allows extremely simple reset from the boot menu
Pre-configured to work directly with all market-leading DMX lighting desks
Blistering Performance
Shock-resistant up to 2G
Easy access to fans and filters
Thoroughly tested in structural strength, and toleration of heat and vibration
Product Specifications:
Model: ArKaos Studio Server
Designed For: Professional lighting designers
Performance: High-performance video playback and real-time effects
Integration: Seamless integration with lighting systems

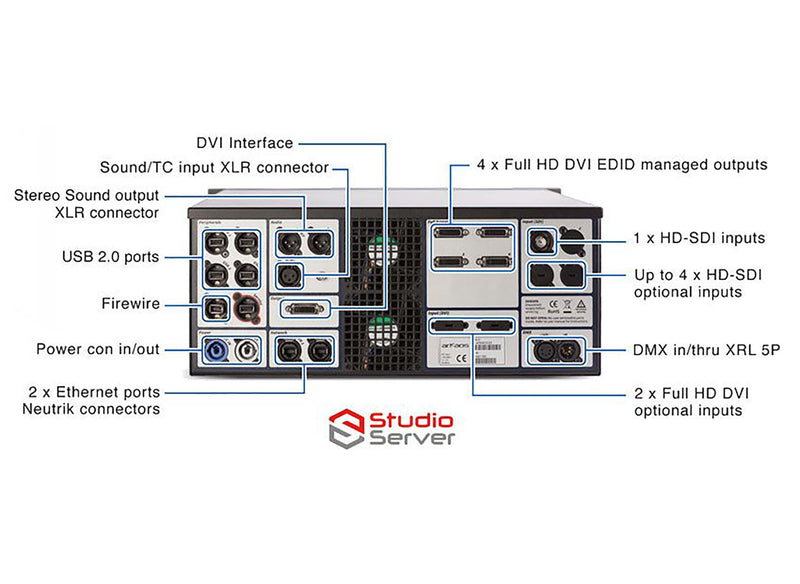

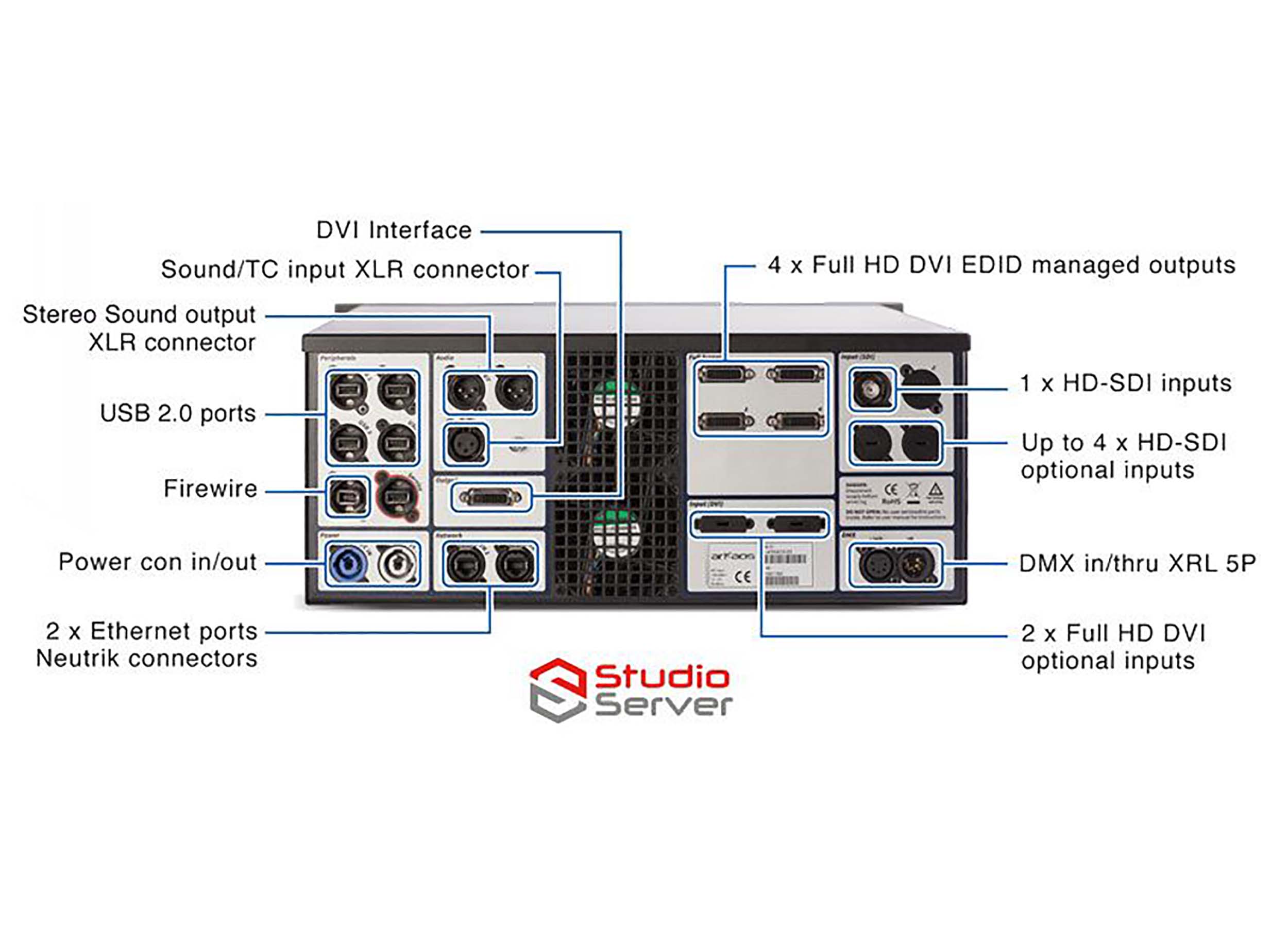

Interface Output: 1 (DVI)
Output: 4 (DVI)
EDID Management: Yes
Input (Standard): 1x HD-SDI
Input (Upgrade): Up to 4 x HD-SDI & 2 x DVI
Output Resolution: 4 x Full HD
DMX 5pin Connectors: Yes
Genlock: No
Frame lock: No
USB: 2 x USB 3.0 + 4 x USB 2
Balanced Audio In/Out (XLR): Yes
Network: 2
Storage:
System Drive: SSD 128 GB
Separate Drive: SSD 256 GB
Software:

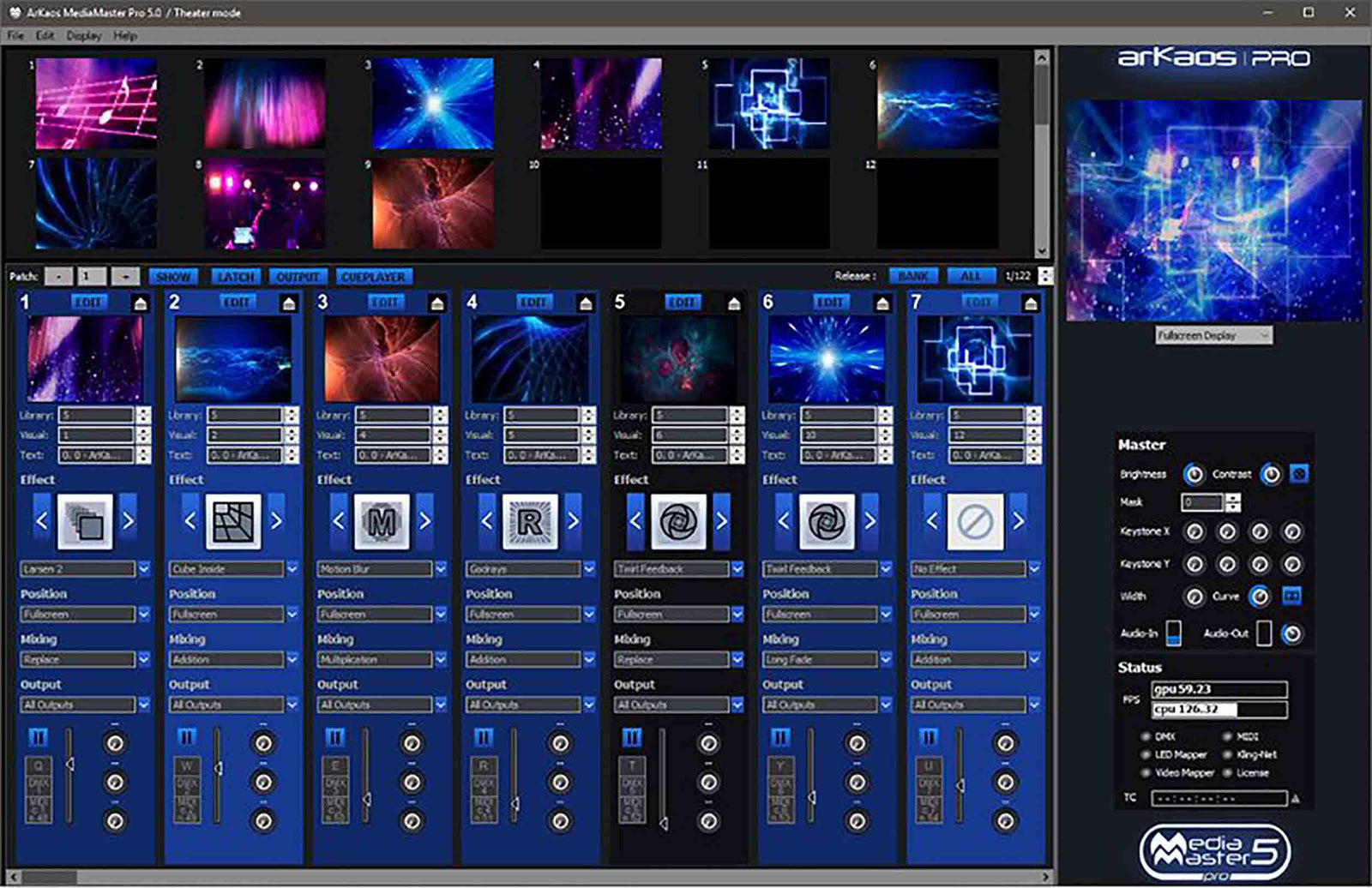

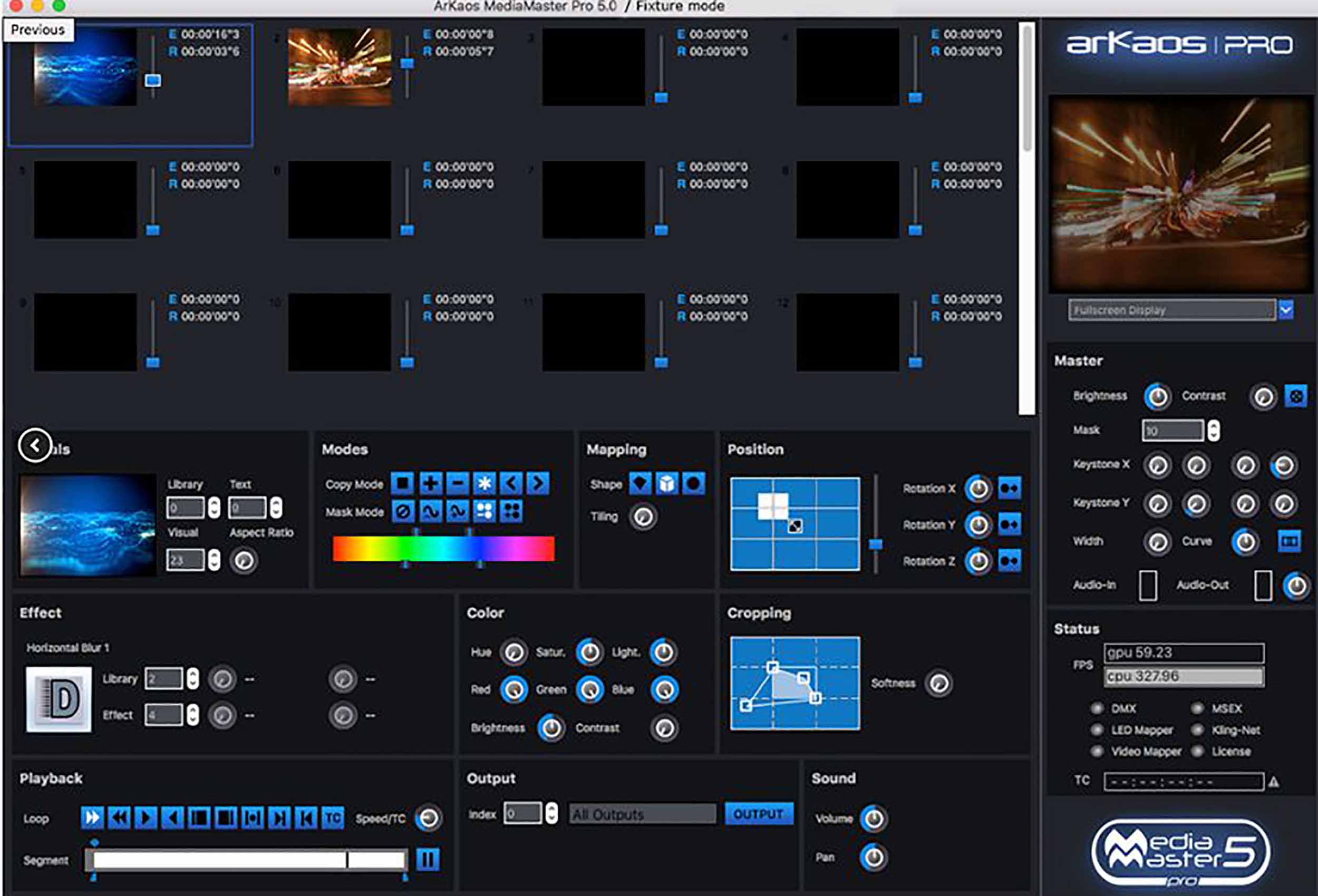

MediaMaster: Pro

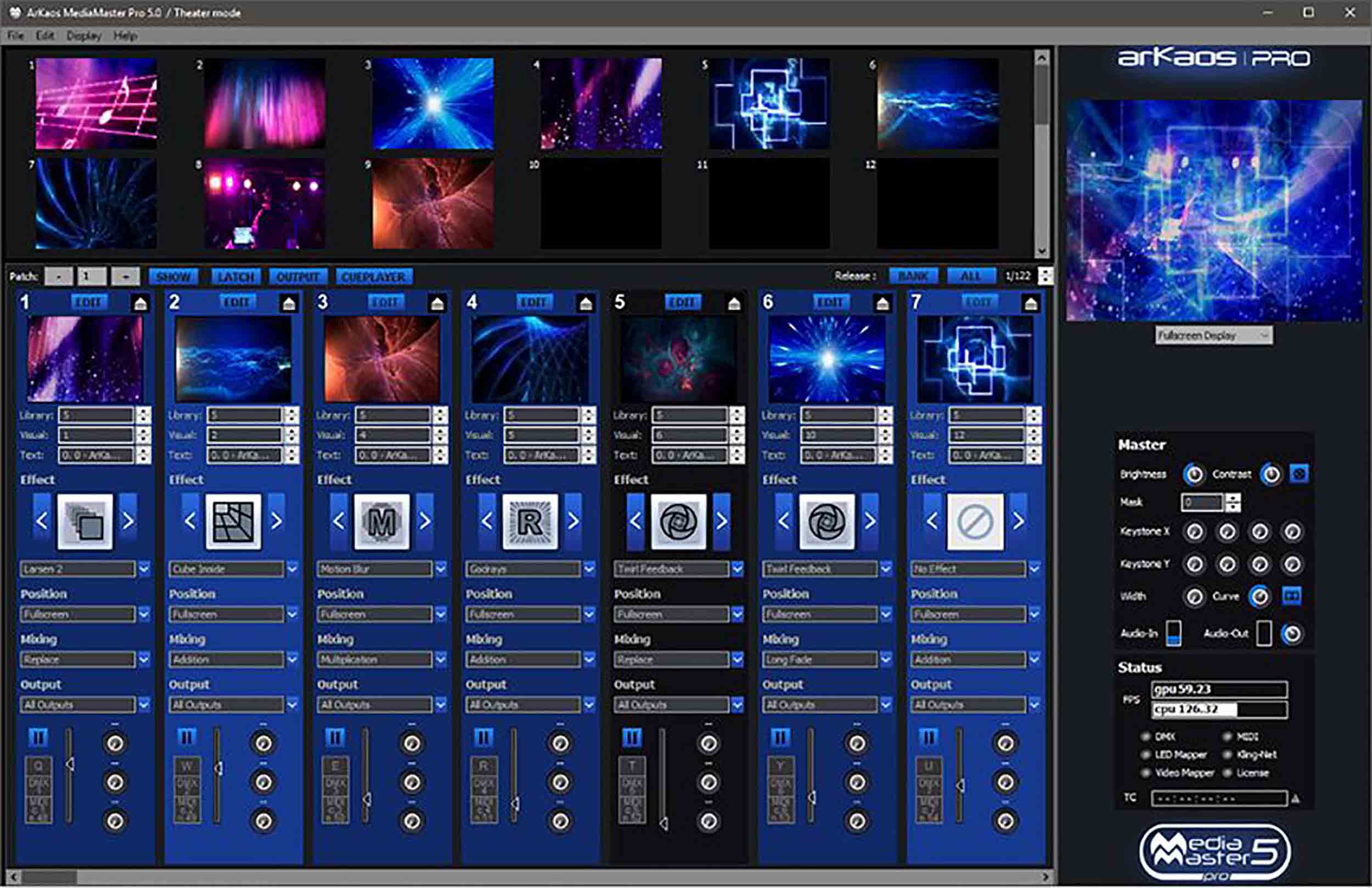

Cue Player (Theater mode): Yes

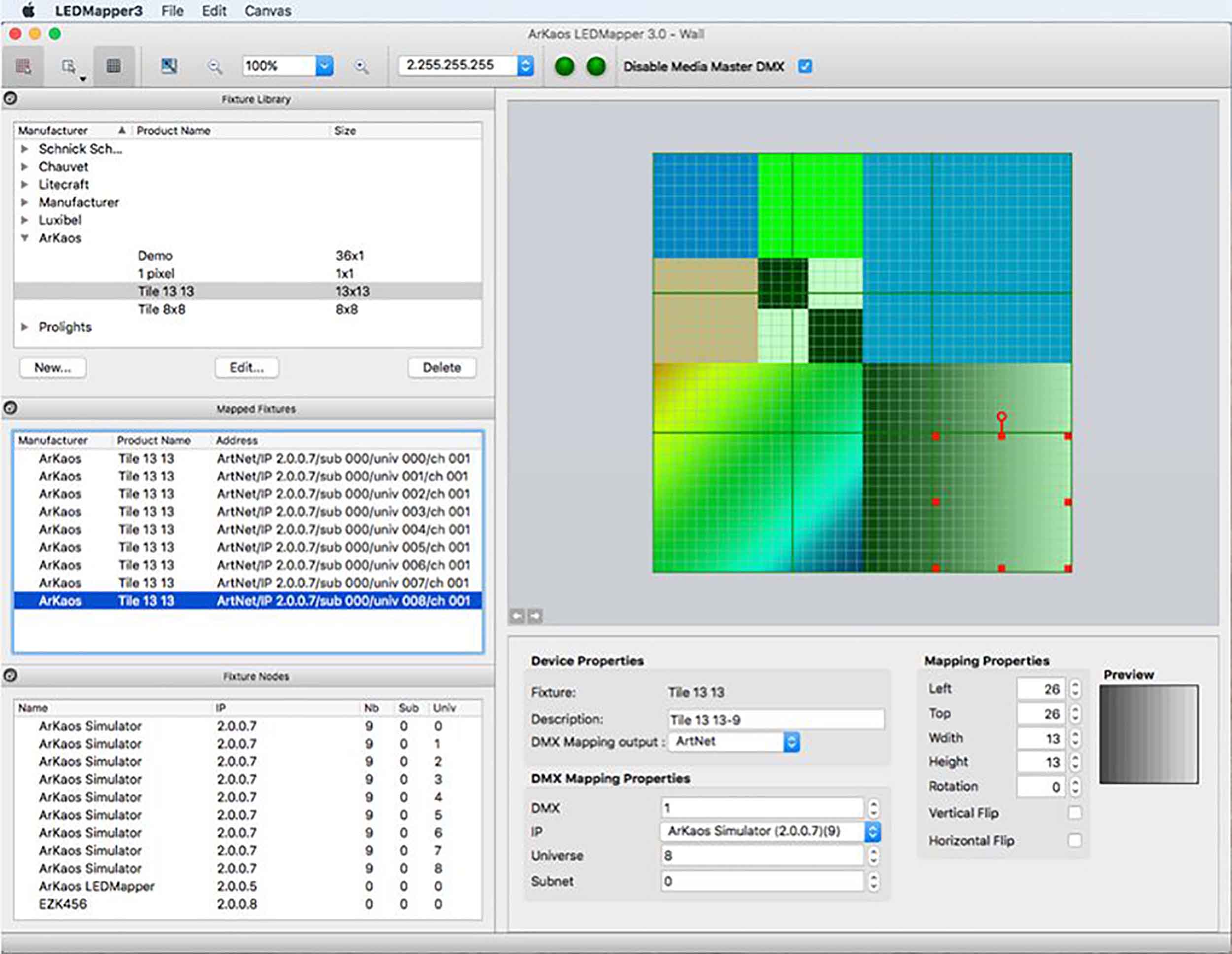

LED Mapper: Yes
Kling-Net Mapper: Yes

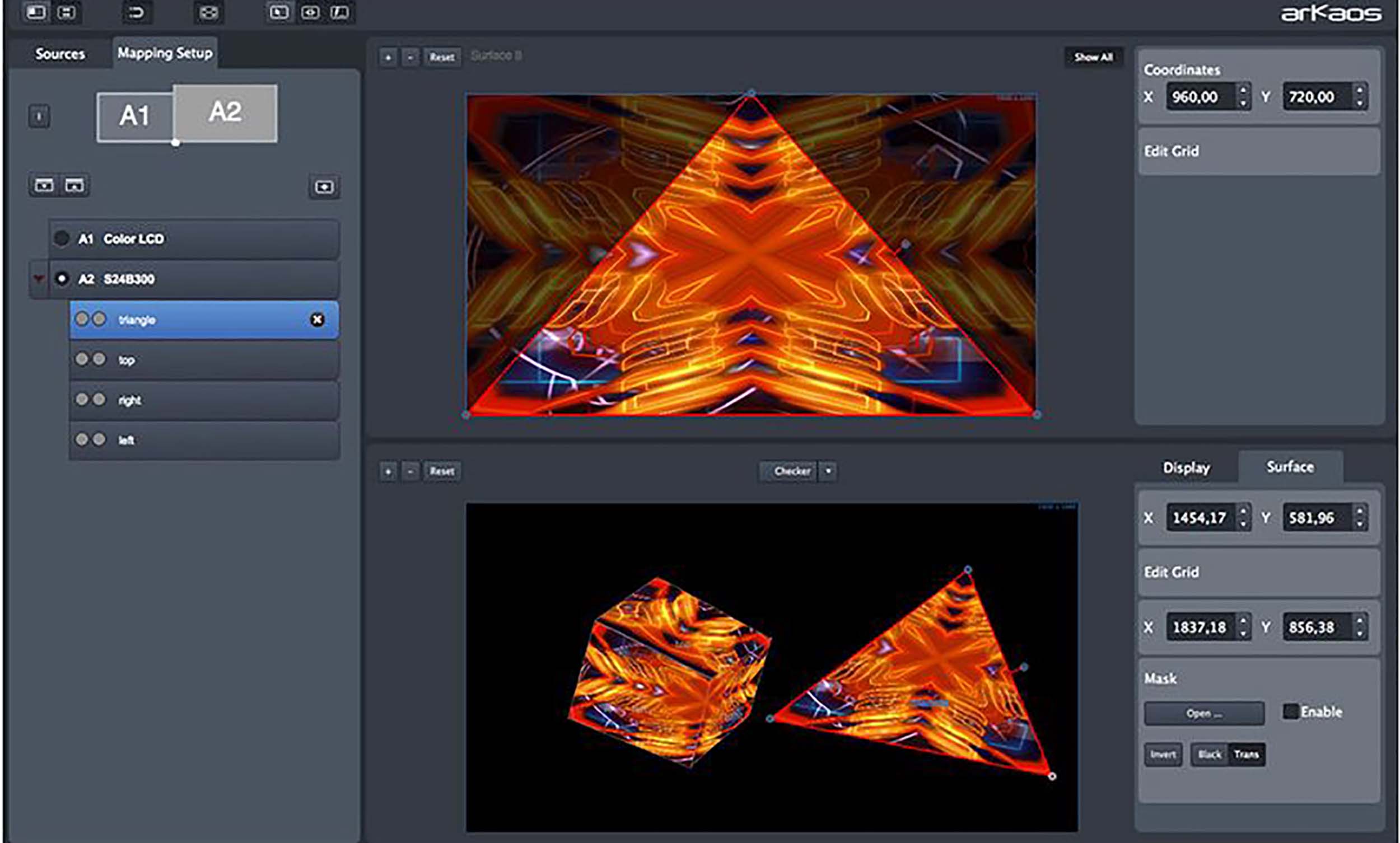

Video Mapper: Yes
Acronis Backup System: Yes
Layers Full HD: Up to 12
Layers HD: 12
Soft-Edge / Geometrical Correction: Yes
Control:
Control Display (Front Panel): Yes
LED Strip (Front Panel): Yes
DMX / MIDI / Keyboard: Yes
ArtNet / MA-Net: Yes
Hardware:
Voltage: 107-240V Auto Switching
Professional Connectors: Yes
RDM (Remote Device Management): Yes
Height: 6.9” (176mm)
Length: 16.8” (426mm)
Depth: 20.0” (510mm)
Unit Weight: 55.1 lbs. (25kg)
