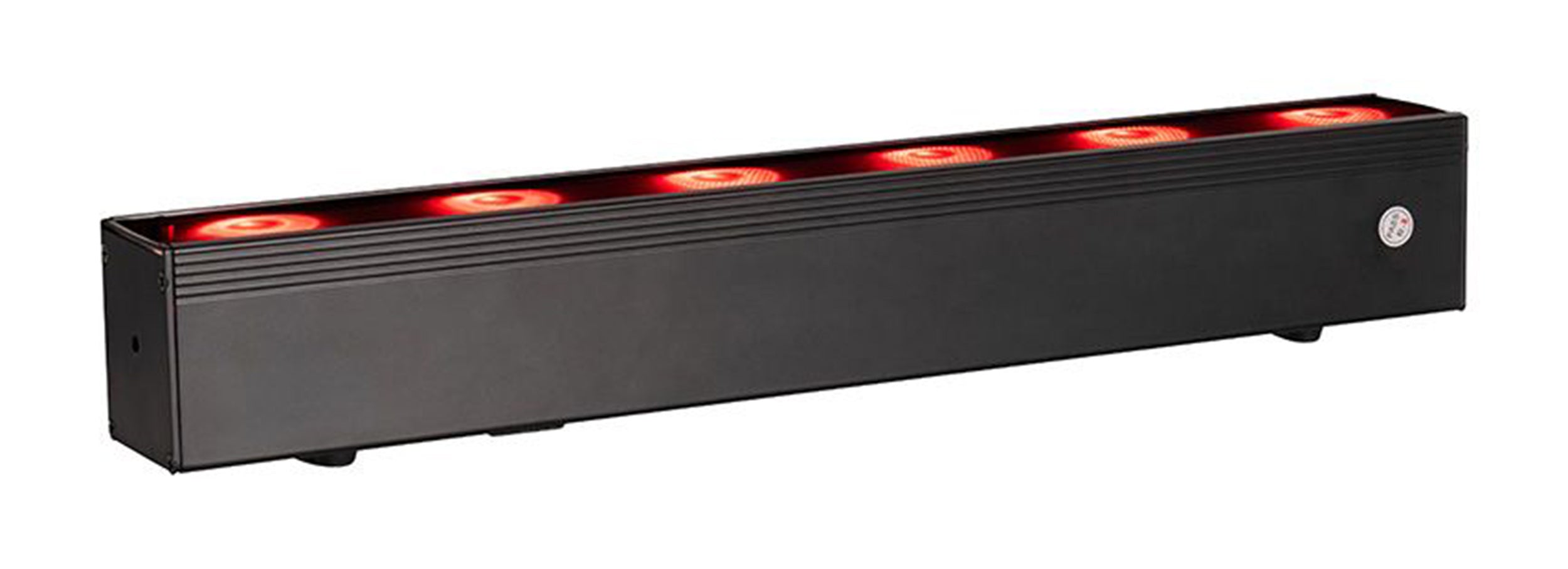

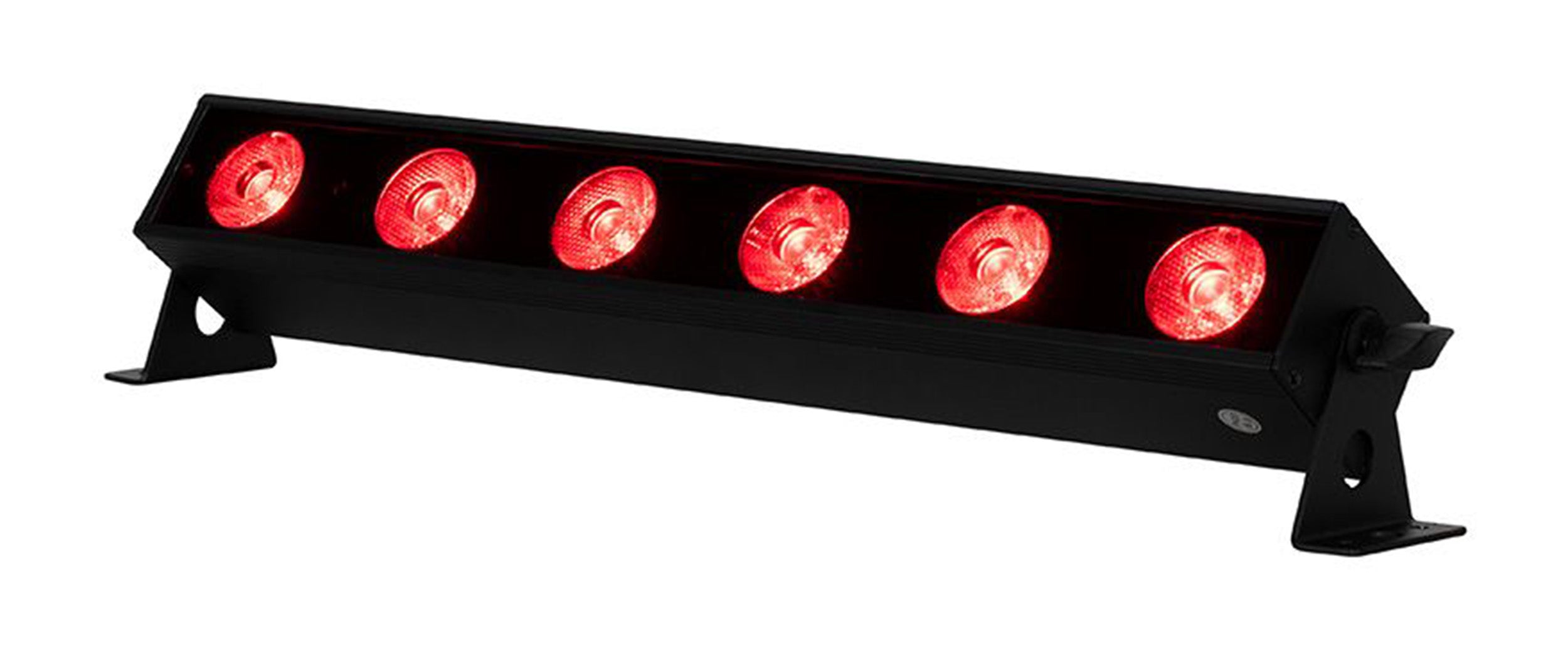

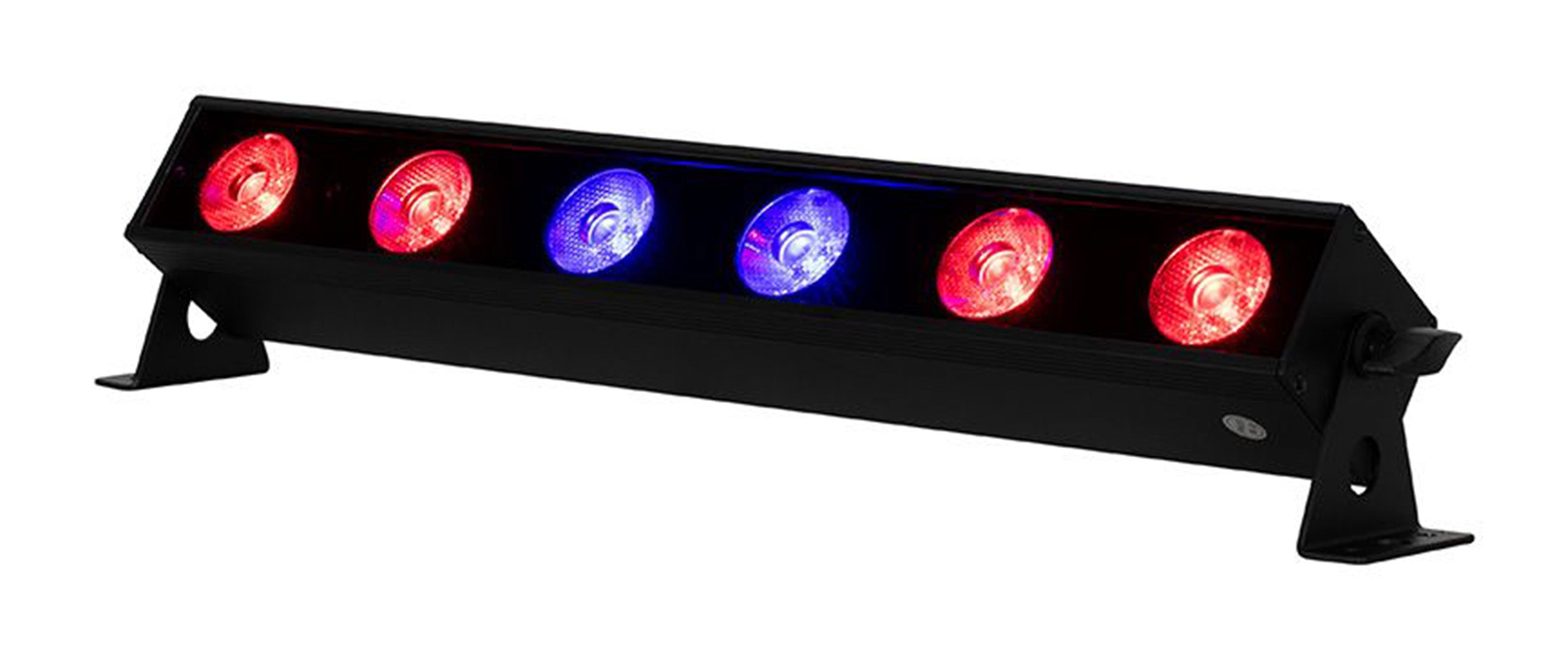

ADJ UBL6H, RGBAL+UV Linear Light Bar with Diffusion Filter - 6 LEDs

The ADJ UBL6H, RGBAL+UV Linear Light Bar with Diffusion Filter is from the unrivaled Ultra Series, It is professional-grade lime-infused half meter HEX LED linear fixture that sets a new standard in event lighting. Powered by six ultra-bright 20-Watt HEX LEDs (Red, Green, Blue, Amber, Lime, and UV), this fixture is a versatile powerhouse that seamlessly blends color with precision.

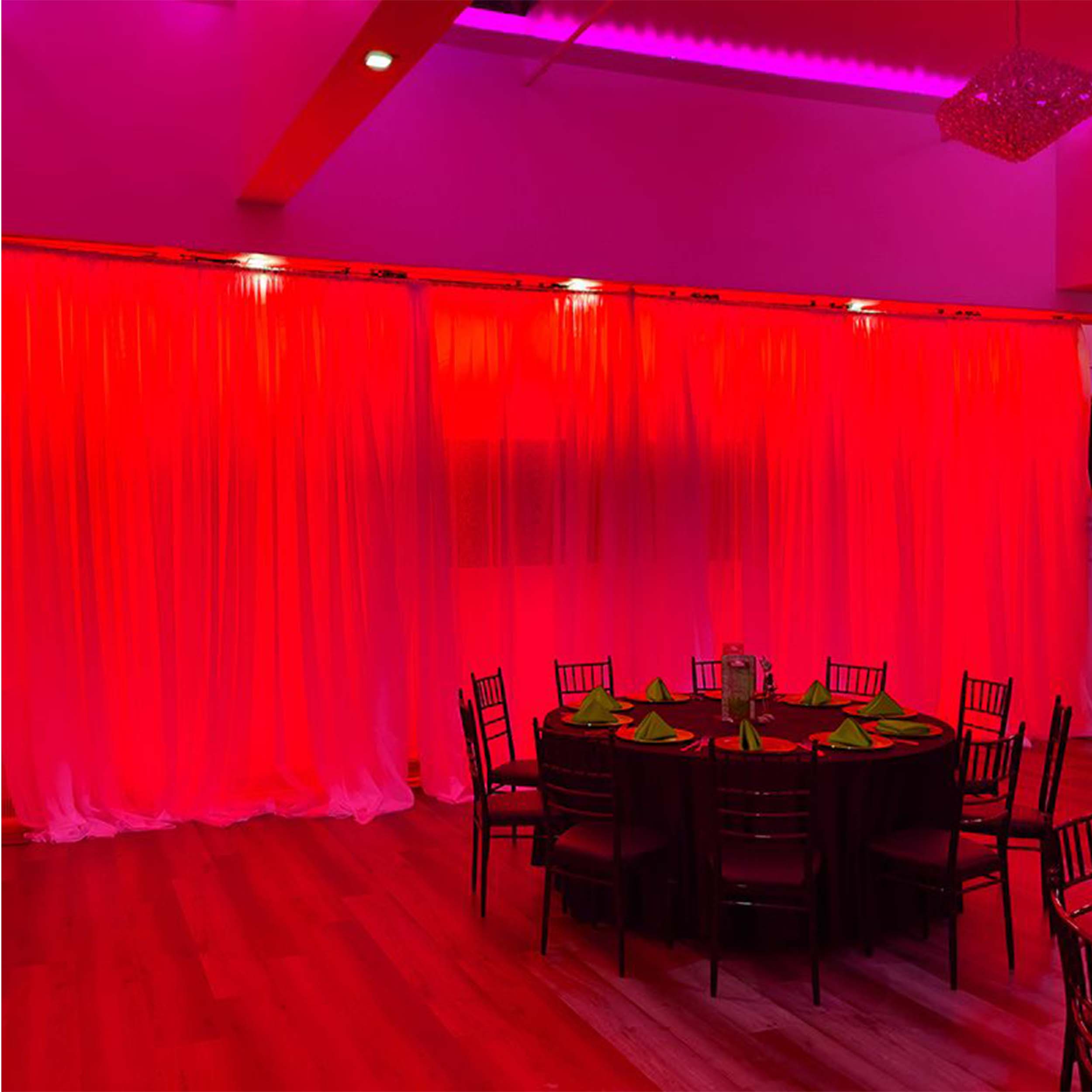

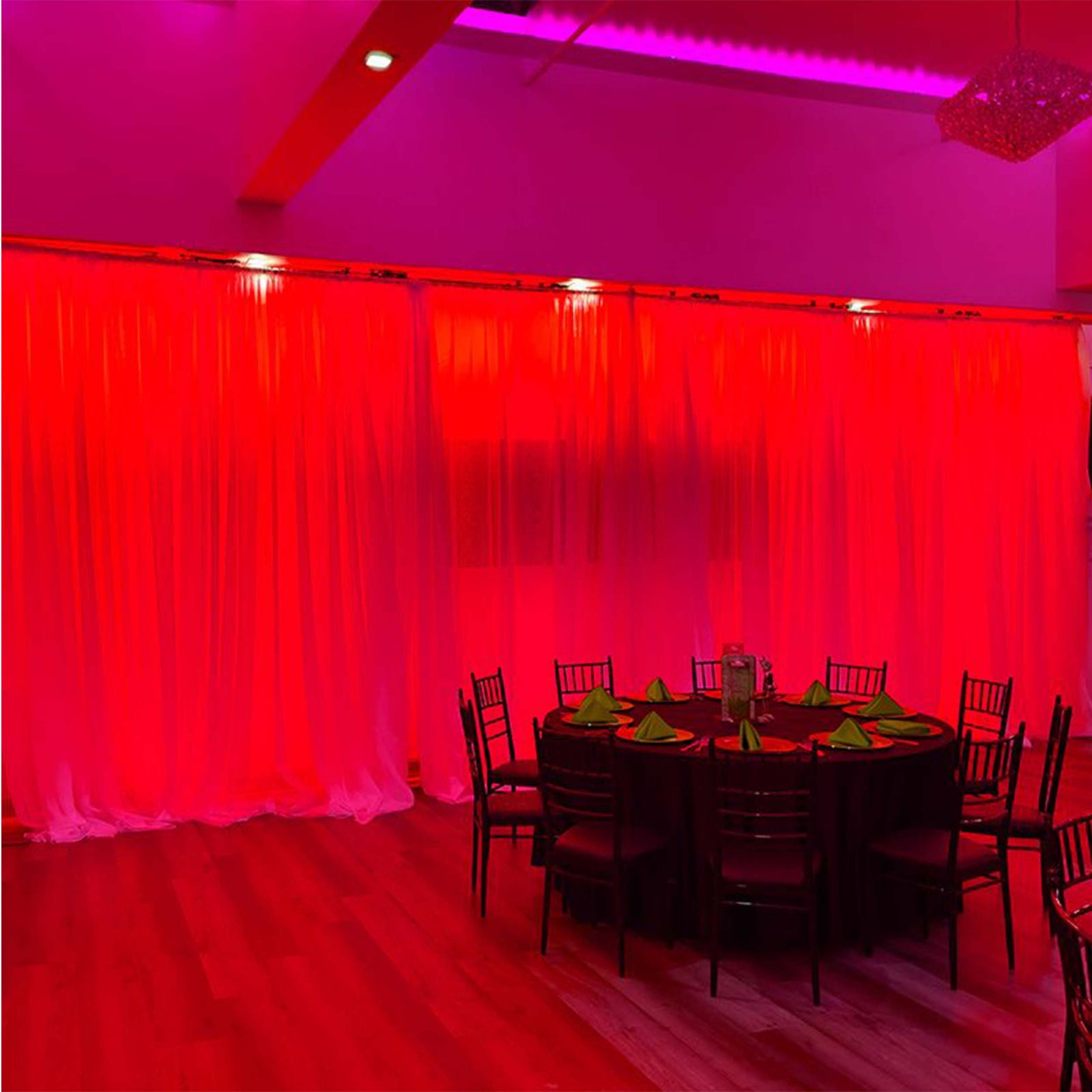

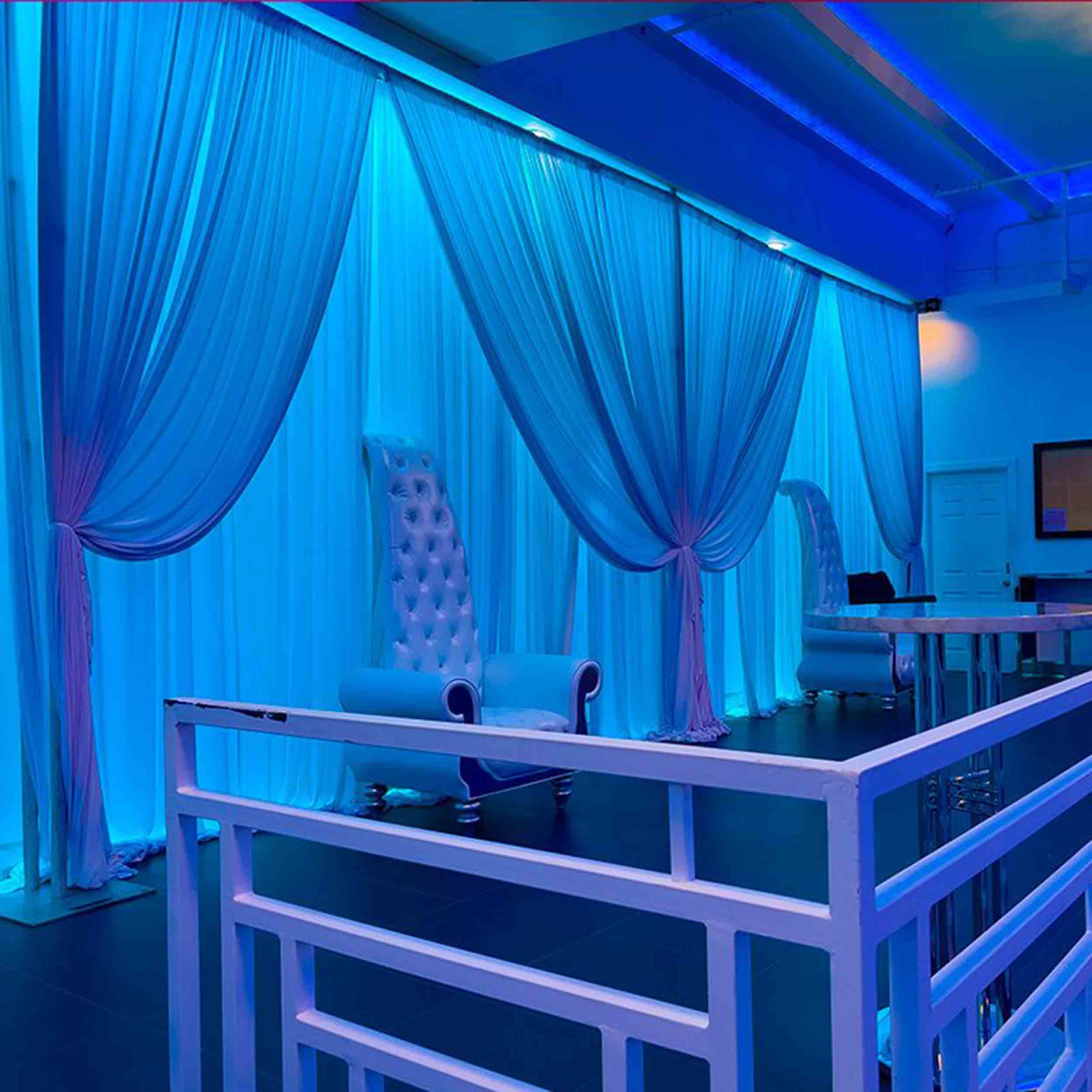

The UBL6H takes linear wash lighting to the next level with its high CRI output and linear color temperature control, ranging from 2,300K to 9,900K. The added lime chip enhances color indexing, ensuring a superior visual experience with a CRI exceeding 90. This fixture empowers lighting designers and event producers to craft captivating displays on walls, floors, and ceilings.

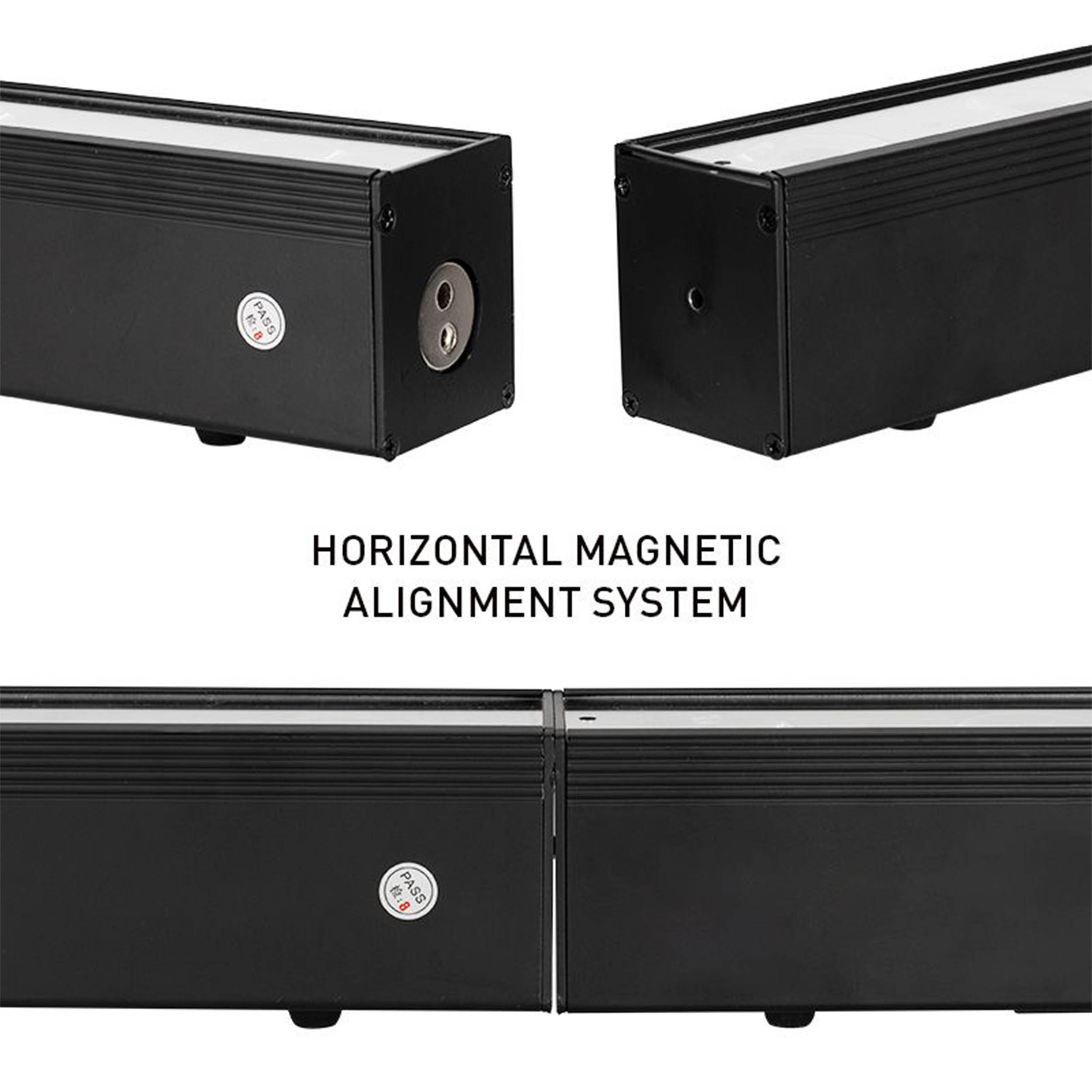

Featuring a 17° beam angle and a pixel pitch of 85.5mm, the UBL6H offers smooth RGBAL+UV color mixing and a unique Horizontal Magnetic Alignment feature allows for seamless color output across multiple fixtures. Control is at your fingertips with the OLED display and 4-buttons, offering linear color temperature control and compatibility with the ADJ UC-IR24 remote. The UBL9H supports seven DMX channel modes and offers five operational modes, including Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode. This fixtures is RDM compatible.

Product Specifications:

Light Source:

6 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs

Long Life LEDs (Rated at approximately 50,000 hrs.)

17° beam angle

CRI >90

Pixel Pitch: 85.5mm

Control:

Linear Color Temperature Control (2,300K to 9,900K)

OLED Display with 4-buttons

7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels

3 Groups x2 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes

5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode

LED Refresh Rate: 1.9KHz

64 built-in Color Macros

6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)

Built-In Microphone for sound trigger

LED pulse and strobe effect

Electronic Dimming: 0-100%

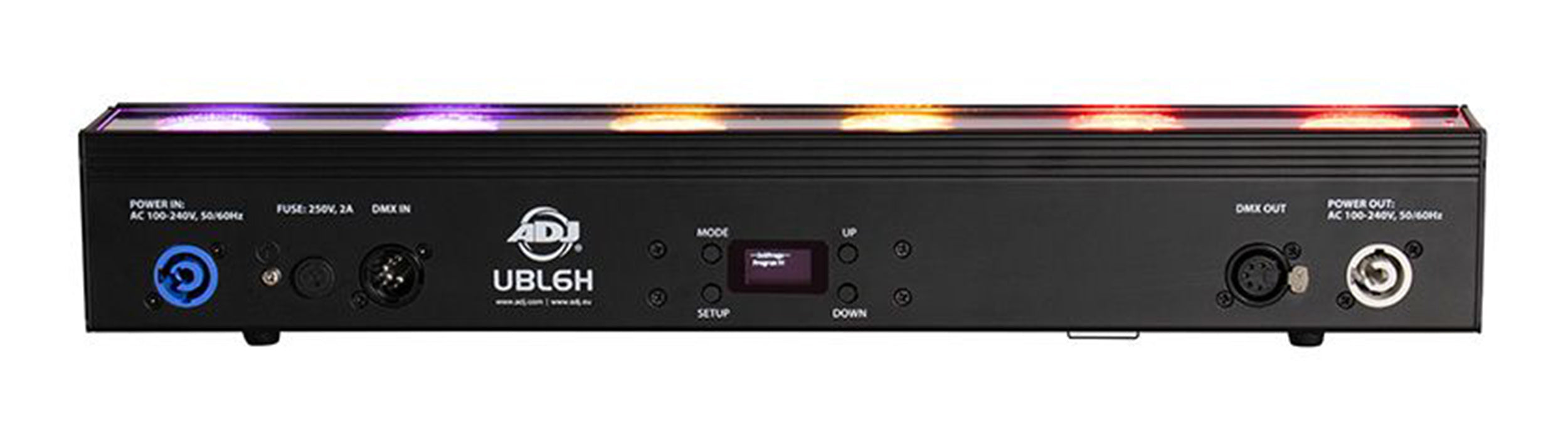

Connections:

Linkable: DMX via 5-pin XLR cable

Locking power In/Out to daisy chain power

Electrical:

Multi-voltage operation: AC 100V-240V 50/60Hz

Power Draw: 26W

Daisy-chain power link (Up to 26 UBL6H's can be linked @120V and up to 50 UBL6H's can be linked @230V)

Certifications / IP Rating:

cETLus (Control # 4002034)

CE

FCC

IP20

Environment:

Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)

Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)

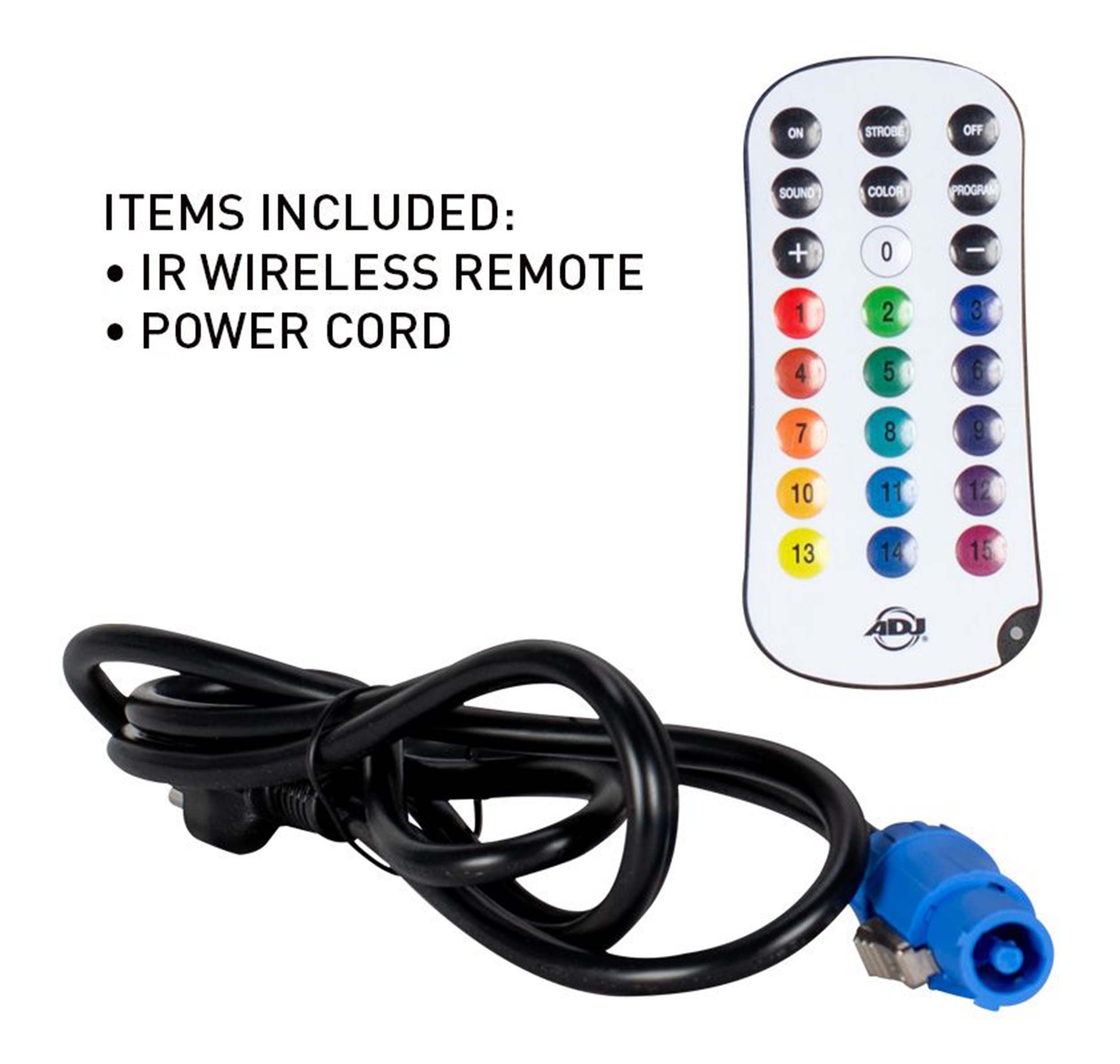

What's Included:

(1) Indoor Locking Power Cord

(1) UC-IR24

(1) 20° Diffusion Filter

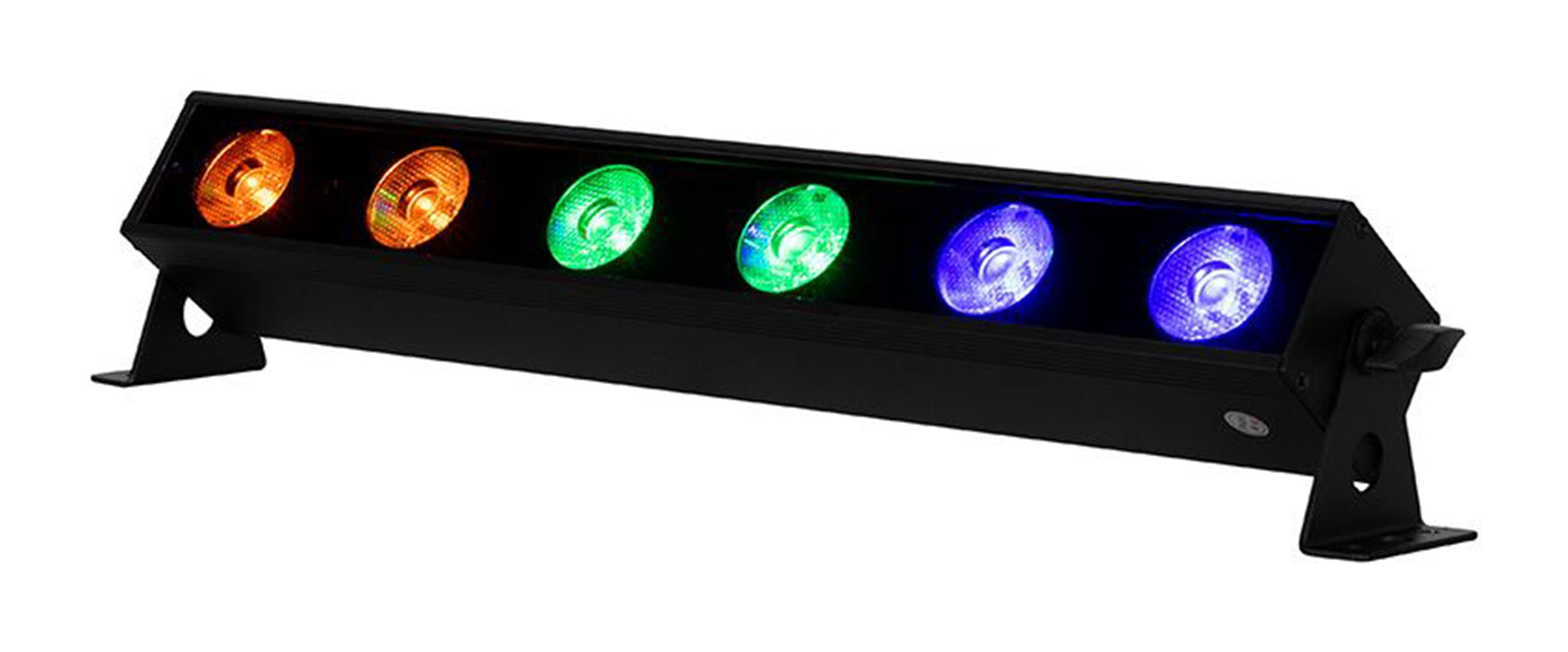

Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting

Optional Accessories:

(1) 1x40° Linear Diffusion Lens (SKU: UBL613)

Weight: 4.41 lbs./ 2kg.

Dimensions (LxWxH): 2.96" x 22.40" x 4.2" (75x568.9x106.7mm)
