Description

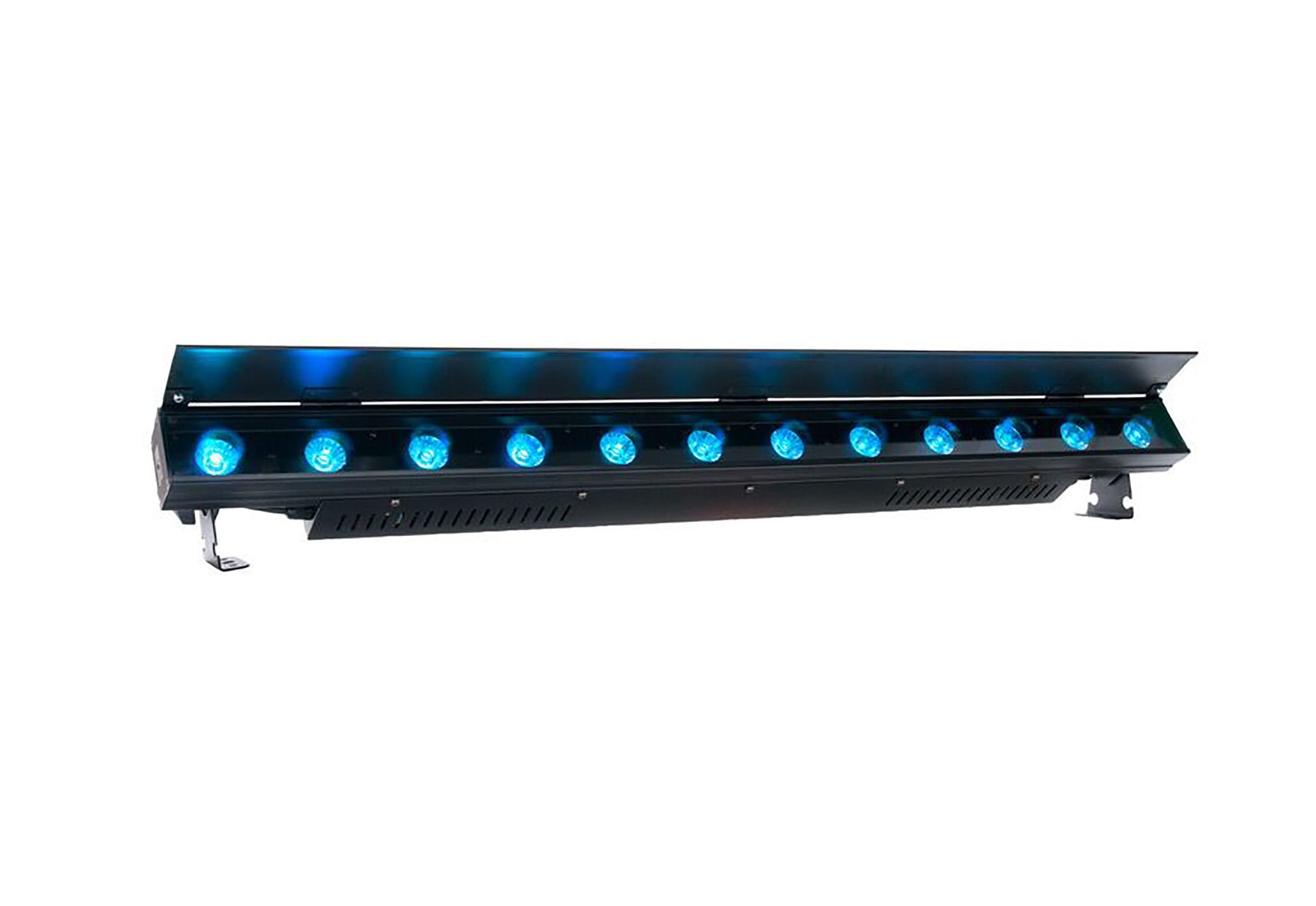

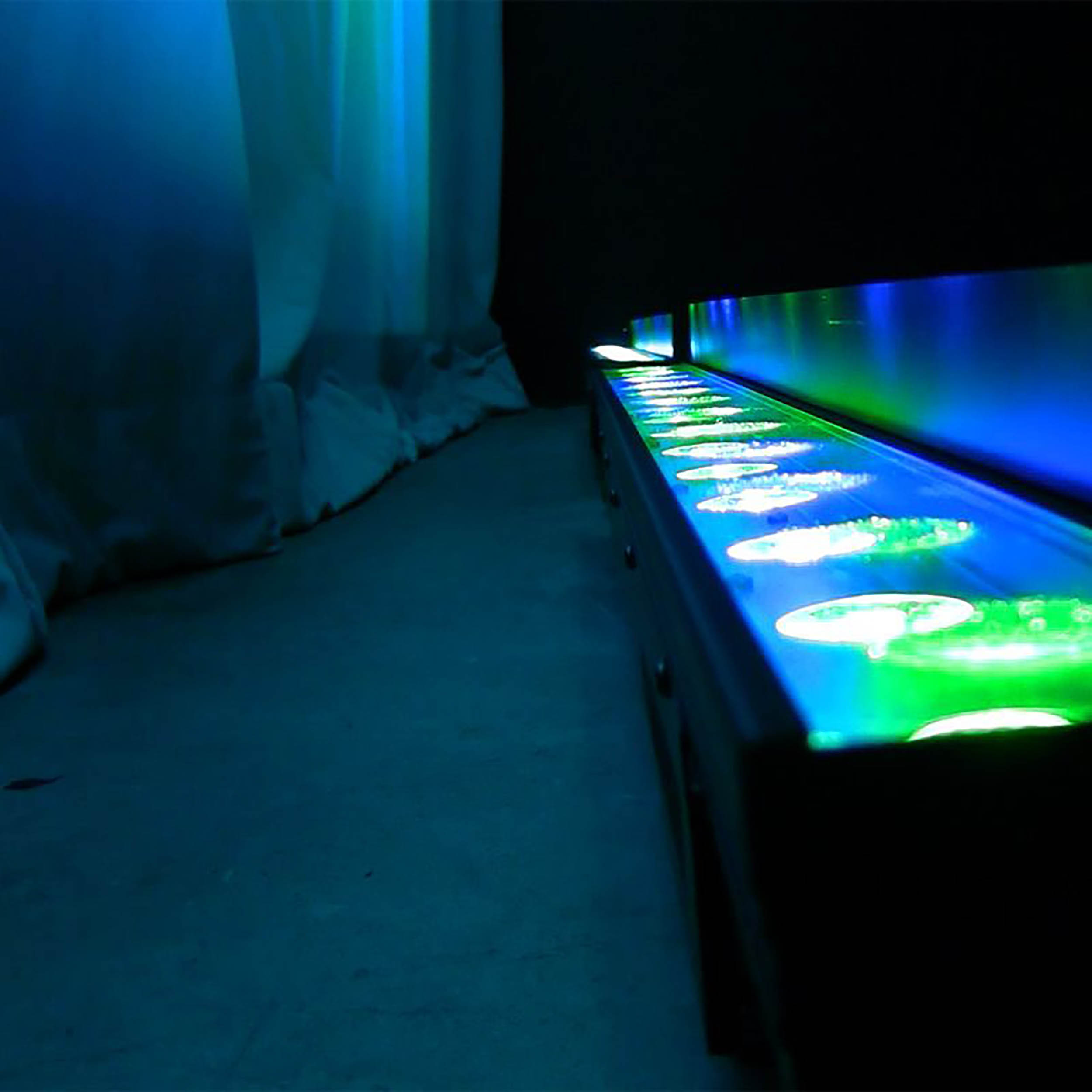

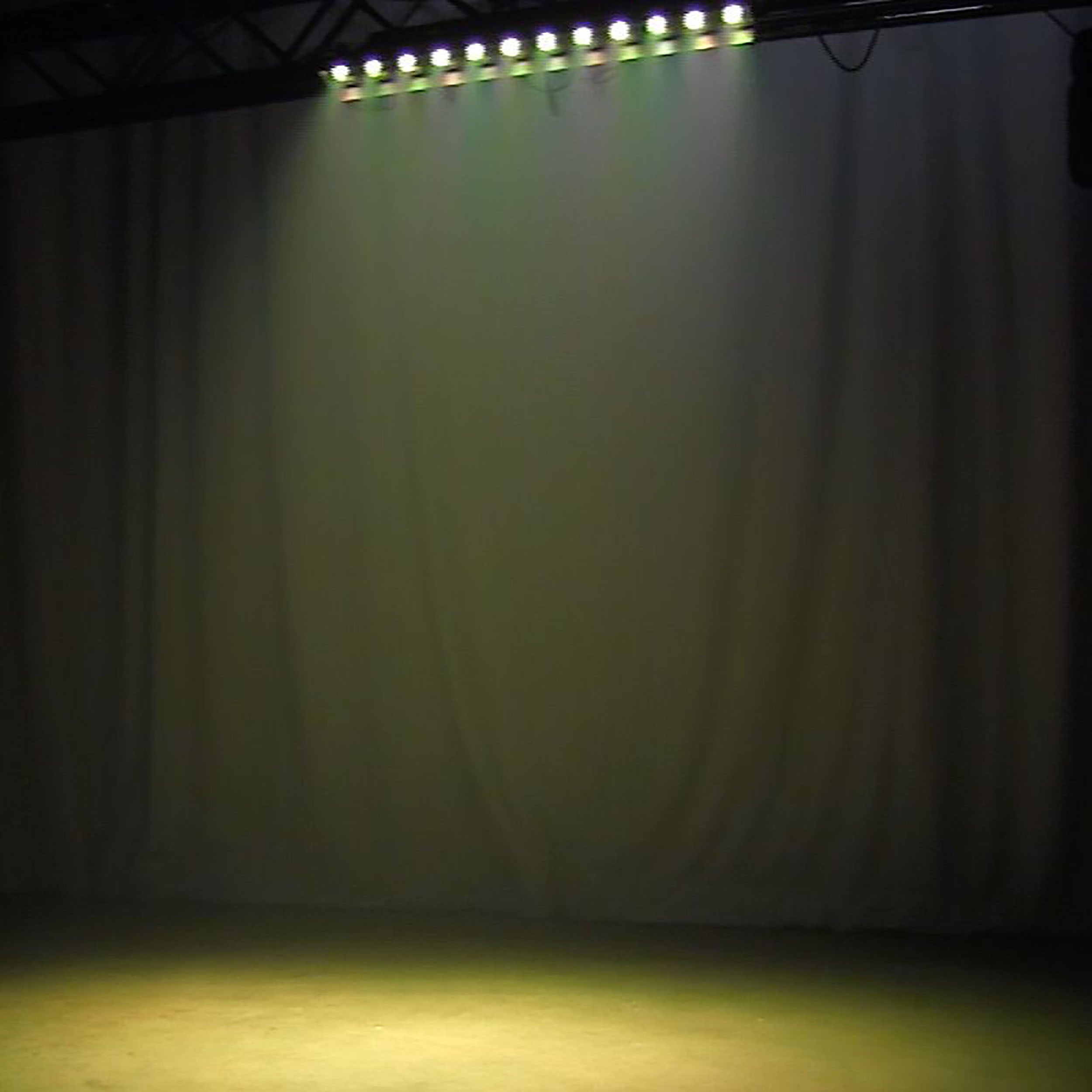

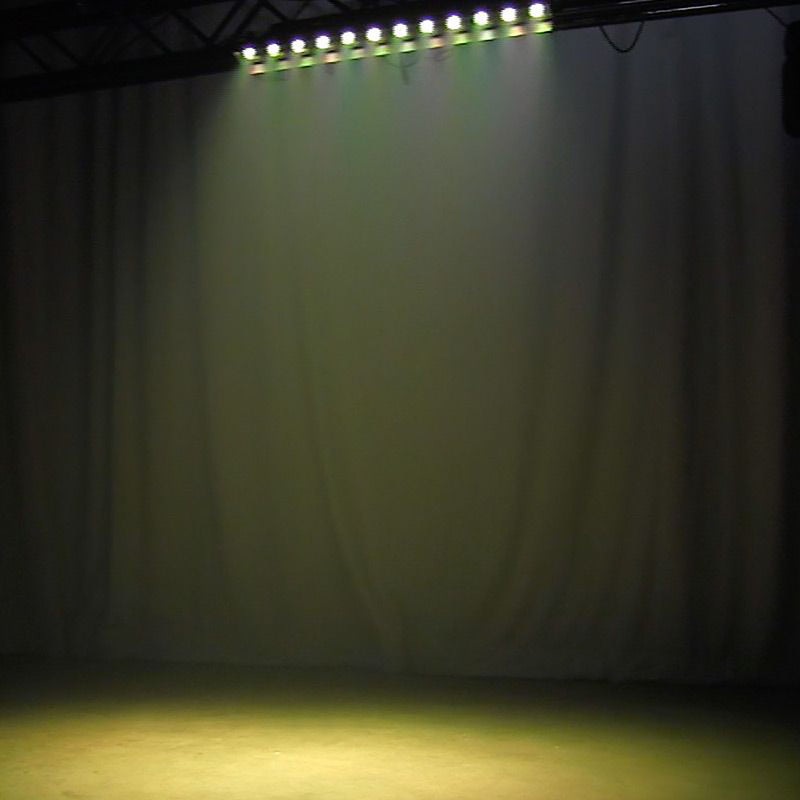

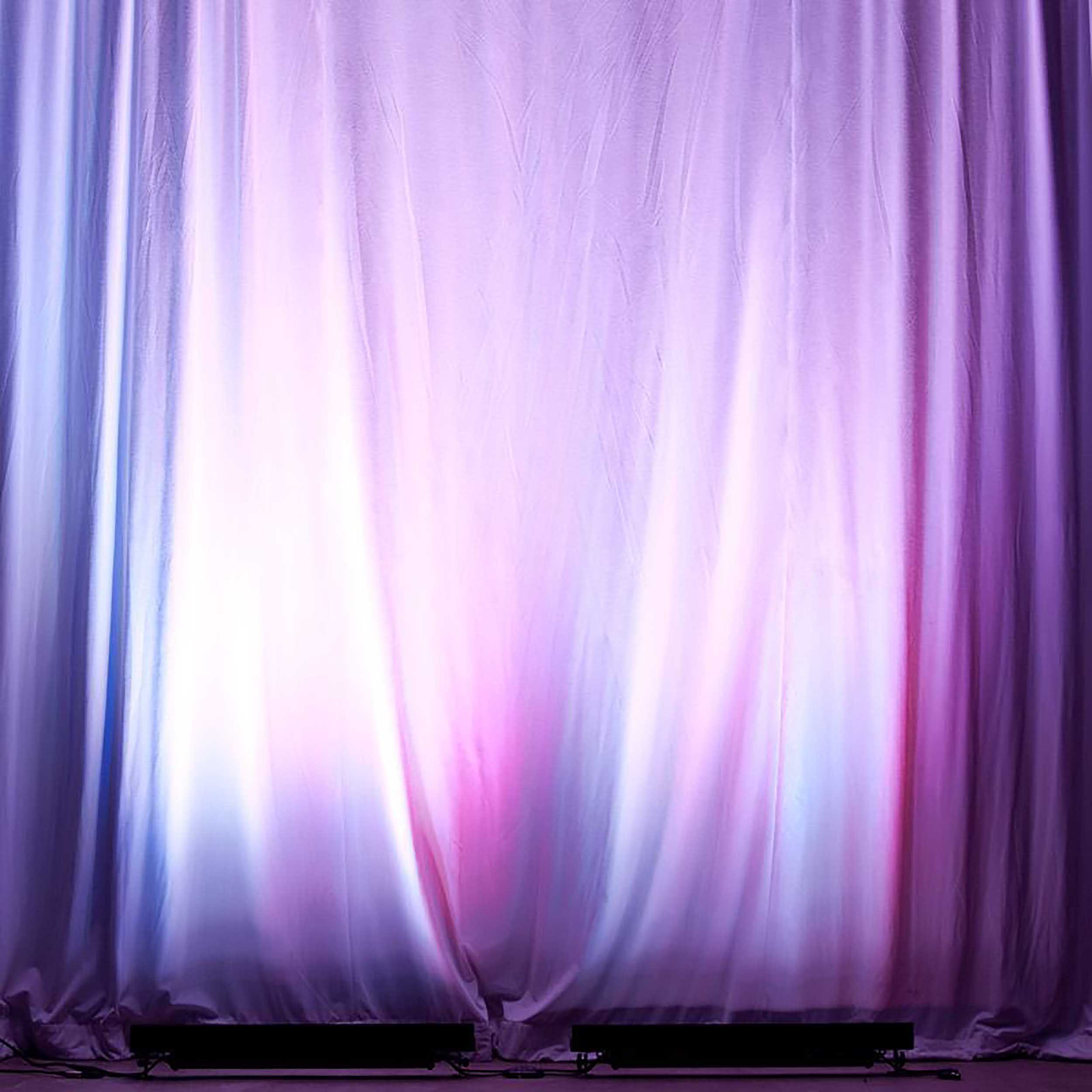

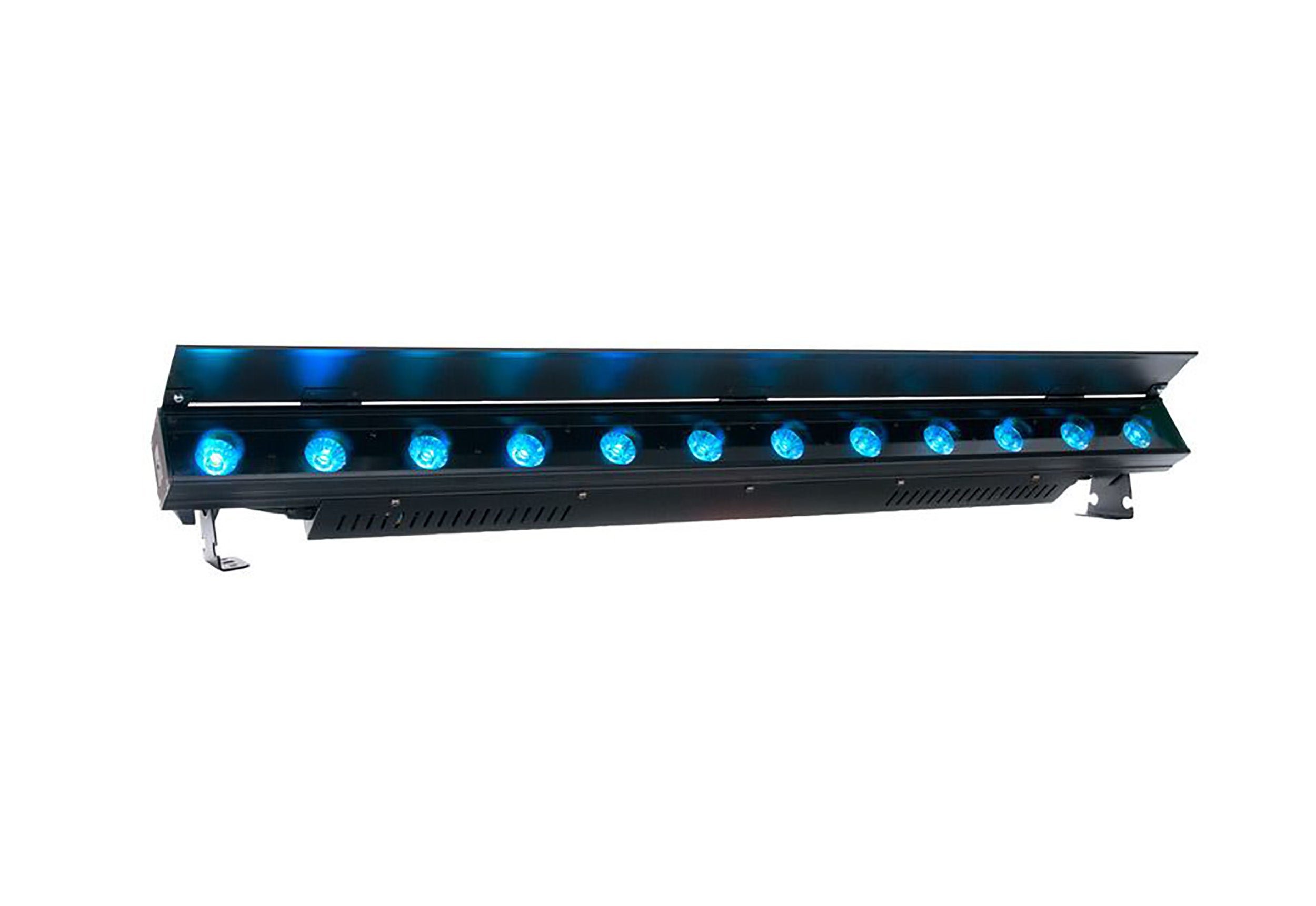

The ADJ Ultra HEX Bar 12 is a versatile LED Linear fixture with 12 x 10-Watt, 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue. Great as an architectural wall wash or for performance stages where traditional stage lighting emits a lot of heat onto performers.
Ultra HEX Bar 12 professional features include: 5 DMX modes (6, 7, 8, 12, & 36 channel), 6 operational modes, 5 dimming curves, flicker free operation a 4-Button DMX menu with digital display, plus ADJ’s patent pending magnetic “Quick Align” end locking allows for a seamless output of light with no breaks of color. Daisy chain up to 7 units together via the fixtures built-in IEC In/Out power connectors.
The Ultra HEX Bar 12 is compatible with the ADJ RFC, easy-to-use, wireless remote. Alternatively, the fixture may be operated via a DMX controller or the units’ built-in programs.
Product Specifications:
Type: 40-inch Indoor Linear Bar
LEDs: 12 x 10W Ultra-Bright HEX LEDs (RGBAW+UV: 6-IN-1)
Color Mixing: Smooth RGBAW + UV color mixing

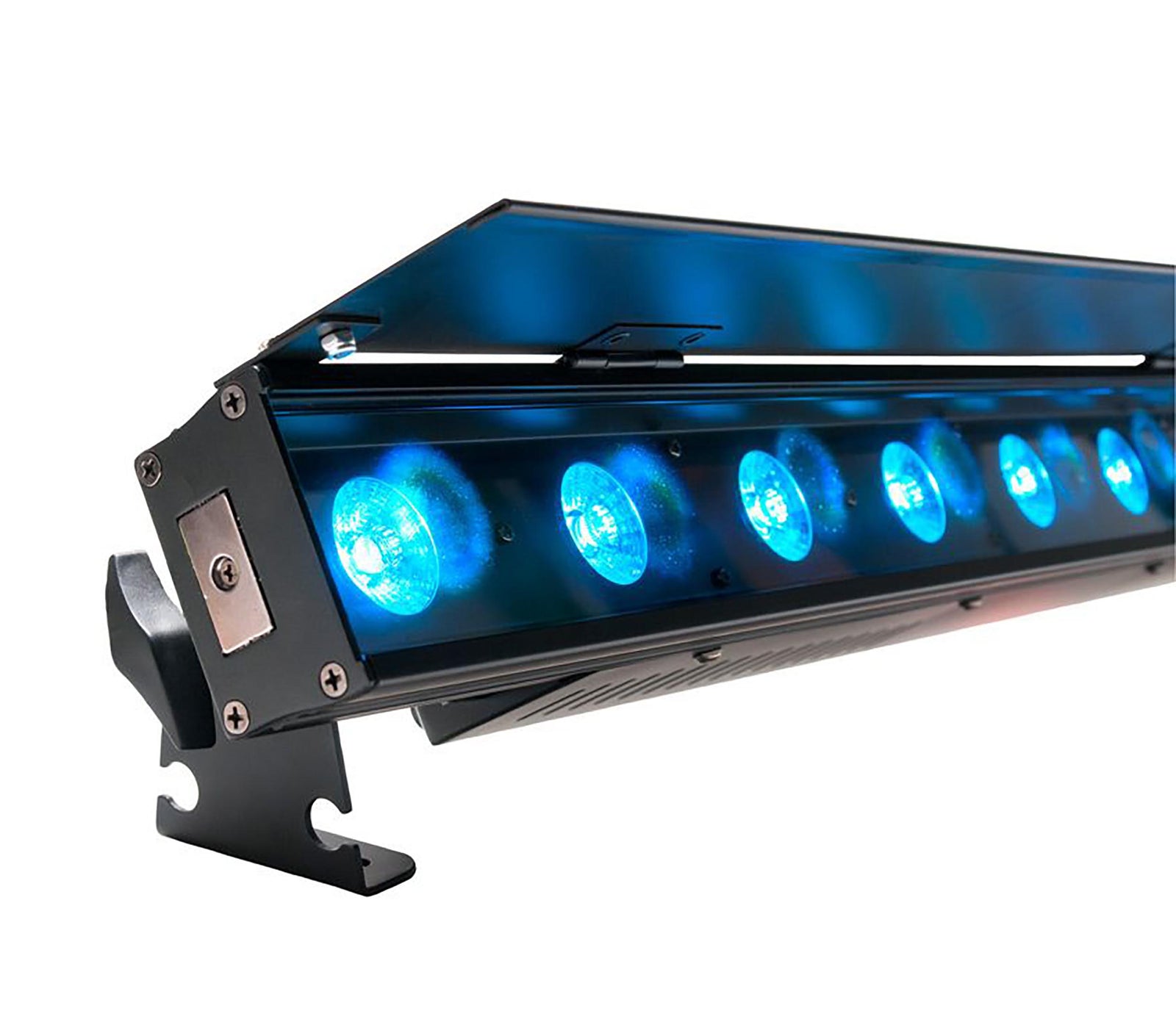

Alignment: Patent Pending Quick Align (Magnetic) system
Operation: Flicker-free operation (No flickering on camera)
Dimming Curves: 5 selectable dim curves (Standard, Stage, TV, Architectural, Theatre)
Effects: LED pulse and strobe effect

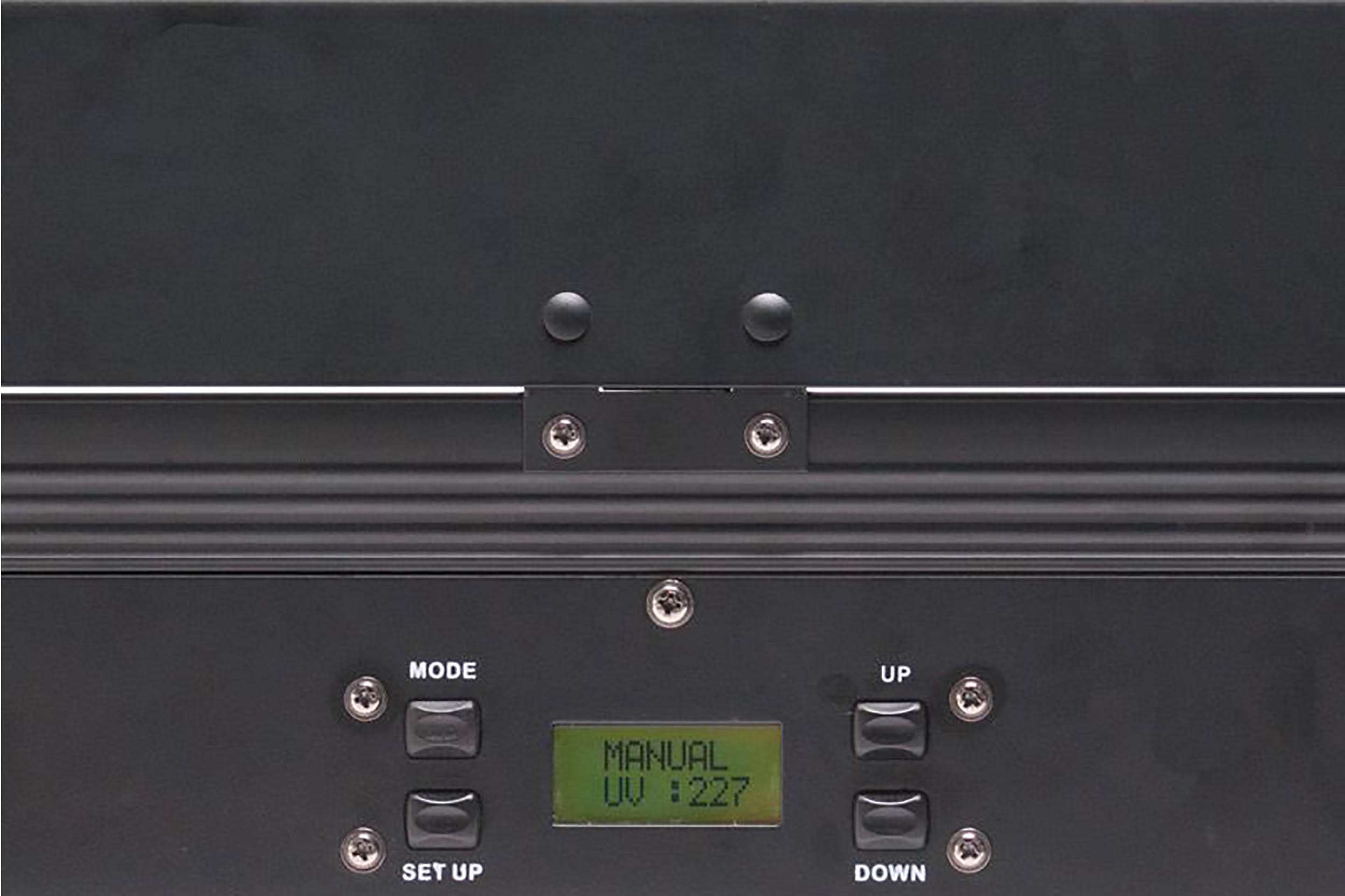

Display: 2x8 Character LCD Display
Mounting: Includes mounting brackets for wall or ground setup
Remote Compatibility: Compatible with ADJ RFC remote with RF control up to 30 ft./ 10m (sold separately)
LED Lifespan: Approximately 50,000 hours
Power Connections: IEC In/Out for daisy chaining up to 7 units
5 DMX Channel Modes: 6/7/8/12/36 channels
6 Operational Modes: Auto Run, Program Mode, Sound Active, RGBWA + UV Dimmer, Static Color and DMX-512 Mode
Beam Angle: 40 degrees
Refresh Rate: 2.88KHz
Electronic Dimming: 0-100%
Light output: 1680 LUX @ 2M; 478 LUX @4 Meters (40-degree beam)
Power Draw: 90W

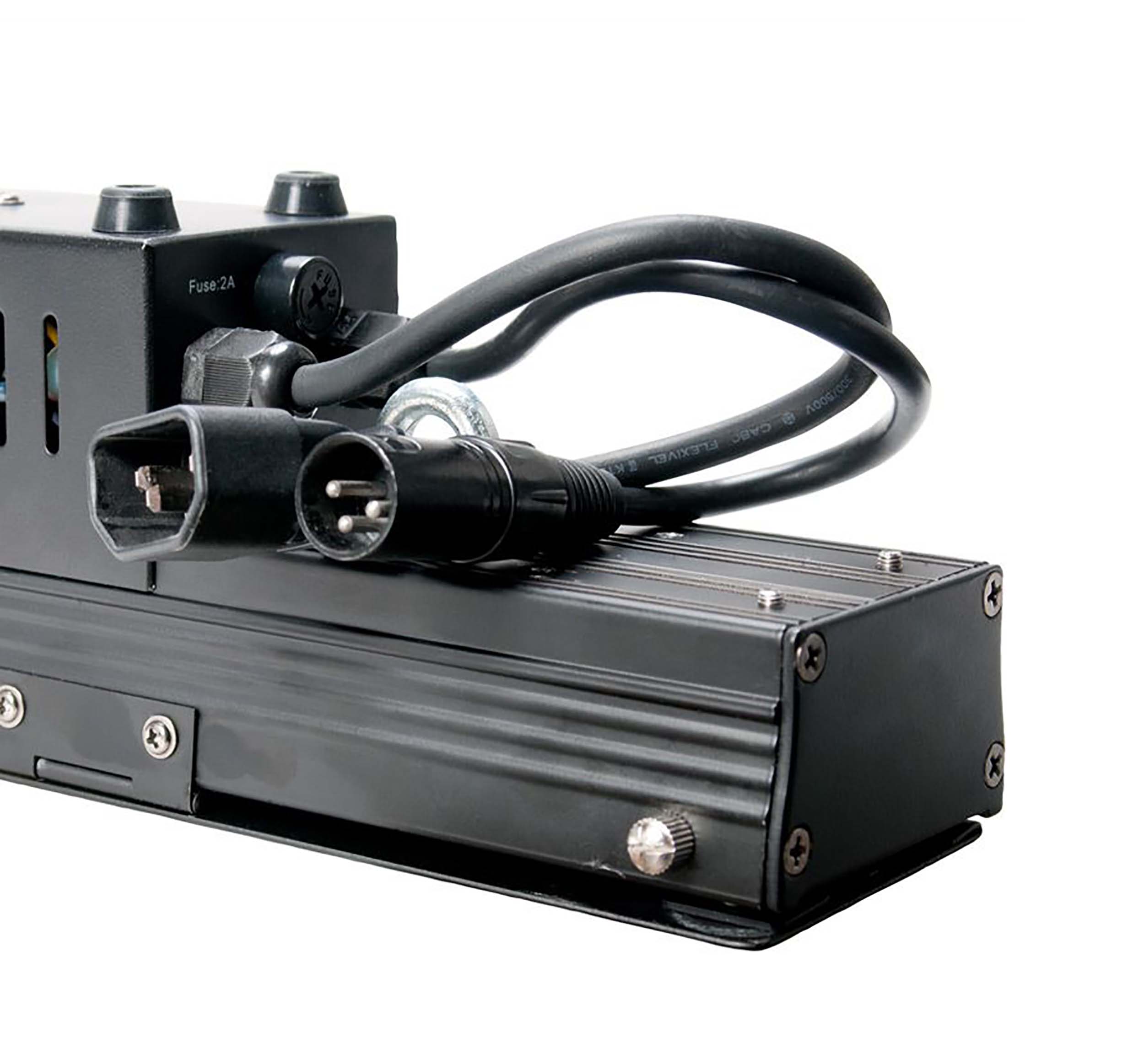

Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 7 Ultra Hex Bar 12 fixtures)
Multi-voltage operation: AC 100V-240V 50/60Hz
Power cable length: 1.8 meter (IEC)
Product Dimensions (LxWxH): 40.25” x 2.75” x 4.75”/ 1020 x 70 x 122mm
Product Weight: 11 lbs./ 4.74kg.
