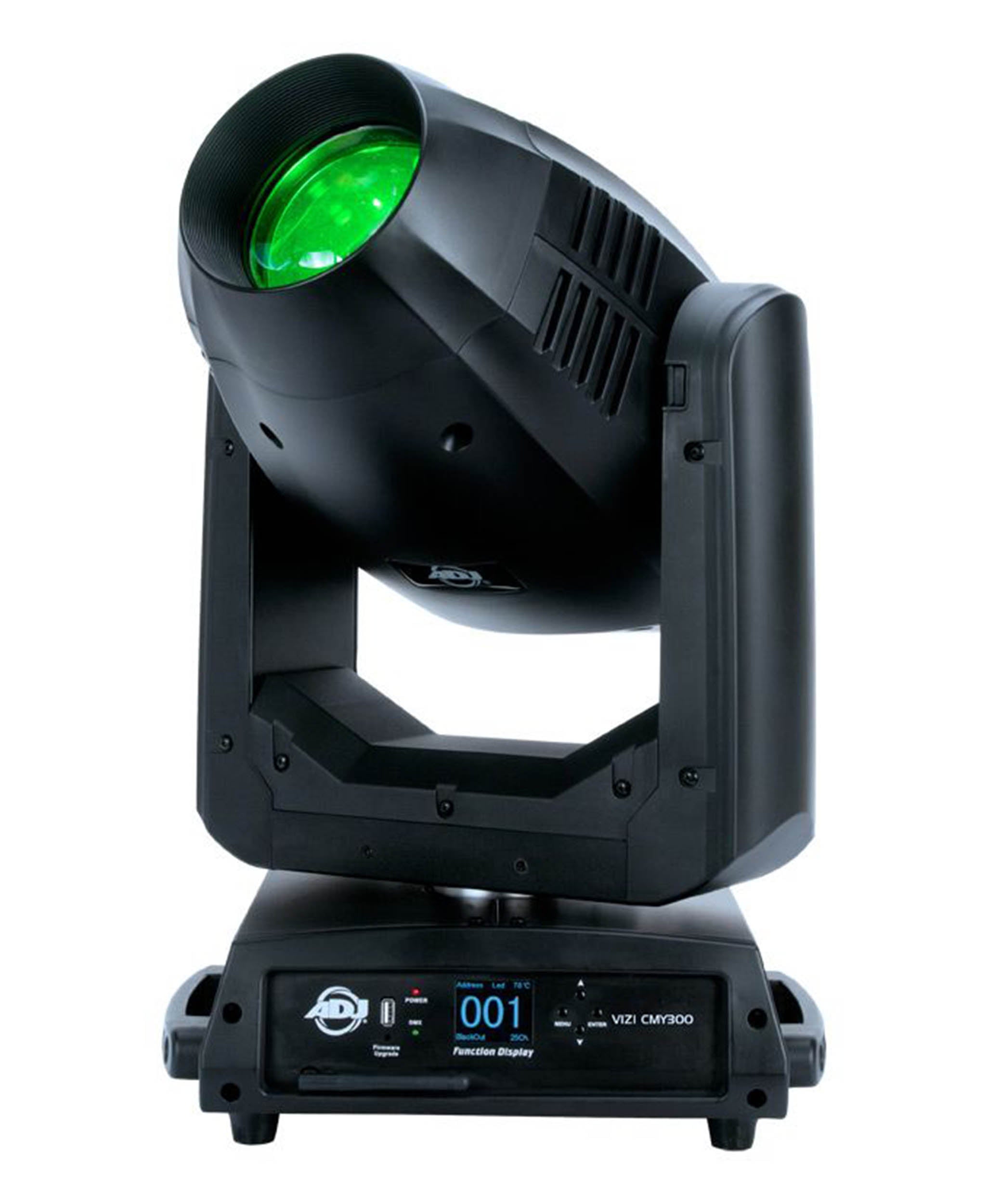

ADJ VIZI CMY300, Hybrid Moving Head LED Fixture

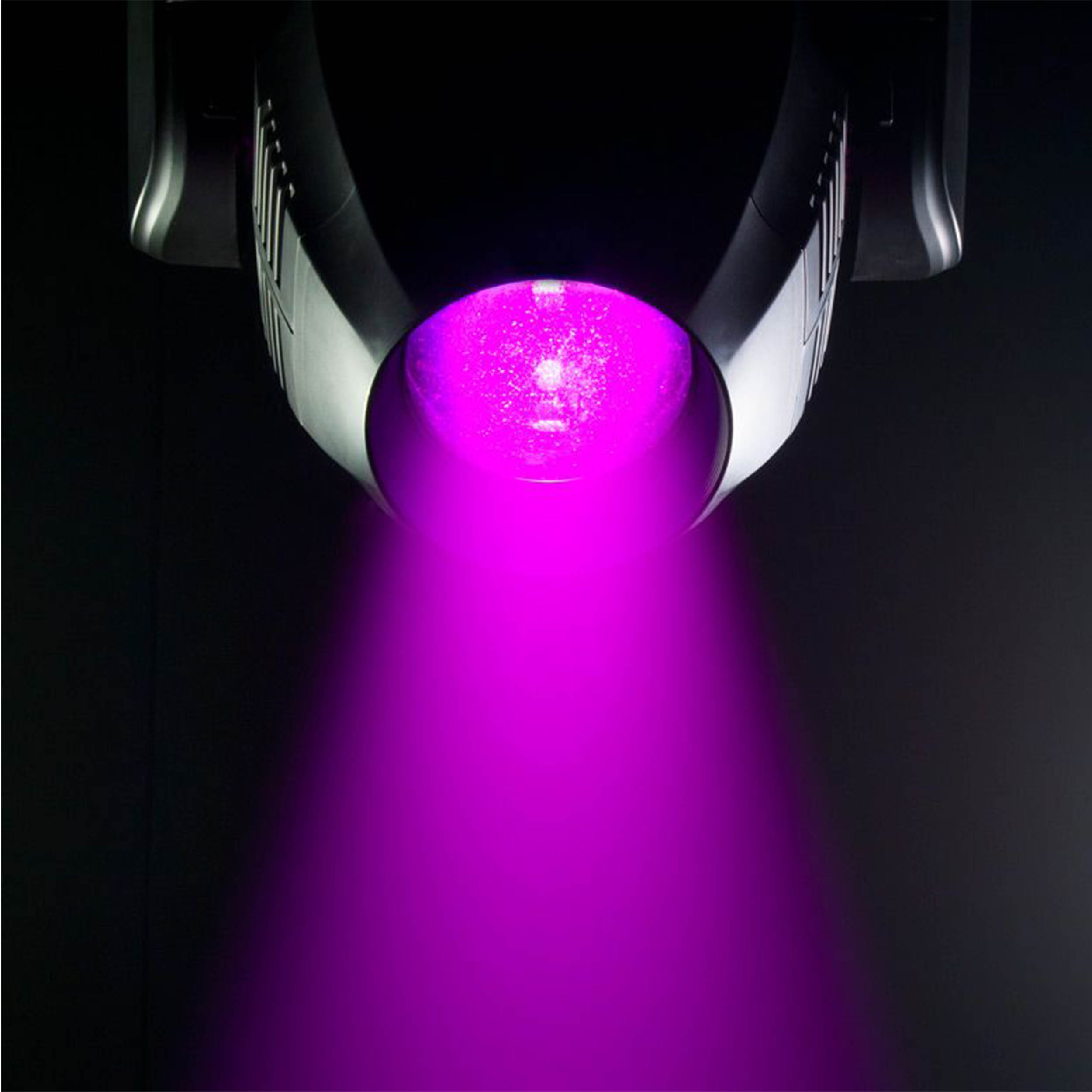

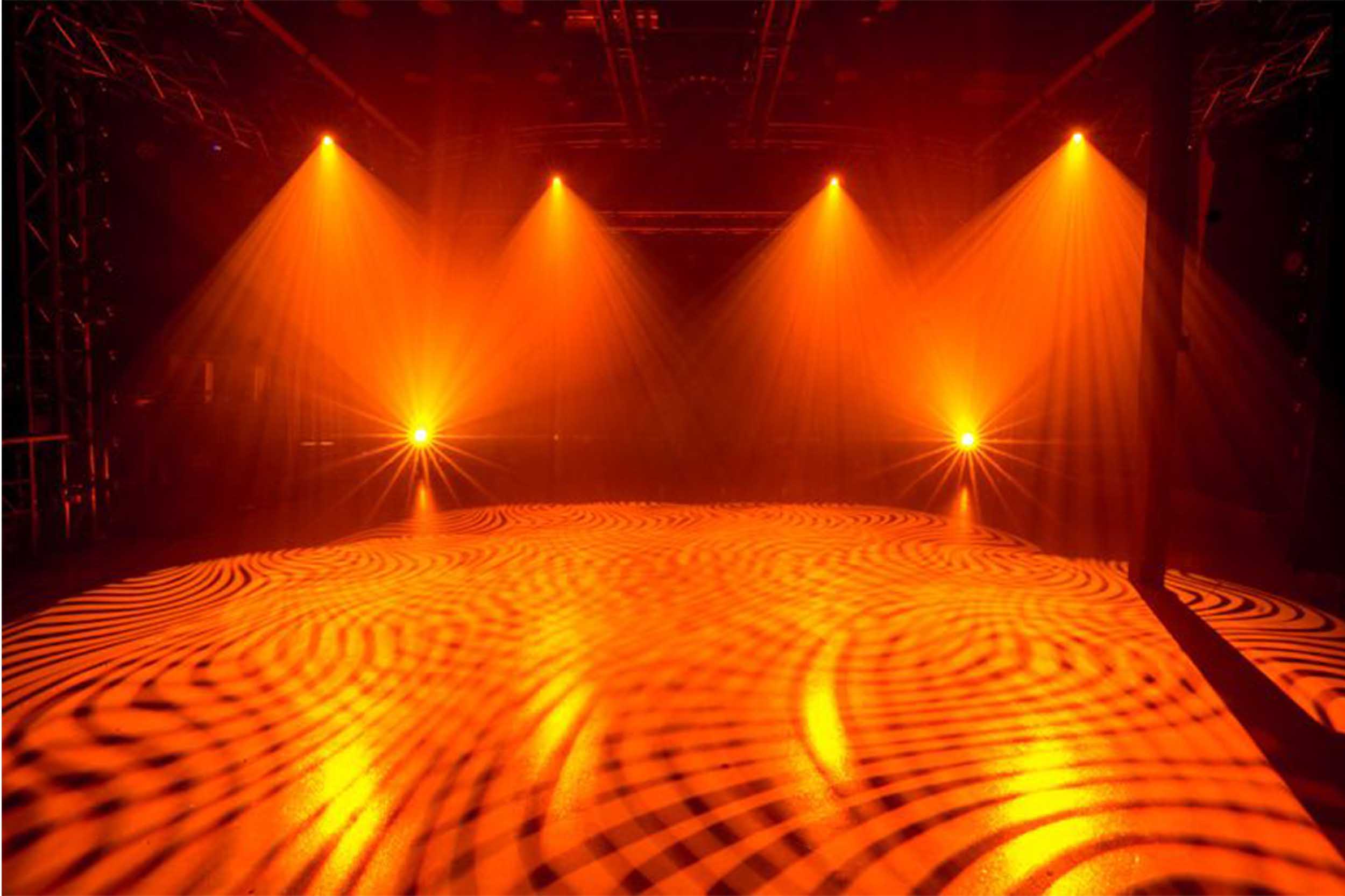

The ADJ VIZI CMY300, Hybrid Moving head LED fixture uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all-in-one with a massive zoom range from 8 to 46-degrees. This allows for designers to get maximum effects from one fixture without having to crowd truss in an installation with multiple fixtures. It also allows for less fixtures to be packed in a truck for production events. What’s more, is it comes in a smaller footprint than most other movers in its class. Plus, the Vizi CMY300 offers a CMY color mixing so designers can custom make colors to create a one-of-a-kind lightshow. The fixture has a built-in antenna with ADJ's WiFLY EXR wireless DMX that transmits a signal up to 2500 feet / 700M (line of sight).

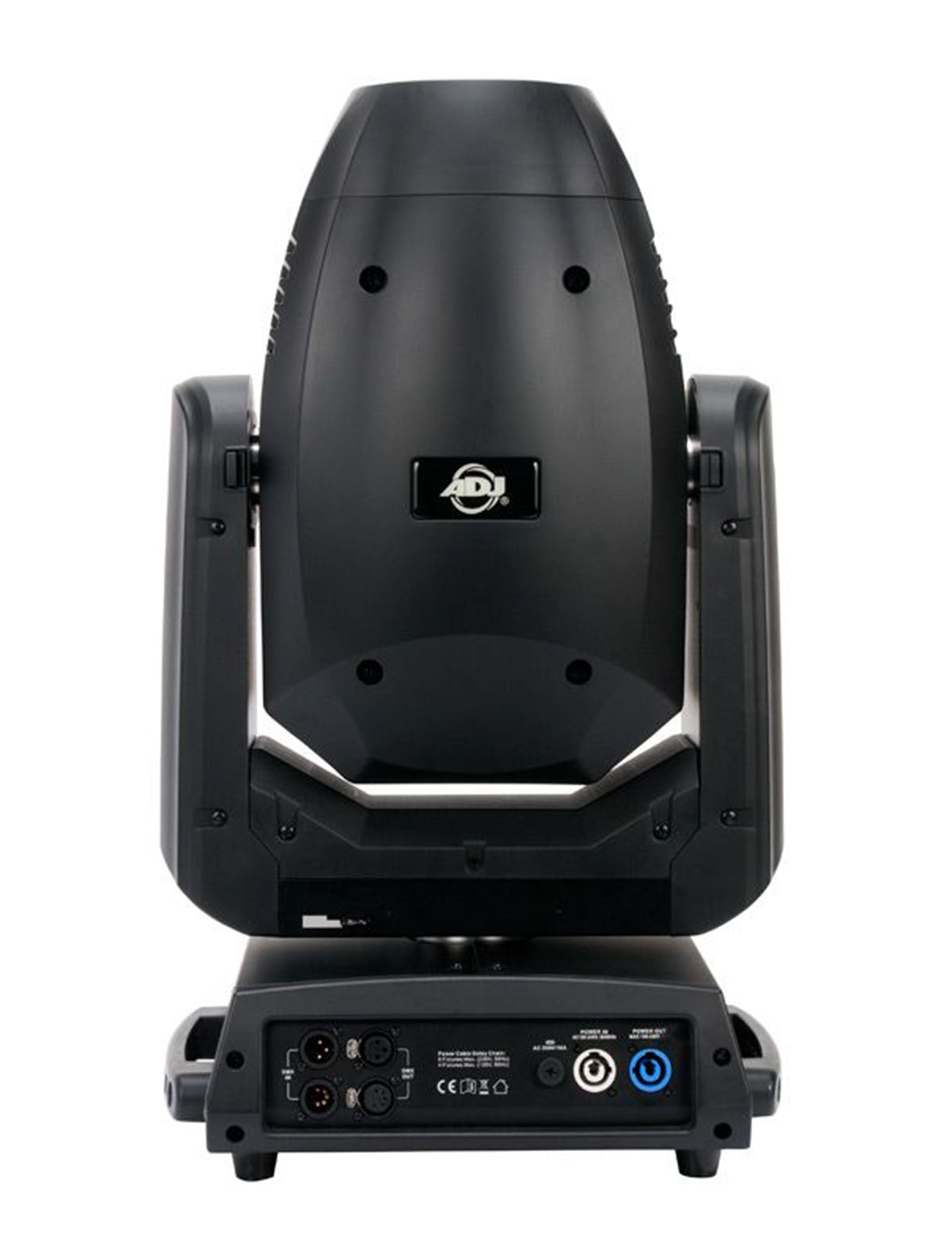

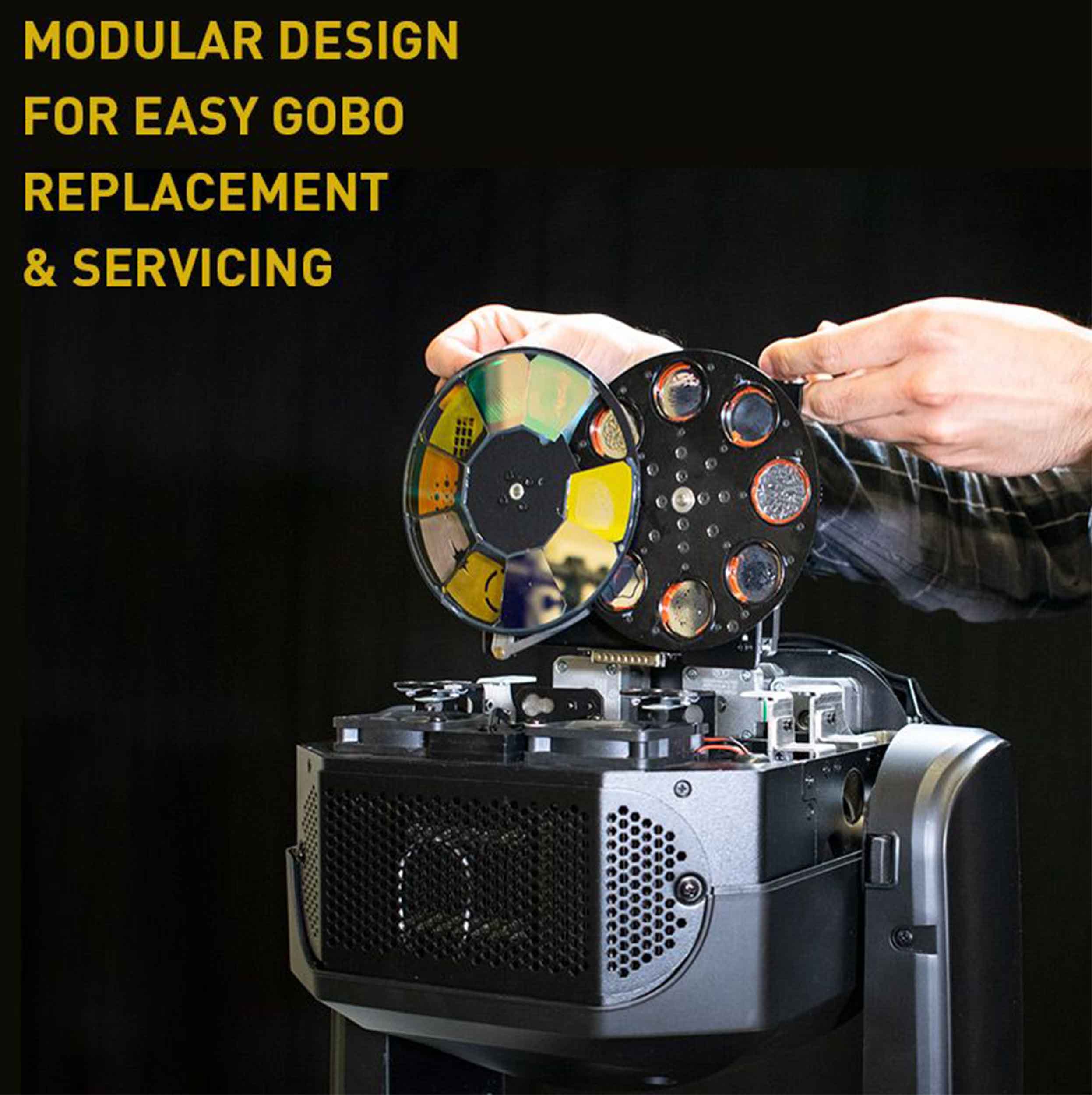

The Vizi CMY300 offers motorized focus, motorized zoom, two rotating prisms (one 6-facet linear & one 3-facet circular), 2 GOBO wheels (1-wheel fixed metal & one wheel rotating/replaceable GOBOs). There is a full color function display on the front panel, with the rear panel offering locking power In/Out connections and 3-pin & 5-pin DMX connections. Under the hood, the Vizi CMY300 offers a modular design making servicing and GOBO replacement easier than ever before.

Product Specification:

Fixture Type: Moving Head

Light Source: 1x White LED - 300 W

Expected Lamp Life: 50,000 Hours

Colors: Red, Green, Pink, Orange, Lime, CTO (Color Temperature Orange), Ultraviolet, Blue

Beam Angle: 8 to 46°

Shutter / Strobe: Electronic

Iris: Yes, Mechanical

Focus: Motorized

Zoom Adjustment: Motorized, 8 to 46°

Dimming: Electronic, 0 to 100%

Prism:

3-Facet Circular (Rotating)

6-Facet Linear (Rotating)

Operating Modes: DMX

Macros / Programs: 32x Color Macro

Effects:

Color Scroll

Frost Filter

Gobo Scroll

Gobo Shake

Strobe

Gobos:

8x Fixed Metal Gobo

1x Fixed Spot/Open

6x Removable Spot/Open

Gobo Size:

Outer Diameter: 1.1" / 26.8 mm

Max Image Size: 0.8" / 20 mm

Tilt Ranges: 270°

Pan Ranges: 540°

Pan/Tilt Inversion: Yes

Control Protocols: DMX512, WiFly

DMX Channel Modes:

3 Mode(s):

21 / 24 / 26-Channel

Display / Controls: LCD / 4-Button

Remote Control: No

Inputs/Outputs:

1 x USB-A Service Input

1 x XLR 3-Pin DMX Input

1 x XLR 3-Pin DMX Output

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

Wireless Range: 2296.6' / 700 m

AC Input Power: 100 to 240 VAC, 50/60 Hz

AC Power Connector:

Input: 1x powerCON

Output: 1x powerCON

Power / Current Consumption:

120 VAC, 60 Hz: 384 W / 3.31 A

220 VAC, 50 Hz: 384 W / 1.8 A

Power Linking:

3 Units at 120 VAC

7 Units at 230 VAC

Environmental Protection: No

Mounting: Omega Bracket

Included Accessories: 1x Power Cable

Duty Cycle: No

Exterior Color: Black

Certifications: ETL

Product Weight: 51 lb. / 23.1 kg

Product Dimensions: 24.3 x 14.9 x 12.8" / 61.7 x 37.8 x 32.5 cm

Shipping Weight: 65 lb.

Shipping Dimensions (LxWxH): 25.5 x 21 x 19"
