Description

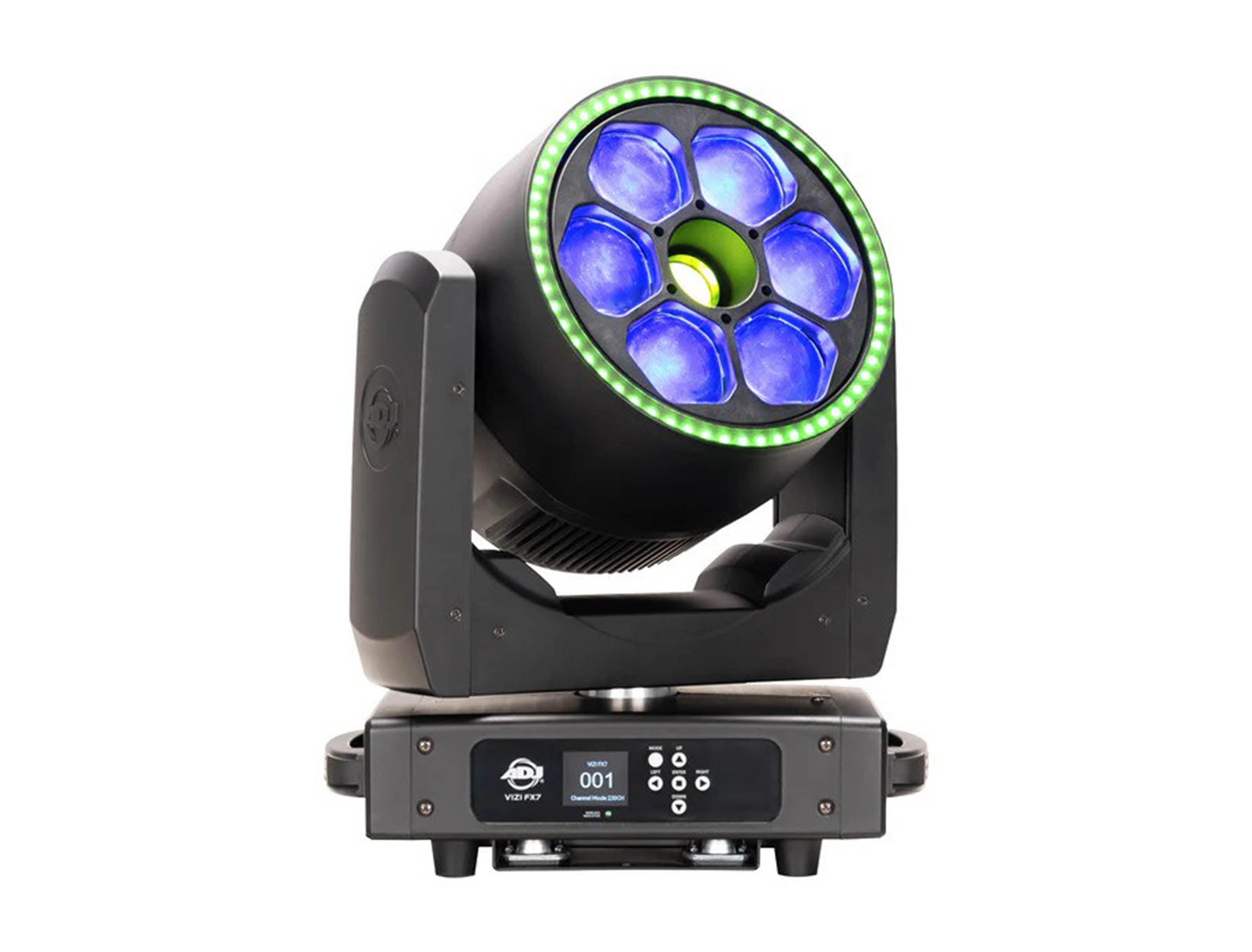

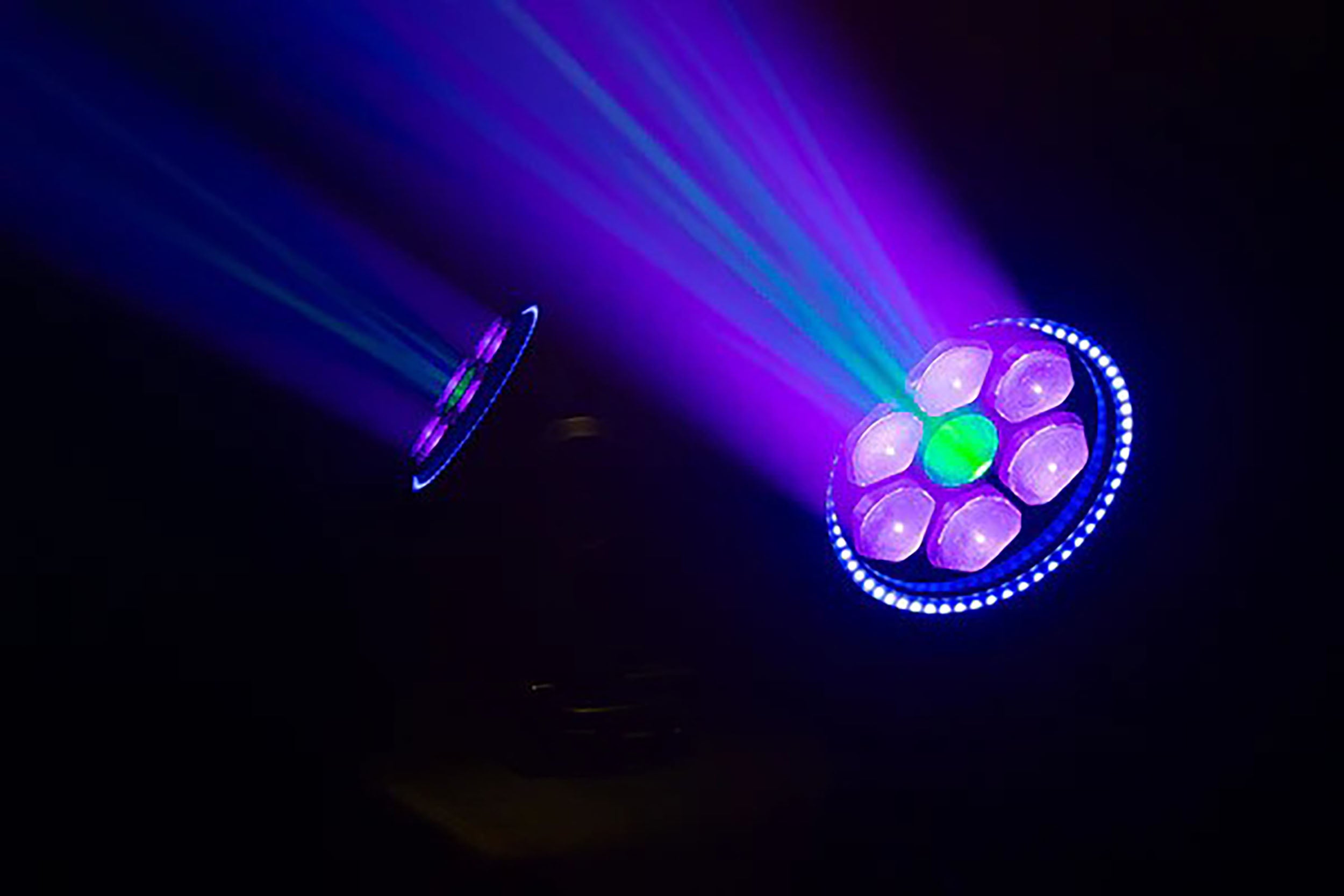

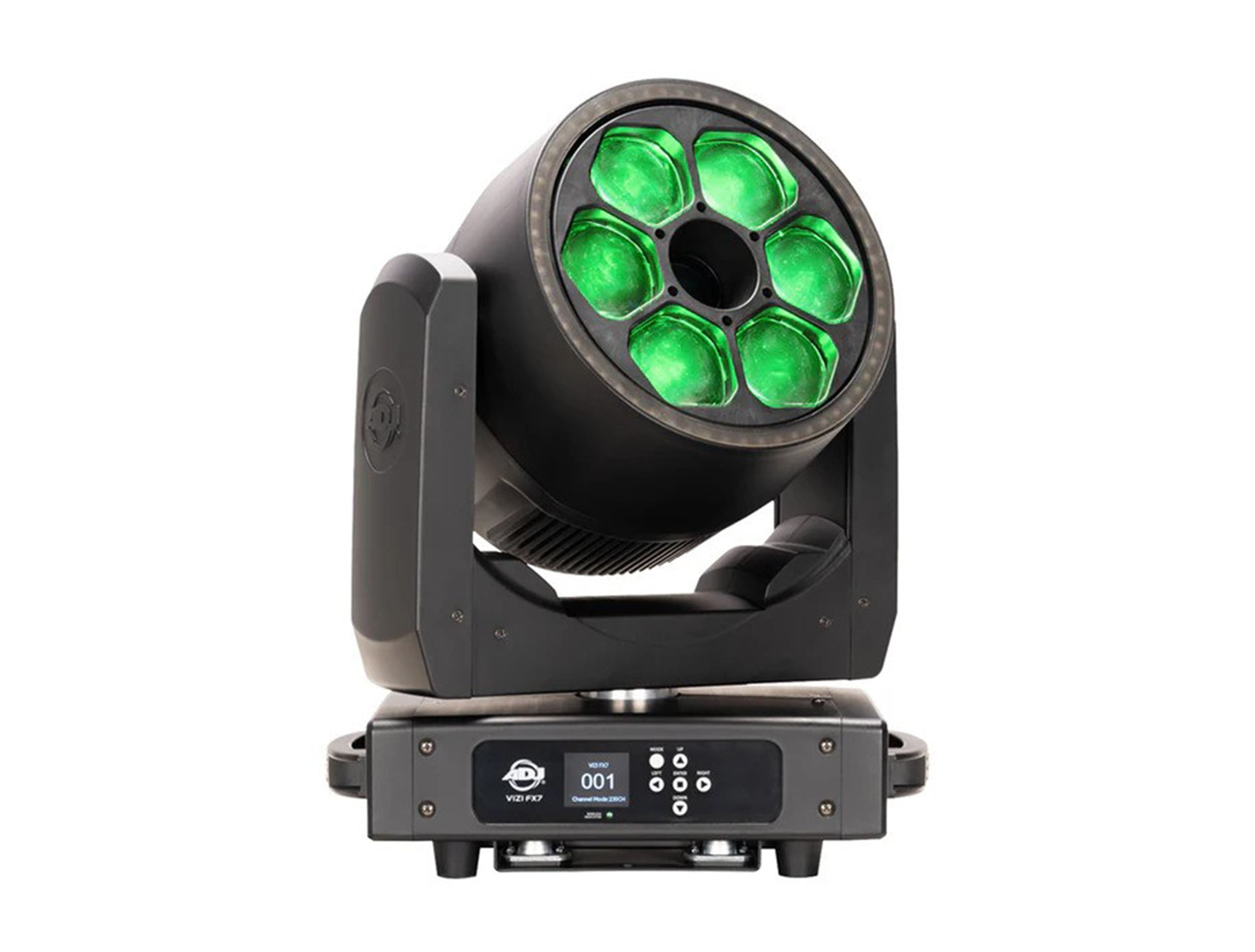

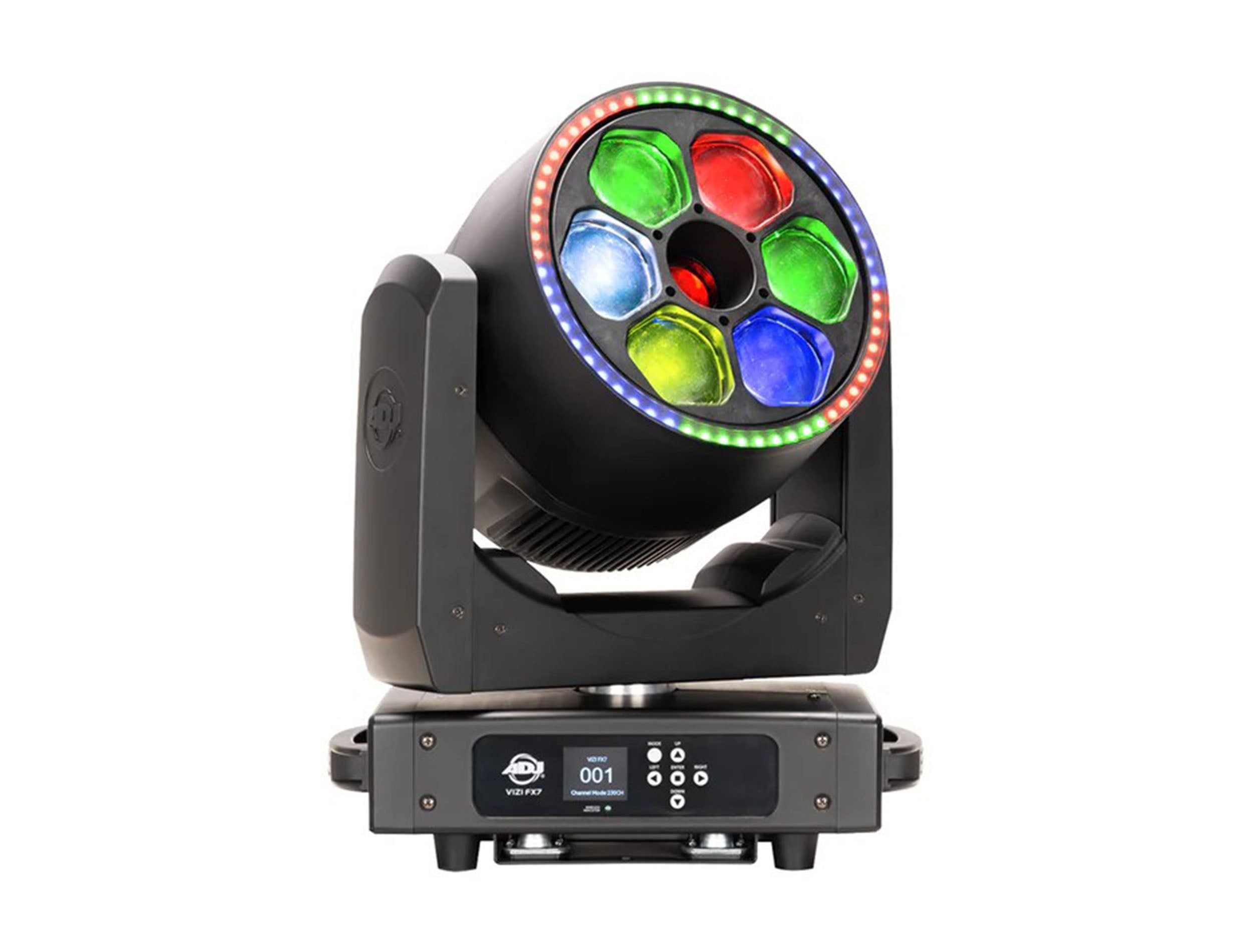

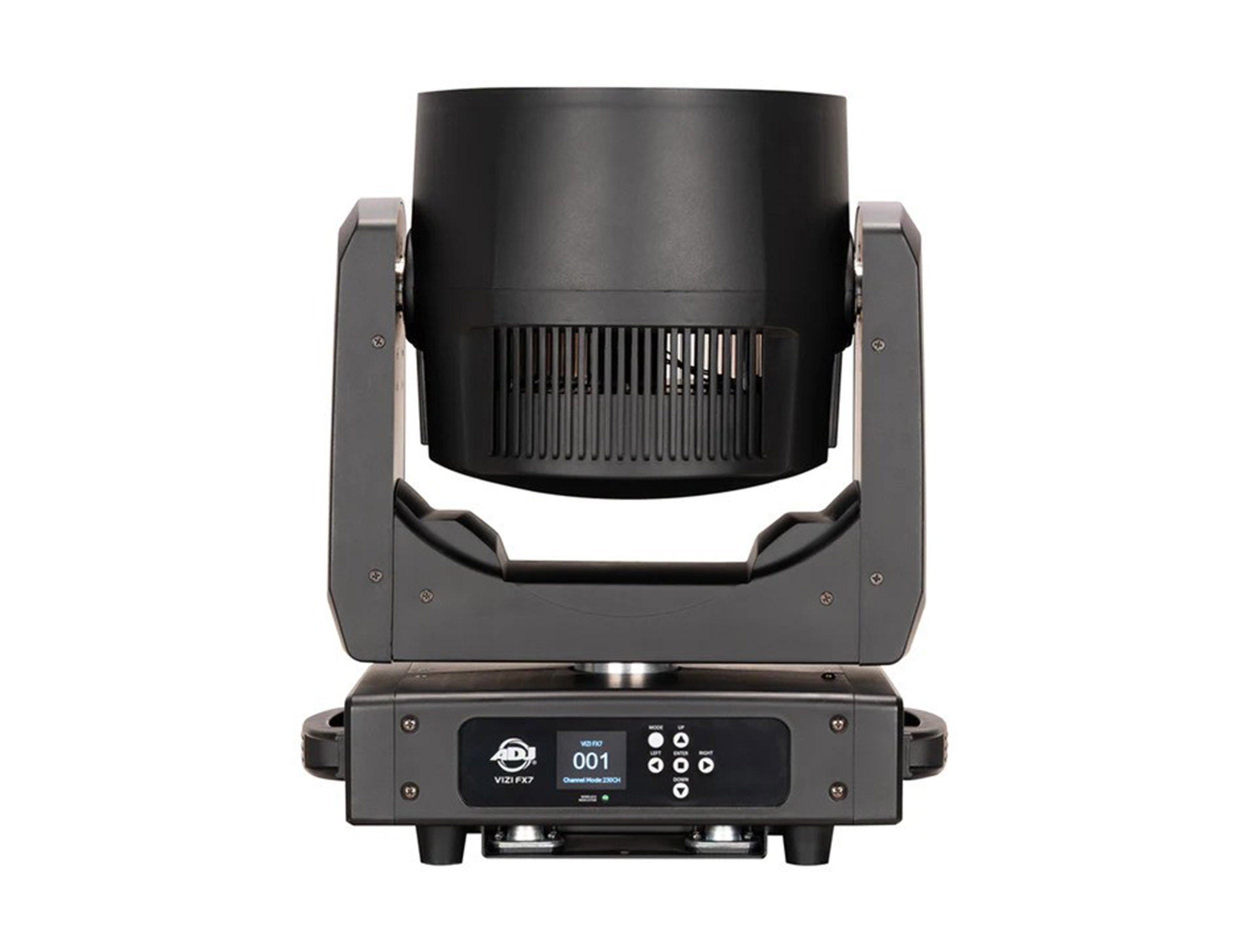

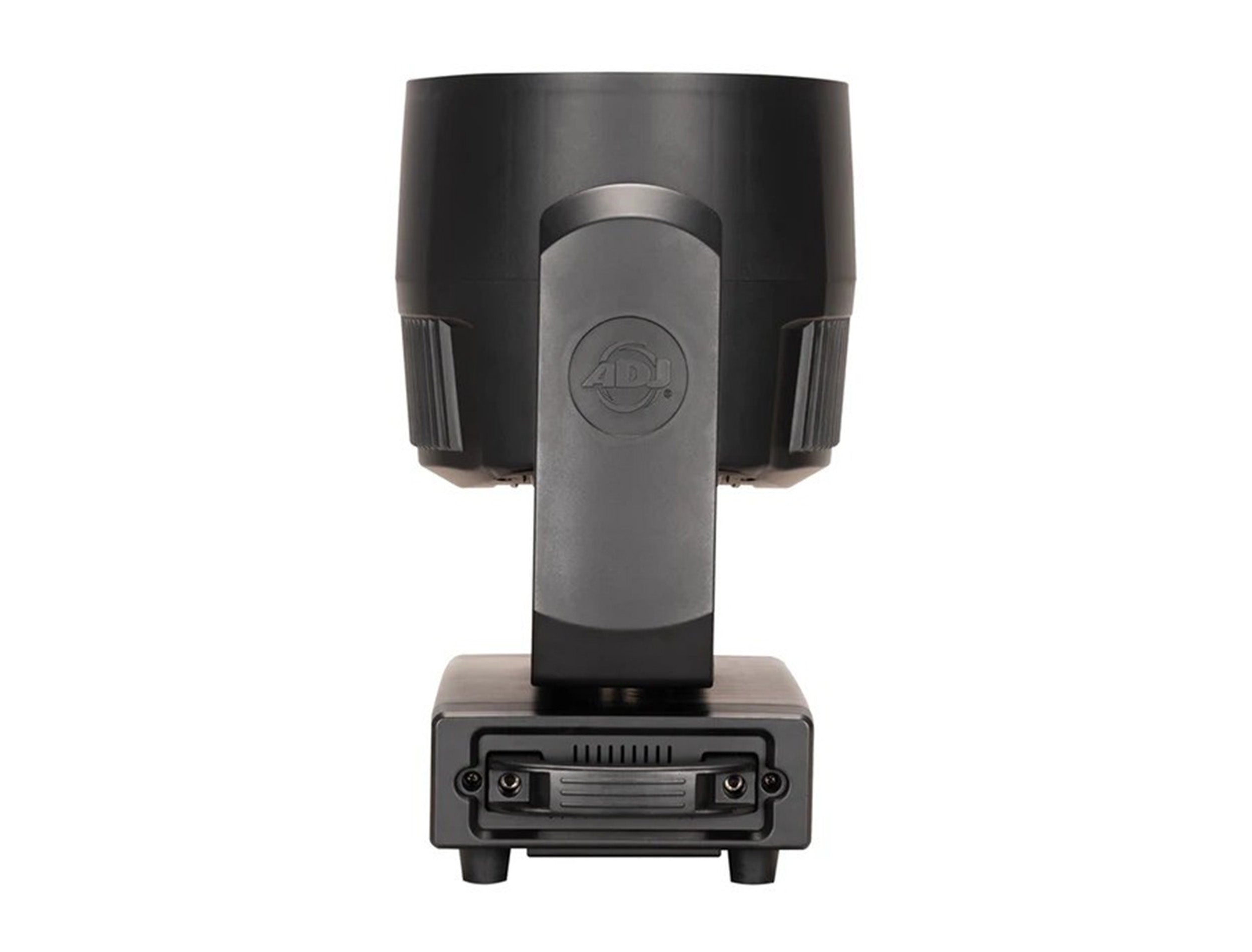

The ADJ Vizi FX7 redefines creative potential for lighting designers, rental houses, and fixed installations. Combining high output, flexibility, and precision engineering, this professional moving head fixture brings together a quartet of dynamic visual elements to generate an endless variety of looks that can transform any stage, event, or venue space.At its core, the Vizi FX7 features six primary 60-watt RGBL LEDs capable of producing intense, saturated color washes and sharp mid-air beams. These LEDs are projected through a motorized zoom system offering a variable beam angle from 8° to 38°, providing seamless transition between tight beams and wide washes. The lens assembly is also motorized for bidirectional rotation, unlocking multi-beam effects that add depth and movement to any lighting design. Meanwhile, three-phase motors deliver lightning-fast movement and precise pan and tilt control.

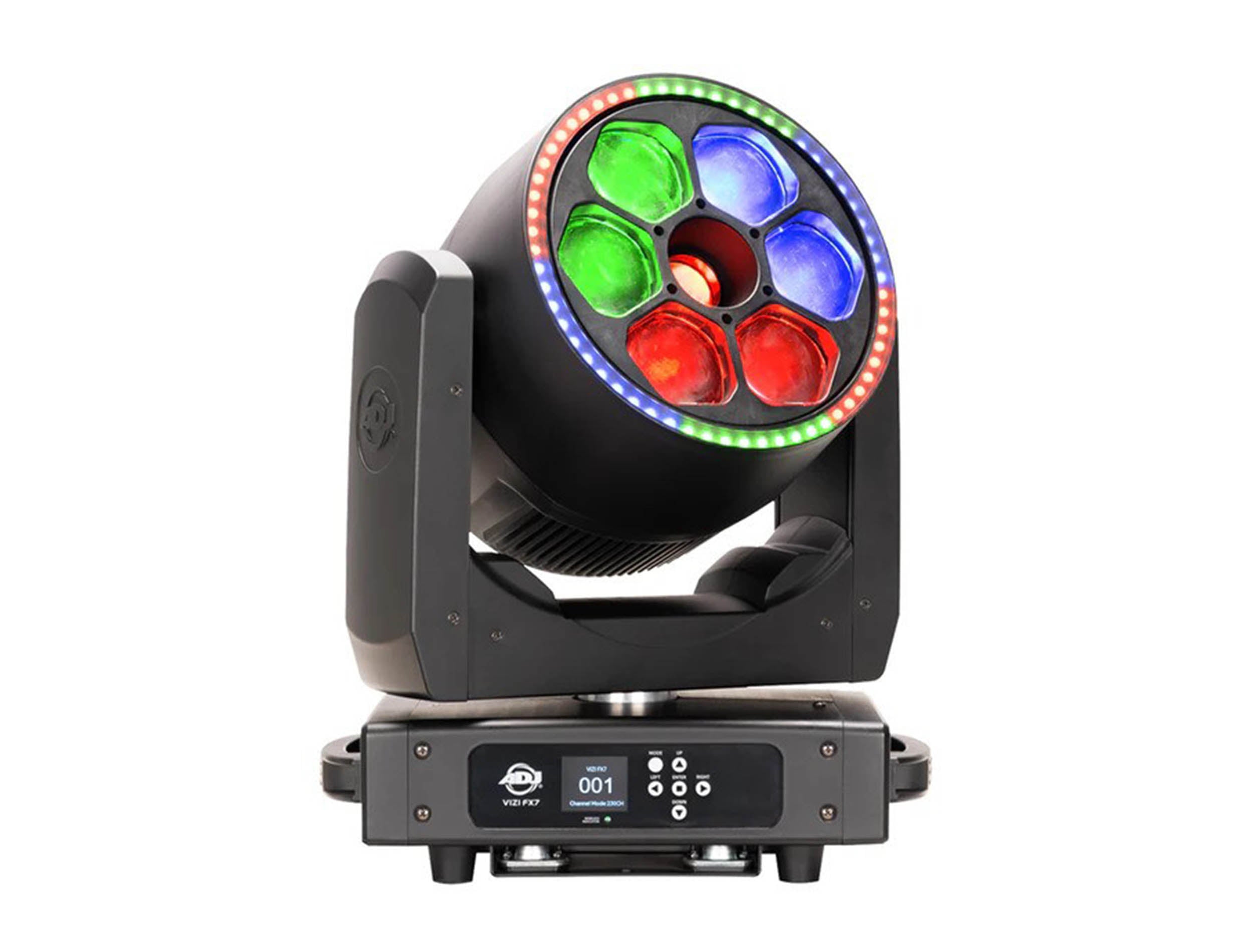

Enhancing its creative scope even further, the fixture’s center houses an additional 60-watt RGBL LED that produces a mesmerizing multi-colored kaleidoscope effect, bringing a dynamic, rotating burst of color to the center of the beam pattern. Then, on the outside edge of the fixture’s face is a ring of sixty 0.5-watt RGB LEDs designed to deliver vibrant ‘eye candy’ effects, ideal for creating captivating visuals on stage or in camera-friendly environments. Each of the primary LEDs offers independent pixel control, while the fixture’s built-in FX macros and speed adjustments enable quick and easy programming of complex layered effects.
The Vizi FX7 is built with modern control flexibility in mind. Aria X2 wireless technology is built in, offering remote fixture management and cable-free control, alongside standard 5-pin DMX with RDM support for conventional connectivity. Advanced dimming modes, selectable LED refresh rates up to 25kHz, and a range of user-definable options ensure smooth, flicker-free performance in both live and broadcast environments. Compact yet powerful, the Vizi FX7 is engineered for professional reliability and versatility. Its robust build makes it ideal for touring productions, clubs, concert stages, houses of worship, and event spaces seeking a next-generation multi-effect moving head that delivers maximum visual impact from a single fixture.
Product Specifications:
Type: 420W RGBL Moving Head Beam Effect / Wash
Source:
Main + Kaleidoscope Center:
7 x 60-Watt RGBL LED's
Color Temperature: 2800K ~ 8,500K
50,000 Hour Average LED Life
Ring:
60 x 0.5-Watt RGB LED's
50,000 Hour Average LED Life
May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data:
TBA (Zoomed Out, Full On)
CRI: TBA
Color:
Red, Green, Blue and Lime x6 Primary LED's
Multi-Color Kaleidoscope Center
Red, Green and Blue Ring LED's
Built-In Color Macros
2,700K ~ 10,000K Linear White Color Temperature Control
Color Temperature Presets: 2,800, 3,200, 3,600, 4,500, 5,000, 5,600, 6,200, 6,800, 7,500 and 8,500K
Effects:
Bi-Directional Primary LED Beam Rotation
Individual Primary LED Pixel Control
Bi-Directional Mulit-Color Rotating Kaleidoscope
Built-In FX Programs with Speed Control
Motorized Zoom: 8° to 38°
1Hz ~20Hz Strobe Rate (Electronic)
Control / Connections:
(4) DMX Channel Modes (31CH / 55CH / 57CH / 60CH and 237CH) Plus 1 User Definable DMX Mode
DMX and RDM
Aria X2 Wireless Management System
Selectable LED Refresh Rates (900 Hz~25K Hz)
Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
4 Dim Curves: Square, Linear, Inv. Square and S. Curve
0-100% dimming
Fan Cooled
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

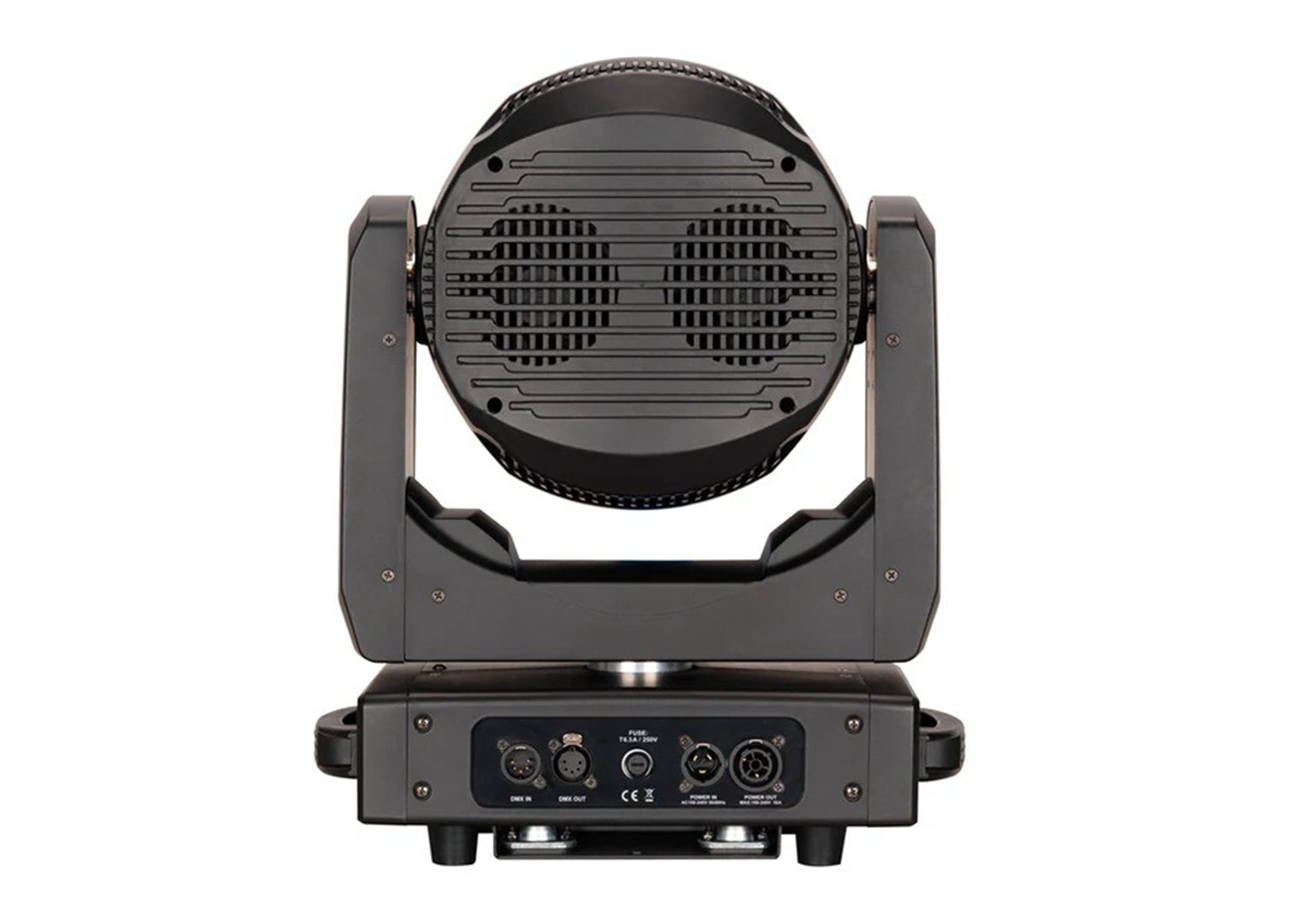

5 pin XLR DMX In/Out
IP65 Locking Power In/Out
Pan / Tilt:
Pan: 540°
Tilt: 190°
3 Phase Motors
Electrical / Thermal:
AC 100-240V - 50/60Hz
Max Power Consumption: 400W (3.7 Amps @ 120V)
Power Link: 3 unit @120V., 6 units @ 230V.
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: ?°F (?°C)
Technical Data:
DB Rating @ 3ft.: dB
Approvals / Ratings: cETLus (Control # 5027824), CE, FCC, UKCA and IP20
Included Accessories:
(1) Outdoor Locking Power cable (6ft.)
(2) Omega brackets (107mm)
Dimensions / Weight:
Length: 14.39" (365mm)
Width: 8.66" (220mm)
Vertical Height: 17.11” (434.4mm)
Product Weight: 29.8 lbs. (13.5kg)
Shipping Weight: 35.7 lbs.
Shipping Dimensions (LxWxH): 20.2 x 17 x 14"
