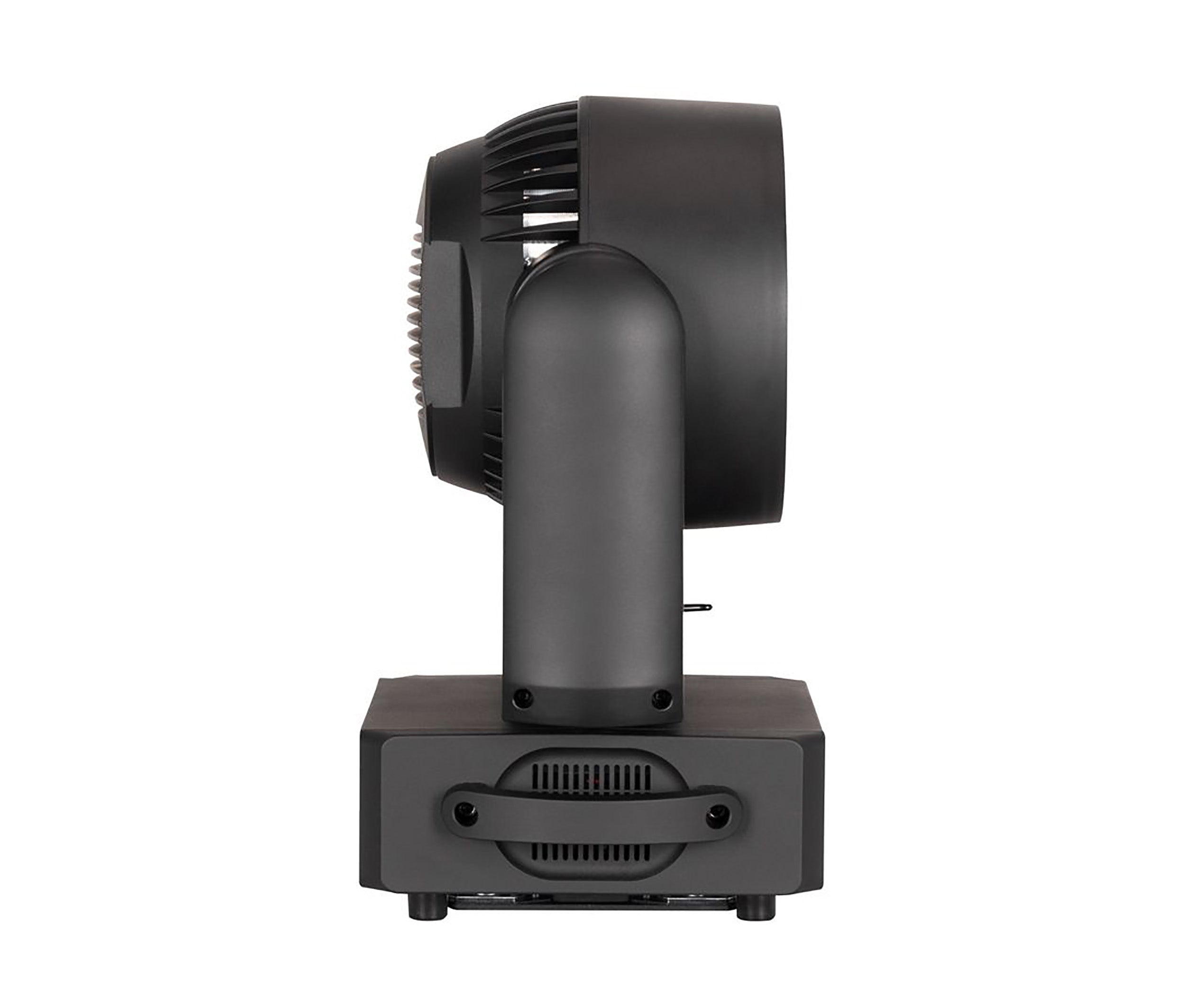

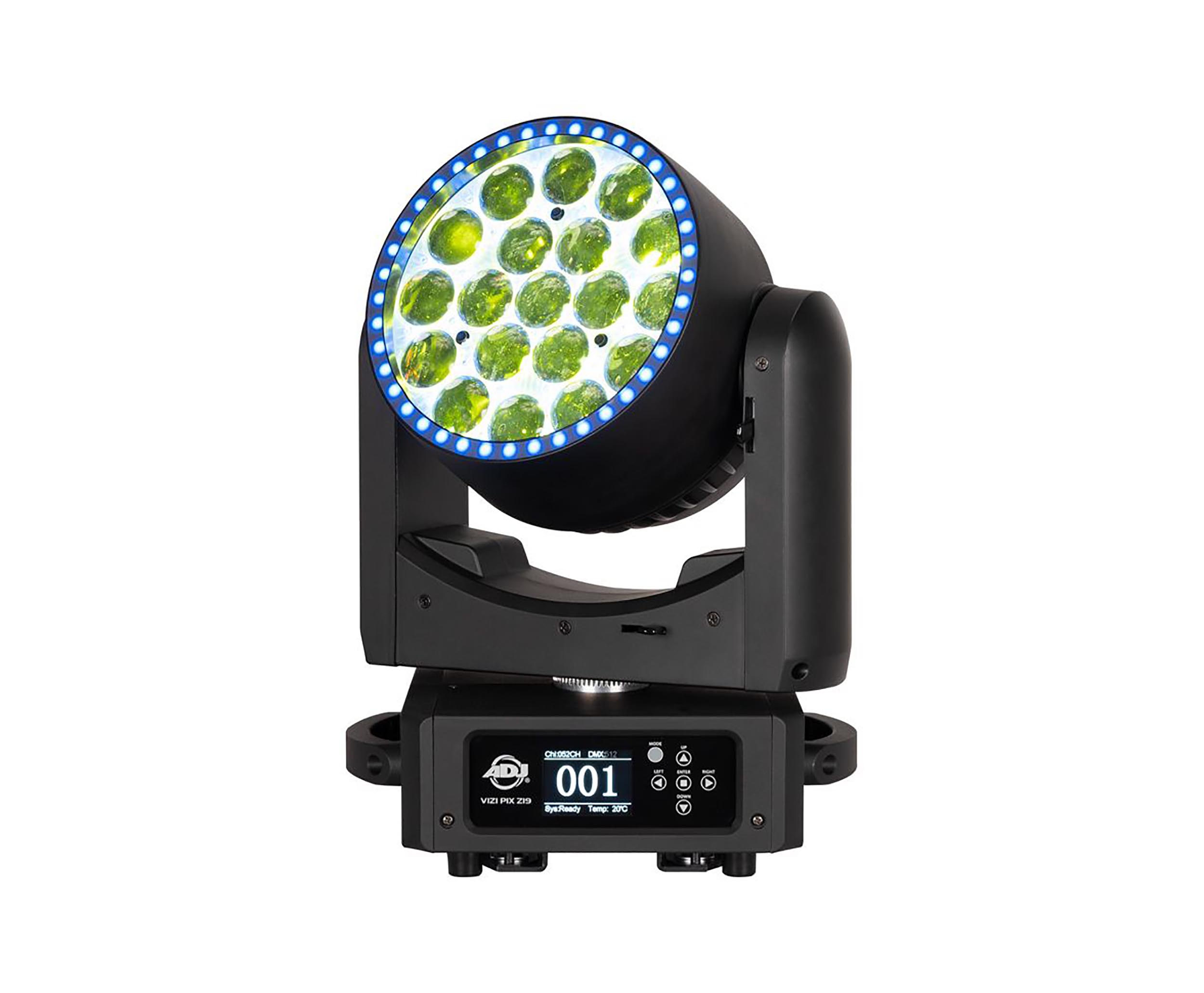

ADJ Vizi Pix Z19 High-Performance 19x 20-Watt LED Moving Head with Aria X2 Controller

The ADJ Vizi Pix Z19 is a high-performance moving head wash fixture engineered to deliver vibrant color effects and captivating visuals for professional stages and live events.

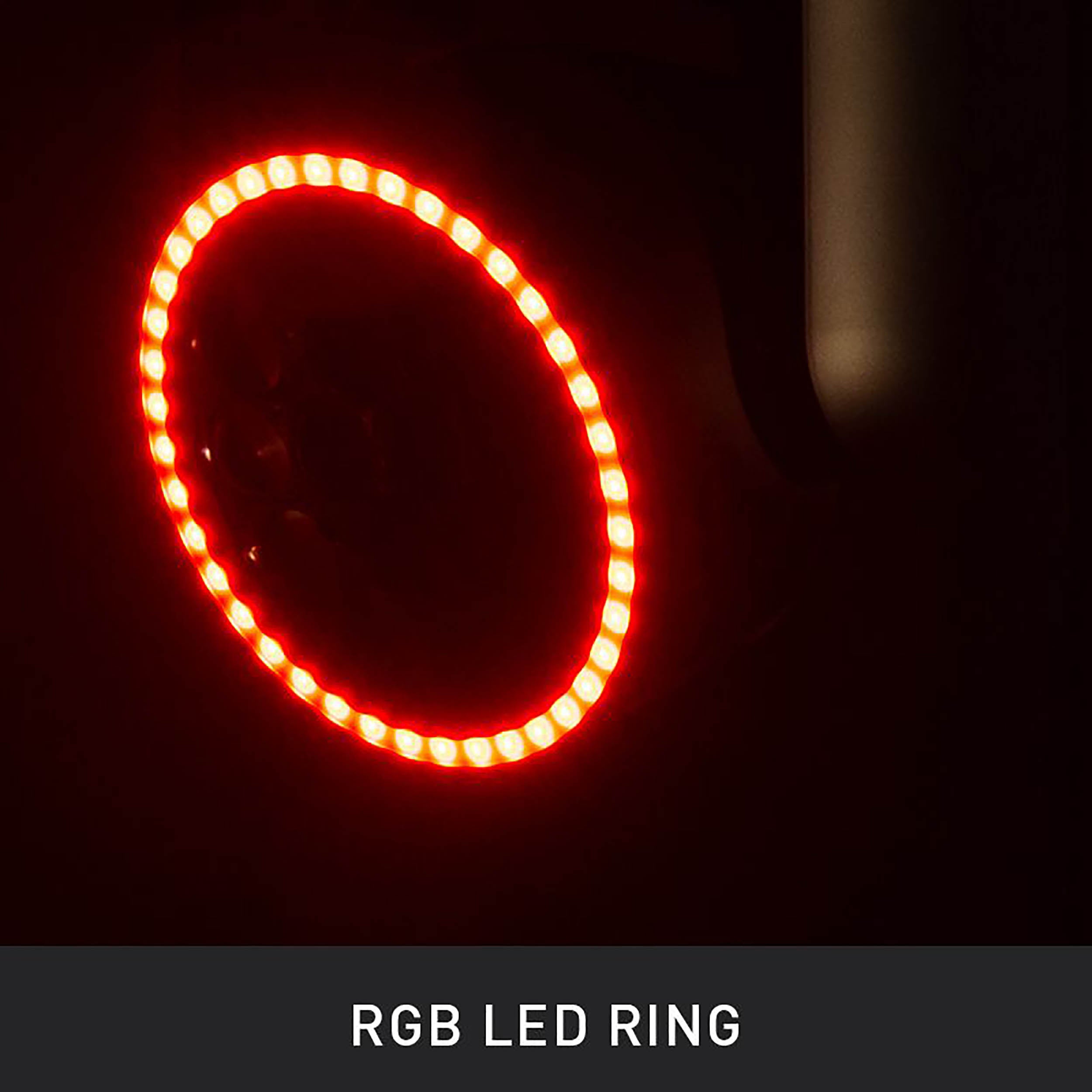

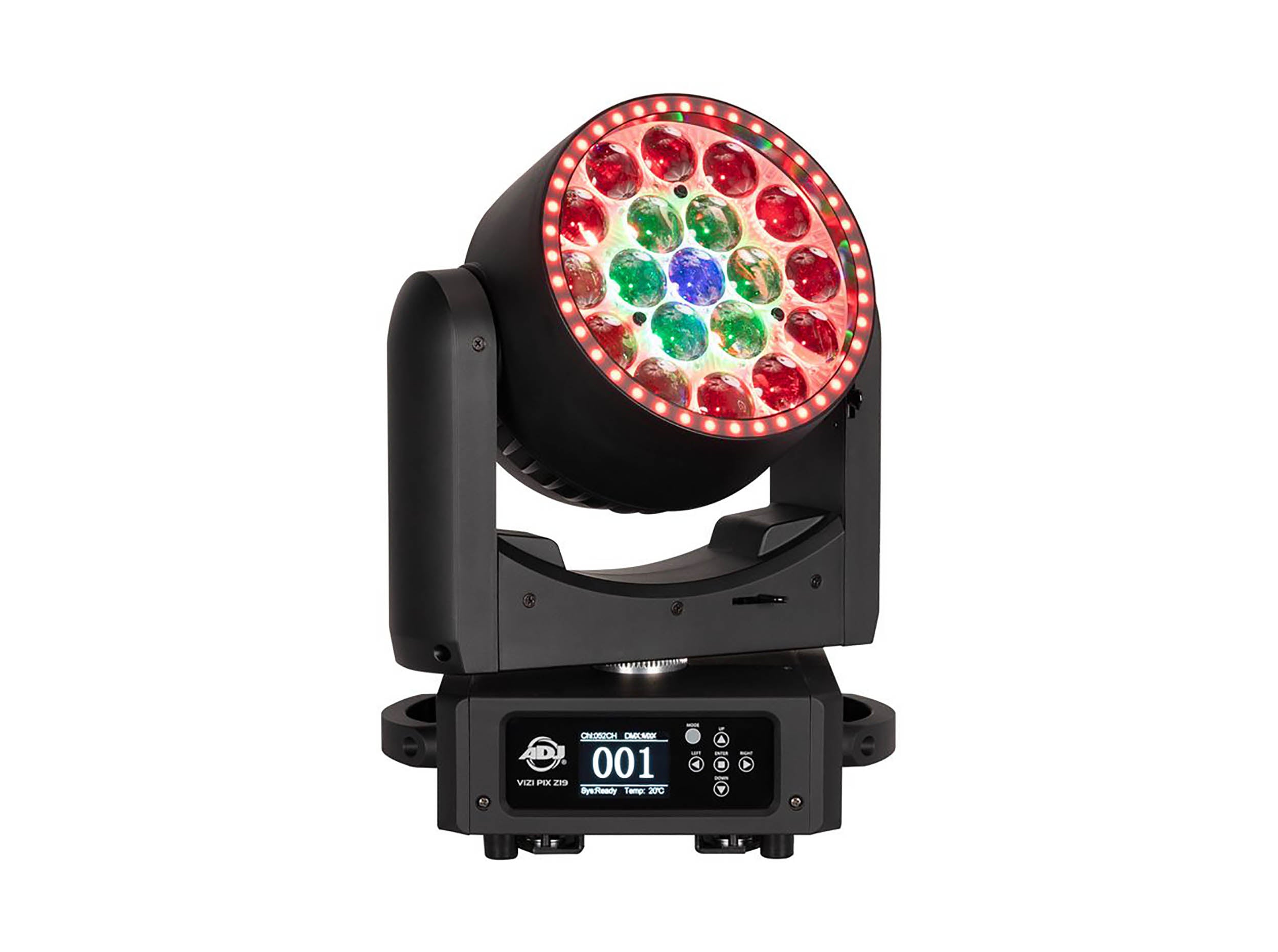

Equipped with nineteen 30-Watt RGBL LEDs, the fixture offers advanced virtual CMY color mixing, a wide motorized zoom range, and smooth electronic dimming, making it ideal for crafting everything from precise beams to expansive washes. Its dynamic design is enhanced by 30 RGB background LEDs and a 40-light RGB LED ring. Its foreground and background LEDs are fully pixel-mappable for complex patterns and dazzling effects. Built-in pixel effect programs and color macros further expand its creative possibilities.

Control options include DMX, Artnet, sACN, RDM, and the Aria X2 wireless system for seamless integration and over-the-air updates. Adjustable dim curves, selectable LED refresh rates, and a white color temperature range from 2,700K to 10,000K ensure flexibility across diverse environments, from live performances to broadcast studios.

With robust pan/tilt locks, durable Seetronic power and data connections, and a lightweight, low-maintenance build, the Vizi Pix Z19 is the ultimate tool for creating striking, professional-grade lighting displays with unmatched precision and versatility.

What’s Included:

180mm Omega Brackets (2x)

1x 2M, IP65-rated locking power cable

Product Specifications:

Optical (Foreground LEDs):

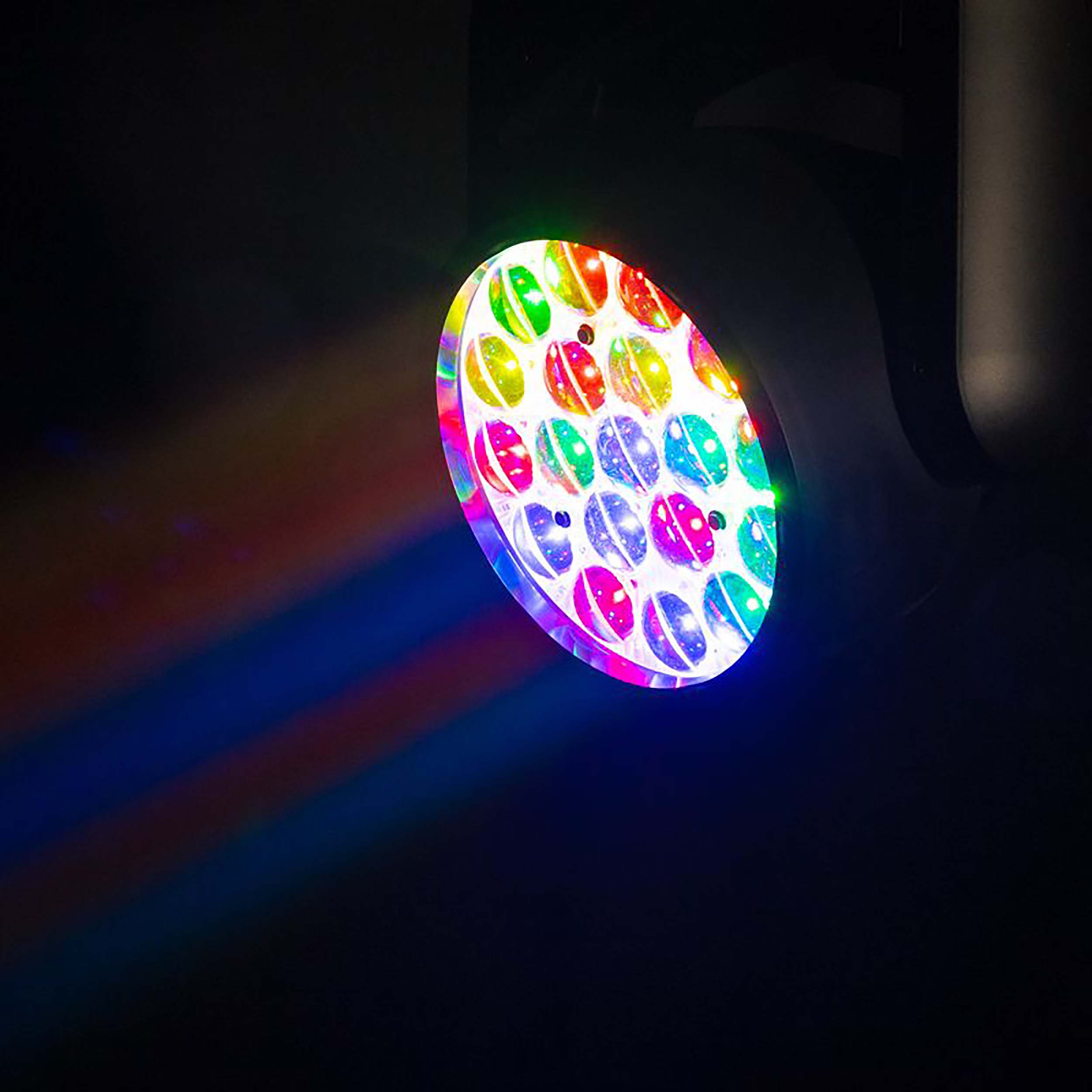

19x 30W RGBL (4-IN-1) LEDs

30,000 Hour Average LED Life

CRI: 86

15,000 Lux (Zoomed In to 7° @ 5 meters)

7° to 42° Beam Angle

9° to 60° Field Angle

Optical (Background LEDs):

30x 0.5W SMD RGB LEDs

50,000 Hour Average LED Life

Optical (Ring LEDs):

40x 0.5W SMD RGB LEDs

50,000 Hour Average LED Life

Colors:

19x RGBL LEDs (Red, Green, Blue and Lime)

70x RGB LEDs (Red, Green and Blue)

Virtual CMY DMX Control Modes

Virtual Foreground and Background Color Wheel Control

Built-In Color Macros

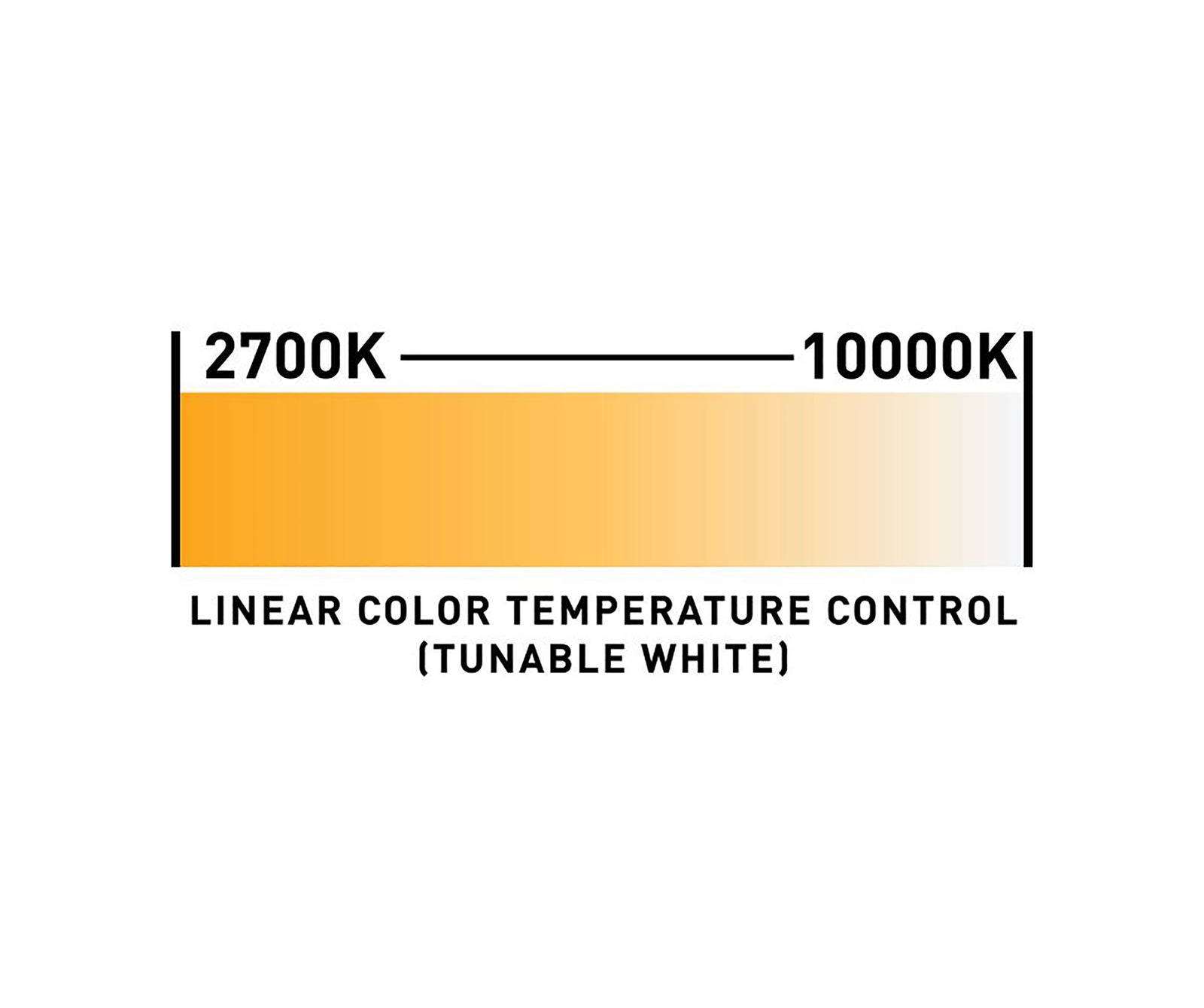

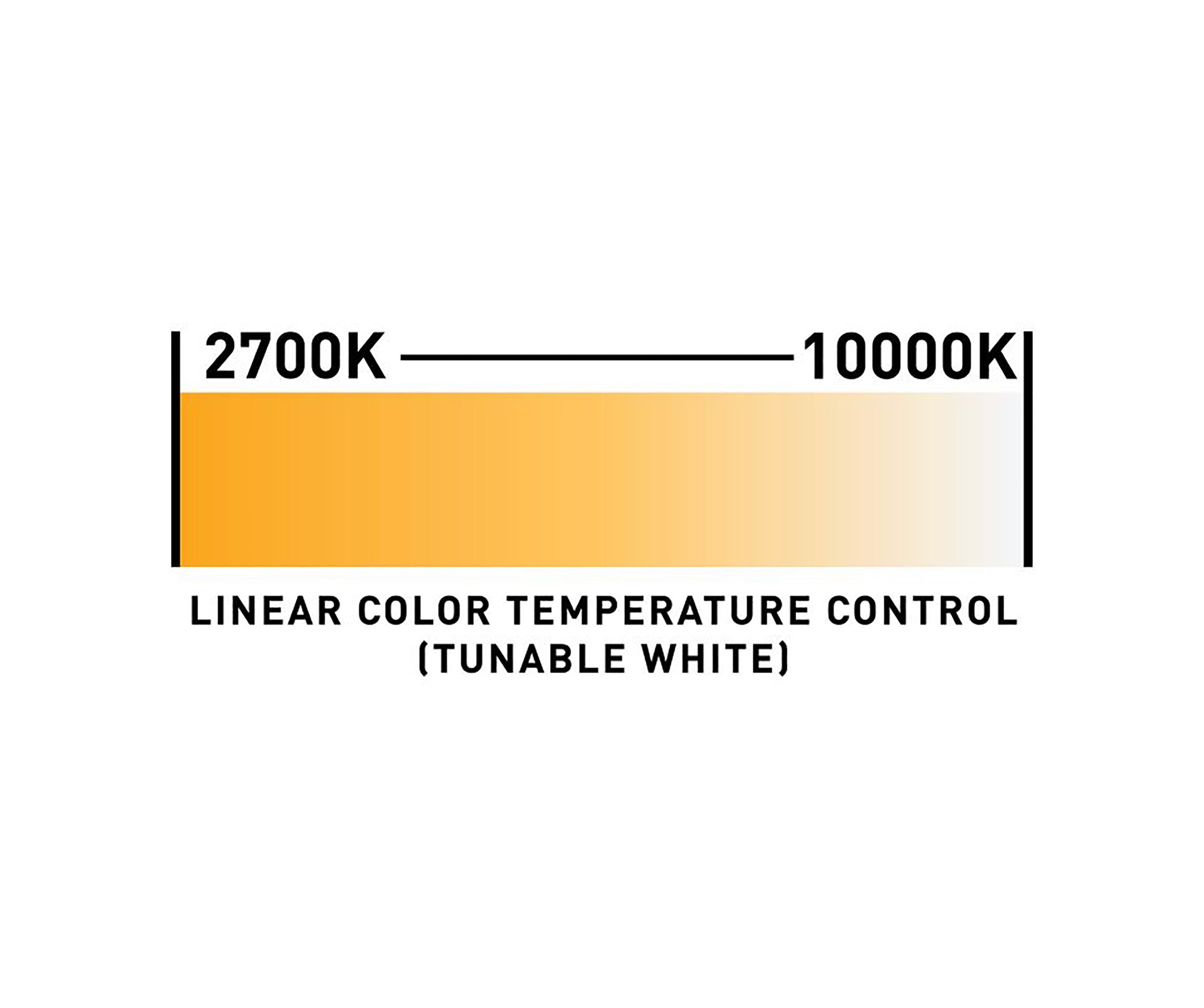

2,700K ~ 10,000K Linear White Color Temperature Control

Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K

Effects:

19x 30W RGBL (4-IN-1) Foreground LEDs, Fully pixel mappable

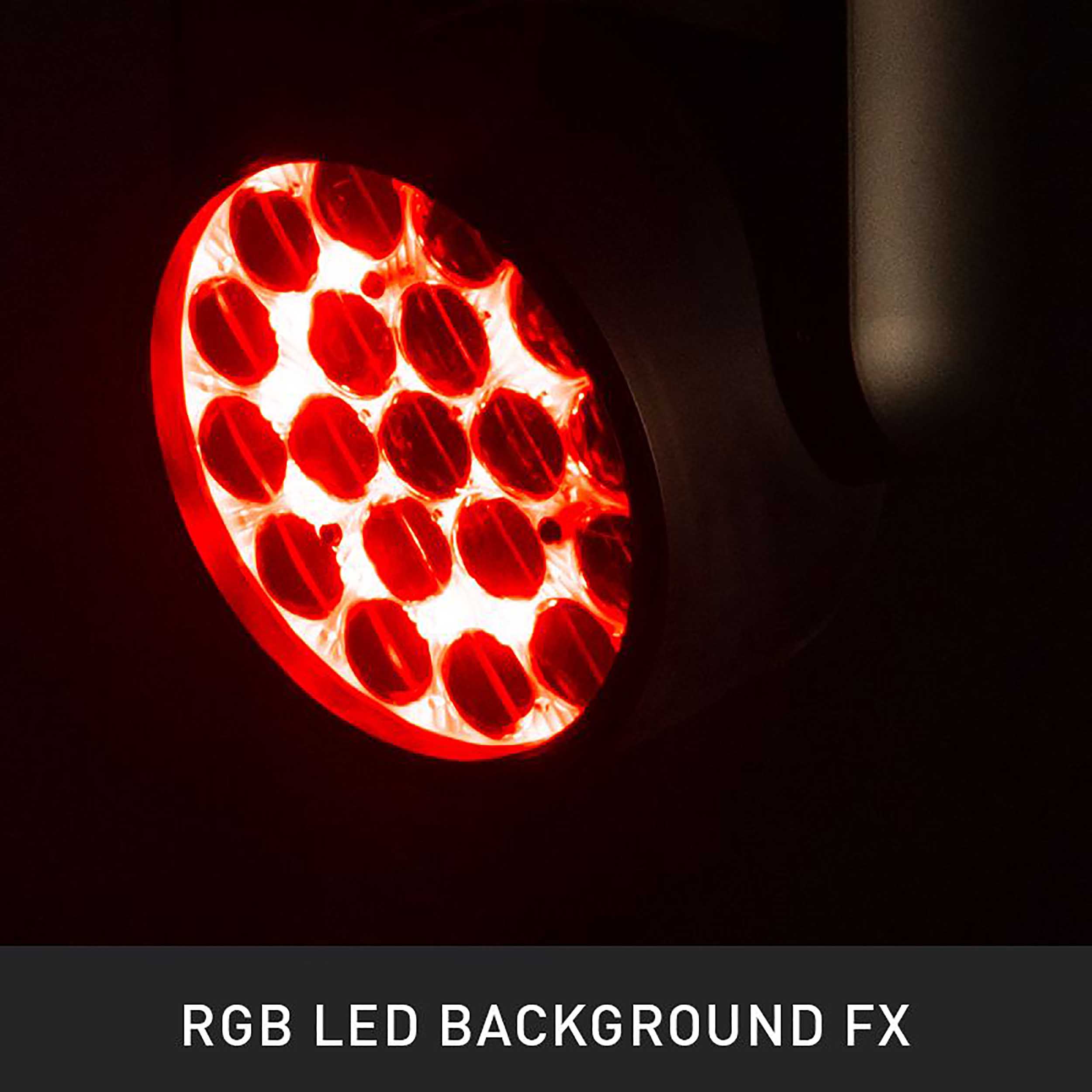

30x 0.5W RGB Background LEDs, Fully pixel mappable

40x 0.5W RGB Ring LEDs, three channel control

Variable Strobe & Pulse effects (0.5Hz to 33Hz)

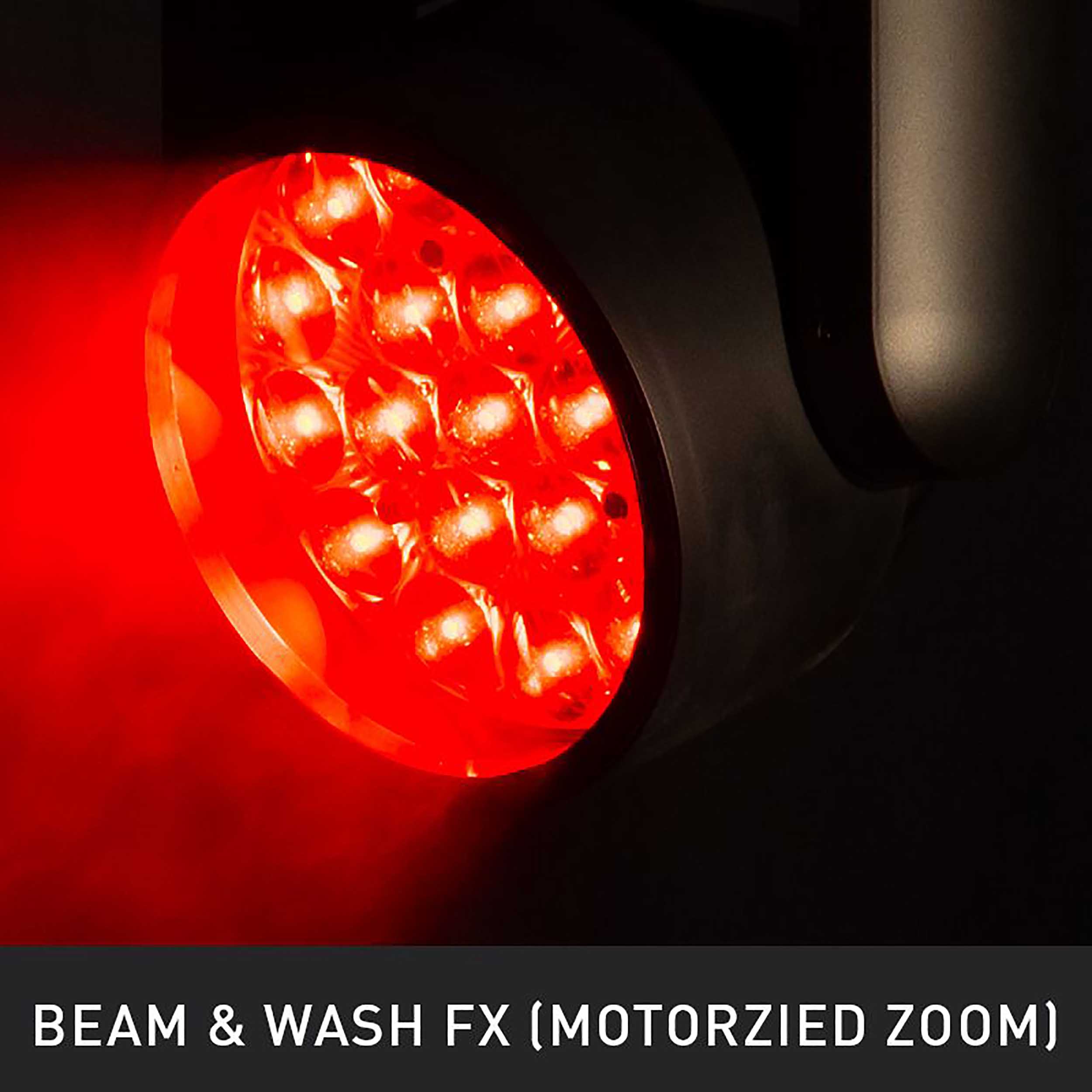

Motorized Zoom (7° to 42°)

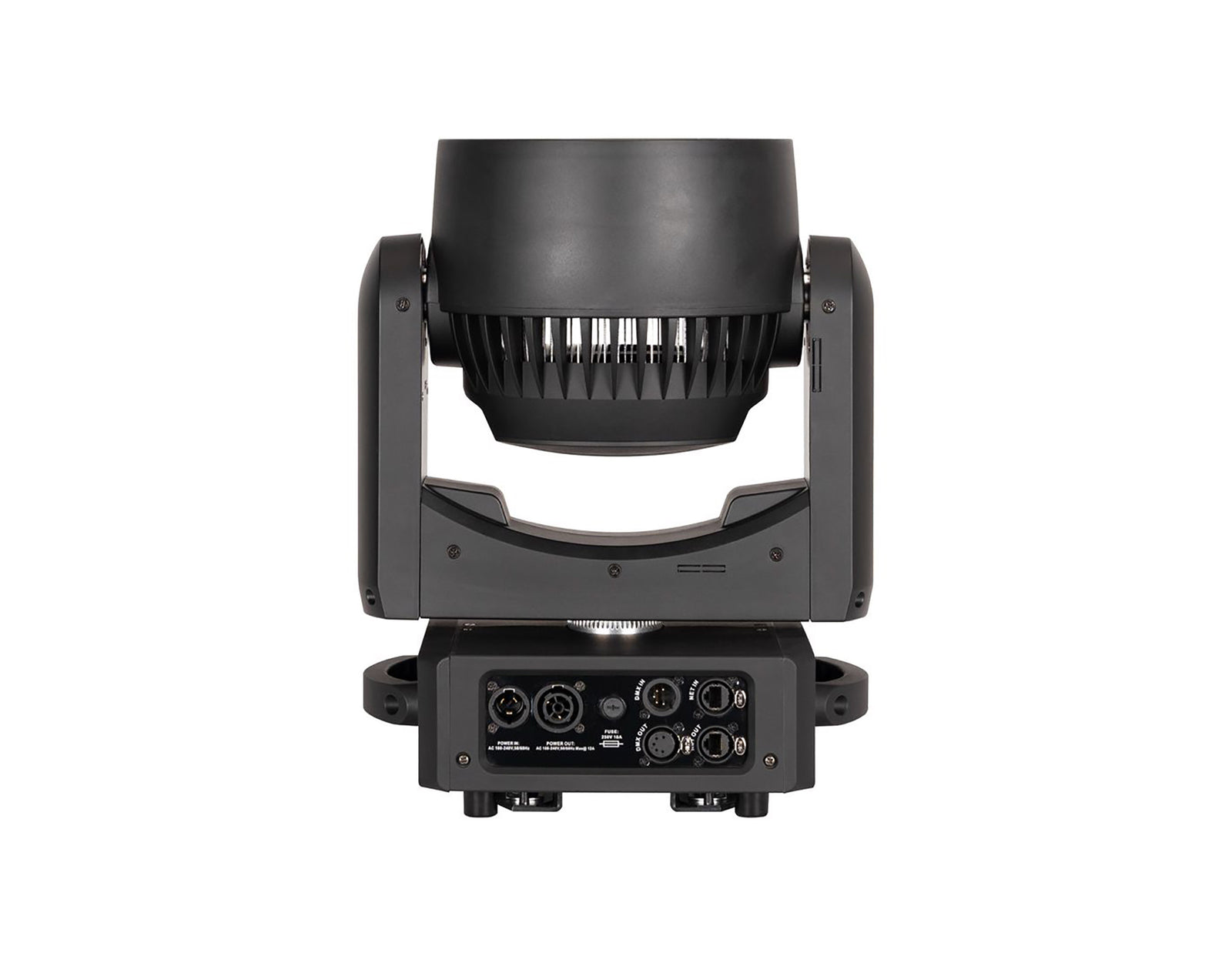

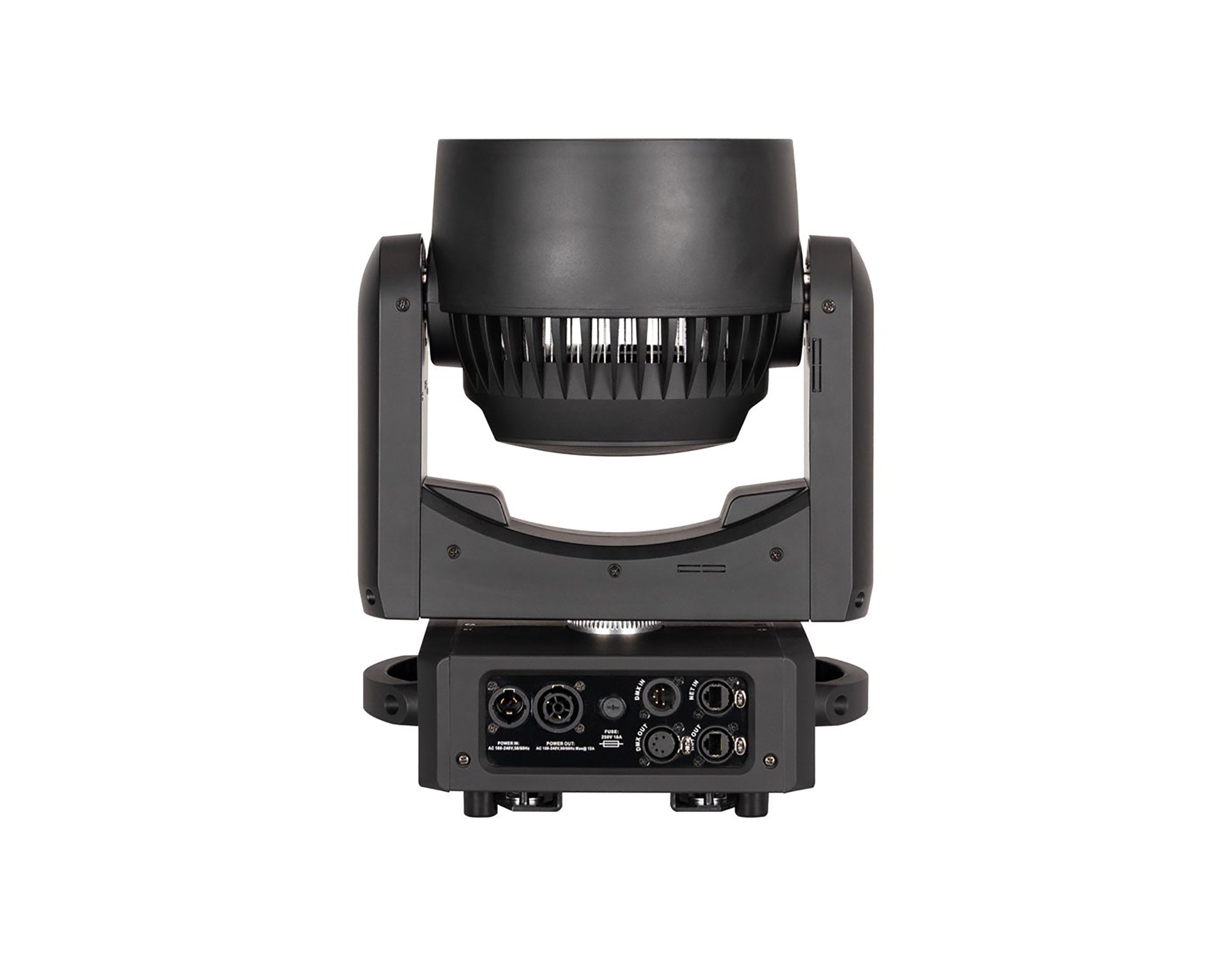

Connections:

Seetronic, IP65 locking power In & Thru Connections

Seetronic, IP20 5-pin In & Out DMX Connections

2x IP20, RJ45 network ports

Control:

Aria X2 Wireless Management System

DMX-512

RDM (Remote Device Management)

Artnet

sACN

7 DMX Control Modes: 28 / 37 / M1 52 / M2 52 / 119 / 127 & 197 channels

Built-In Effect Pixel Programs with Speed and Fade Control

With Wired Digital Communication Network

Pan/Tilt:

Pan: 630 or 540 degrees

Tilt: 270 degrees

16-Bit Fine Pan & Tilt

Pan & Tilt Locks

Electrical:

Multi-voltage operation: 100-230V, 50/60Hz

Max power consumption: 730W (6.64Amps) @ 120V. 690W (3.04Amps) @ 230V.

Approvals / Rating:

cETLus Pending

CE Certified

IP20

Weight: 11.9lbs (5.4kg)

Dimensions (LxWxH): 11.97” L x 9.06” W x 16.06”H (304x230x407.9mm)
