Description

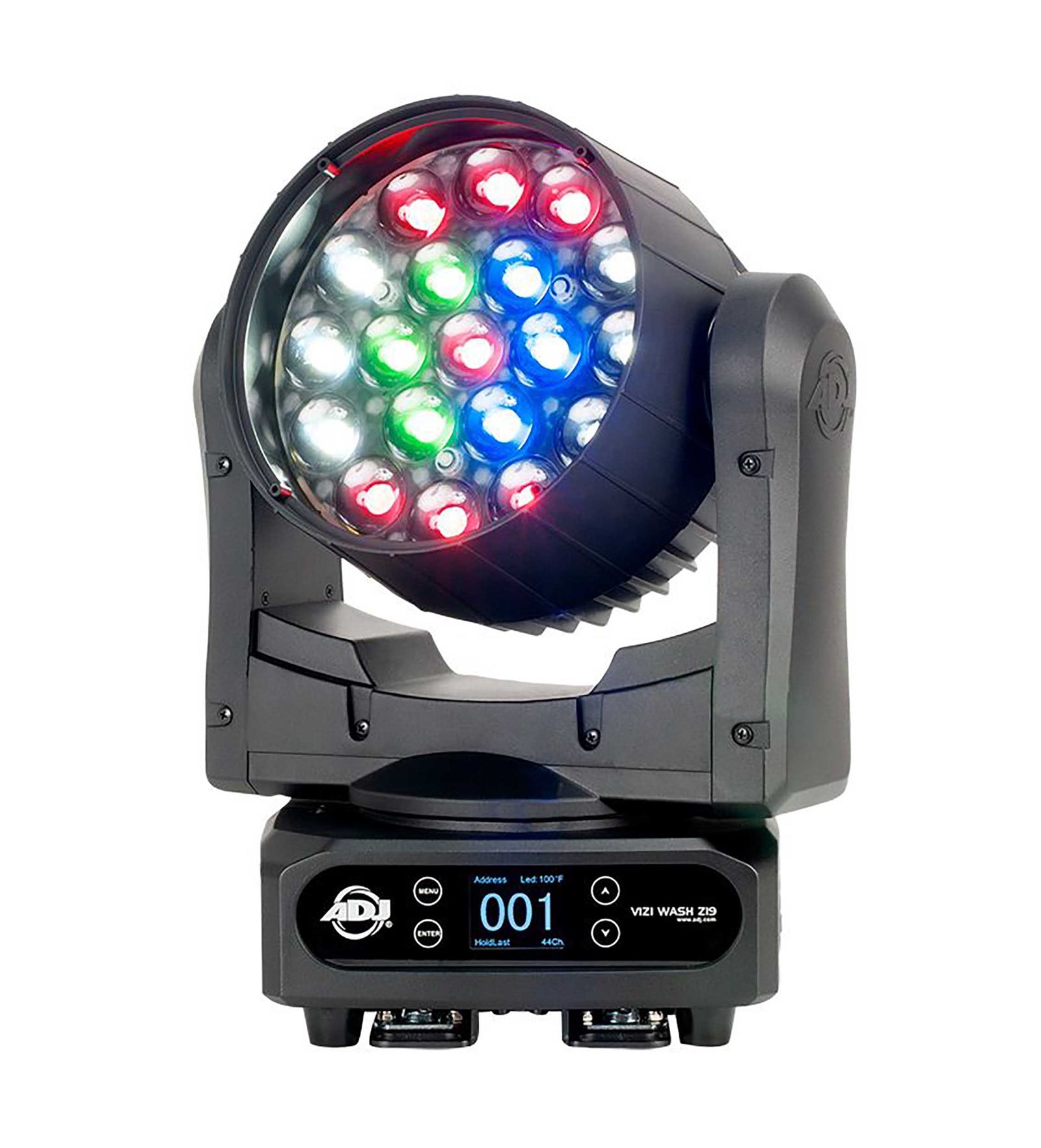

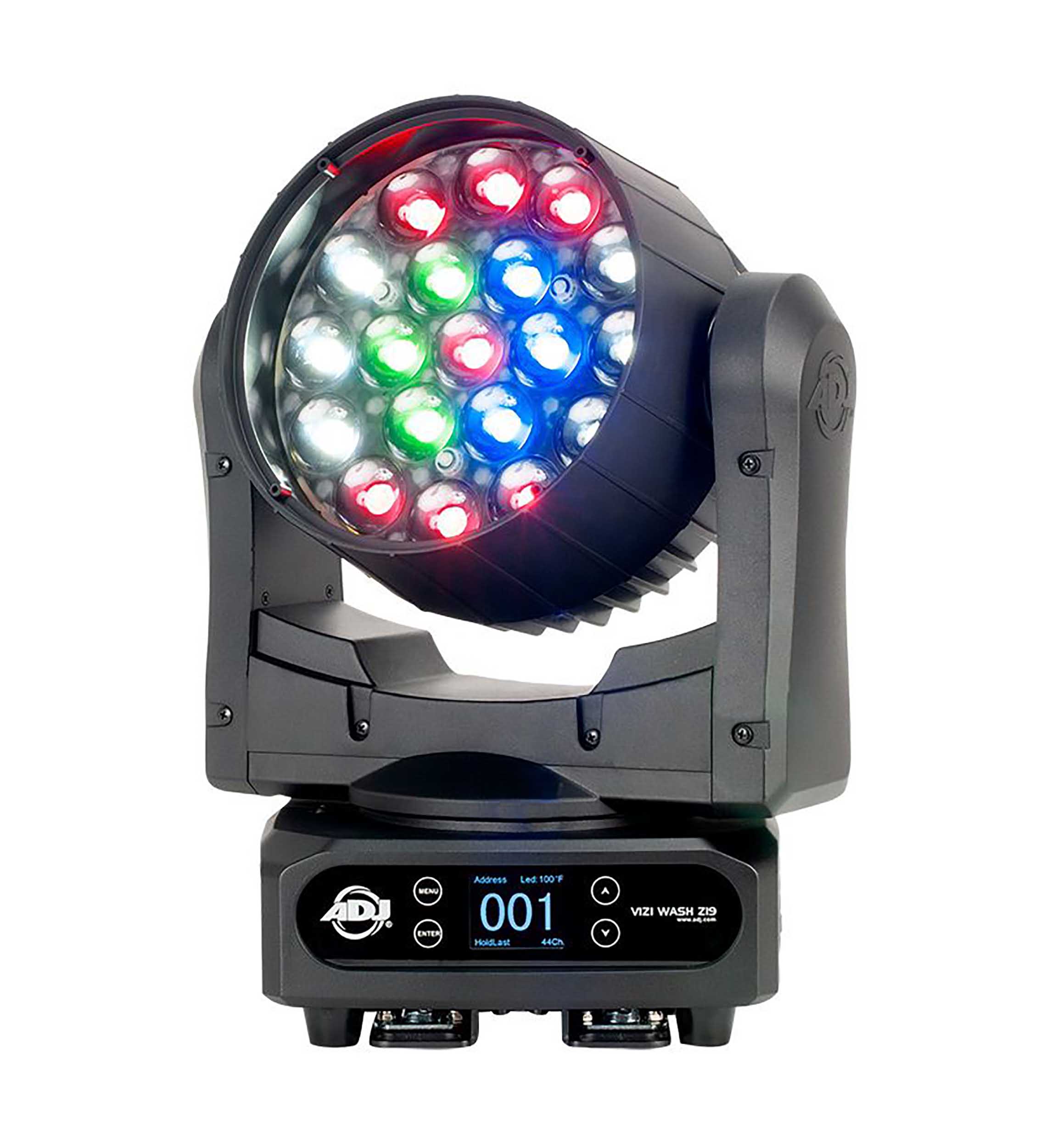

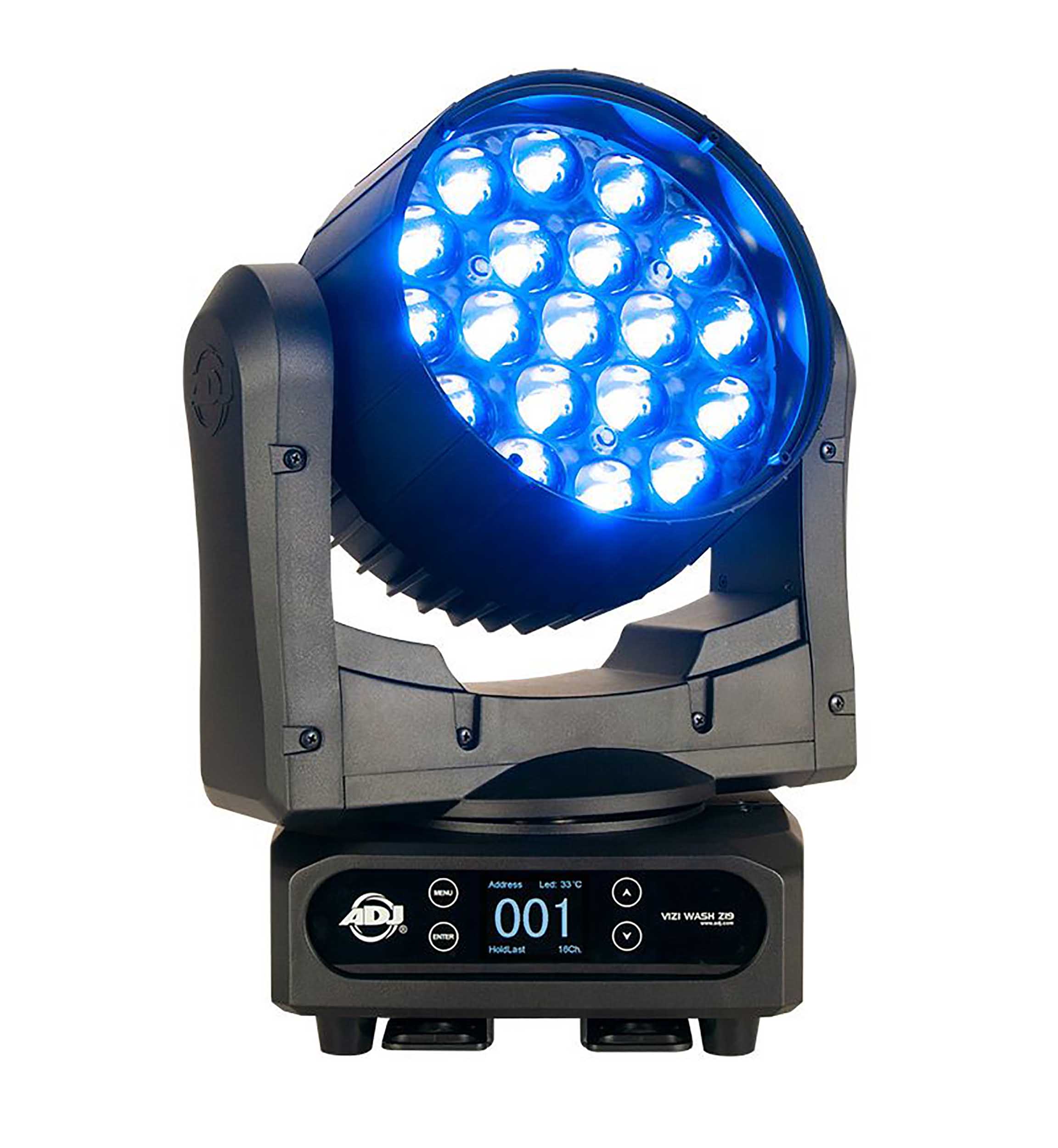

The ADJ Vizi Wash Z19, Moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and nineteen 20W Quad (RGBW / 4-IN-1) LEDs. It features 3 or 7 zones of LED ring control, smooth dimming control from 0-100% (plus 16-but fine dimming), twist lock power In/Out connections to daisy chain power, both 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.
There are 64 built-in color macros, 16-bit fine zoom control, and 8 DMX control modes. This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions.
Product Specifications:
Ratings / Approval: cETLus Approved (Control #4000358)
Optical:

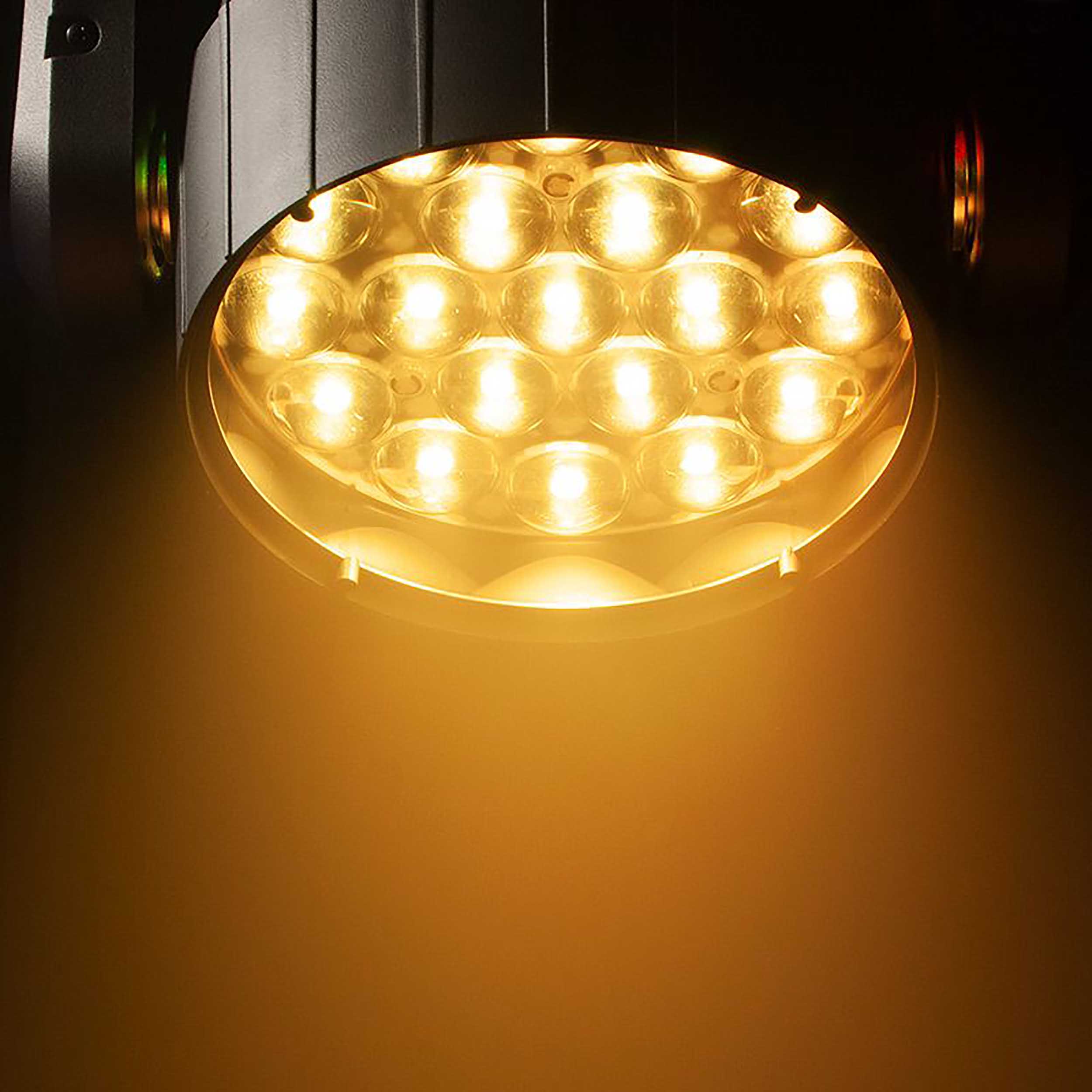

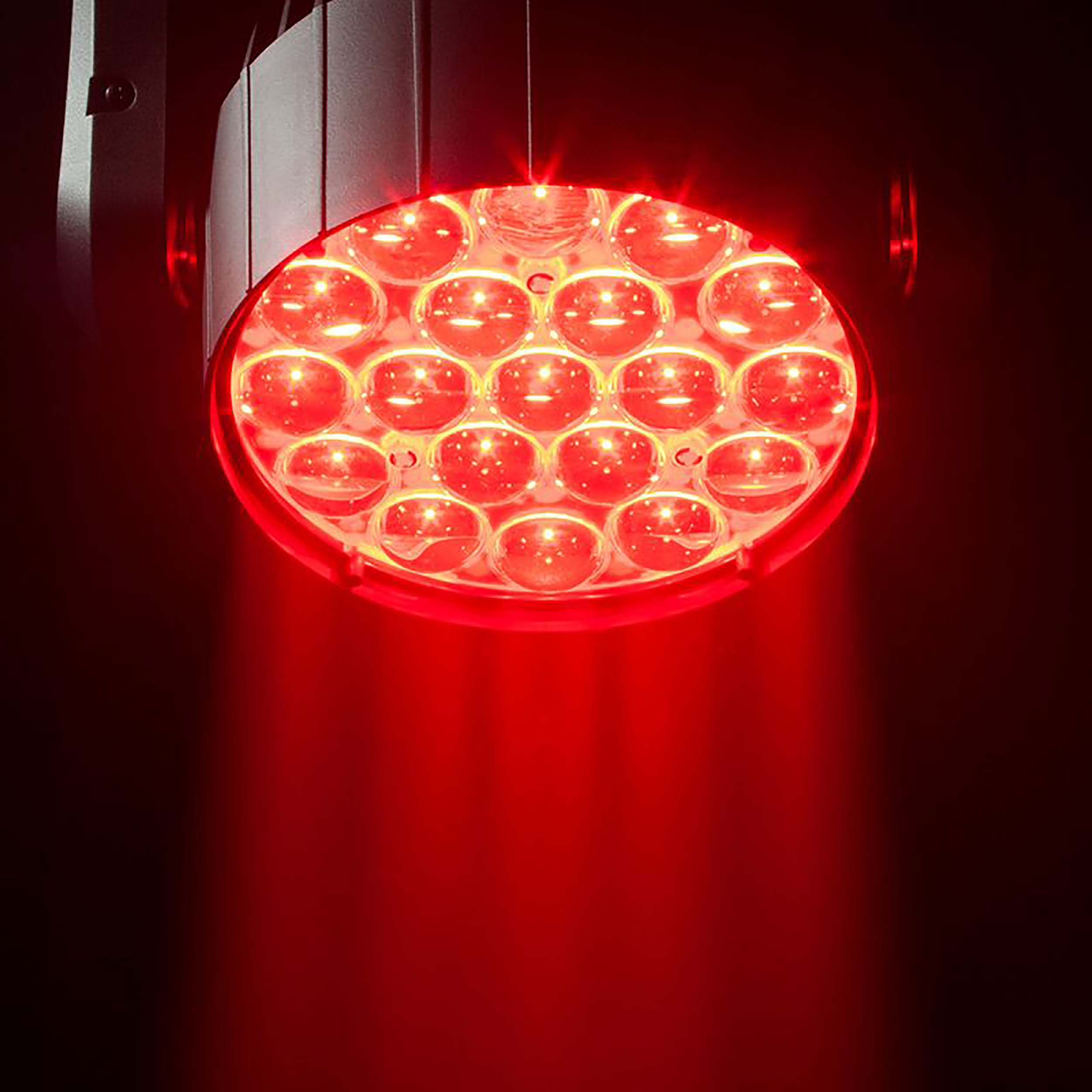

19x Osram 20W RGBW (4-IN-1) LEDs
20,000 Hour Average LED Life
LUX @ 5M: 9960 lux @ 10-degrees; 694 lux @ 60-degrees
Effects:
3-zone or 7-zone Ring Control with Color Macros
Variable Strobe & Pulse effects

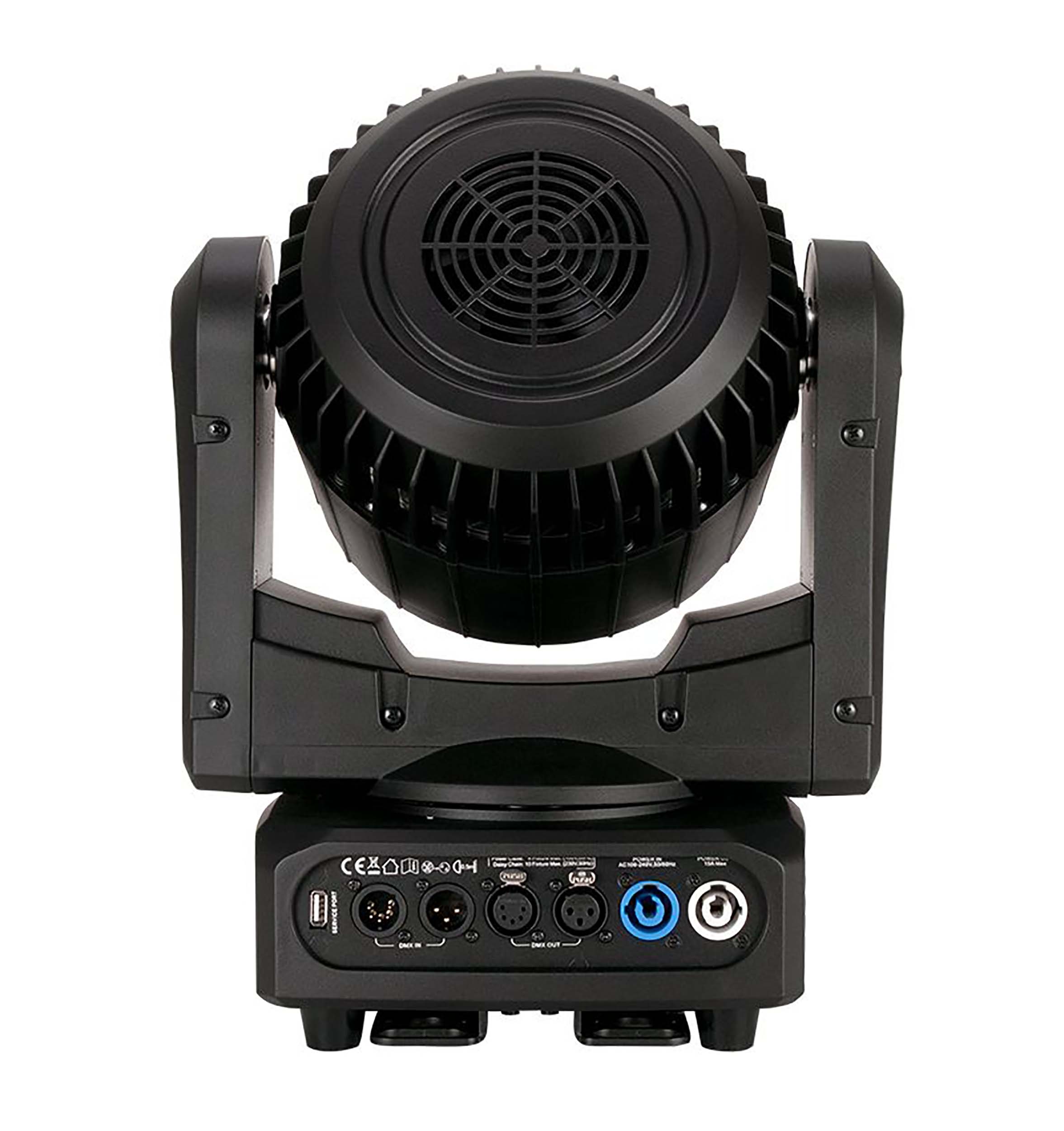

Connections:
Seetronic locking power In/Out to daisy chain power
Daisy chain up to 5 fixtures @ 120V, 11 fixtures @ 230V
3-pin & 5-pin In/Out DMX Connections
With Wired Digital Communications Network
Control:
Motorized Zoom: 10 ~ 60-degrees
Control: DMX-512 & RDM (Remote Device Management)
8 DMX Channel Modes: 13 / 14 / 17 / 18 / 29 / 30 / 45 / 46
Pan: 540-degree (plus fine 16-bit pan)
Tilt: 270-degrees (plus fine 16-bit tilt)
64 built-in Color Macros
Color display with touch buttons

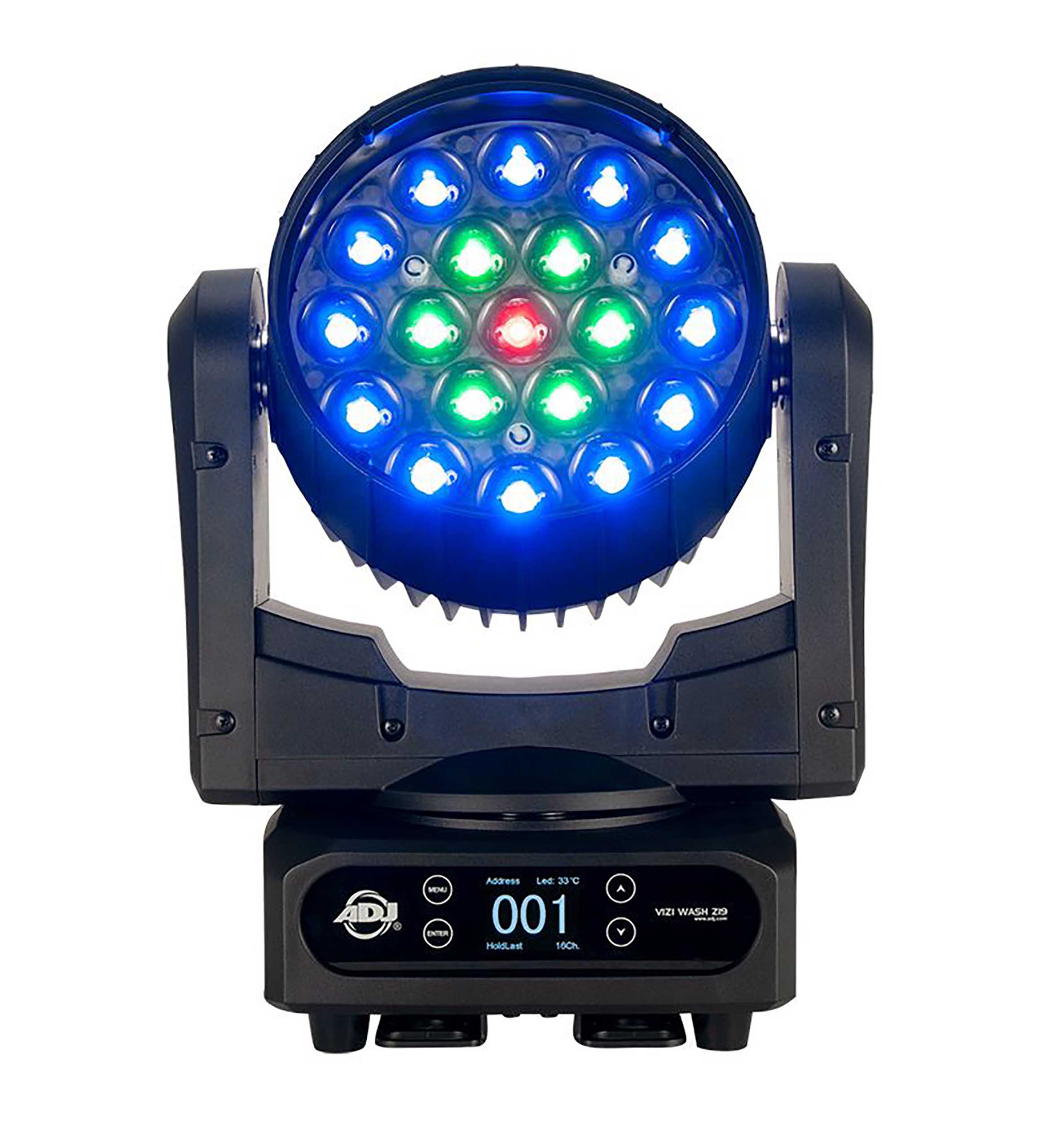

3 or 7 zones of LED ring control
Smooth 0-100% Dimming
Fine 16-bit Dimming
6 Dimmer Curve modes
Fine 16-bit Zoom control
Built-in USB software upgrade port
Various Strobe speeds (1-40Hz)
Electrical:
Multi-voltage operation: 110-240V, 50-60Hz
Power Consumption: 276W Max

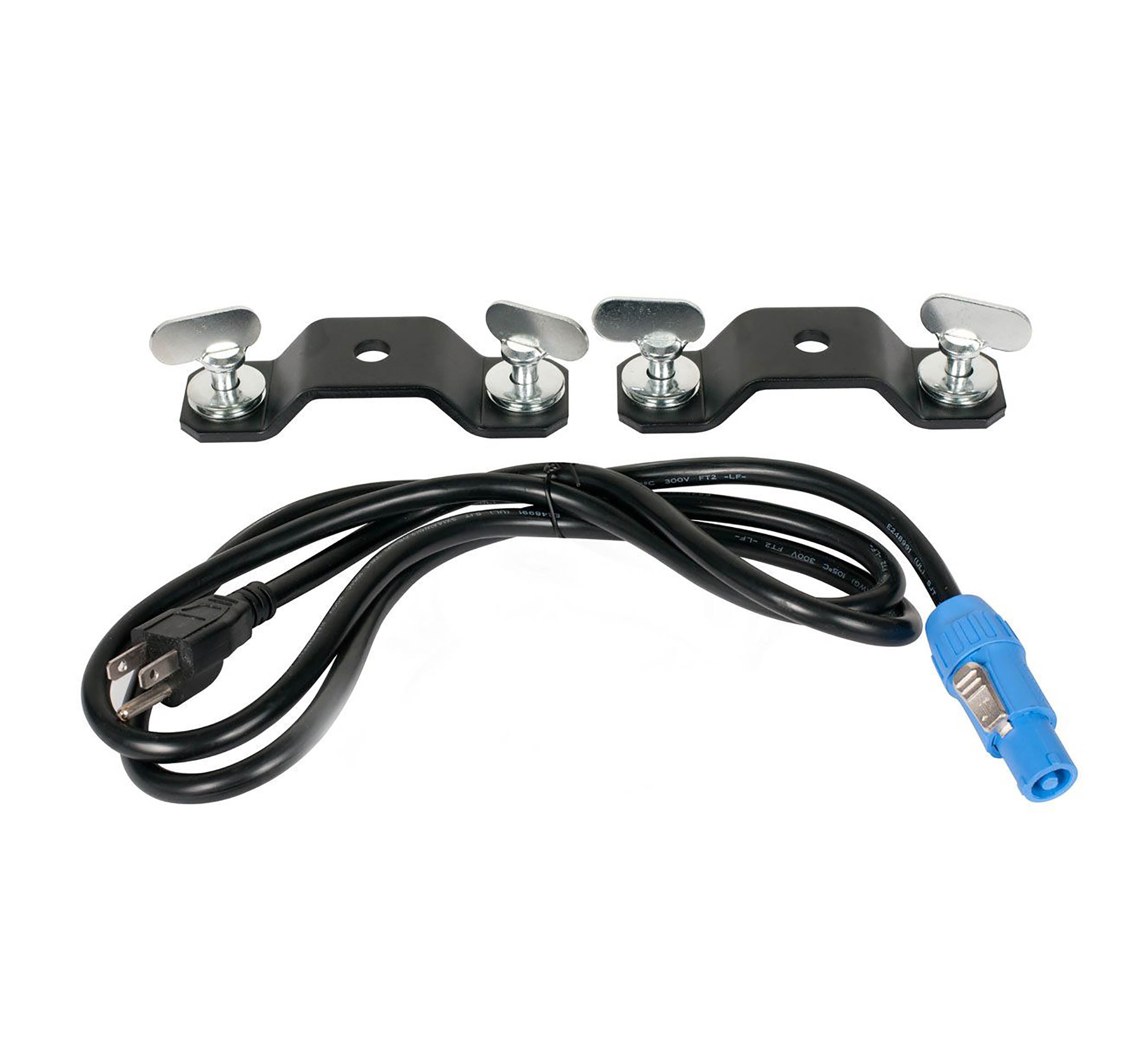

What’s In The Box:

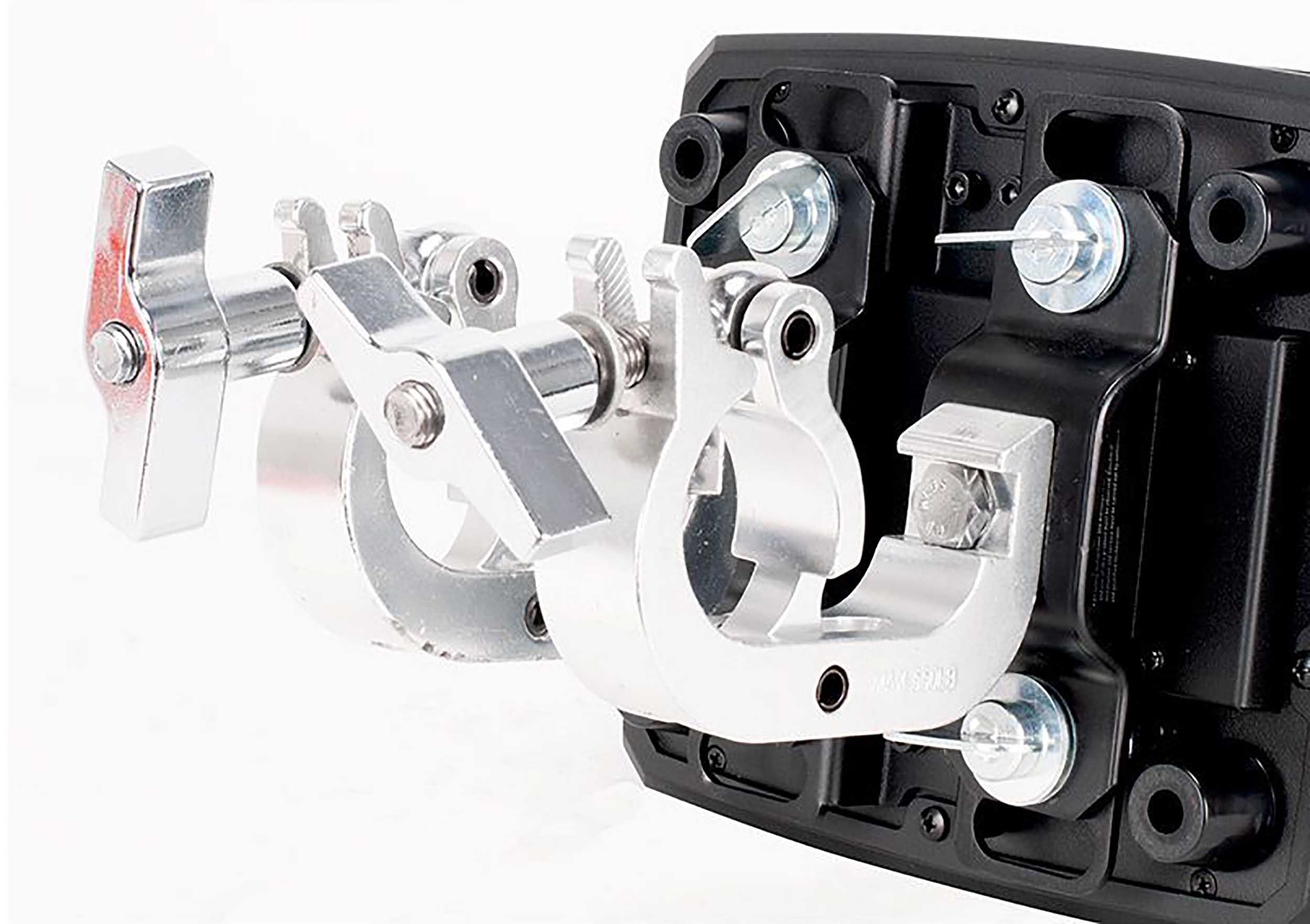

Two Omega Brackets
Twist lock power cable
Optional Road Cases:
DRC MH: 2 Vizi Wash Z19 fit in the DRC MH Road Case
QRC MH: 4 Vizi Wash Z19 fit in the QRC MH Road Case
Dimensions / Weight:
Dimensions (LxWxH): 12.1”x7.7”x15.5” / 306.6×195×393.3mm
Weight: 20 lbs. / 9.4kg.
