Description

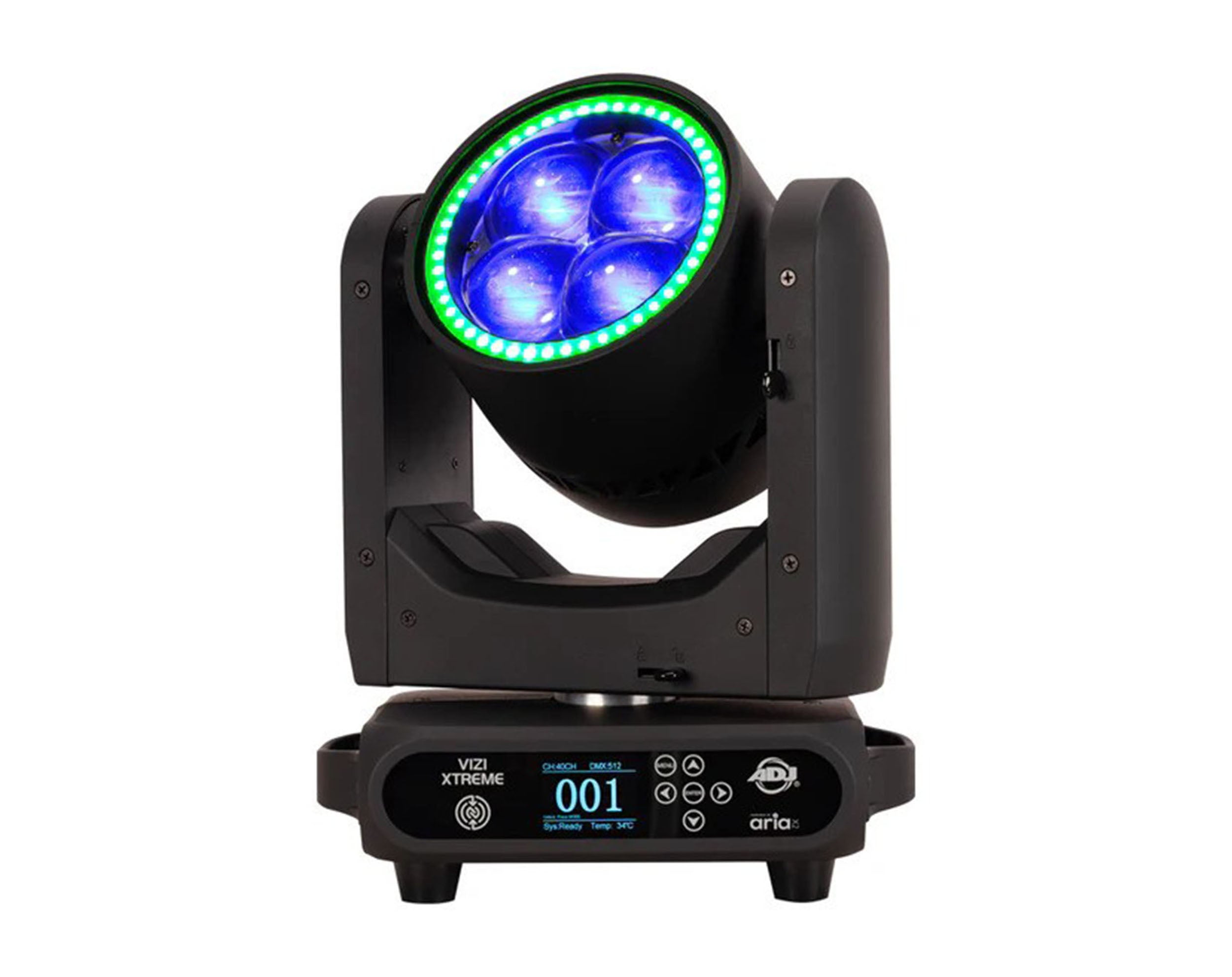

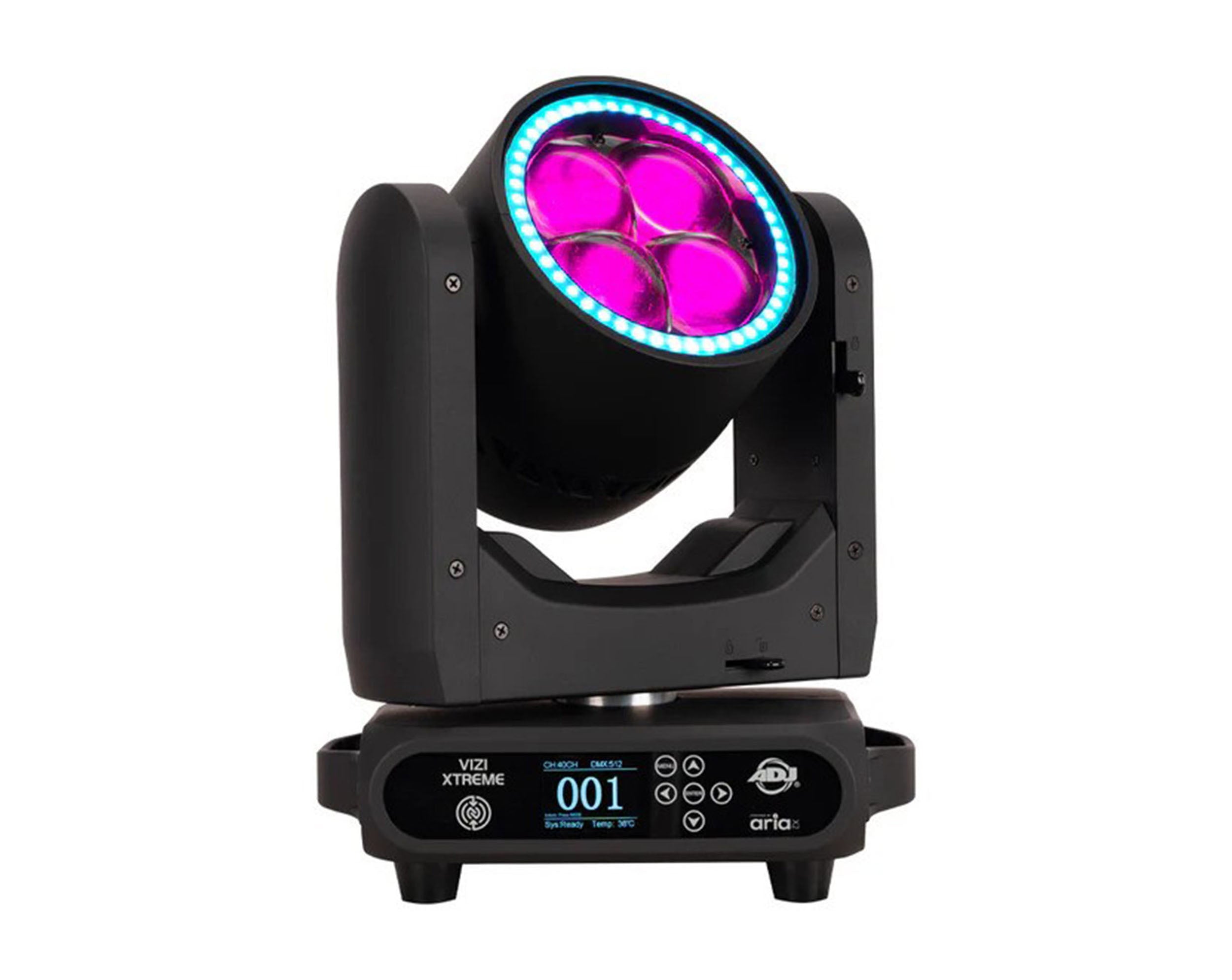

The ADJ VIZI XTREME is a beam wash moving head engineered to deliver exceptional speed, intense output and mesmerising 360° continuous rotation from an extremely compact fixture. Despite its small footprint, this cutting-edge luminaire delivers formidable output and a rich palette of dynamic visual effects, making it ideal for a wide variety of entertainment lighting applications, including concert tours, club installations, broadcast environments, and event production. At the heart of the Vizi Xtreme are four primary 60-watt RGBL LEDs, each individually controllable to create striking, pixel-based animations and bold color statements. An advanced color mixing system – incorporating lime for enhanced clarity and a superior palette – ensures beautifully saturated hues and crisp pastels. In addition, white light can be generated with a wide 2700K to 10,000K color temperature range. Around the outside of the fixture’s face is a ring of forty-eight 2.5-watt RGBL LEDs, arranged into six independently controlled zones. This halo effect enables designers to add layered motion, subtle ambience, or high-impact chase patterns that complement the primary output.
The Vizi Xtreme’s motorized zoom system, spanning an impressive 3° to 45°, transitions effortlessly from tight, piercing aerial beams to wide, immersive washes. Combined with ultra-fast 3-phase motors, optional 360° continuous pan and tilt, and a 1–10Hz strobe function, the fixture excels at creating movement-driven looks and punchy, energetic effects. Despite its kinetic performance, it remains lightweight at just 15.4 lbs (7kg), making it perfect for both smaller event productions and high-density arrays on touring rigs.
Designed for professional integration, the fixture offers a robust suite of control options, including DMX with RDM, sACN and ArtNet. As well as 5-pin DMX and RJ45 sockets for wired connection, the fixture features integrated Aria X2 wireless technology. This facilitates both cable free DMX control and wireless management with OTA firmware updates and NFC setup for streamlined configuration. An intuitive menu-driven interface for DMX addressing and configuration is also provided on the base of the unit via a full-color, 180° reversible LCD screen with 6-button touch control panel for streamlined operation.
With its exceptional speed, high-output LEDs, versatile pixel control, and advanced connectivity, the Vizi Xtreme sets a new benchmark for compact beam wash fixtures. It empowers lighting professionals to craft vivid, energetic, and intricately layered designs with total precision from a lightweight fixture built for professional environments with CE, FCC, and cETLus certifications.
Product Specifications:
Type: 240W RGBL Beam Wash Moving Head
Source:
Primary: 4 x 60W RGBL LED's
Color Temperature: 2700K – 10,000K
20,000 Hour Average LED Life
Ring: 48 x 0.5W RGBW LED's
20,000 Hour Average LED Life
May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data (Primary LED's):
2,700 Lumens
CRI: 60
Color:
Primary: 4 x Red, Green, Blue and Lime
Ring: 48 x RGBW
Effects:
Individual pixel control for primary RGBL LED's
Six-zone control for ring RGBW LED's (8 LEDs per zone)
Motorized zoom range: 3°–45°
Electronic strobe rate: 1Hz–10Hz
Control / Connections:
(5) DMX Channel Modes (Basic 28 / Standard 40 / Extended 73 / Standard CMY 54 / Extended CMY 63)
DMX, RDM, sACN and ArtNet
Aria X2 Wireless Management System
NFC System
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

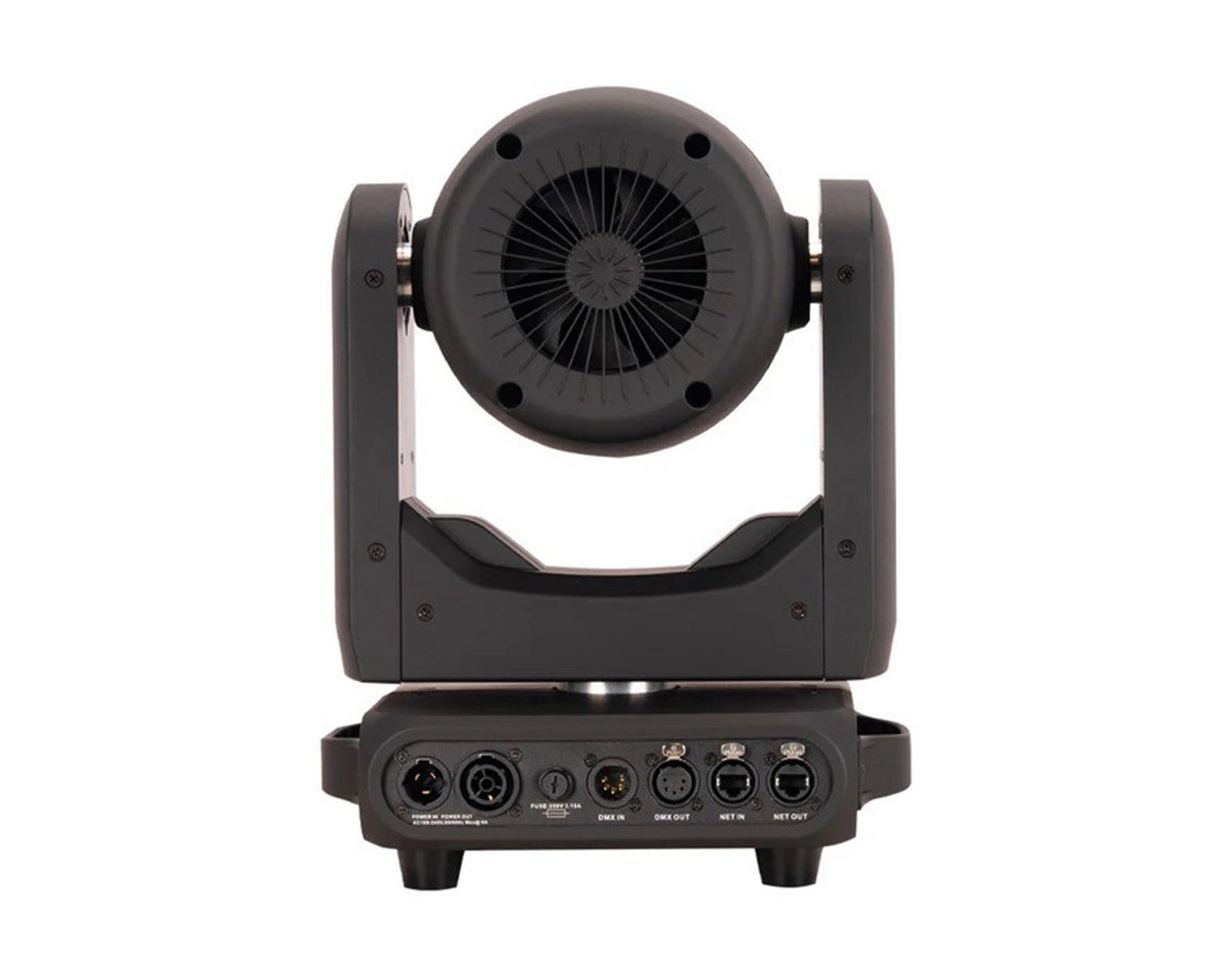

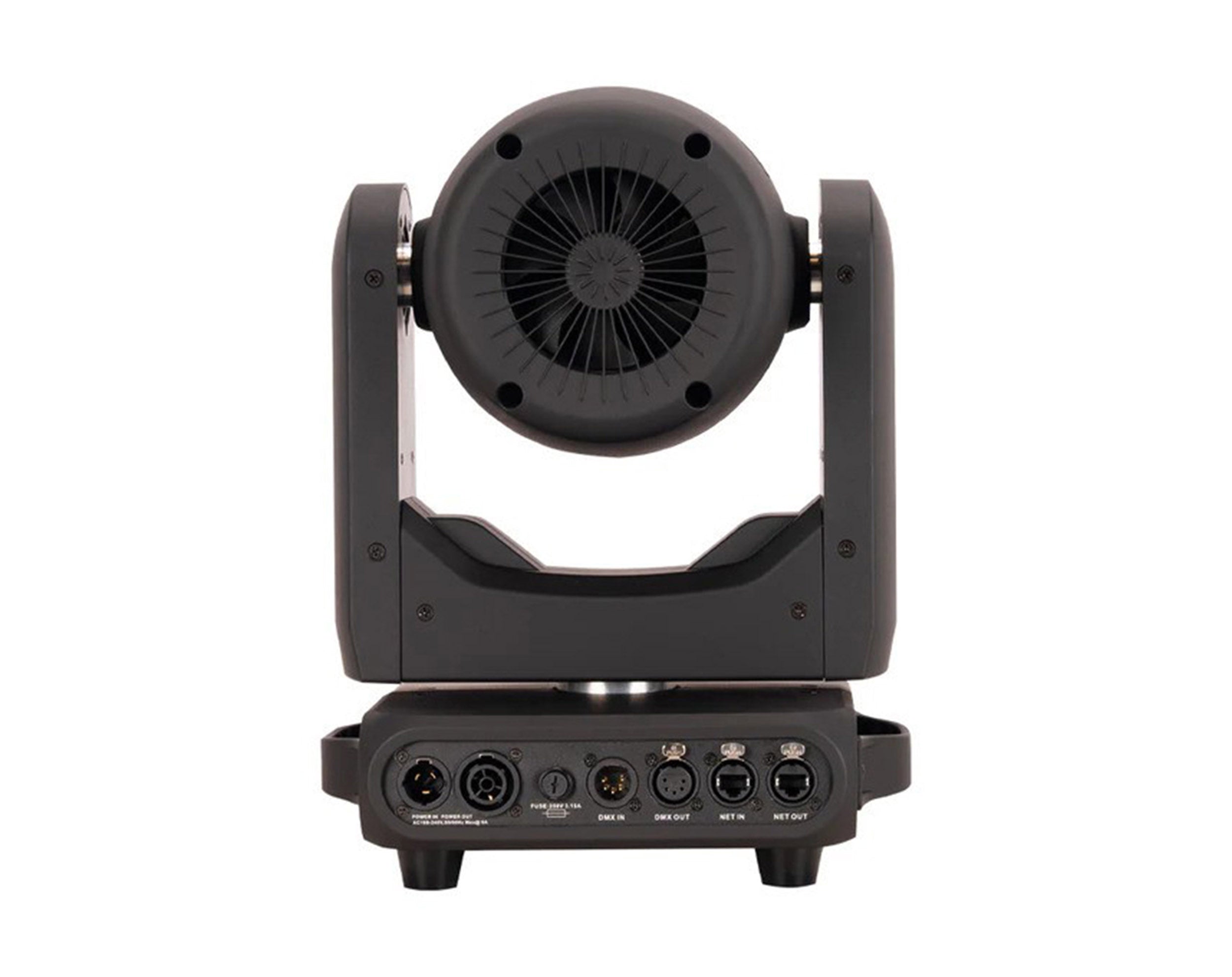

IP20 5-pin XLR DMX In/Out
IP20 RJ45 In/Out
IP65 Locking Power In/Out
Pan / Tilt:
Pan: 540°/360° (360° Continuous Pan Rotation Option)
Tilt: 270°/360° (360° Continuous Tilt Rotation Option)
Pan/Tilt Locks
3 Phase Motors
Electrical / Thermal: AC 100–240V – 50/60Hz
Max Power Consumption: 675W
Power Link: 10 units @230V
Max ambient temperature: -25°C to 45°C
Technical Data:
BTU: 0.64
BTU/H: 2301.75
Included Accessories:
1 x Outdoor Locking Power Cable (2m)
2 x Omega Brackets (107mm)
1 x Safety Cable, 3mm (0.6m)
Dimensions / Weight:
Length: 276mm
Width: 200mm
Vertical Height: 364.2mm
Weight: 7kg
Product Weight: 29.8 lbs. (13.5kg)
Shipping Weight: 35.7 lbs.
Shipping Dimensions (LxWxH): 20.2 x 17 x 14"
