ADJ VS1 Flex45 Vision Series 1.95mm Pixel Pitch Flexible LED Video Panel

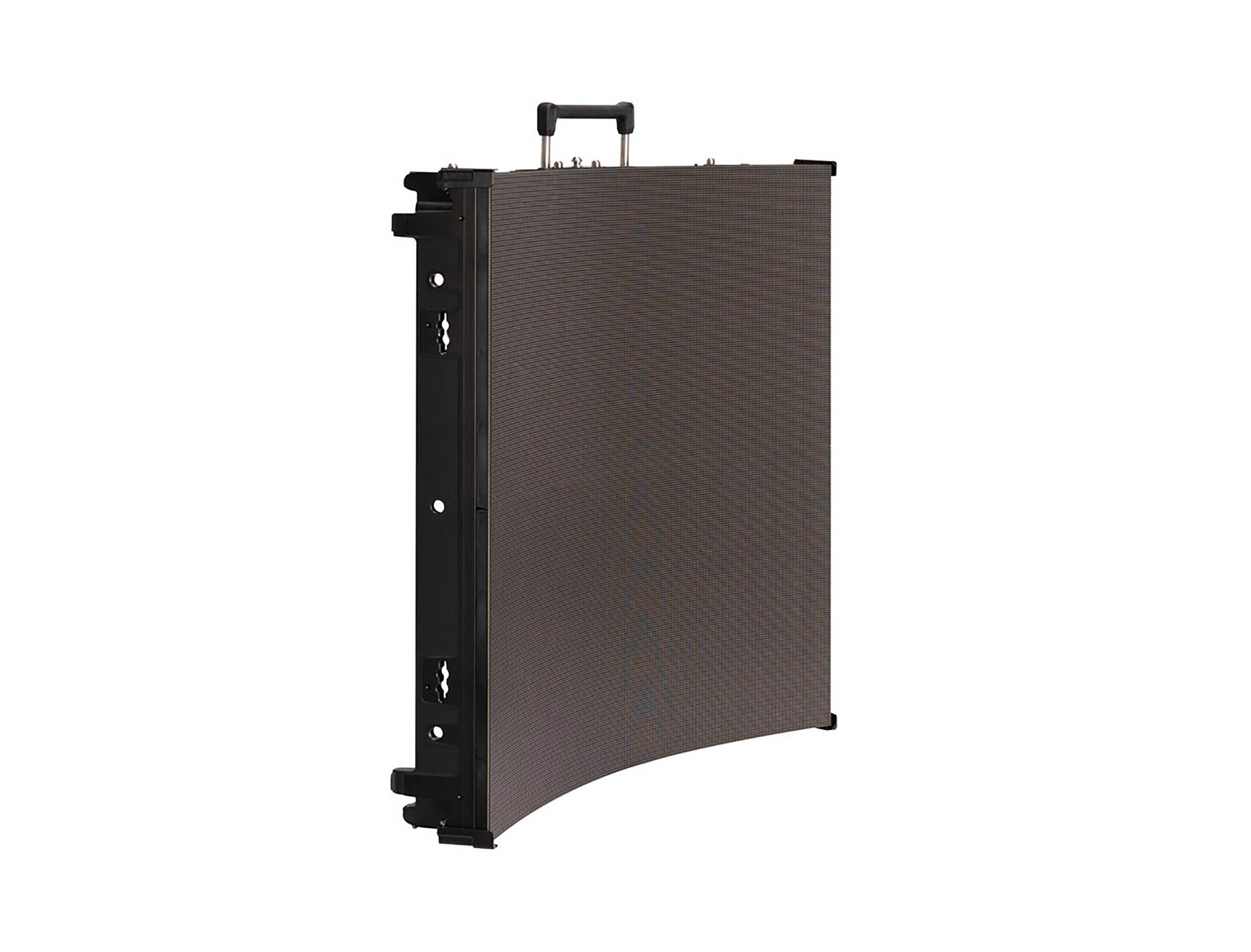

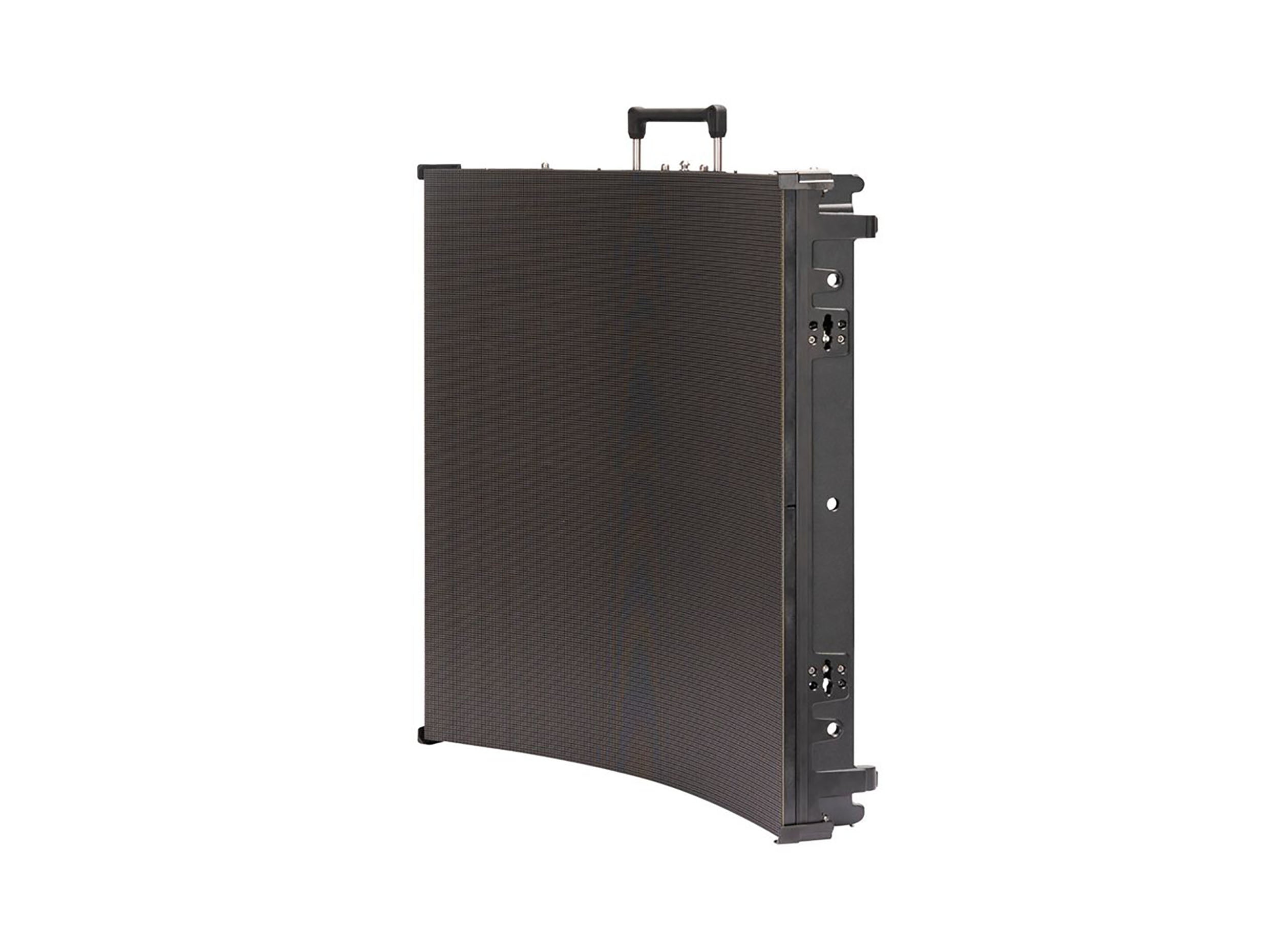

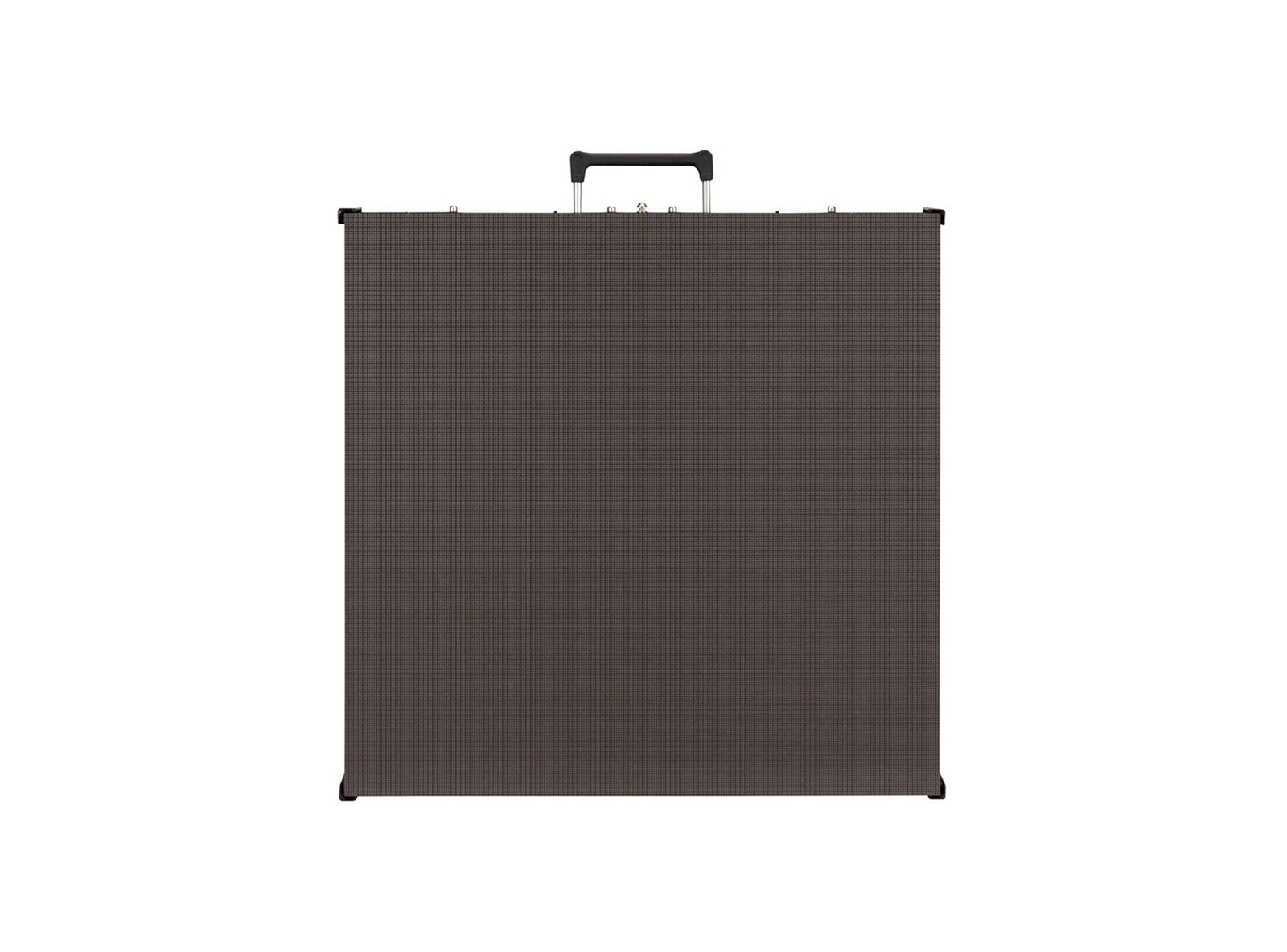

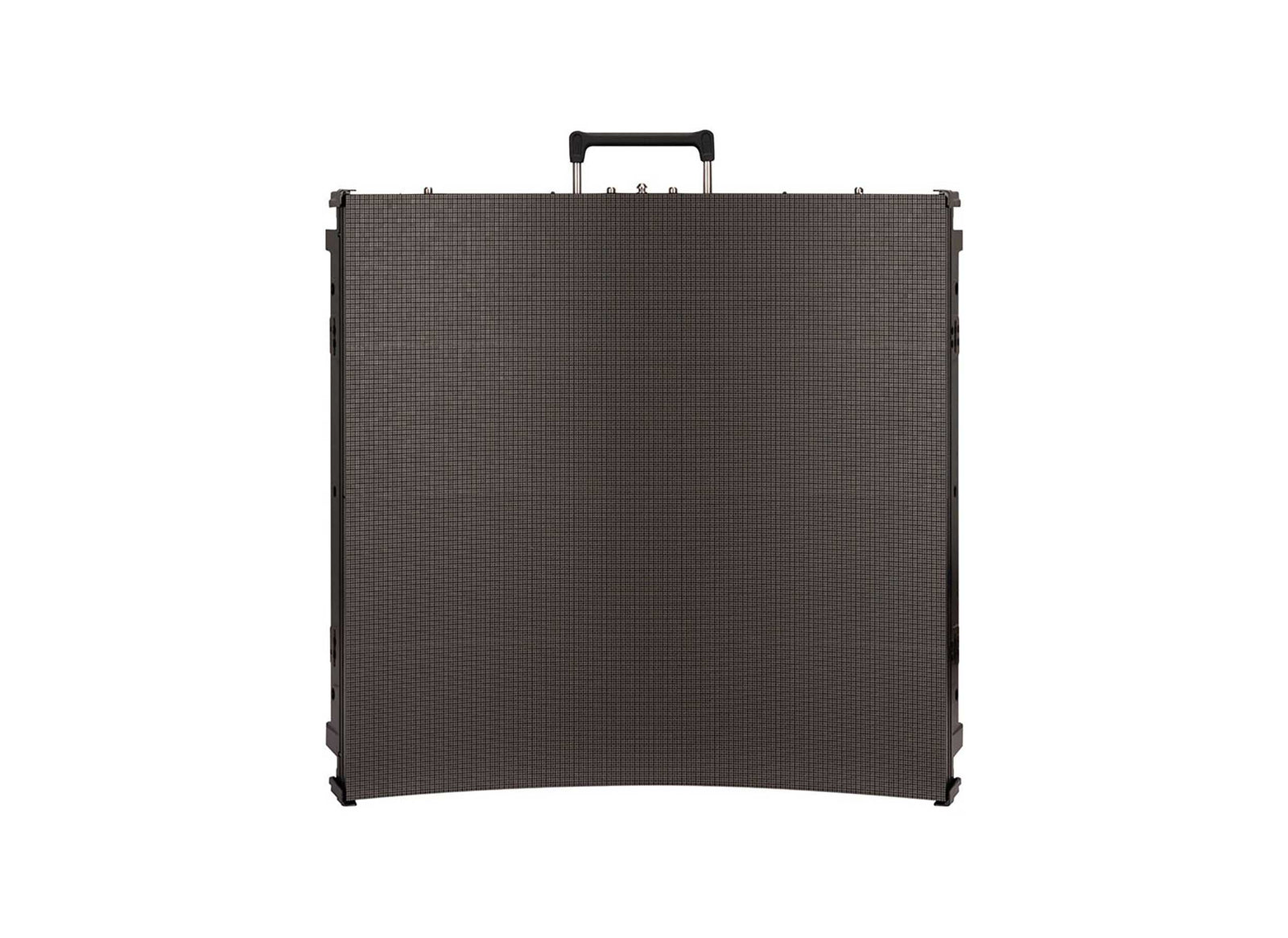

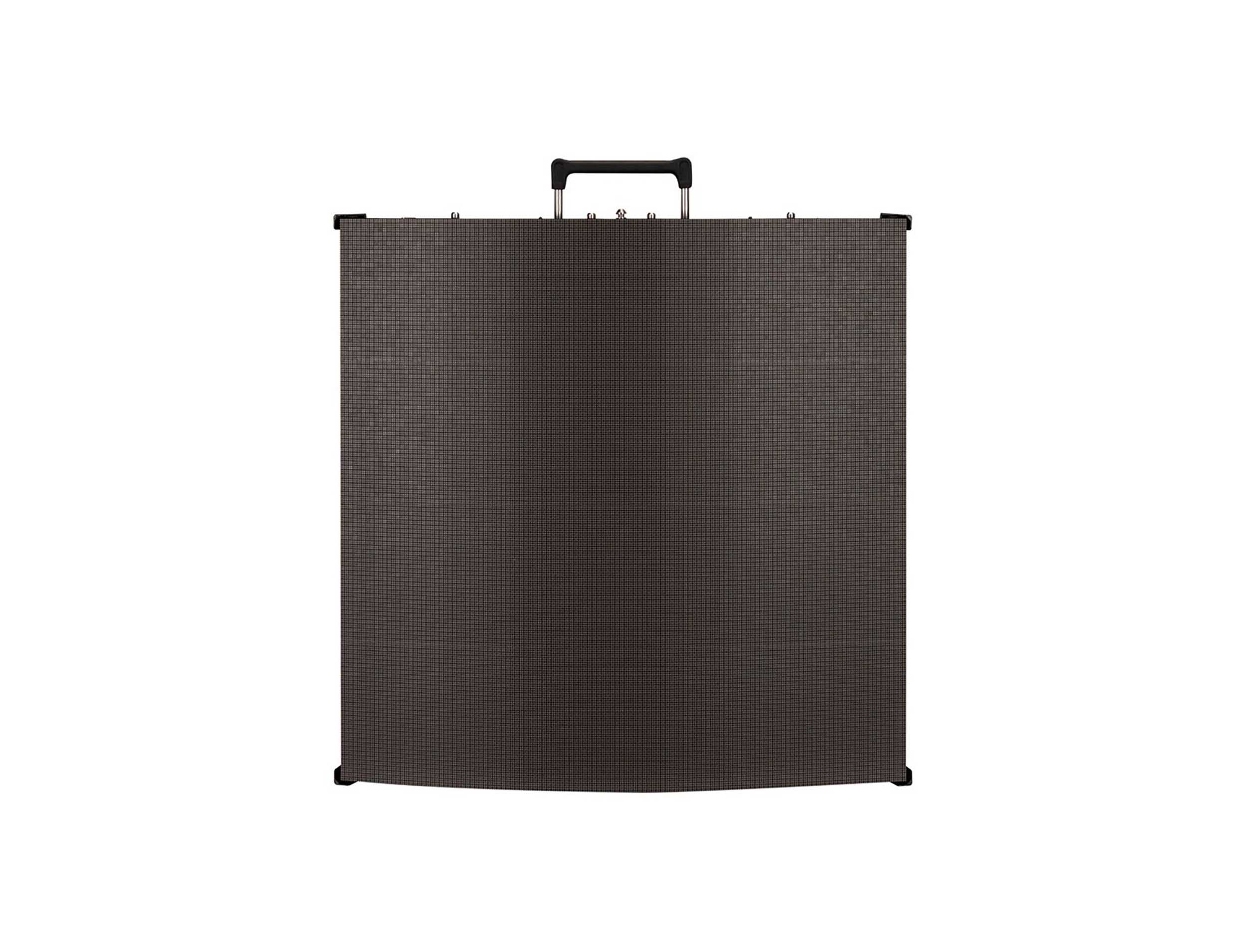

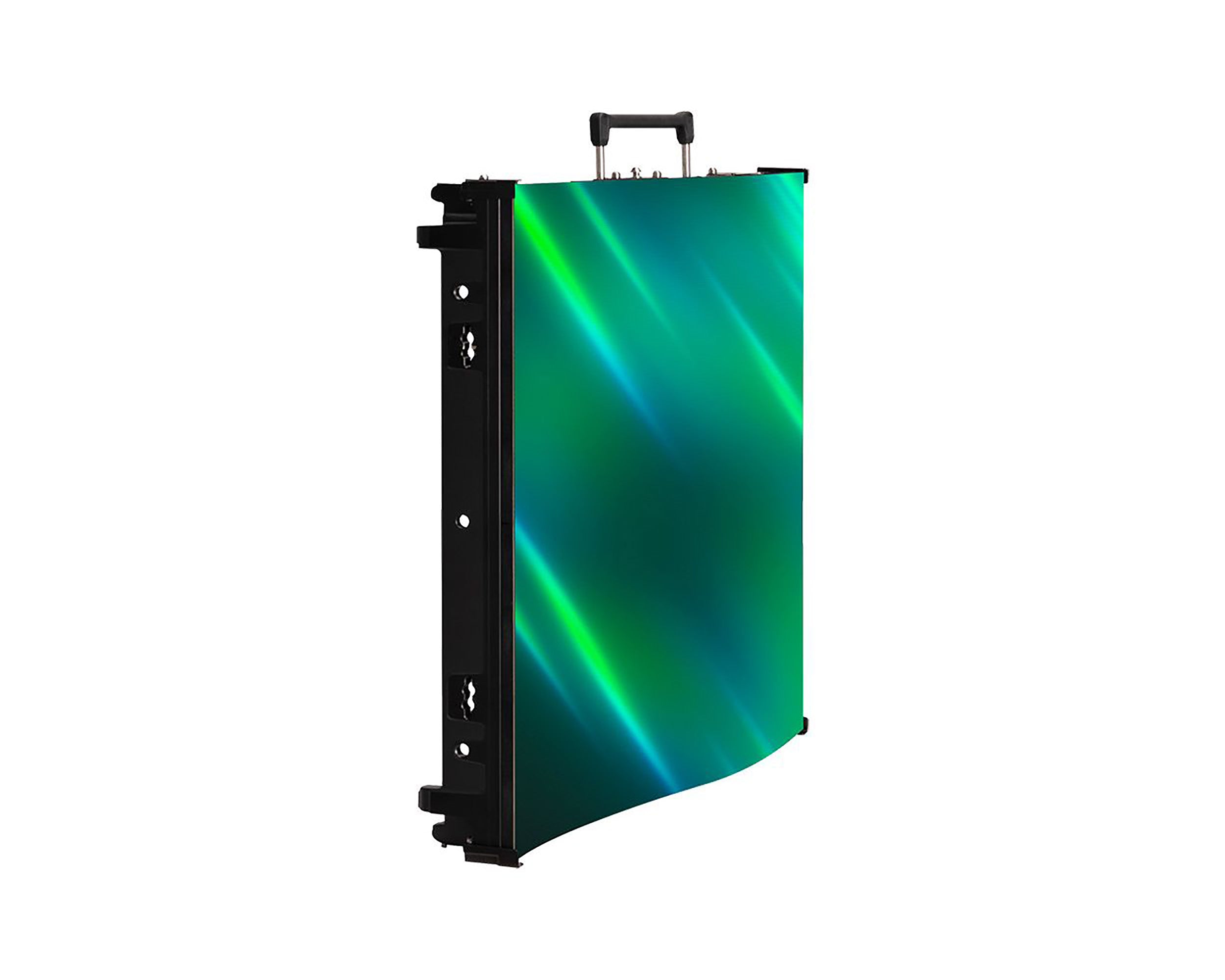

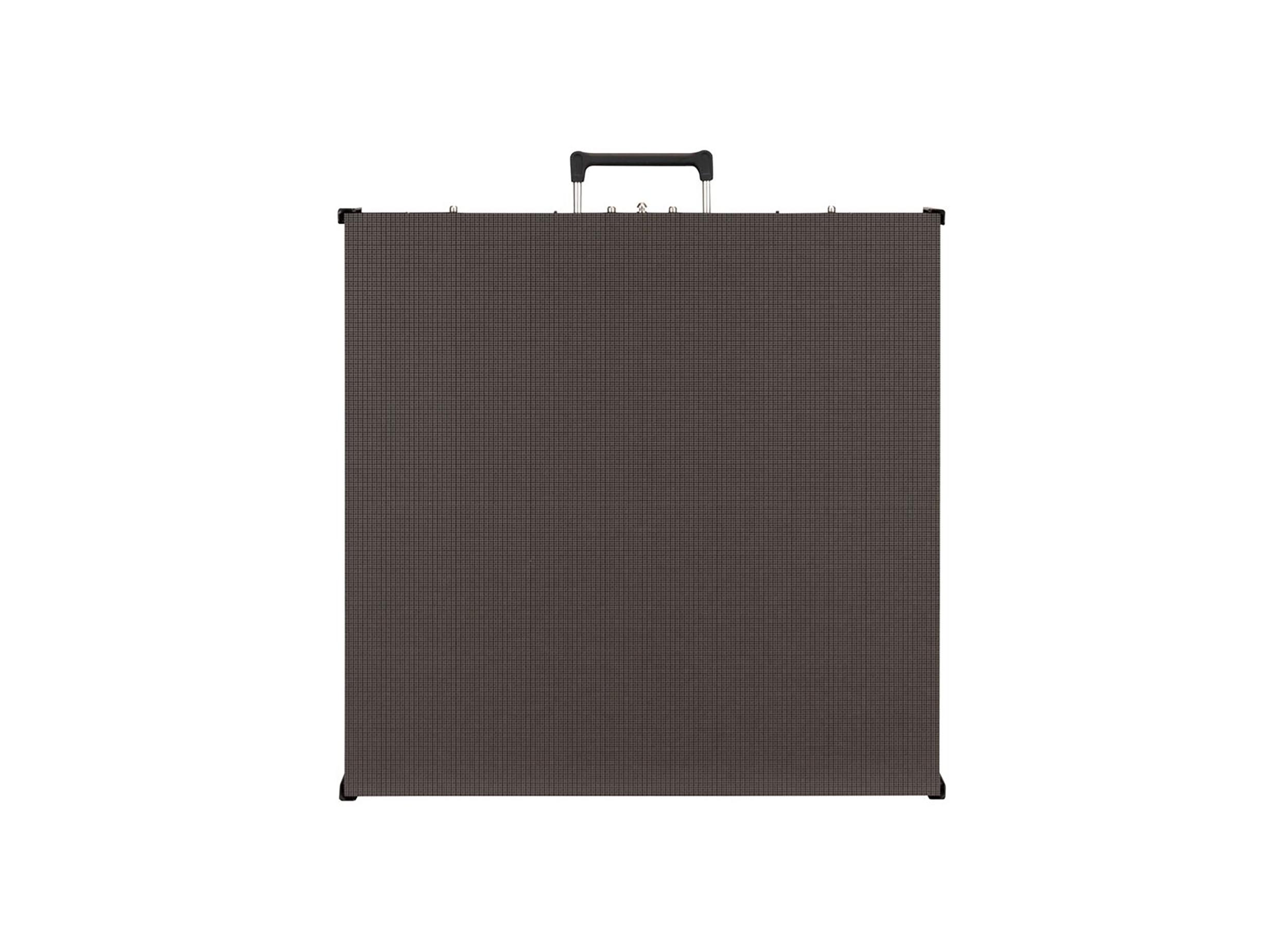

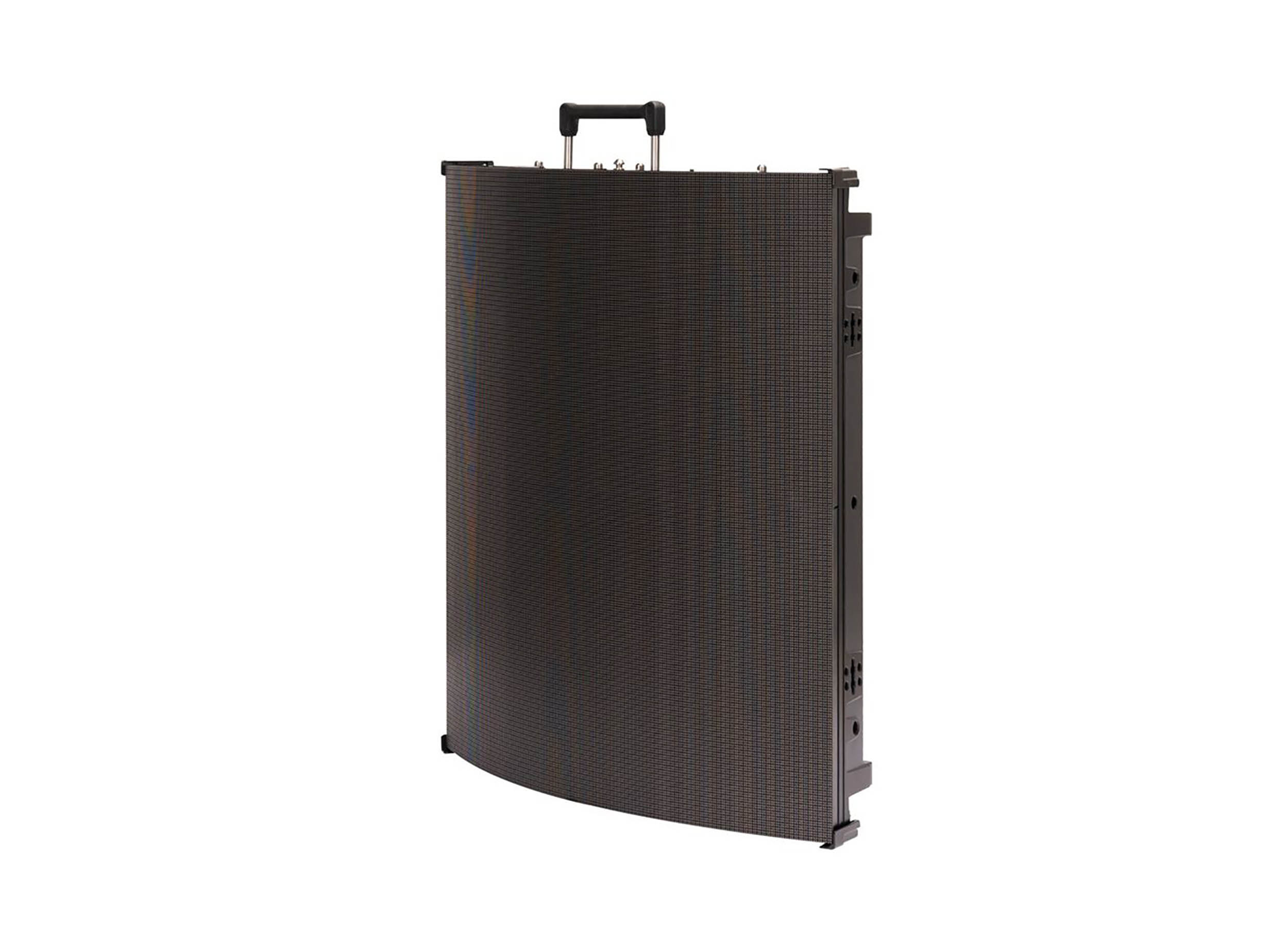

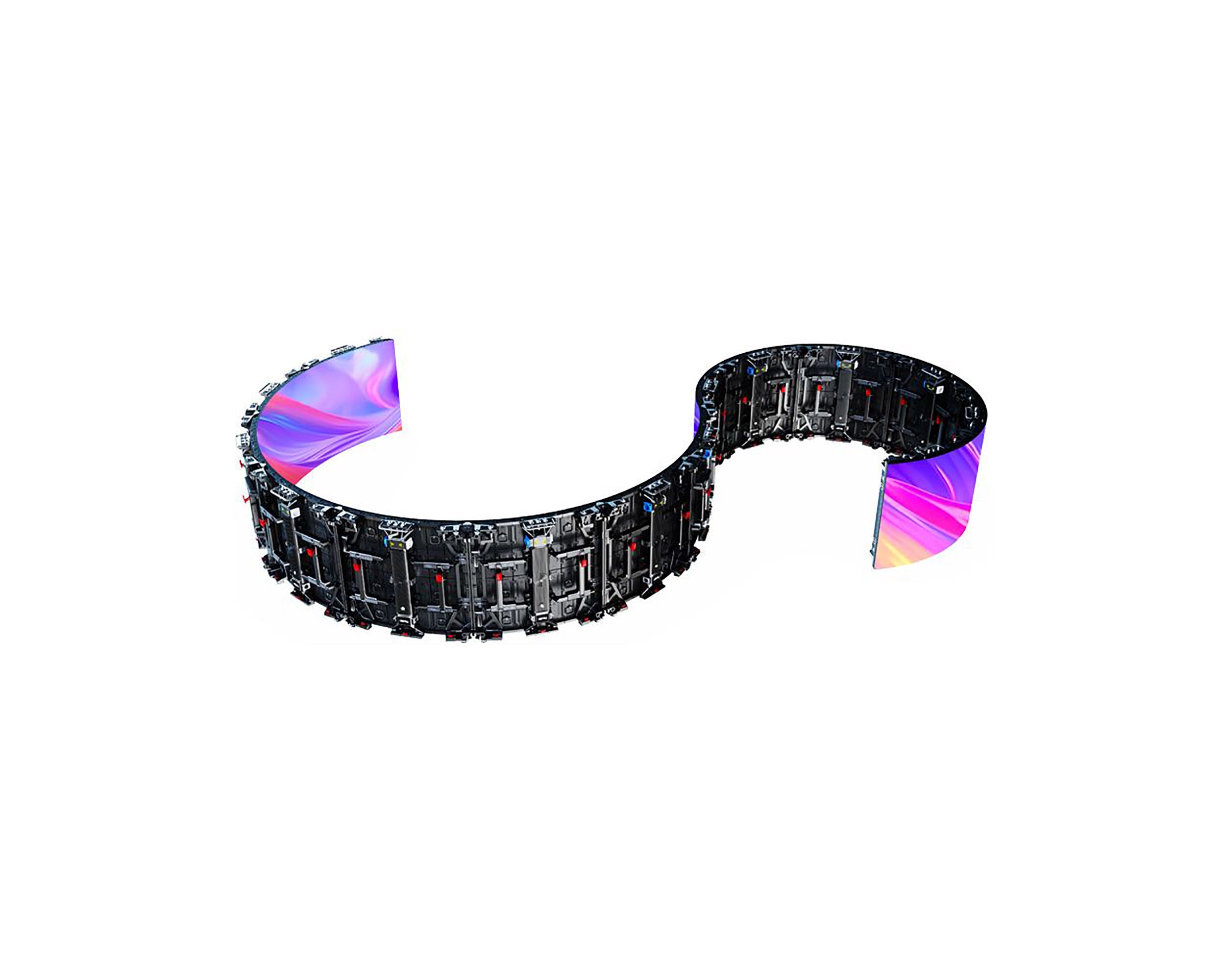

The ADJ VS1 FLEX45, part of ADJ’s trusted Vision Series video panels, delivers premium LED binning, outstanding brightness, and sharp, clear visuals. This high-resolution video panel features a 1.95mm pixel pitch with a 4-in-1 MiniLED configuration and the flexibility to create up to a 45° concave or convex curve, ideal for custom curved setups. With 1500 NITS brightness and an ultra-high refresh rate of 7680Hz, it ensures exceptional image quality. Designed for convenience, the panel includes four LED modules, enabling quick and simple rear servicing.

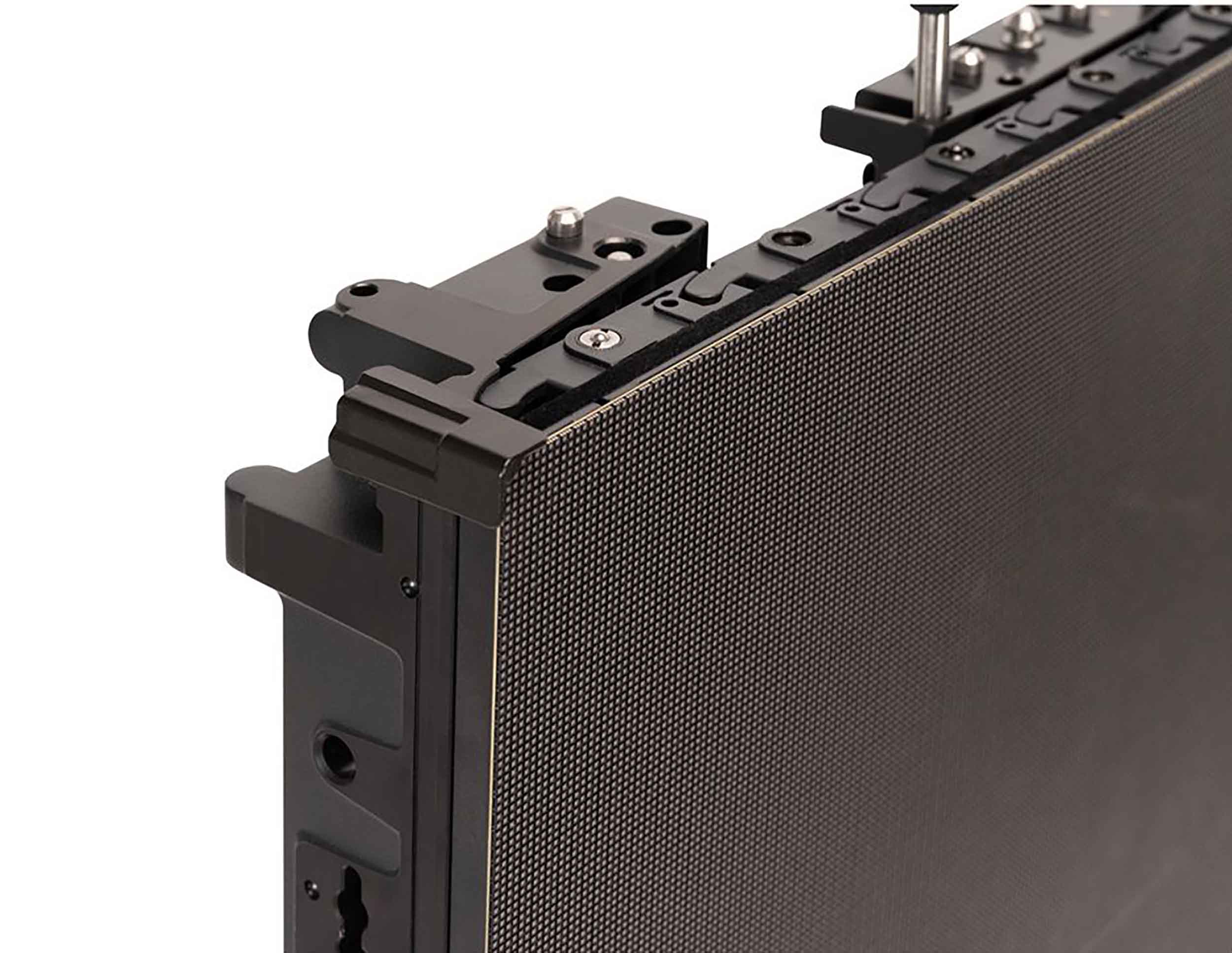

Equipped with PowerLock In/Out and DataLock In/Out connections, the VS1 FLEX45 also features a built-in Novastar A5s receiving card for seamless operation. Up to eight panels fit into the EVSF45FC flight case, while the FLEX45RB rigging bar supports vertical hanging of up to 20 panels. For enhanced functionality, the VS1 FLEX45 incorporates Memory on Module (MOM) technology, enabling the storage and recall of critical configuration data such as calibration settings, brightness levels, and color profiles, ensuring optimal performance and reliability.

ADJ offers complete packages, including video processors, software, cabling, rigging bars, and flight cases, providing everything you need for a smooth and efficient setup.

Product Specifications:

LED: MiniLED 4-in-1

Pixel Pitch: 1.9mm (0.07”)

Drive IC: ICN2153S

Pixel Density: 262144 per square meter

Size: 19.68” x 19.68” x 3.15” / 500 x 500 x 80mm

Module Quantity: 4

Module size: 500*125mm

Module Resolution: 256 x 64 pixels

Panel Resolution: 256 x 256 pixels

Weight: 18.3 lbs. / 8.3kg

Mechanical Ratings:

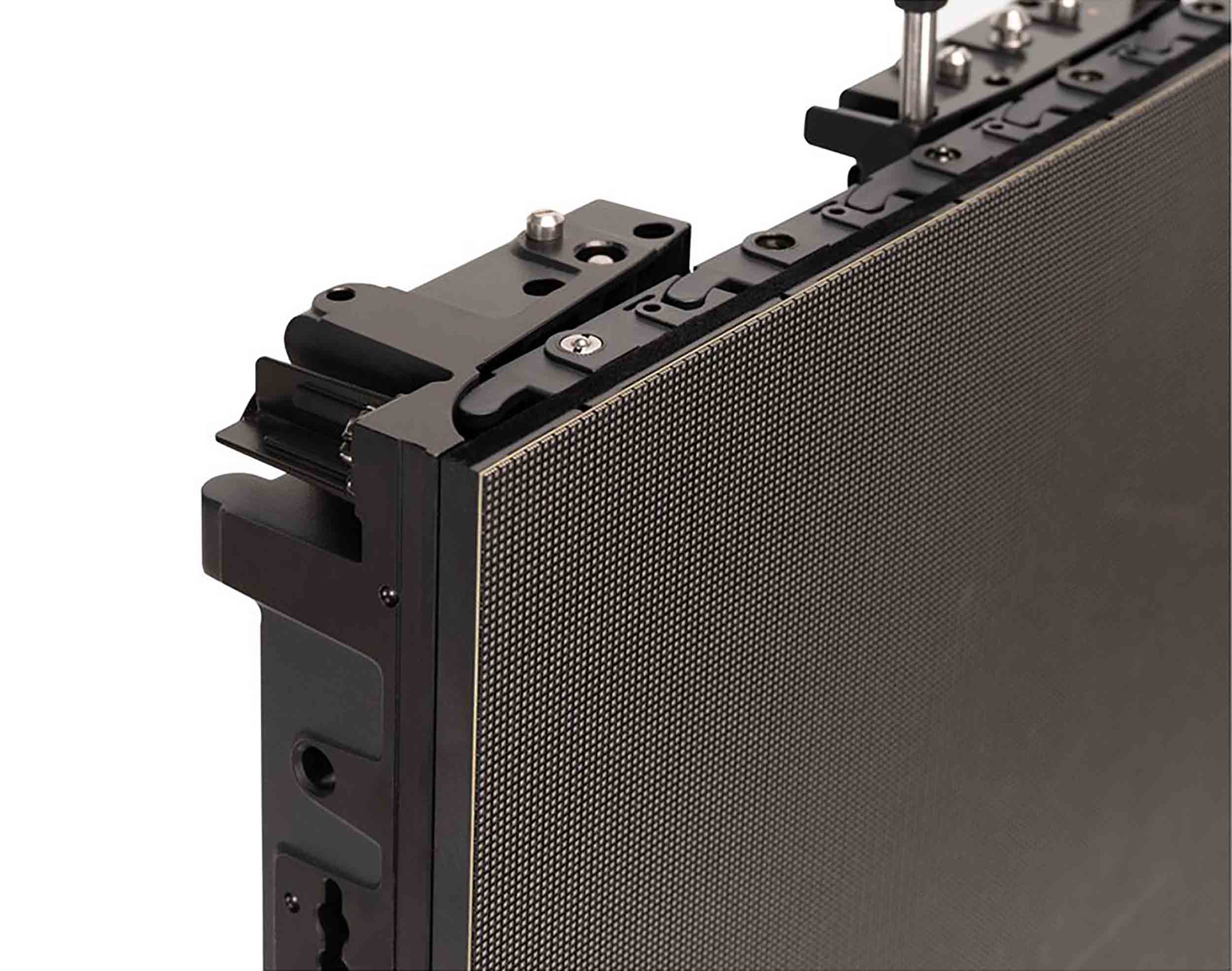

Surface Flatness: Gaps<0.5mm for a smooth visual experience

Optical Ratings:

Brightness: 1500 NITS for vivid, clear visuals

View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m) for wide coverage

Gray Scale: ≥14-bit for precise color representation.

Display Color: 256 for vibrant images

Brightness Adjustment: 0~100% with 100 Levels for customizable viewing

Contrast Ratio: 10000:1 for enhanced contrast

Processing: 16-bit ensures seamless performance

Operating Life / MTBF: 50,000 Hours / 5,000 Hour for long-lasting usage

Power Supply:

Operation Power: 100~240V 50-60Hz for global compatibility.

Max. Power Consumption: 150W/per panel, conserving energy.

Ave. Power Consumption: 60W/per panel for efficient operation.

Connections Power/Data: Power-Power Lock In/Out; Data Lock In/Out for easy setup.

Control System:

Control Mode: Nova Star Synchronous System with Control via DVI for intuitive control.

Frame Update Frequency: 50-75Hz for smooth playback.

Scan Mode: 1/16 for seamless scanning.

Refresh Rate: 7680Hz ensures flicker-free visuals.

Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI for versatile connectivity.

Control Distance: Ethernet Cable <120m or Fiber Optic>120m for flexible setups.

Support VGA Mode: Various resolutions supported for compatibility.

Brightness Correction: Pixel, Module, Cabinet for precise adjustment.

Environmental:

Operating Temperature: -4° to 104°F (-20° to +40°C) for reliable performance in diverse conditions.

Operating Humidity: 10 - 90% (No Condensation) ensures stable operation.

Storage Temperature: -40° to 176°F (-40° to +80°C) for safe storage.

Storage Humidity: 10-90% (No Condensation) for long-term preservation.

Optional Accessories:

EVSF45FC (EVS358): Flight Case – Fits up to 8 EVS3 Flex45 or EVS1 Flex45 Video Panels for secure transportation.

FLEX45RB: Rigging Bar – Hang up to 20 EVS3 Flex45, EVS1 Flex45 or VS1 Flex45 Video Panels vertically for versatile setups.

Processors and Playback Software:

Novastar VX4S, Novastar MCTRL-300, Novastar Nova Pro HD: Video Processors.

Arkaos Media Master, Arkaos GrandVJ 2.0: Video Software.

Cables:

Cabinet to Cabinet Data Link Cables, Indoor Power Locking Link Cables, Indoor Power Locking Main Power Cables for efficient connectivity.

Certifications: cETLus (PENDING) ensures compliance with safety standards.
