Description

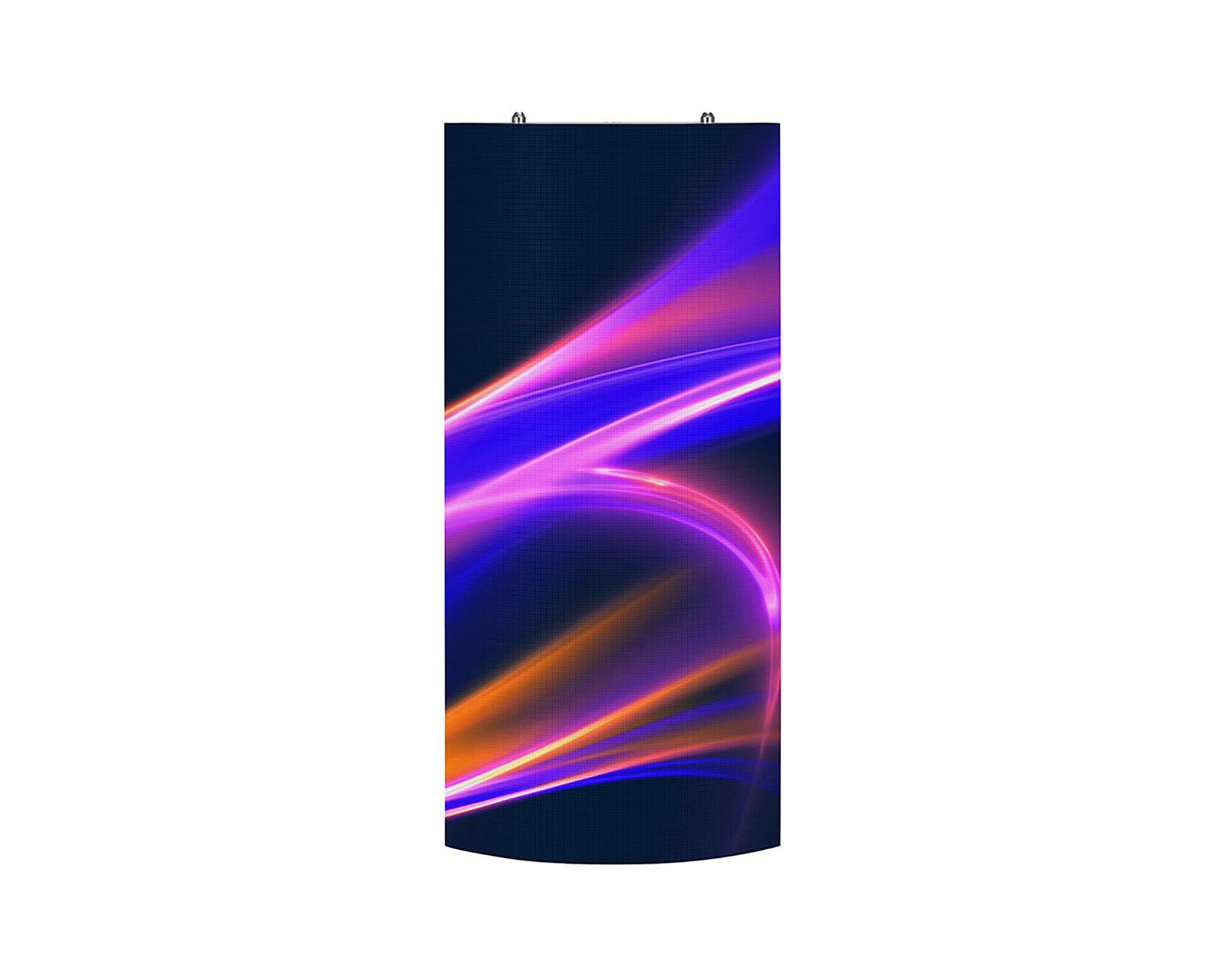

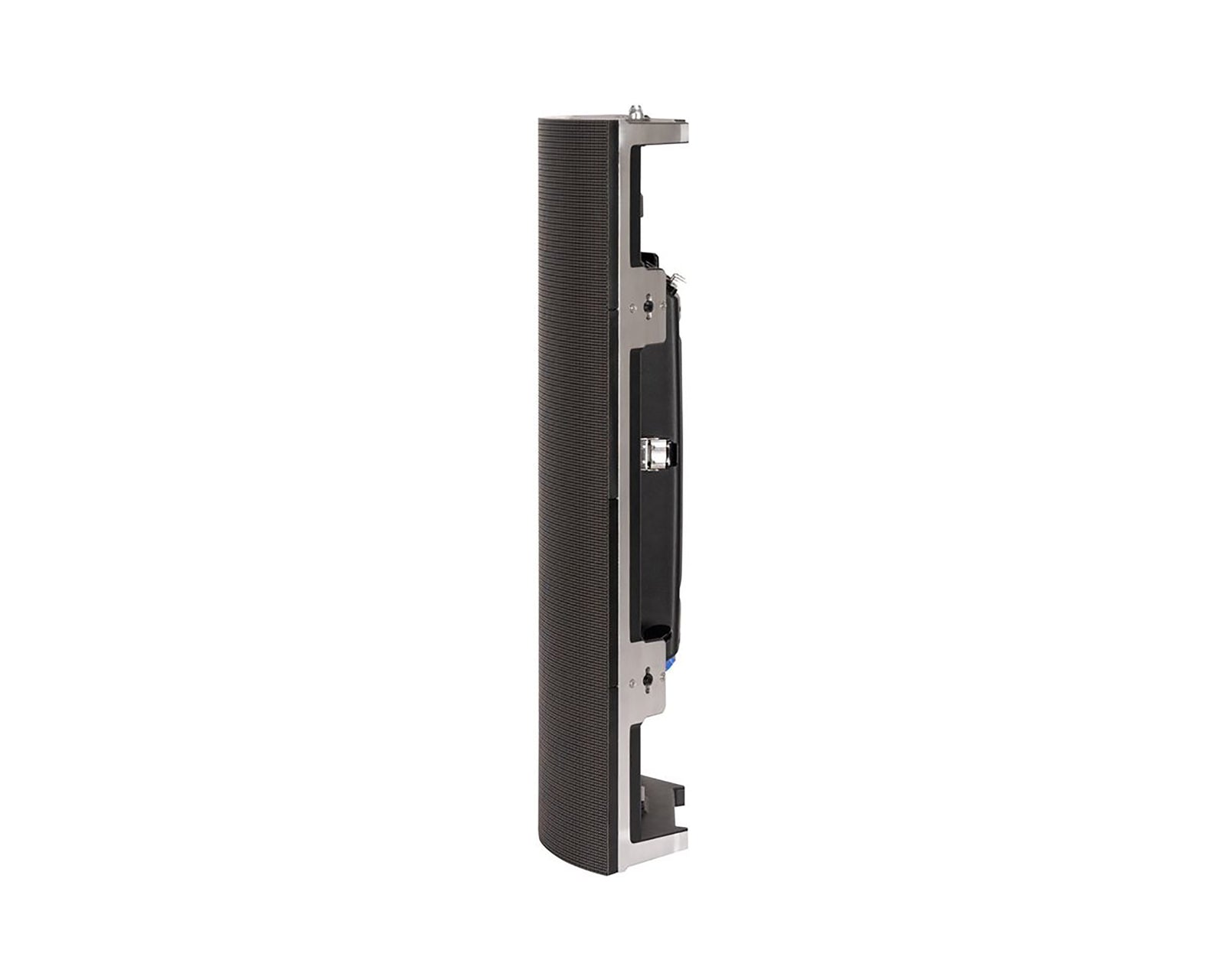

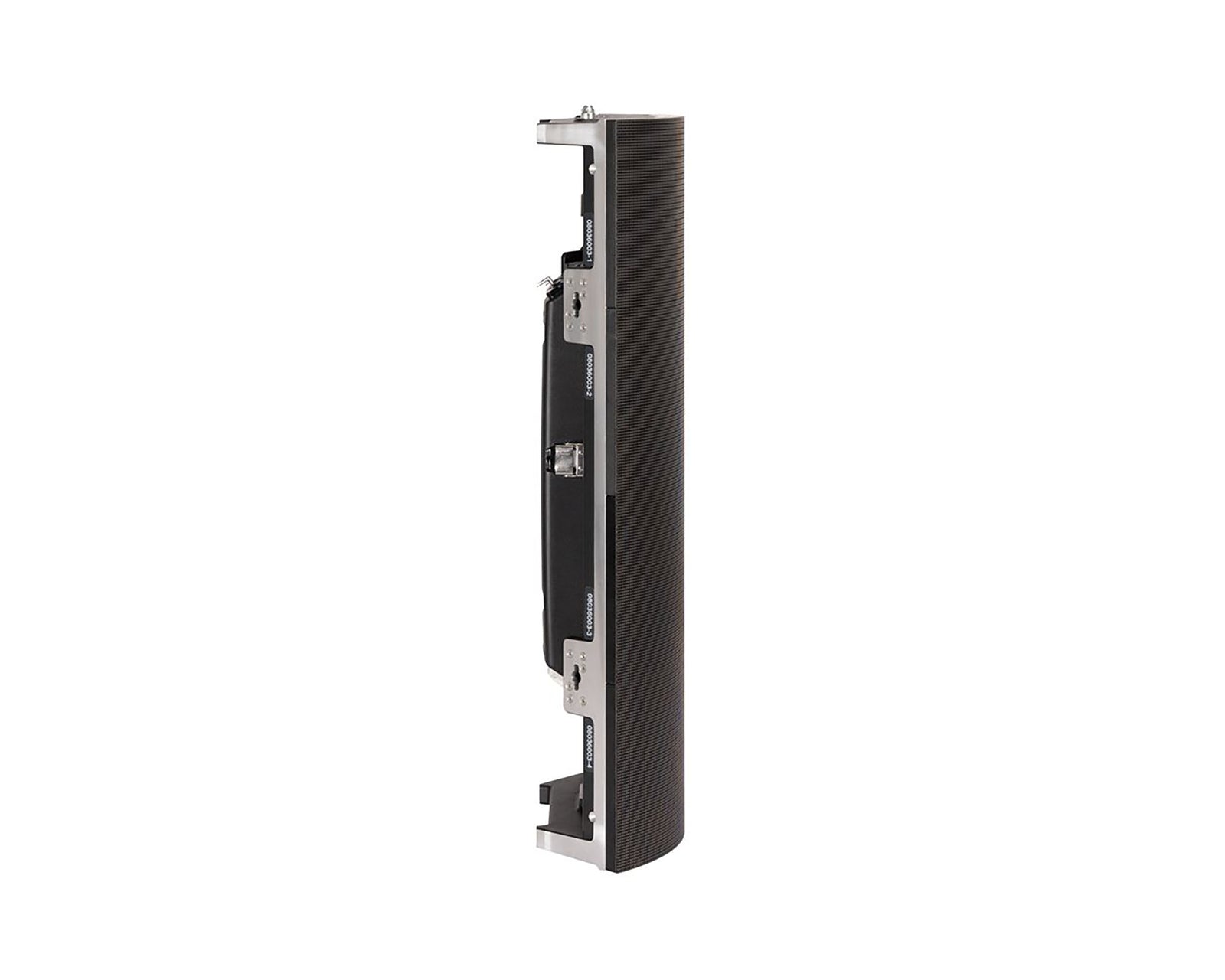

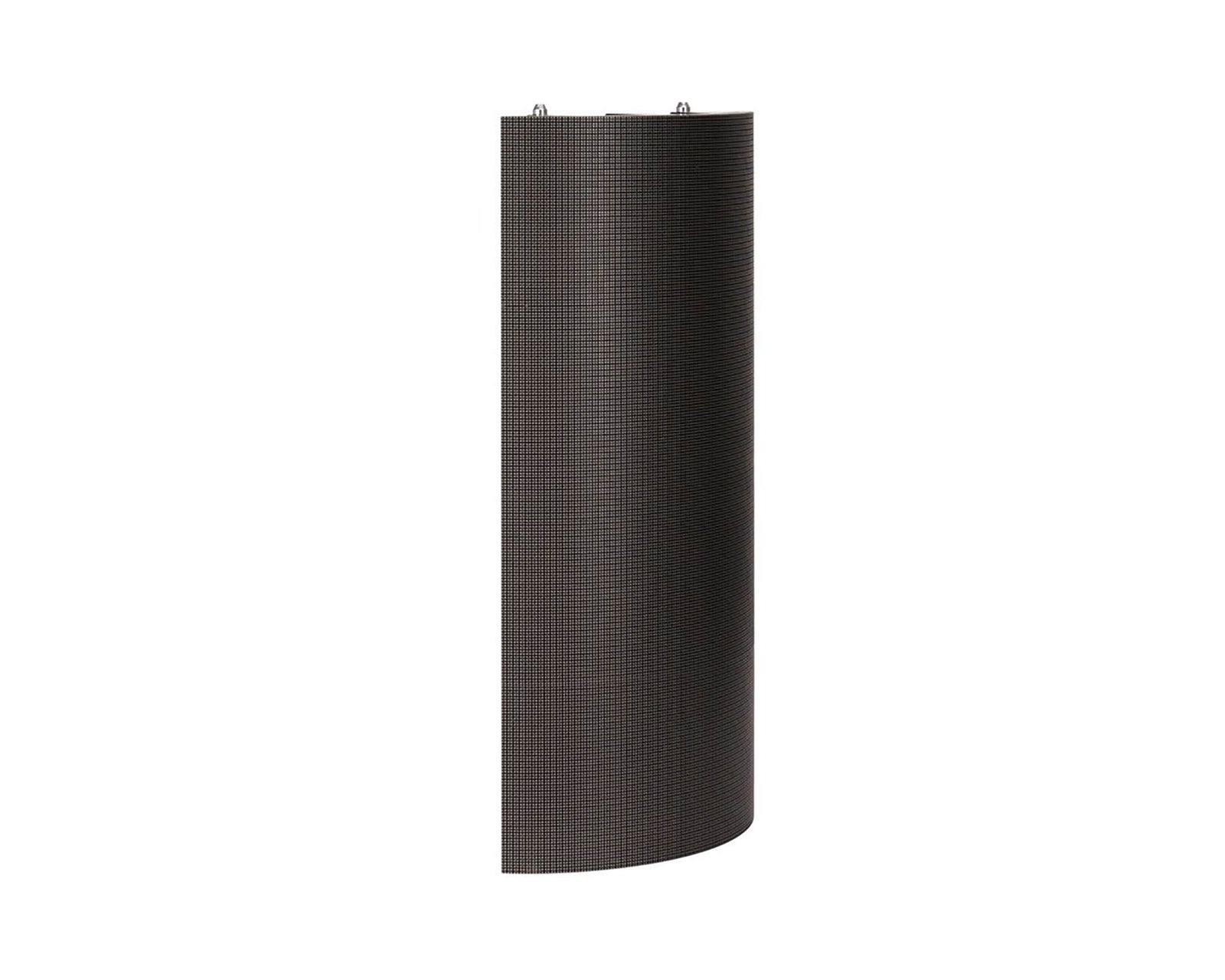

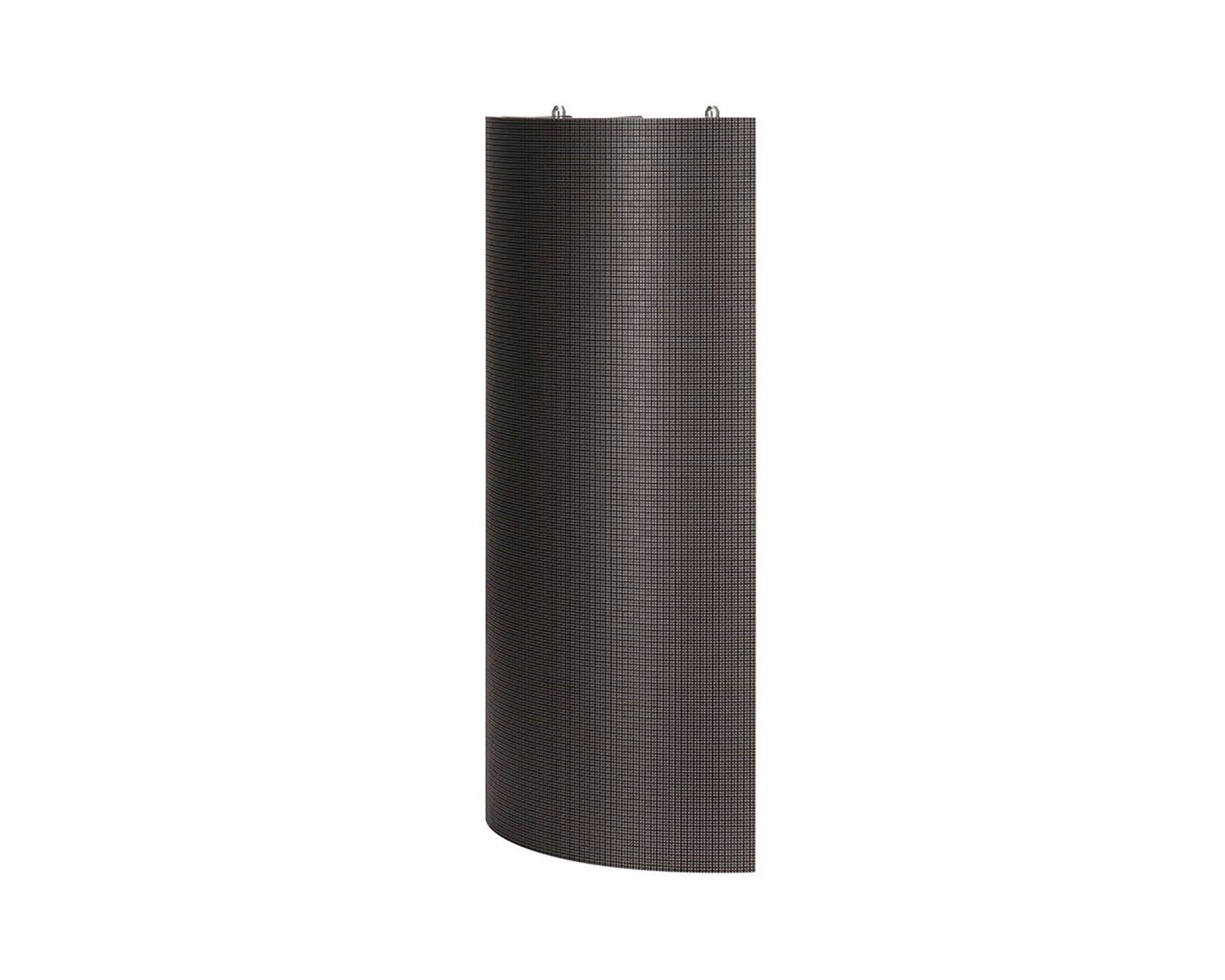

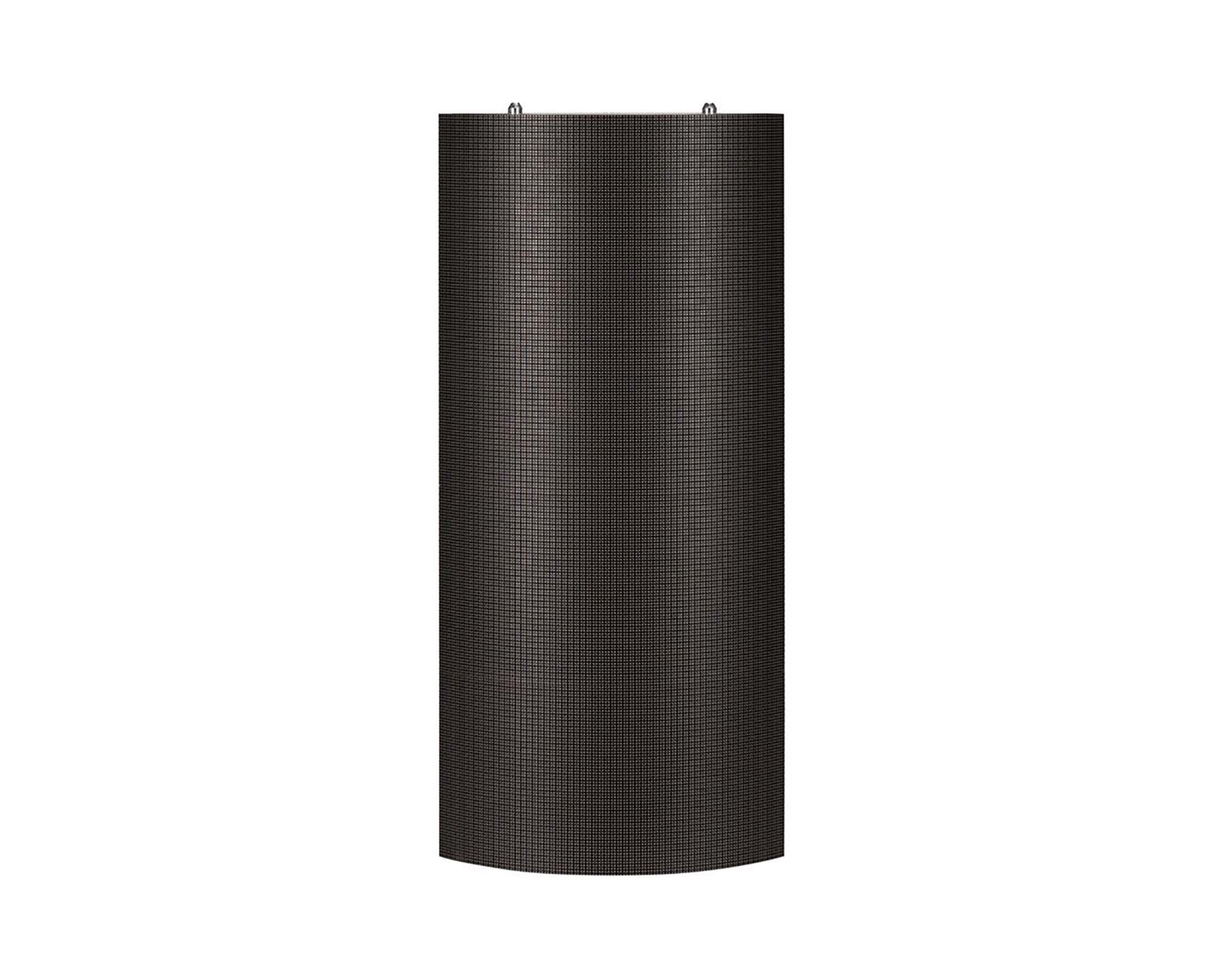

The ADJ VS1C is a 1.95mm curved LED panel section designed as a seamless accessory for the VS1 panel. Perfect for creating 90-degree corners, it adds a new dimension of creative flexibility to LED displays for stages, events, concerts, and permanent architectural designs.

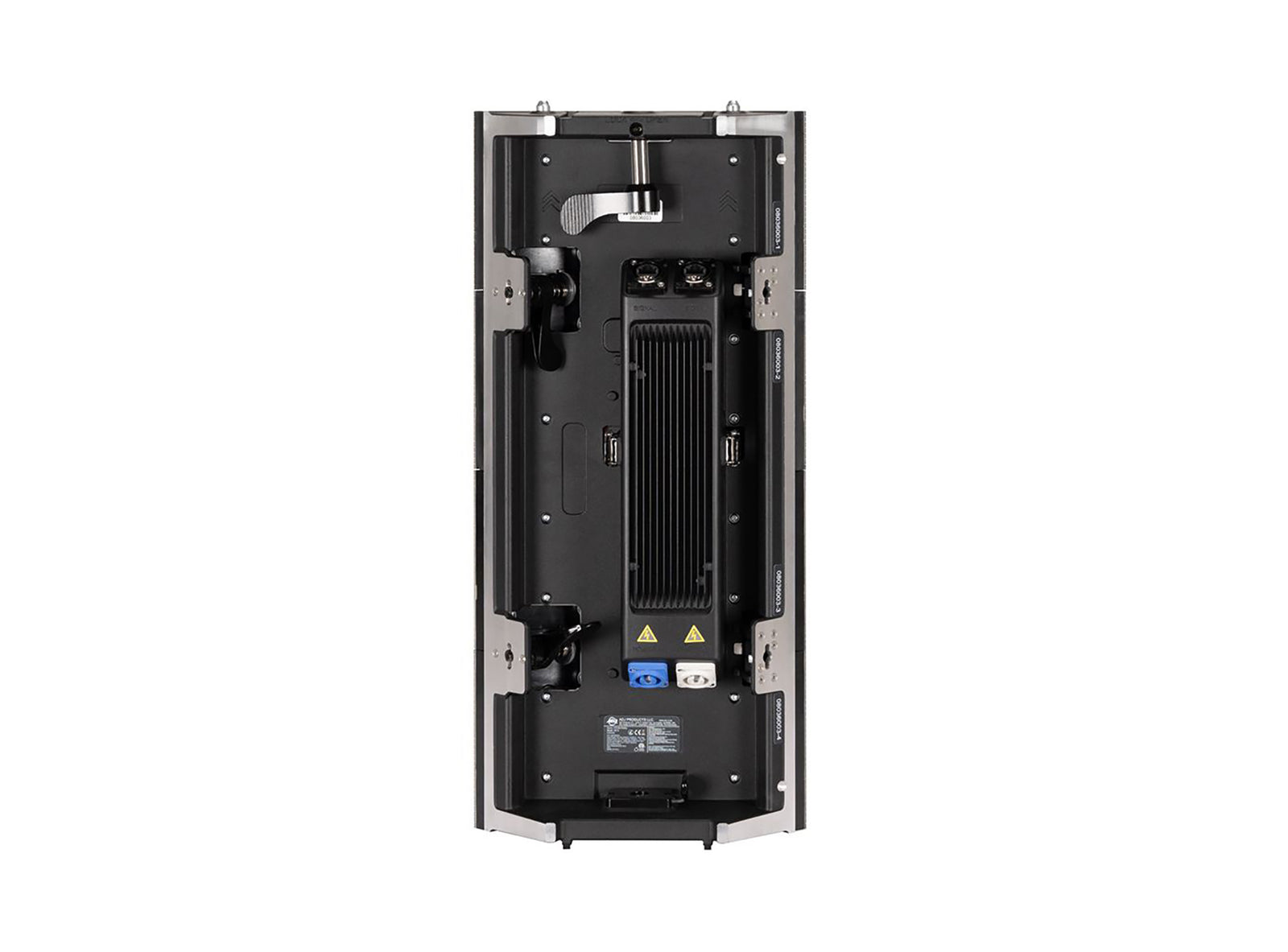

Featuring a 4-in-1 MiniLED configuration and a pixel density of 256x256, the VS1C delivers stunning visuals with 1500 NITS brightness, a high contrast ratio of 5000:1, and a wide 110° viewing angle. The panel is rear serviceable, with four easily replaceable modules and an independent power box for simplified maintenance.
Its quick-lock system allows effortless assembly with VS1 panels, enabling unique corner configurations. With a refresh rate of 3840Hz and compatibility with Nova Star’s control systems, the VS1C ensures smooth performance and vibrant image quality. Compact, lightweight, and easy to handle, the VS1C is an ideal solution for creative LED video panel setups.
Product Specifications:
Pixel Pitch: 1.95mm (0.07”)
LED Configuration: MiniLED 4-in-1
Pixel Density: 256x256; 262144 per square meter
Size: 9.8” x 19.68” x3.86” /250 x 500x98
Module Quantity: 4
Weight: 9.5 lbs. / 4.3 kg.
Mechanical Ratings: Surface Flatness: Gaps<0.2mm
Optical Ratings:
Brightness: 1500 NITS
View Angle: Based on the center of the lamp bead, Horizontal 110°/Vertical 110°
Gray Scale: ≥14-bit
Display Color: 256
Brightness Adjustment: 0~100% 100 Levels
Contrast ratio: 5000:1
Processing: 14-bit
Power Supply:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 75W/per panel
Ave. Power Consumption: 30W/per panel
Connections Power/Data: PowerLock In/Out; DataLock In/Out
Control System:
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-75Hz
Scan Mode: 1/21
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable <120m or Fiber Optic>120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet
Environmental:
Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate: <0.02%
Listings: cETLus (Pending)
Optional Accessories for VS1C:
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Novastar Nova Pro HD: Video Processor
Arkaos Media Master: Video Software
Arkaos GrandVJ 2.0: Video Software
Cables:
Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
Power Locking Link Cables
Power Locking Main Power Cables
Certifications: cETLus (Pending)
