Description
The ADJ VS2 5X3, Video Panel System is designed for large-scale, high-resolution video production well suited for concerts, special events, clubs, touring, and rental houses. Numerous panels can be fitted together without gaps and can scale up, allowing for the creation of jumbotron-sized panels often seen at arena events. The unit has a pixel pitch of 2.97mm, 3-in-1 RGB SMD2121 LEDs, and a brightness of 1000 nits. There are four LED modules, which allows for easy serviceability. The VS2 connections include PowerLock In/Out and DataLock In/Out. Each panel features the NovaStar A5s receiving card built-in. Up to 8 VS2 video panels fit inside the optional VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the optional VSRB1 rigging bar.
American DJ PowerLock Connector Link Cable, 3'
The PowerLock Connector Link Cable from American DJ is a 3' locking power link cable.
American DJ Locking Power Cable to Edison Cable, 15'
The Locking Power Cable to Edison Cable from American DJ is a 15' locking powerCON connector to grounded 3-Pin Edison power cable.
American DJ VSRB1 Single Panel Rigging/Ground Stack Bar for Vision Series LED Panels
The American DJ VSRB1 is an intelligently designed rigging bar that can be used to vertically hang or ground stack up to 20 Vision Series video panels.
Elation Professional ArKaos Media Master Express Software Package
Media Master Express helps quickly setup a show that includes video. If you have basic needs of DMX or MIDI synchronization but still want to benefit from the powerful media management and efficient media playback of Media Master, the Express edition is a great choice.

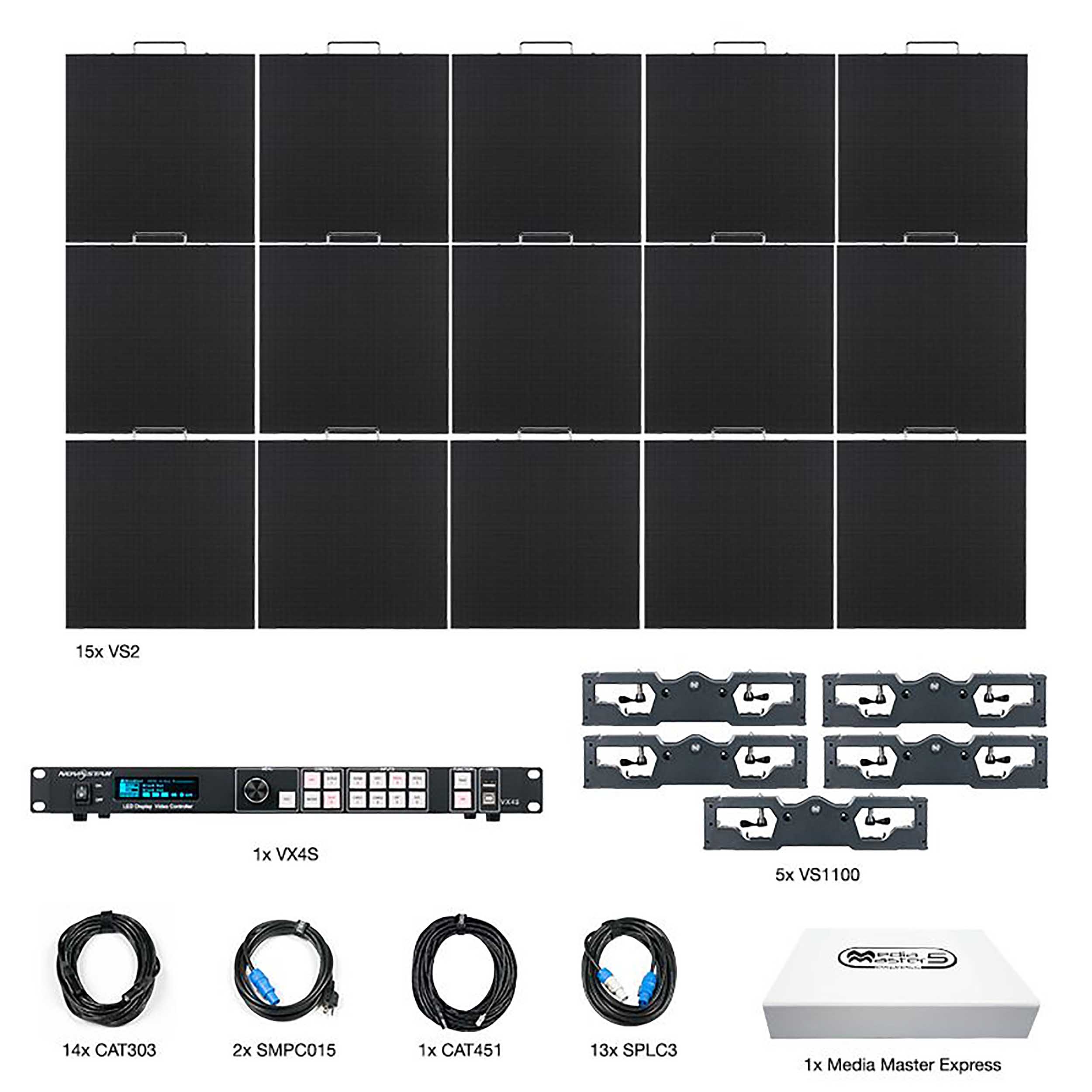

Video Panel System Includes:
15 x VS2 2.97mm Pixel Pitch Video Panels (VS2001)
14 x 3-foot Panel to Panel Data Cables (CAT303)
1 x 25-foot First Data Cable (CAT451)
13 x 3-foot Locking In/Out Power Cables (SPL013)
2 x 15-foot Locking In/Out Main Cables (SMP027)
1 x Novastar VX4S Video Processor (VX40001)
1 x ArKaos Media Master Express Software
5 x VSRB1 Vision Series Rigging Bars (VS1100)
Product Specifications:
Display Size: 19.68"
Panel Type: LCD
Orientation: Landscape, Portrait
Native Resolution: 168 x 168
Maximum Brightness: 1000 nits / cd/m²
HDR Support: No
Dynamic Contrast Ratio: 5000:1
Refresh Rate: 75 Hz
Viewing Angle (H x V): 160 x 140°
Screen Area: 19.69 x 19.69" / 500 x 500 mm
TV Tuner: No
Outputs: No
Wireless: No
NFC: No
USB I/O: No
Ethernet I/O: Rear: 2x RJ45 (Unspecified Ethernet)
Ambient Light Sensor: No
Built-In Speakers: No
Mobile App Compatible: No
Media Card Reader: No
Built-In Mic: No
Operating Temperature: -4 to 104°F / -20 to 40°C
Operating Humidity: 10 to 90%
Power Consumption:
Maximum: 170.0 W
Typical: 68.0 W
Input Power: 100 to 240 VAC, 50 / 60 Hz
Power Adapter Type: Internal
Certifications: cETLus
Lighting Lifespan: 50,000 Hours
Environmental Protection: Dust-Resistant (IP20)
IK Rating: No
Product Dimensions: 19.7 x 19.7 x 2.7" / 500 x 500 x 69.6 mm
Product Weight: 16.98 lb. / 7.7 kg
Shipping Weight: 21.43 lb.
Shipping Dimensions (LxWxH): 22.1 x 21.5 x 5.4
