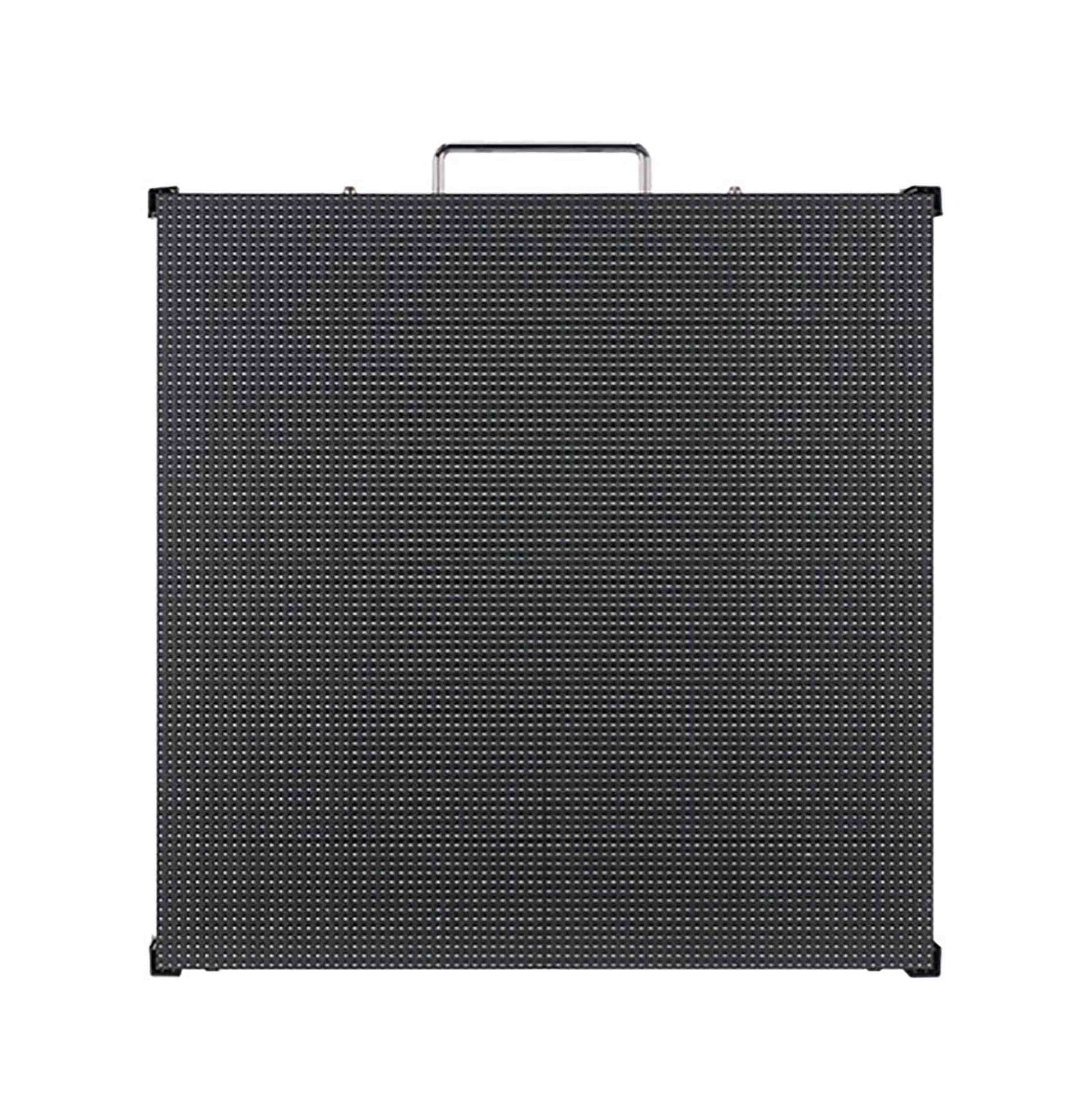

The ADJ VS2 7X4, Video Panel System is a complete, high-quality video display solution, featuring 28 ADJ VS2 video panels with a 2.97mm pixel pitch. This system includes power cables, data cables, rigging bars, a video processor, and software. ADJ's Vision Series video panels are designed to offer the highest quality LED binning and bright, clear output, making them perfect for professional video setups.

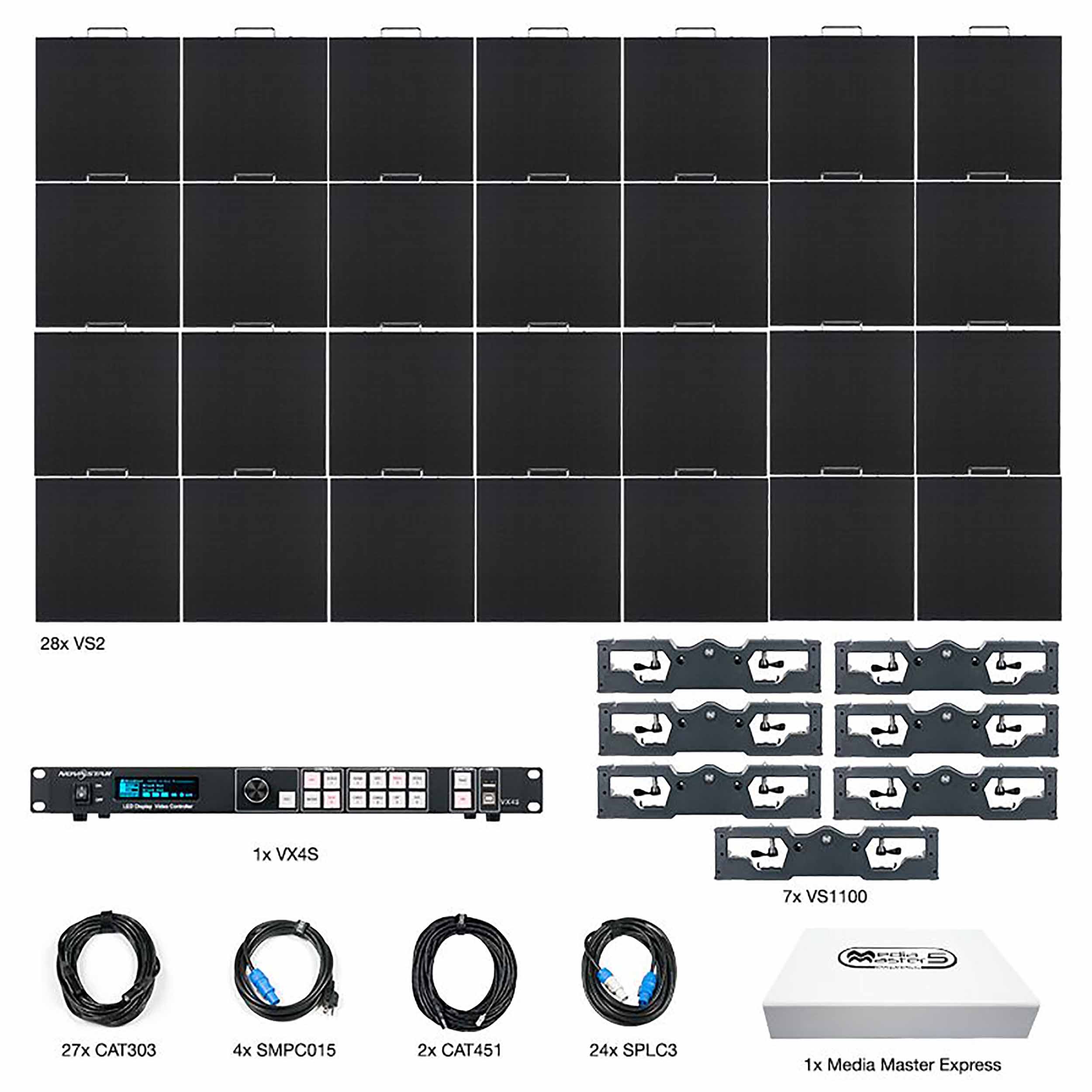

Video Panel System Includes:
28 x VS2 2.97mm Pixel Pitch Video Panels (VS2001)
27 x 3-foot Panel to Panel Data Cables (CAT303)
1 x 25-foot First Data Cable (CAT451)
24 x 3-foot Locking In/Out Power Cables (SPL013)
4 x 15-foot Locking In/Out Main Cables (SMP027)

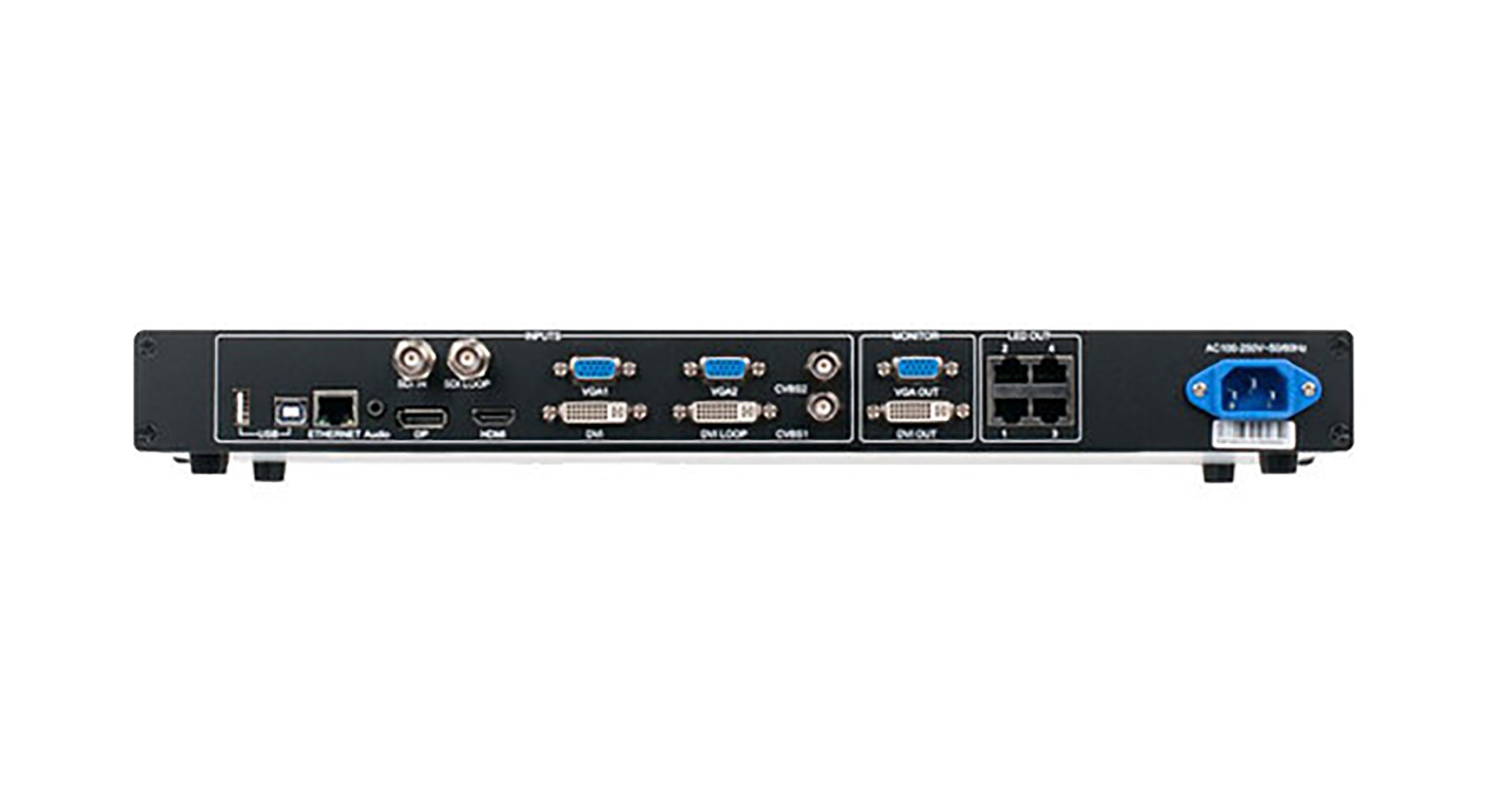

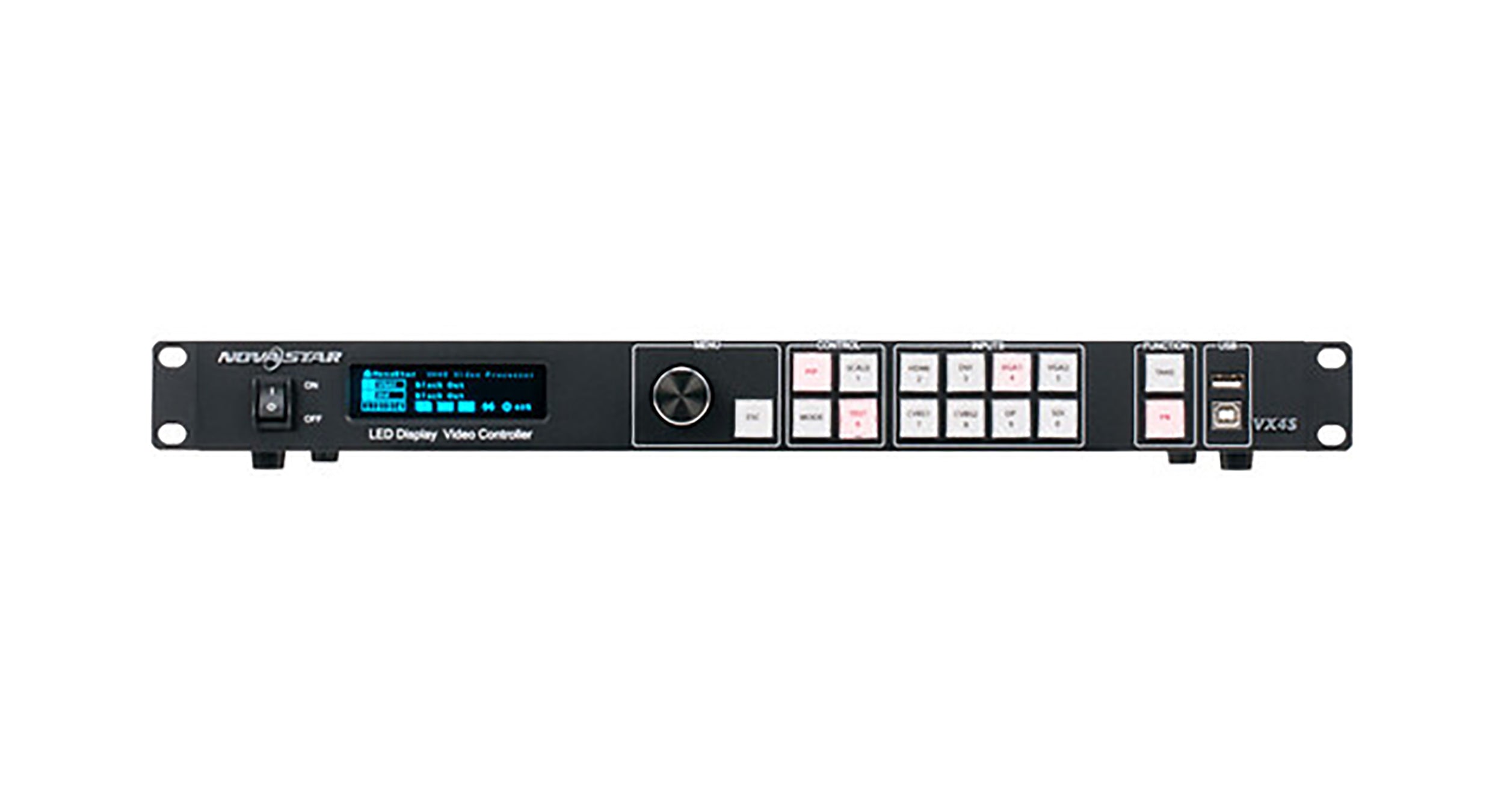

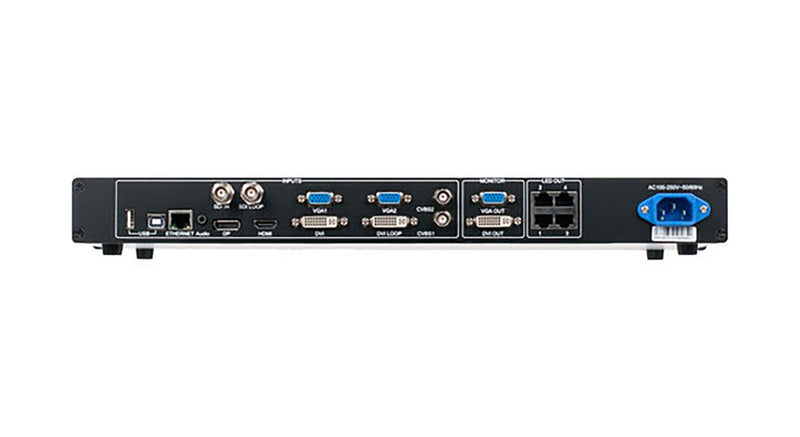

1 x Novastar VX4S Video Processor (VX40001)
1 x ArKaos Media Master Express Software
7 x VSRB1 Vision Series Rigging Bars (VS1100)
Product Specifications:

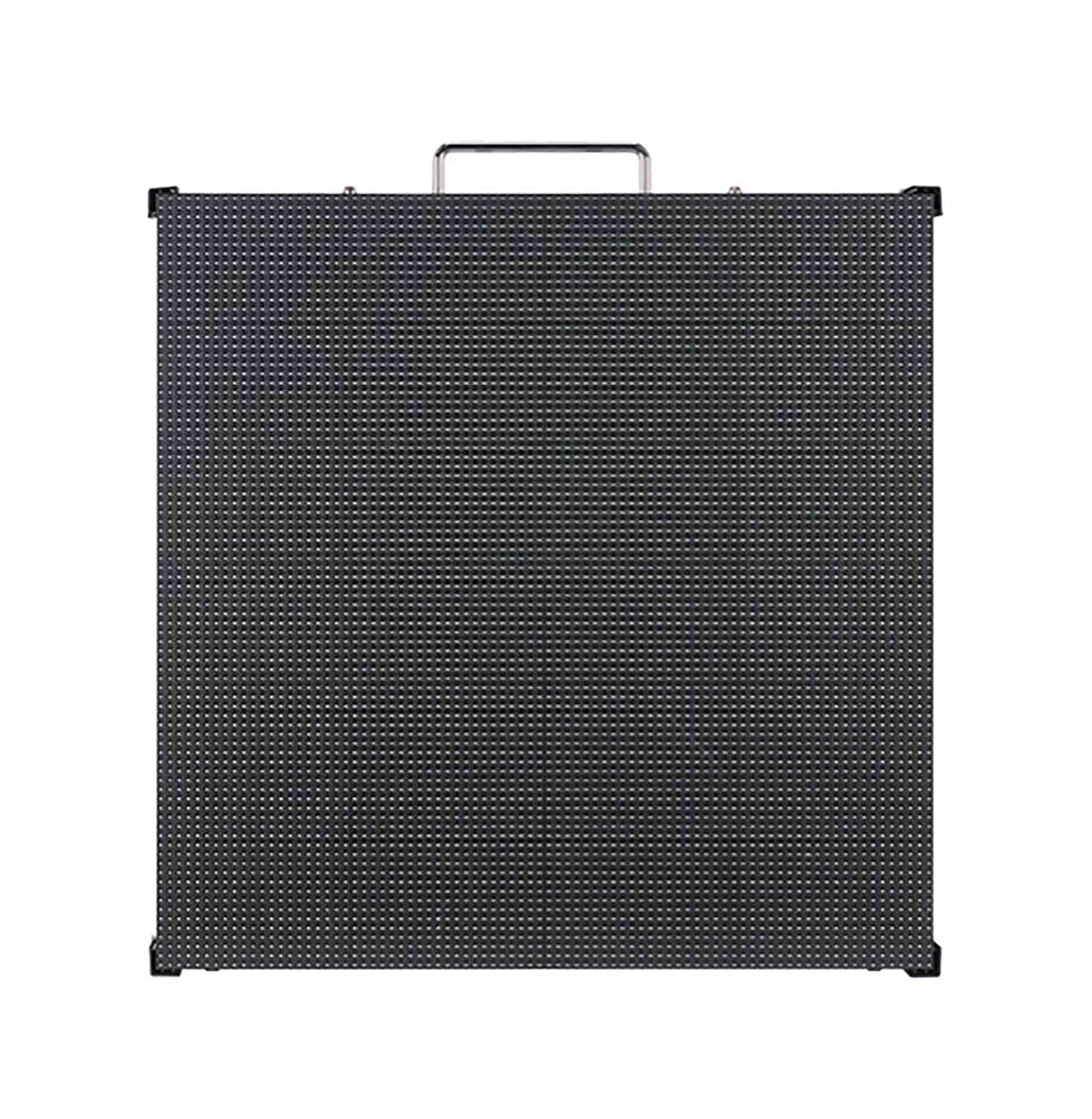

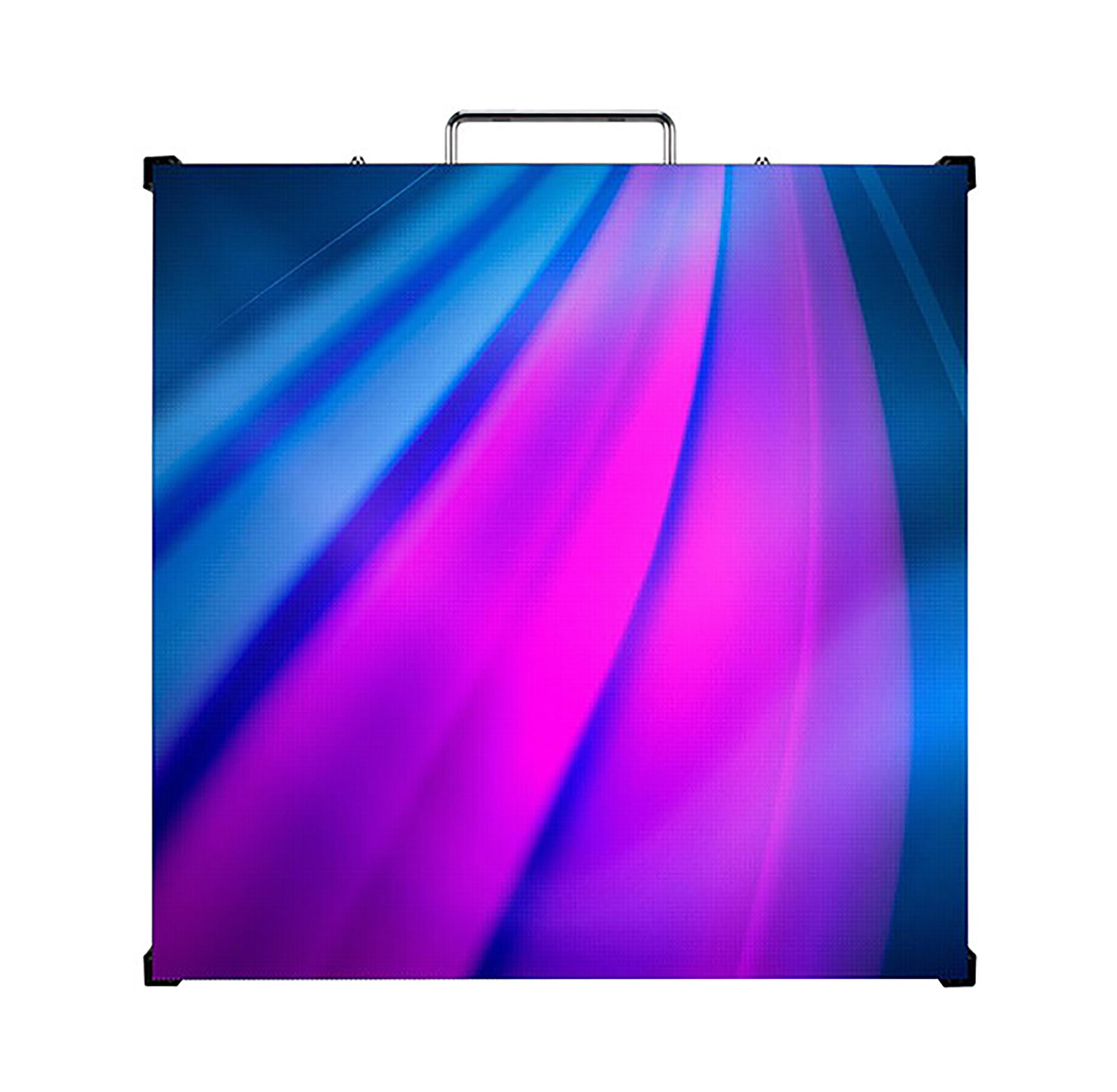

Video Panels: 28 ADJ VS2
Pixel Pitch: 2.97mm
LED Type: 3-in-1 RGB SMD2121
Brightness: 1000 NITS
LED Modules per Panel: 4

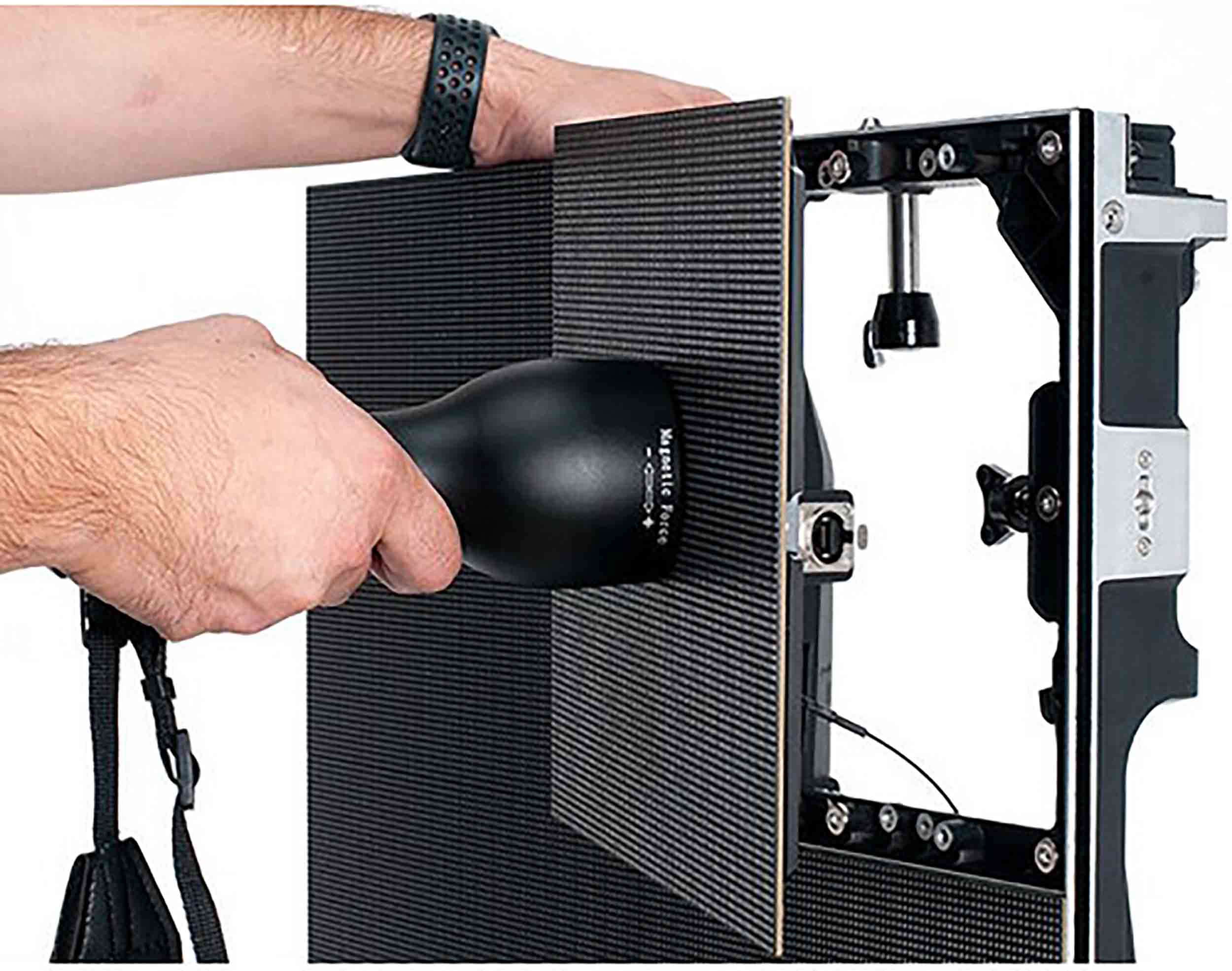

Serviceability: Front and rear serviceable

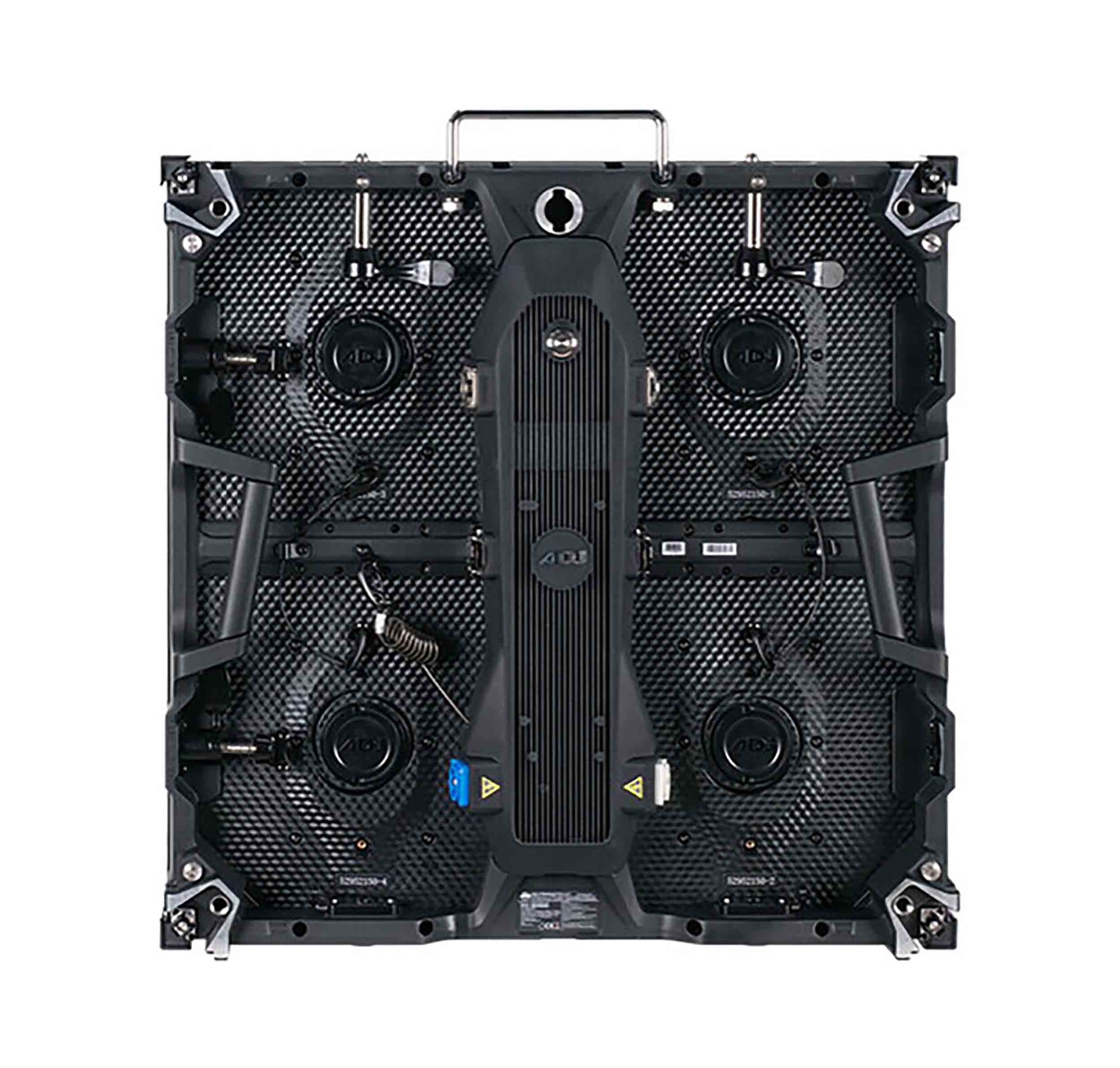

Connections:
PowerLock In/Out
DataLock In/Out
Receiving Card: Novastar A5s built-in
Flight Case Capacity: Up to 8 panels (VSFC8 flight case)
Rigging Bar Capacity: Hang up to 20 panels vertically (VSRB1 rigging bar)
Shipping Weight: 600 lb.
Shipping Dimensions (LxWxH): 73 x 45 x 32"
