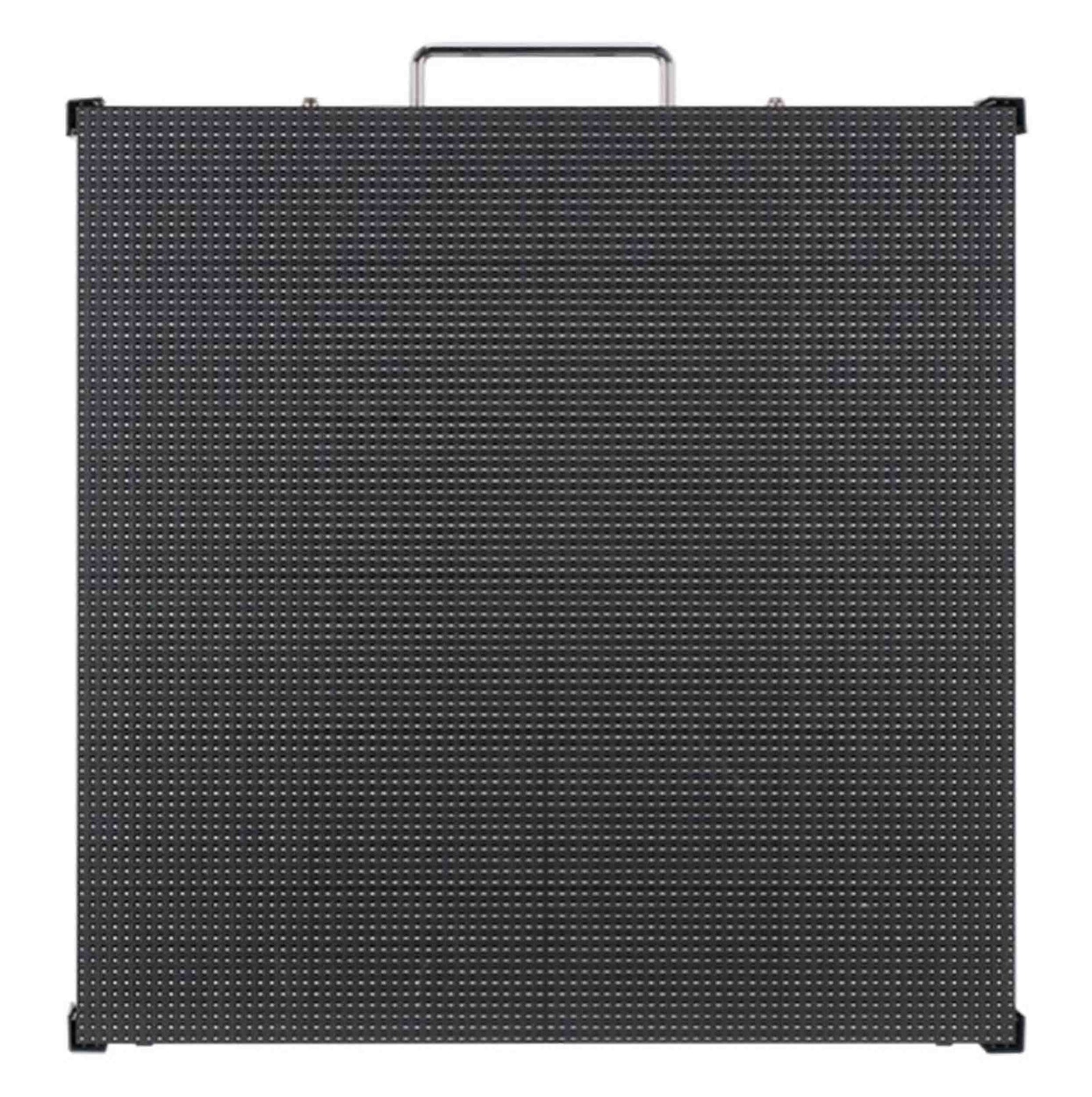

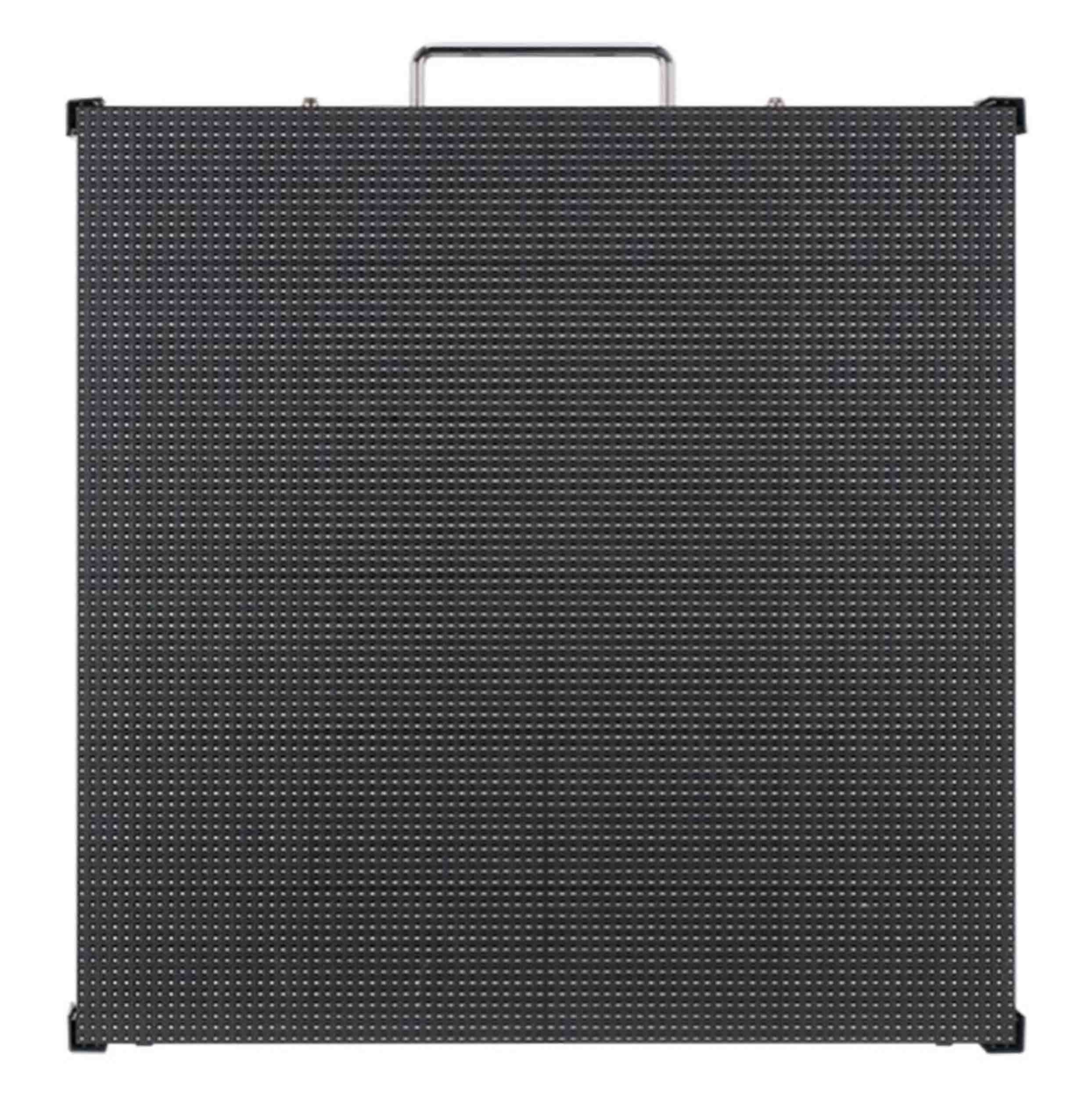

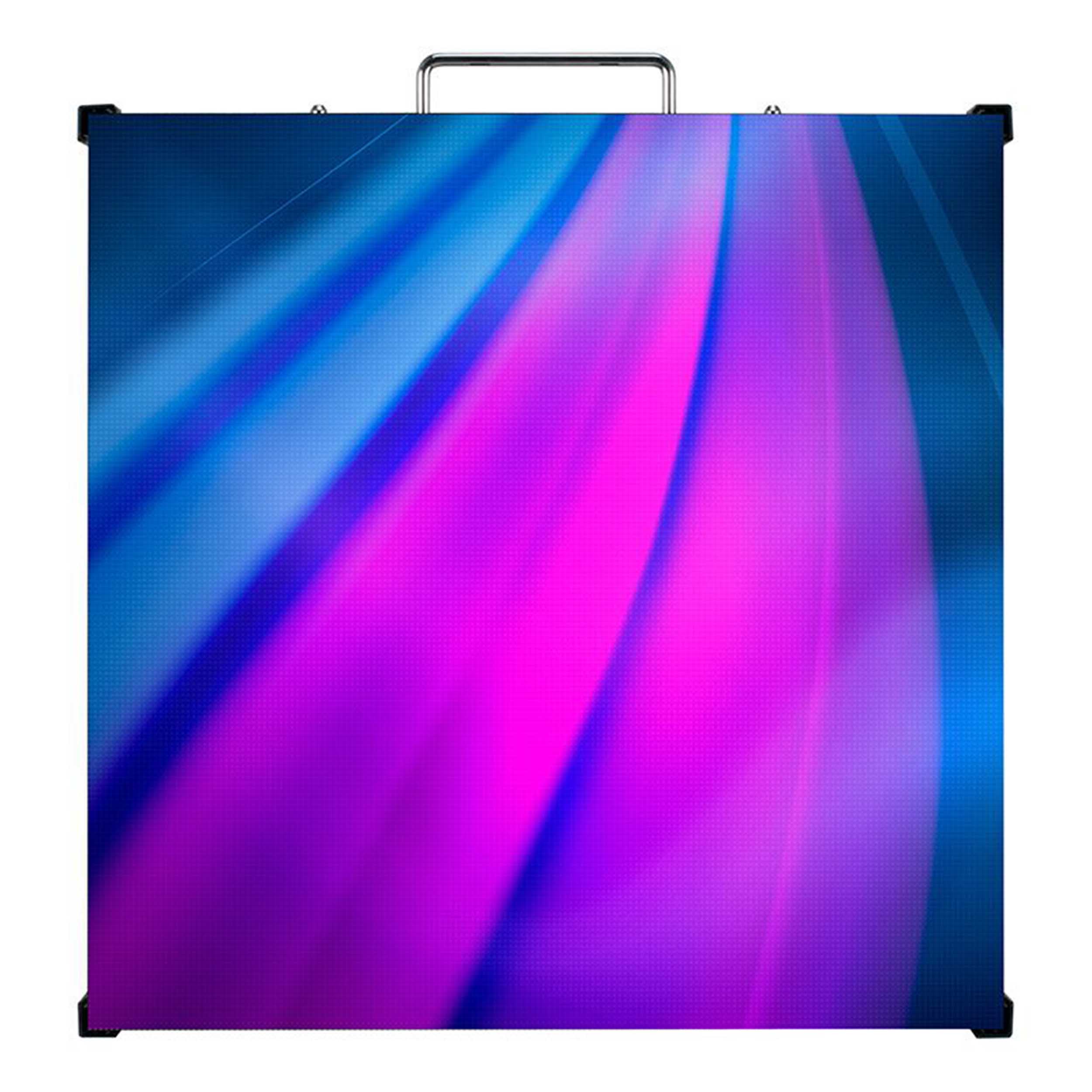

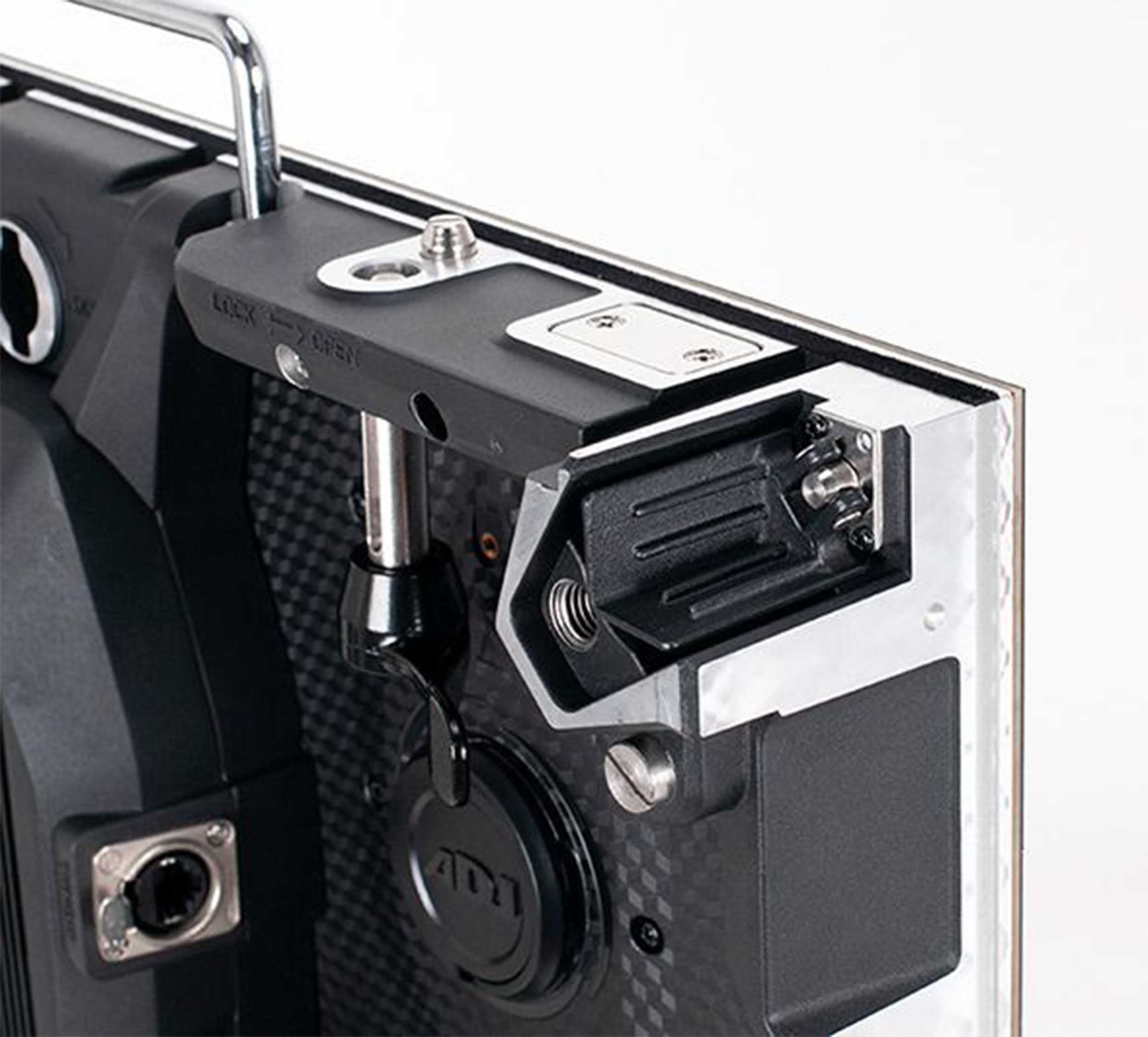

ADJ VS2, Vision Series High-Resolution Video Panel

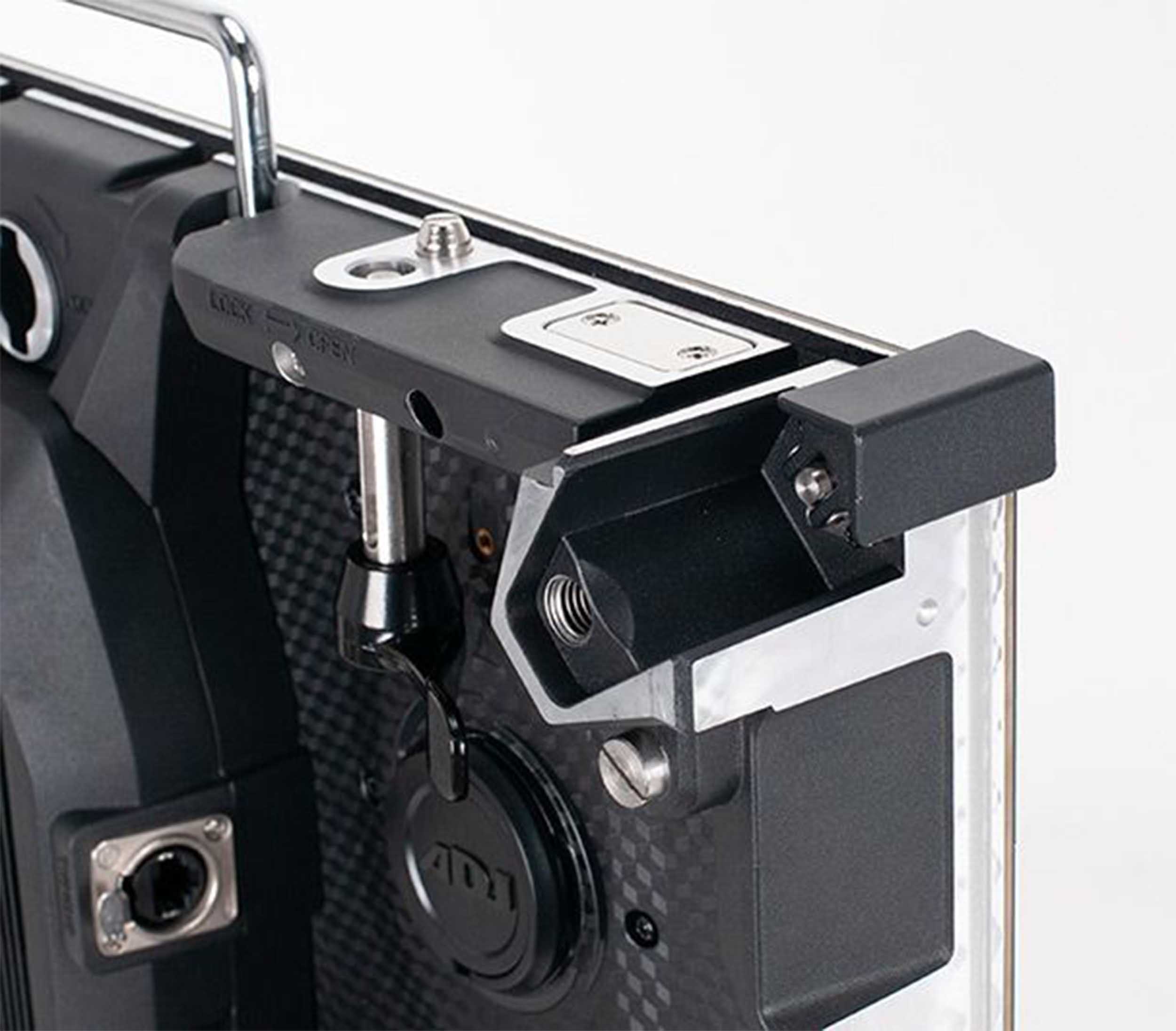

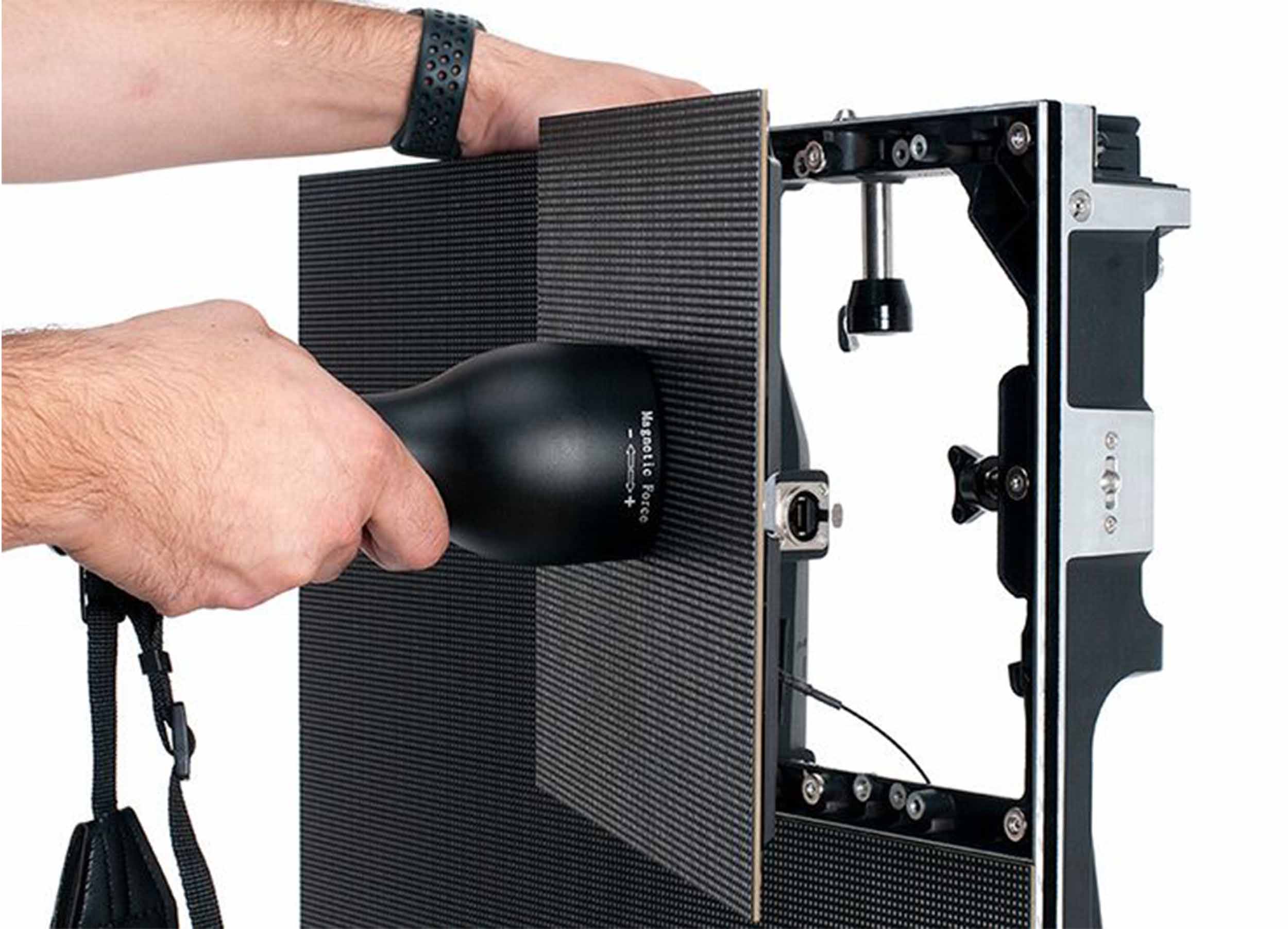

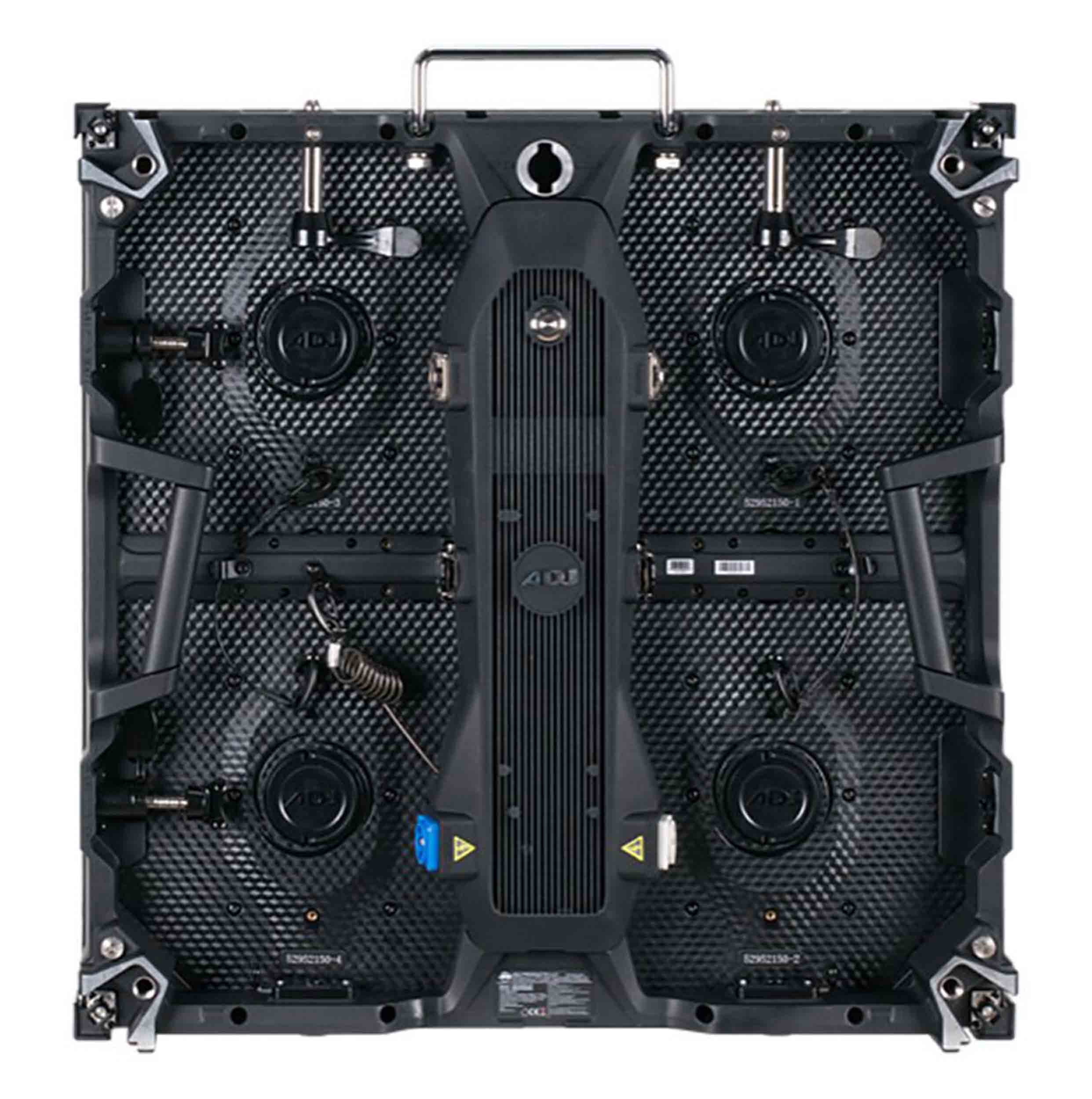

The ADJ VS2, Vision Series High-Resolution Video Panel is designed for large-scale, high-resolution video production well suited for concerts, special events, clubs, touring, and rental houses. Numerous panels can be fitted together without gaps and can scale up, allowing for the creation of jumbotron-sized panels often seen at arena events. The unit has a pixel pitch of 2.97mm, 3-in-1 RGB SMD2121 LEDs, and a brightness of 1000 nits. There are four LED modules, which allows for easy serviceability. The VS2 connections include Power Lock in/Out and Data Lock In/Out. Each panel features the NovaStar A5s receiving card built-in. Up to 8 VS2 video panels fit inside the optional VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the optional VSRB1 rigging bar.

Product Specifications:

Display Size: 19.68"

Panel Type: LCD

Resolution: 168 x 168

Maximum Brightness: 1000 nits / cd/m2

Dynamic Contrast Ratio: 5000:1

Refresh Rate: 3840 Hz

Viewing Angle (H x V): 160 x 140°

Screen Area: 19.69 x 19.69" / 500 x 500 mm

TV Tuner: No

Outputs: No

USB I/O: No

Ethernet I/O: Rear: 2x RJ45 (Unspecified Ethernet)

Built-In Speakers: No

Media Card Reader: No

Operating Temperature: -4 to 104°F / -20 to 40°C

Operating Humidity: 10 to 90%

Power Consumption:

Maximum: 170.0 W

Typical: 68.0 W

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

Power Adapter Type: Internal

Lighting Lifespan: 50000 Hours

Environmental Protection: Dust-Resistant (IP20)

Dimensions: 19.7 x 19.7 x 2.7" / 500 x 500 x 69.6 mm

Weight: 16.98 lbs / 7.7 kg

Shipping Weight: 21.43 lbs

Shipping Dimensions (LxWxH): 22.1 x 21.5 x 5.4"
