The ADJ VS3 7X4, Video Panel System features 15 ADJ VS3, 3.91 mm pixel pitch video panels, power cables, data cables, rigging bars, video processor and software.
The VS3 is a high-resolution video panel with a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS3 connections include PowerLock In/Out and DataLock In/Out. Each panel features the Novastar A5s receiving card built-in.

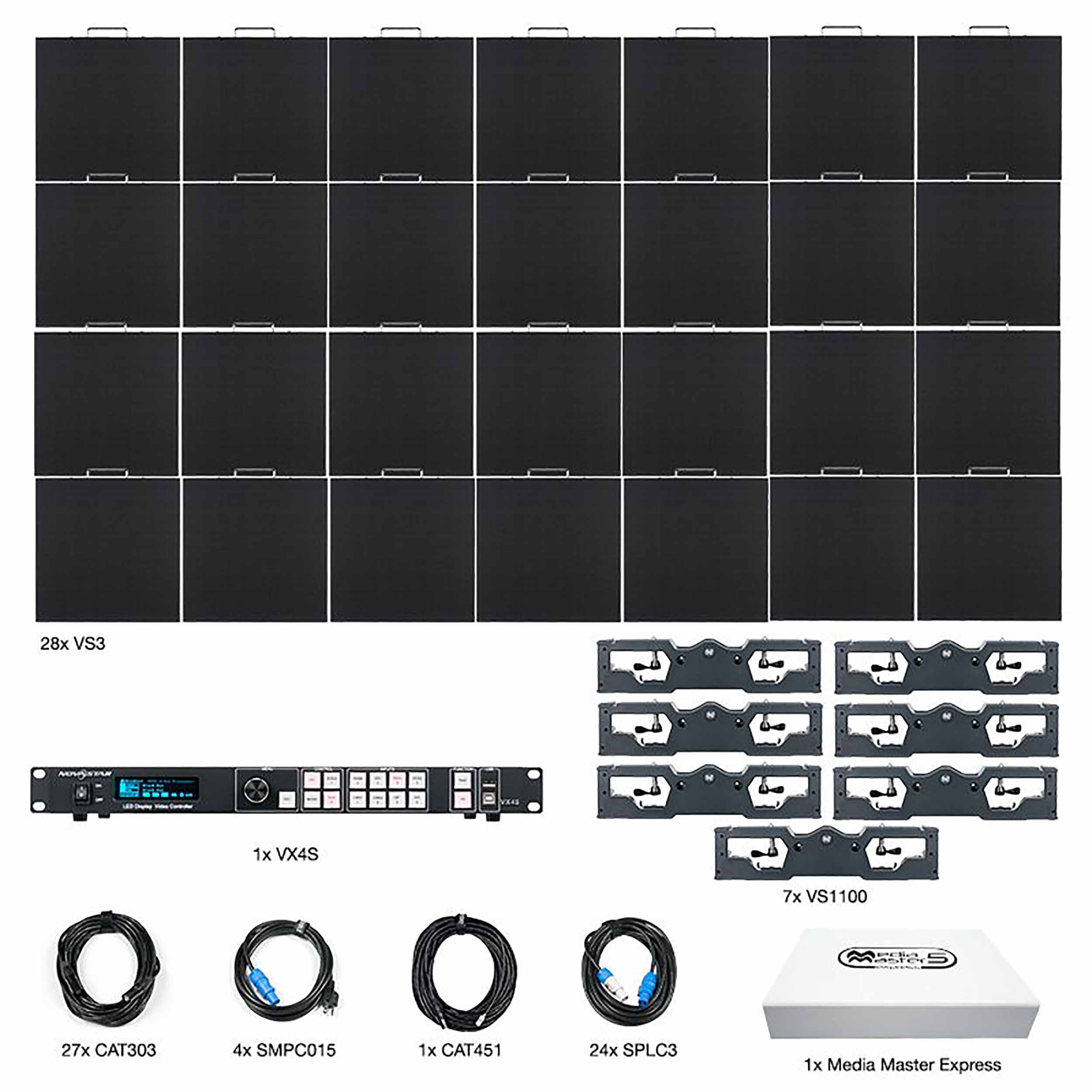

Video Panel System Includes:
28 x VS3 3.91mm Pixel Pitch Video Panels (VS3015)
27 x 3-foot Panel to Panel Data Cables (CAT303)
1 x 25-foot First Data Cable (CAT451)
24 x 3-foot Locking In/Out Power Cables (SPL013)
4 x 15-foot Locking In/Out Main Cables (SMP027)
1 x Novastar VX4S Video Processor (VX40001)
1 x ArKaos Media Master Express Software
7 x VSRB1 Vision Series Rigging Bars (VS1100)
Product Specifications:
VS3:
Pixel Pitch: 3.91mm
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 128x128; 65536 per square meter
Module Quantity: 4
Front and rear serviceable: 4 easy to replace video modules on each panel
Magnets: on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
Mechanical Ratings, Surface Flatness: gaps <0.5mm
Optical Ratings:
Brightness: 1000 NITS
View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
Gray Scale: ≥14-bit
Display Color: 256
Brightness Adjustment: 0~100% 100 Levels
Contrast ratio: 5000:1
Processing: 14-bit
Power Supply:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 170W/per panel
Ave. Power Consumption: 68W/per panel
Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
Control System:
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-75Hz
Scan Mode: 1/16
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable <120m or Fiber Optic>120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet
Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate: <0.02%
Weight: 17 pounds
Dimensions: 19.68" x 19.68" x 2.74"
Novastar VX4S:
Input Resolution: up to 1920 x 1200 p @60Hz input resolution
Electrical:
Max Power Consumption: 16W
AC 100-240V - 50/60Hz - 0.65A
Control/Connections:
(1) RJ45 LAN for IP Based Control
(4) RJ45 Outputs for up to 2.6 million Pixels of LED Control
(2) USB Type A and (2) USB Type B Ports (1 set on each side)
(1) 1/8-inch (3.5mm) Audio Input
Video Input: (1) DP / (1) HDMI / (2) VGA / (1) DVI / (2) CVBS / (1) SDI
Video Output: (1) DVI Loop / (1) DVI / (1) VGA / (1) SDI Loop
Locking IEC Power Input
Weight: 5.6 pounds
Dimensions (LxWxH): 19" x 10.8" x 1.8"
VSRB1:
Weight: 10 pounds
Dimensions (LxWxH): 19.6" x 3" x 4.75"
