Description
The ADJ VS3 9X5, Video Panel System is a comprehensive package designed for professional video display applications. This system features 45 ADJ VS3 video panels with a 3.91mm pixel pitch, ensuring sharp and clear visuals. It includes all necessary power cables, data cables, rigging bars, a video processor, and software, providing an all-in-one solution for high-quality video setups. ADJ's Vision Series video panels offer excellent LED binning and bright, clear output, with both front and rear serviceable designs for easy maintenance.

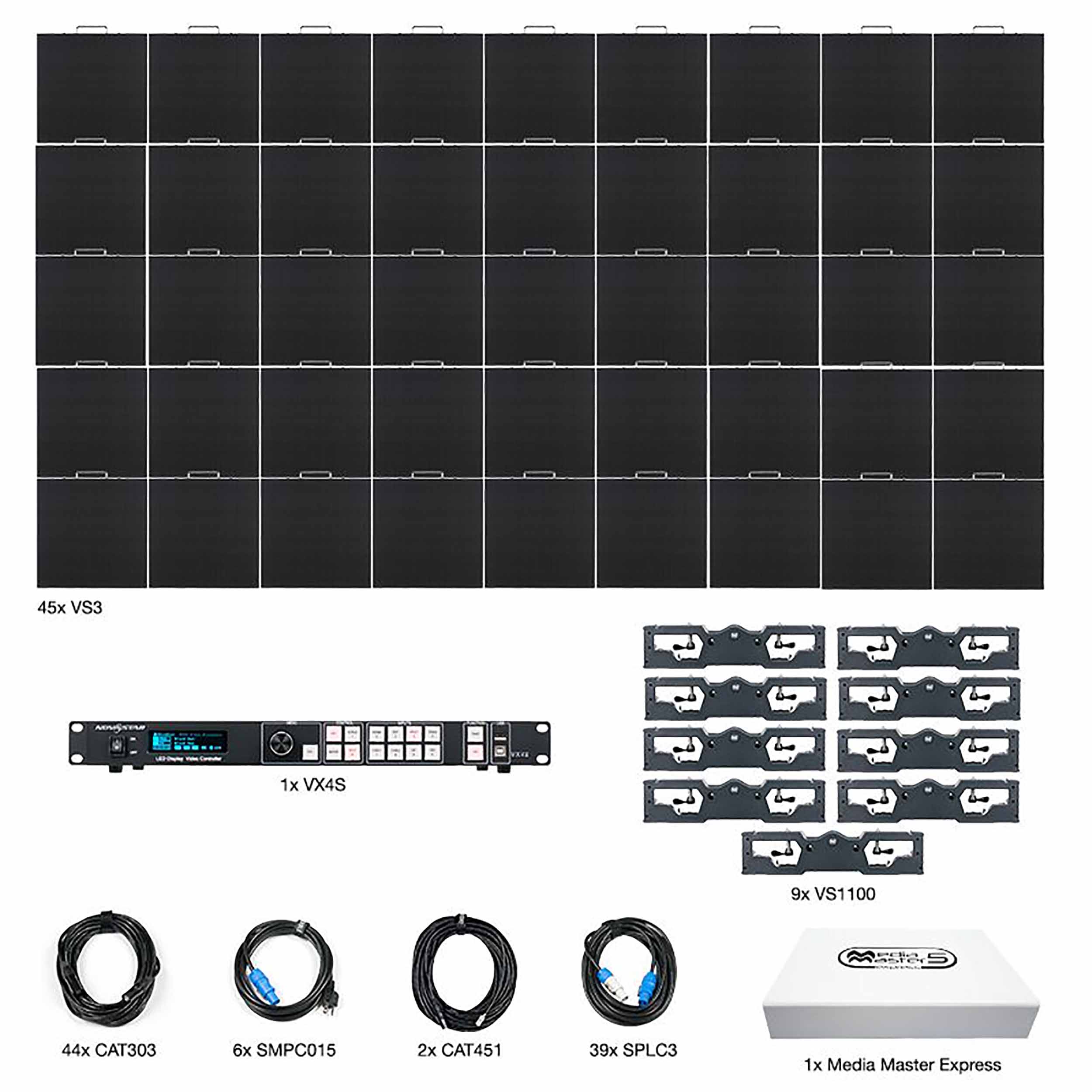

Video Panel System Includes:
45 x VS3 3.91mm Pixel Pitch Video Panels (VS3015)
44 x 3-foot Panel to Panel Data Cables (CAT303)
1 x 25-foot First Data Cable (CAT451)
39 x 3-foot Locking In/Out Power Cables (SPL013)
6 x 15-foot Locking In/Out Main Cables (SMP027)
1 x Novastar VX4S Video Processor (VX40001)
1 x ArKaos Media Master Express Software
9 x VSRB1 Vision Series Rigging Bars (VS1100)
Product Specifications:
Mechanical Ratings:
Surface Flatness: Gaps<0.5mm
Optical Ratings:
Brightness: 1000 NITS
View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
Gray Scale: ≥14-bit
Display Color: 256
Brightness Adjustment: 0~100% 100 Levels
Contrast ratio: 5000:1
Processing: 14-bit
Power Supply:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 170W/per panel
Ave. Power Consumption: 68W/per panel
Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
Control System:
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-75Hz
Scan Mode: 1/16
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable <120m or Fiber Optic>120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet
Environmental:
Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate: <0.02%
Listings: cETLus (Pending)
Optional Accessories:
VSFC8 (VS8100): Flight Case – Fits 8 VS Series Video Panels
VSRB1 (VS1100): Rigging Bar – Hang up to 20 VS Series Video Panels vertically
VSMRT (VSM111): Module Removal tool - Magnetically assists the tech in removing modules from the front side when servicing.
VSRQR (VSM210): Quick Rig - Attaches and locks on to the rear of any Vision series panel so it can be fastened to a 2" pipe or truss
VS1RSB (VS1126) Rear Support Bracket for VS Series Panels
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Novastar Nova Pro HD: Video Processor
Arkaos Media Master: Video Software
Arkaos GrandVJ 2.0: Video Software
Cables:
Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
Power Locking Link Cables
Power Locking Main Power Cables
Certifications:
cETLus approved (Control #5015975)
